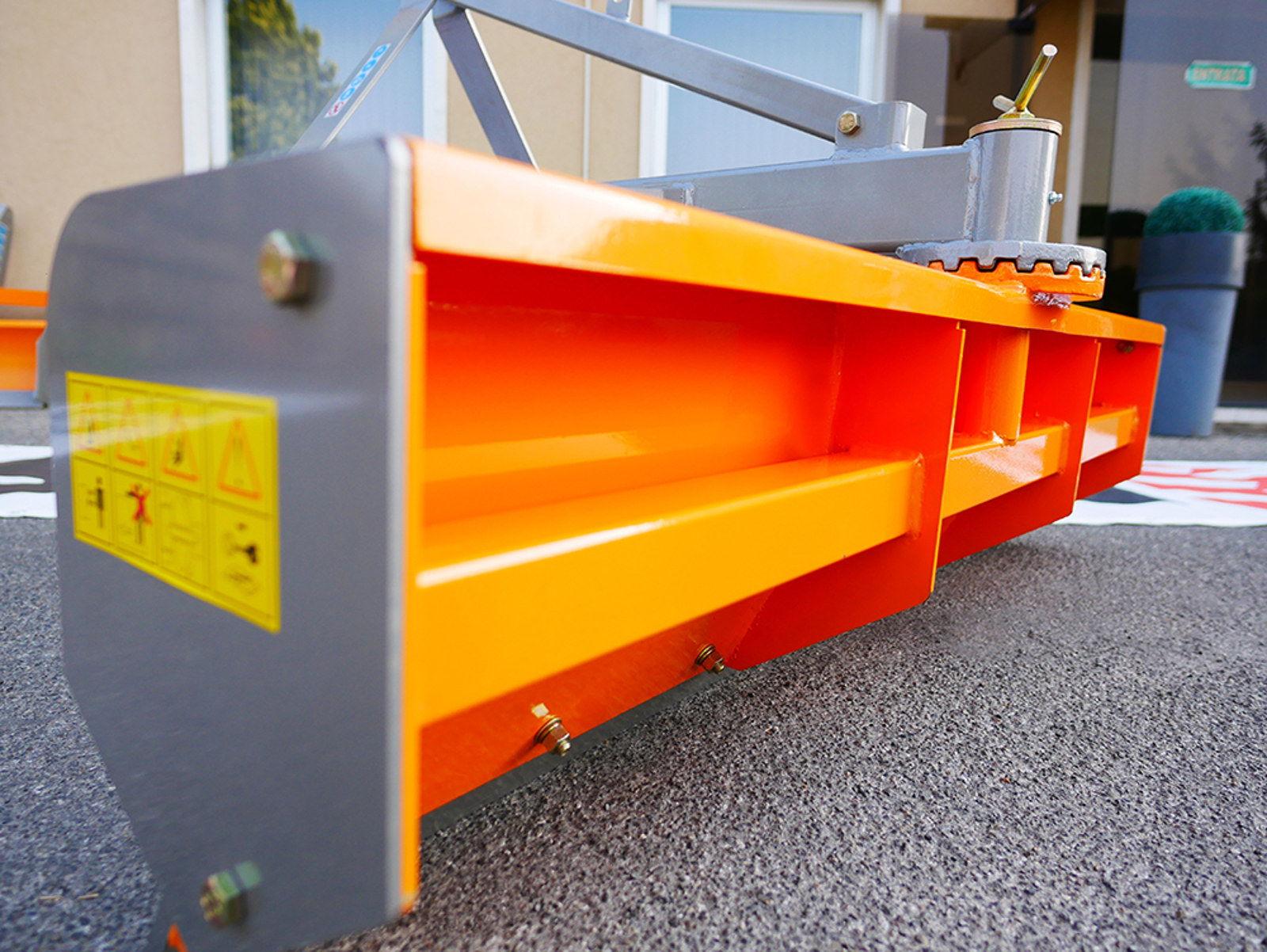

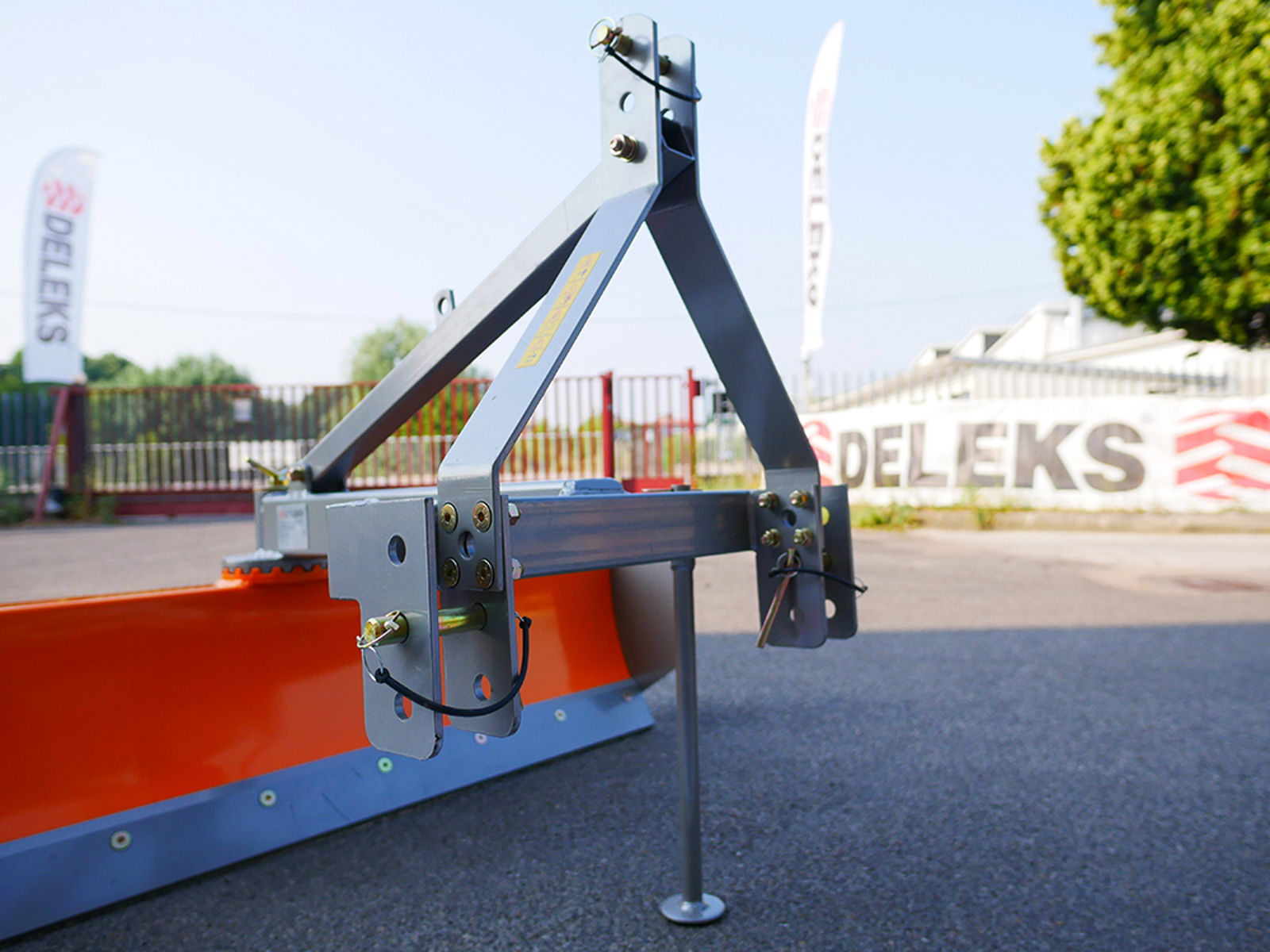

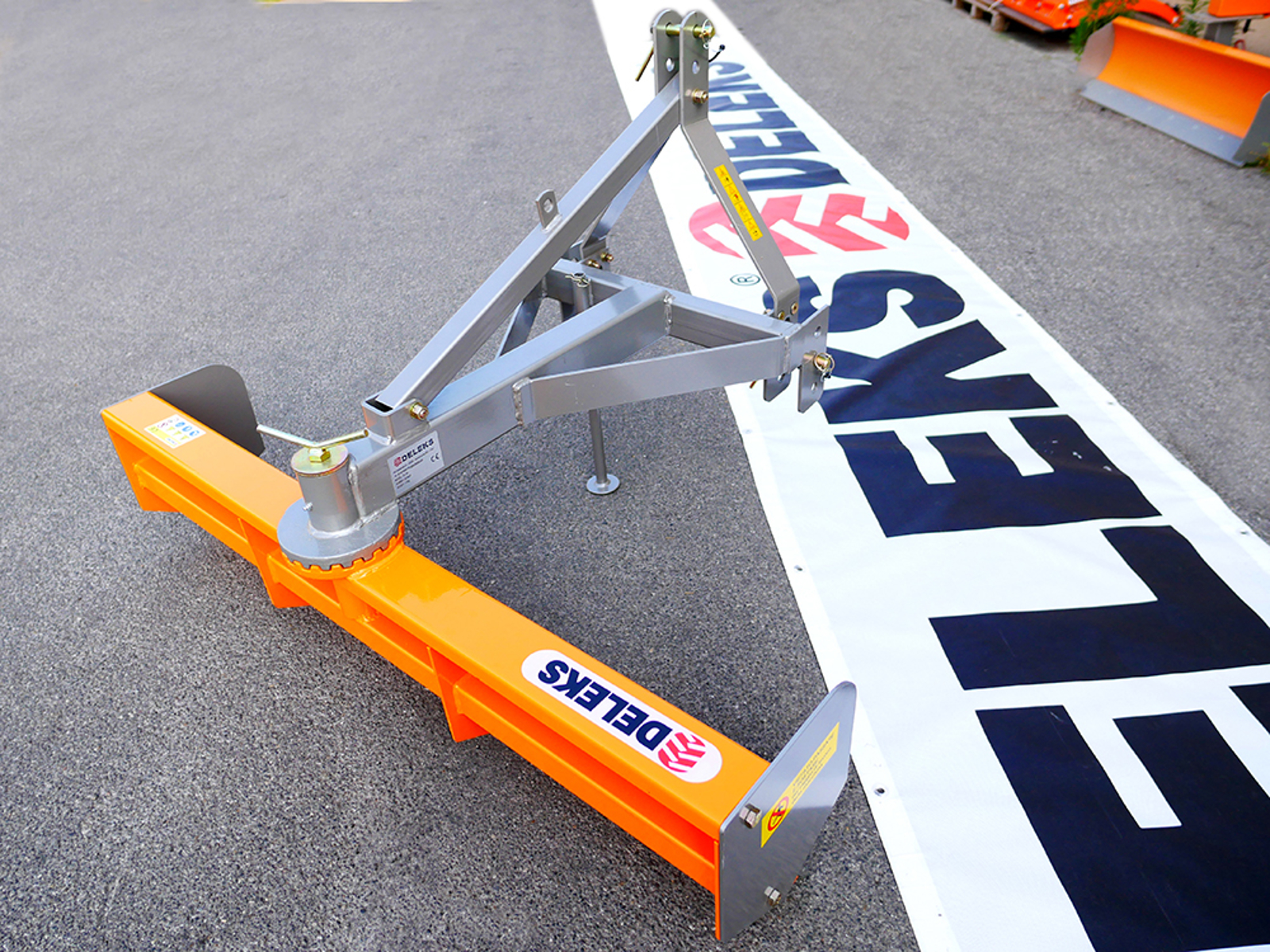

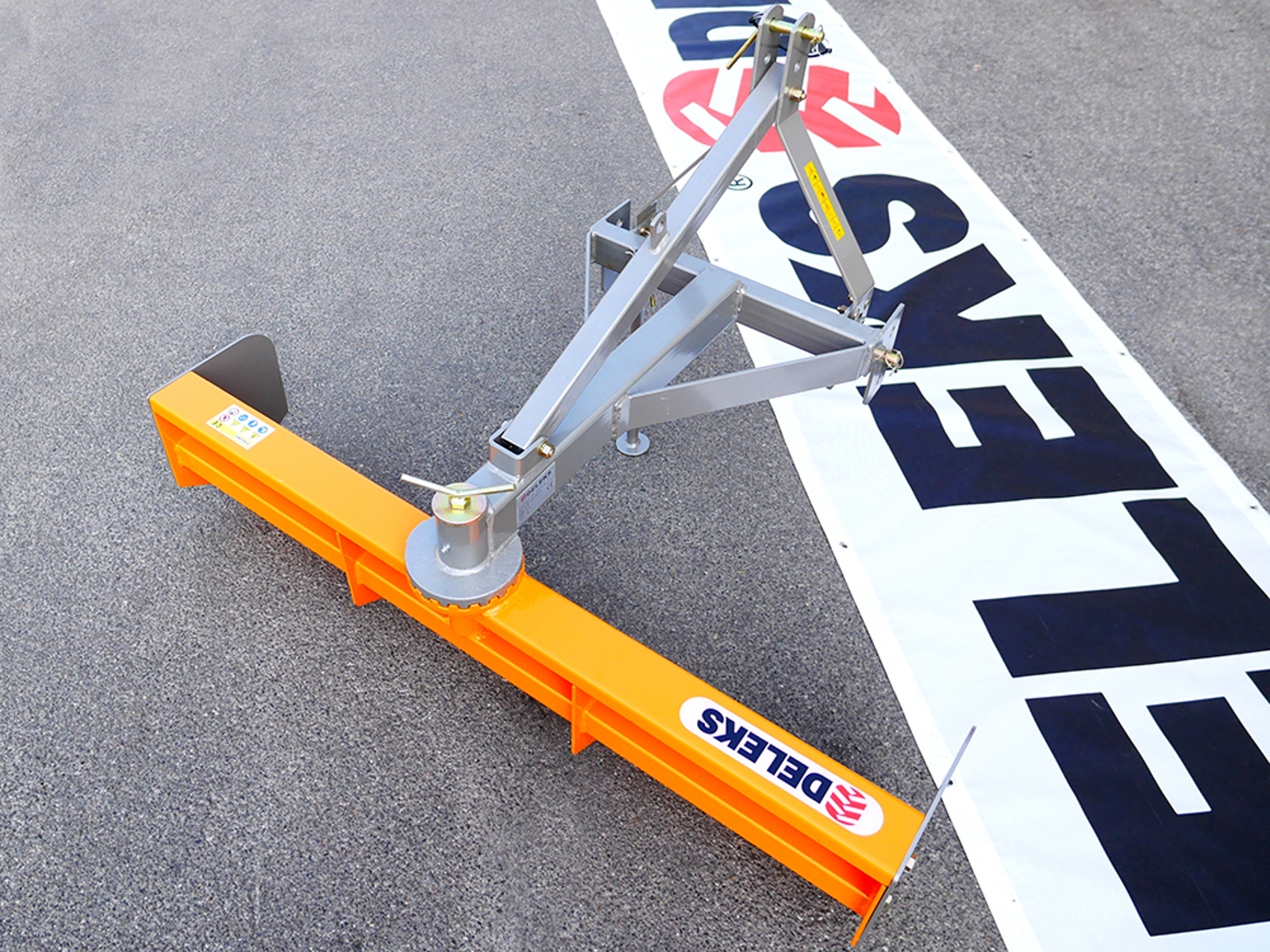

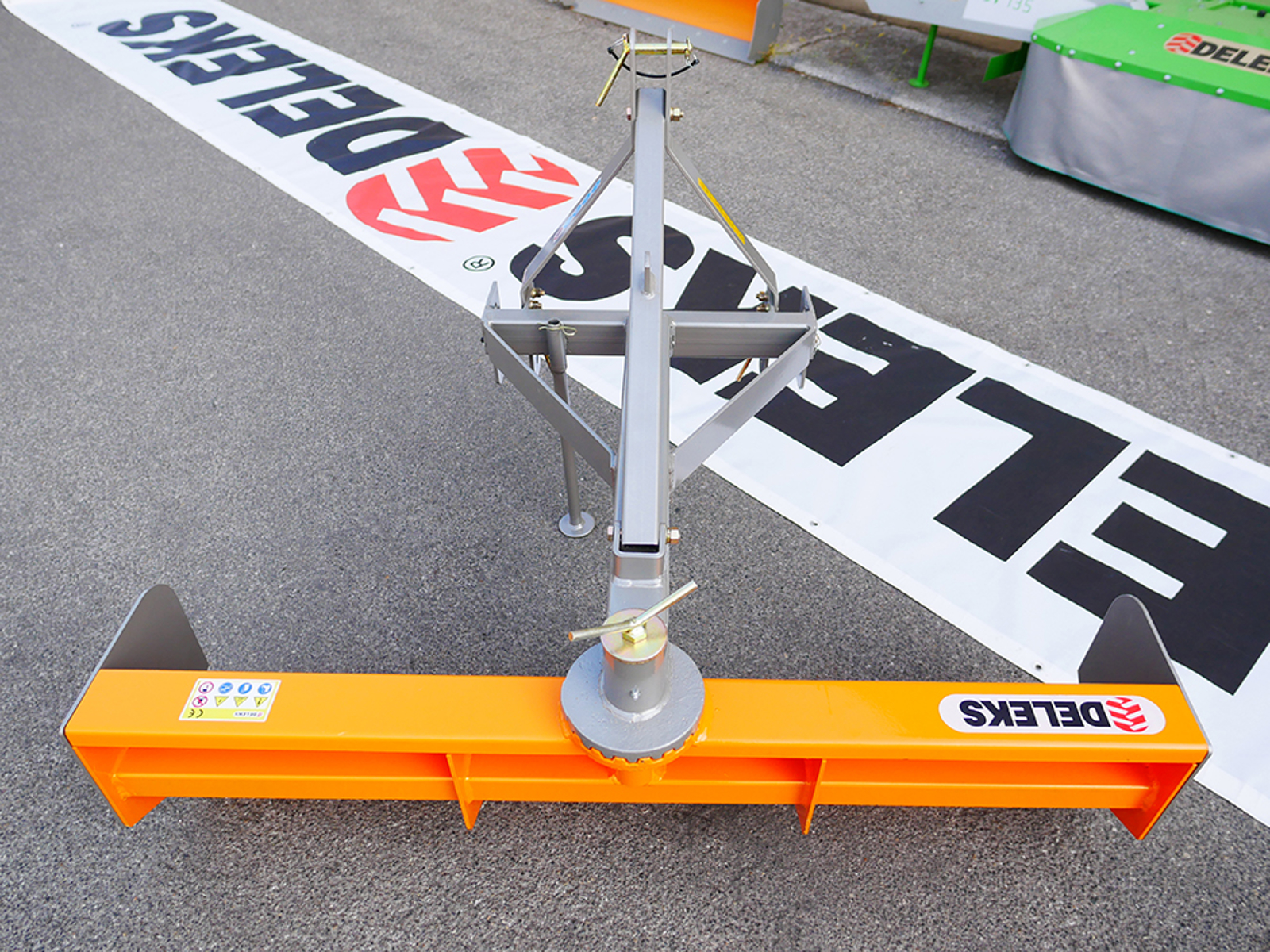

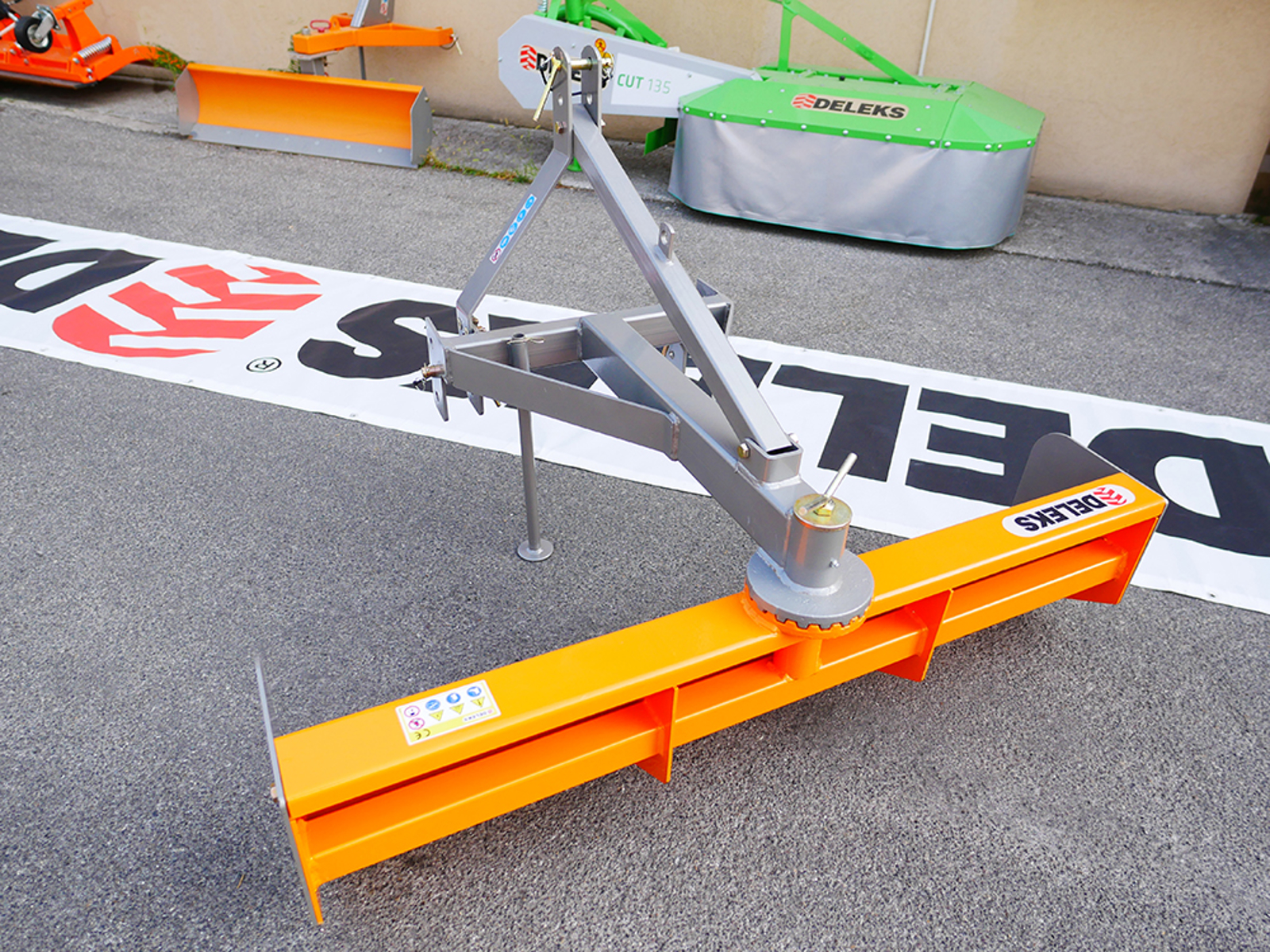

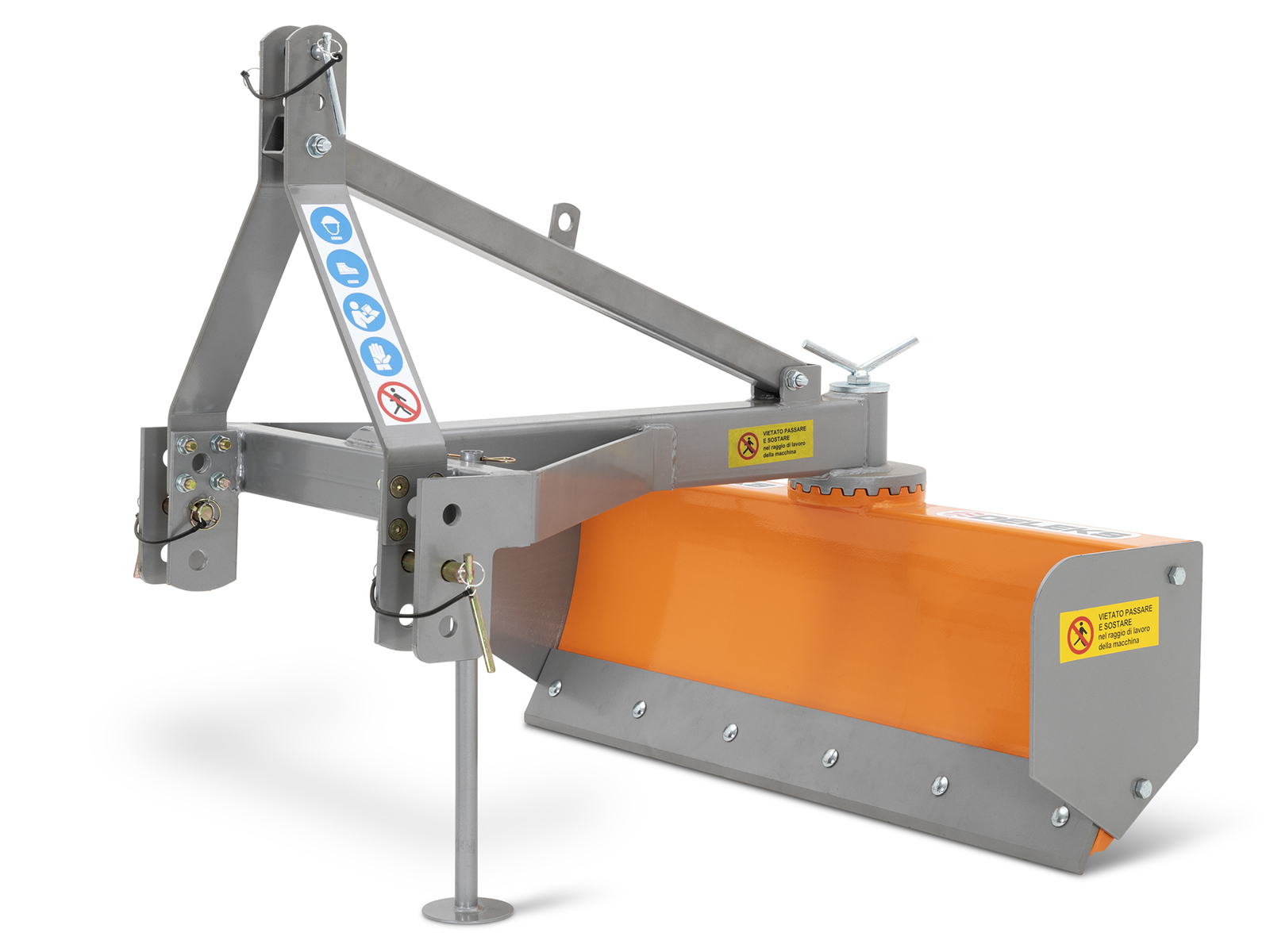

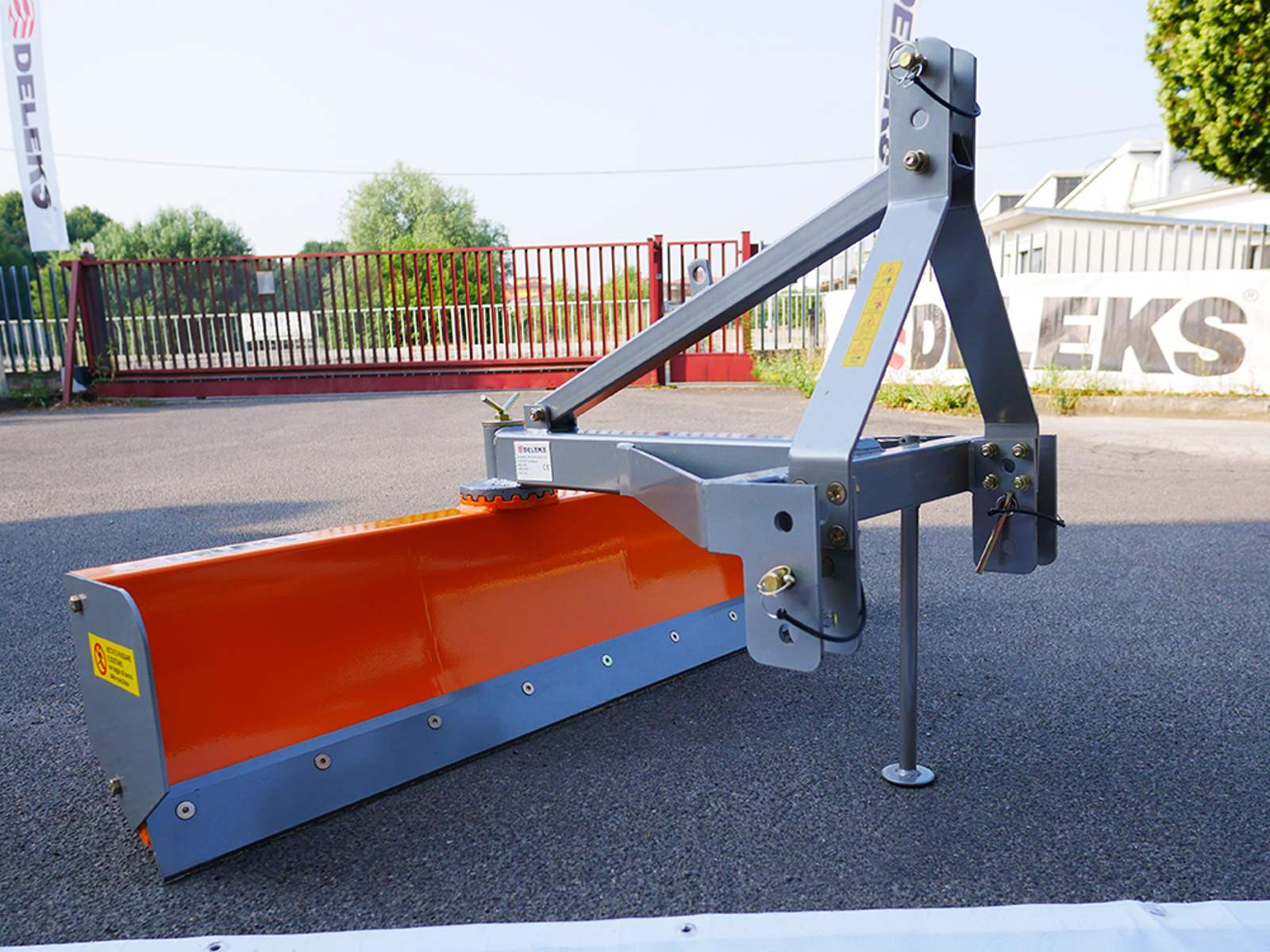

Grader Blade 110cm/105kg For lawn tractors - DELEKS® - Rear blade dirt and snow removal.
OVERVIEW
Rear grader blade complete with lateral guards for dragging the material to be leveled.
Designed for dependable performance on tough jobs.
Great for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand and more.

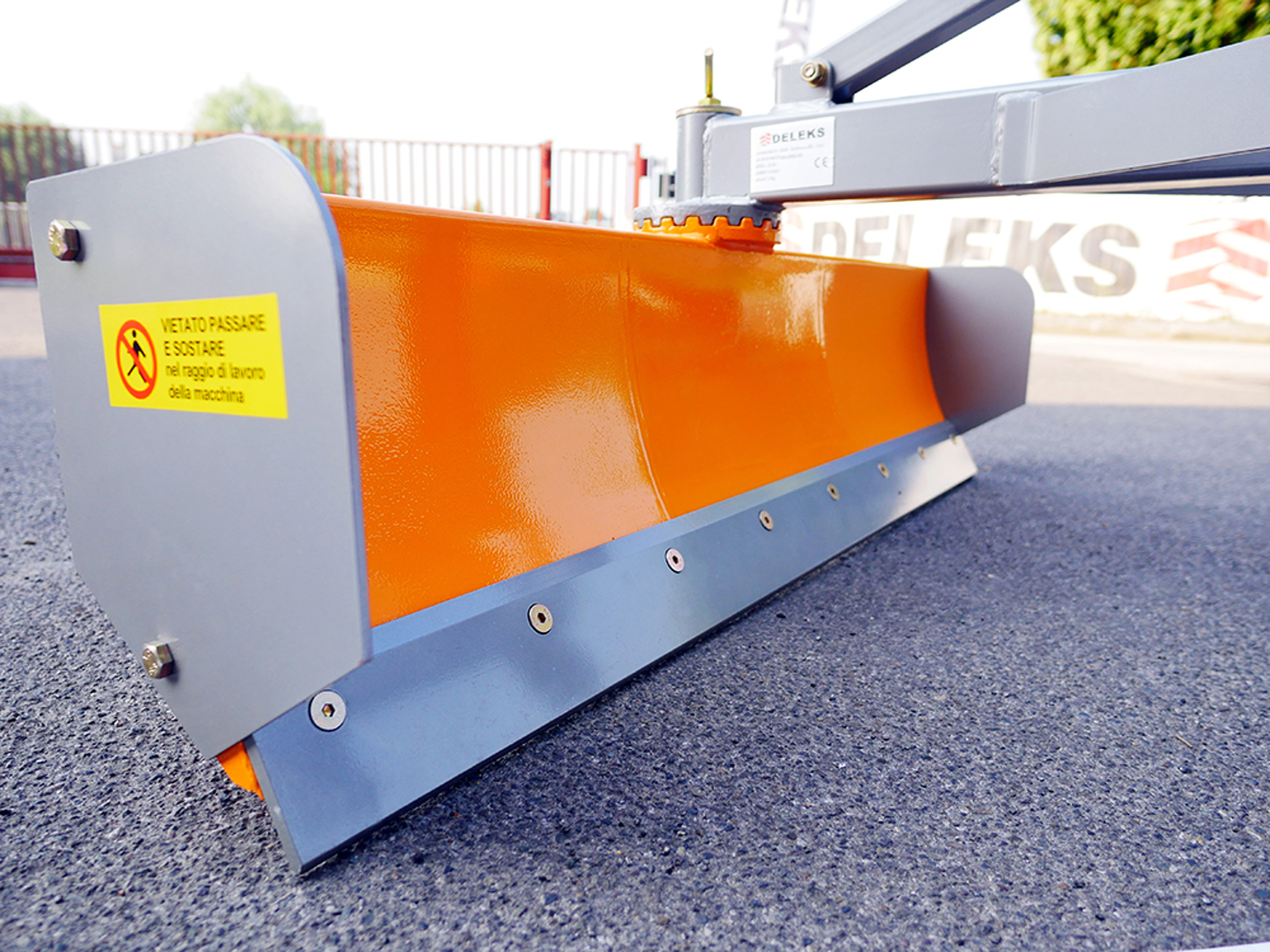

Cutting blade reversible and replaceable.
BENEFITS & FEATURES
Light and narrow structure, suitable on compact tractors.

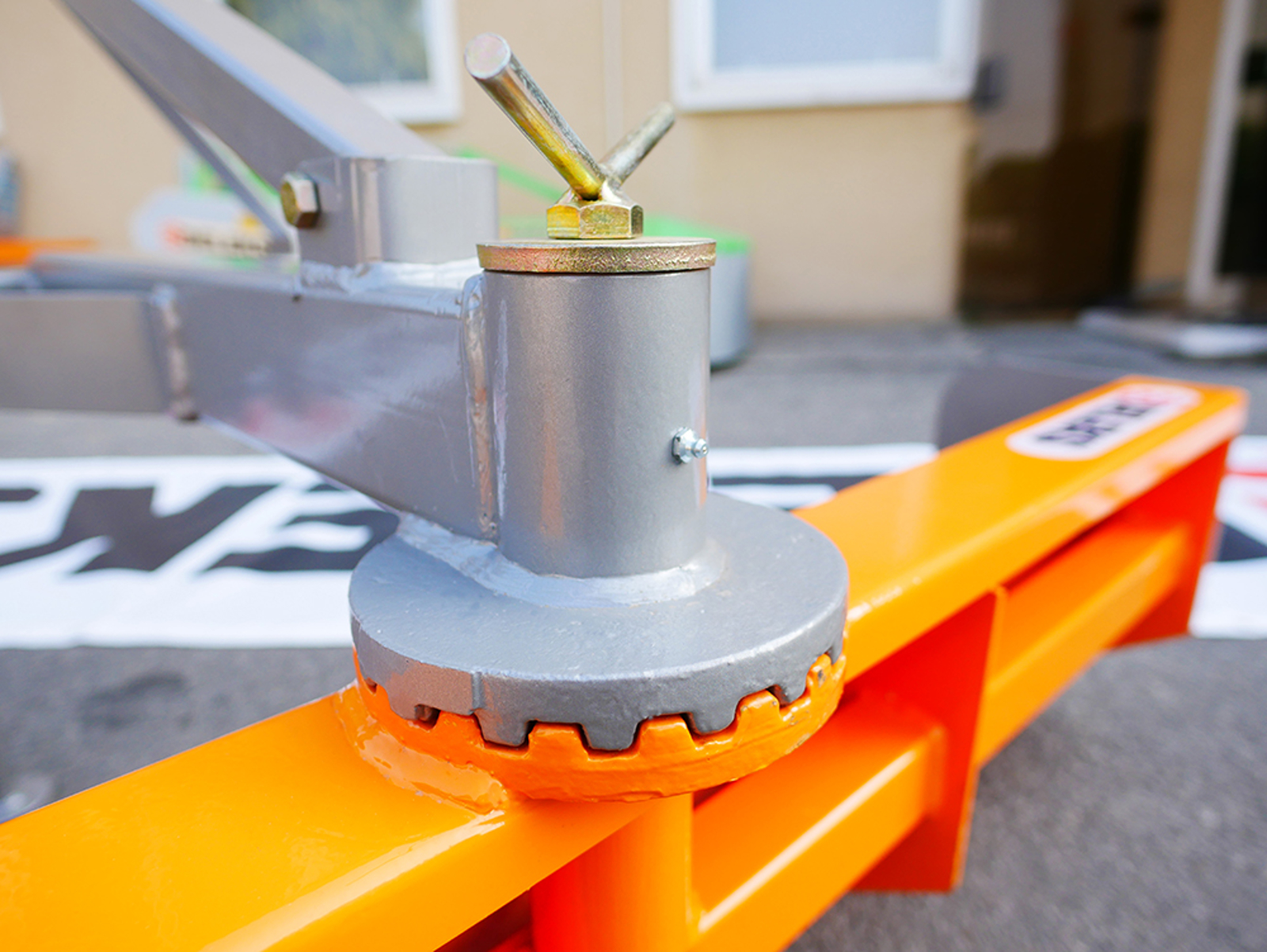

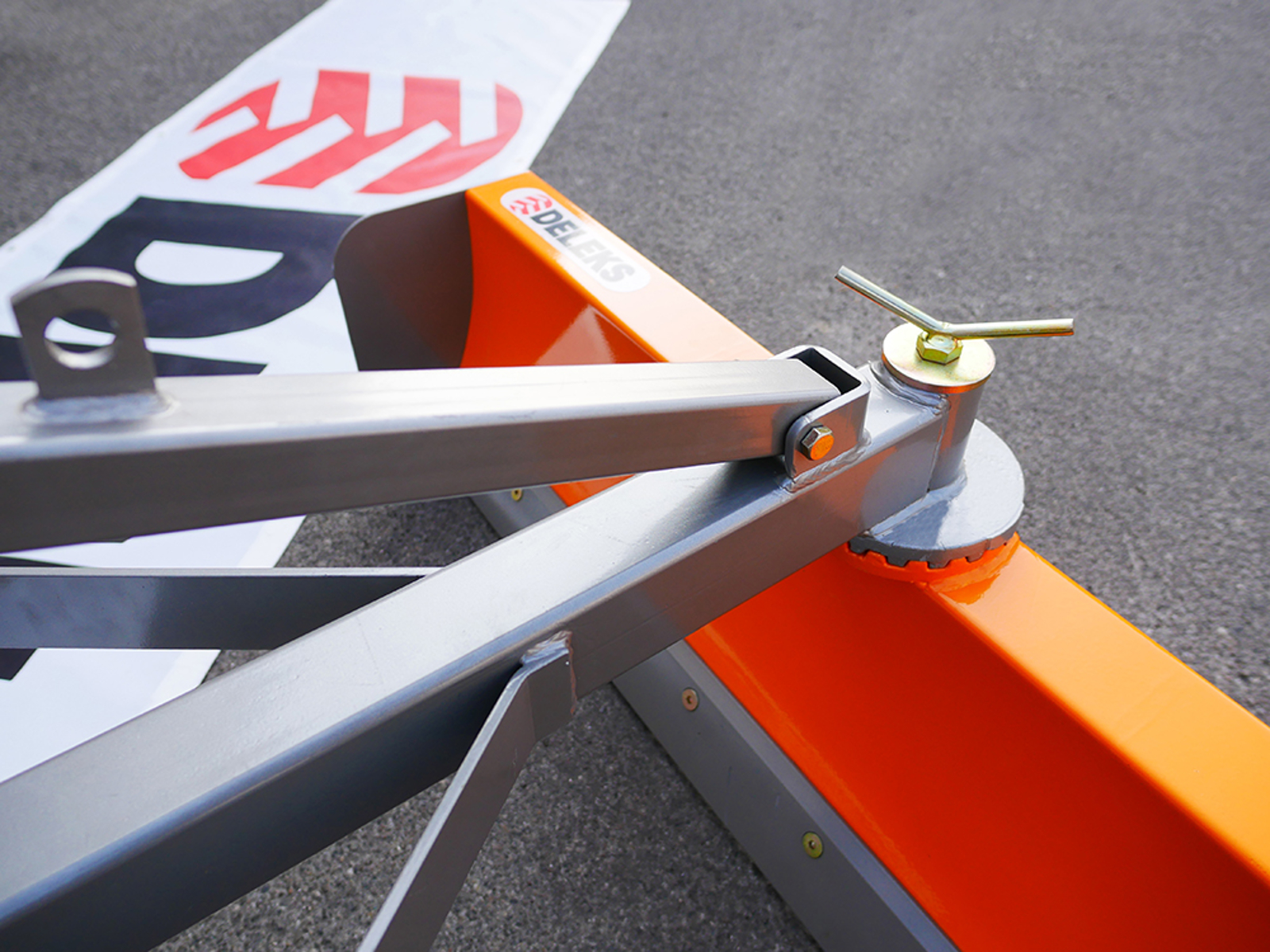

360º rotation blade for front and rear use.
Eliminates washboarding when using for road work.
Clear pathways easily in snowy conditions to reduce downtime.

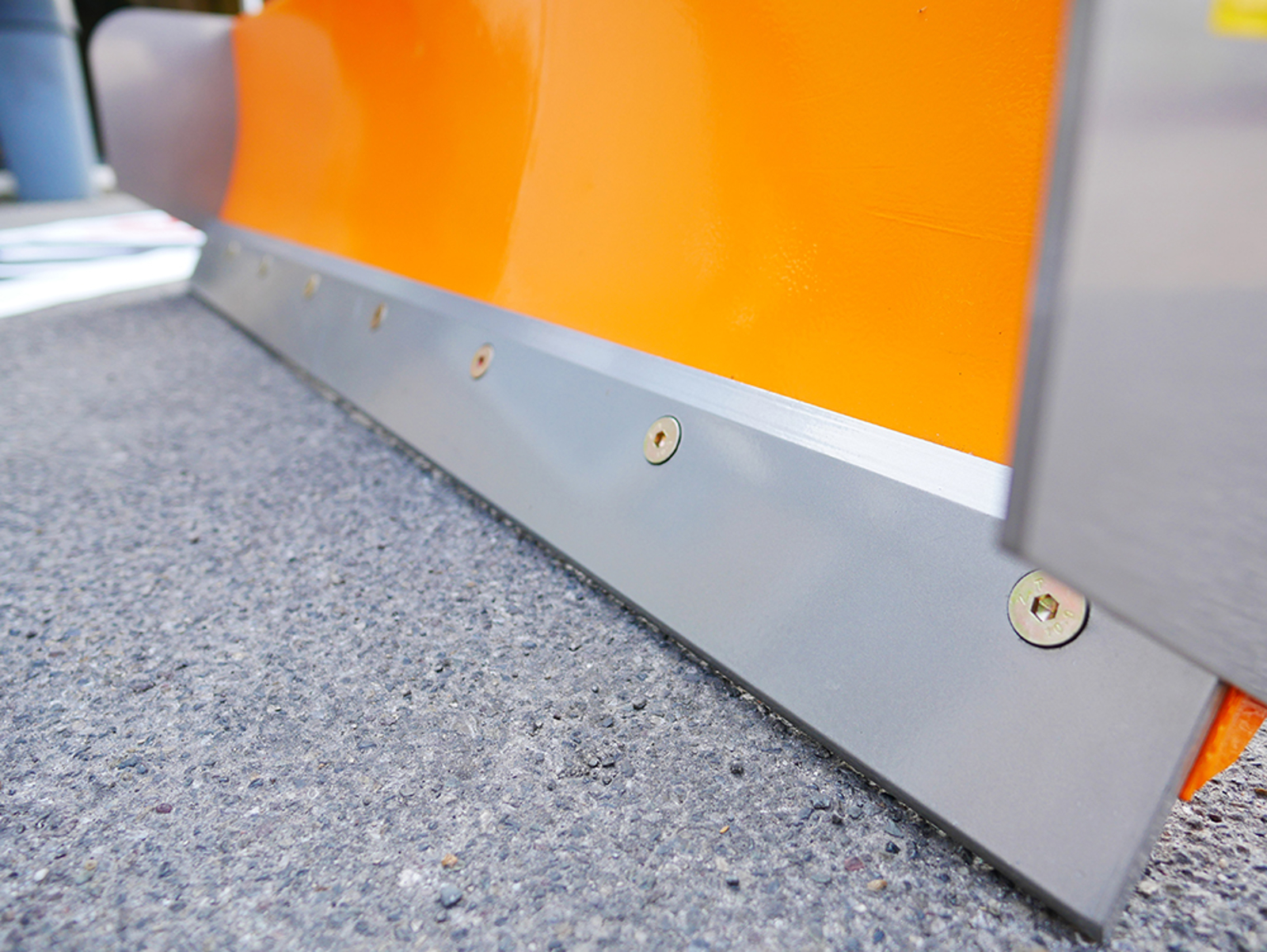

Interchangeable steel cutting edge can be changed in minutes without special tooling.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 1100.0 mm |
| Weight | 105.0 kg |
| Overall height | 1000.0 mm |
| Tractor Power Range | 12 - 35 Hp |

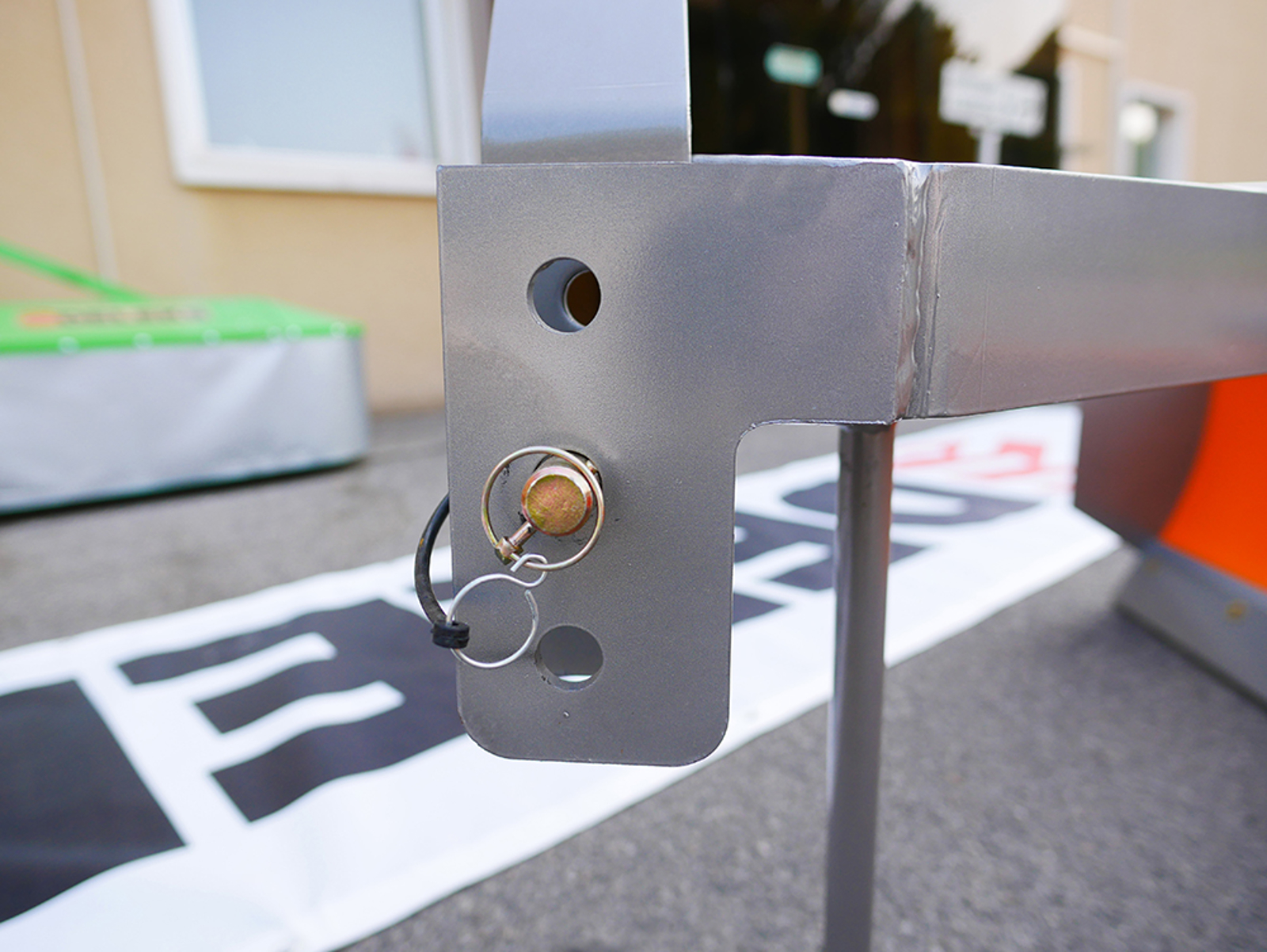

| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 500.0 - 610.0 mm |
| Distance between the 2 lower points and ground | 365.0 - 425.0 - 485.0 mm |
| Blade Height | 400.0 mm |
| Cutting Edge | Steel |
| Cutting Edge Height | 120.0 mm |
| Cutting Edge Thickness | 13.0 mm |
| Trip Edge Quantity | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Rotation of the blade | 360° |
| Main frame thickness (yellow) | 4.0 mm |

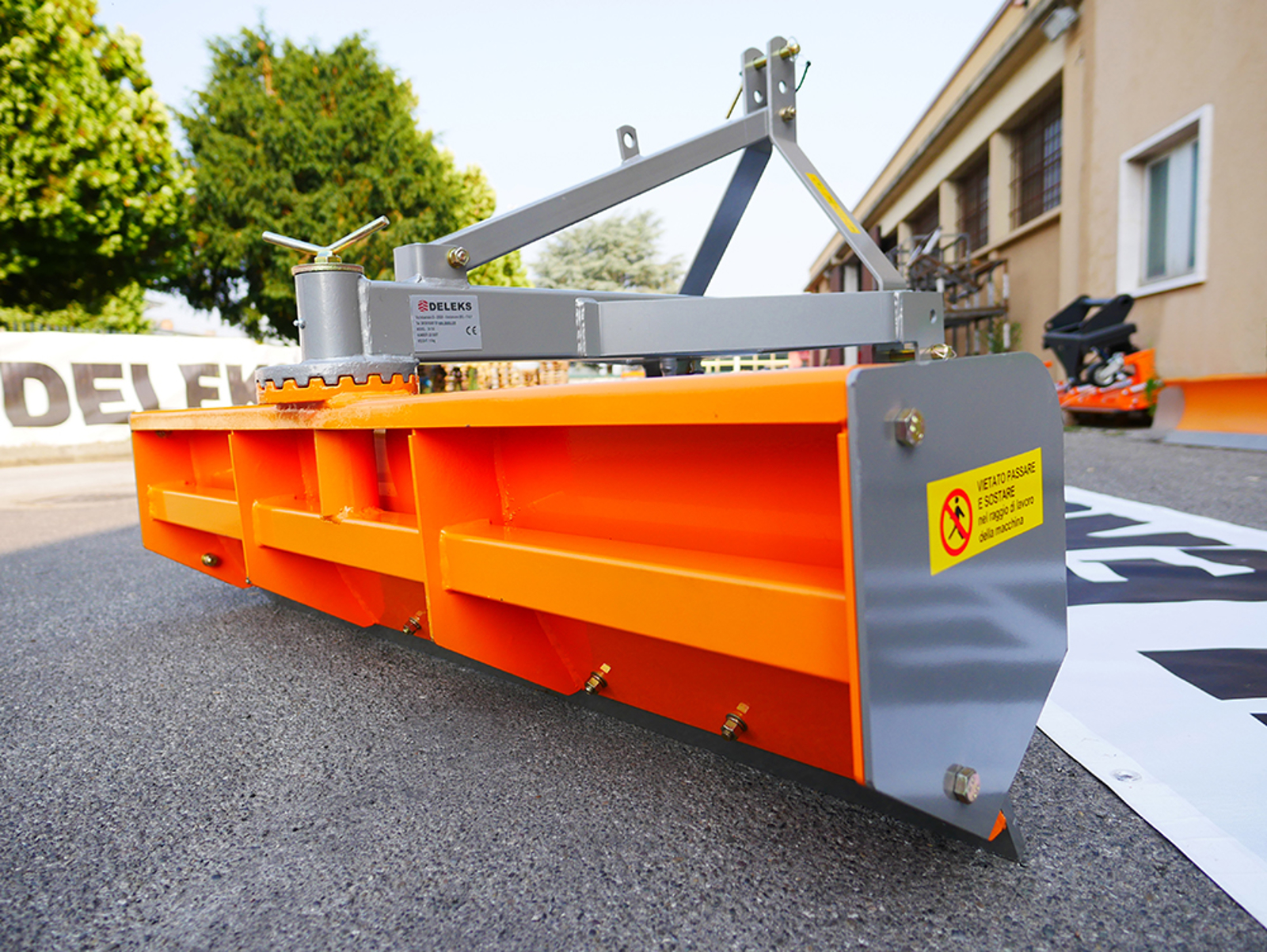

| Sides | Removable |
| Orientation of the arm | x |
| Sides thickness | 6.0 mm |
| Packing sizes | 1200.0*800.0*500.0 mm |
