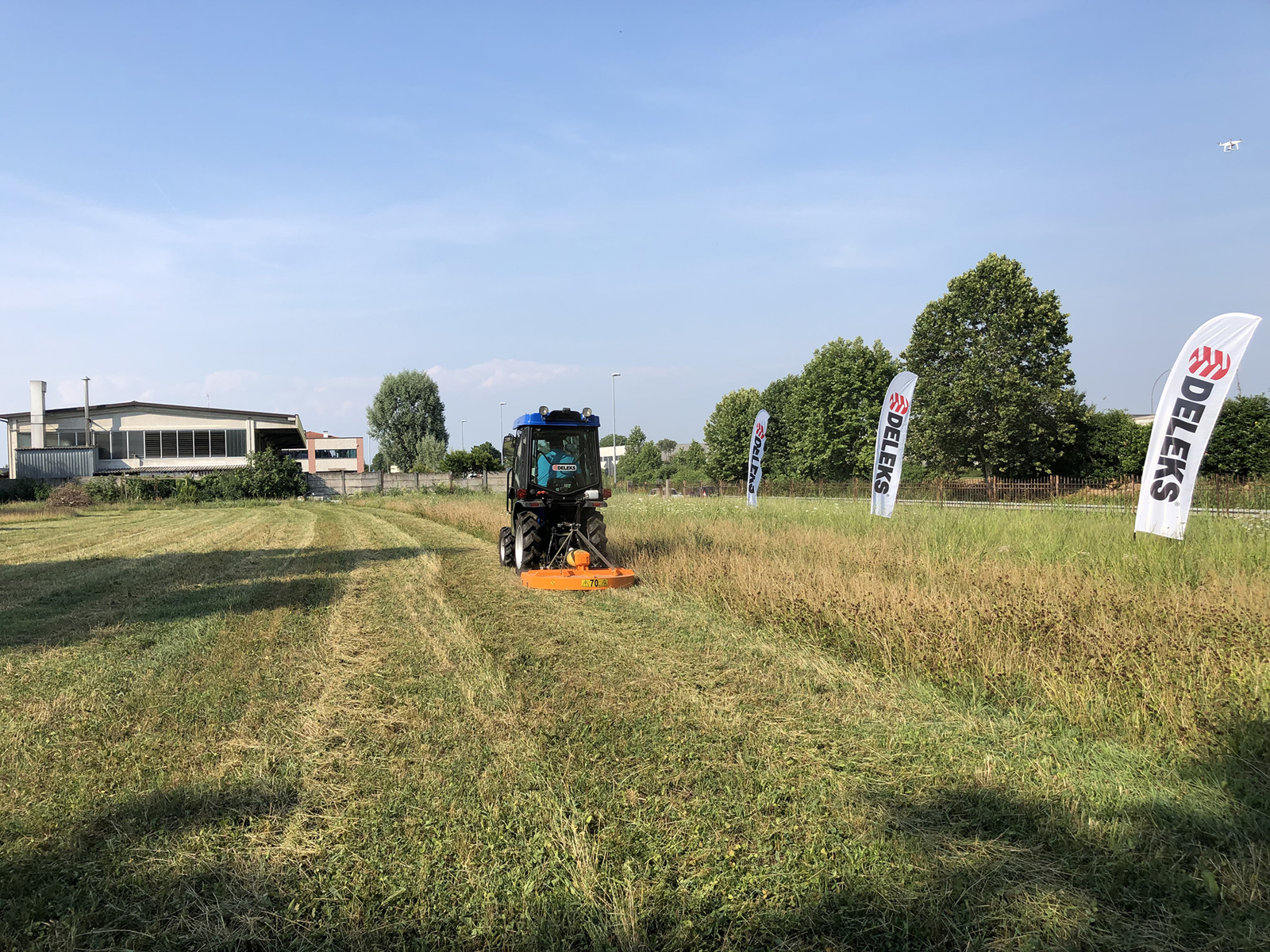

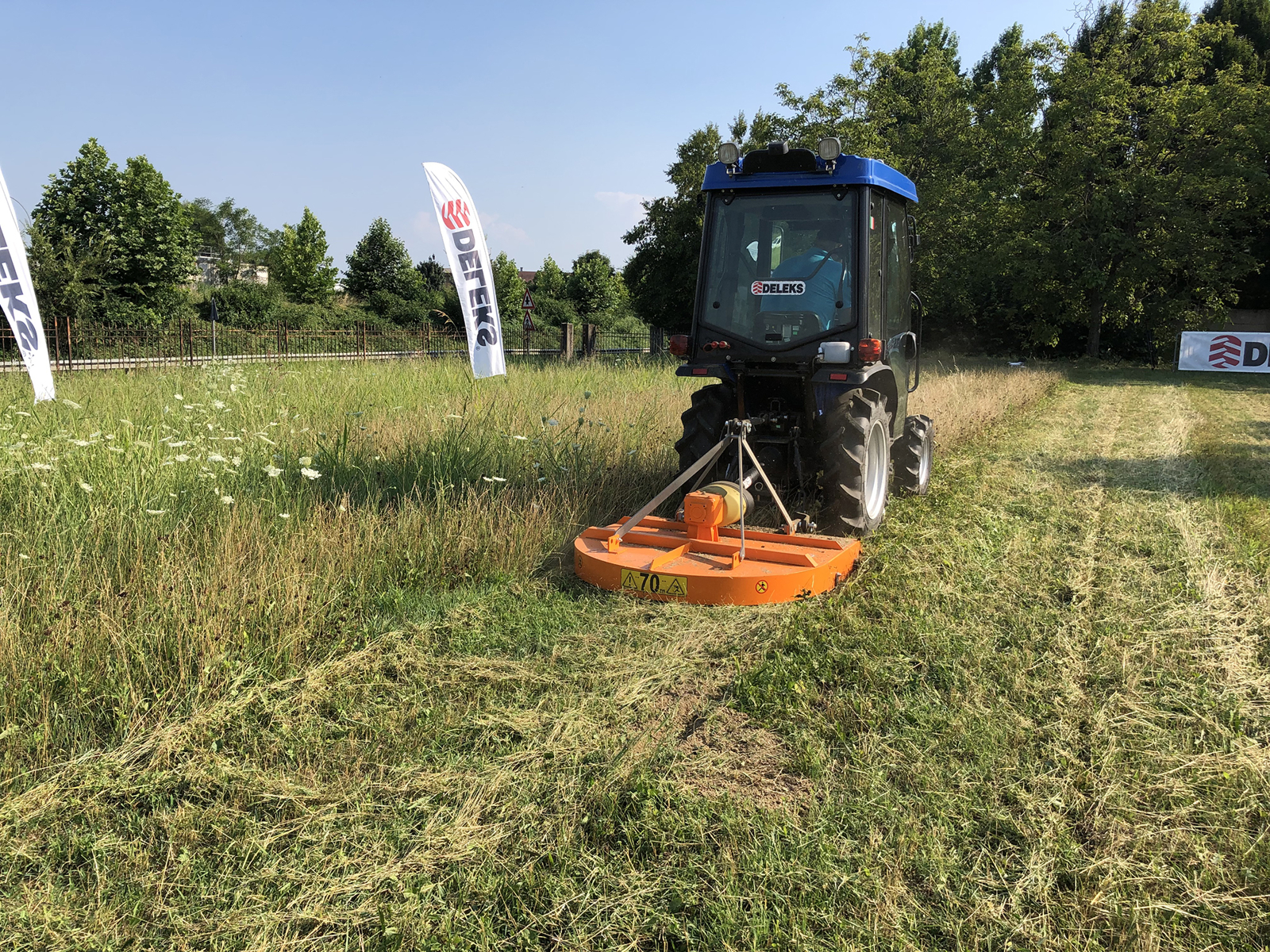

Field test
DETAILS

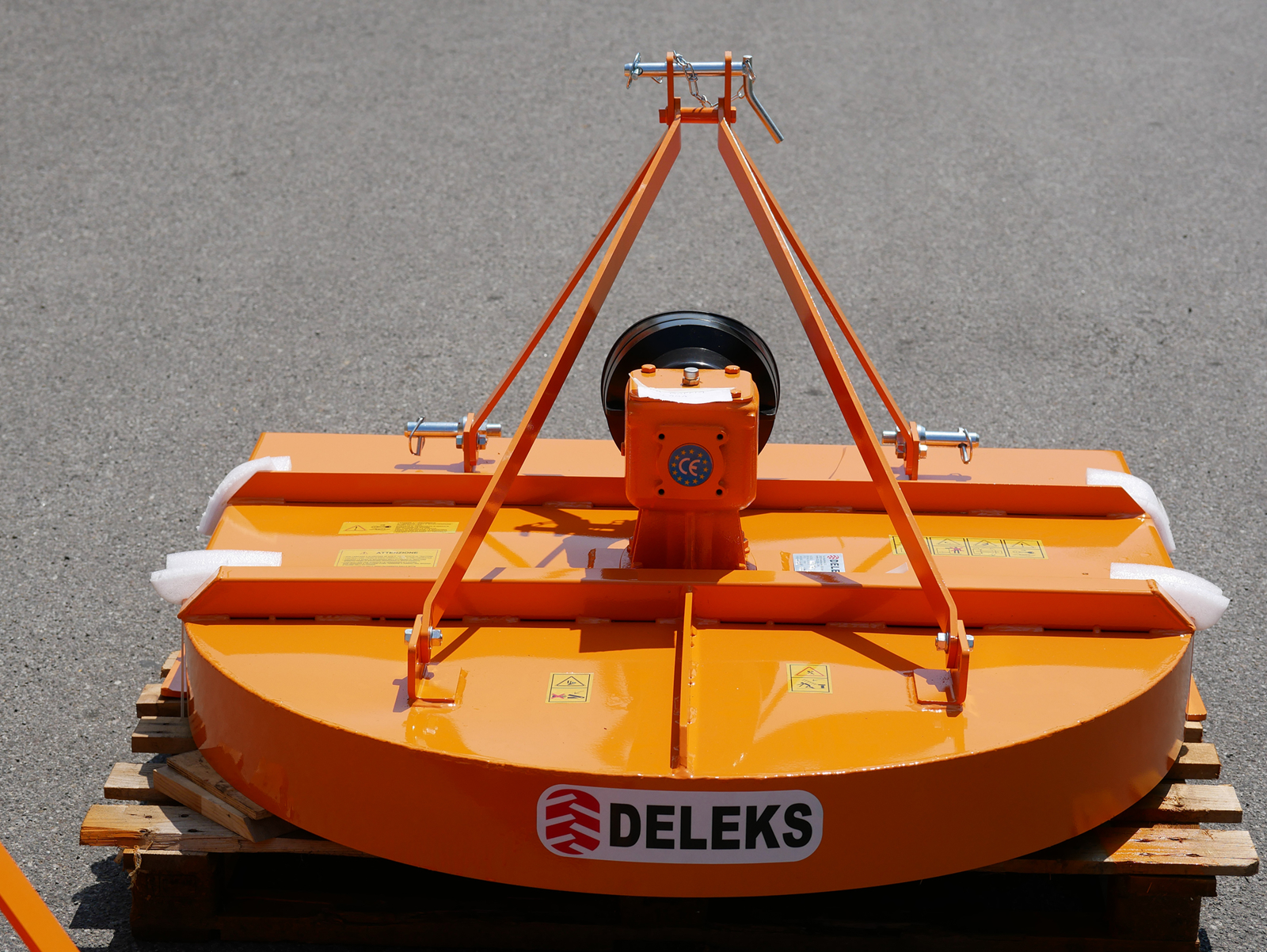

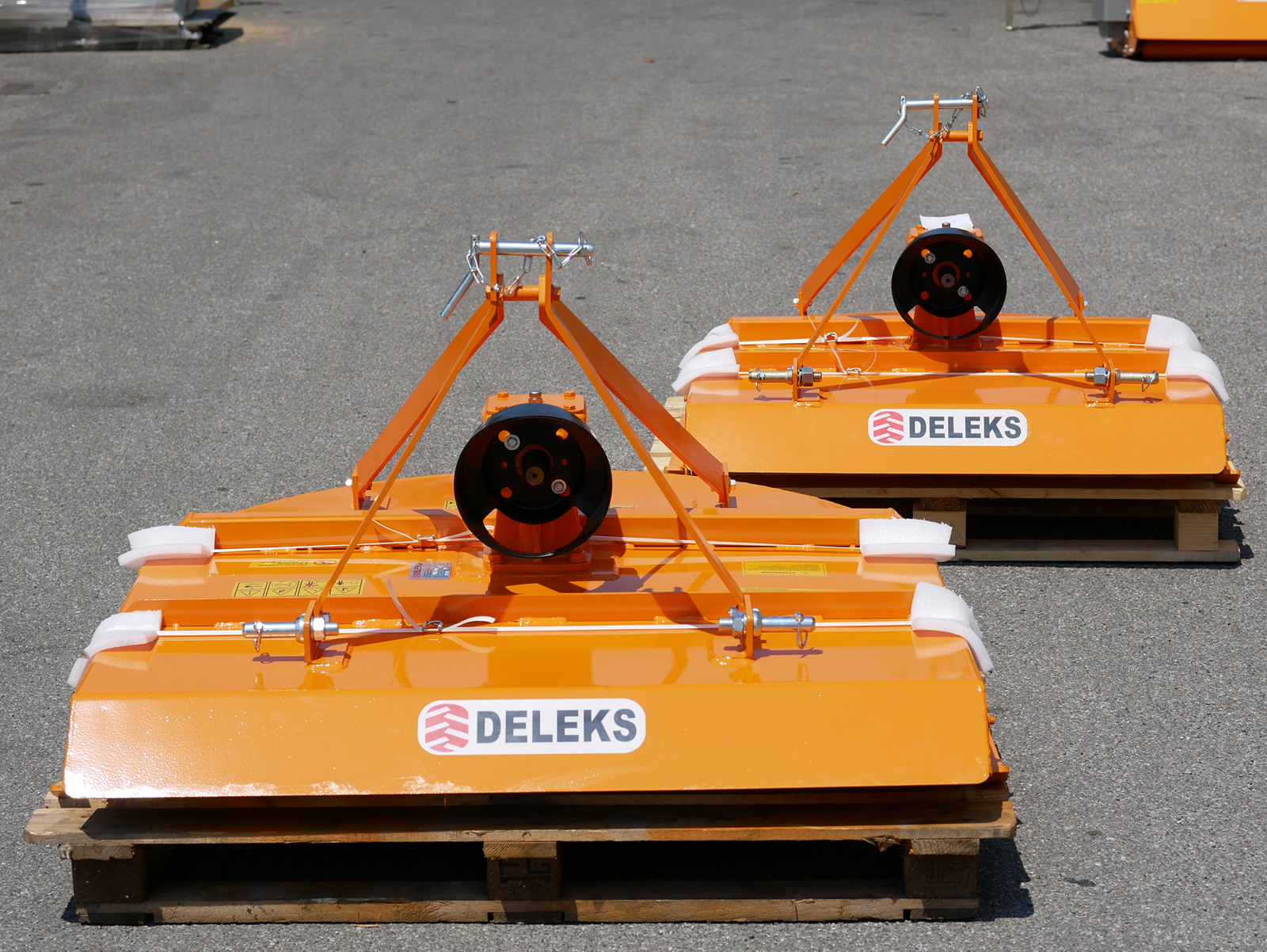

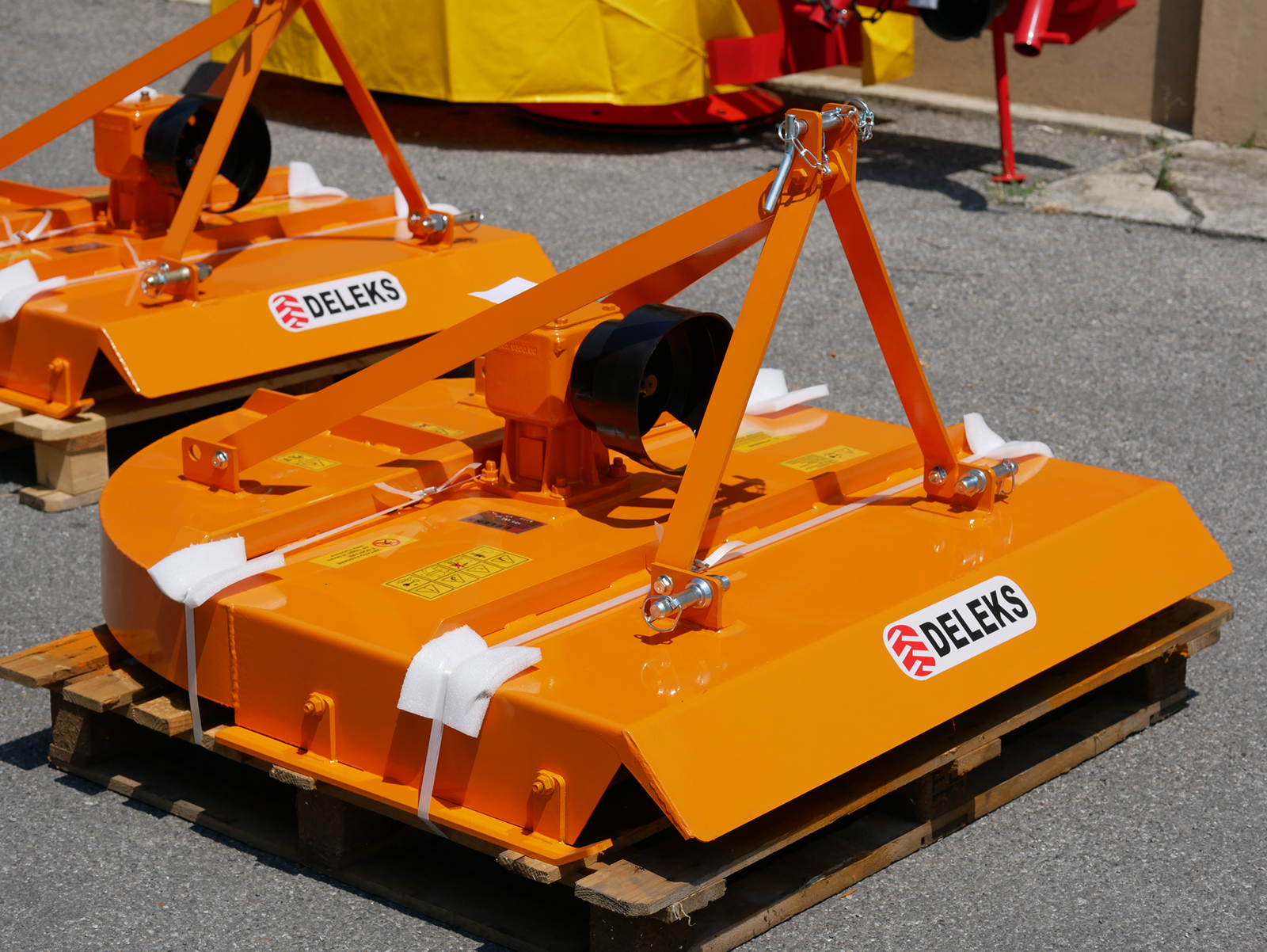

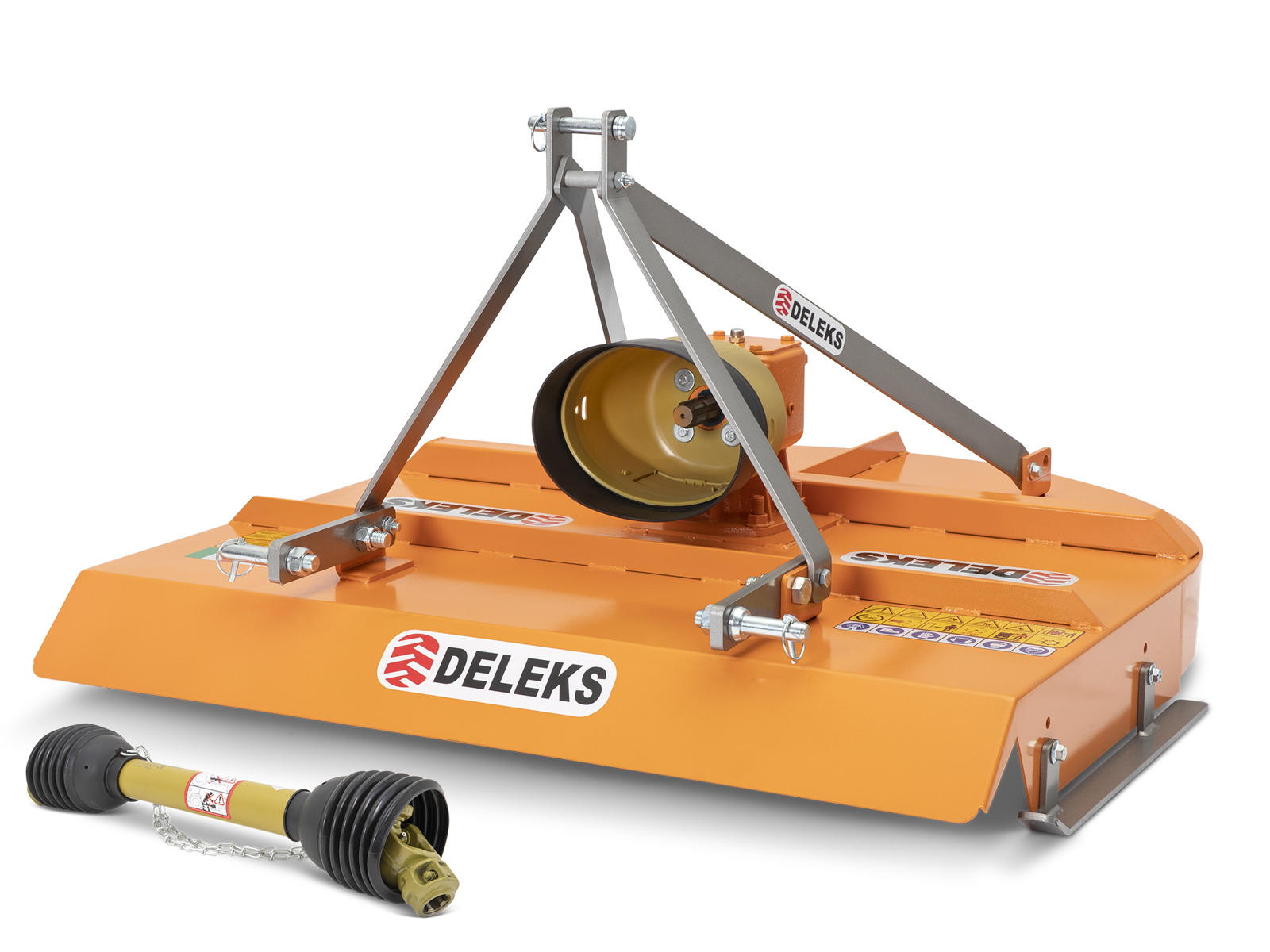

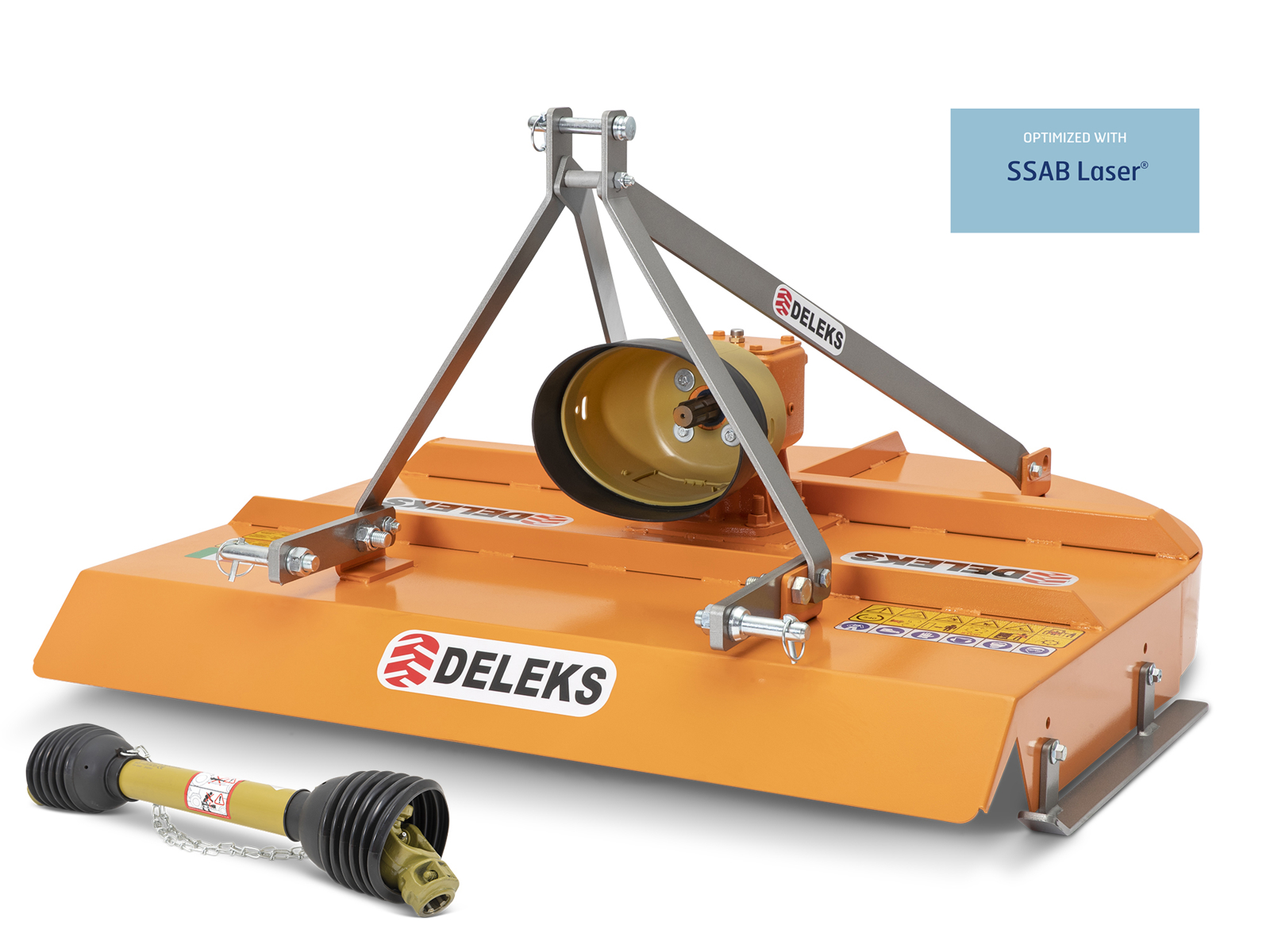

Rotary Cutter, Lawnmower for tractors Kubota, Ford, McCormick, Iseki, Yanmar - DELEKS® BUGGY-120 - Cardan shaft CE.
OVERVIEW

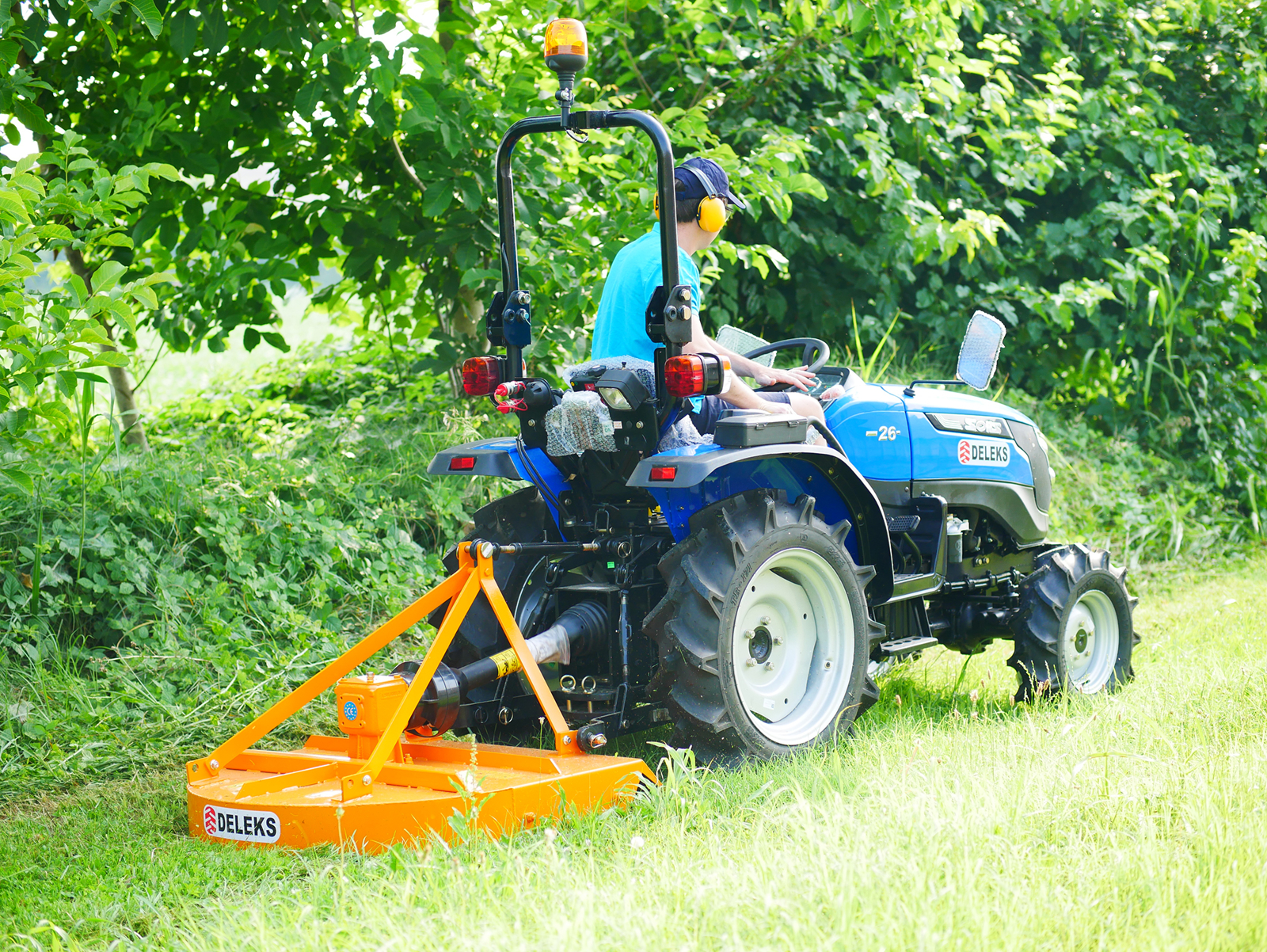

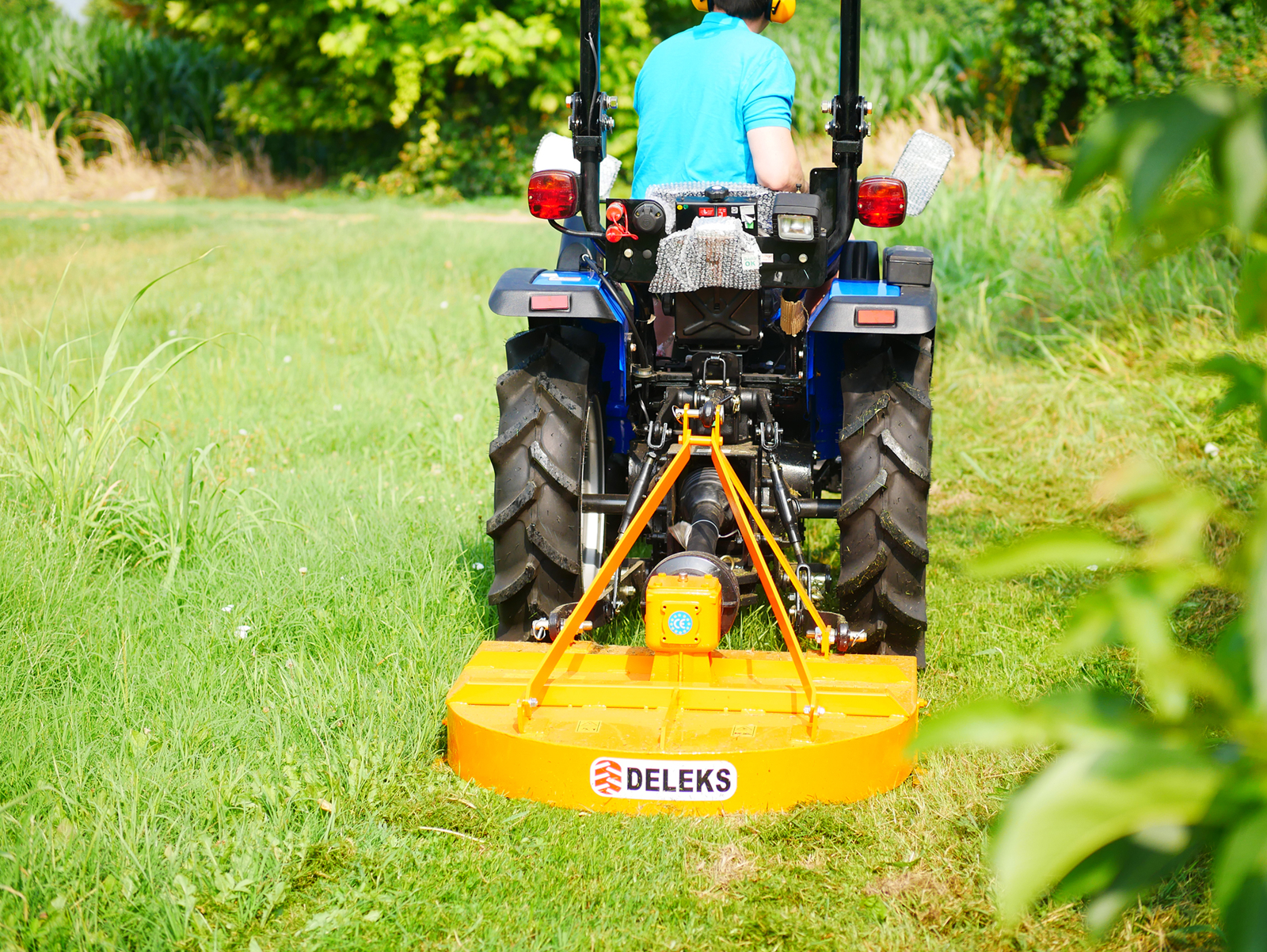

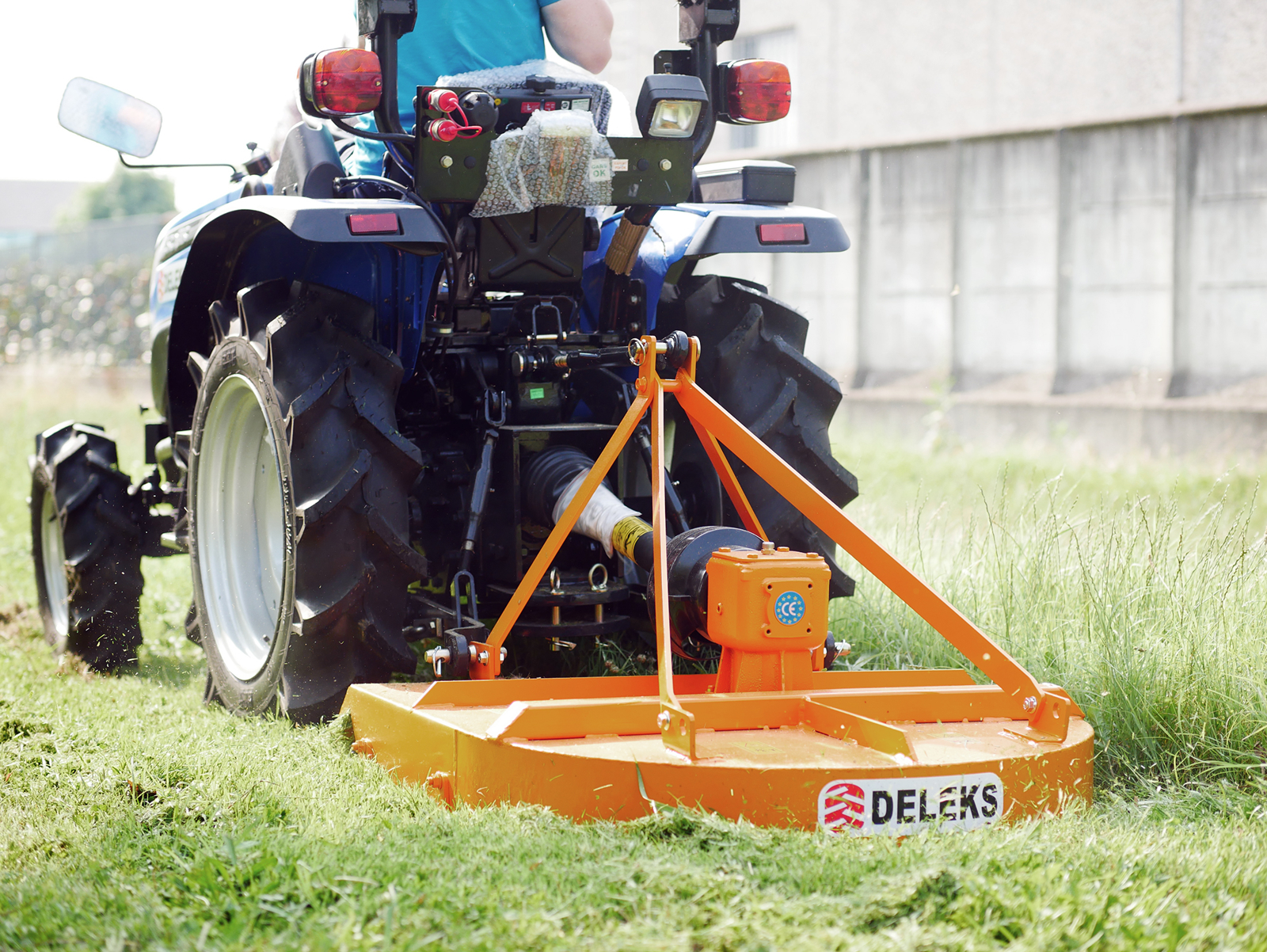

BUGGY-120 Rotary Cutters are a quick and easy solution for clearing grass, weeds and light brush. BUGGY fits all standard compact tractors 14-40 hp e.g Kubota, Iseki, Yanmar, John Deere 2, etc. Perfect to give a clean finish on lawns, gardens, sports facilities and parks.
BENEFITS AND FEATURES

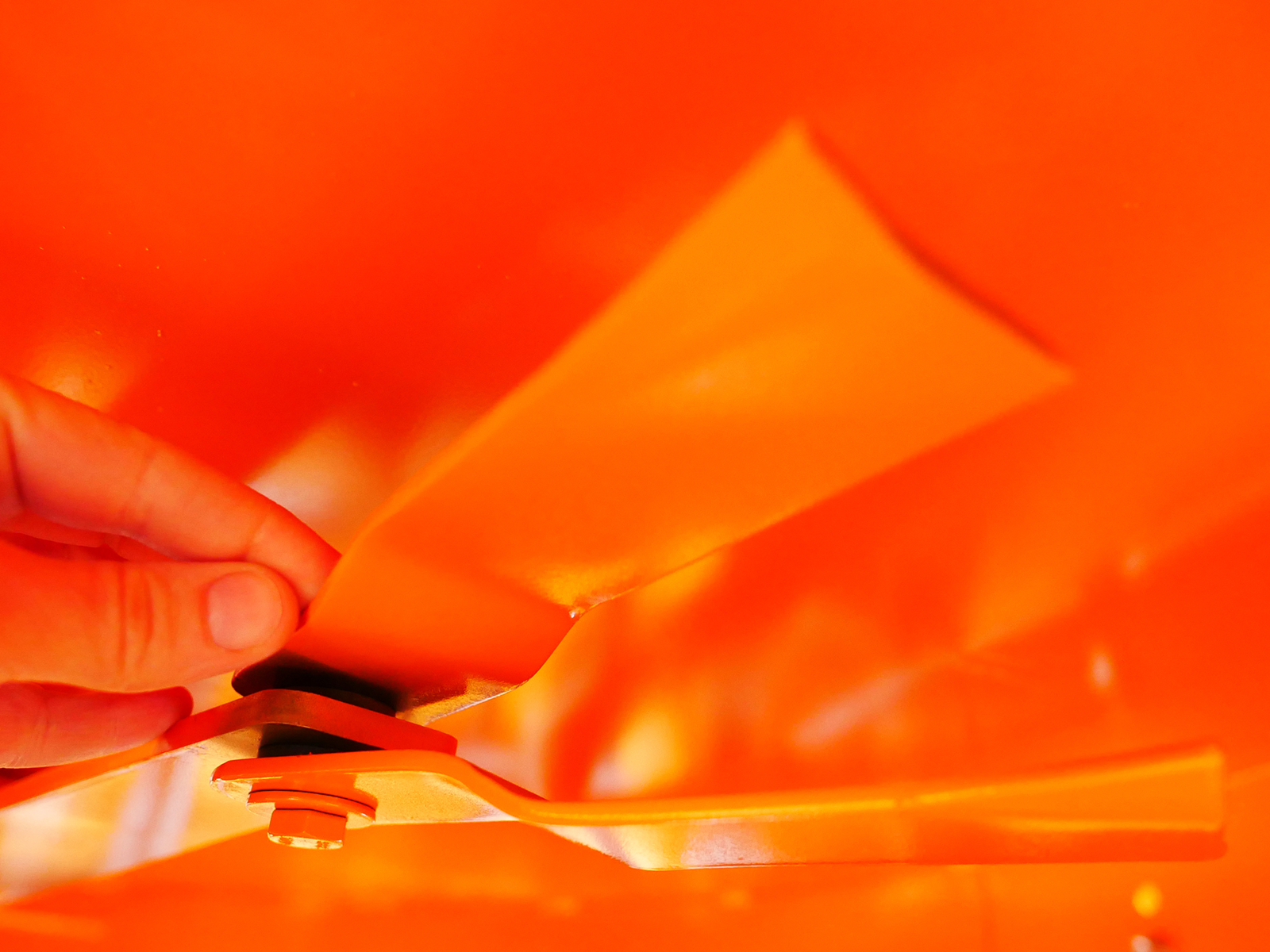

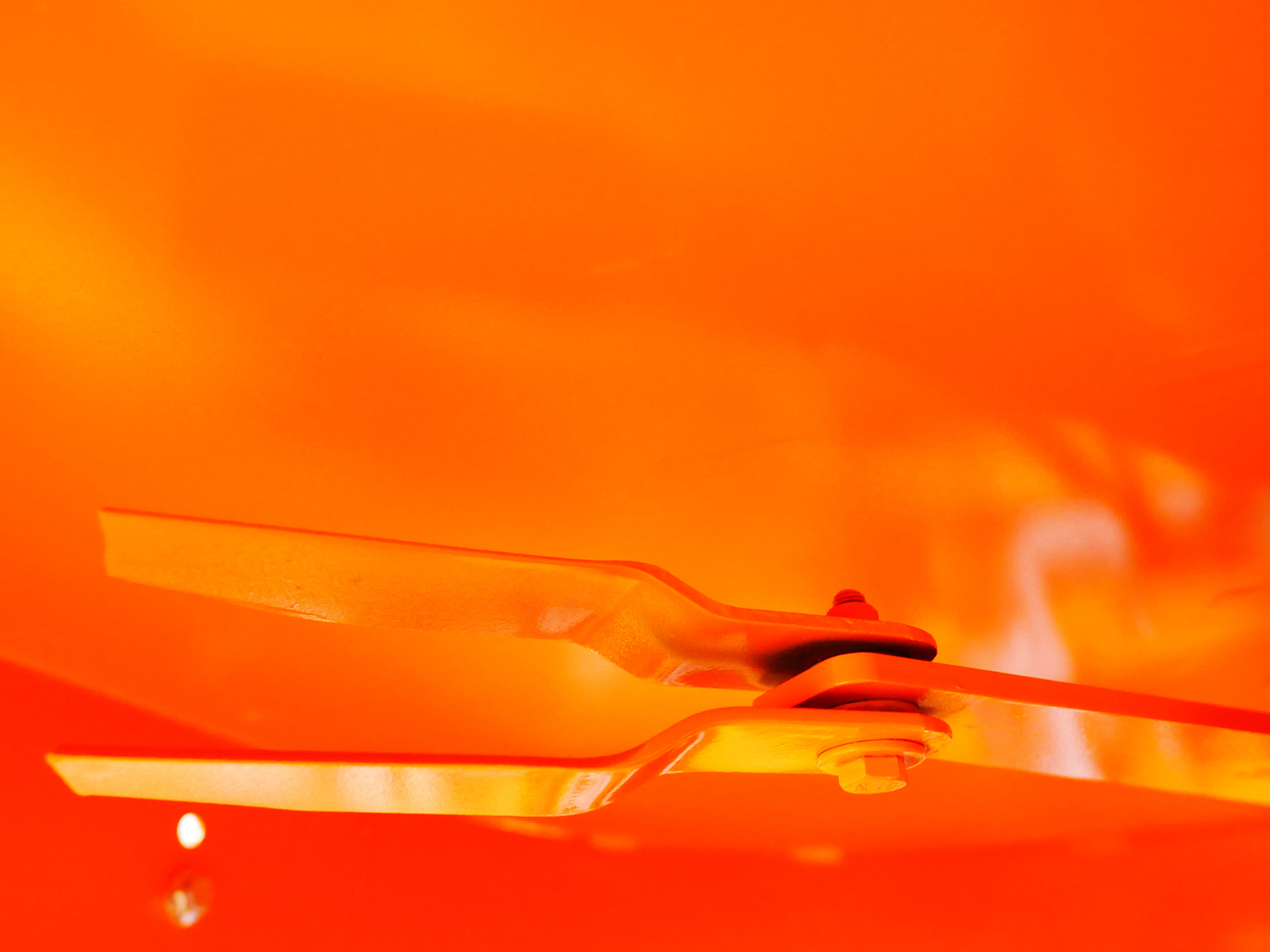

Double blade system that simultaneously cuts the stem of grass into 3 sections, pulverizing it.
Cardan shaft CE.
Small footprint that allows cutting even near the edges.

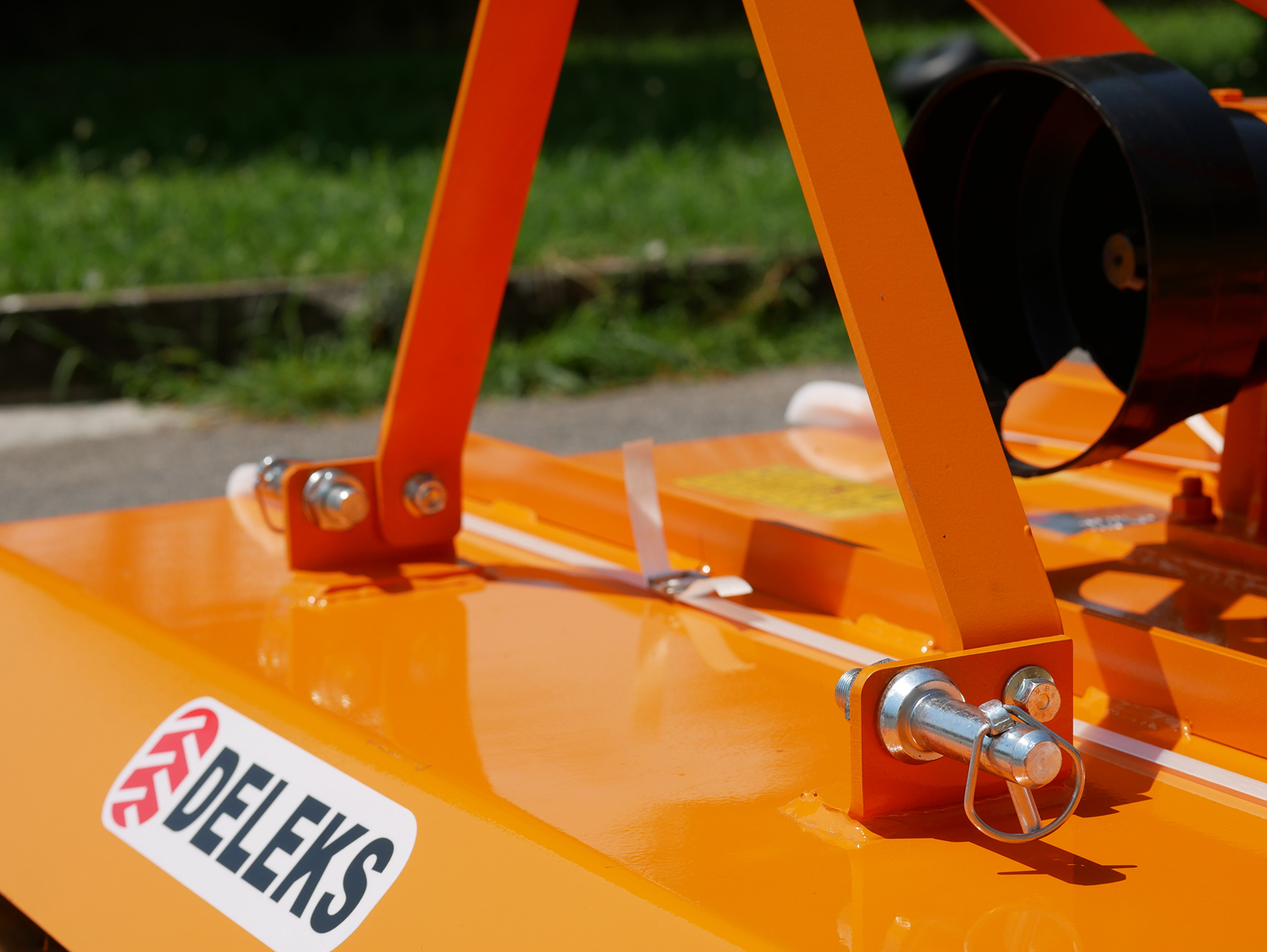

Suitable also for reversible usage: by reversing the 3-point attachment and the multiplier, it is possible to mount it frontally.
Adjustable slides to adjust the cutting height.
Extremely robust frame.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1170.0 mm |
| Overall width | 1260.0 mm |
| Min / Max cutting height | 10.0 - 60.0 mm |
| Weight | 120.0 kg |
| Overall height | 650.0 mm |
| Tractor Power Range | 14-40 Hp |
| 3 point linkage | Cat.1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 450.0-720.0 mm |
| Overall length | 1300.0 mm |
| Distance between pto attachment and ground | 340.0 mm |
| Main hood thickness | 3.0 mm |
| Transmission: Drive method | Gear |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Number of Blades | 2 + 2 |
| Transmission: RPM Blade speed | 1080 r/min |
| Blades: Length/Width | 215.0/50.0 mm |
| Blades: Diameter of the hole | 20.0 mm |
| Pto shaft | CE 4x1000 mm with freewheel |
| Blades: Weight | 300.0 g |
| Packing sizes | 1270.0*1300.0*600.0 mm |
