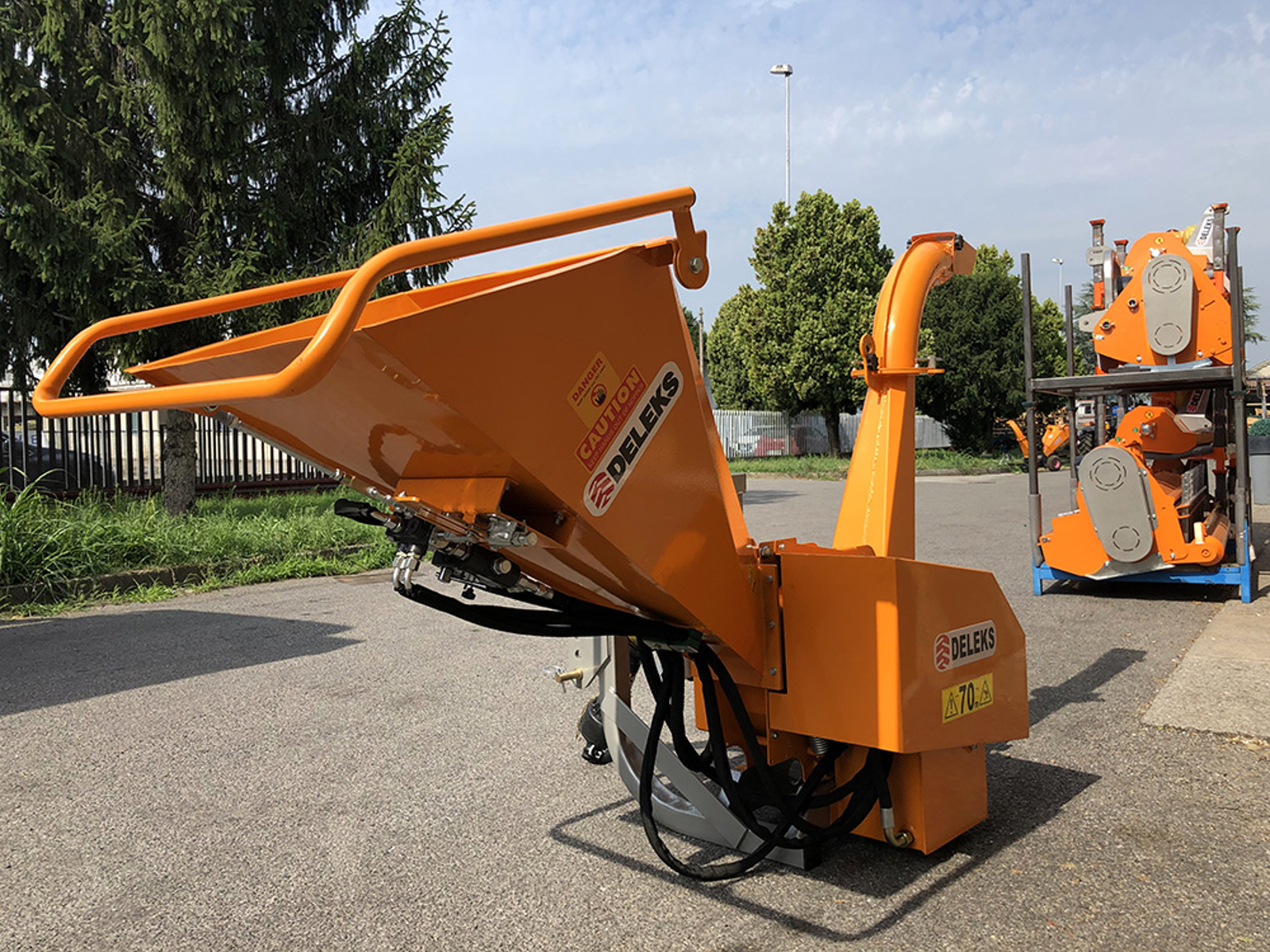

Tractor mounted Bio Shredder with Hydraulic Feed

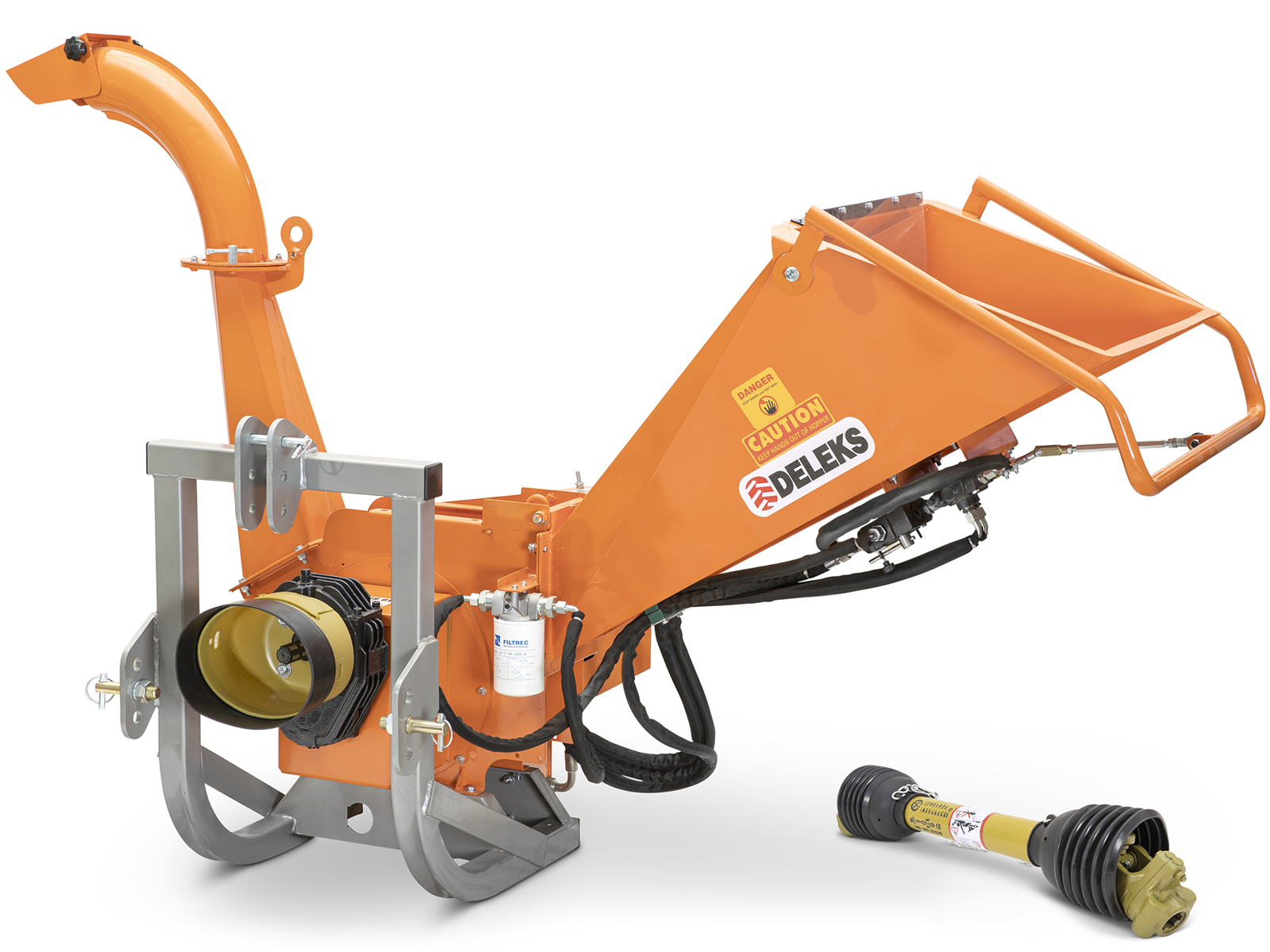

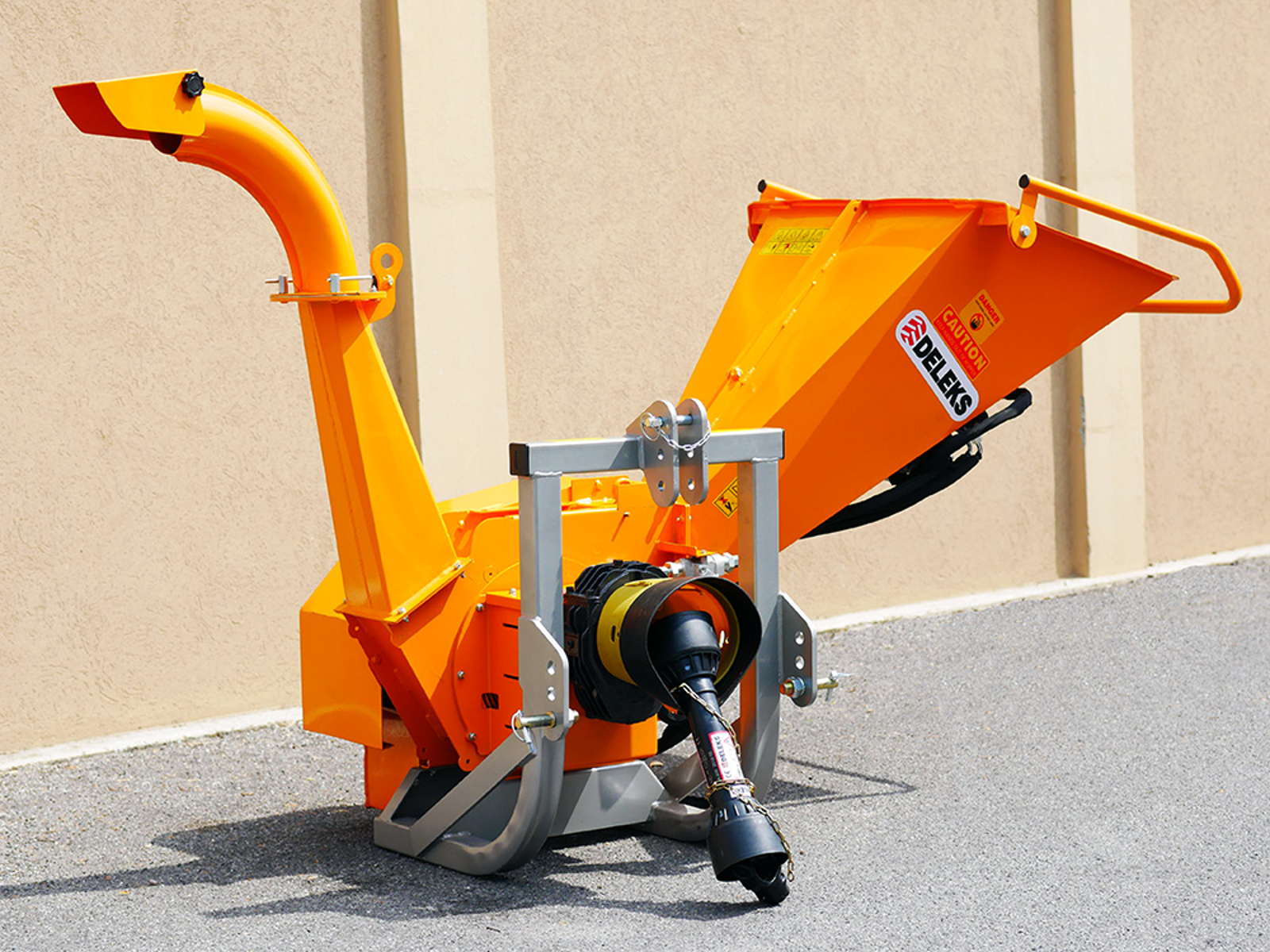

DELEKS^® DK-1300 PTO driven woodchipper, Hydraulic feeding roller with adjustable speed and rotation direction - Pto shaft included.

APPLICATION

Designed for shredding wood and brash.

Shredding is by means of a drum rotor fitted with knives and hammer flails, ideally suited to landscape gardeners and grounds maintenance contractors who have a requirement to reduce brash and pruning left over from tree and hedgerow maintenance.

The DK-1300 organic shredder is run by the tractor's PTO.

Compatible with all tractor brands with 3-point linkage Cat. 1 (Cat. 2 on request) and 540 rpm, type Kubota, Iseki, Carraro, Goldoni, New Holland, Landini, etc. It complies with the EC Machinery Directive.

2 years warranty.

ADVANTAGES

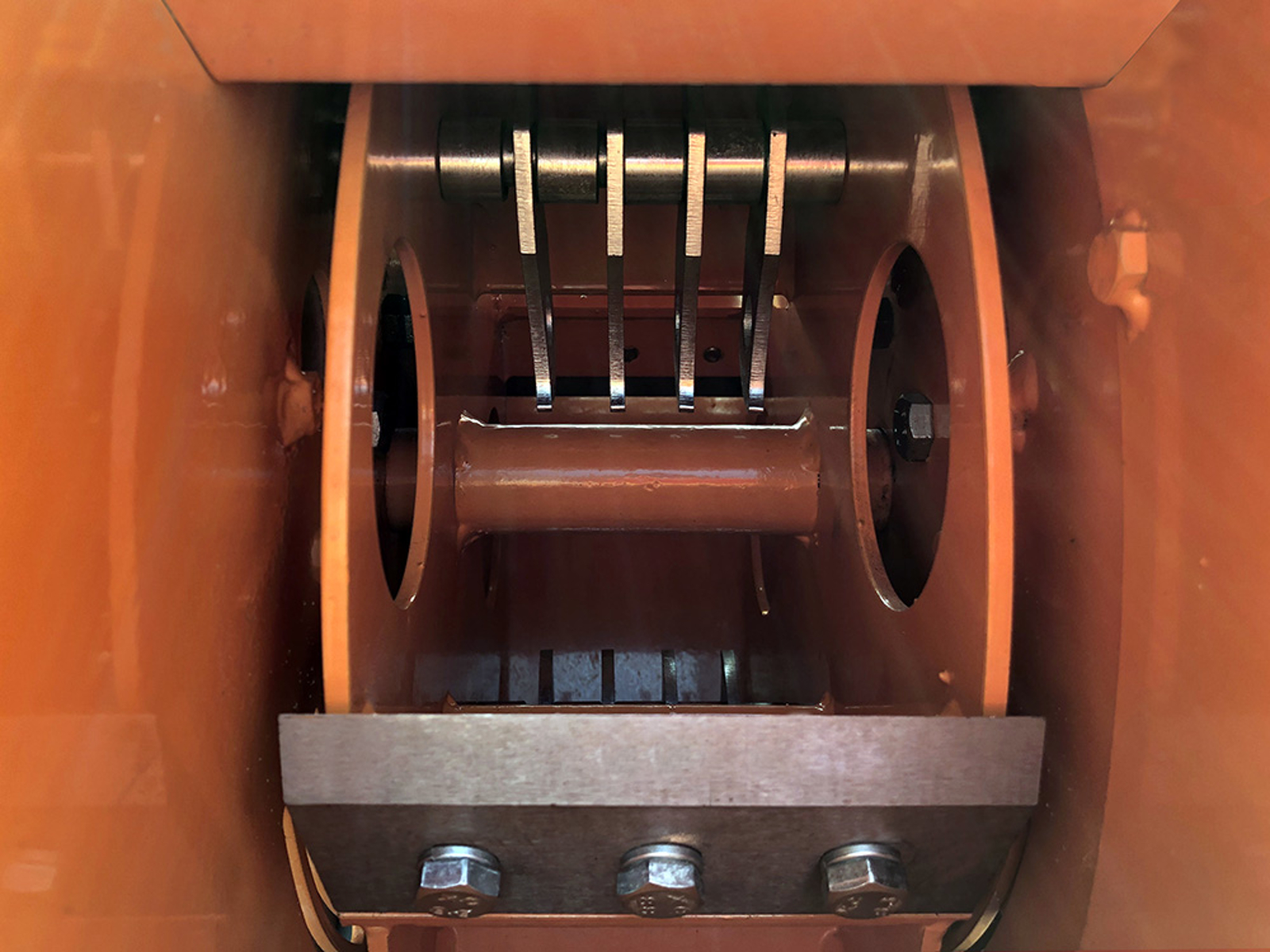

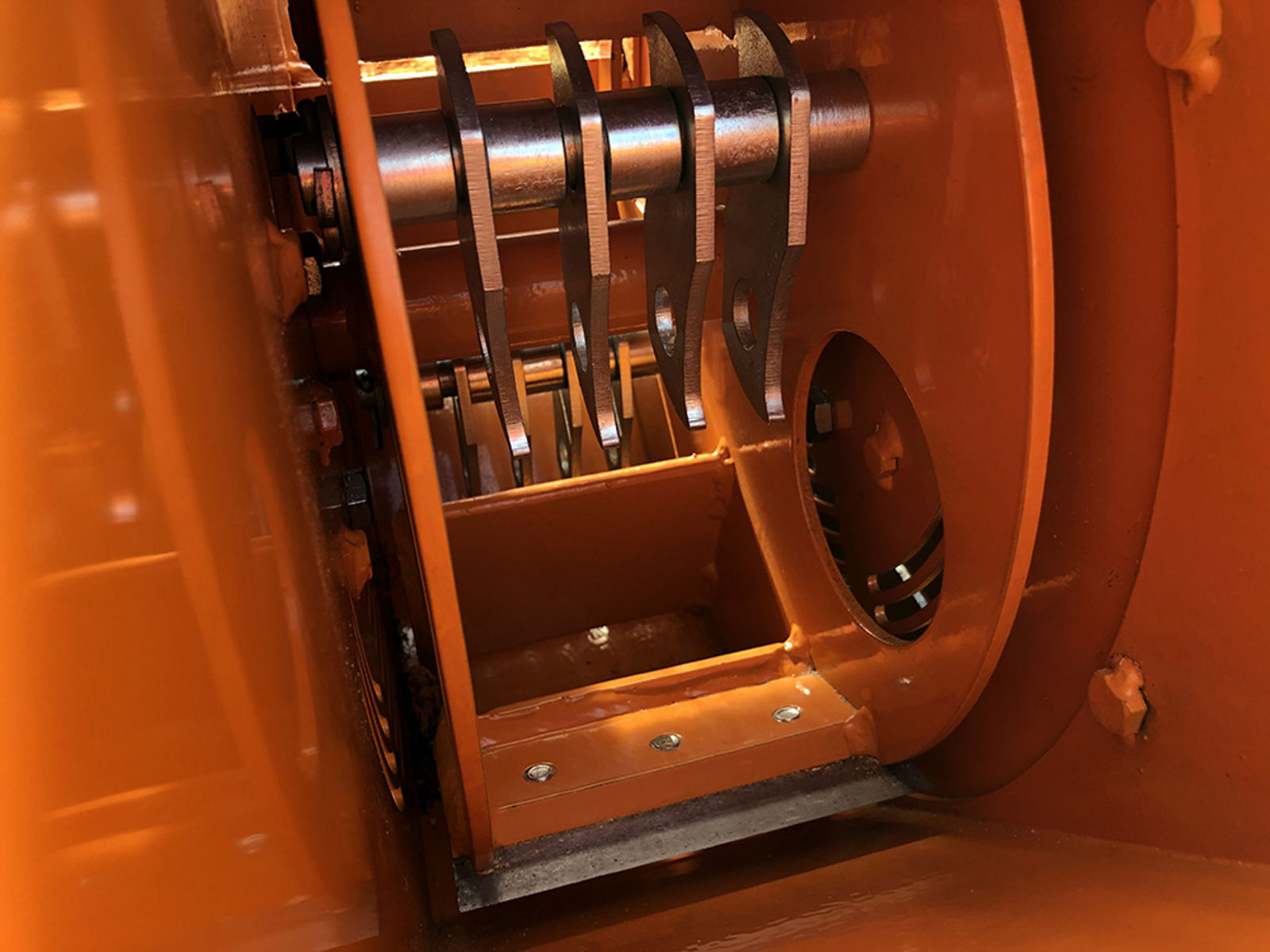

Very compact professional machine with a new multiple cutting system composed of a special rotor with 8 mobile hardened steel hammers, 2 fixed steel blades placed on the edge of the rotor and 2 buckets inside the rotor for ejecting the minced material.

This new cutting system allows to introduce in the hopper material of large and small dimensions, with no need to tear apart small branches from the main branch.

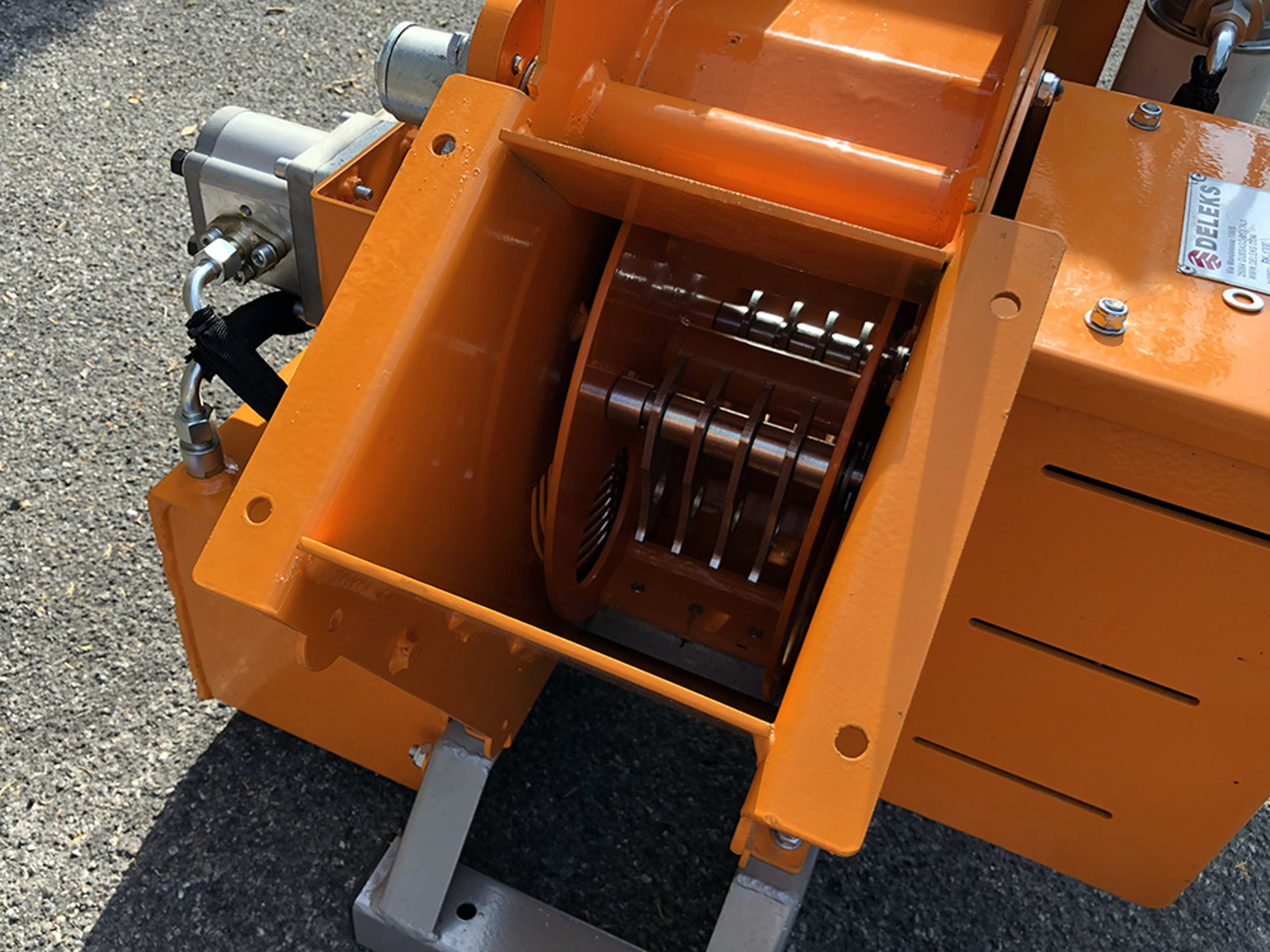

Double function: Woodchipper + Bio Shredder: The inner drum is equipped with 2 interchangeable blades and 2 rows of 4 hammers and combines the characteristics of a woodchipper with those of an organic shredder (shredding leaves and foliage).

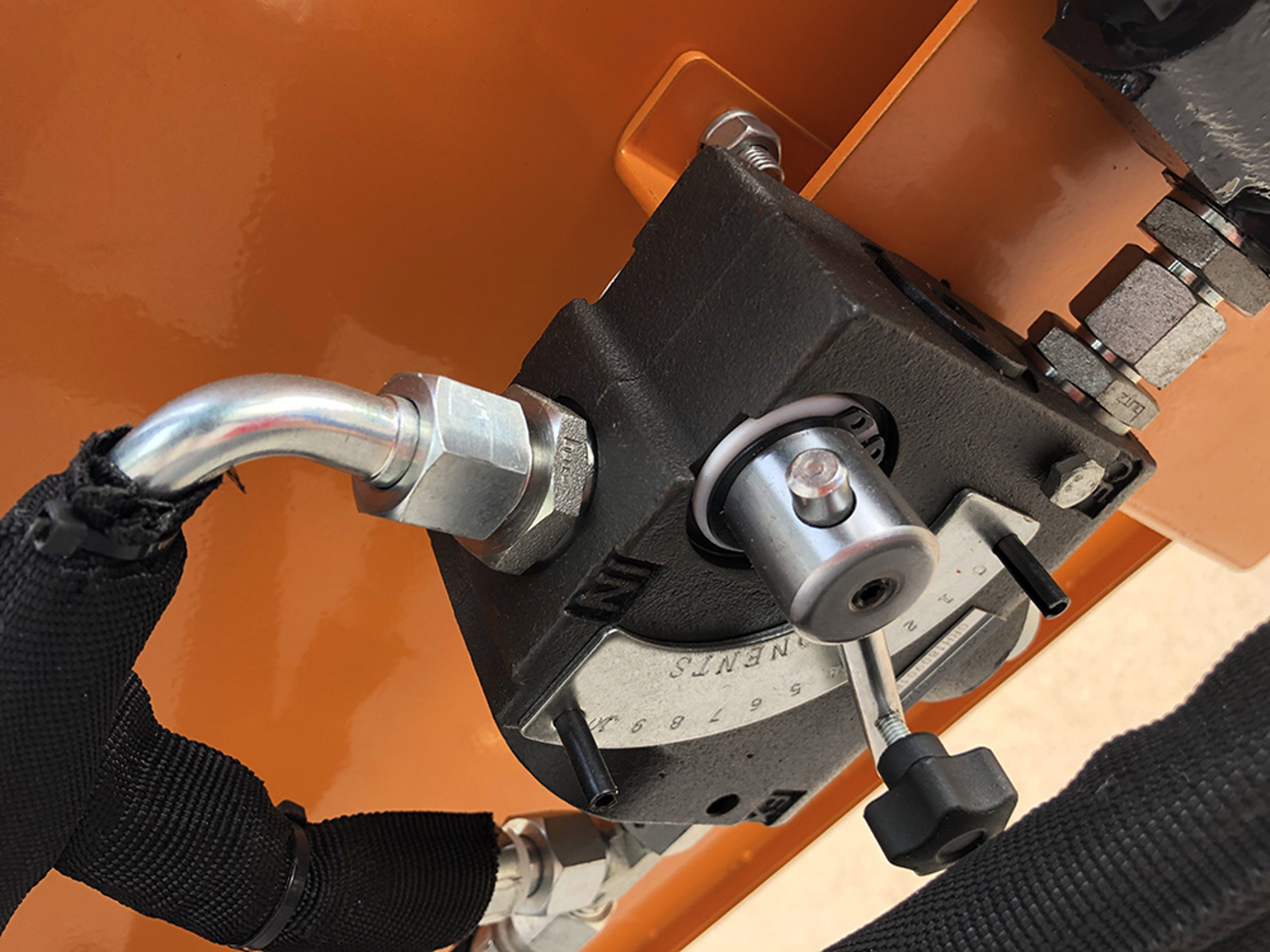

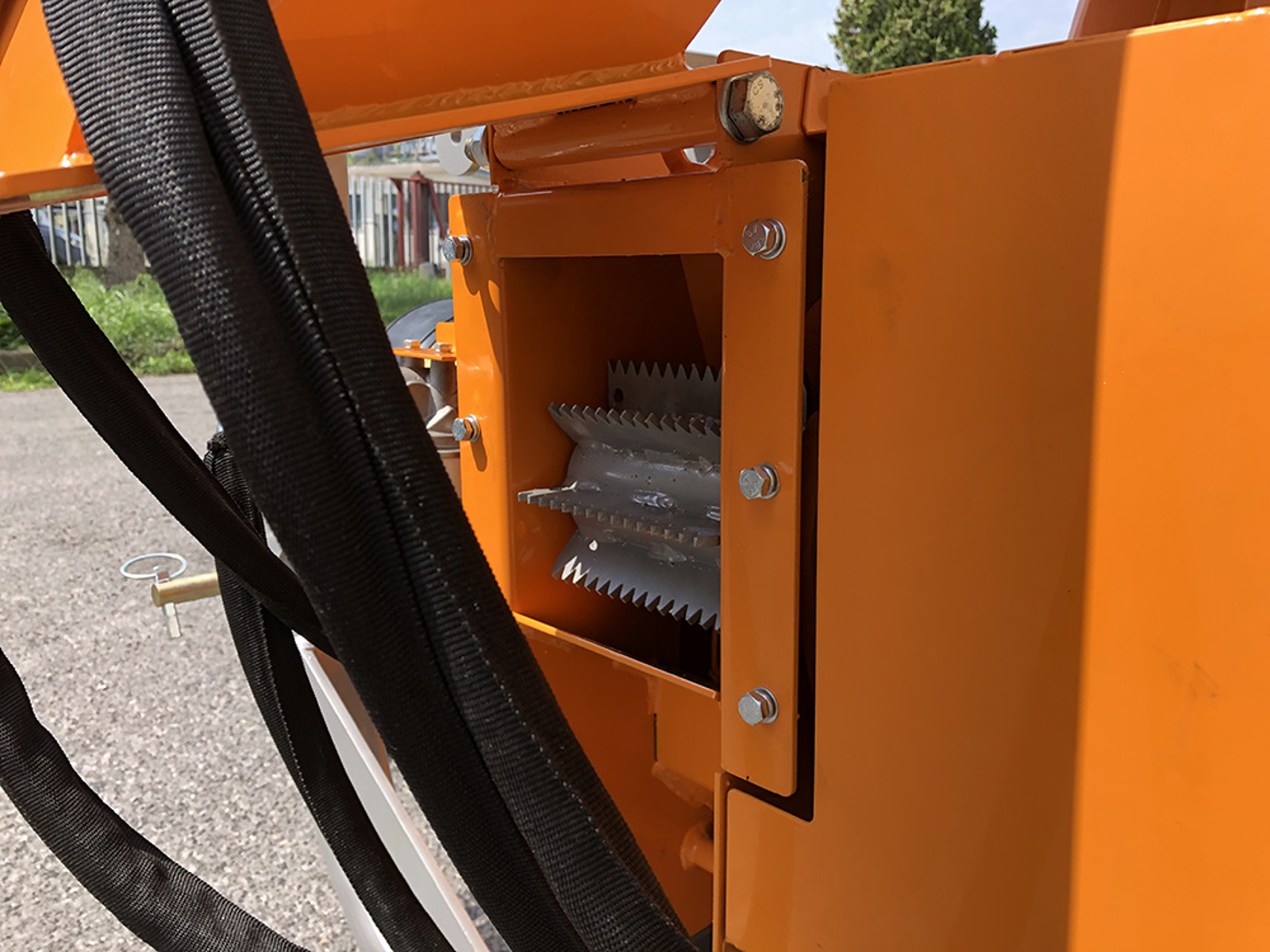

Control device for adjusting the speed of the hydraulic feeding roller.

Control bar for easy change of direction and stop.

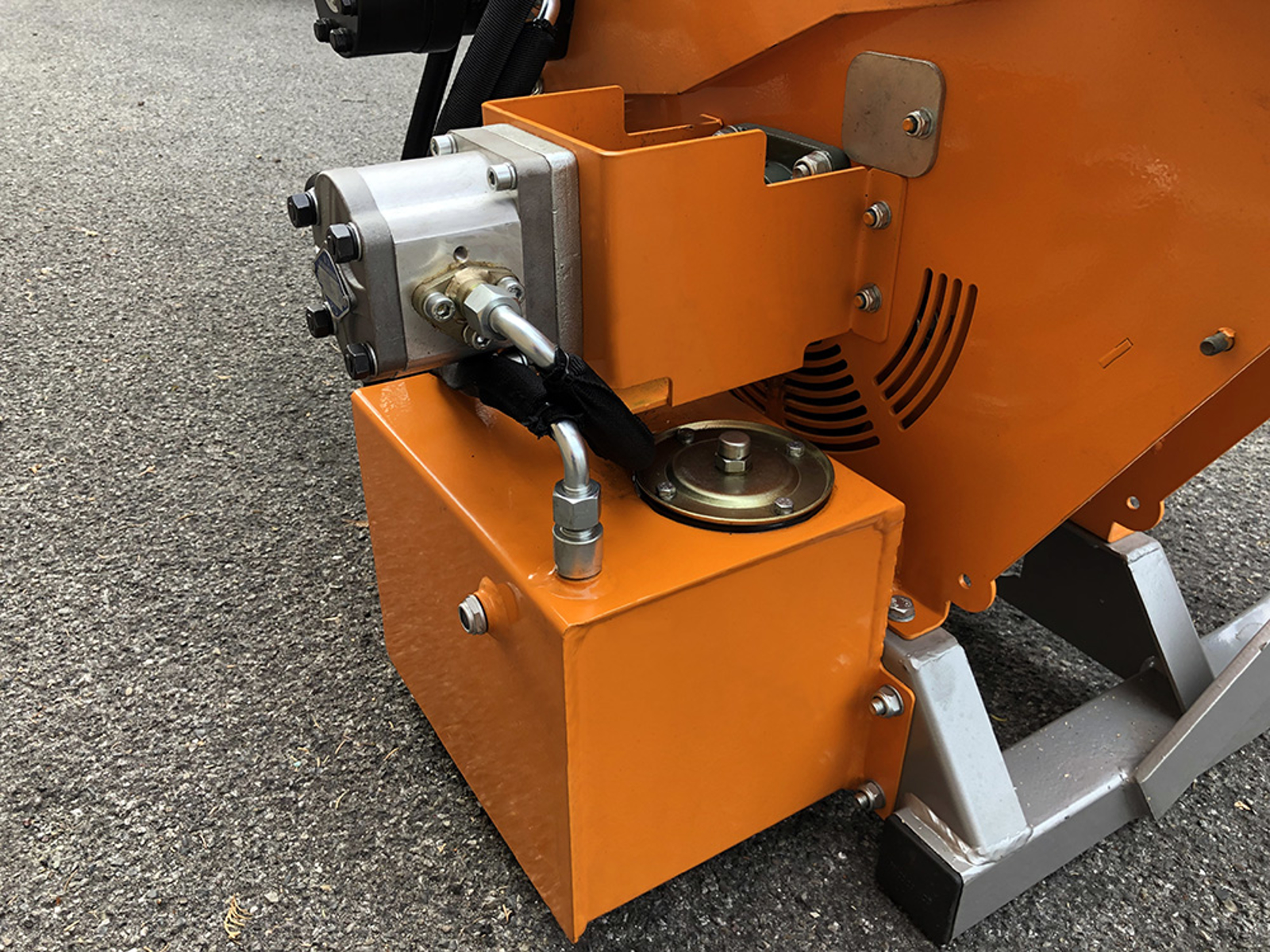

The hydraulic system has its own oil tank and does not need to be connected to the tractor.

It carries every kind of vegetable waste (both hard and fibrous, like for example palms, pines, linden tree, etc...) to the cutting group, up to max ø 10 cm.

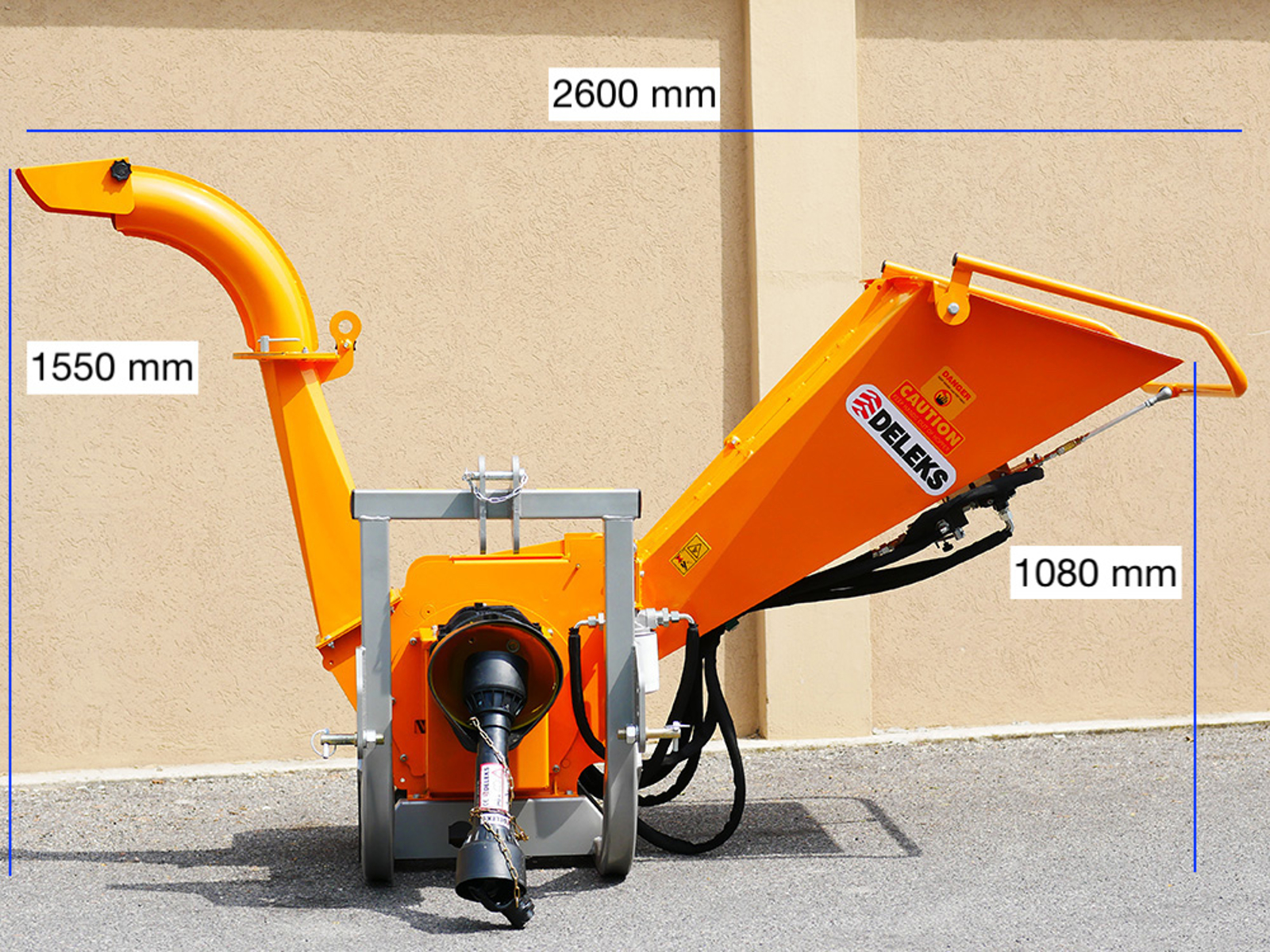

The material is discharged through a 1,55 m. high and 270° turning pipe, which is adjustable in height and distance.

Easy access to internal chamber for maintenance and blade/hammer replacement.

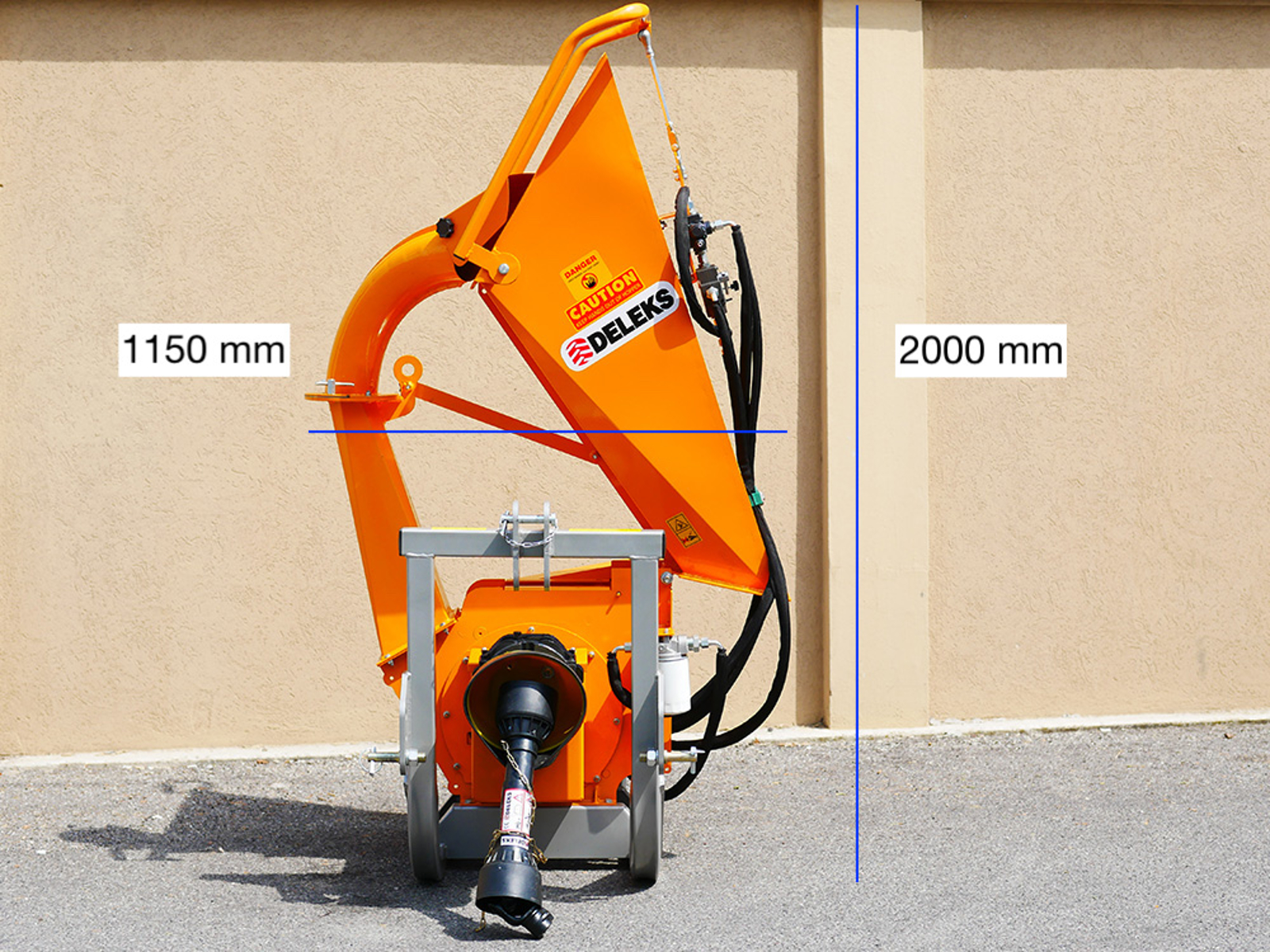

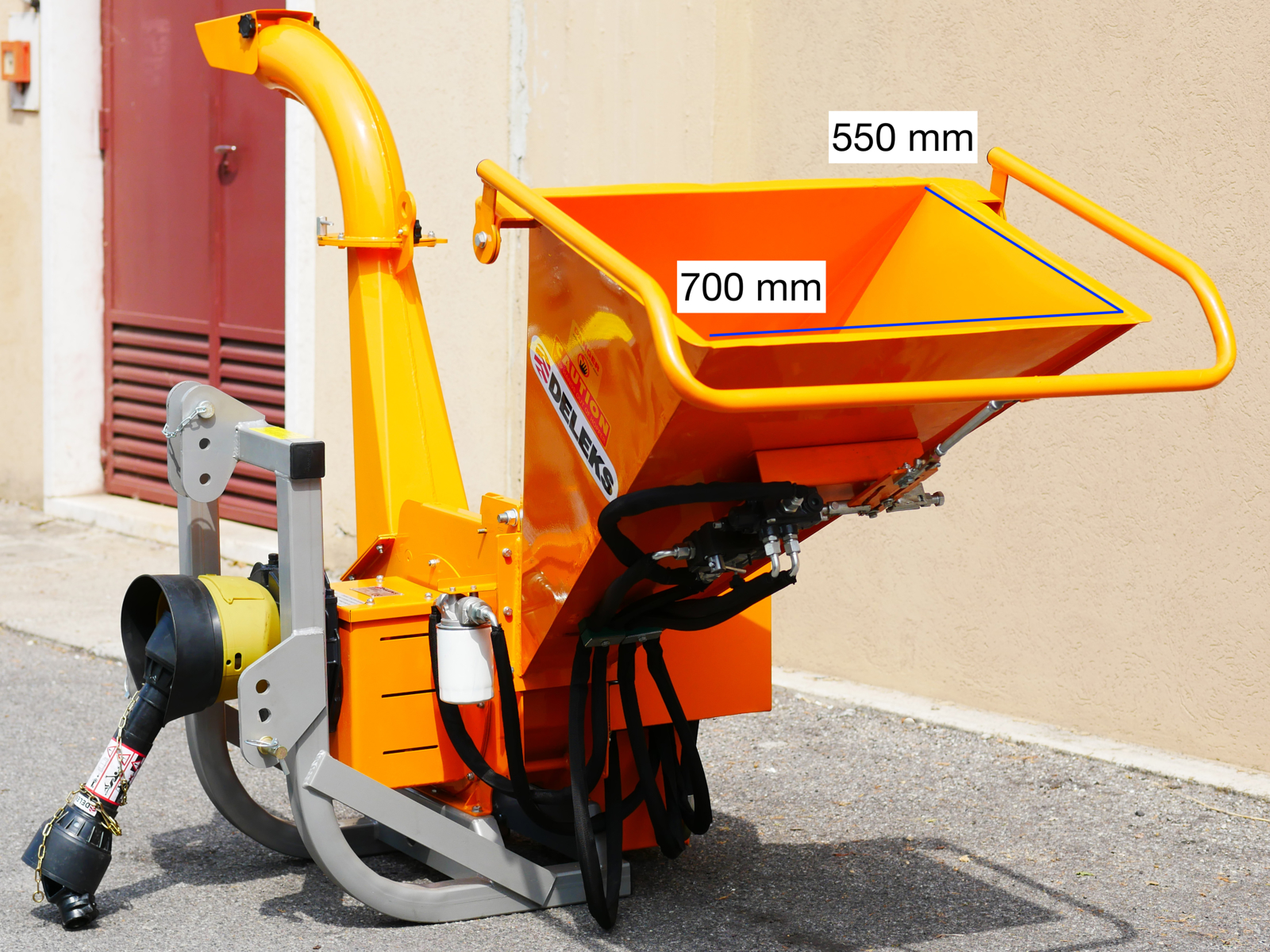

The compact dimensions, the lifting hooks and the great handling permit to easily load the machines on little trucks or also onto vans.

STANDARD EQUIPMENT

Combined rotor with 2 blades in hardened steel + 8 mobile reversible hammers in hardened steel

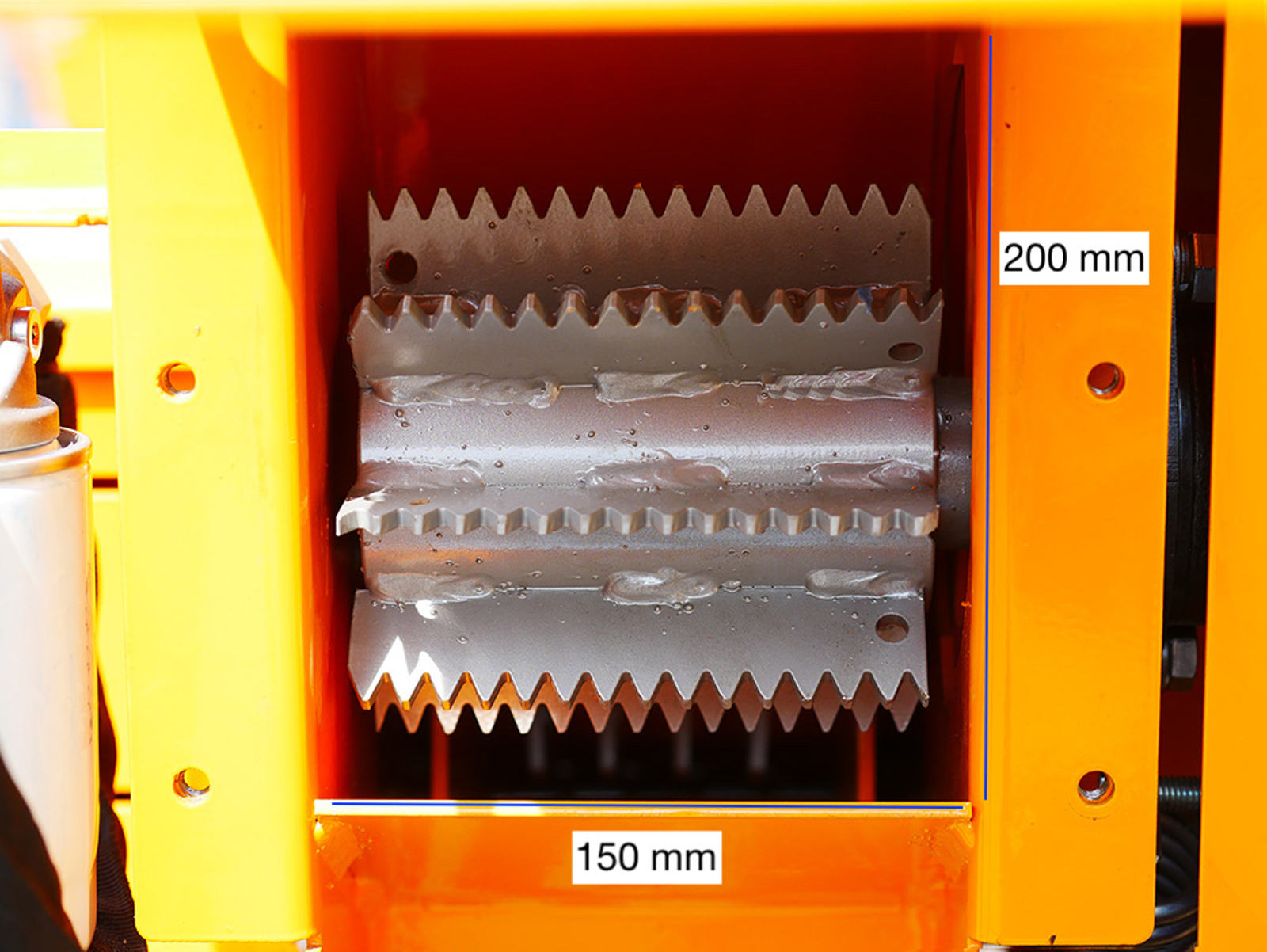

Hydraulic feeding roller with adjustable speed and rotation direction

270° turnable, 1550 mm high ejection pipe, with adjustable discharge distance

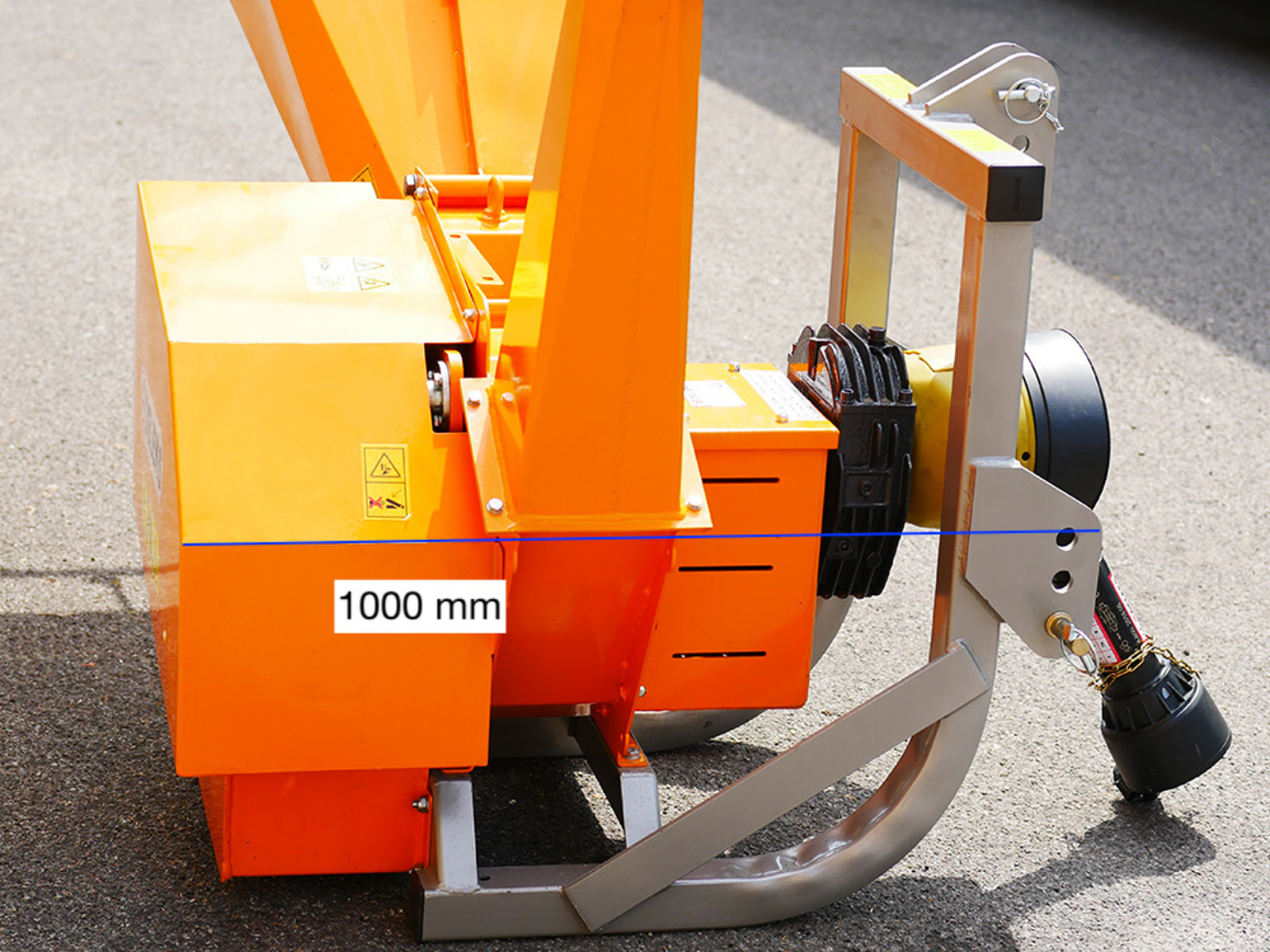

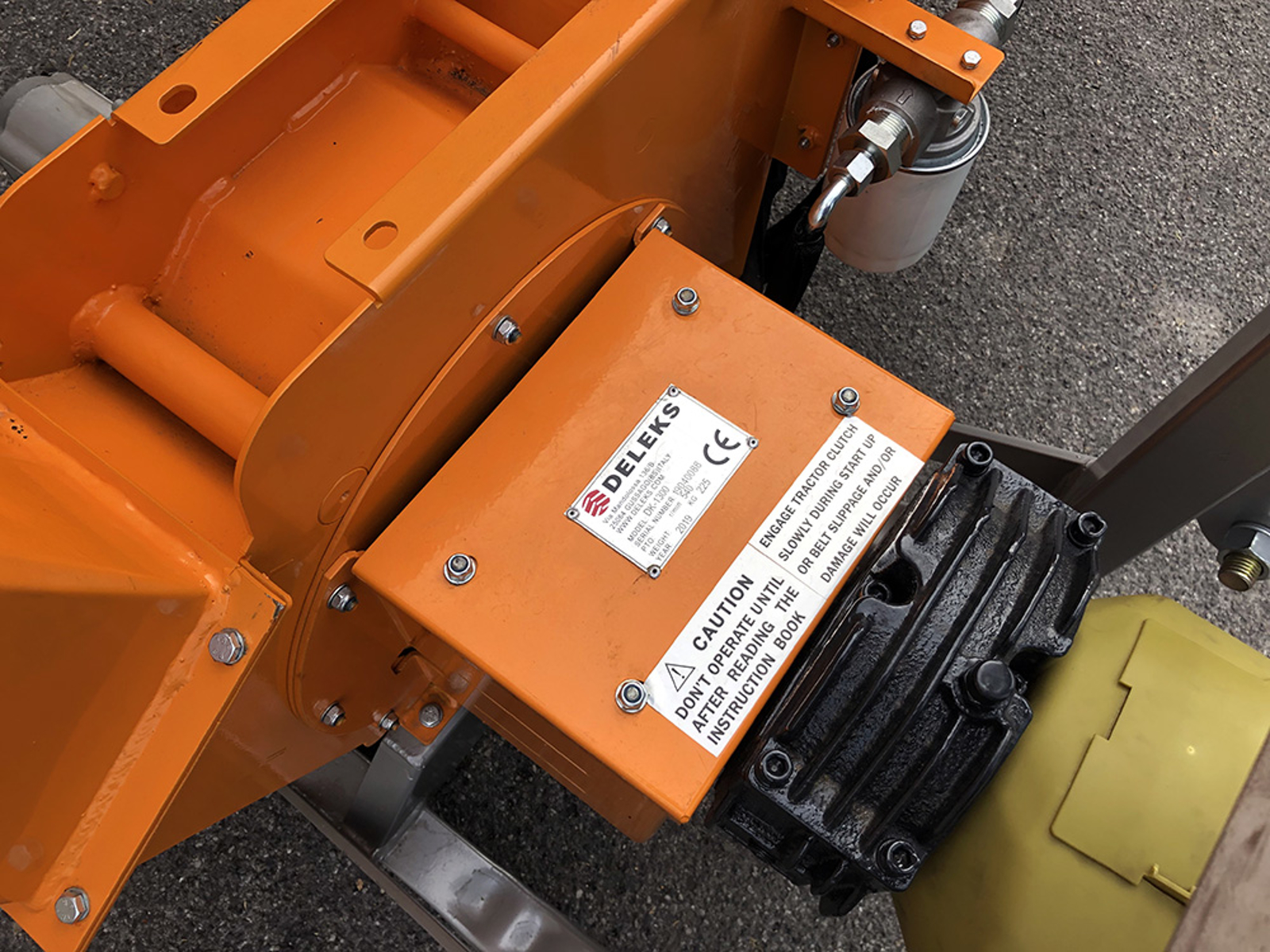

Transmission with gearbox and pto shaft.

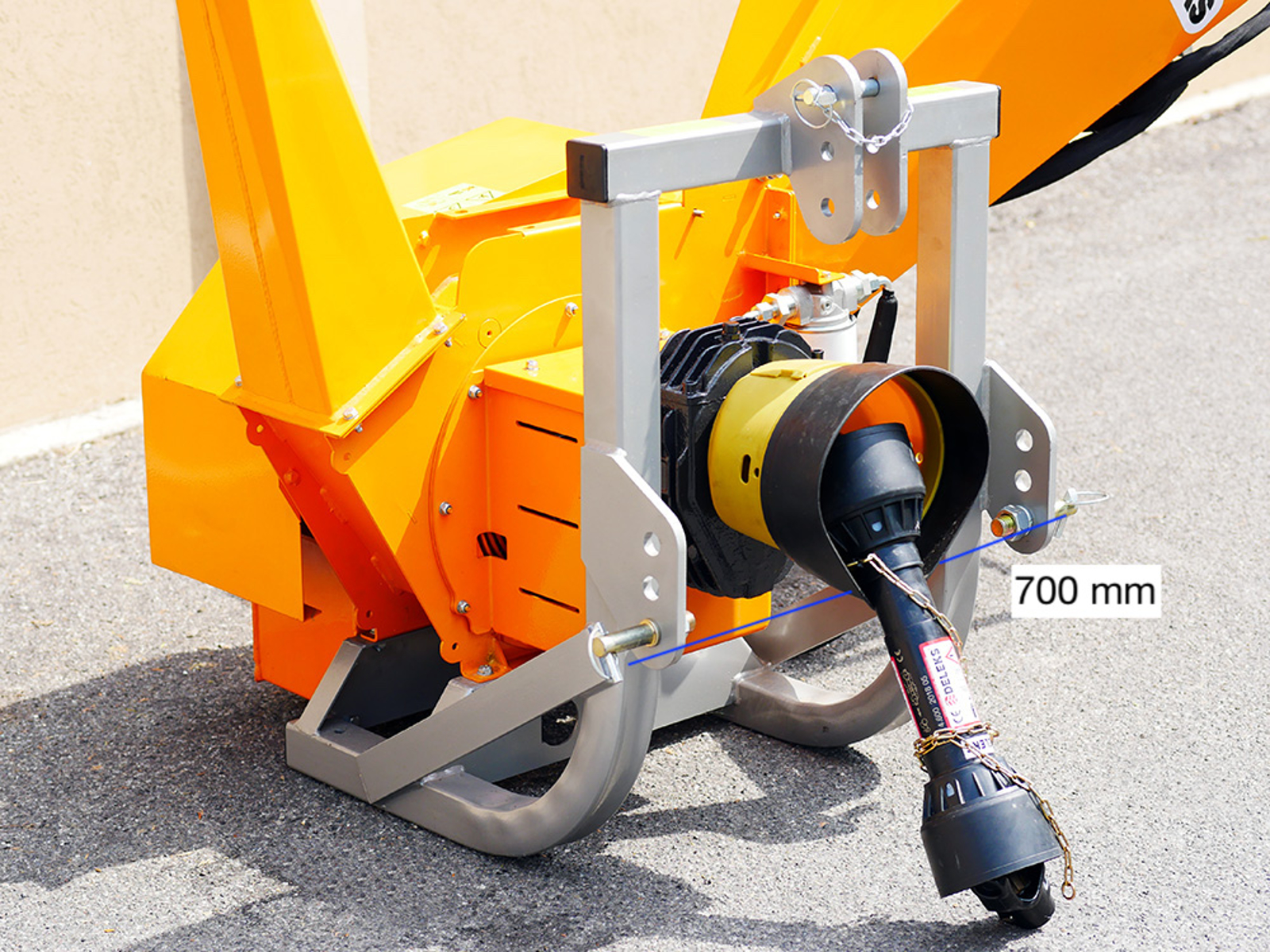

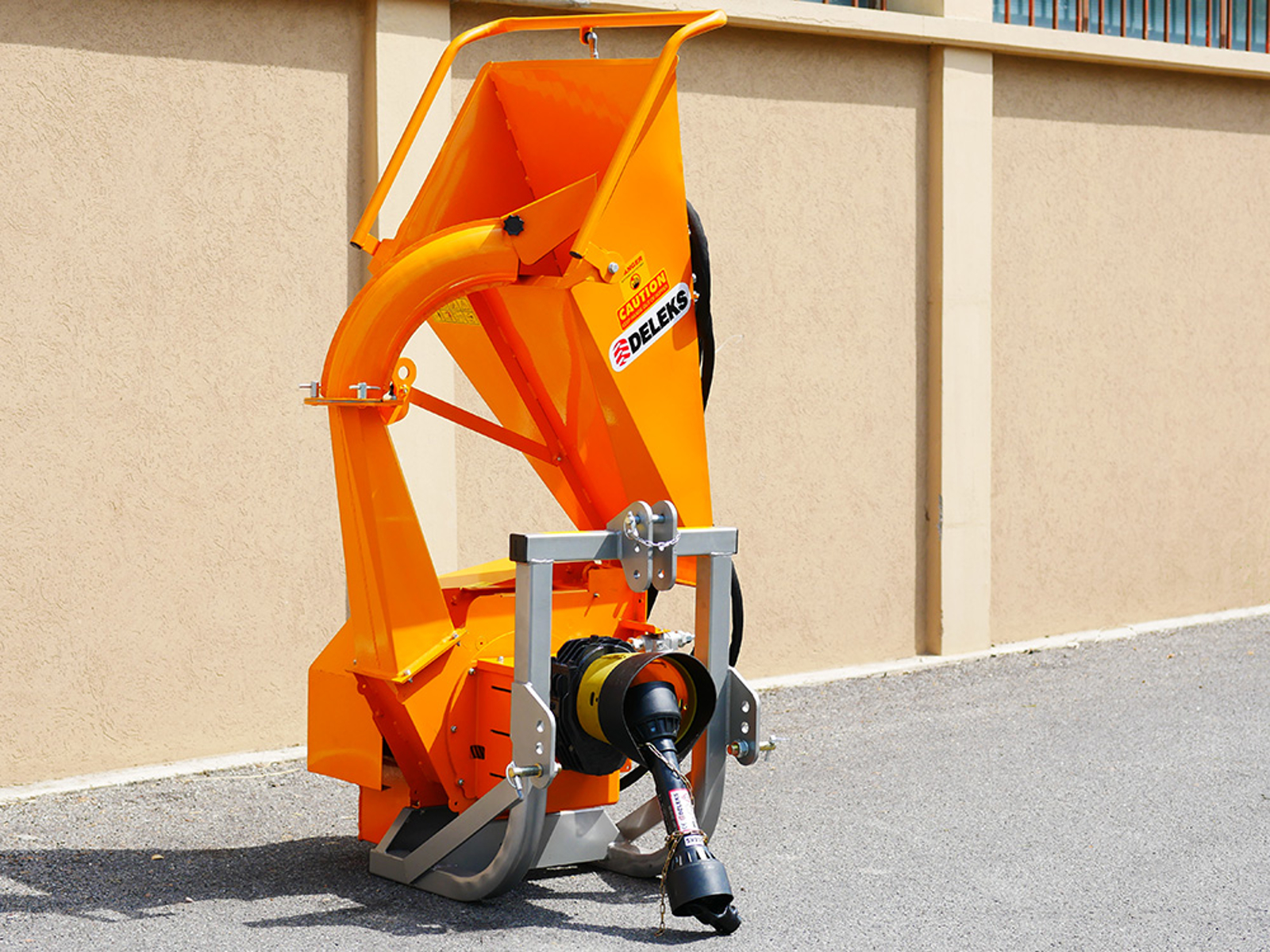

Three-point linkage for tractor - Category 1

Machine not suitable for shredding corn, straw, alfalfa, etc ..

Documentation supplied with the article:

EC Declaration of Conformity

Invoice

Operating and maintenance instructions
