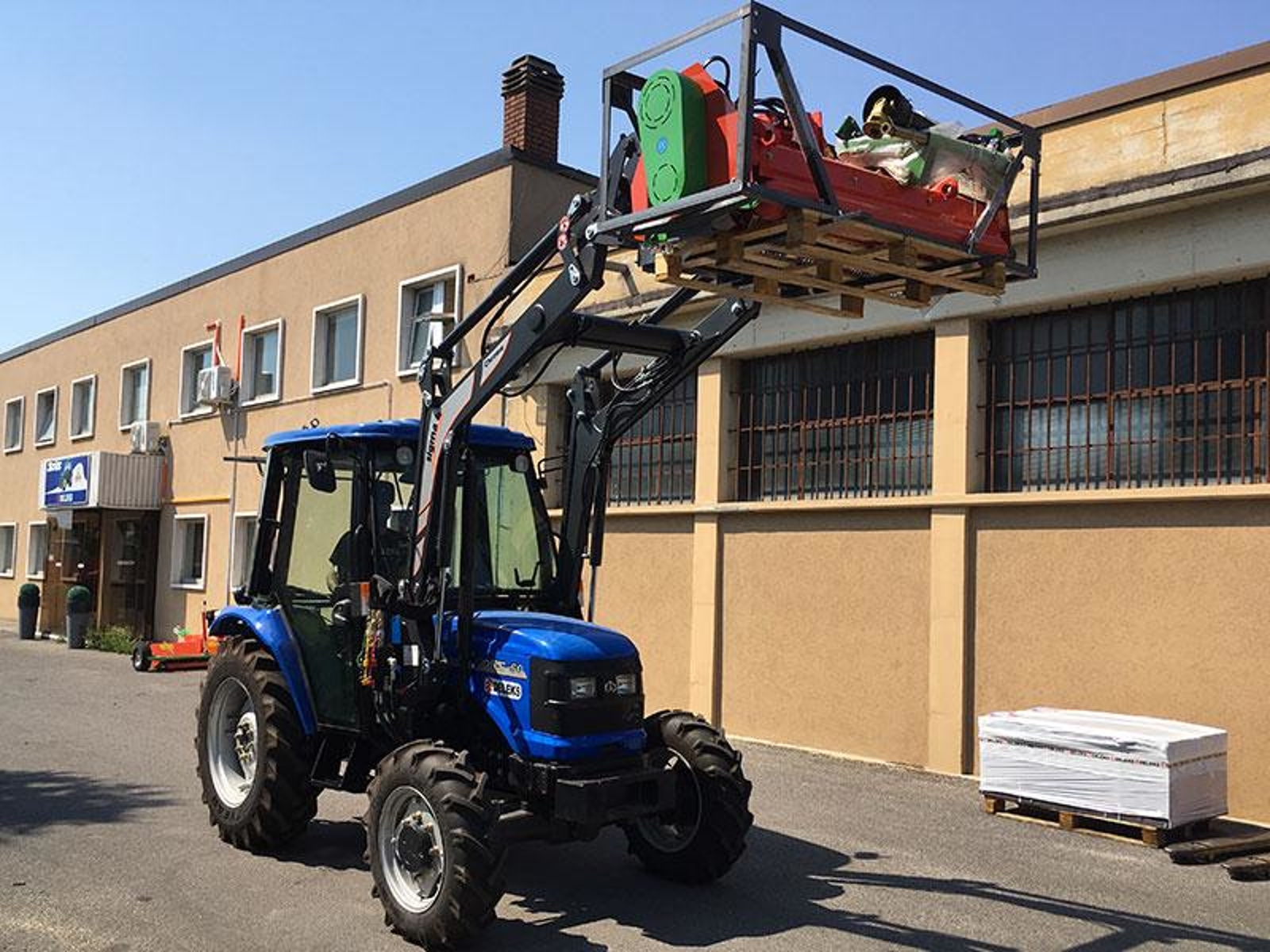

Field test
Field test
DETAILS

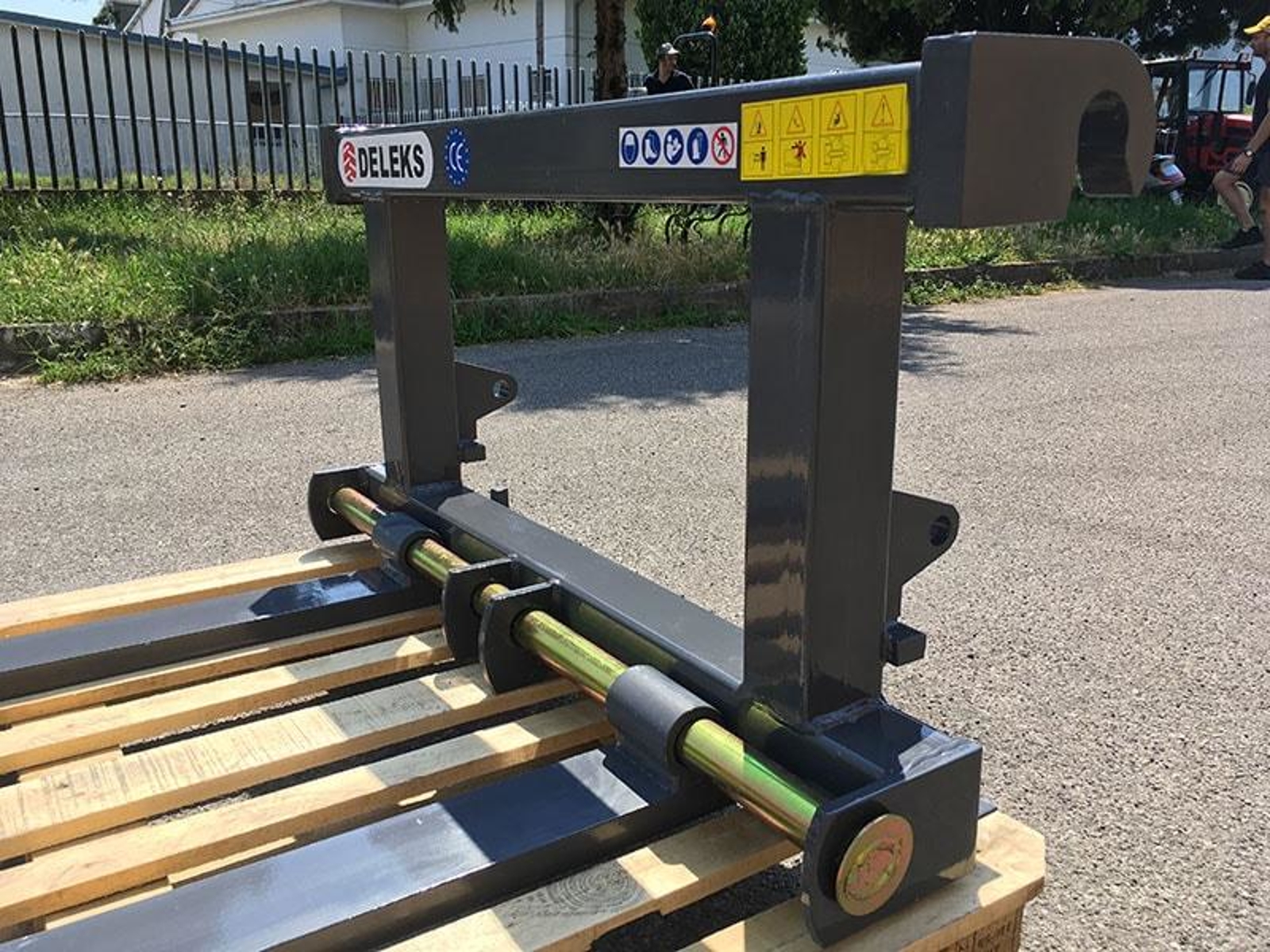

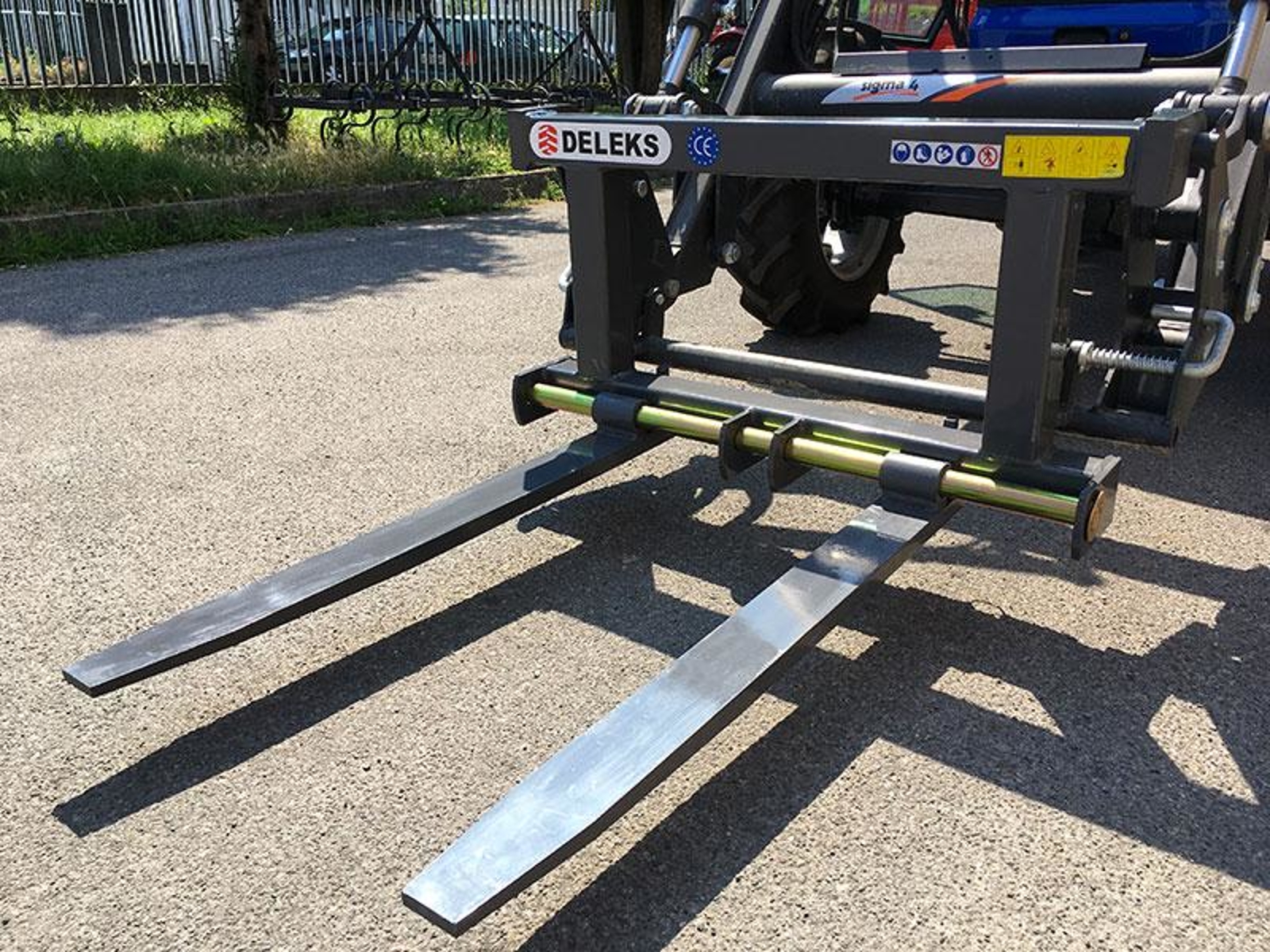

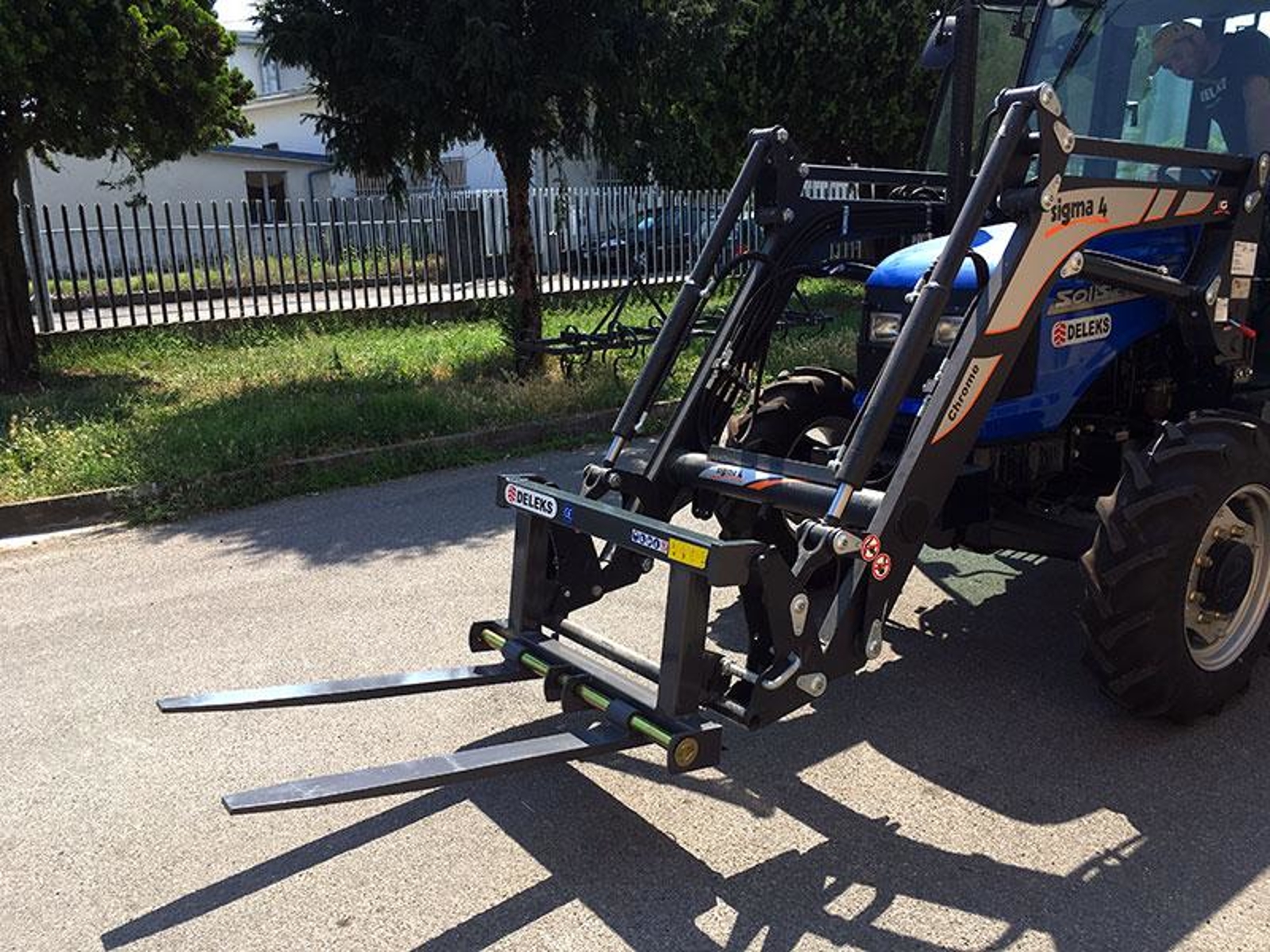

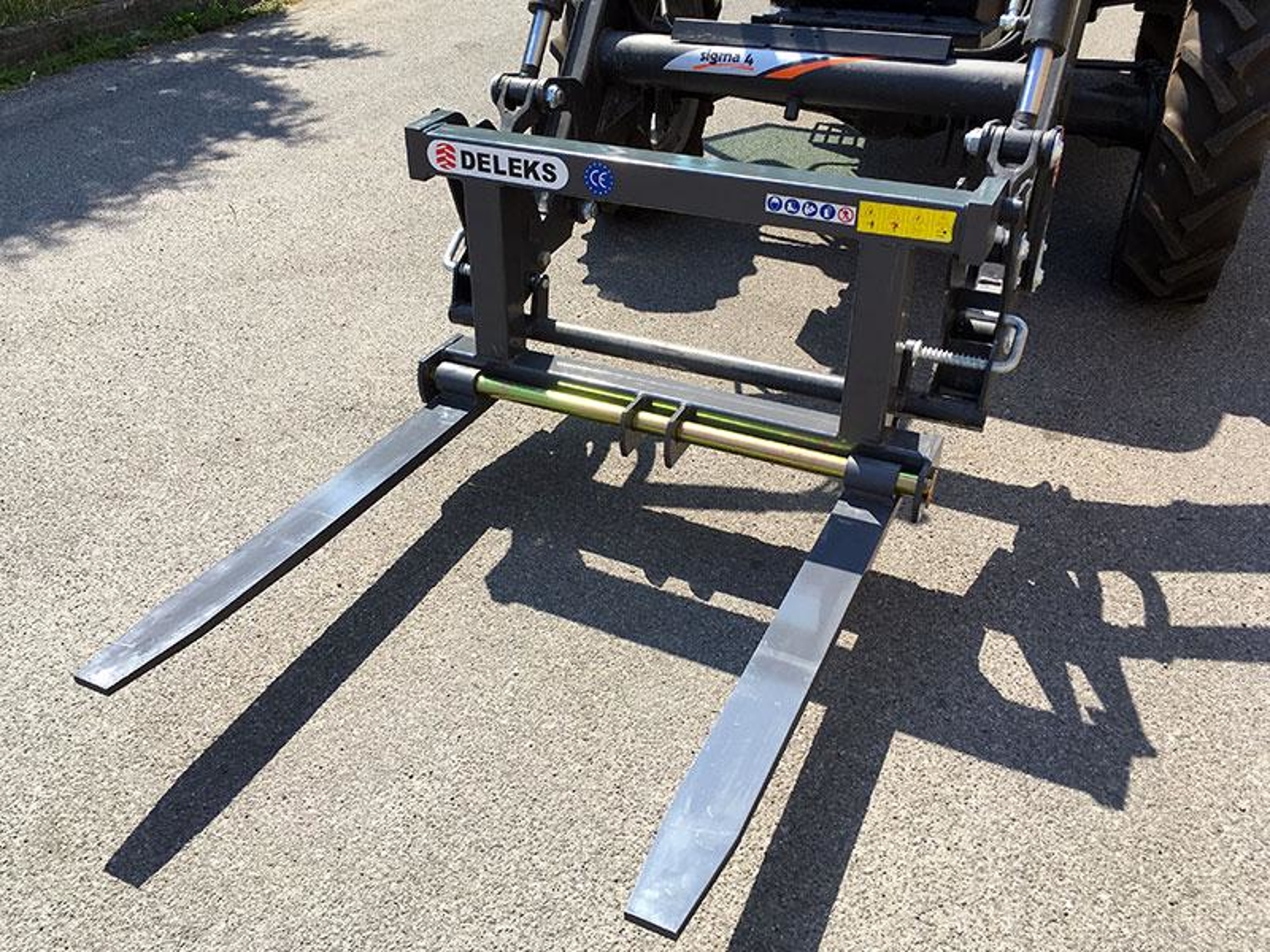

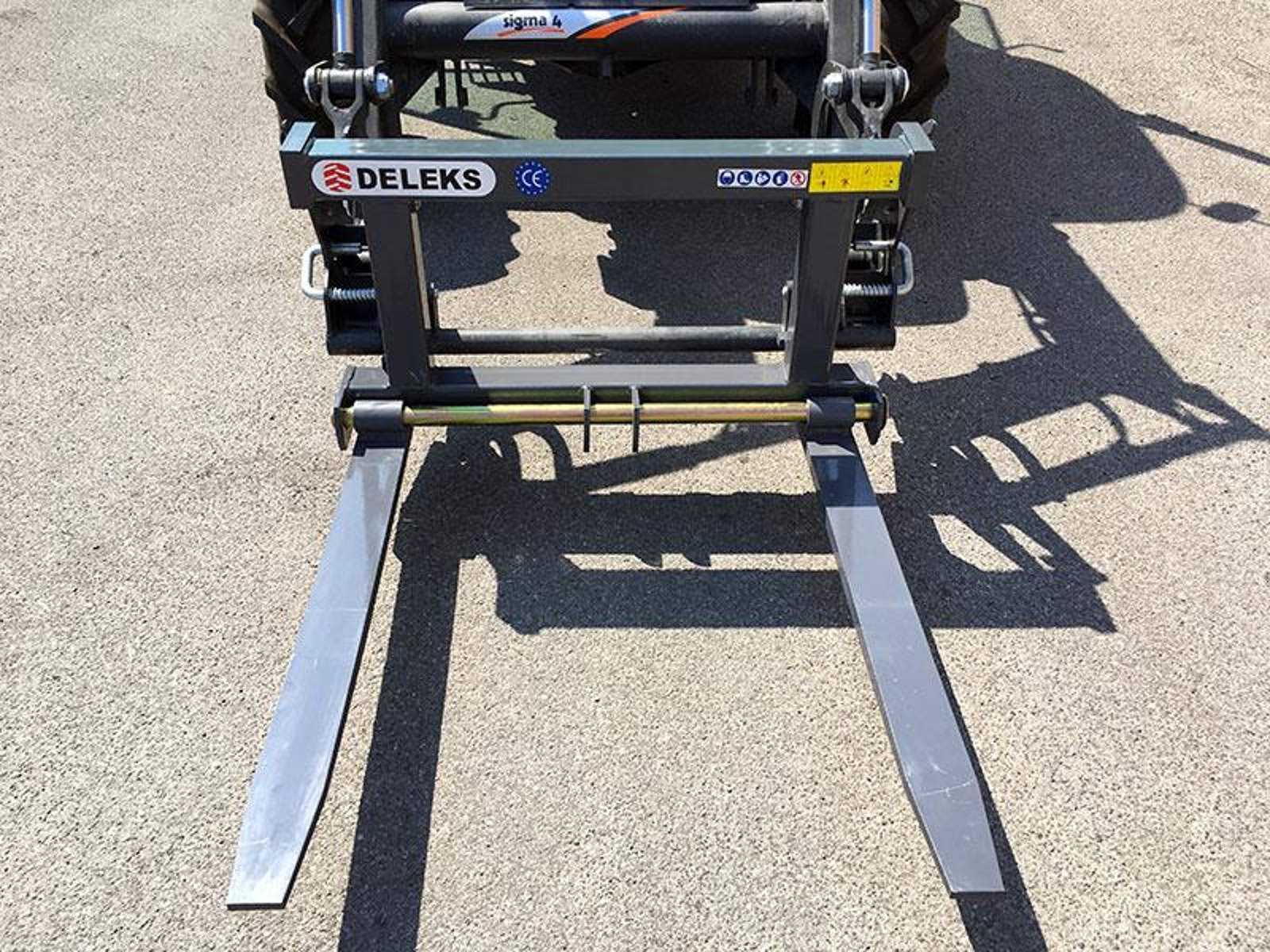

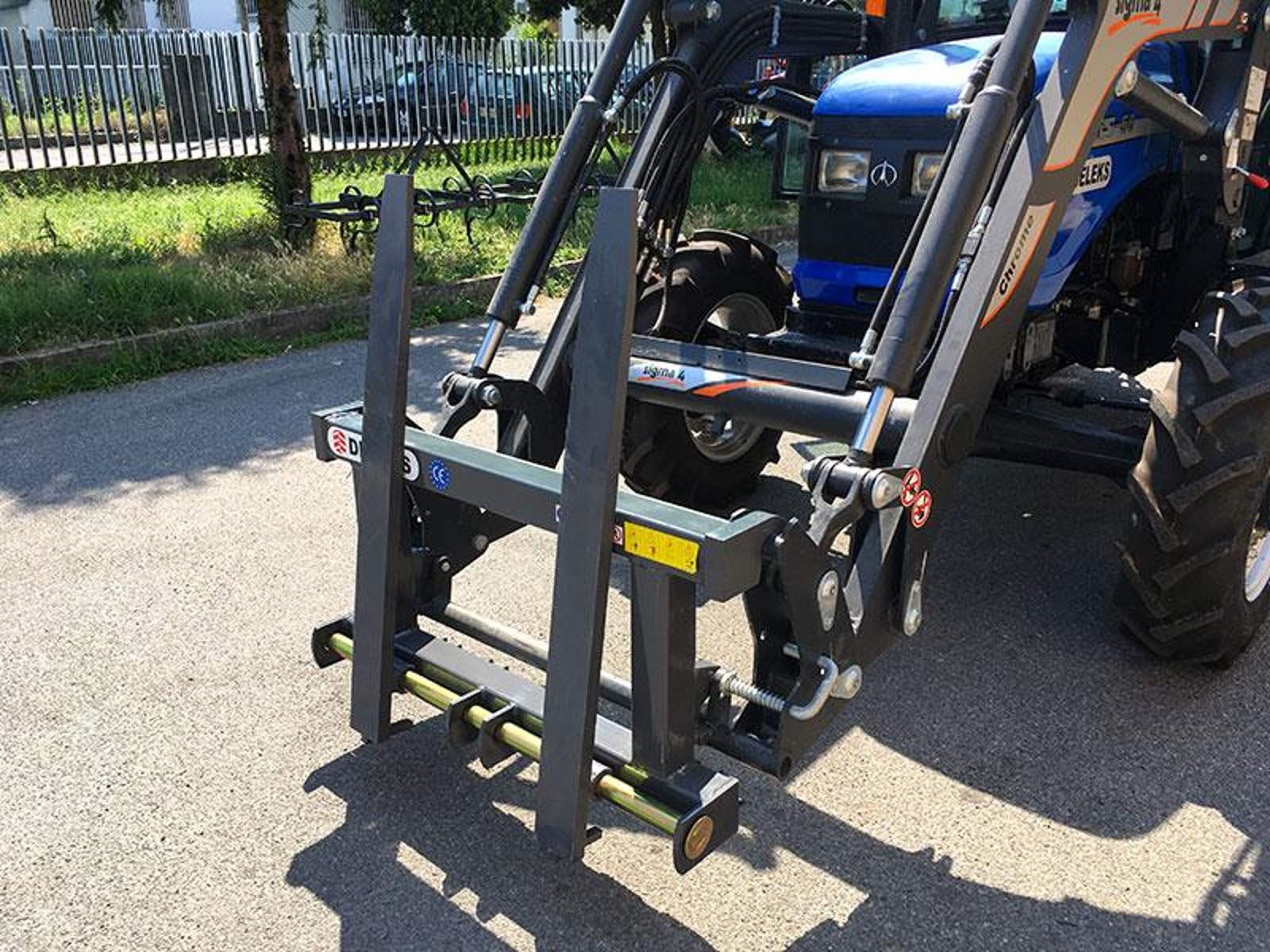

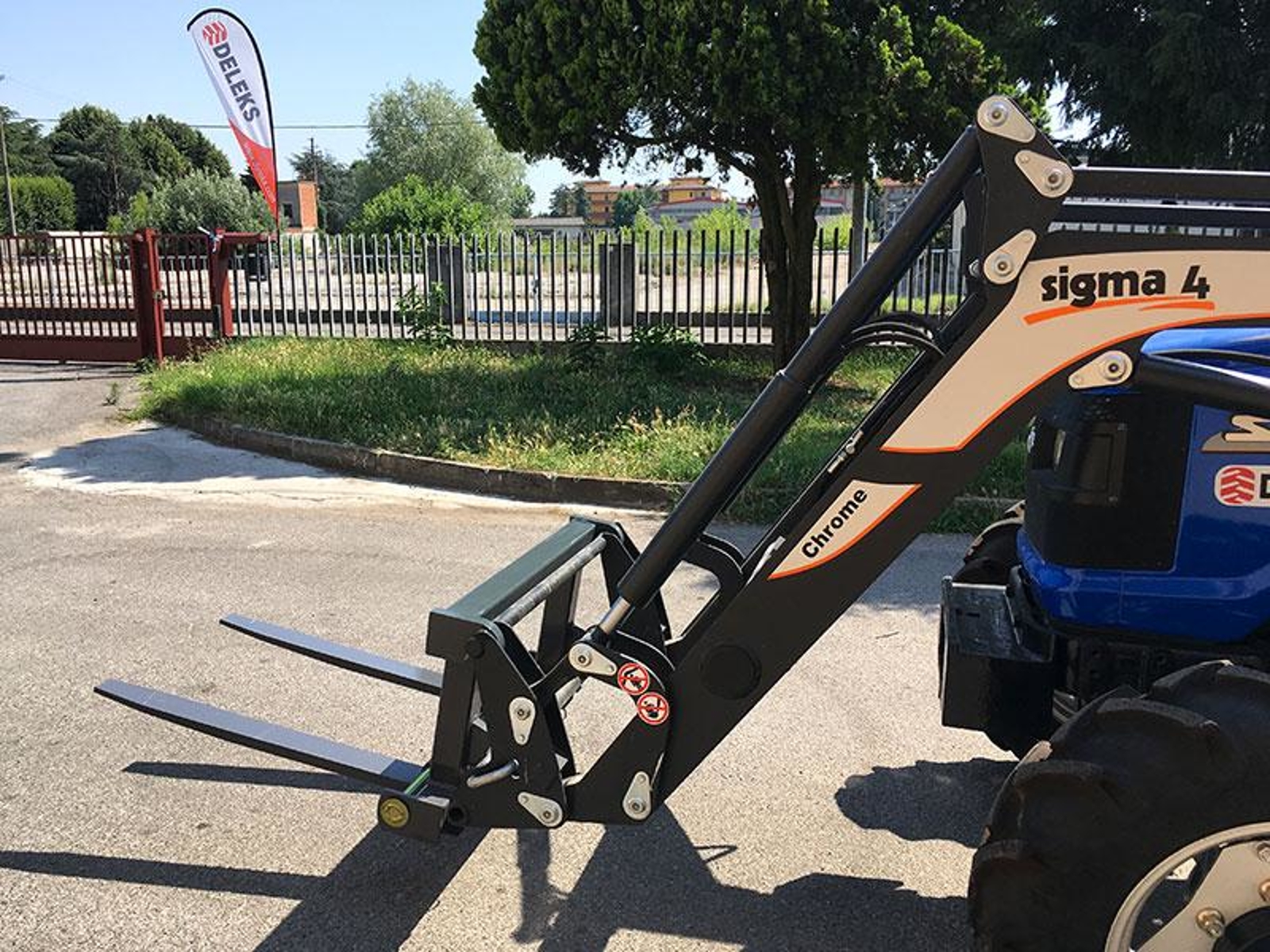

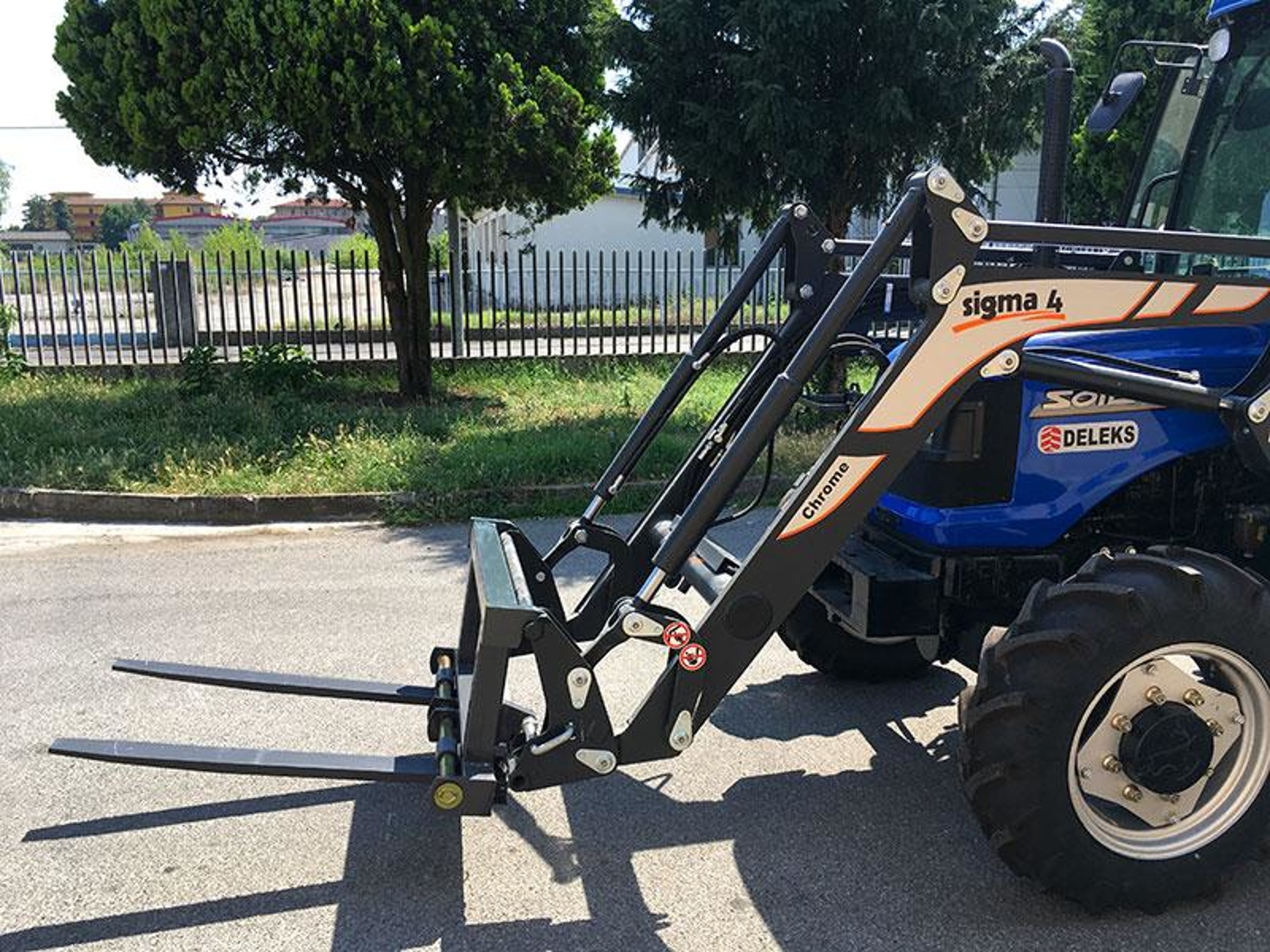

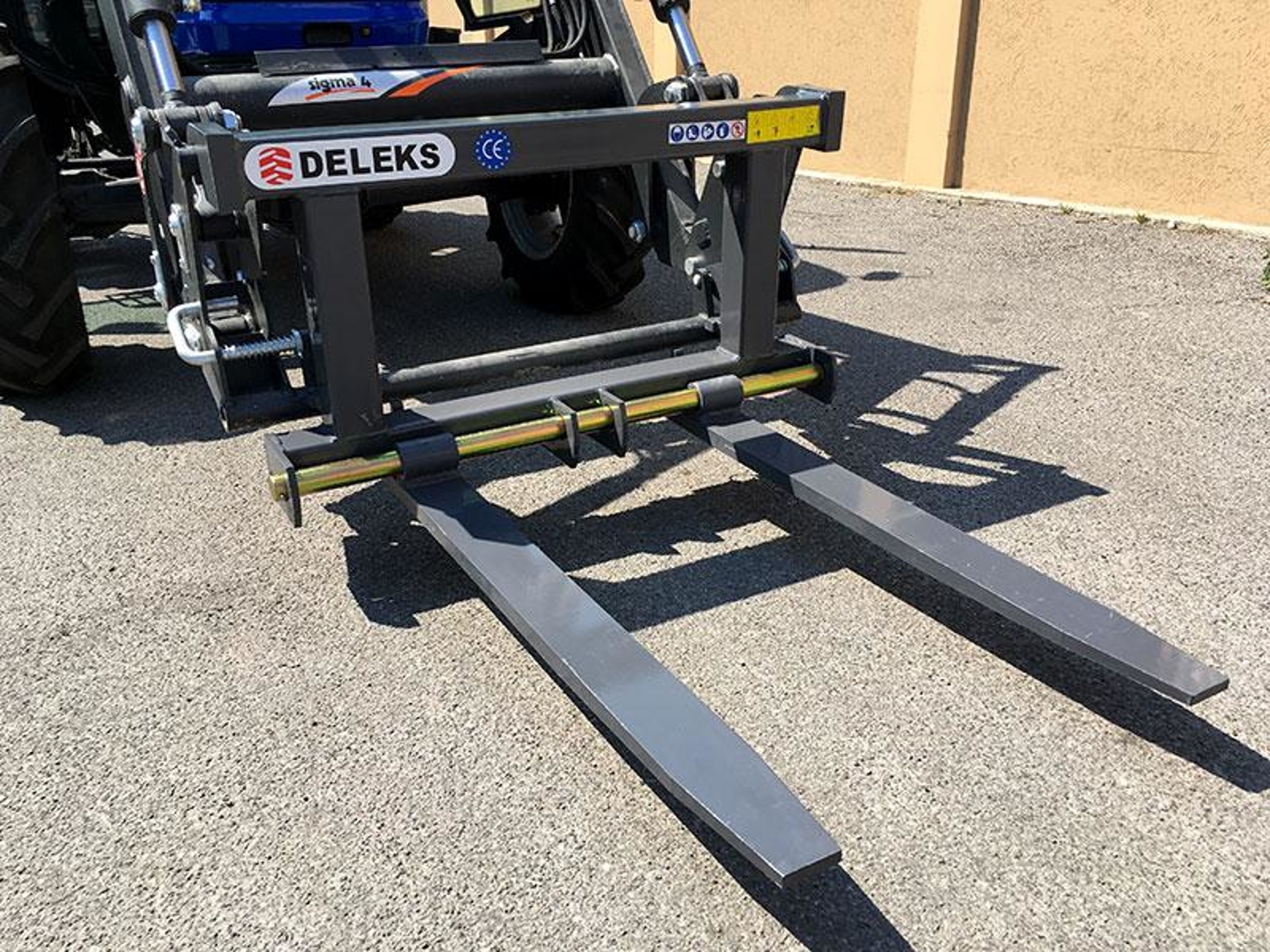

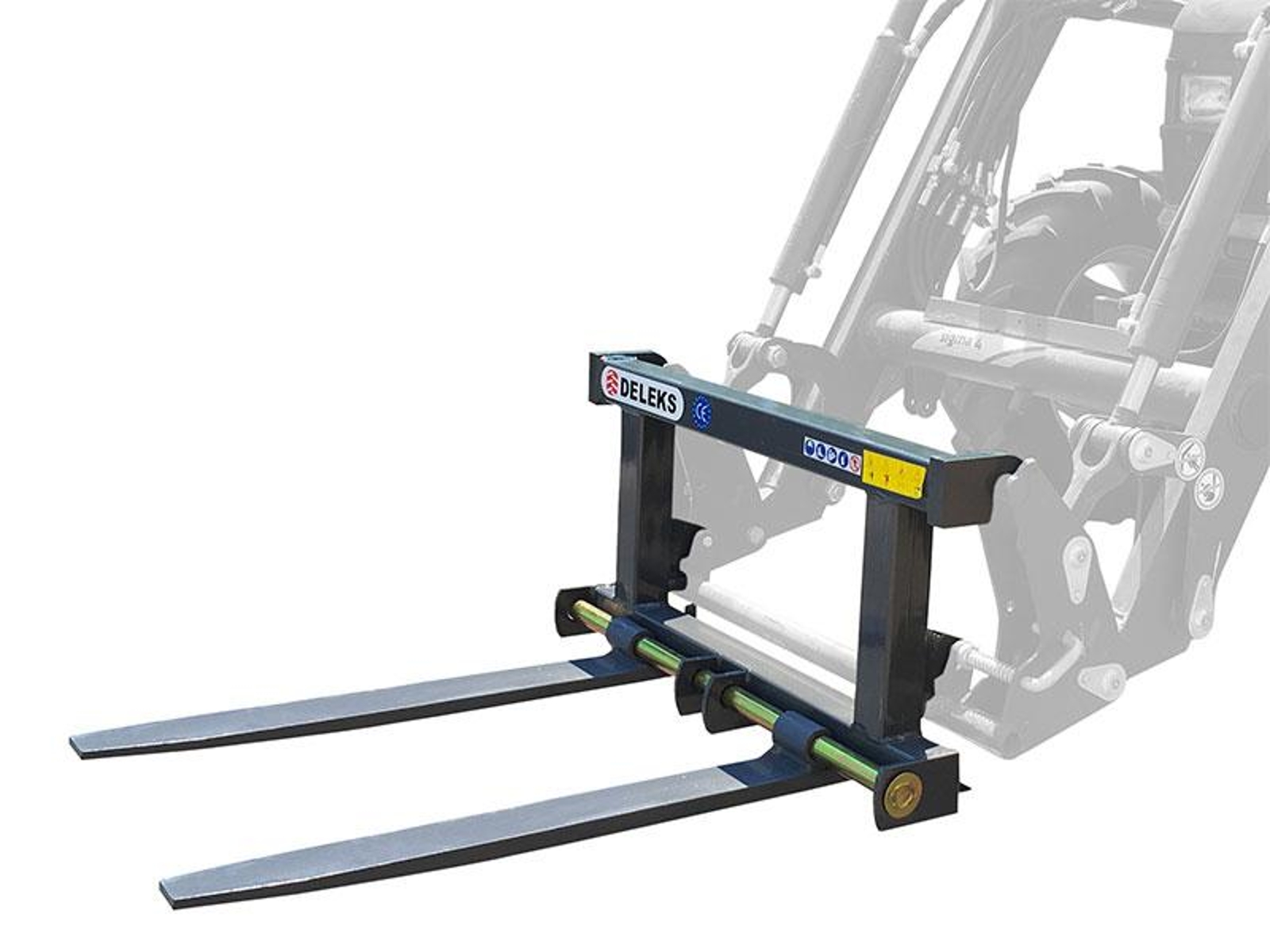

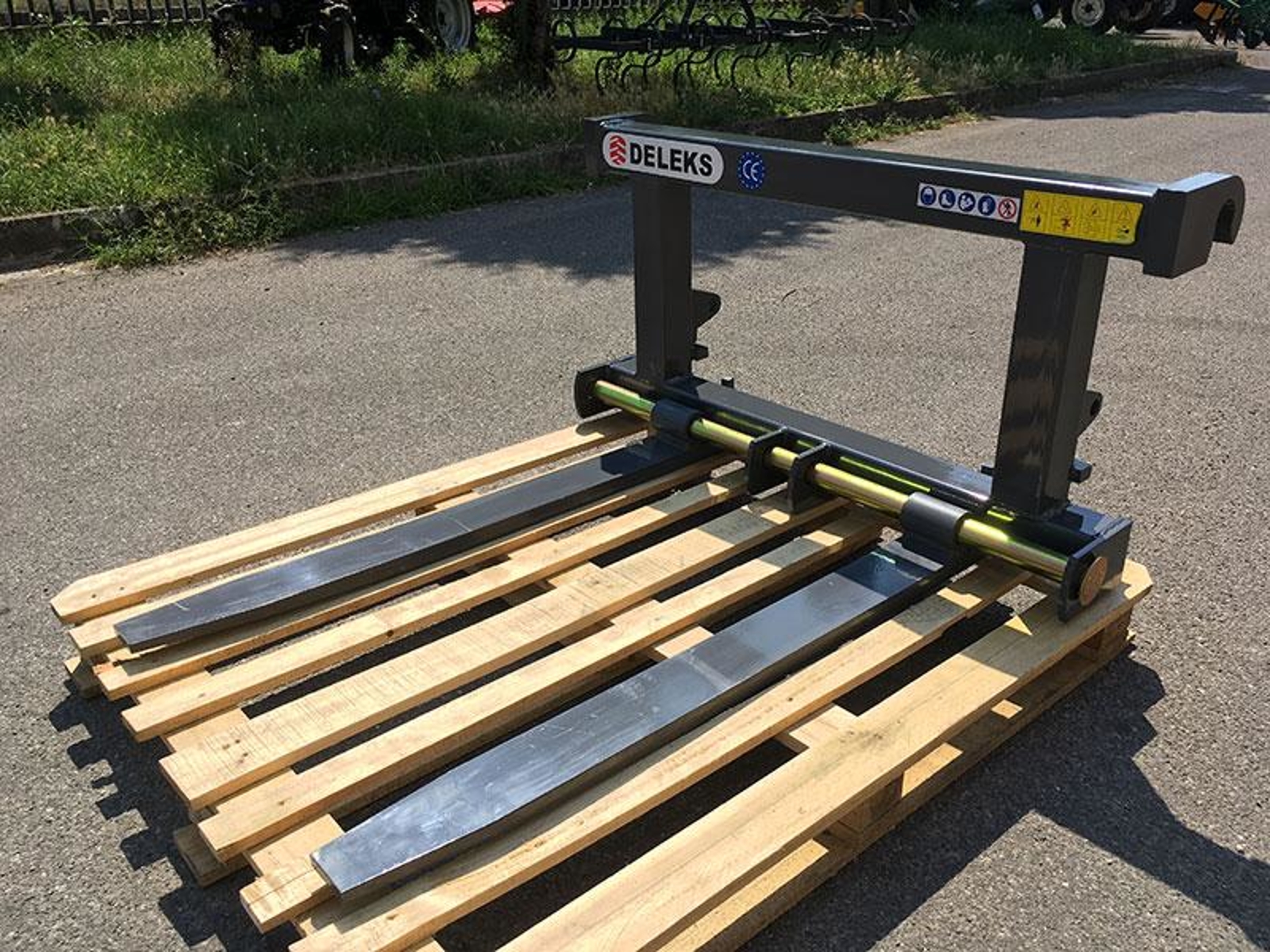

Pallet Forks for front-loader of the tractors - DELEKS® - load capacity 700kg.
OVERVIEW
The D-700-E Pallet Forks with a loading capacity of 700kg, making it ideal for use on farms and ranches, construction sites, nurseries, campuses, theme parks, and for warehouse work. Universal forks for pallet lifting. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

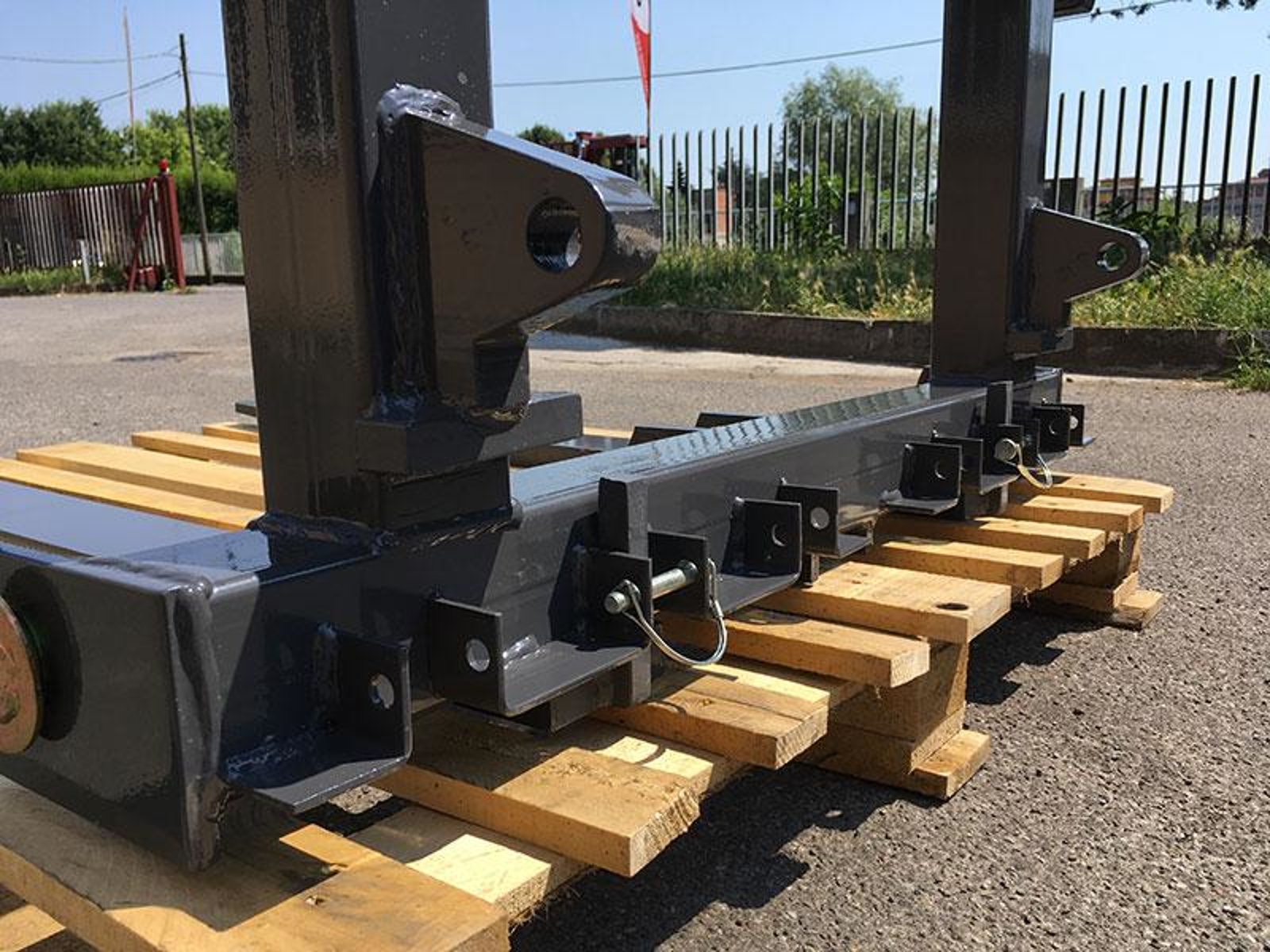

DELEKS® carriage design allows fork tines to be easily re-spaced or changed and locked into place.
Solid steel forks provide a sturdy base while lifting.

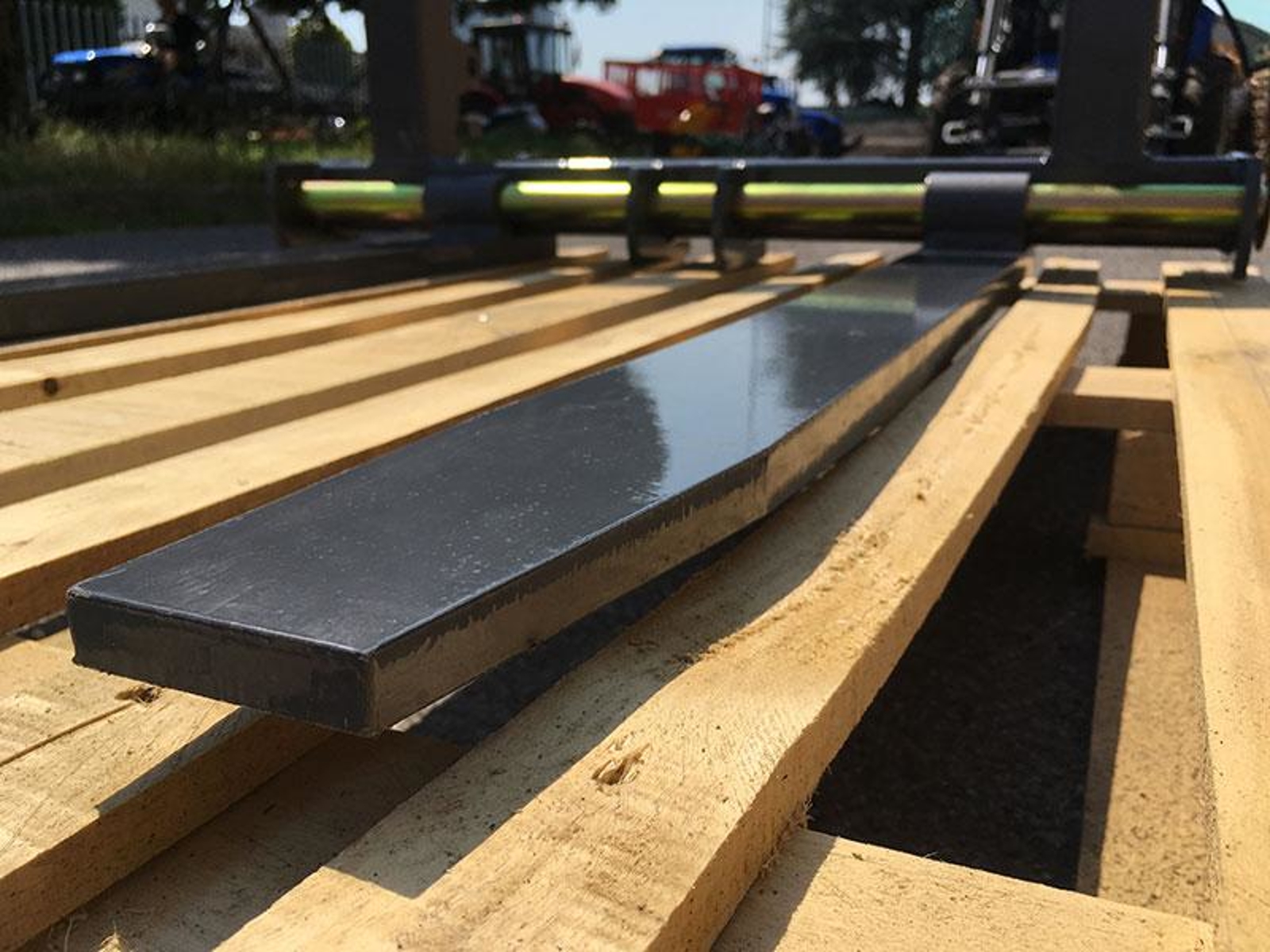

The forks are thinner towards the tip to allow for easy loading.
Loading capacity of 700kg.
The weight of the load is well distributed so it will not cause stress failures.
Forks can be folded away during transit when not in use.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|

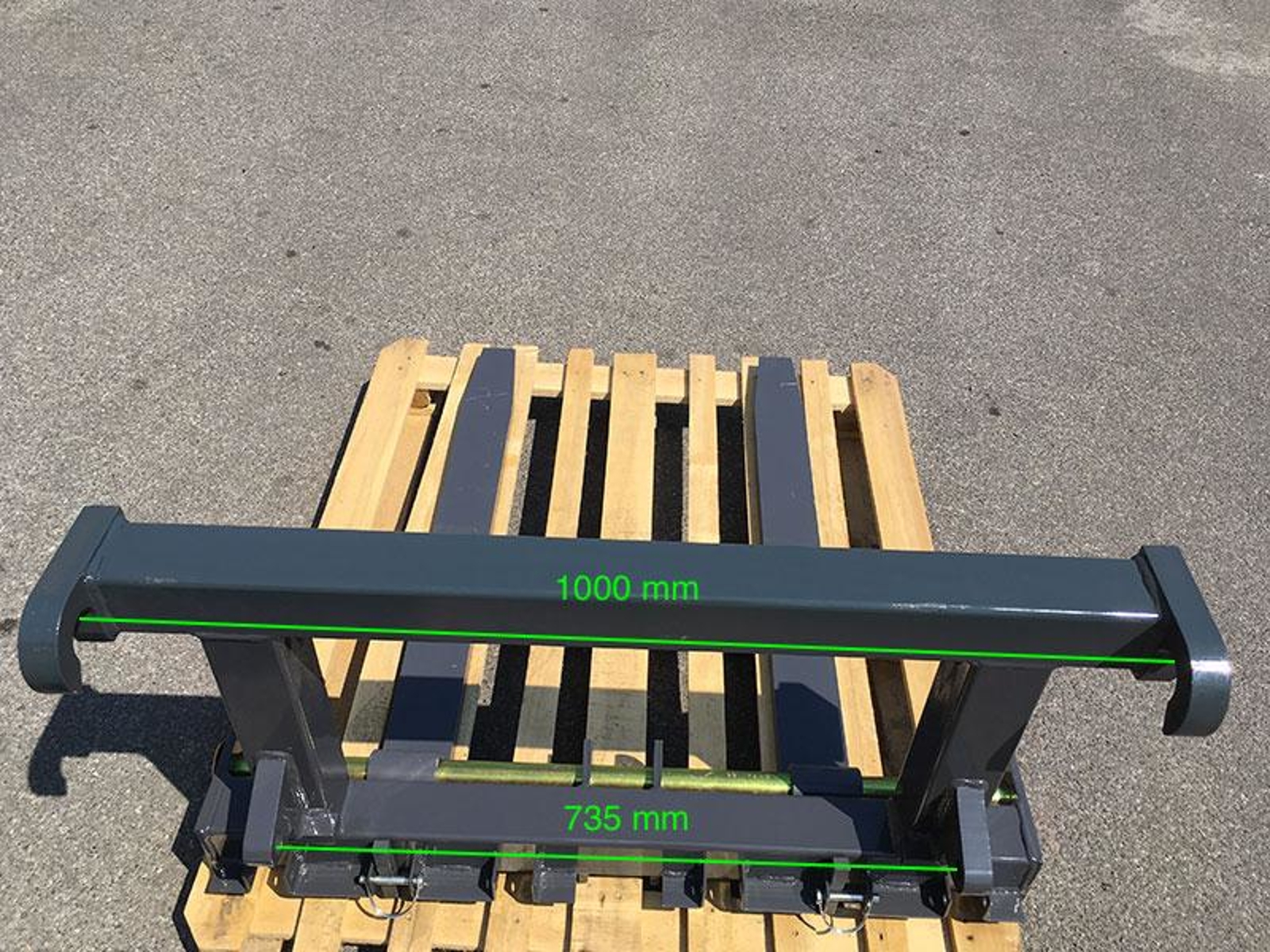

| Overall width | 950.0 mm |
| Weight | 107.0 kg |
| Overall height | 980.0 mm (open) |
| Tractor Power Range | 25 - 90 Hp |
| Load capacity | 700.0 kg |
| Spacing between the 2 lower points | 580.0 / 840.0 mm |

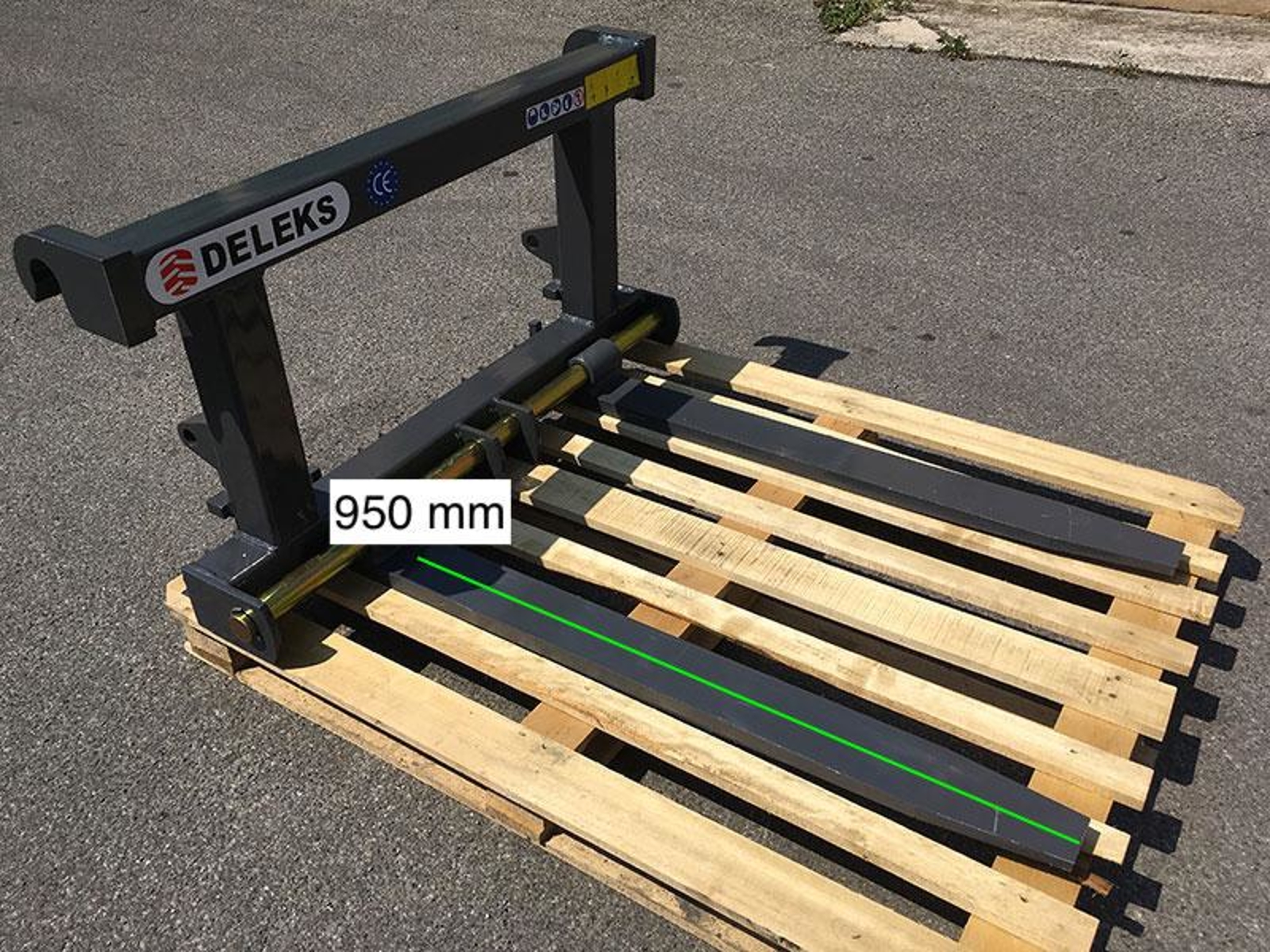

| Usable Fork Tine Length | 950.0 mm |
| Fork Tine Length | 1120.0 mm |
| Fork Tine Height | 30.0 mm |
| Fork Tine Width (single tine) | 100.0 - 67.0 mm |
| Fork Tine Thickness | 30.0 - 14.0 mm |
| Fork Tine Weight | 24.0 kg |
| Fork Tine Spacing (min-max) | 270.0 / 780.0 mm |
| Positions of the forks | 3 + 3 |

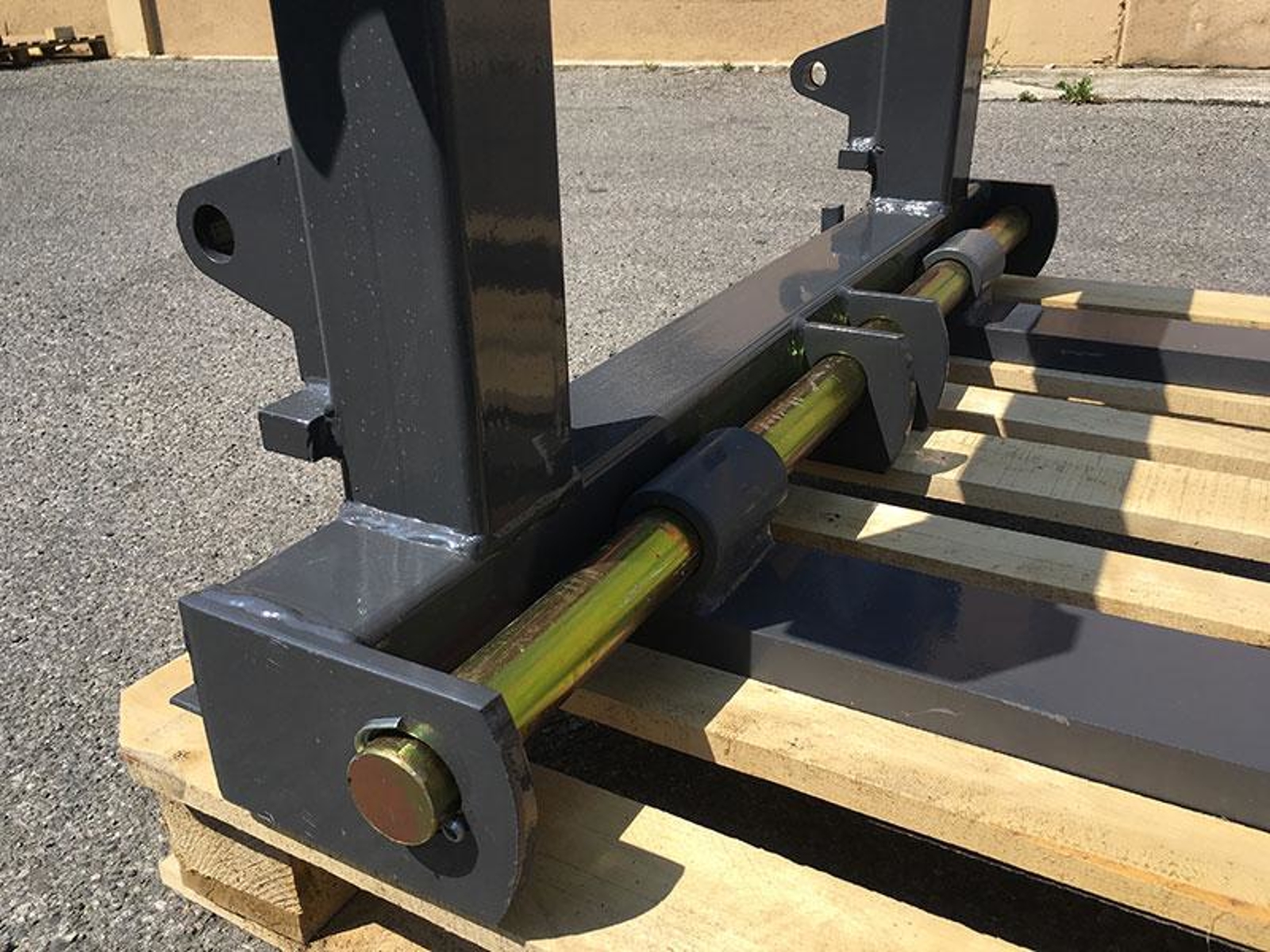

| Diameter of the horizontal tube | 40.0 mm |
| Distance between the 2 lower points and ground | 185.0 / 285.0 / 385.0 mm |
| Overall Length (open and closed) | 1130.0 / 225.0 mm |
| Packing sizes | 1200.0*950.0*300.0 mm |
