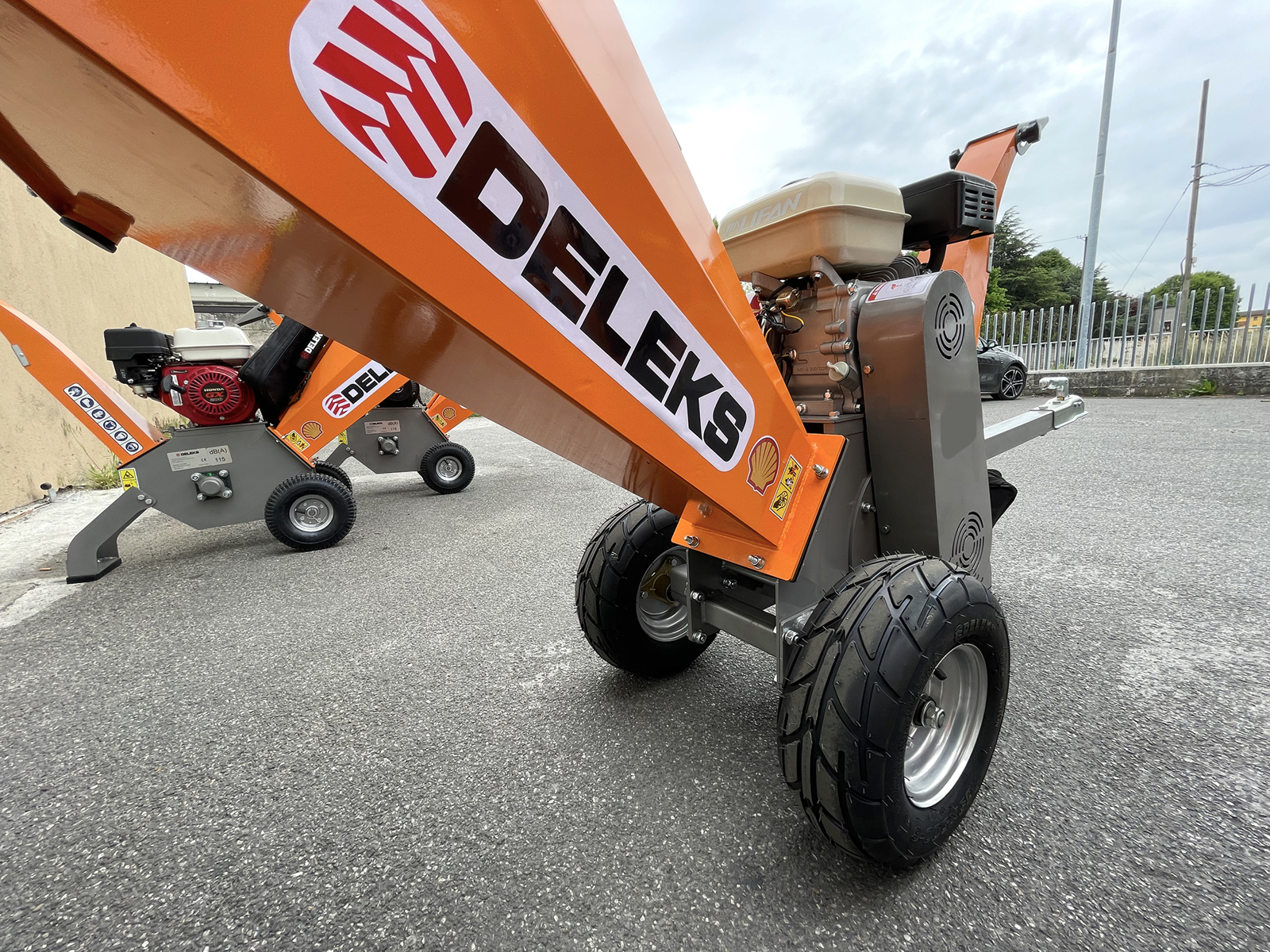

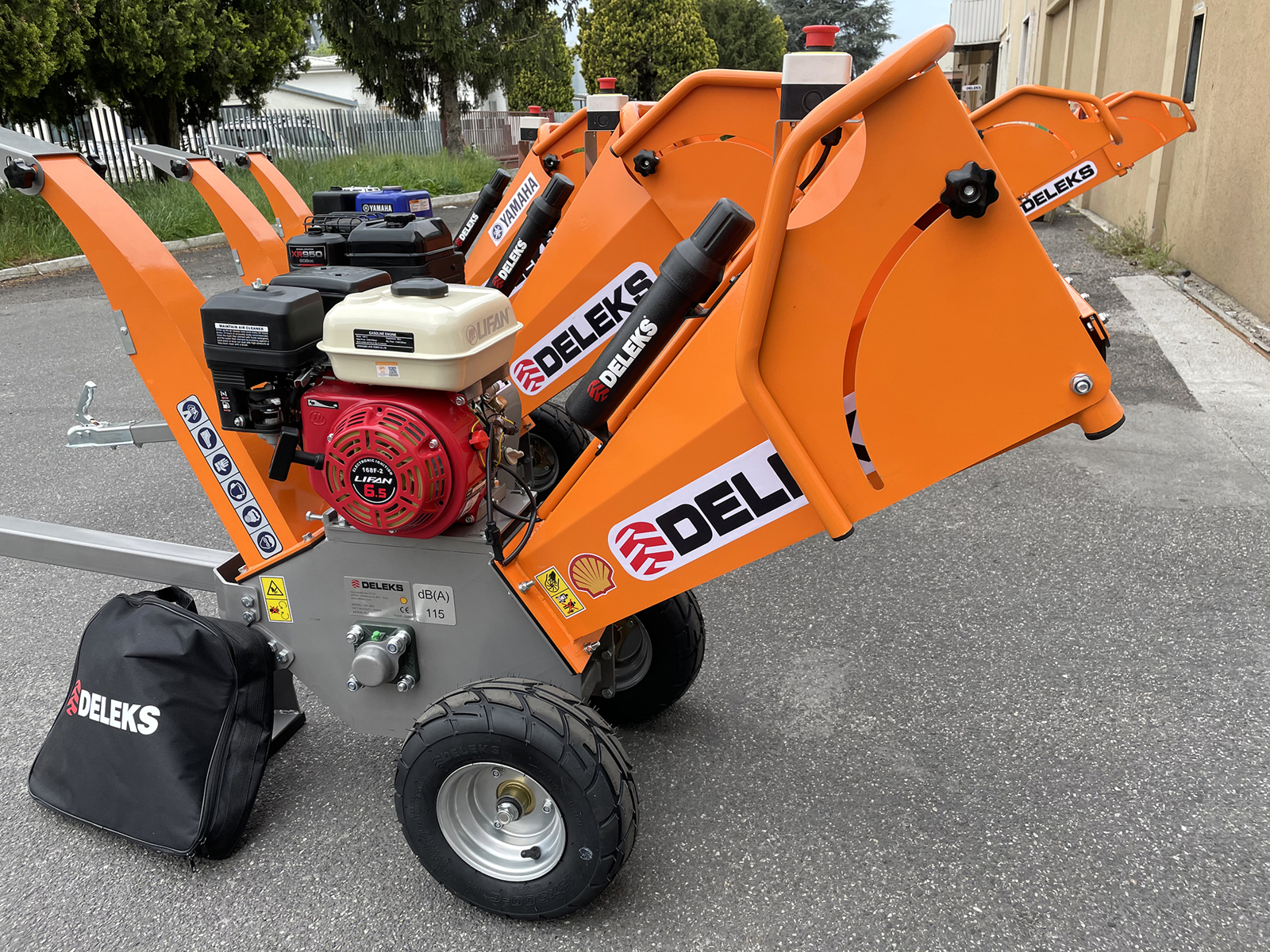

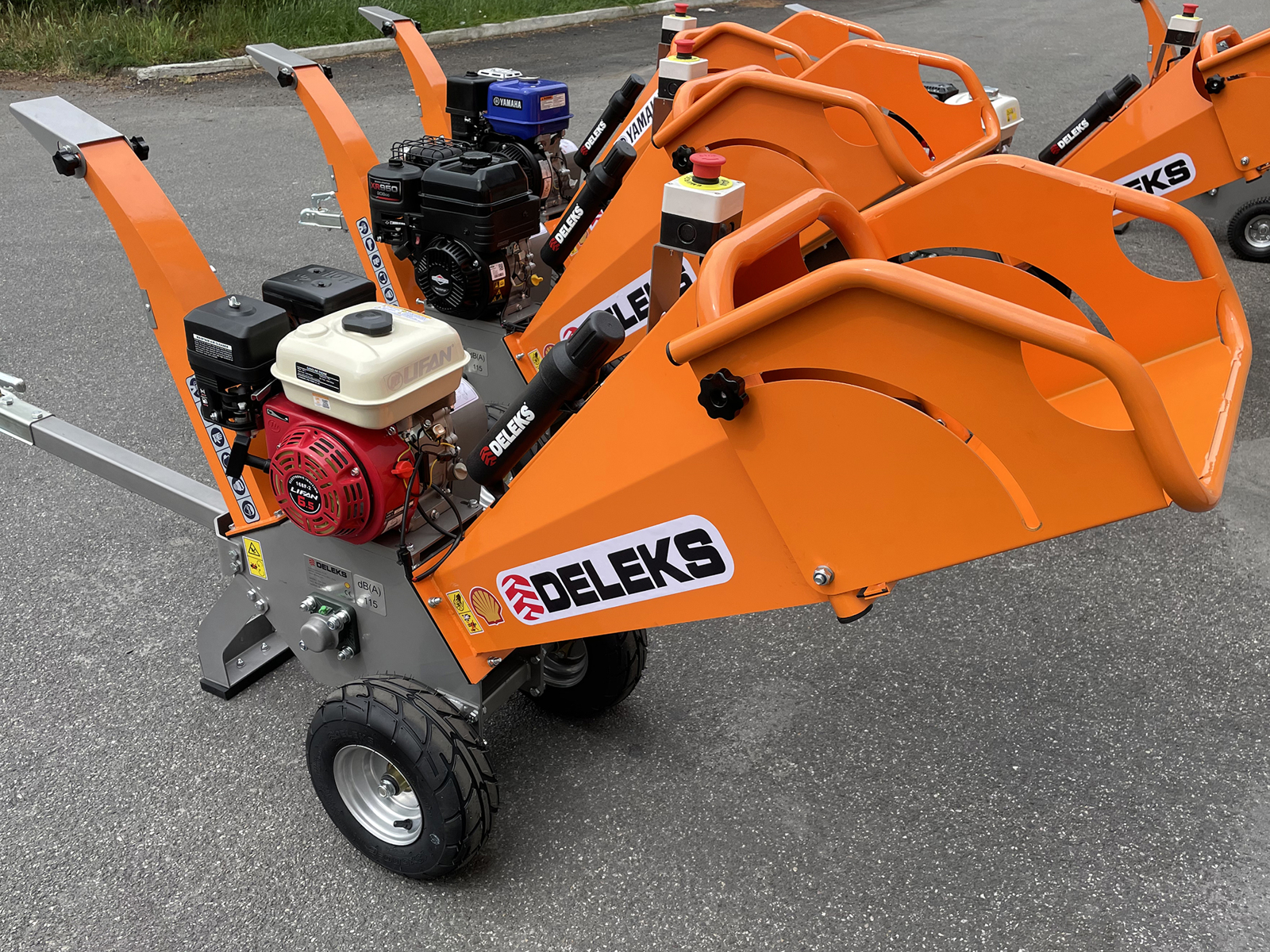

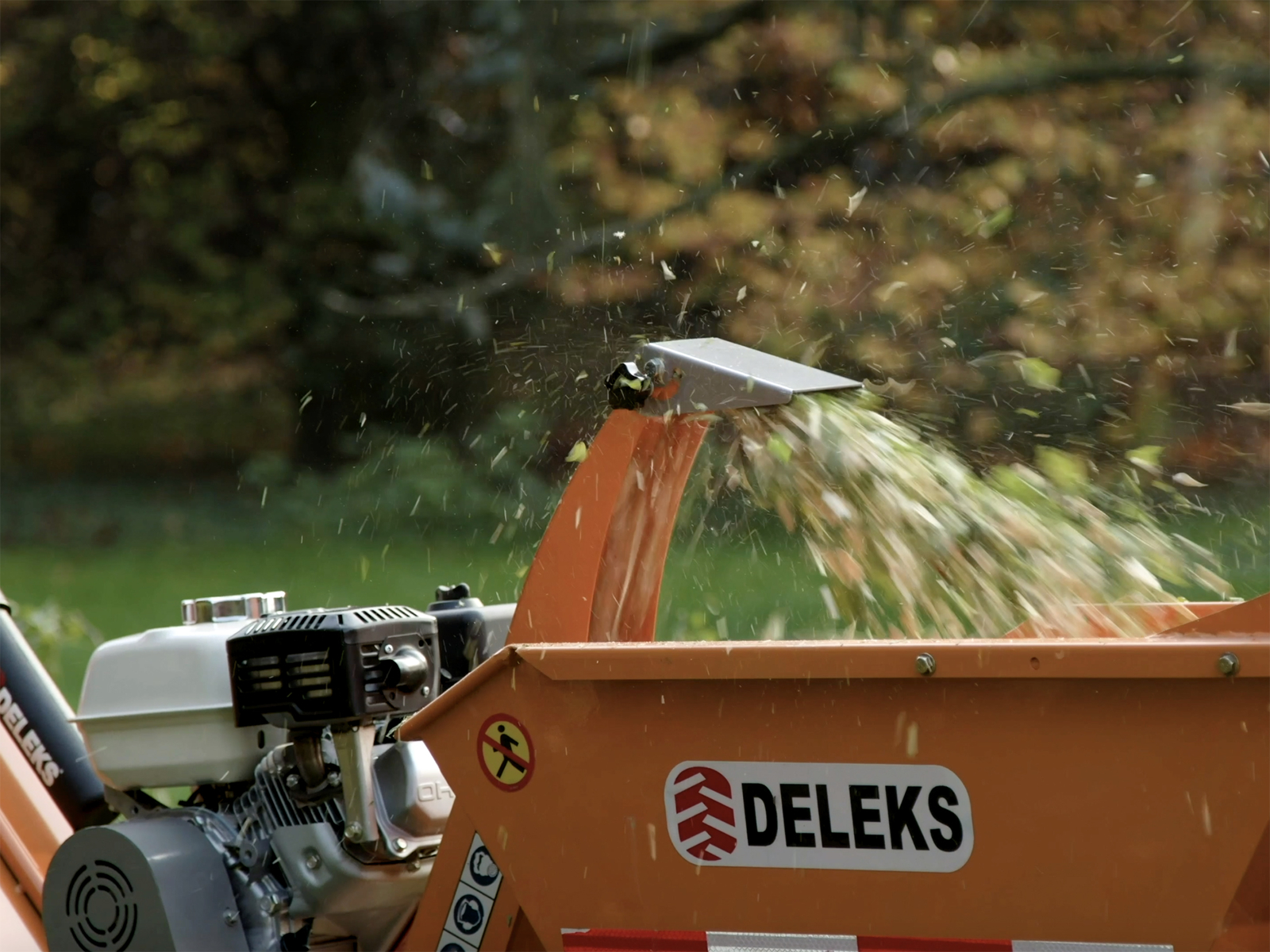

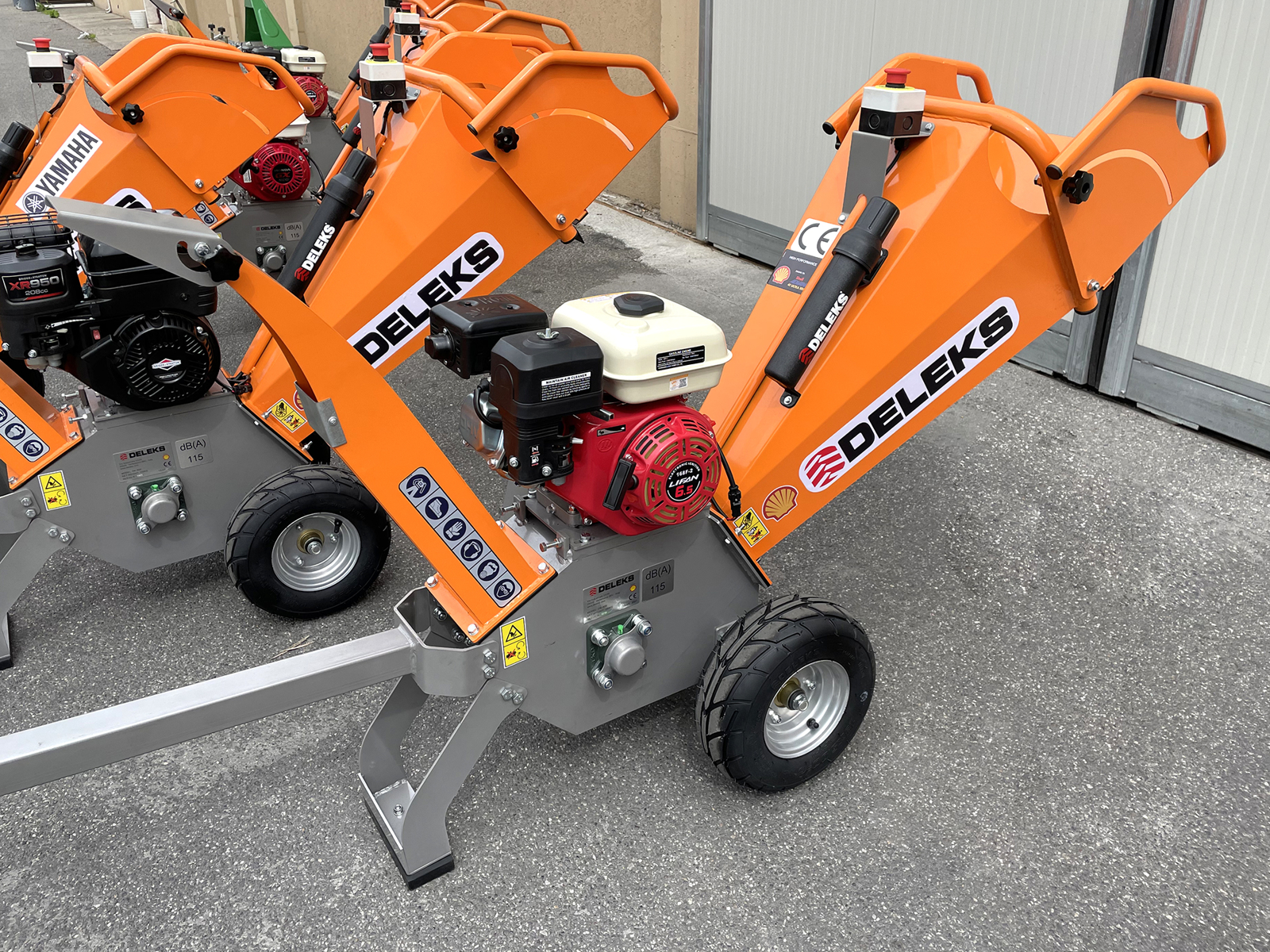

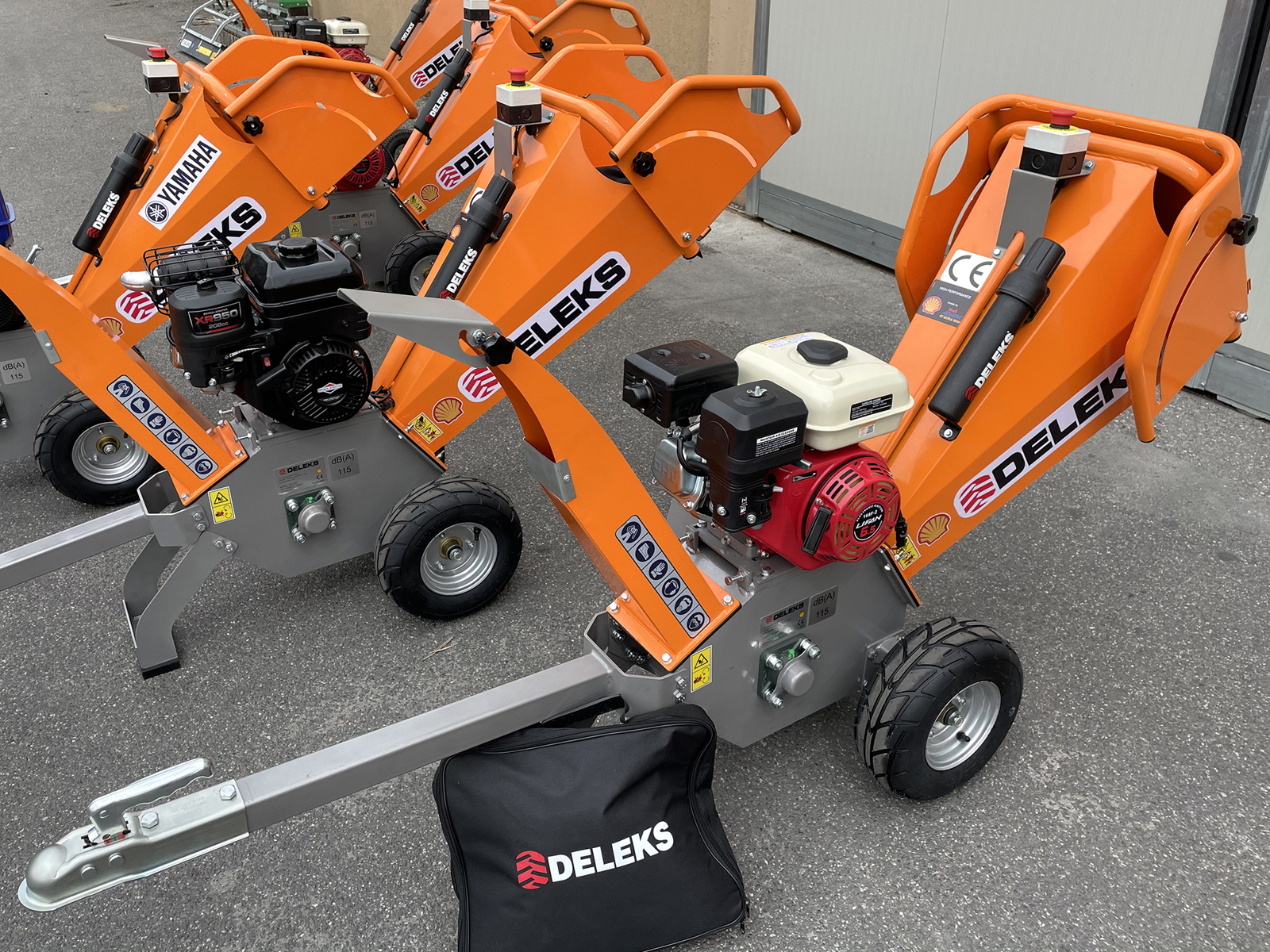

Petrol chipper shredder with Lifan 6.5 Hp engine
Field test by Edd China

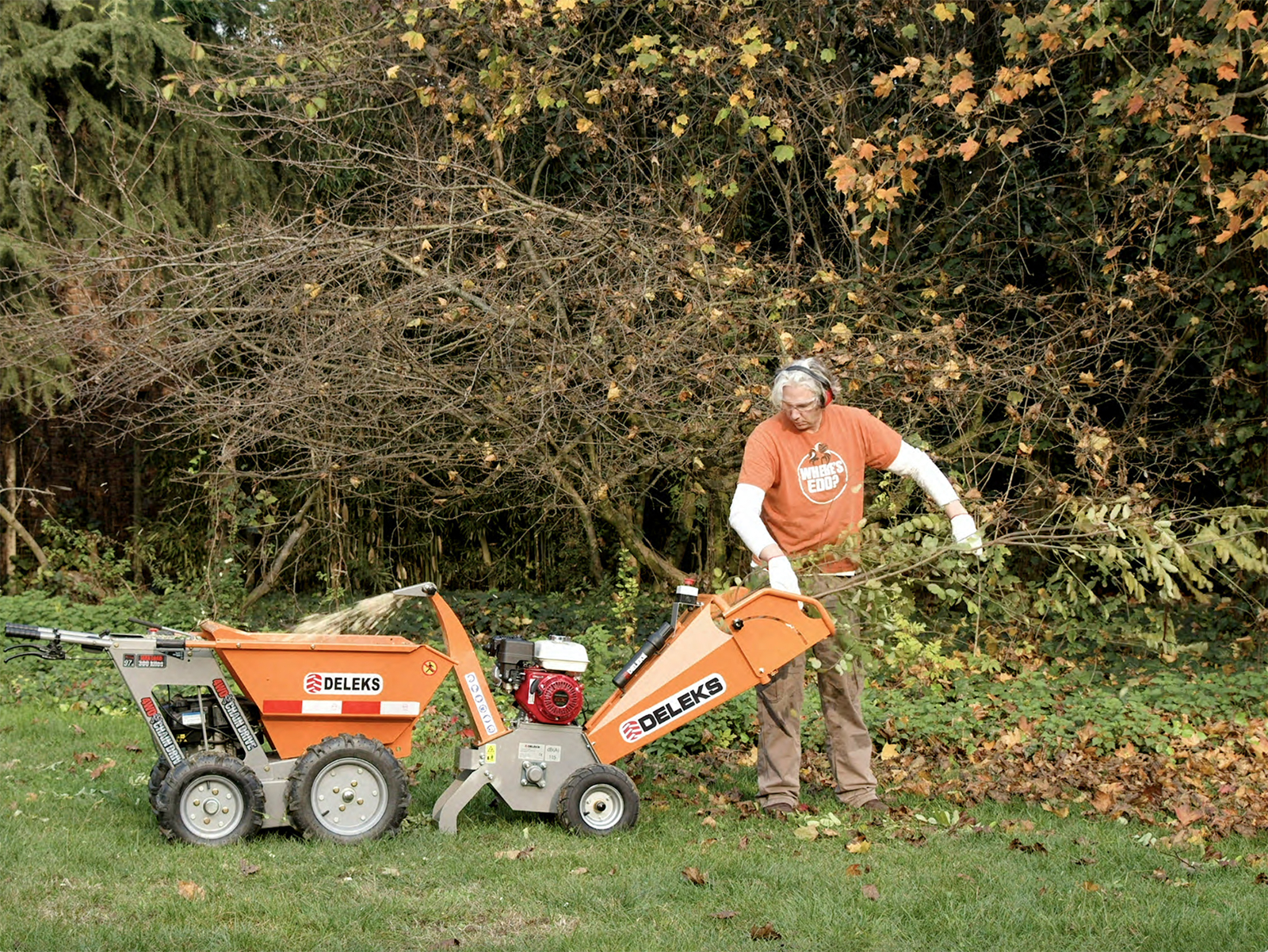

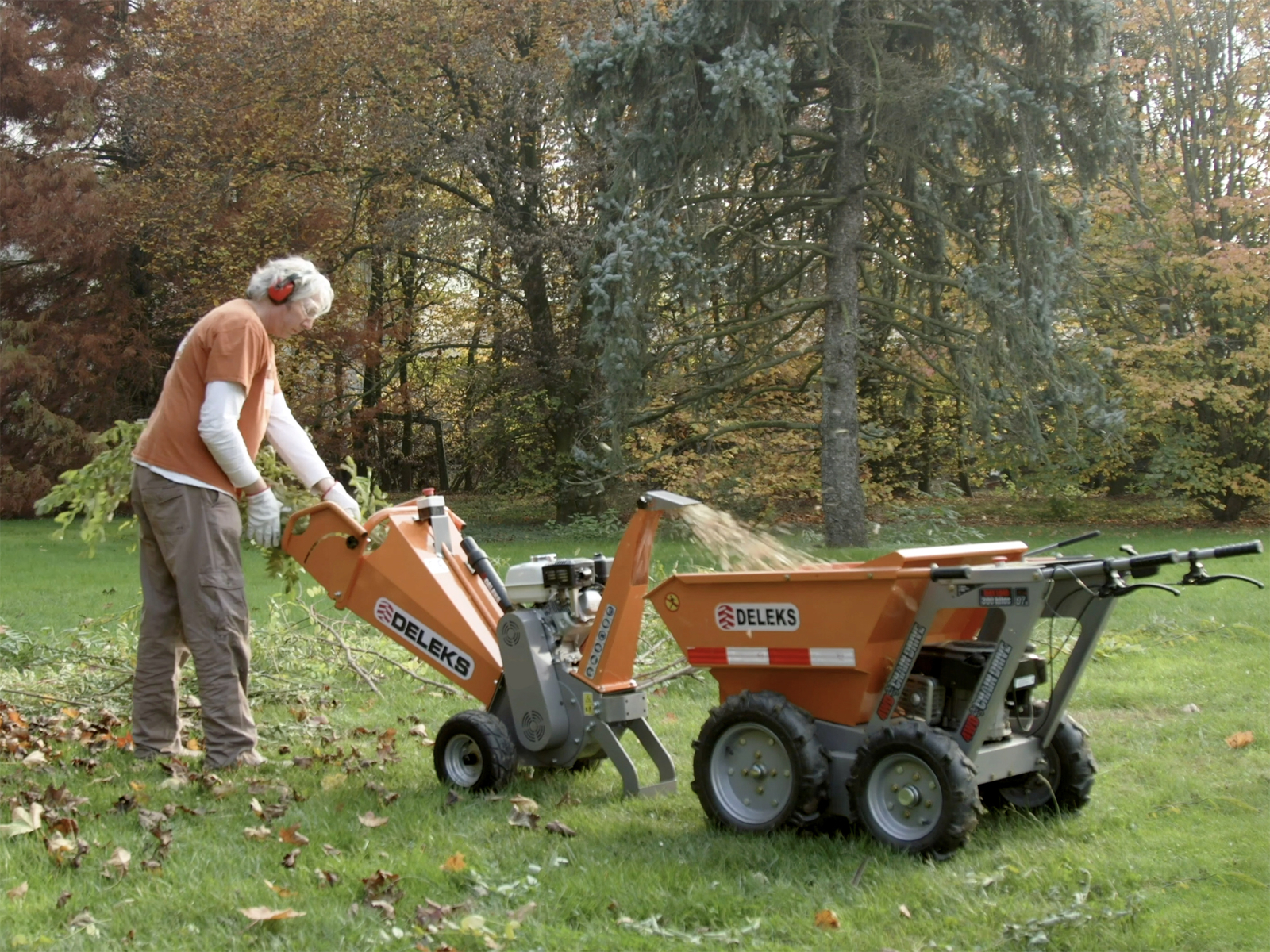

Field test
Review by Edd China (Wheeler Dealers)
Replacing and adjusting the knives
DETAILS

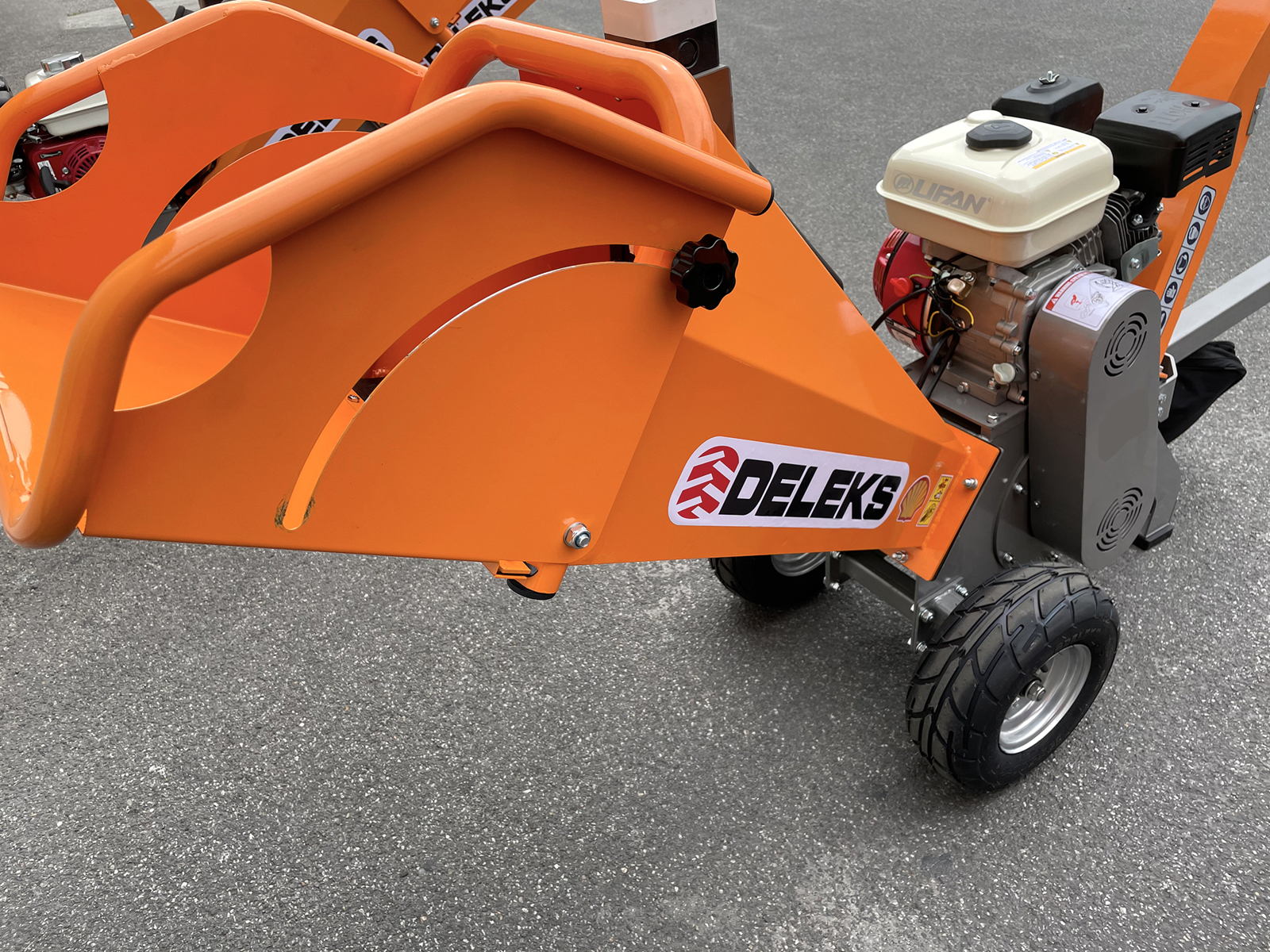

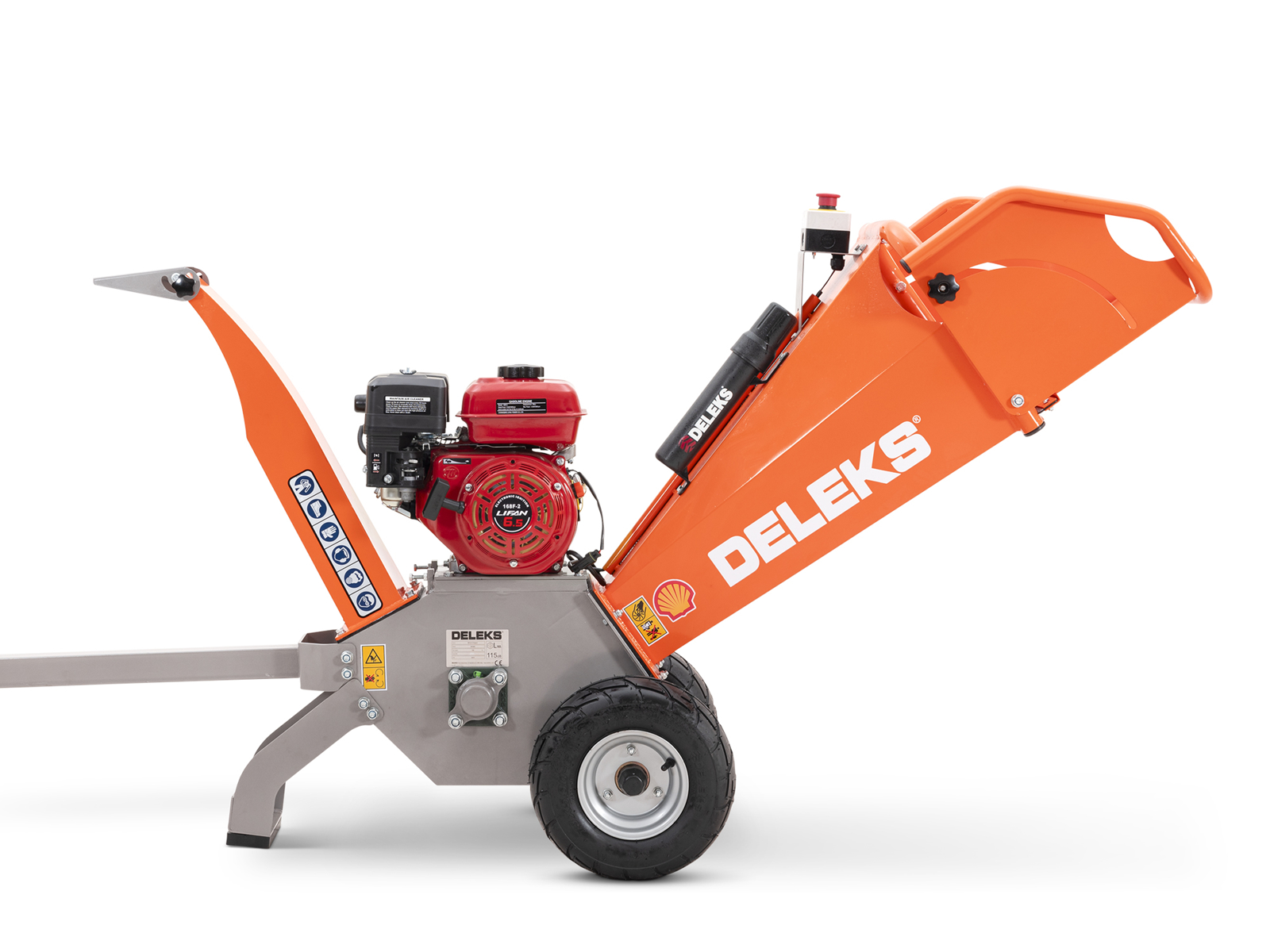

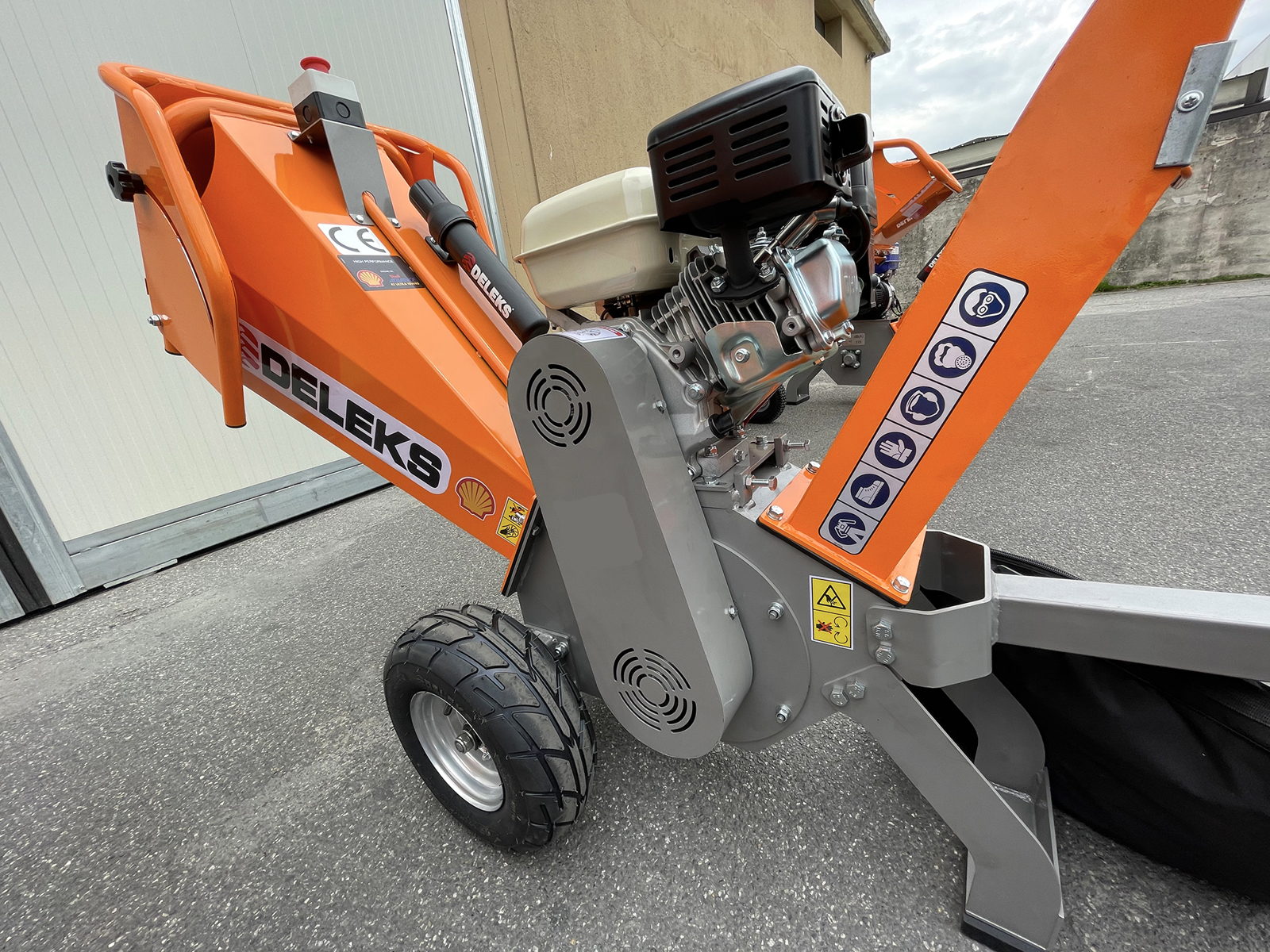

Professional Wood Chipper DELEKS DK-500-FL with 6.5 Hp engine, 4 stroke gasoline engine. 2 reversible knives of special steel.
OVERVIEW

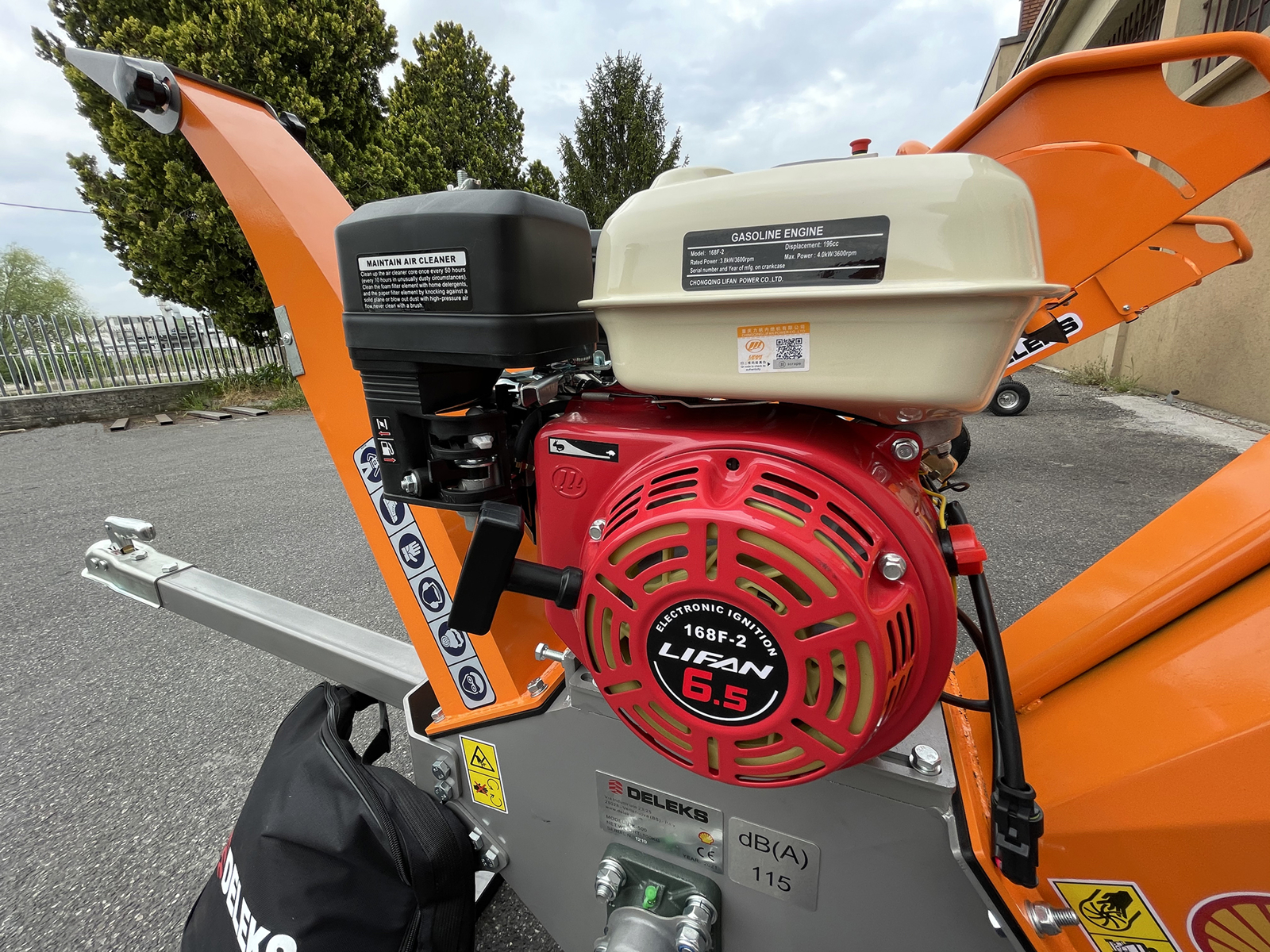

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine LIFAN 168F-2 - 196cc - 6.5 hp (3-Year warranty - Spare parts always available).
Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.
Maximum cutting diameter: 6 cm
Chipper produces enough material to make pulp or pellets for industrial use.
Machine not suitable for shredding corn, straw, alfalfa, etc ..
CERTIFICATES - GUARANTEE - ASSISTANCE
TÜV SUD certification
LIFAN 168F-2 petrol engine with 3-years European warranty
BENEFITS AND FEATURES
2 reversible knives of special high resistance steel.
The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.
Gasoline engine, air-cooled 4-stroke.
Starter rope;
Ergonomic design;
Excellent maneuverability thanks to its 2 wheels;
Solid structure and stable with a low center of gravity.
Headphones and goggles.
Conforms to the CE directive.

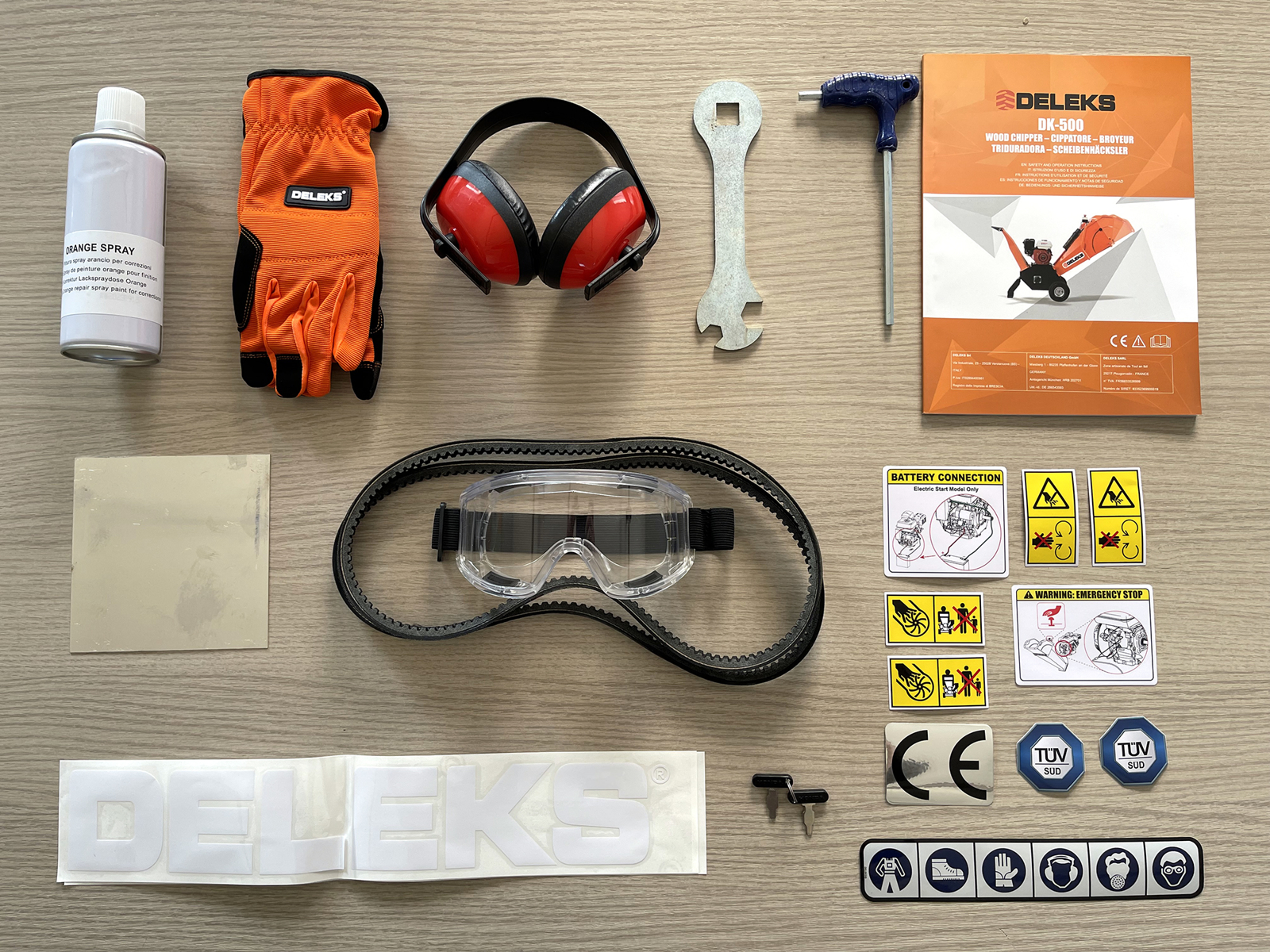

STANDARD EQUIPMENT
Set of 2 replacement transmission belts
CE protection caps
CE protective glasses
Use and maintenance manual for the machine
Use and maintenance manual for the LIFAN engine
Orange Spray Paint
Complete set of replacement stickers

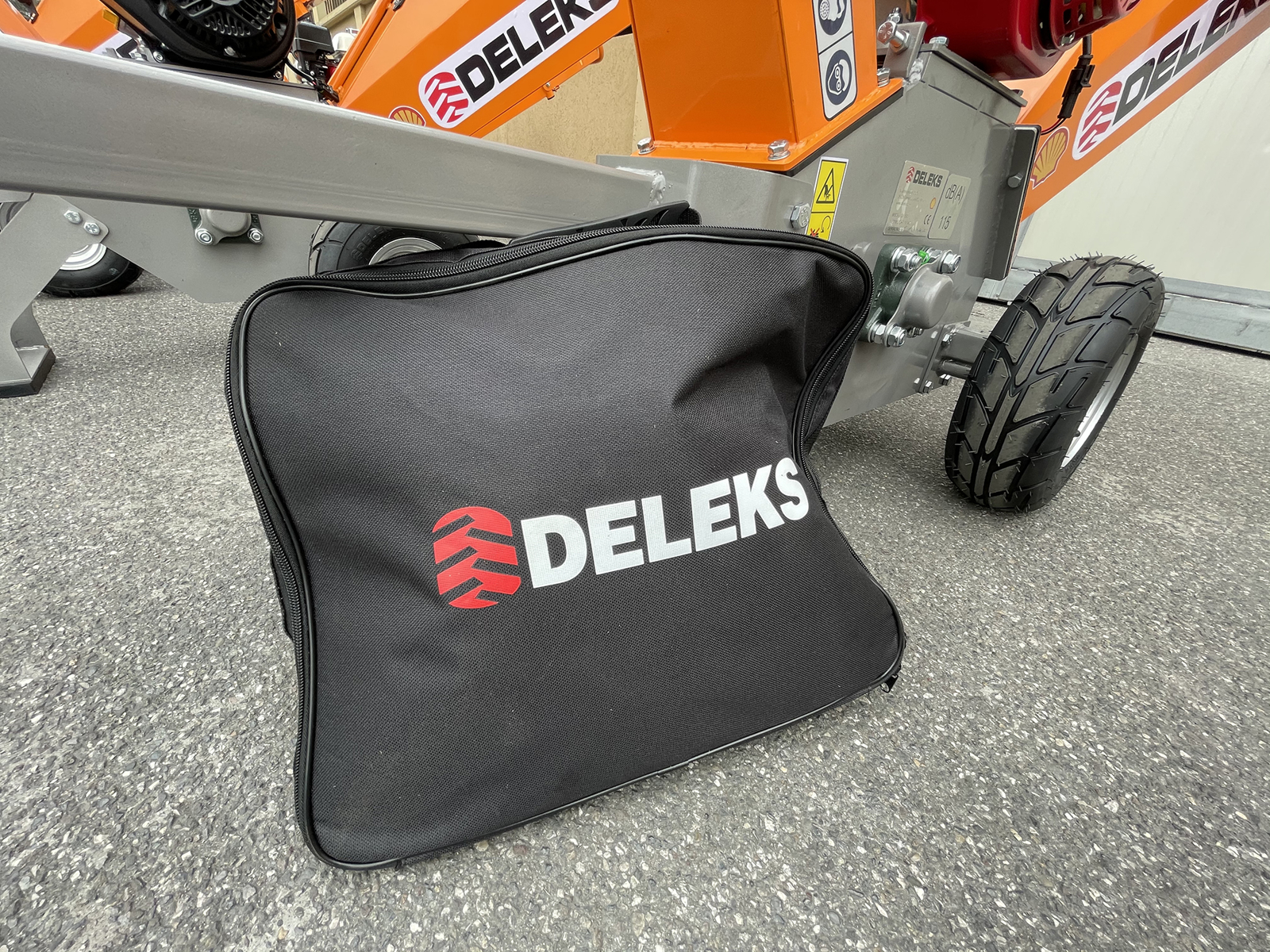

Set wrenches for maintenance
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by TÜV SÜD.

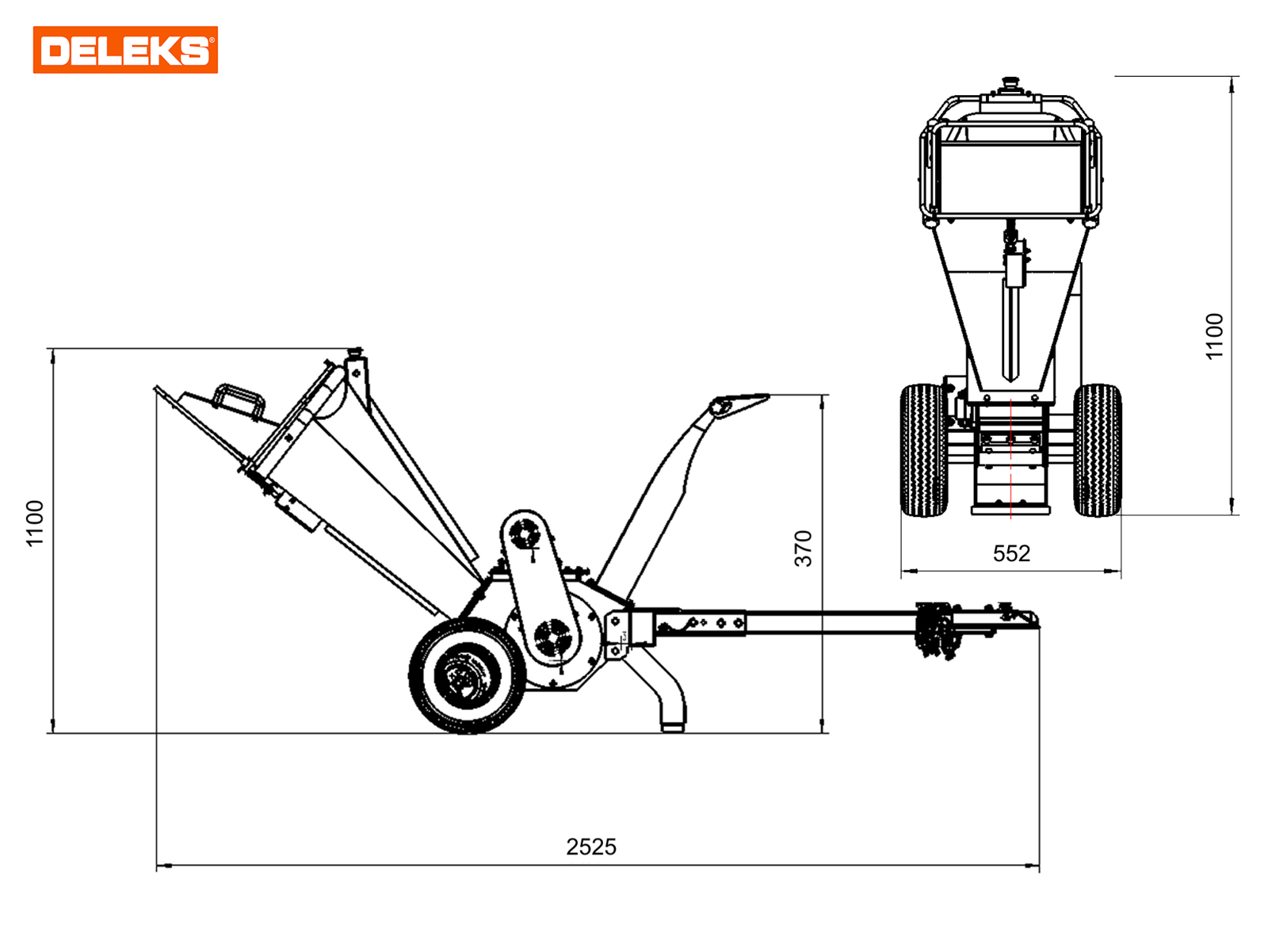

CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 552.0 mm |
| Weight | 100.0 kg |
| Overall height | 1100.0 mm |
| Overall length | 2525.0 mm |
| Blades: Weight | 300.0 g |

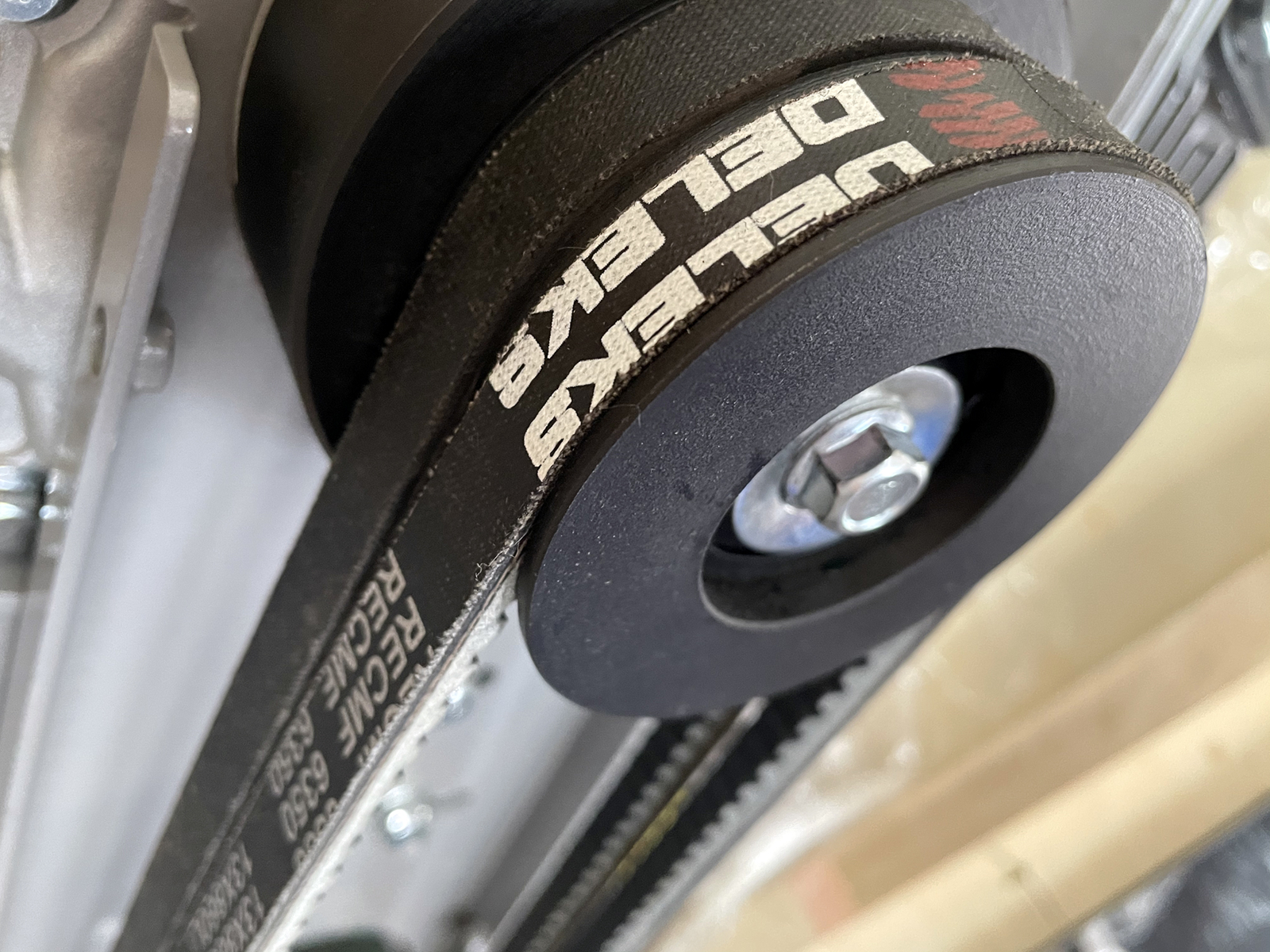

| Transmission | V Belts |
| Working Efficiency | 3 m3/h |
| Cutting System | Chipping drum with 2 blades + 1 fixed blade |
| Chipped material size range | 5.0 - 15.0 mm |

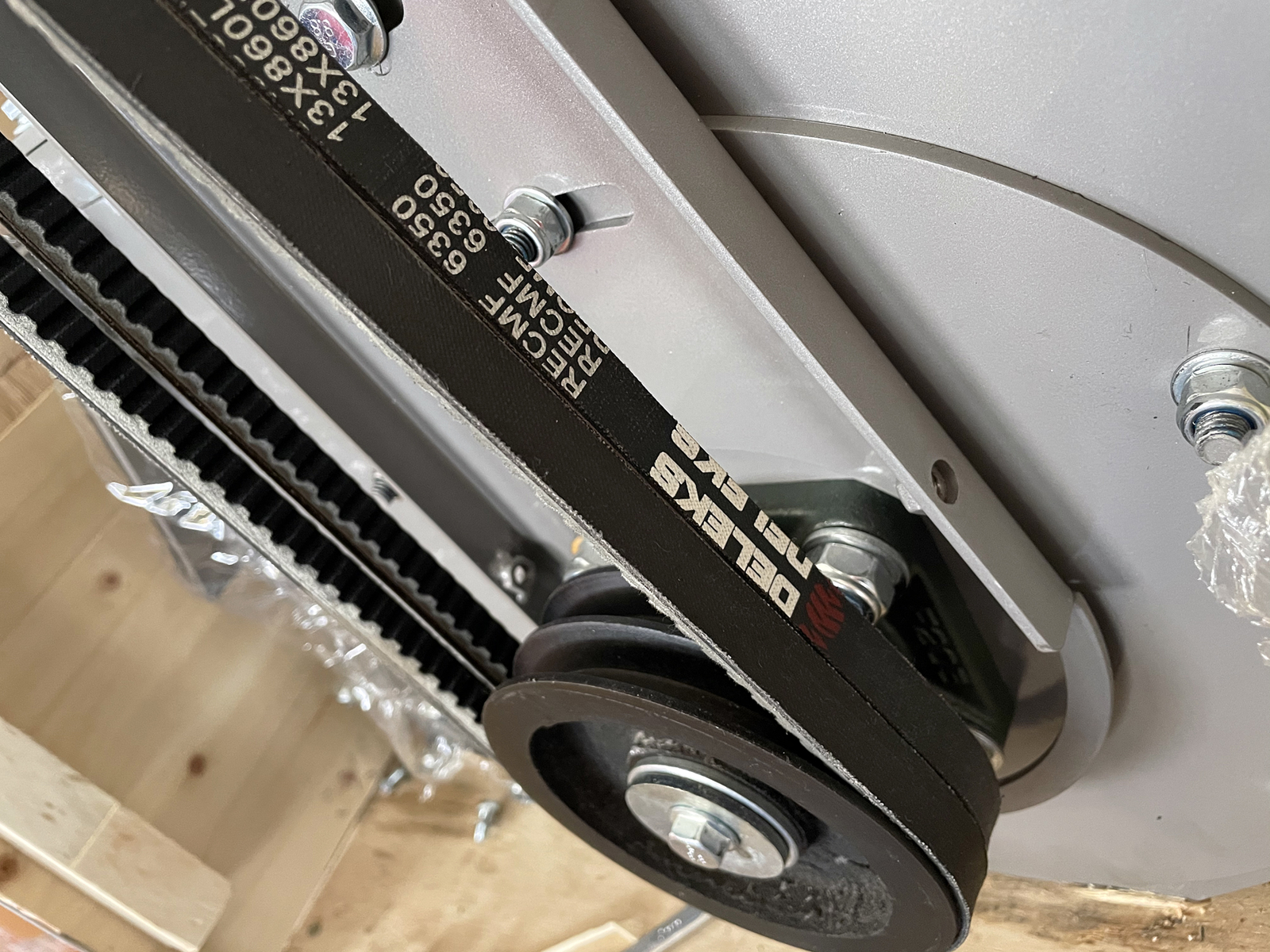

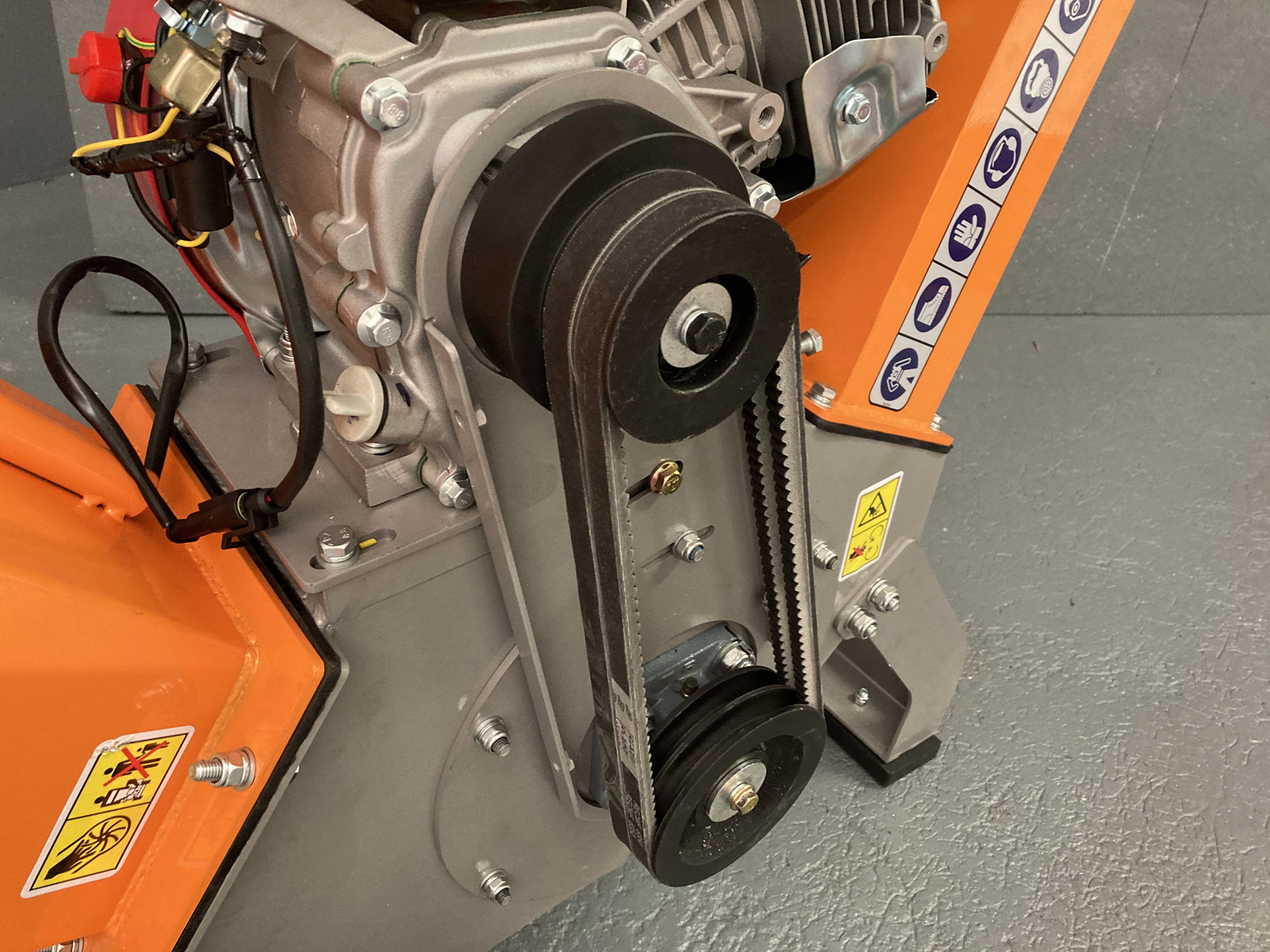

| Transmission V-Belts quantity | 2 |
| Transmission V-Belts sizes | 13x860 |
| Safety System | Emergency button |
| Blades: Sizes | 150.0*55.0 mm |
| Outlet Tube Sizes | 85.0*100.0 mm |
| Maximum cutting diameter | 60.0 mm |
| Engine | 6.5Hp Lifan 168F-2 196cc |
| Starter | Pull cord |

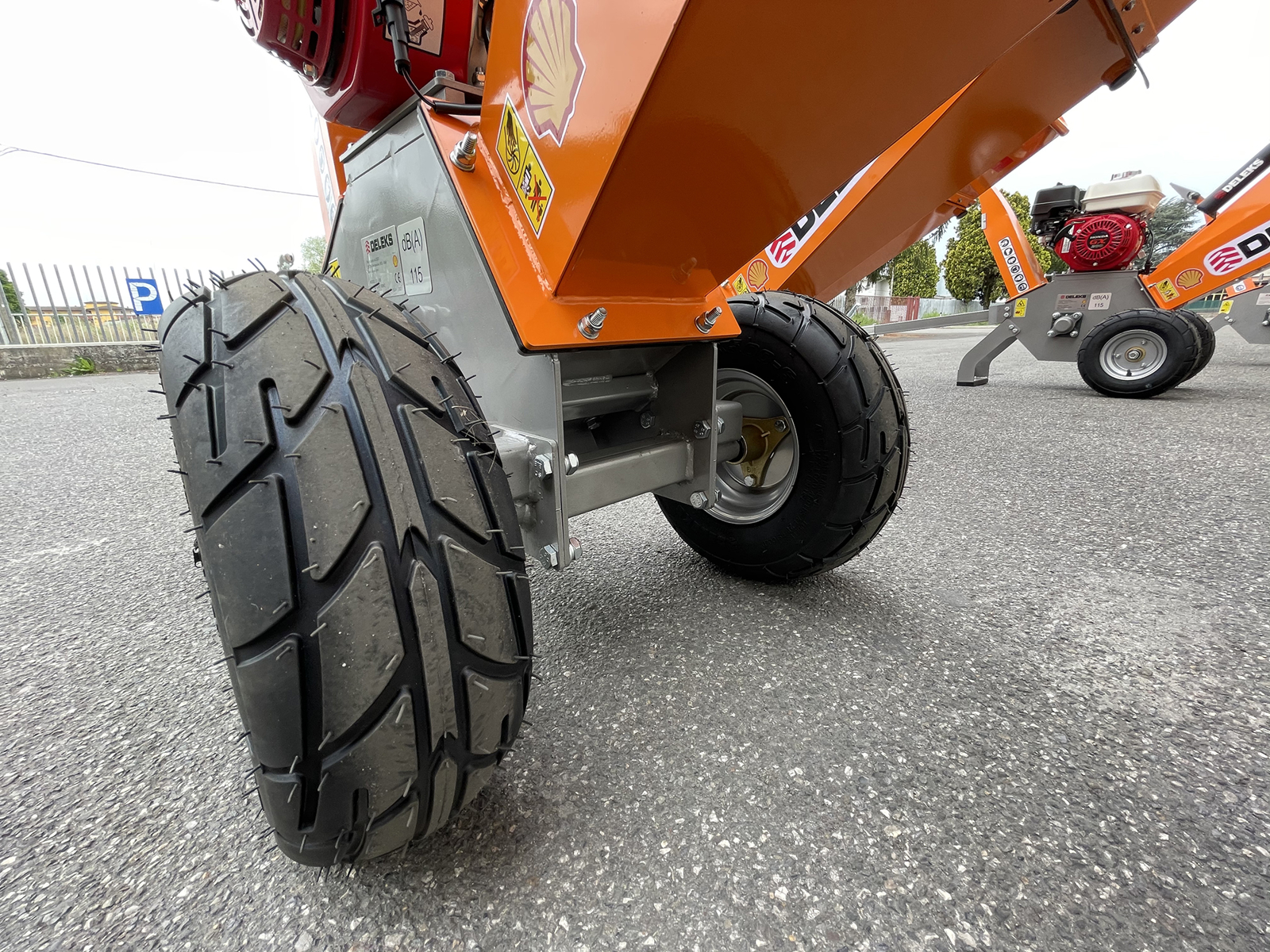

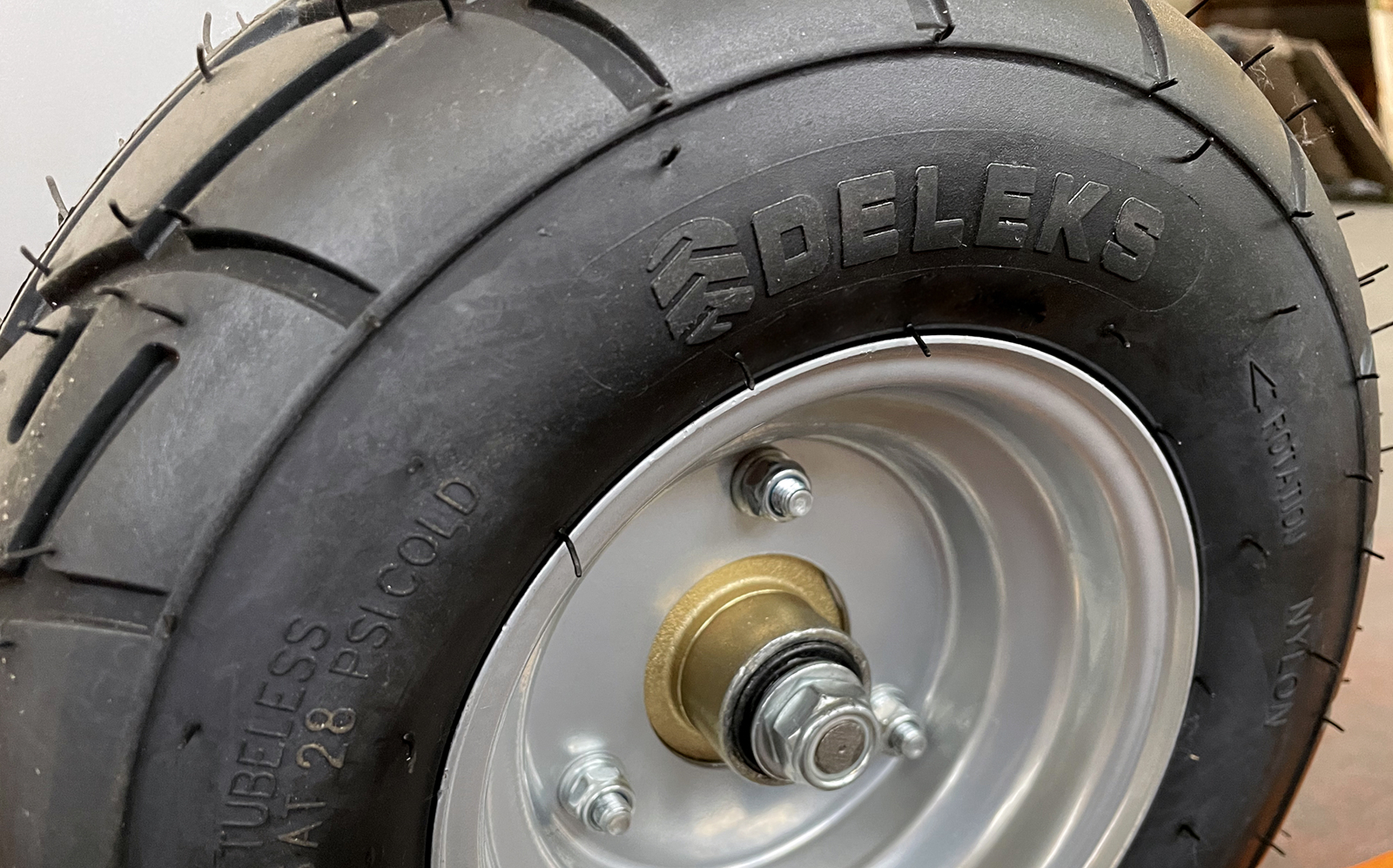

| Wheels: sizes | 13X500-6 |

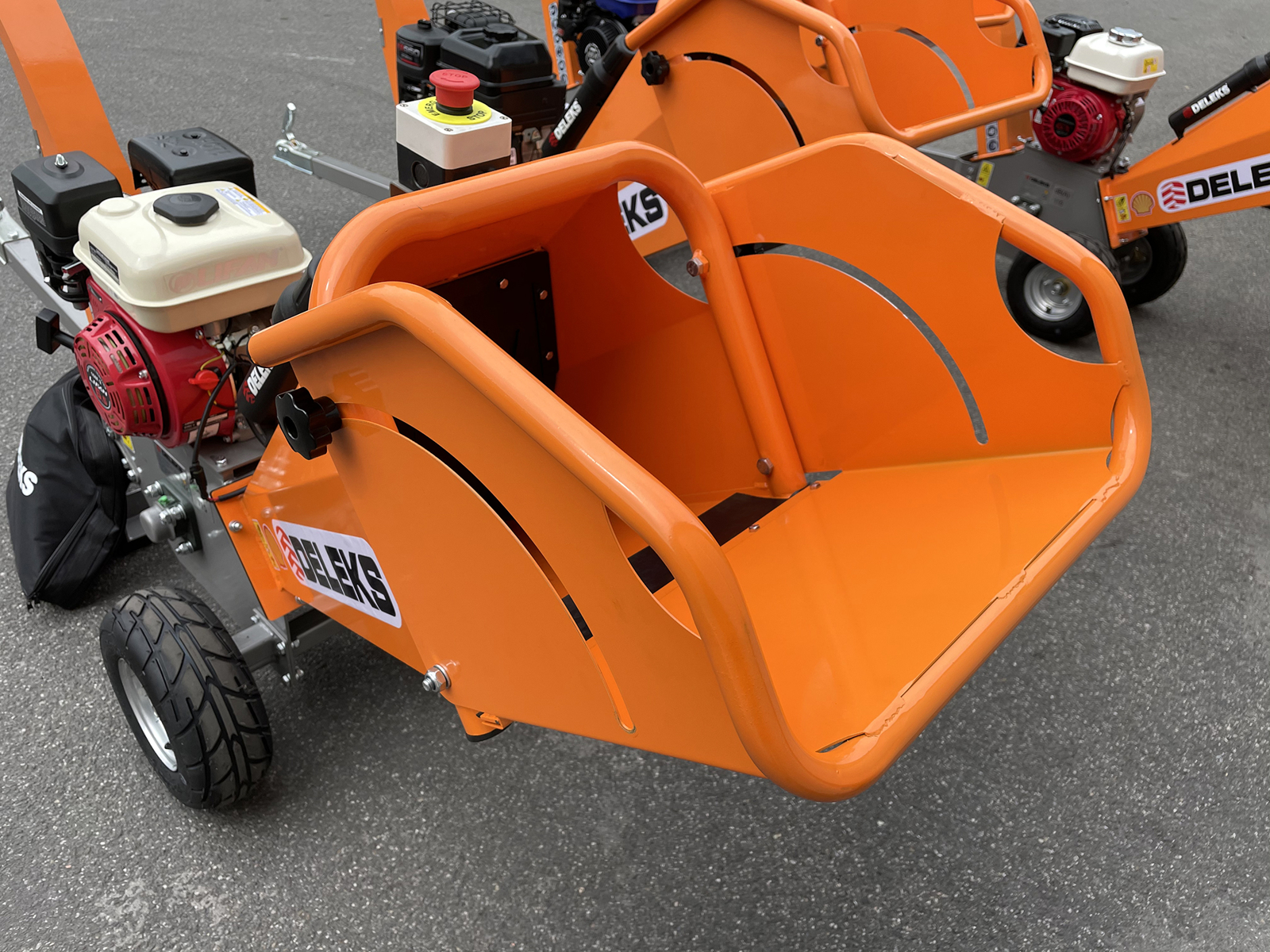

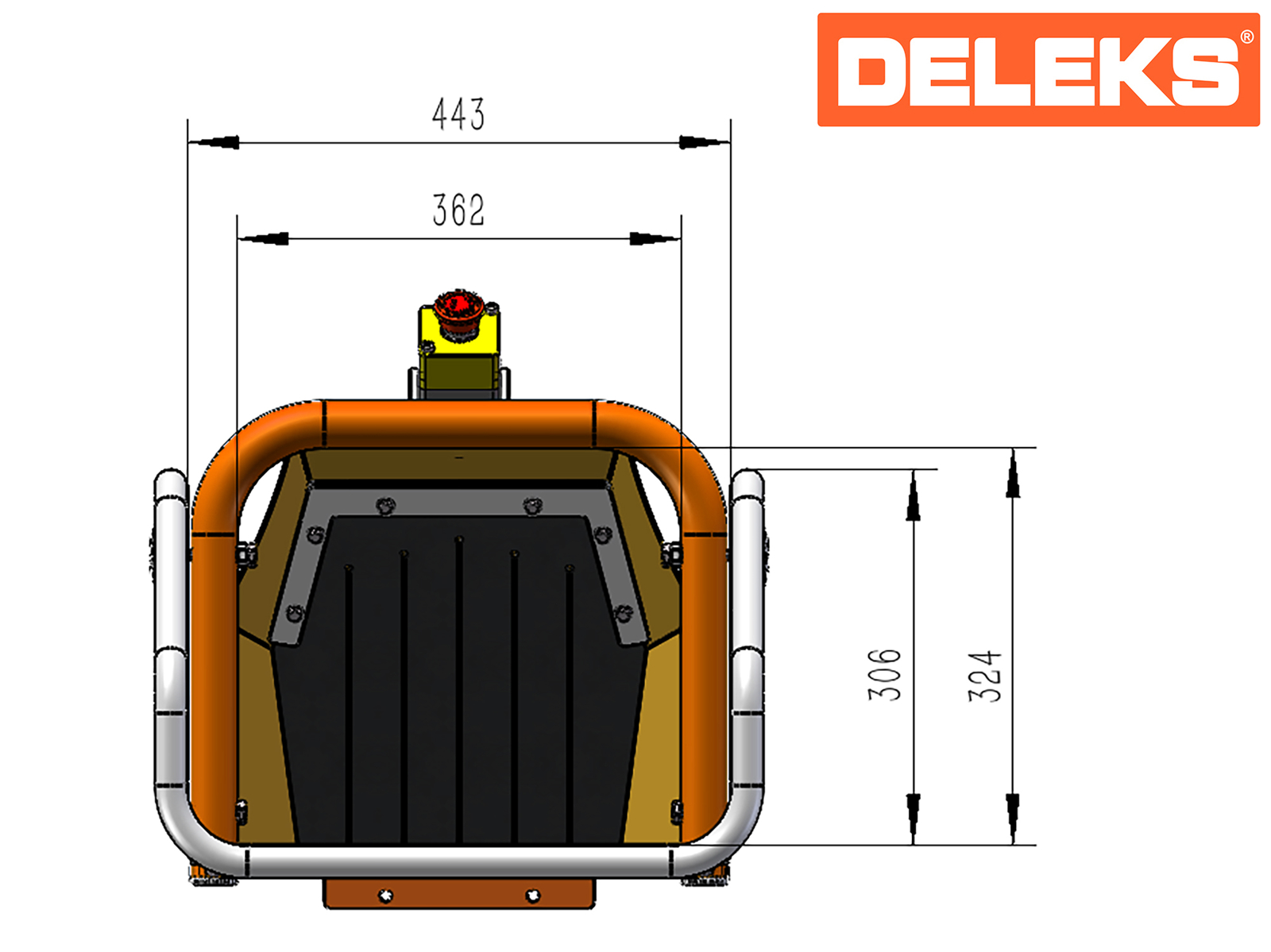

| Cutting inlet sizes | 150.0*120.0 mm |

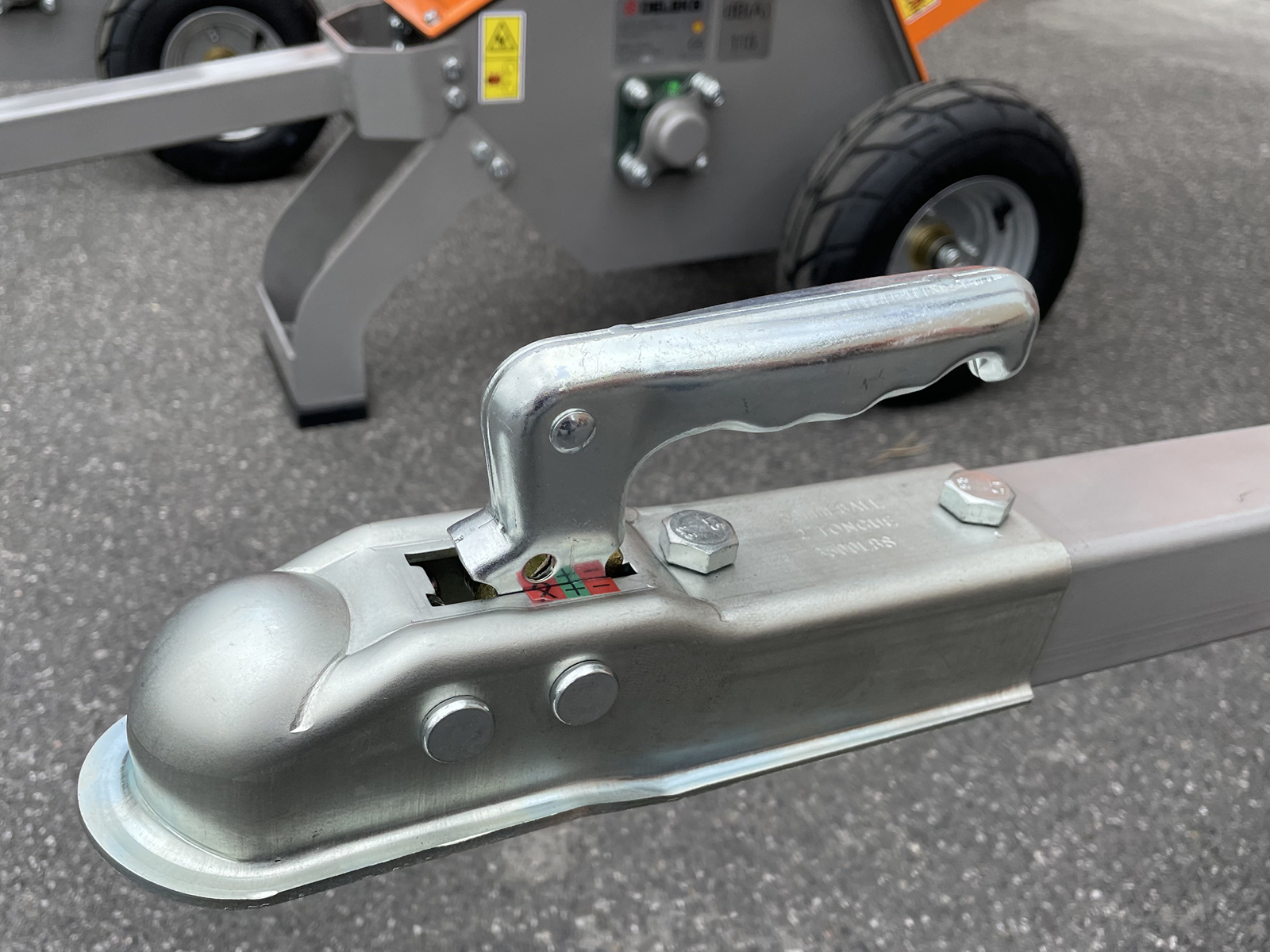

| Towing bar | √ |
| Outlet hight | 1050.0 mm |
| Fuel consumption | 0.8 l/h |
| Packing sizes | 880.0*580.0*870.0 mm |
