Mulcher with collector for sports fields or vineyard rows

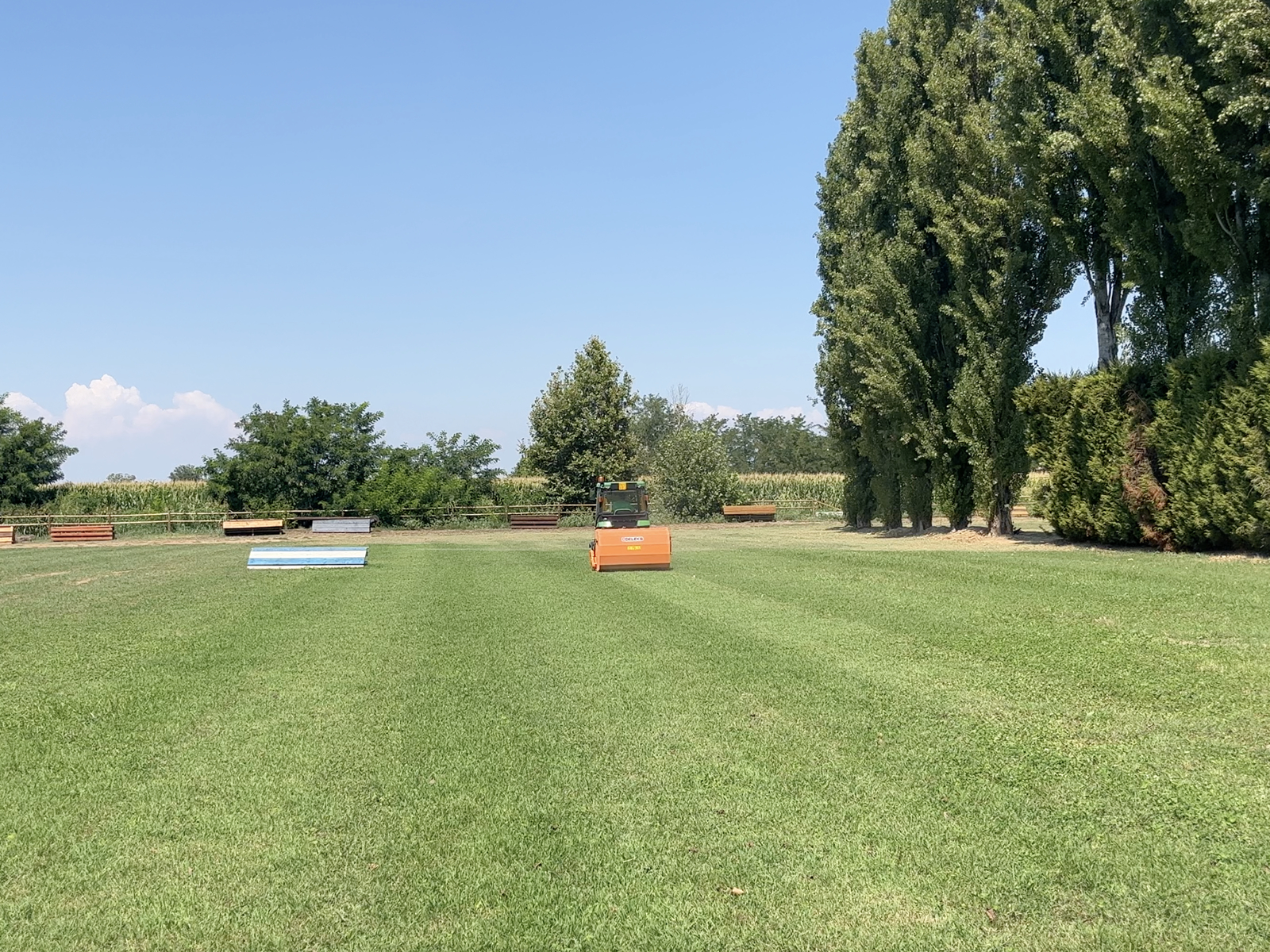

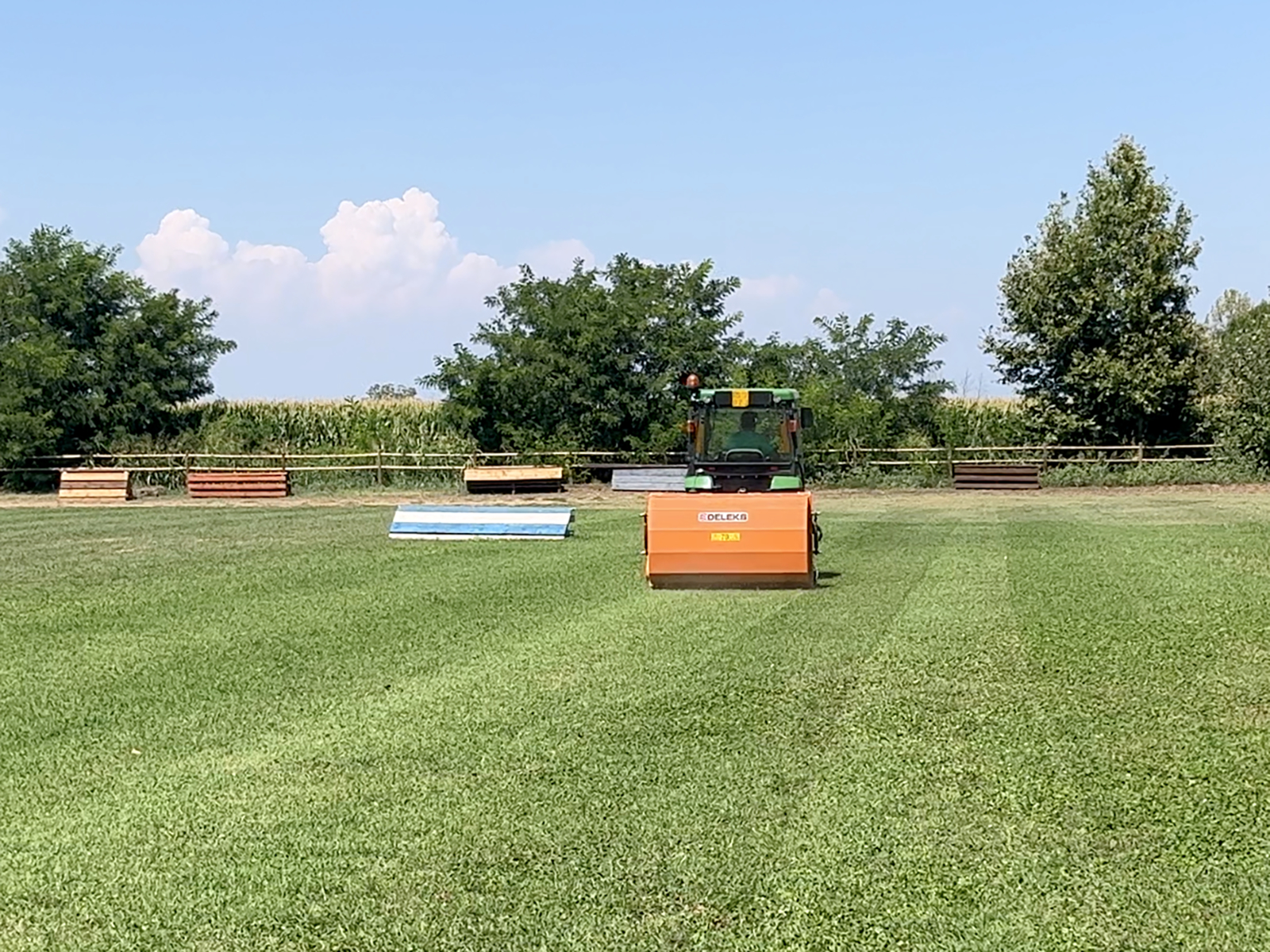

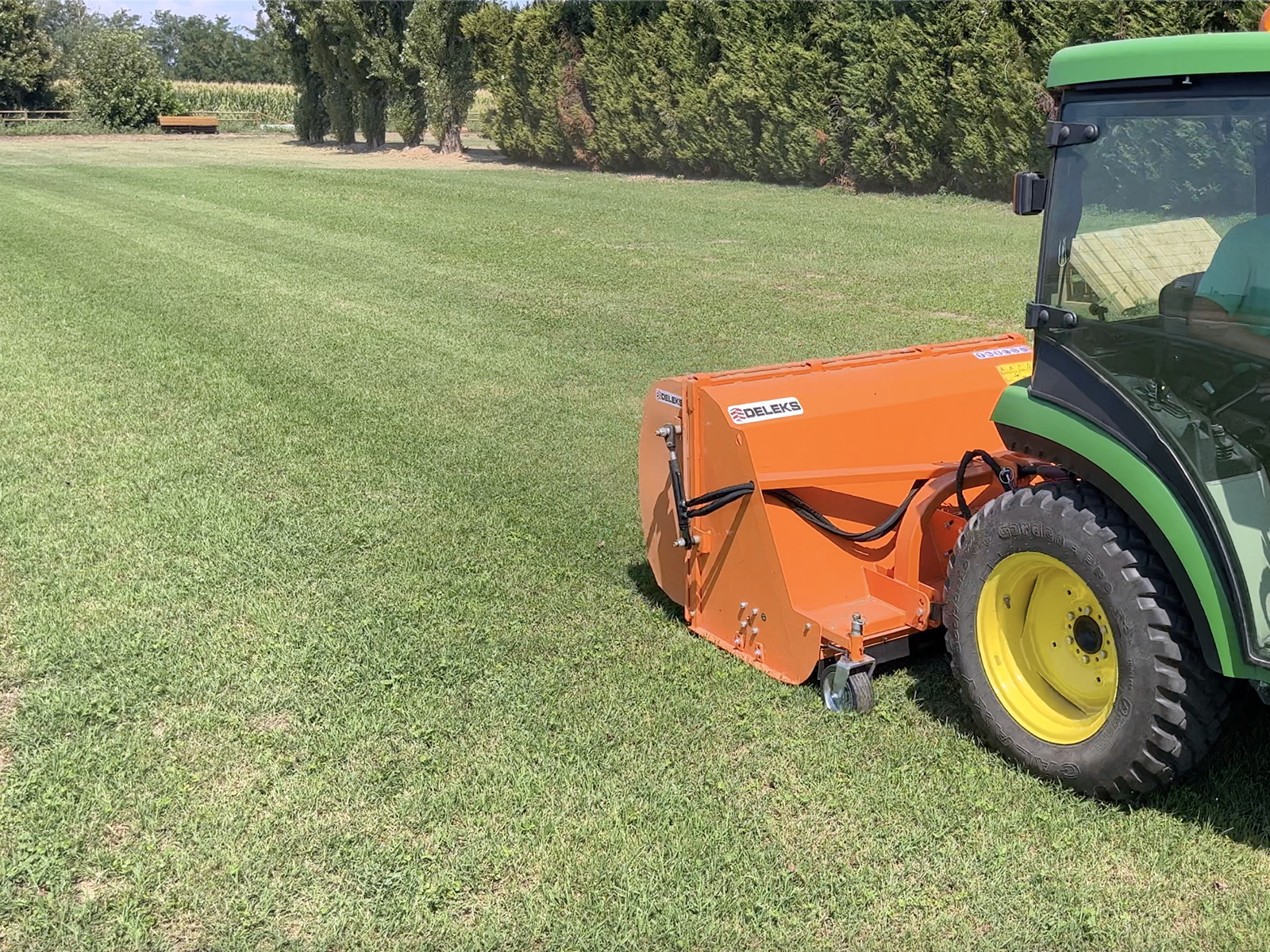

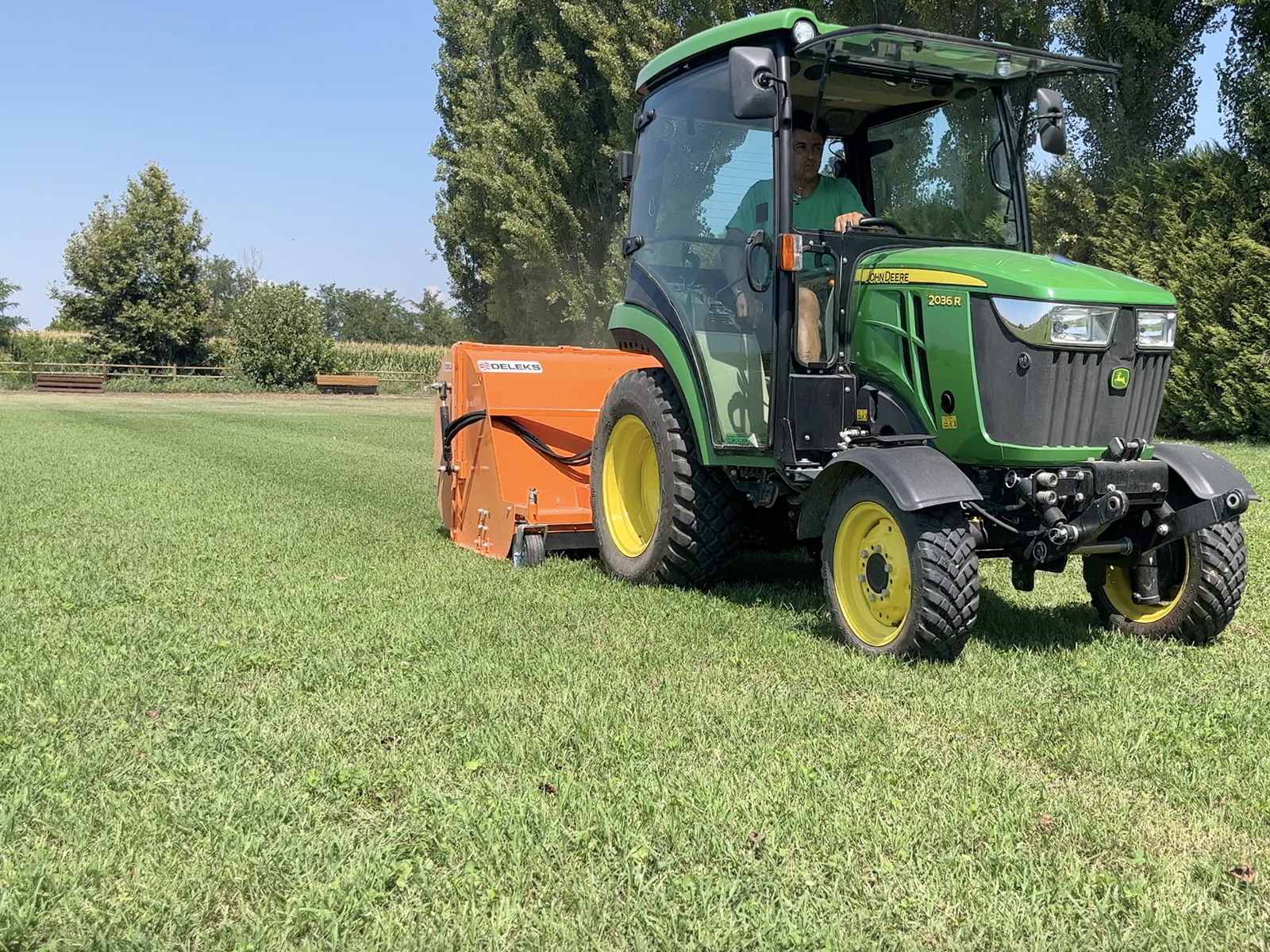

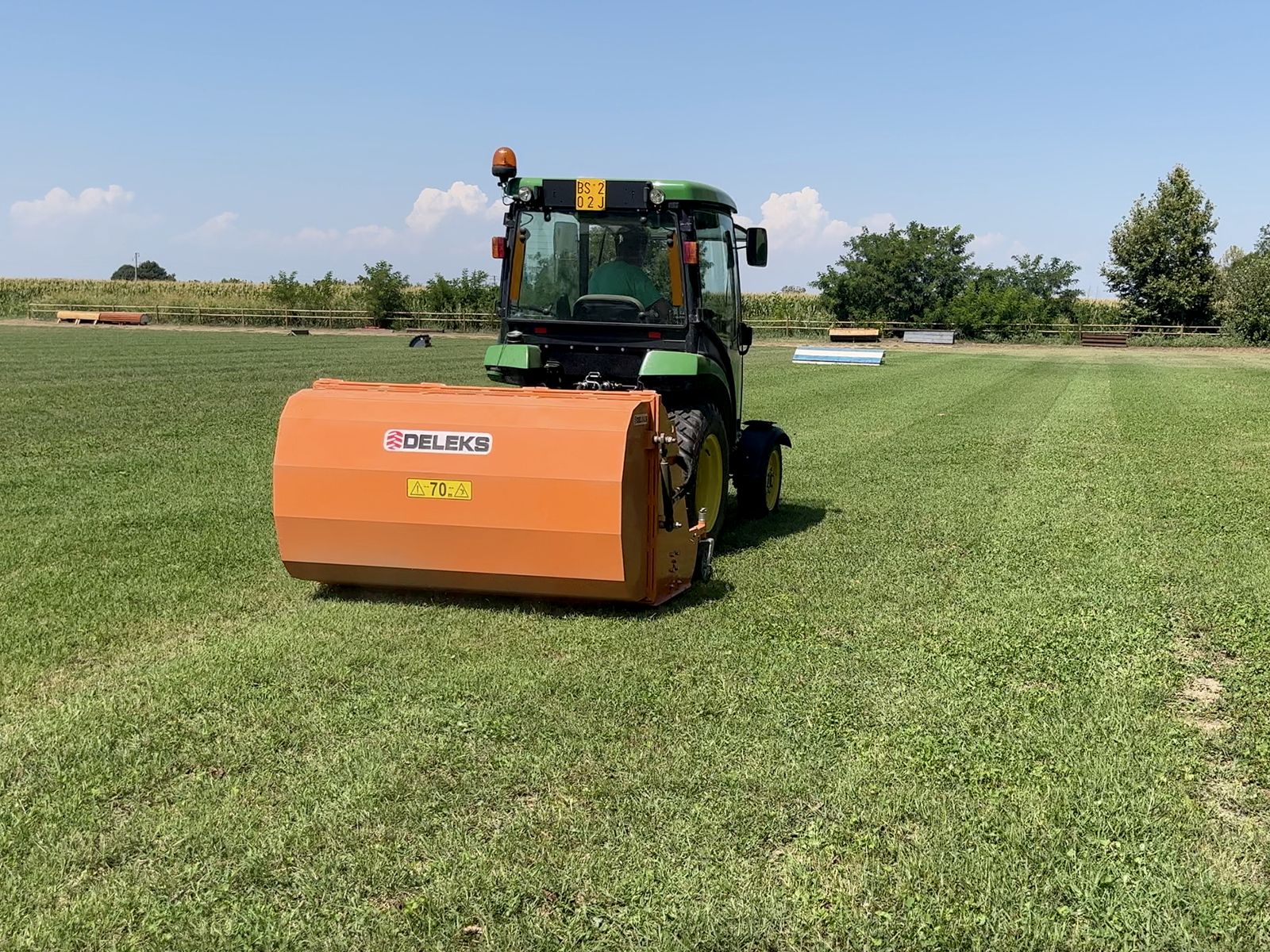

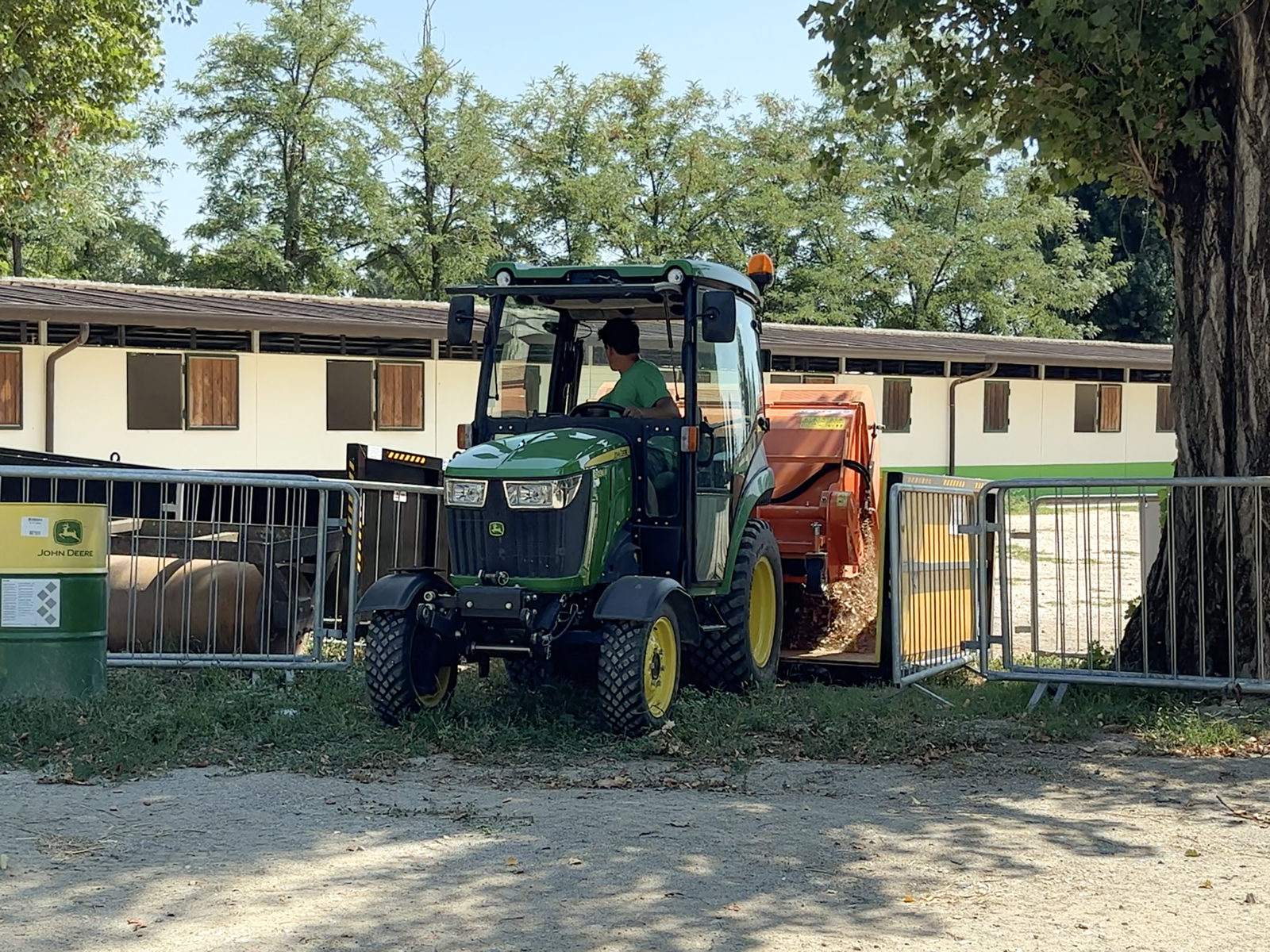

Field test
DETAILS

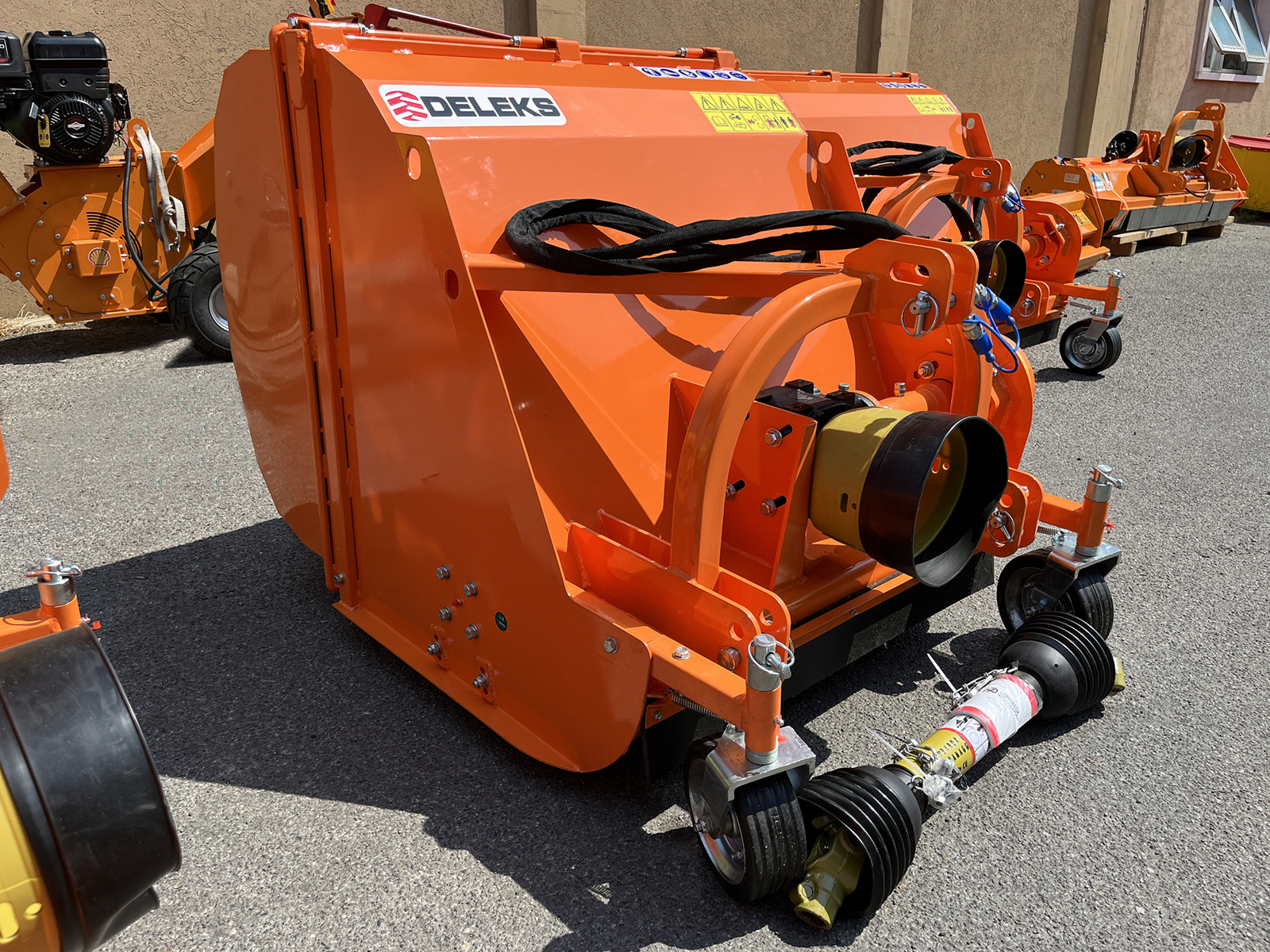

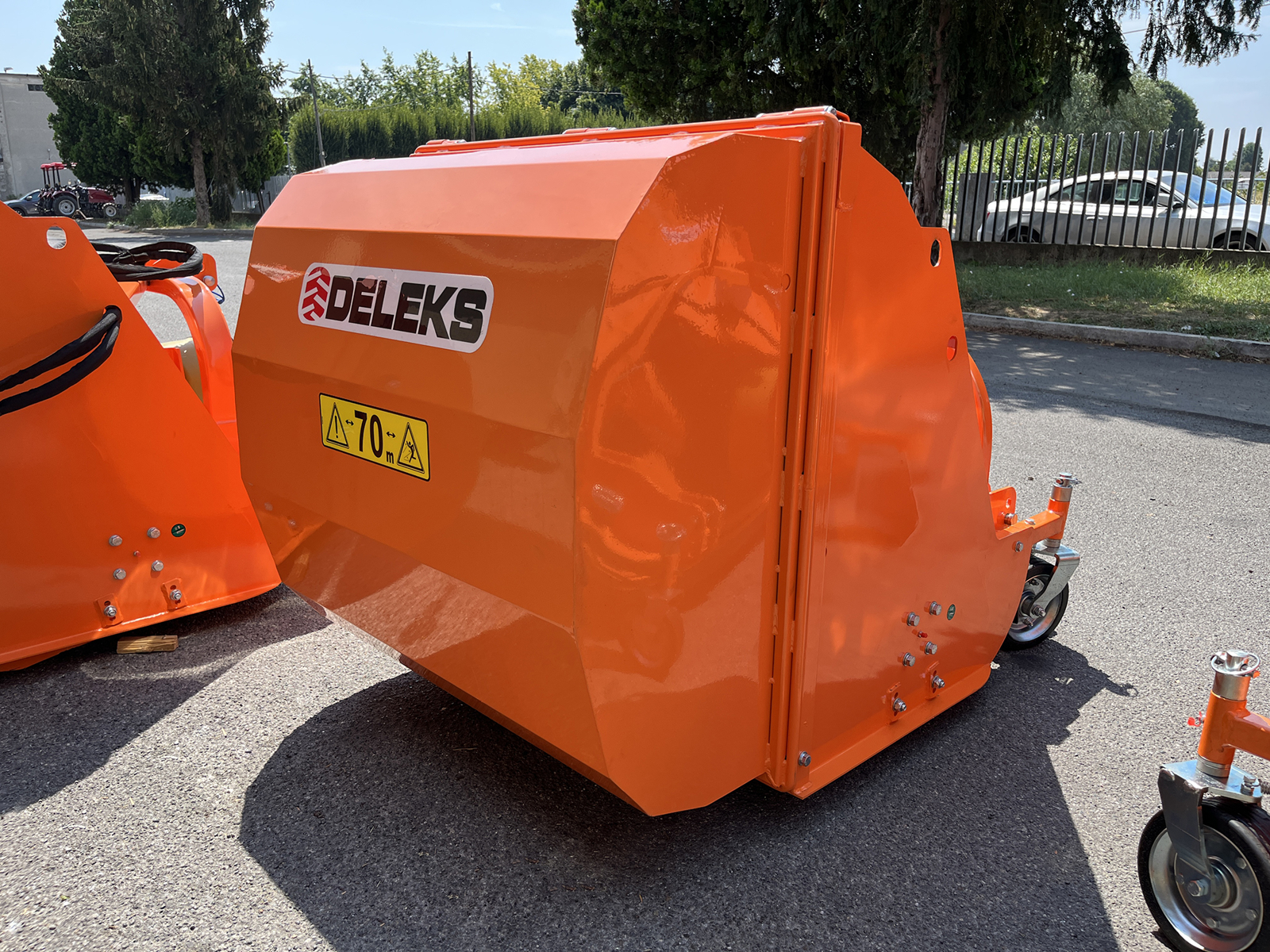

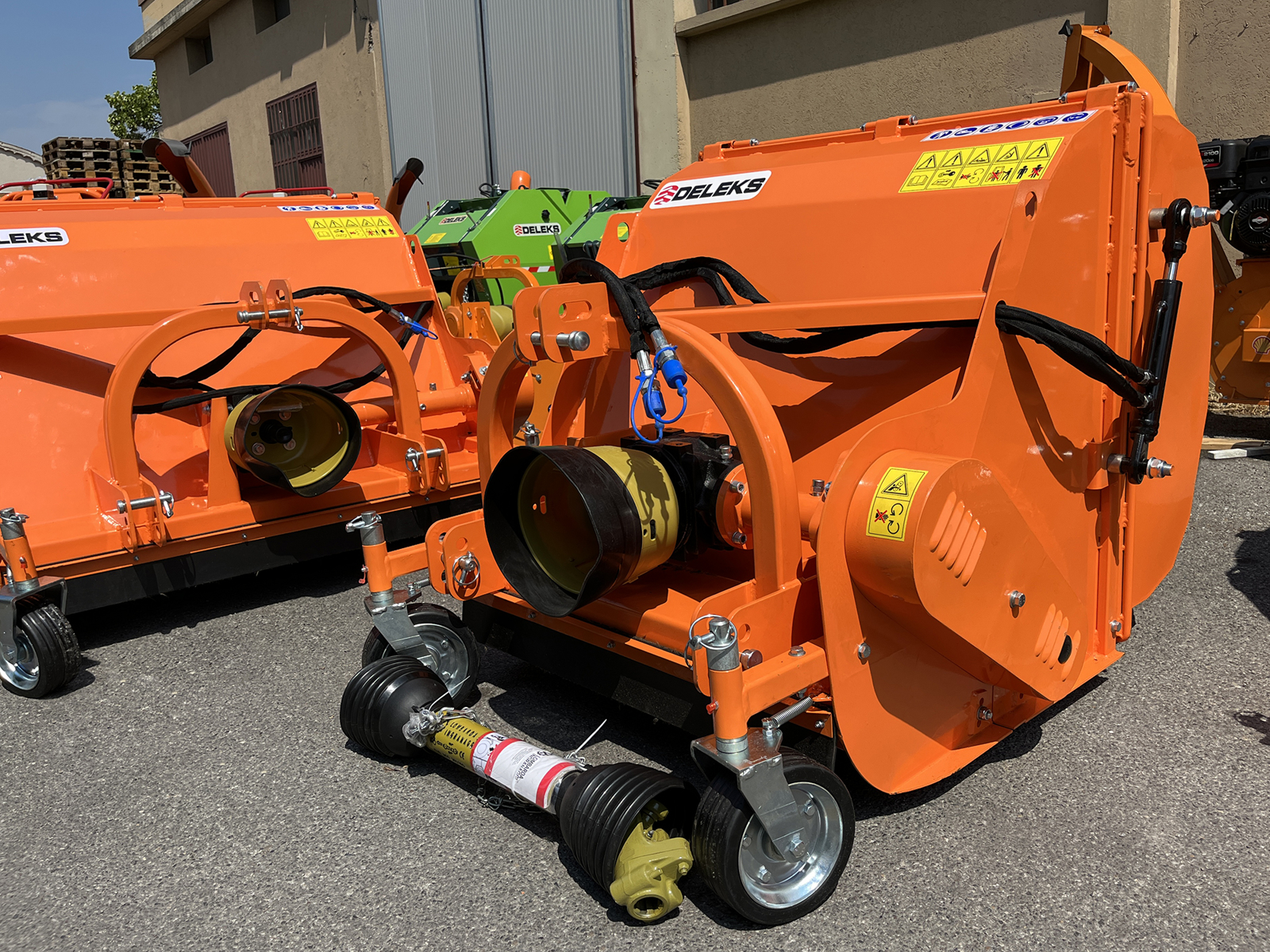

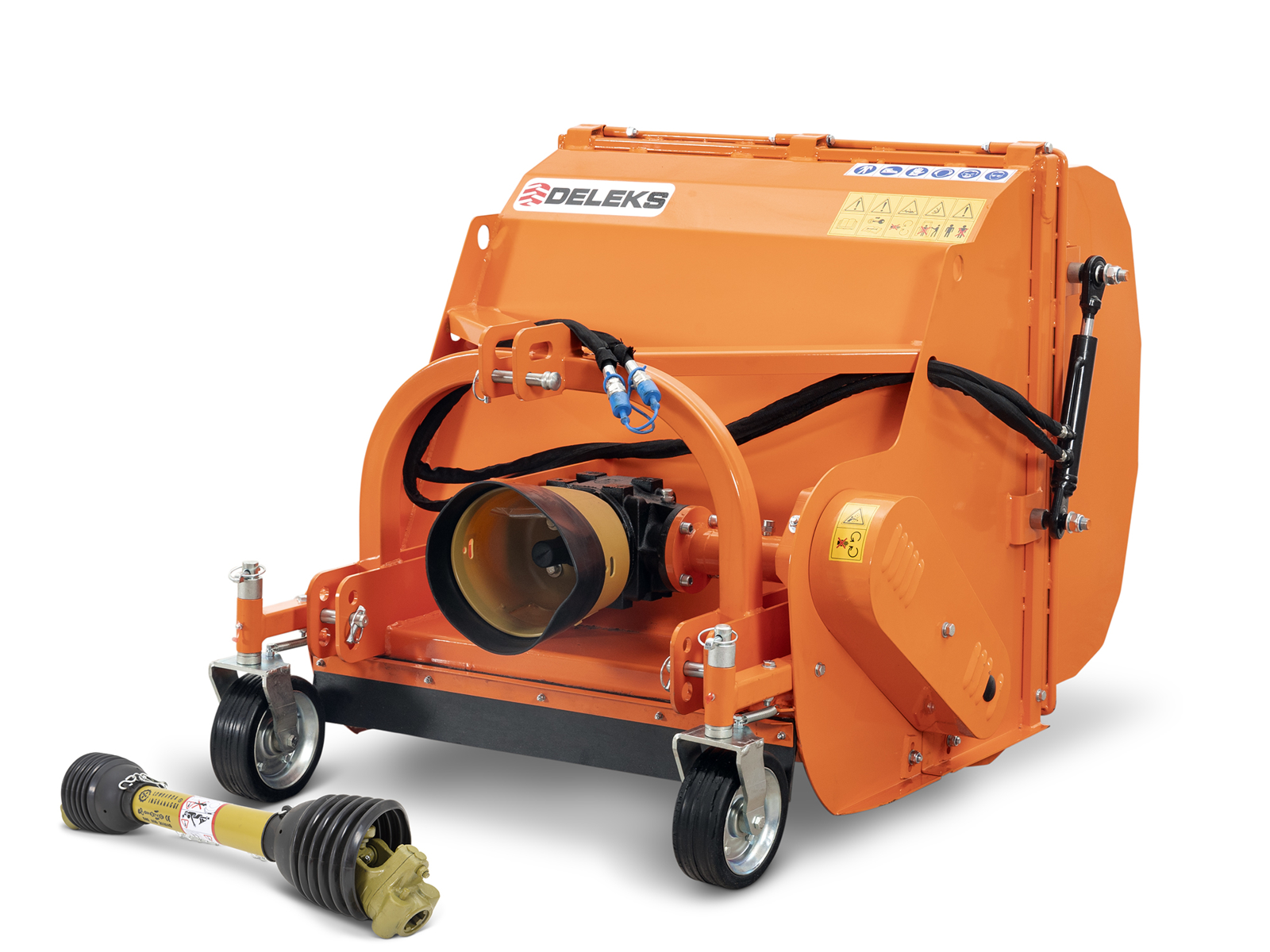

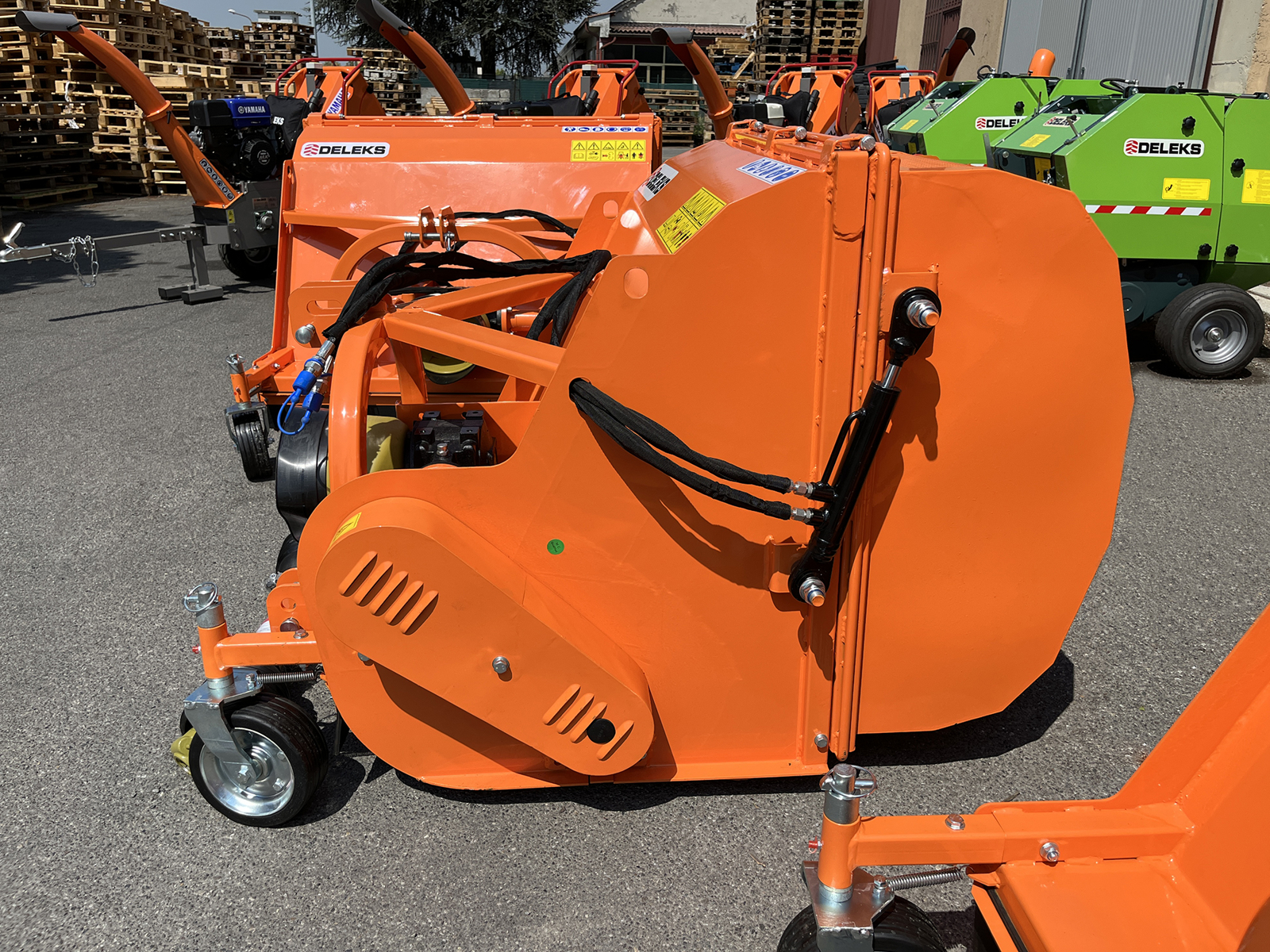

DELEKS® PANDA-90 Professional mulcher with collector - designed for mowing on sports fields or vineyards. Cardan with safety bolt.
OVERVIEW
For green sports areas:

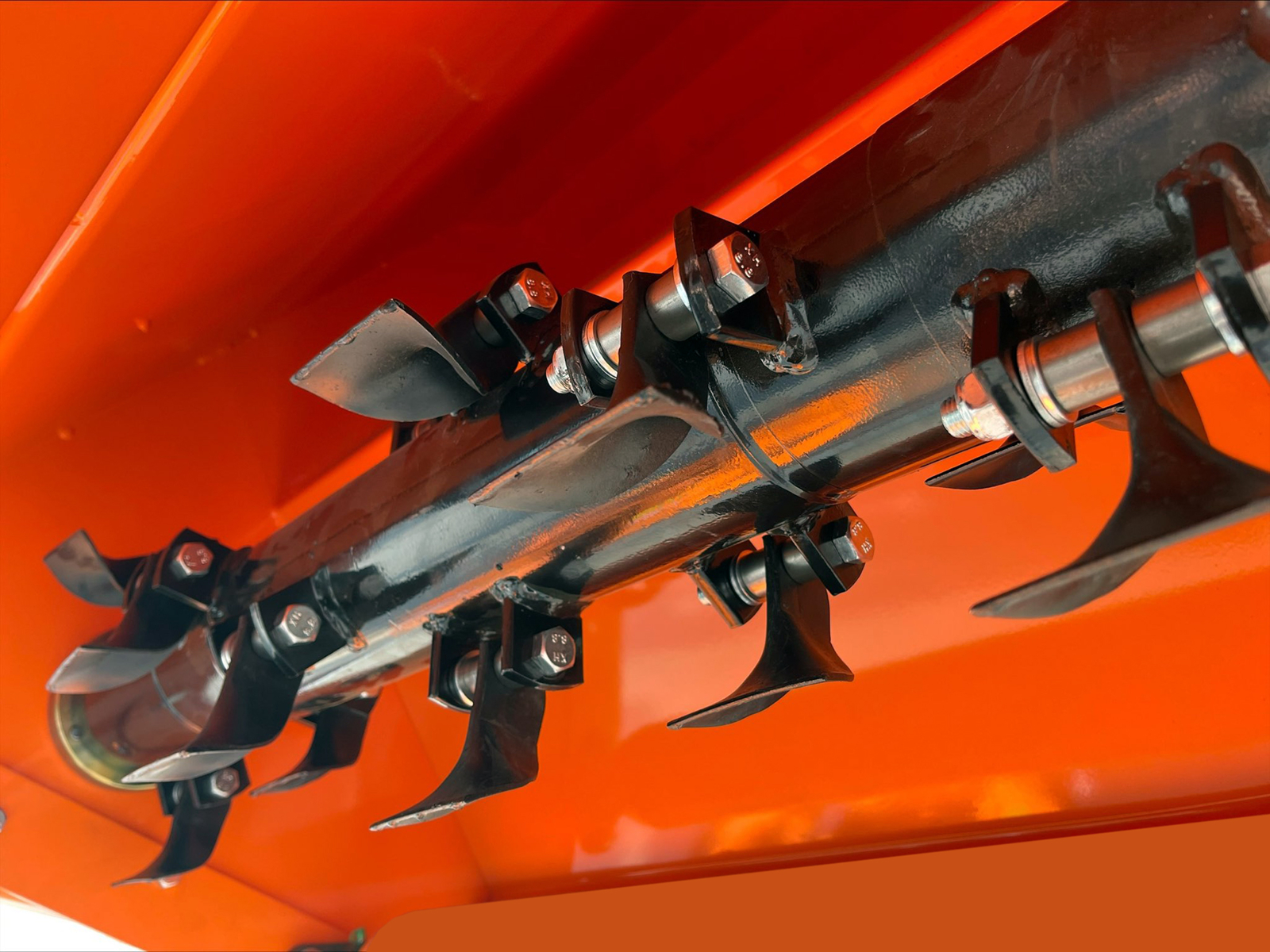

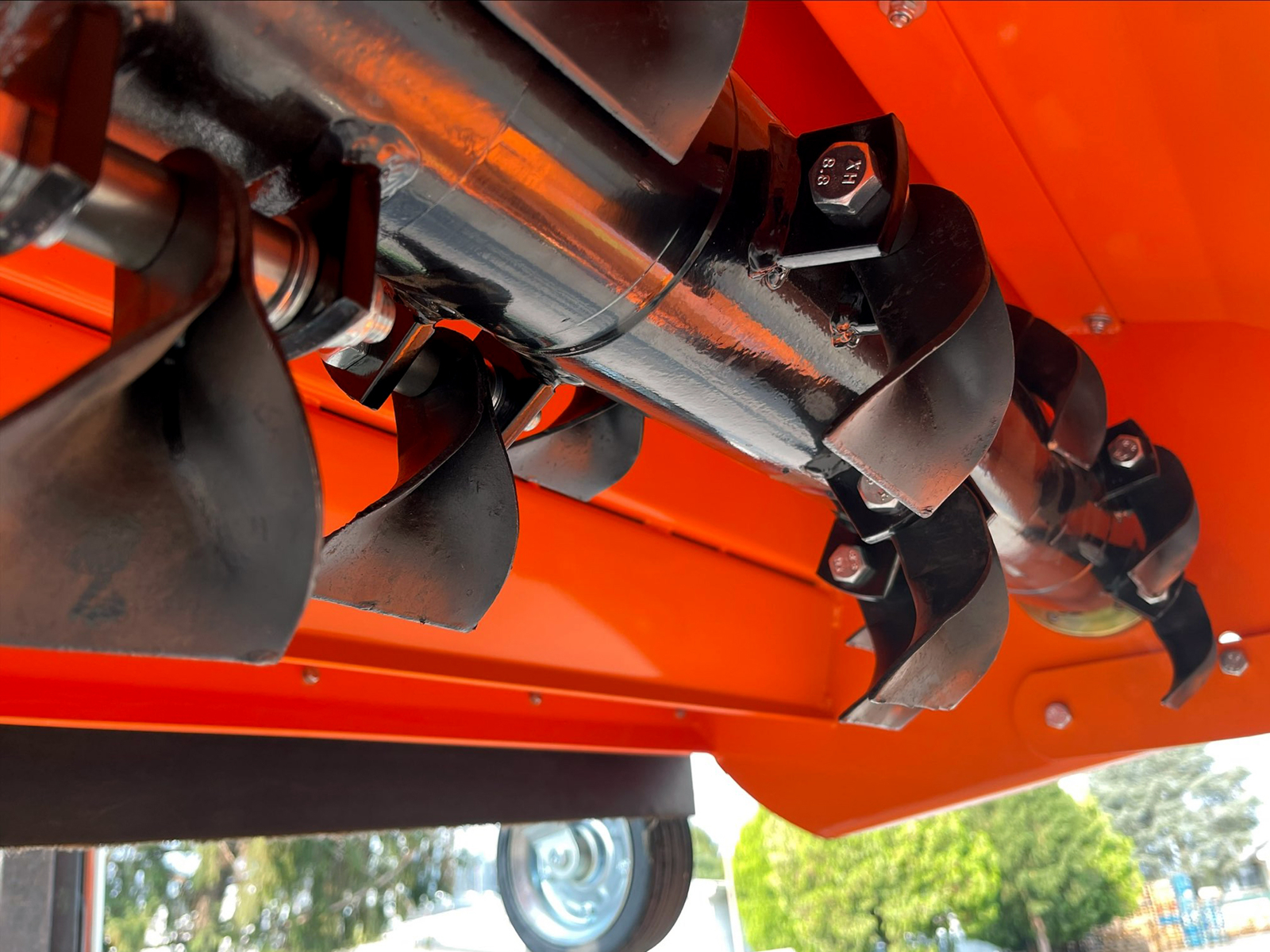

By mounting the special laminated knives, the grass is cut at the same time as all the residue is collected.
Suitable for golf courses, football fields, sports fields, horse racing fields, camping sites, parks, etc. The grass is conveyed into the collector with hydraulic opening.
For the vineyard:

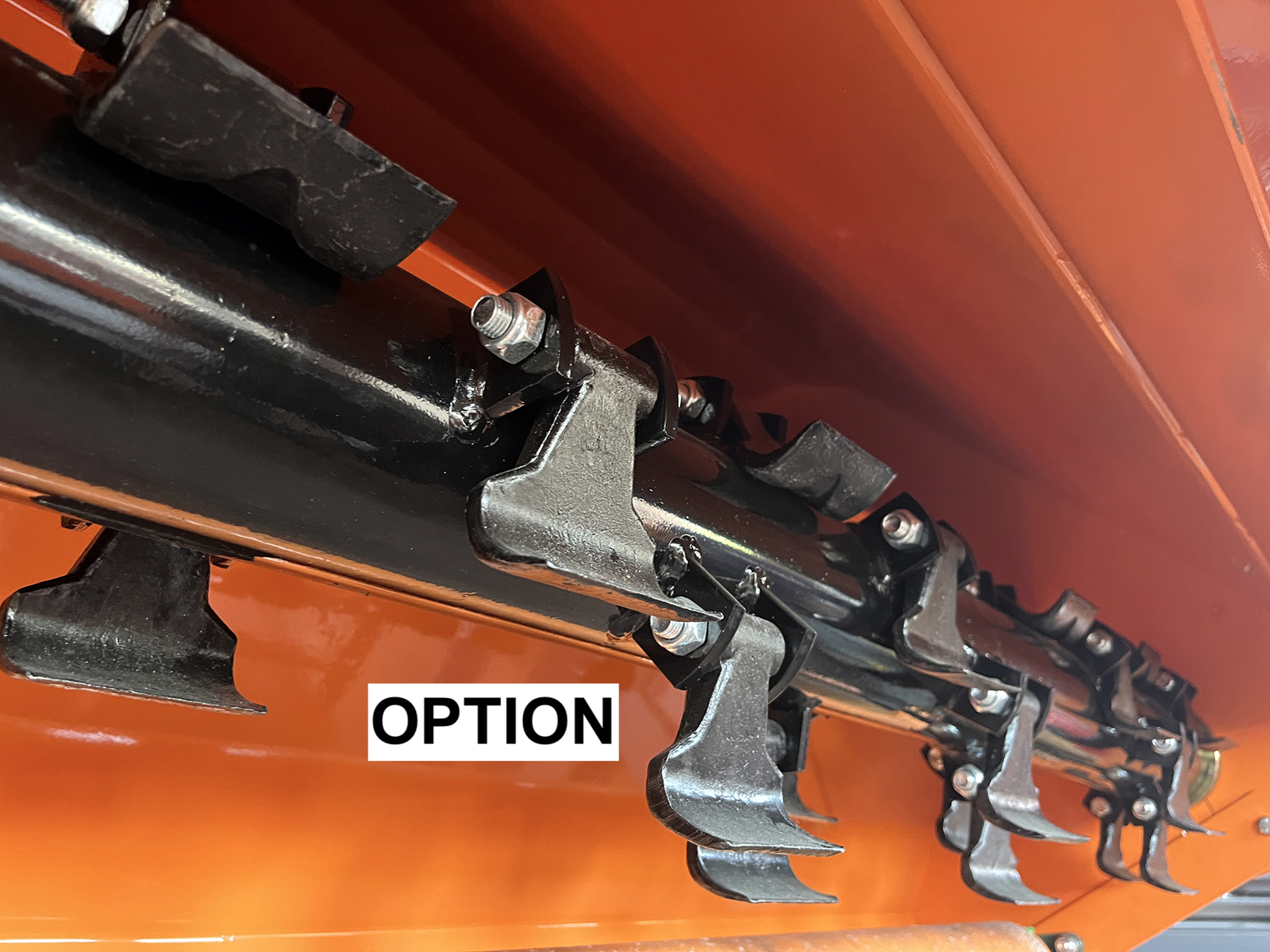

By mounting the hammers instead, you will have the cutting and harvesting of the vine shoots in the vineyard with a single step.
Complies with the EC machinery directive, 2 years warranty.
Universal 3-point hitch cat. 1.
BENEFITS & FEATURES

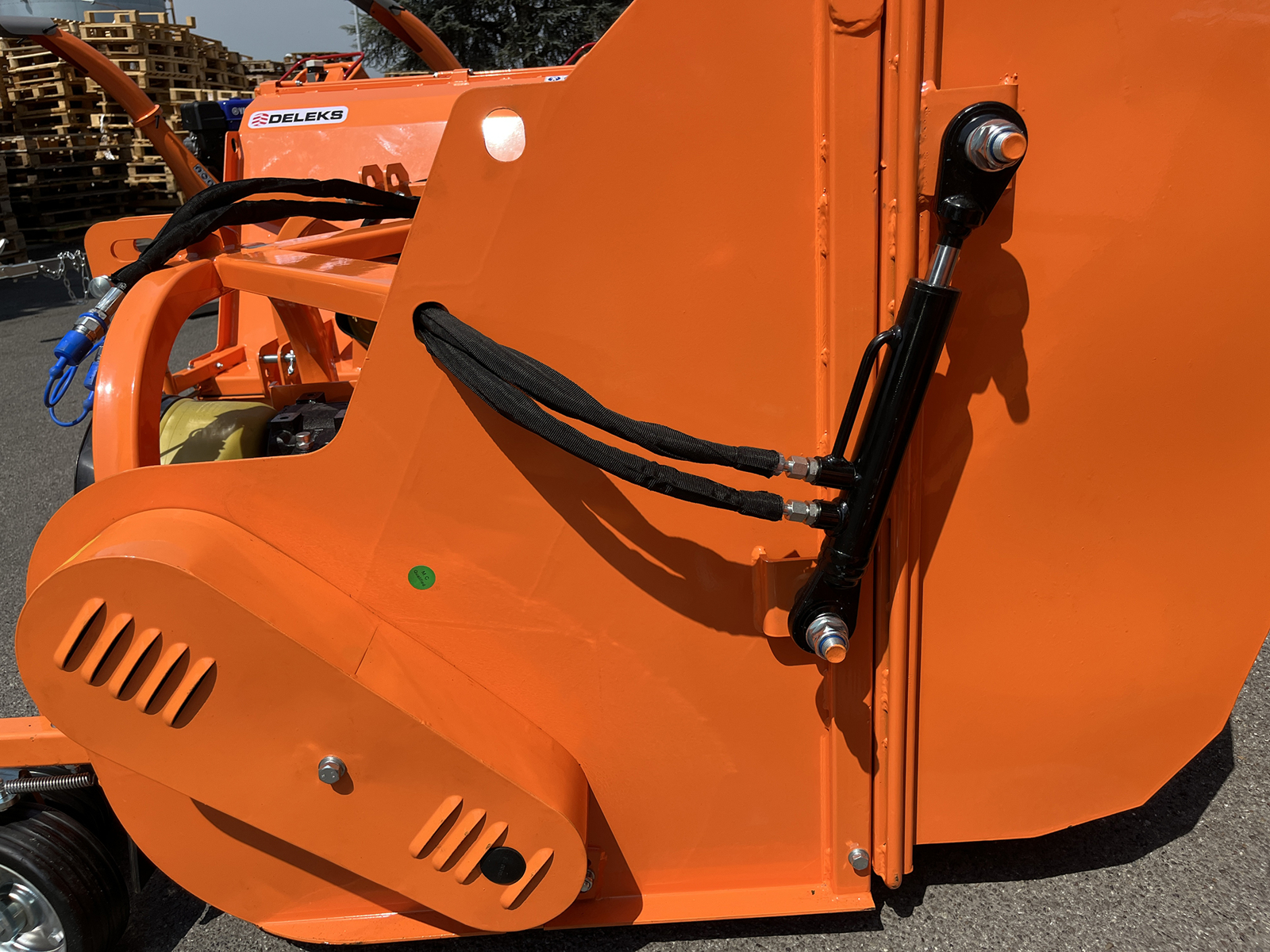

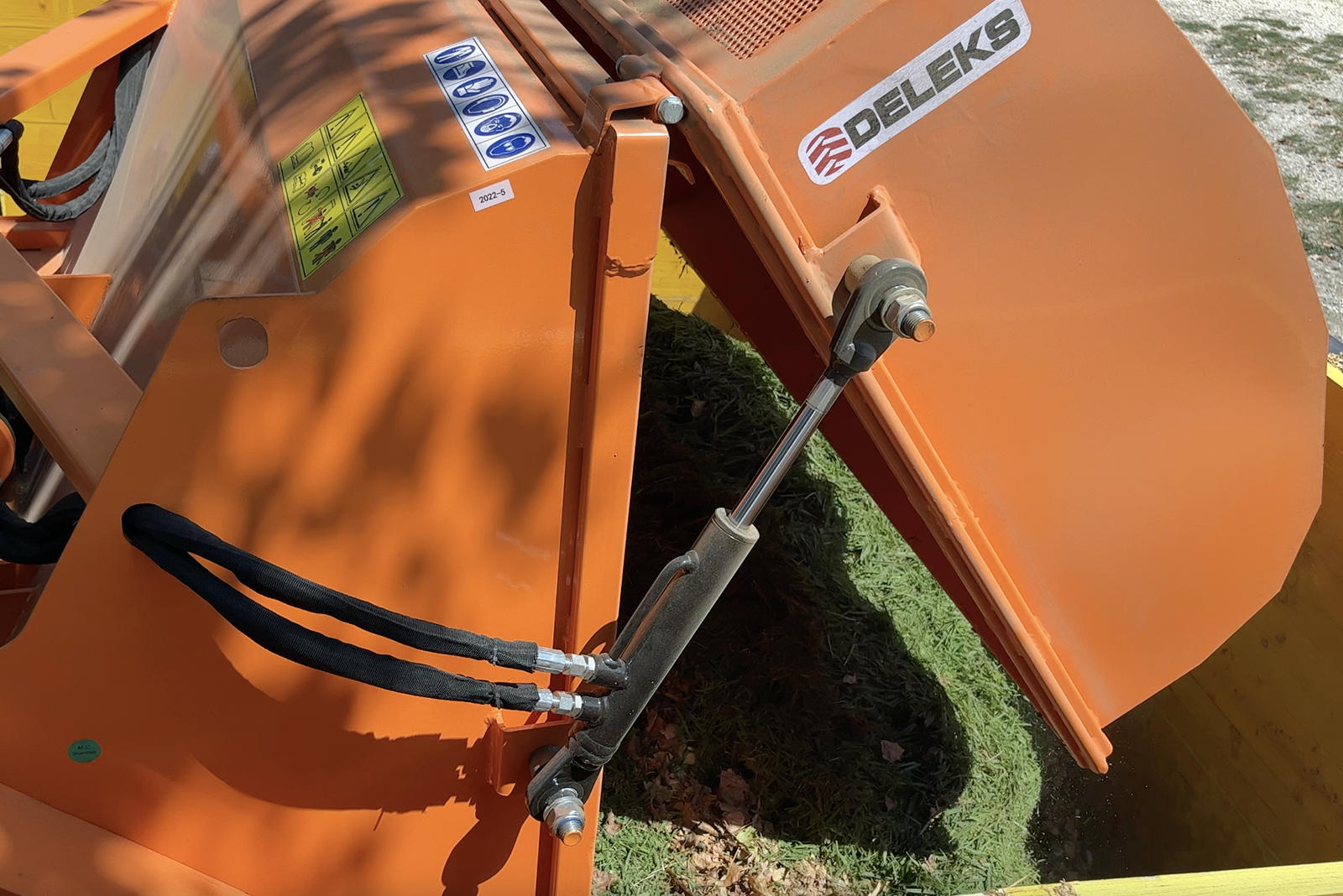

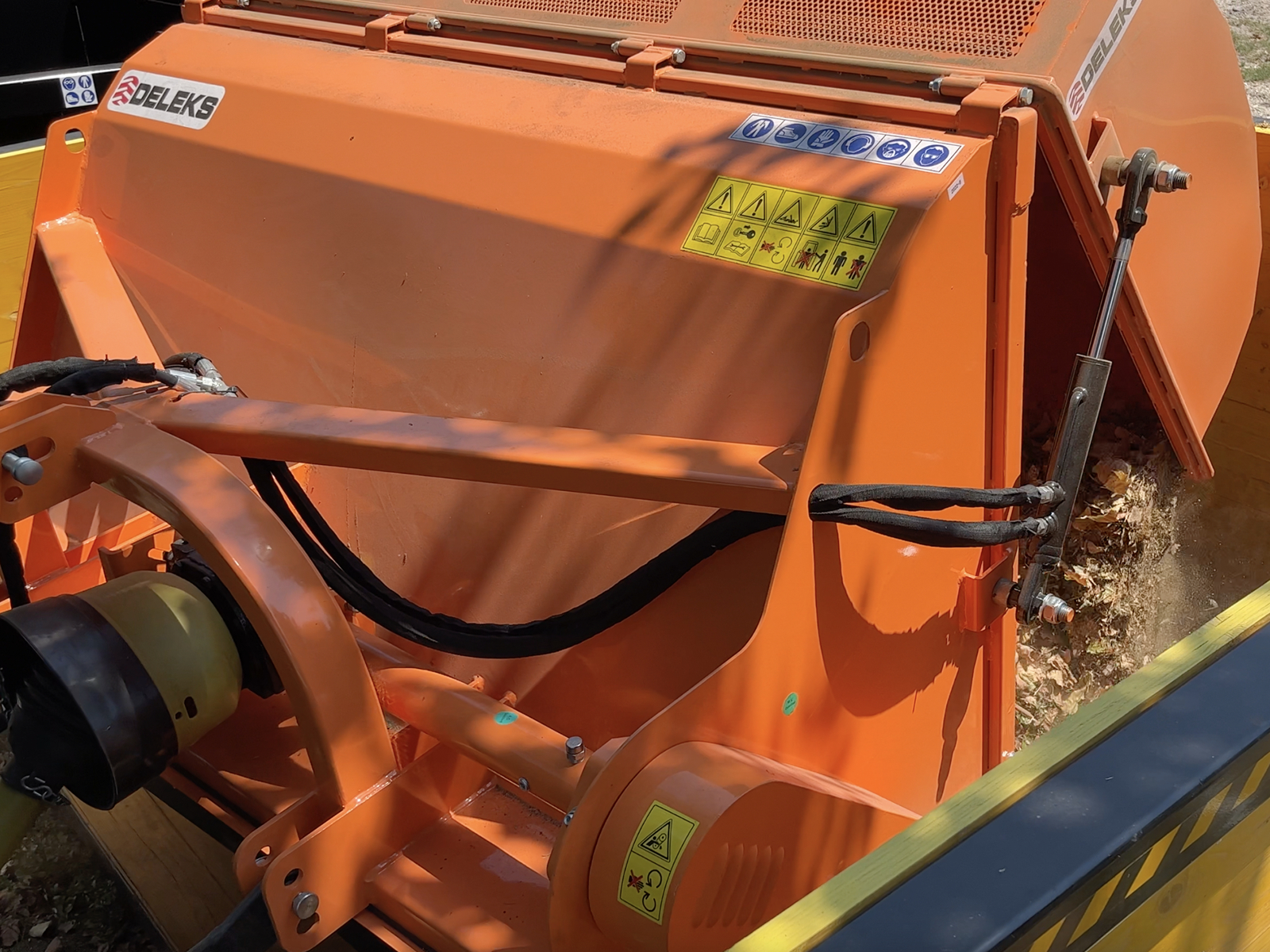

The grass is conveyed into the collector with hydraulic opening.

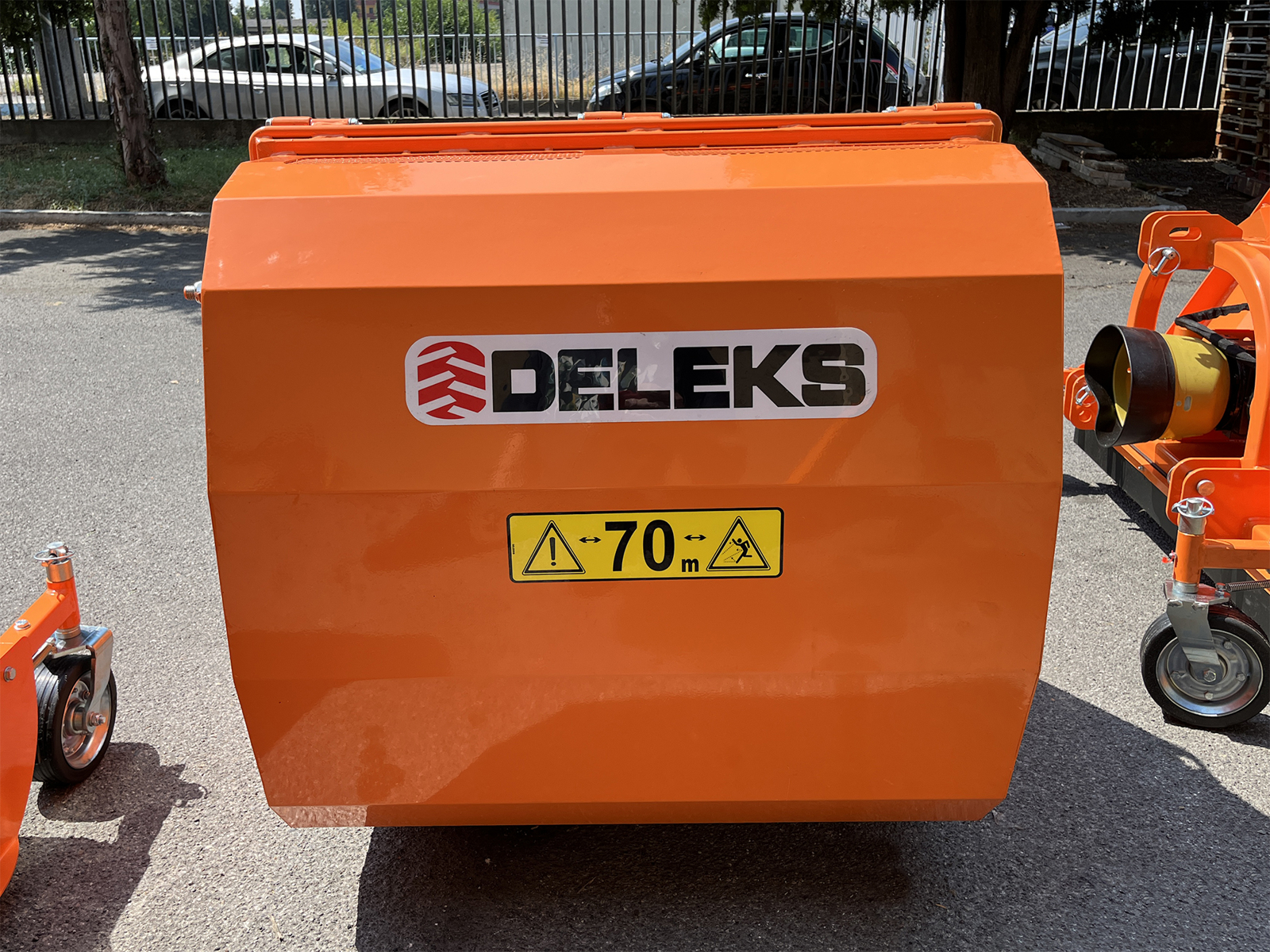

Collector with 520 liters capacity.
Lombarda Ingranaggi multiplier, with free wheel, 3 years warranty.

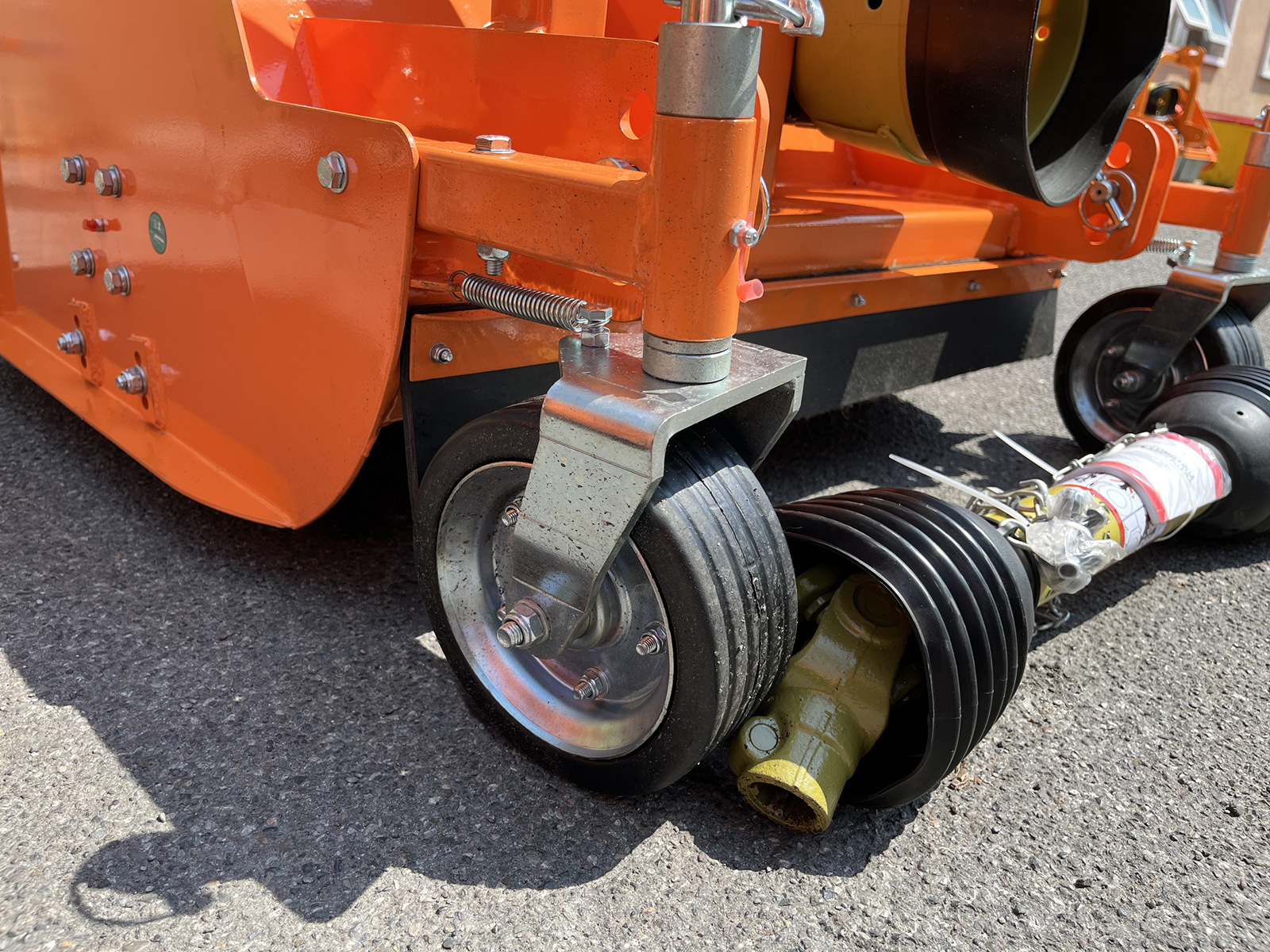

The rear roller and side skids allow you to adjust the cutting height.
Front protection vanes.
External adjustment of the 3 belts and adjustable tensioner.

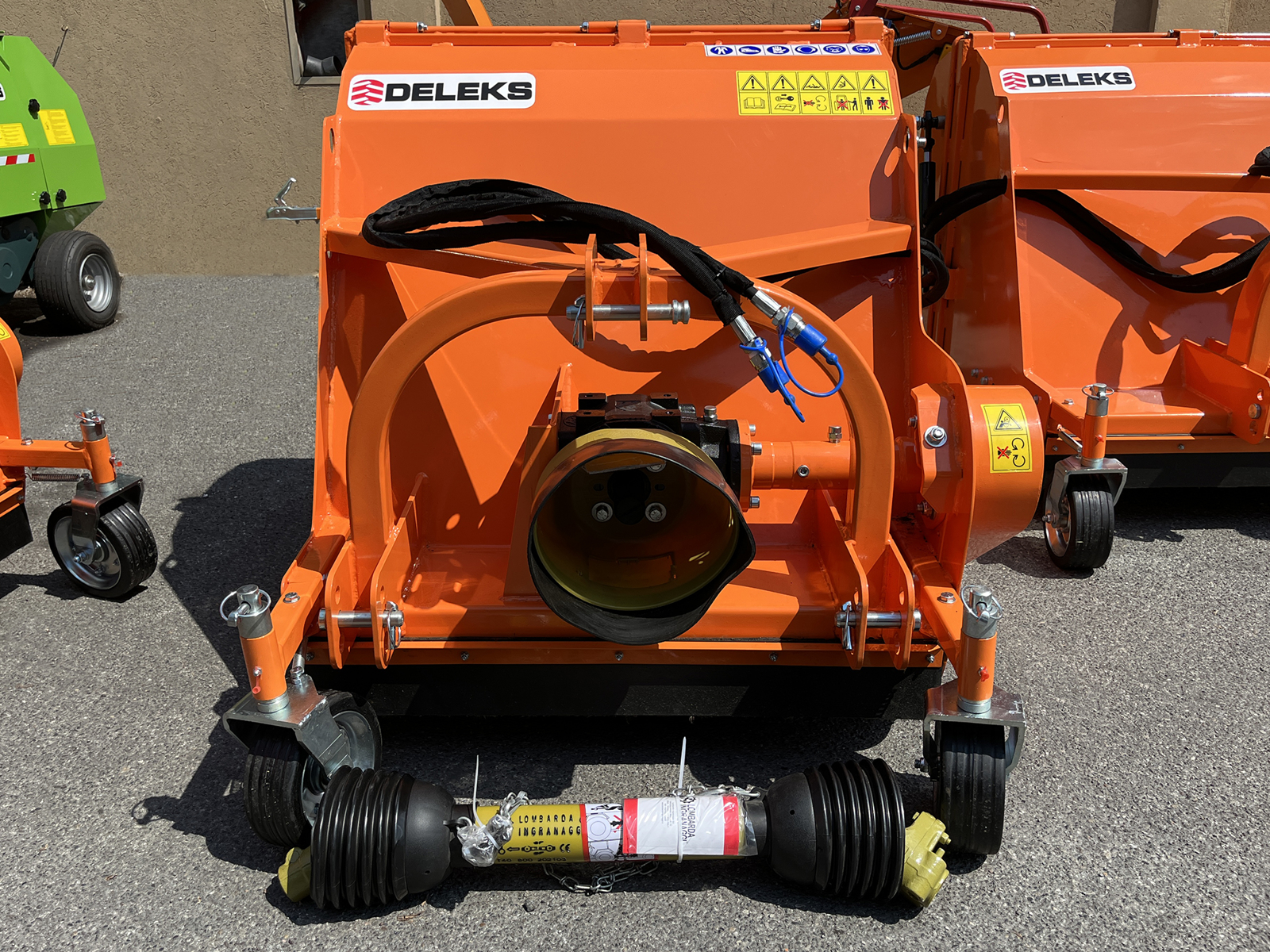

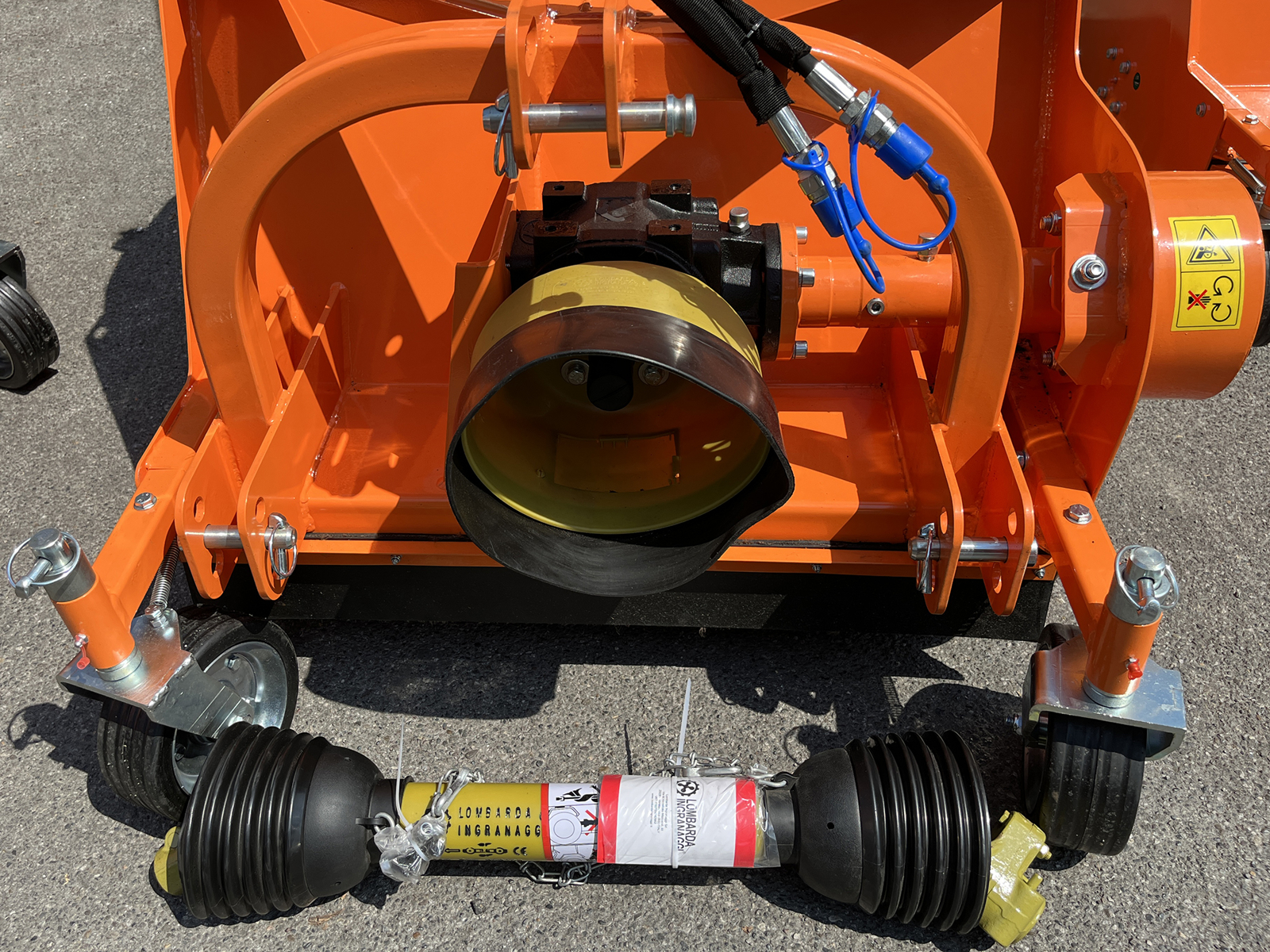

EC cardan shaft with shear bolt.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 900.0 mm |
| Overall width | 1050.0 mm |
| Weight | 298.0 kg |
| Overall height | 850.0 mm |
| Tractor Power Range | 25 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 630.0 - 725.0 mm |
| Number of Hammers | 14 |
| Maximum cutting diameter | 20.0 - 30.0 mm |
| Overall length | 1100.0 mm |
| Distance between pto attachment and ground | 450.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi (3 year warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2295 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | 17x1067 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | UC207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Pto shaft | CE 4x800 mm + shear bolt |
| Packing sizes | 1120.0*1120.0*1250.0 mm |
