Post hole digger for traktor with hydraulic system L-50H

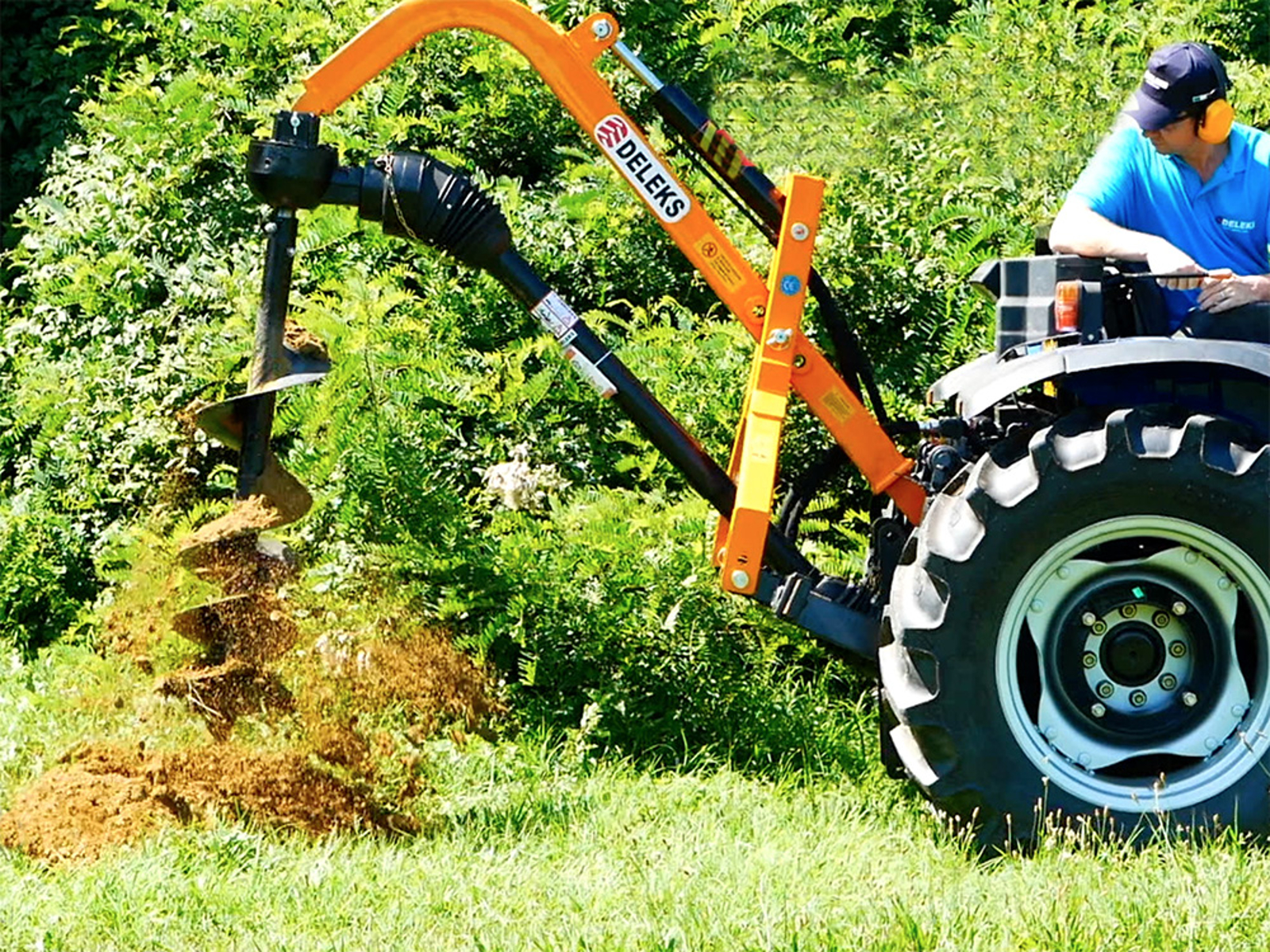

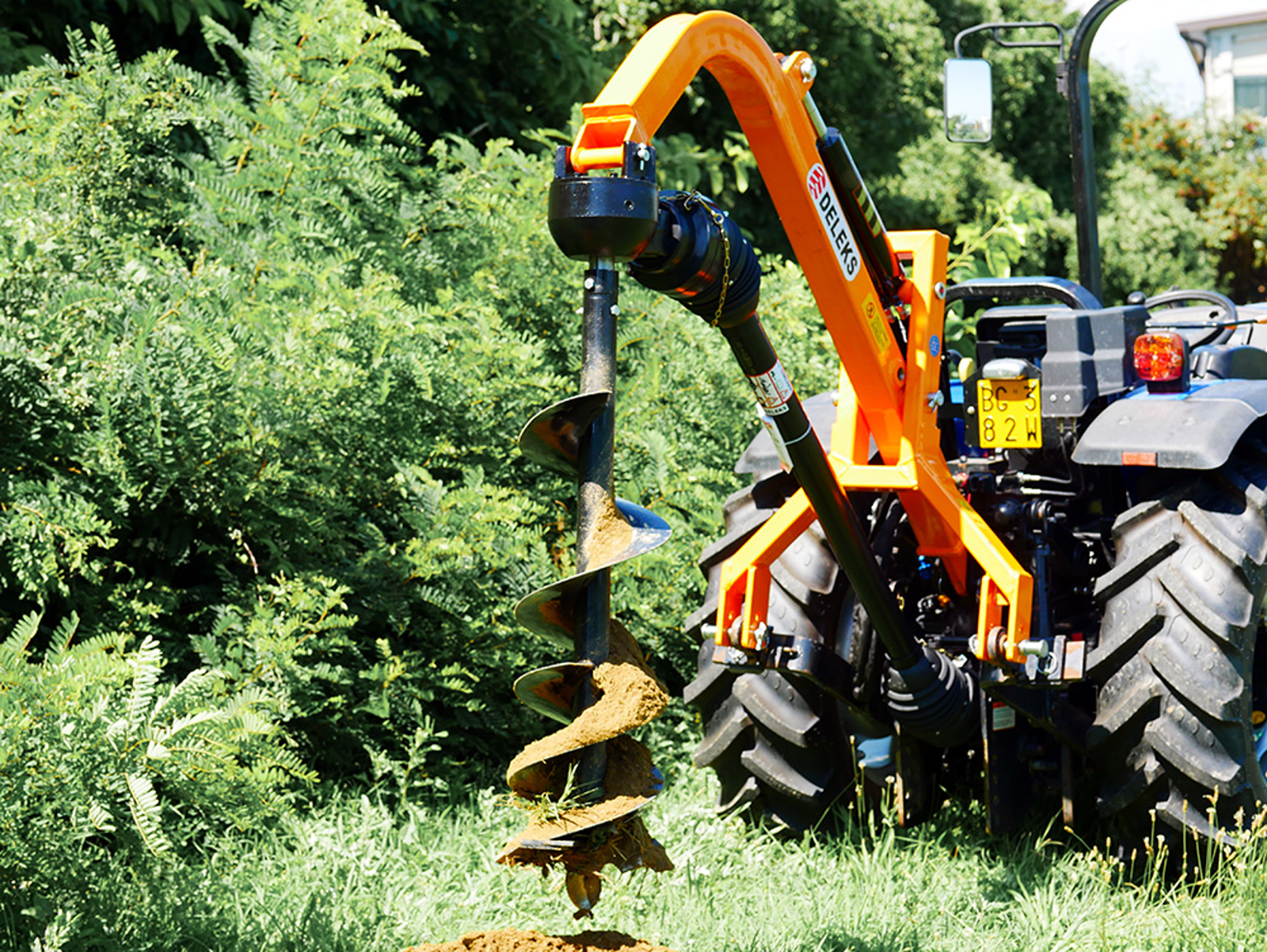

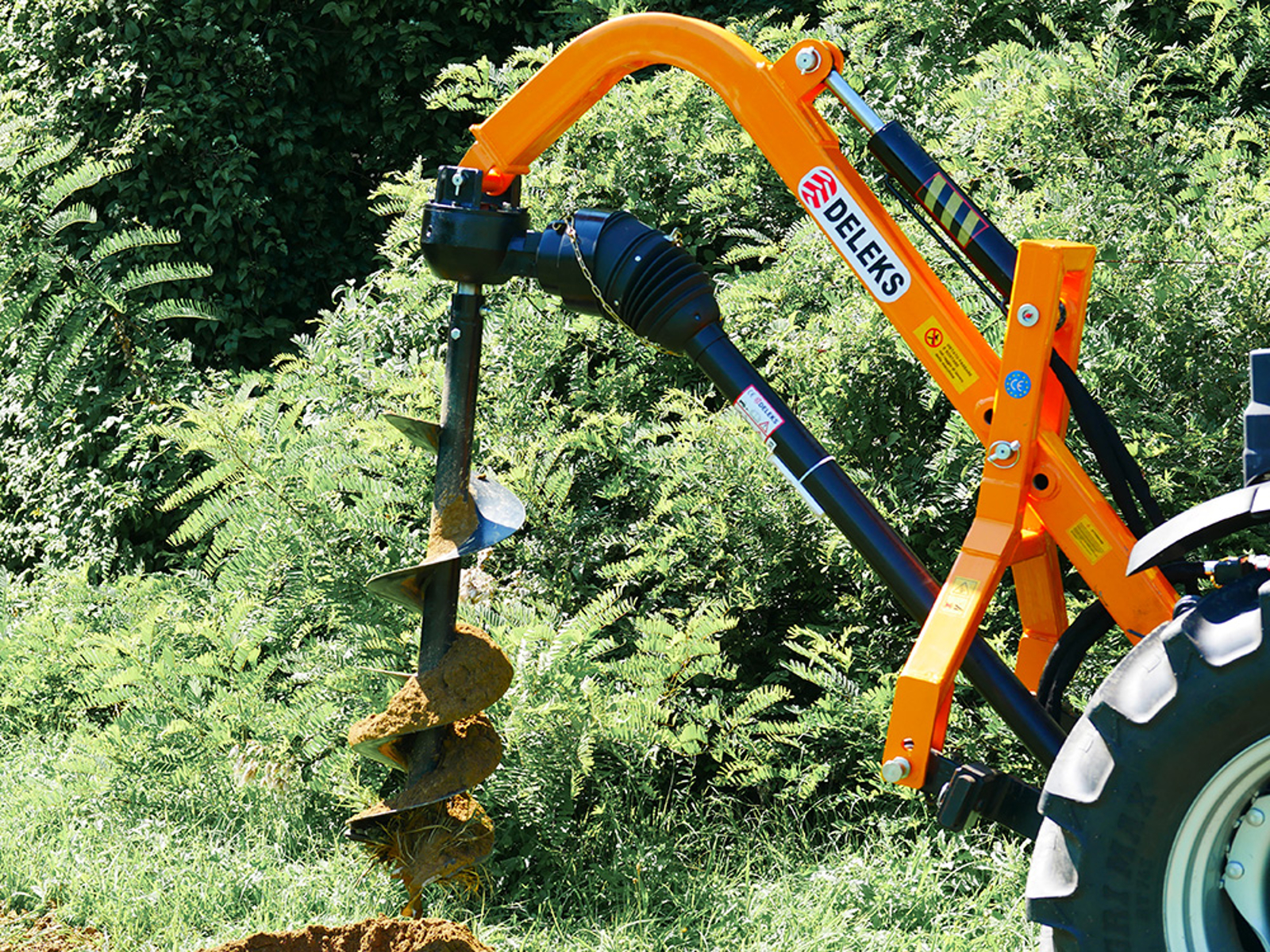

Field test
DETAILS

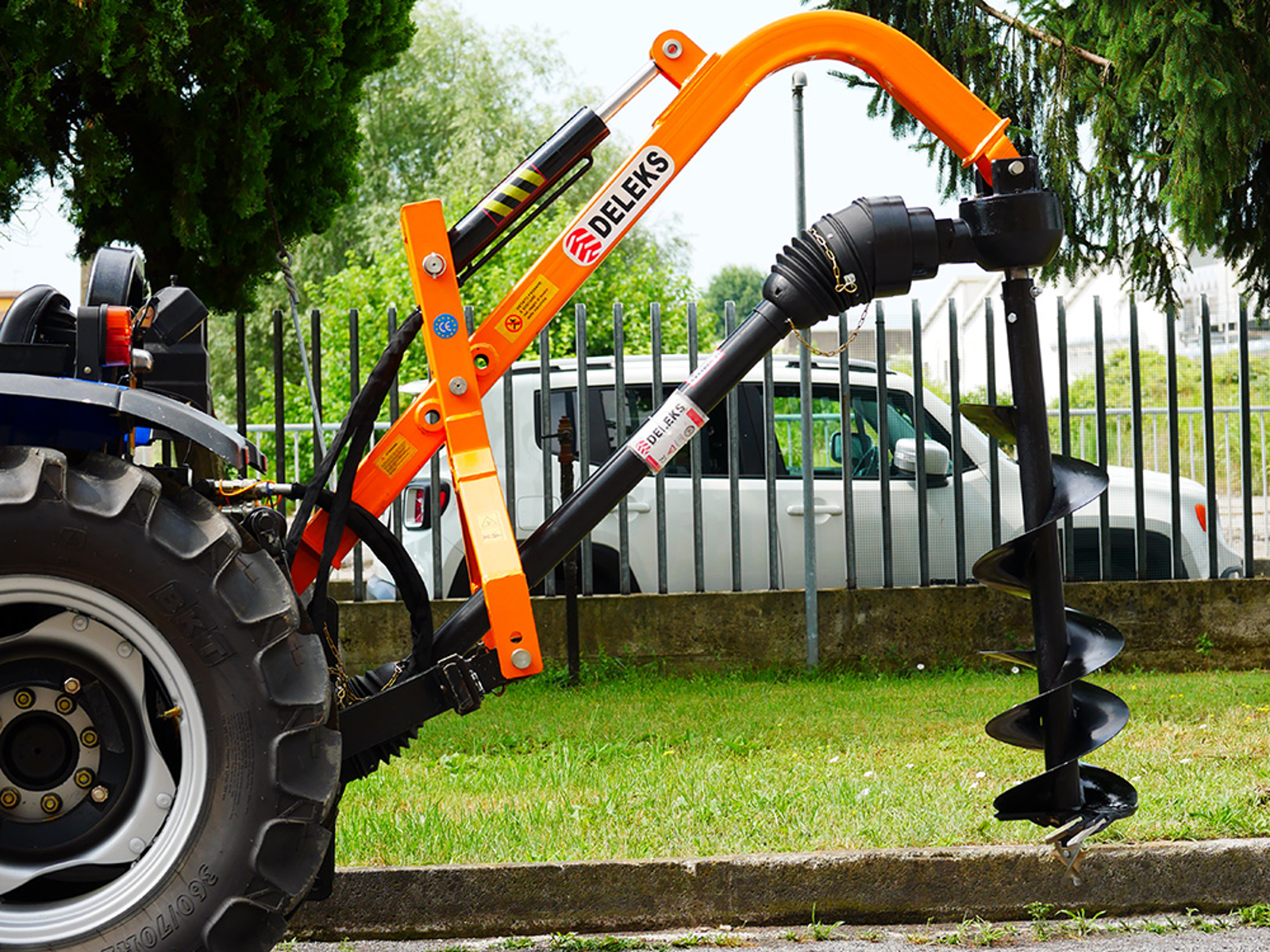

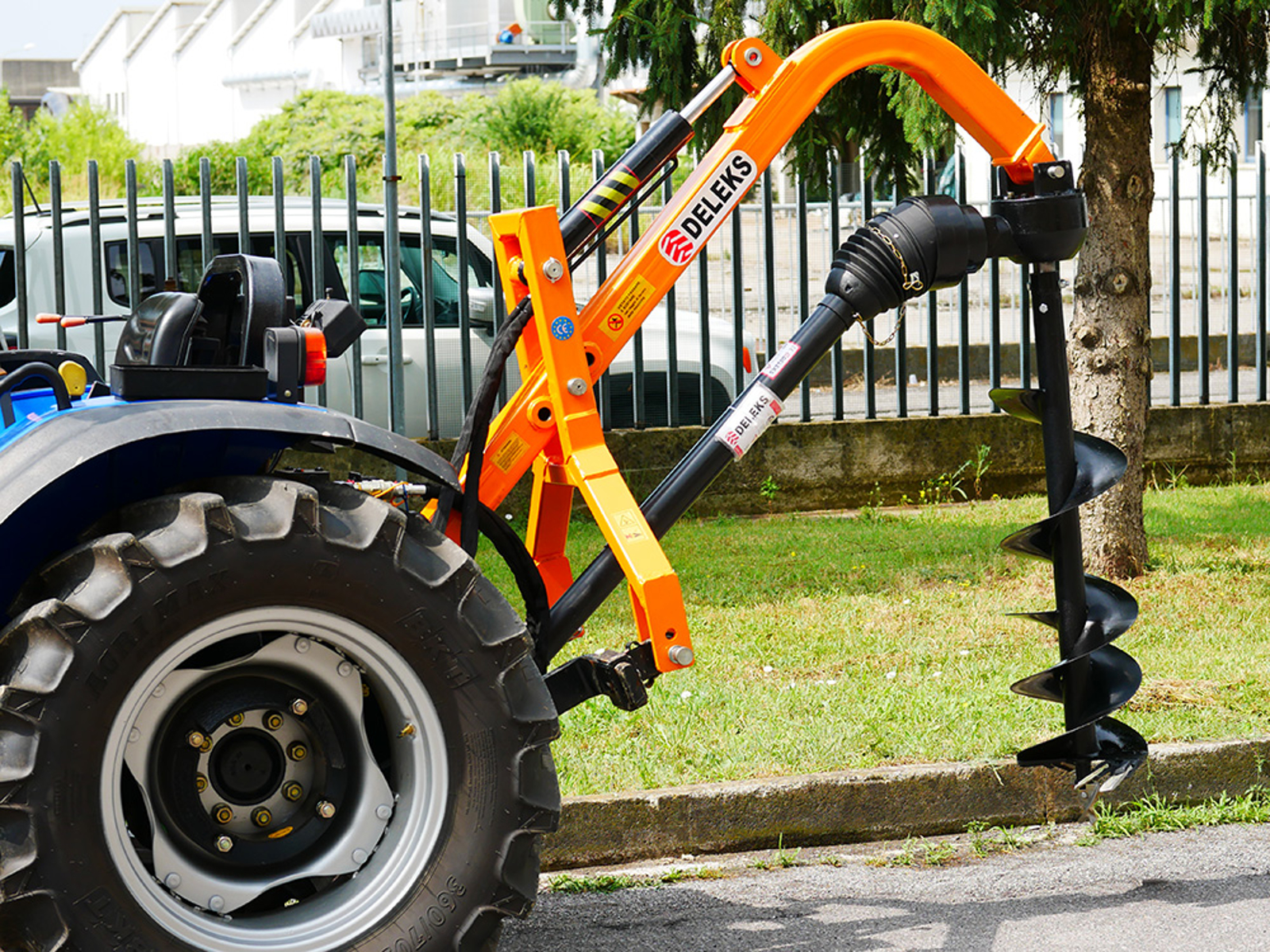

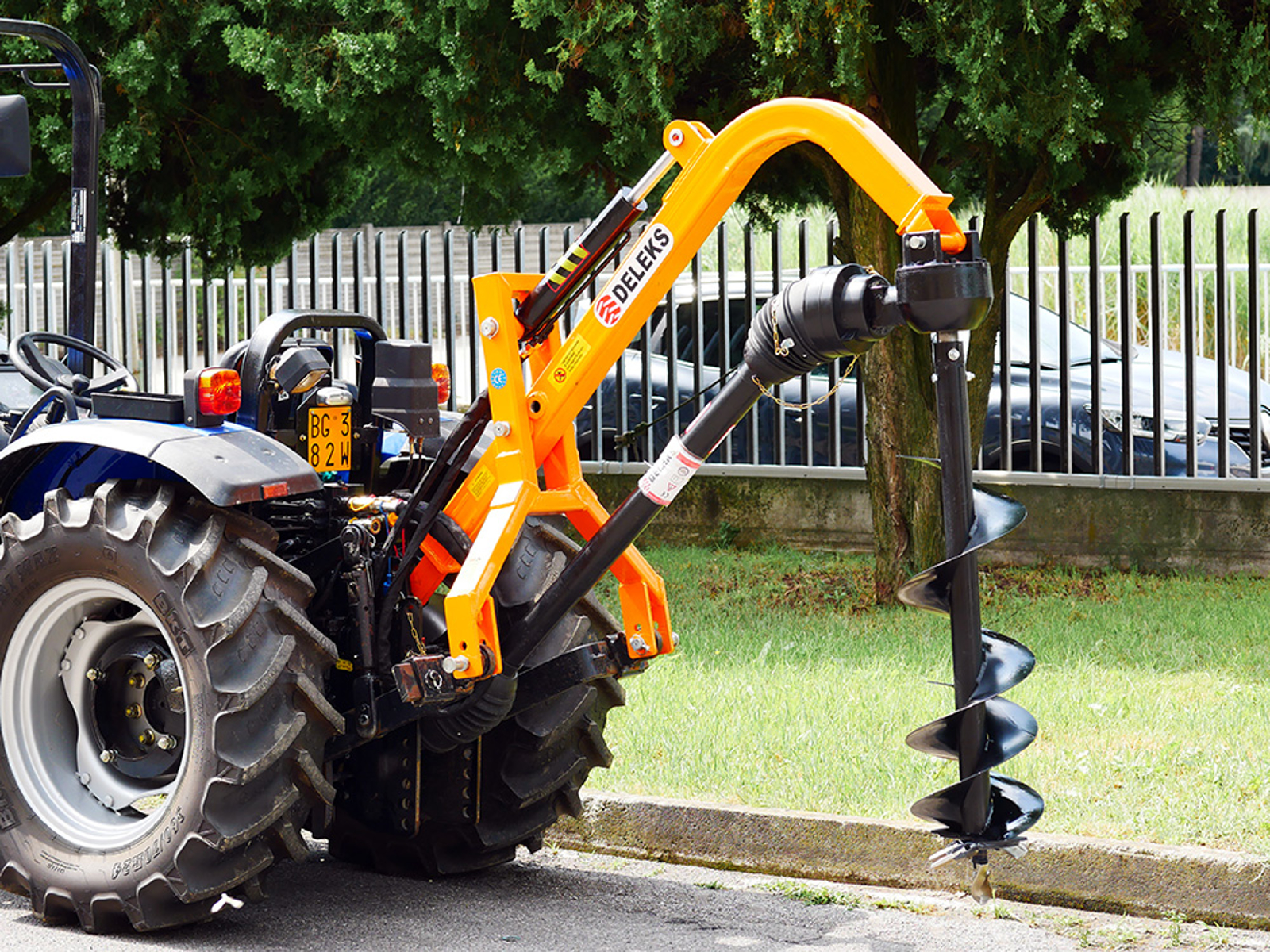

Heavy Post Hole Digger for tractors -DELEKS® - with PTO shaft and Hydraulic arm cylinder with pipes.
APPLICATION
Agricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.
To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.
Supplied as standard with:
Universal 3-point hitch Cat. 1-2
Gearbox PTO 540 r.p.m. increased
PTO shaft (CE approved)

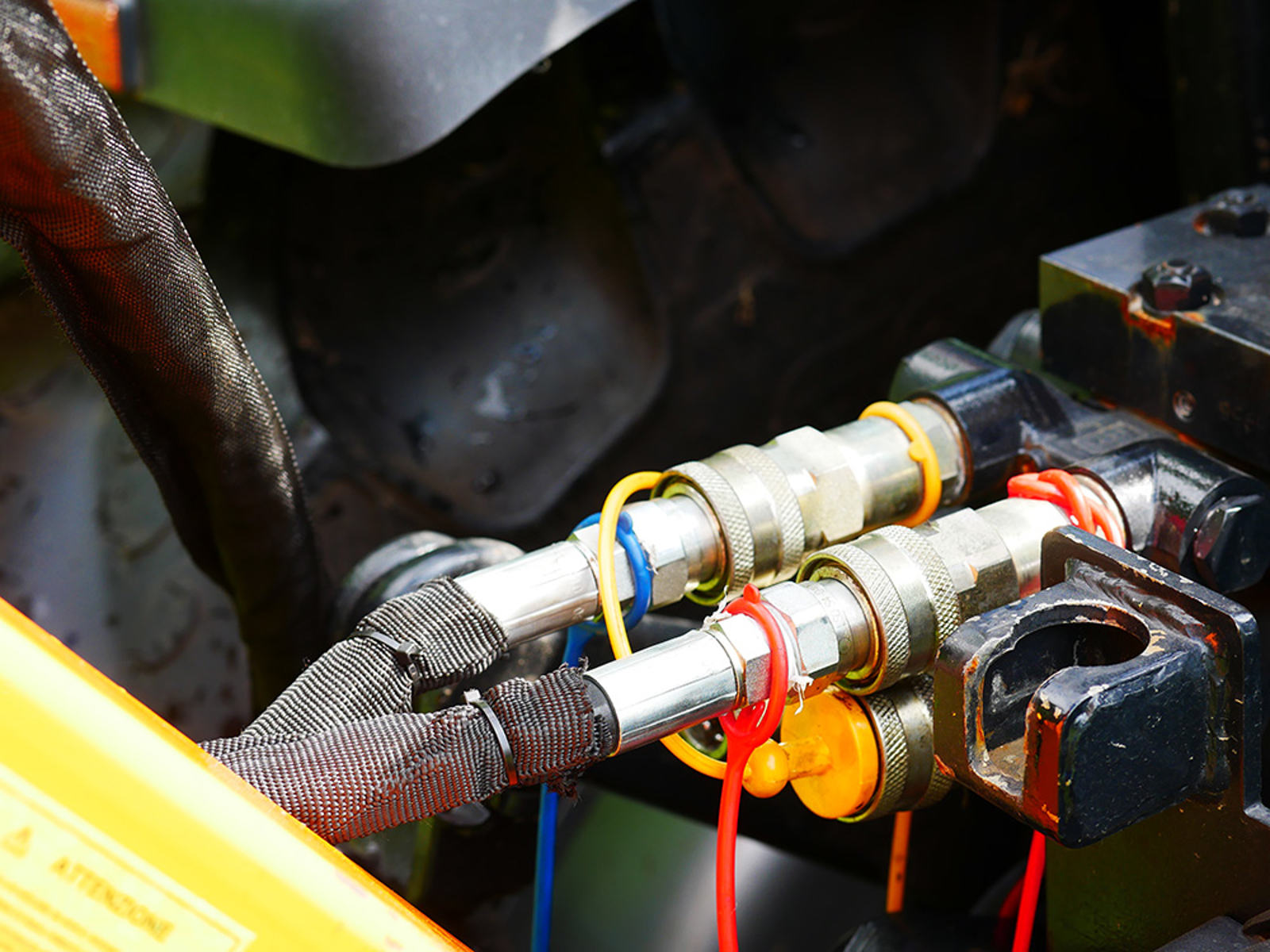

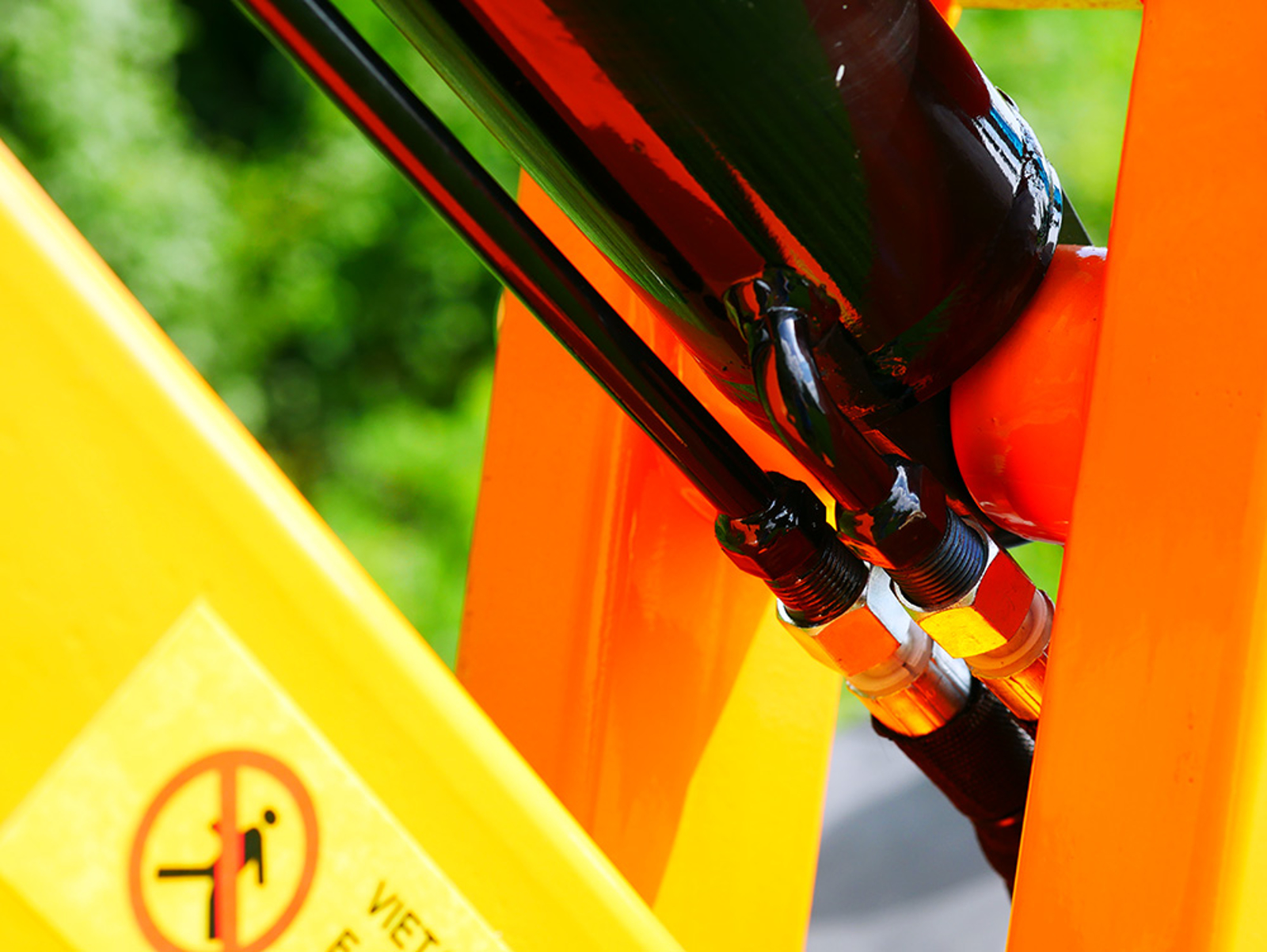

Hydraulic arm cylinder with pipes
Accordingly CE accident prevention protections
Optional:
Auger: 100.0 mm
Auger: 150.0 mm
Auger: 200.0 mm
Auger: 300.0 mm
ADVANTAGES
Extremely easy to use
Interchangeable tip and knives

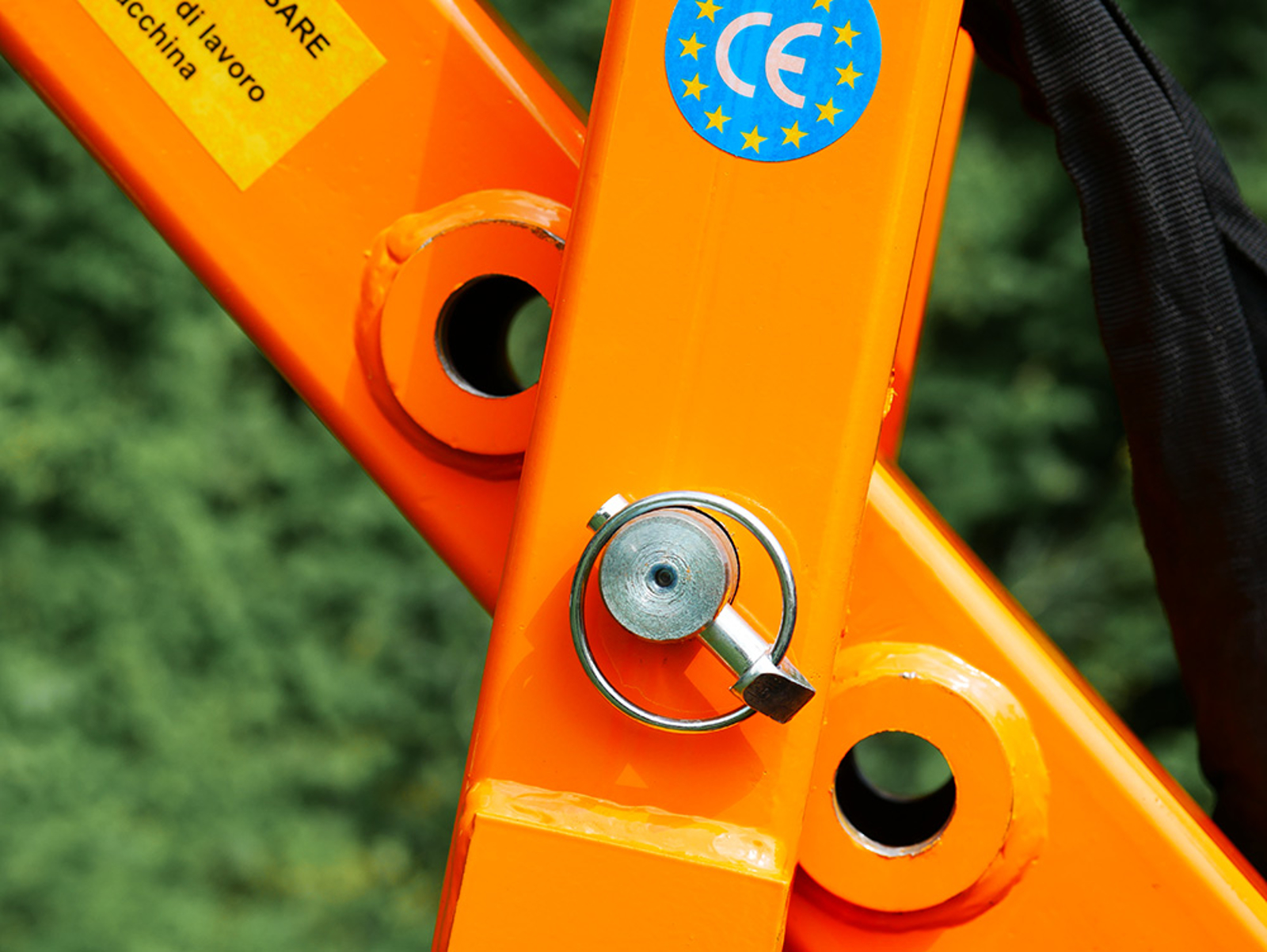

Inclination adjustment of the arm angle
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 130.0 kg |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 630.0 - 740.0 mm |
| Arm tube thickness | 5.0 mm + reinforcements |
| Auger speed rotation | 180 r/min |
| Thickness of the arm | 5.0 mm + reinforcements |
| Pto shaft | CE 5x1300 mm |
| Reach (D) | 1770.0 mm |
| HP min | 40 Hp |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Digg Depth | 1250.0 mm |
| ø auger | Optional |
| Packing sizes | 1700*800*500 mm |
