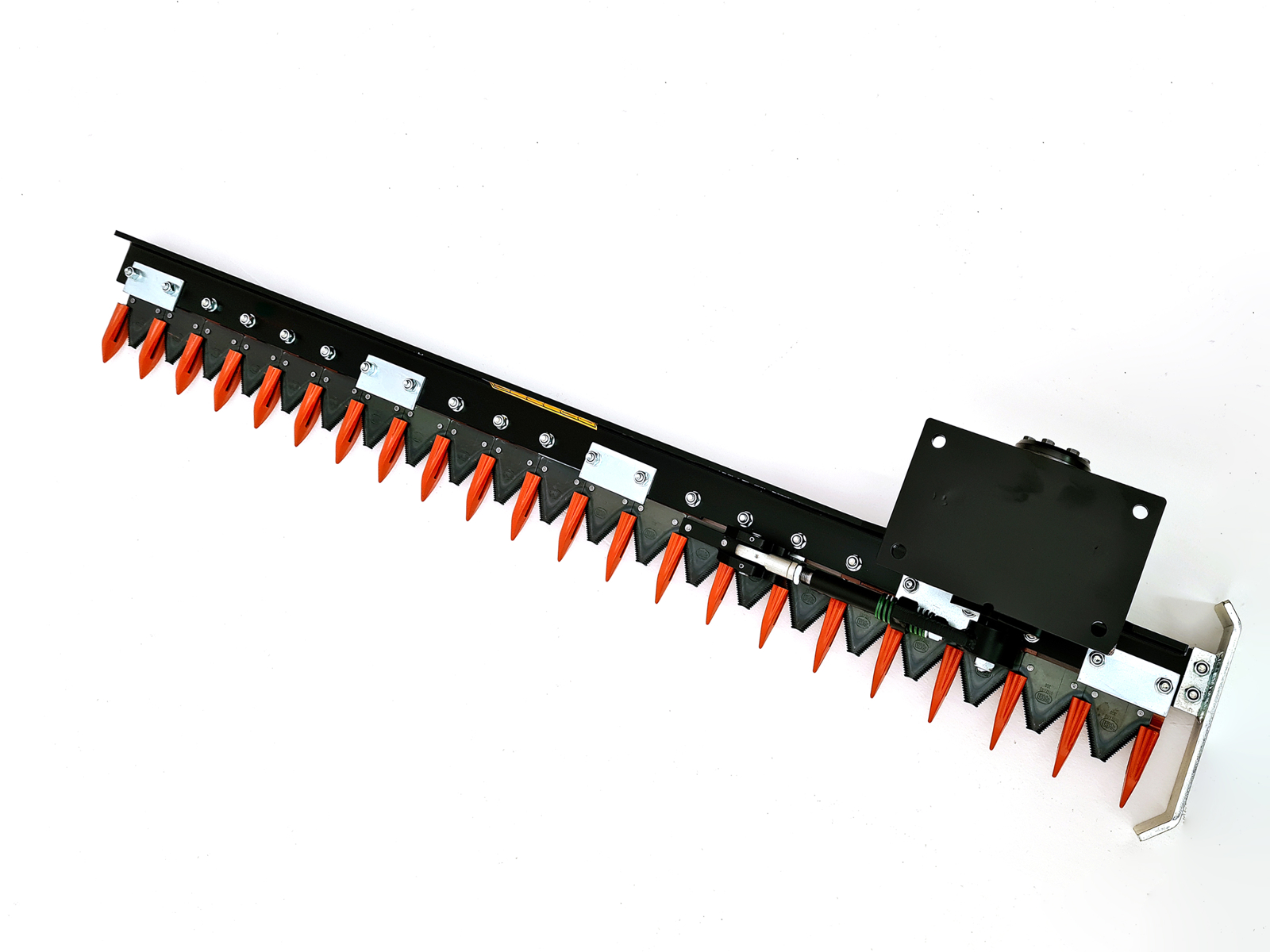

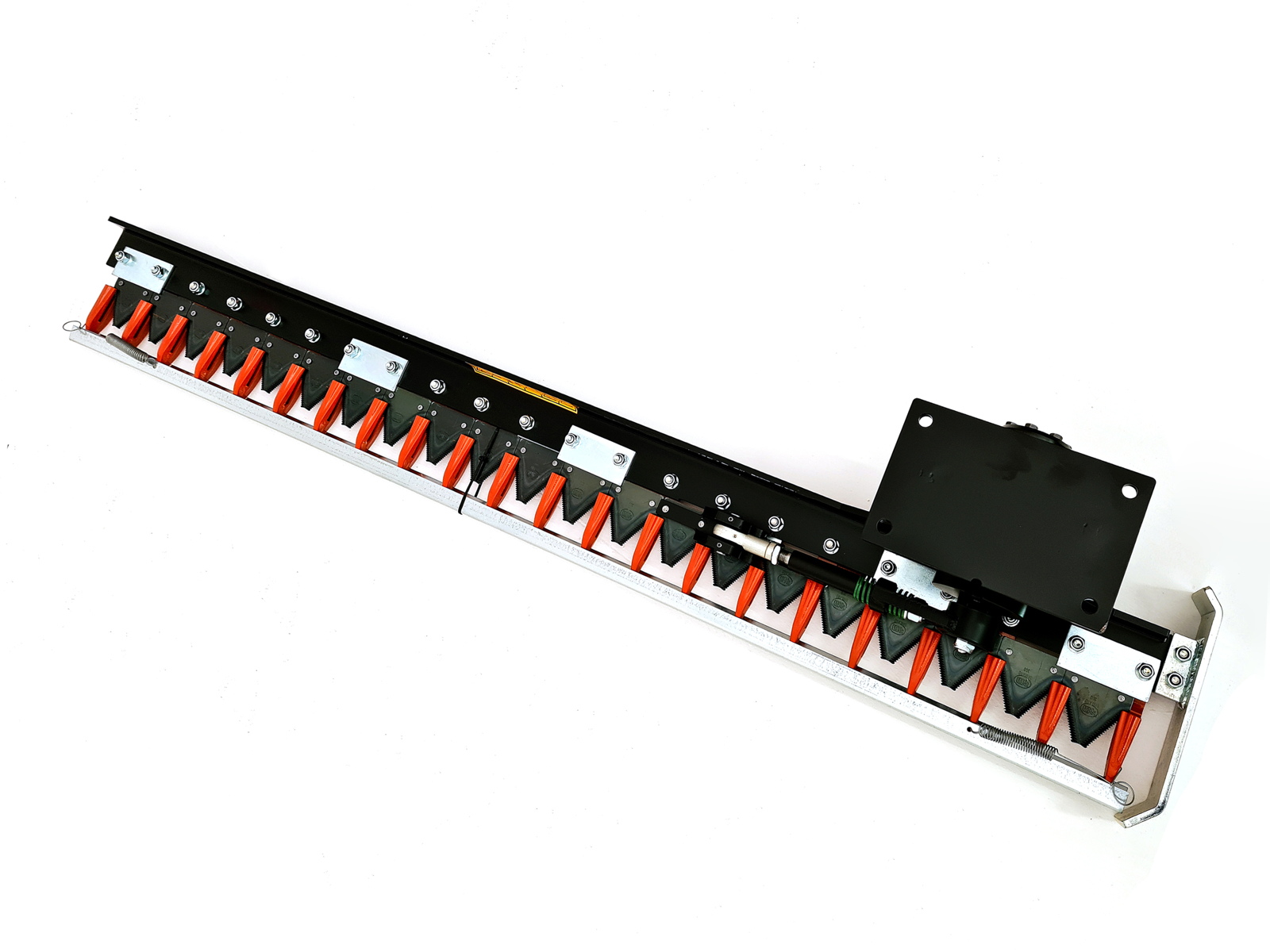

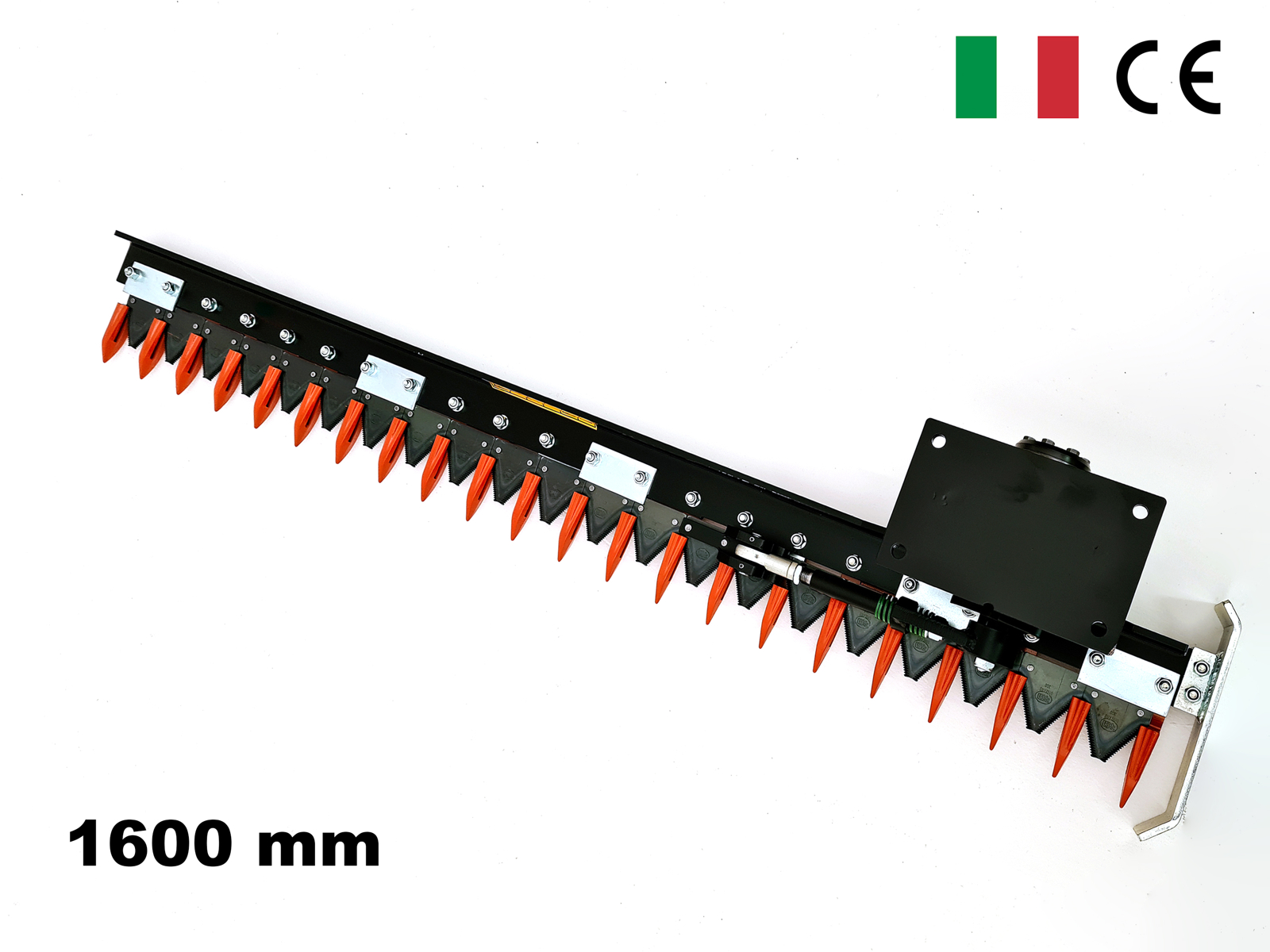

Hydraulic cutter bar, hedge trimmer - DELEKS® HR-160 - Made in Italy
2 years warranty

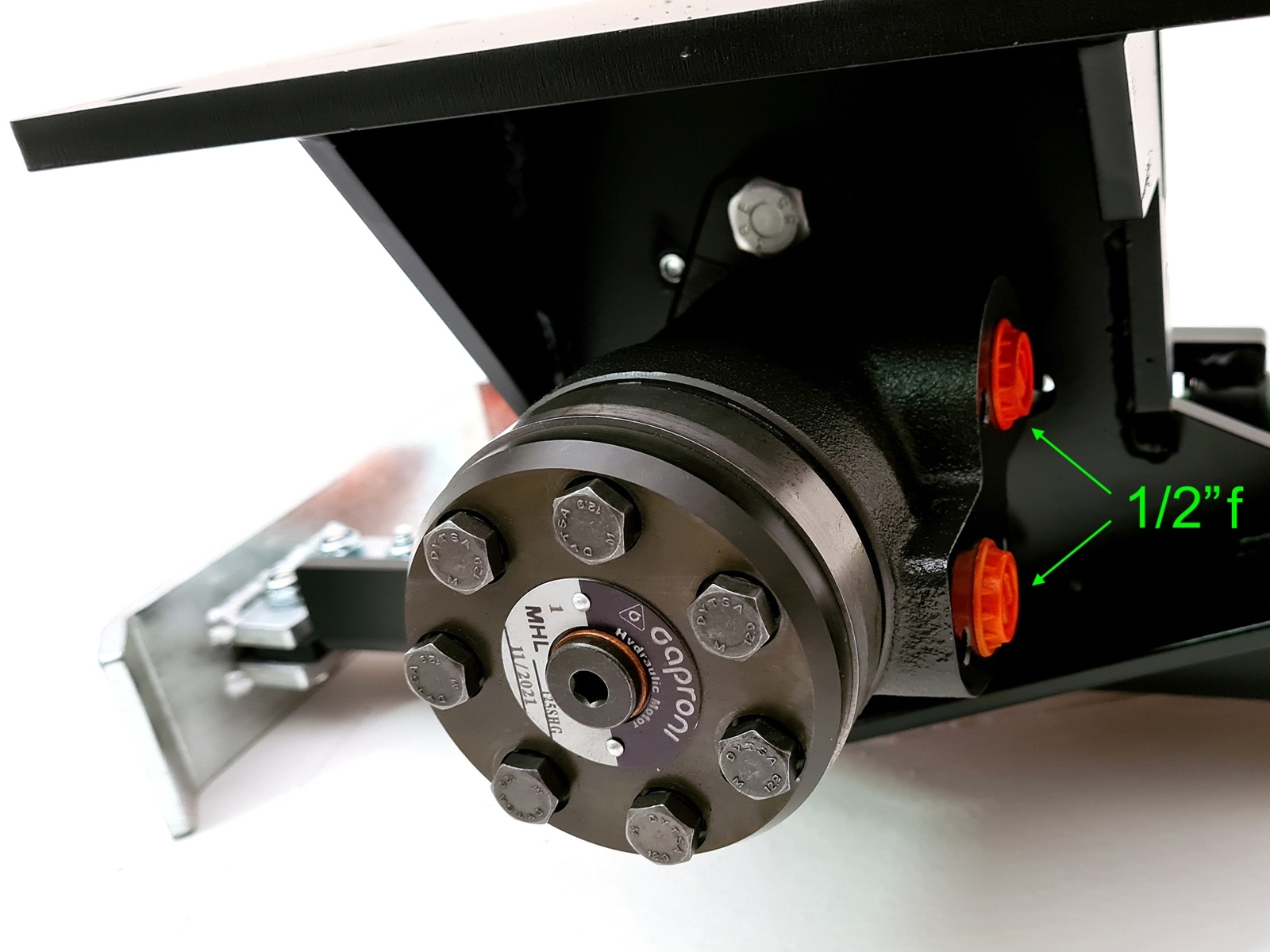

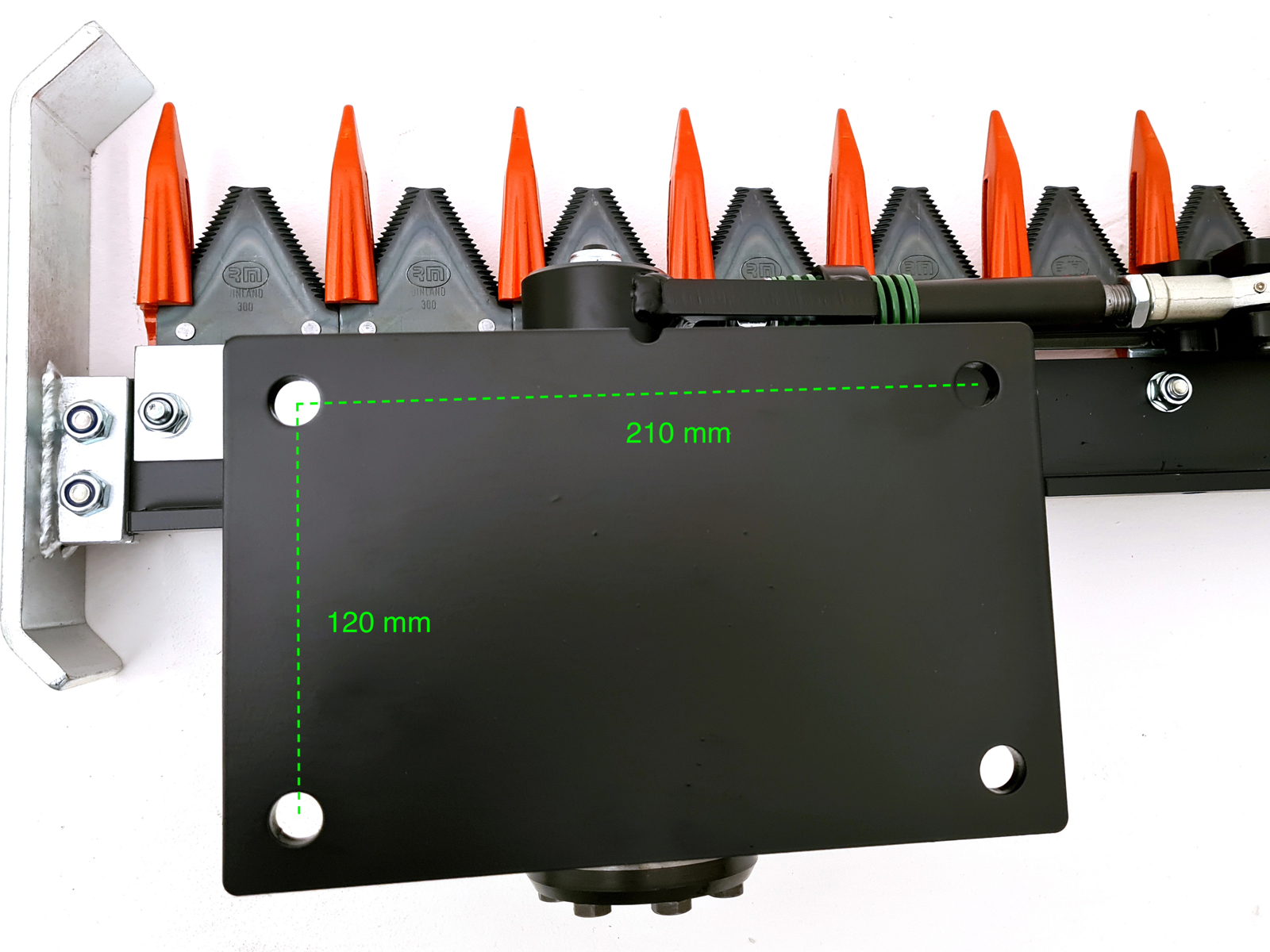

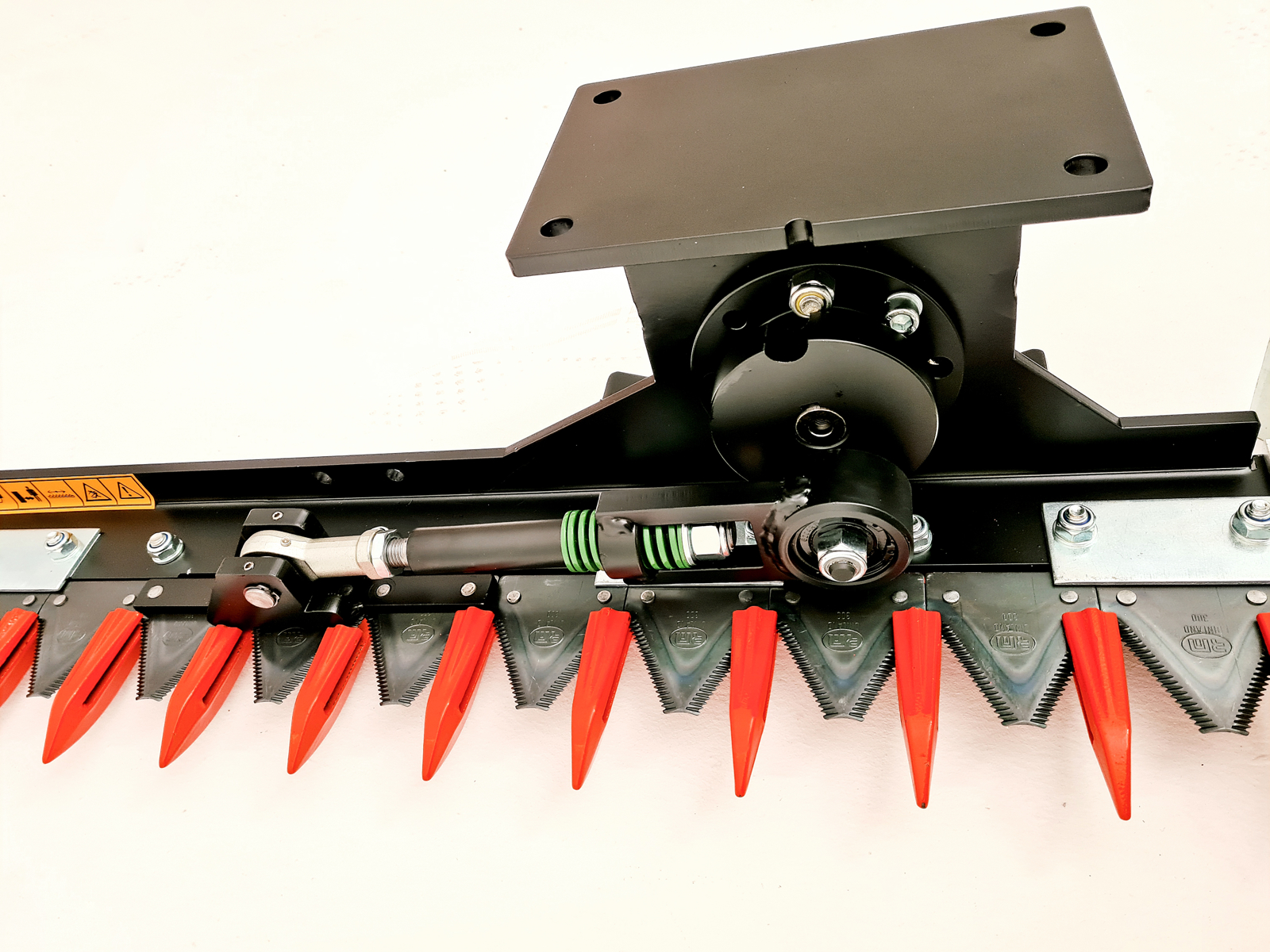

Hydraulic cutter bar DELEKS® HR is ideal for trimming hedges and branches up to about 2.5 cm in diameter. The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).

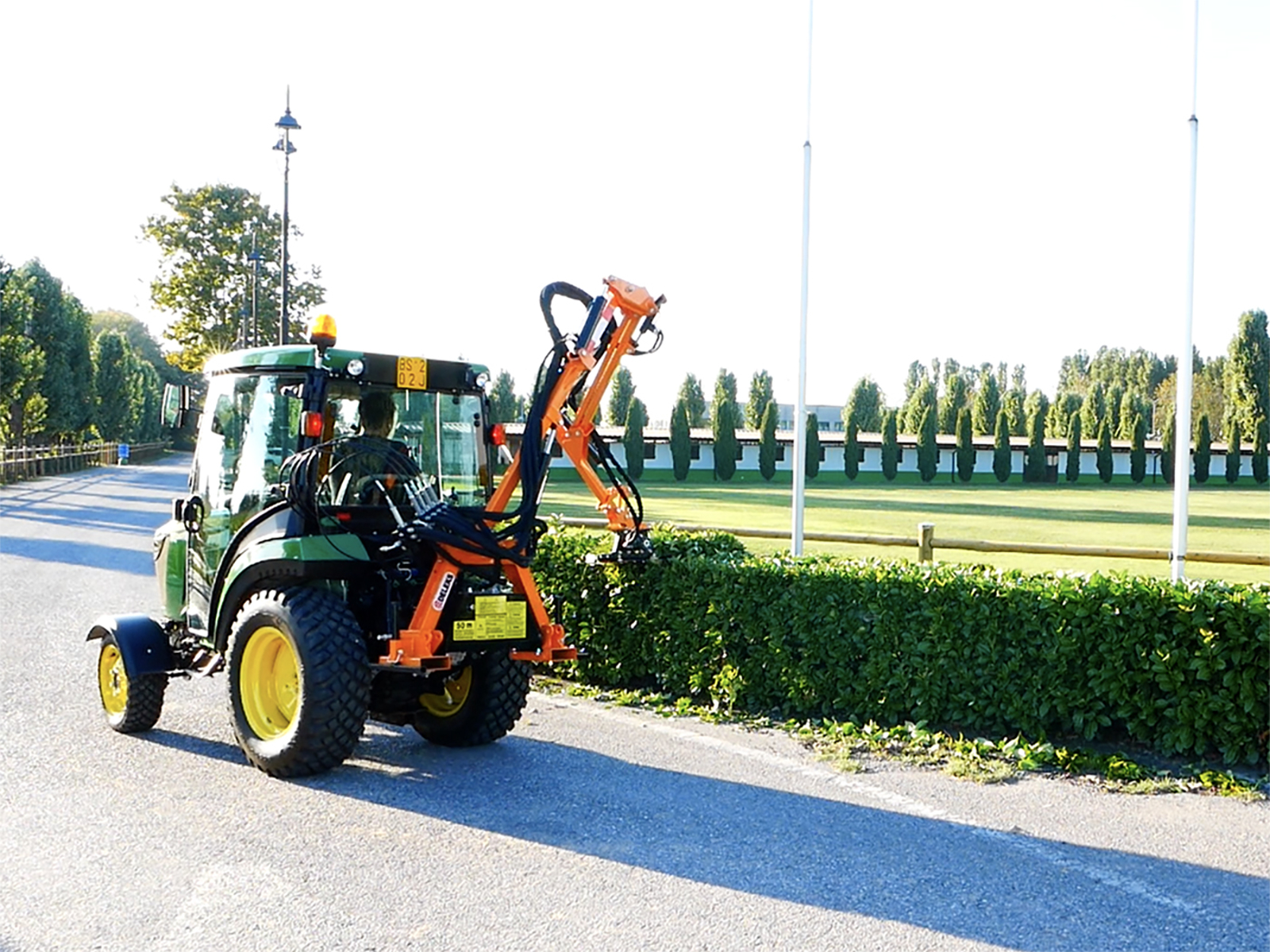

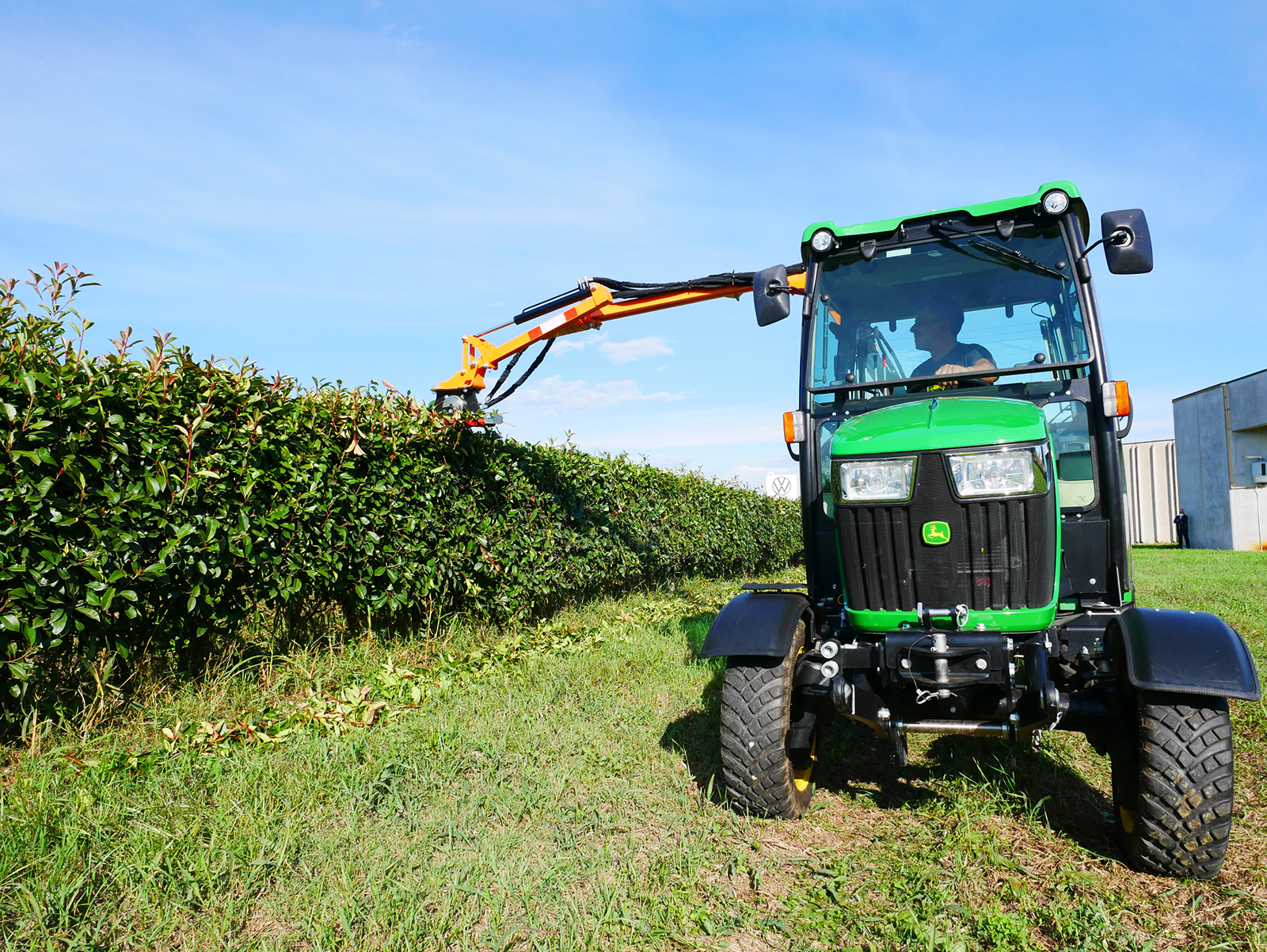

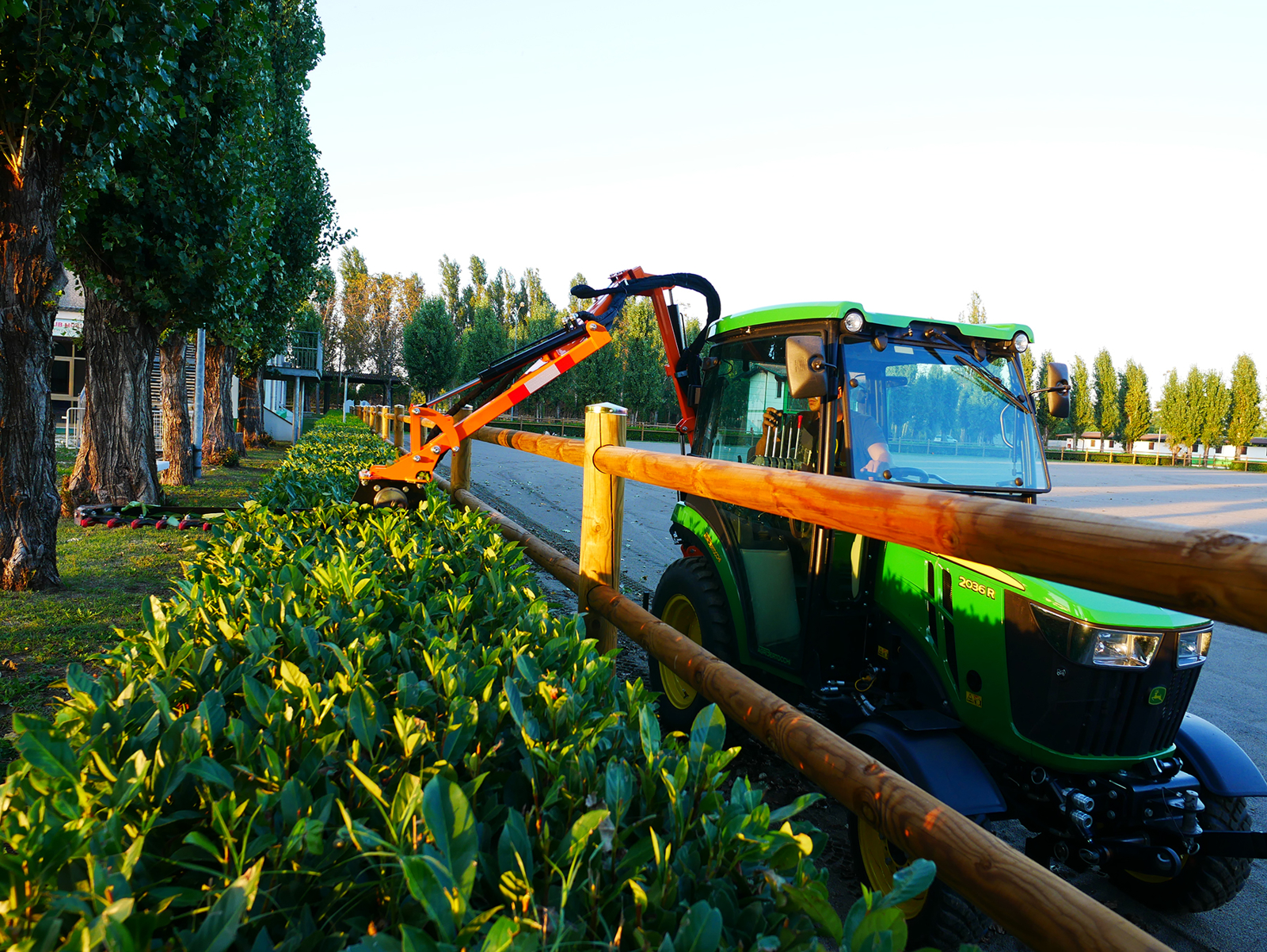

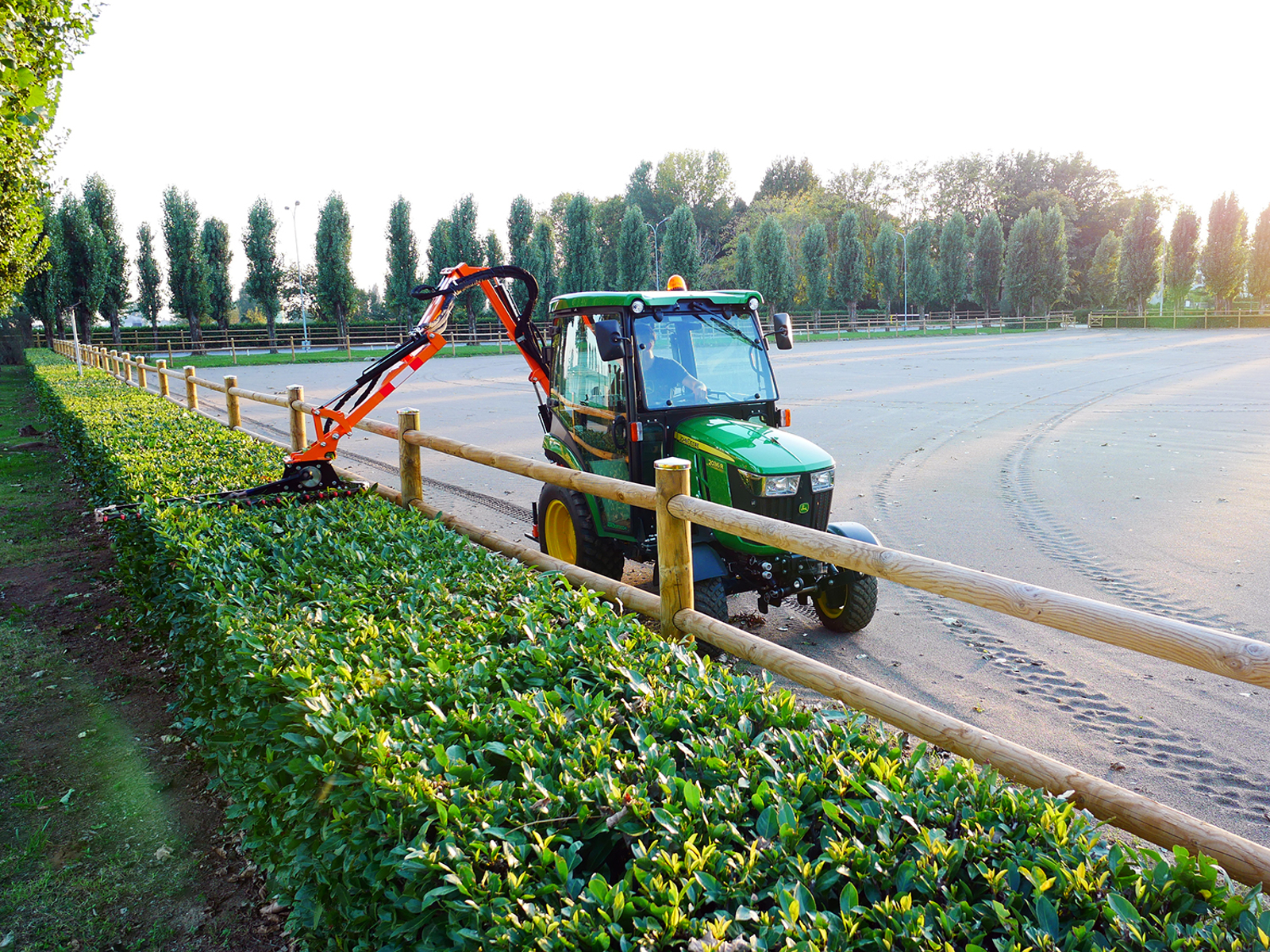

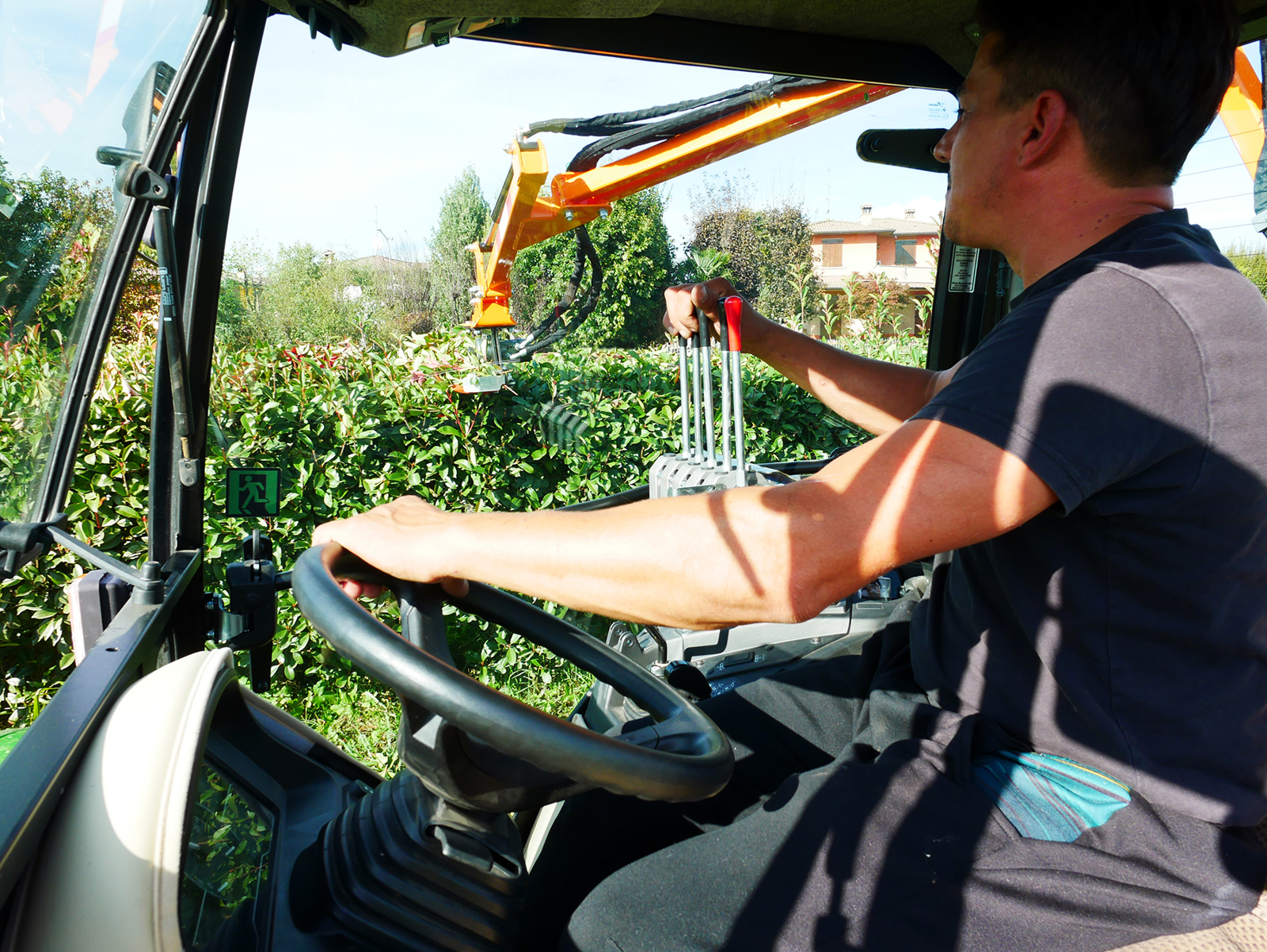

The cutter bar is controlled by the hydraulic system of the tractor / operating machine.
Requirements:
The hydraulic oil flow: 20-60 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1600.0 mm |
| Overall width | 1680.0 mm |
| Weight | 62.0 kg |
| Maximum cutting diameter | 20.0-30.0 mm |

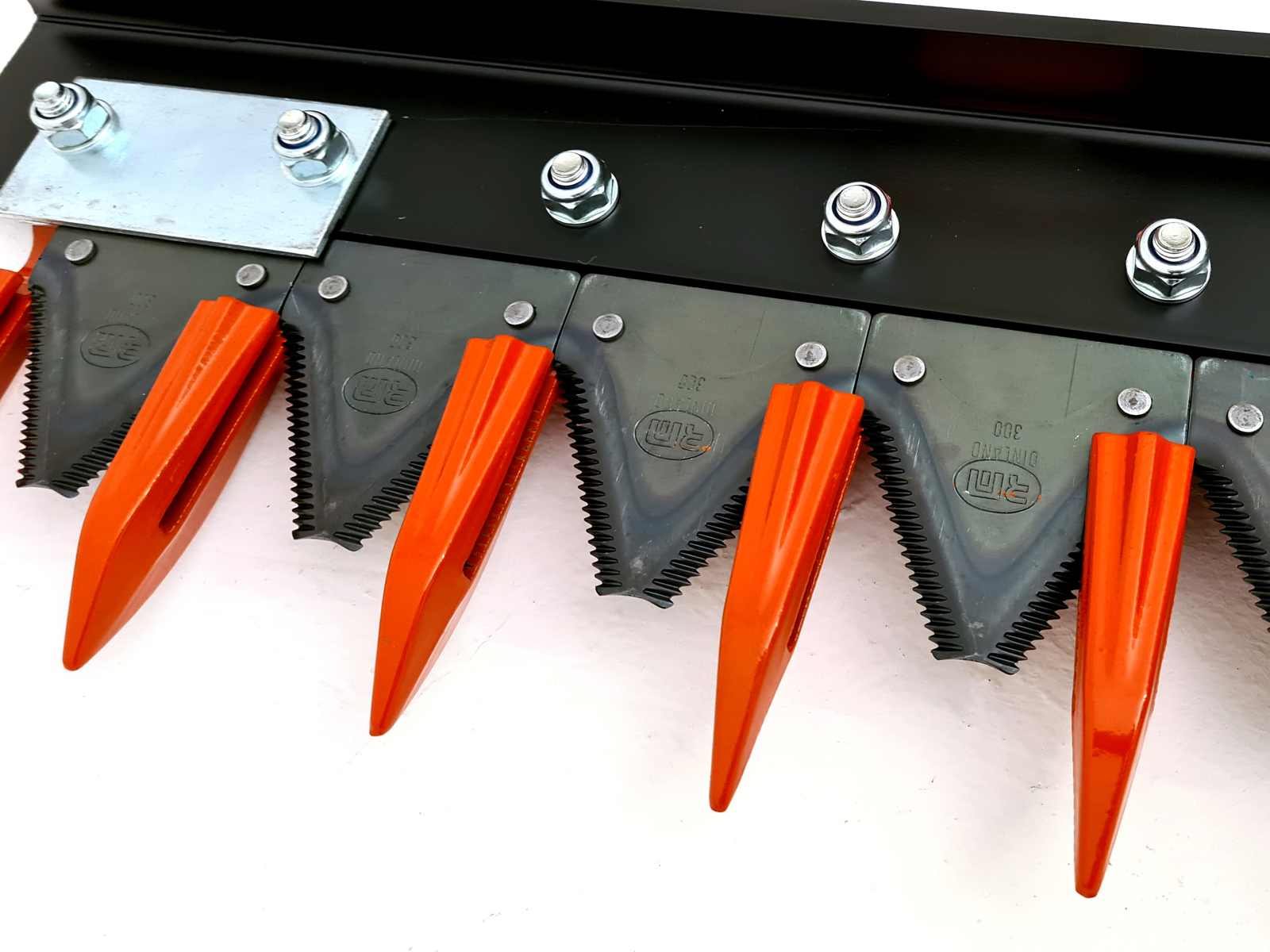

| Number of Blades | 21 |
| Min./Max. Relief Pressure | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min |
| Packing sizes | 1680.0*600.0*300.0 mm |
