Rotator Lombarda Ingranaggi
4.6
1435 reviews
DETAILS

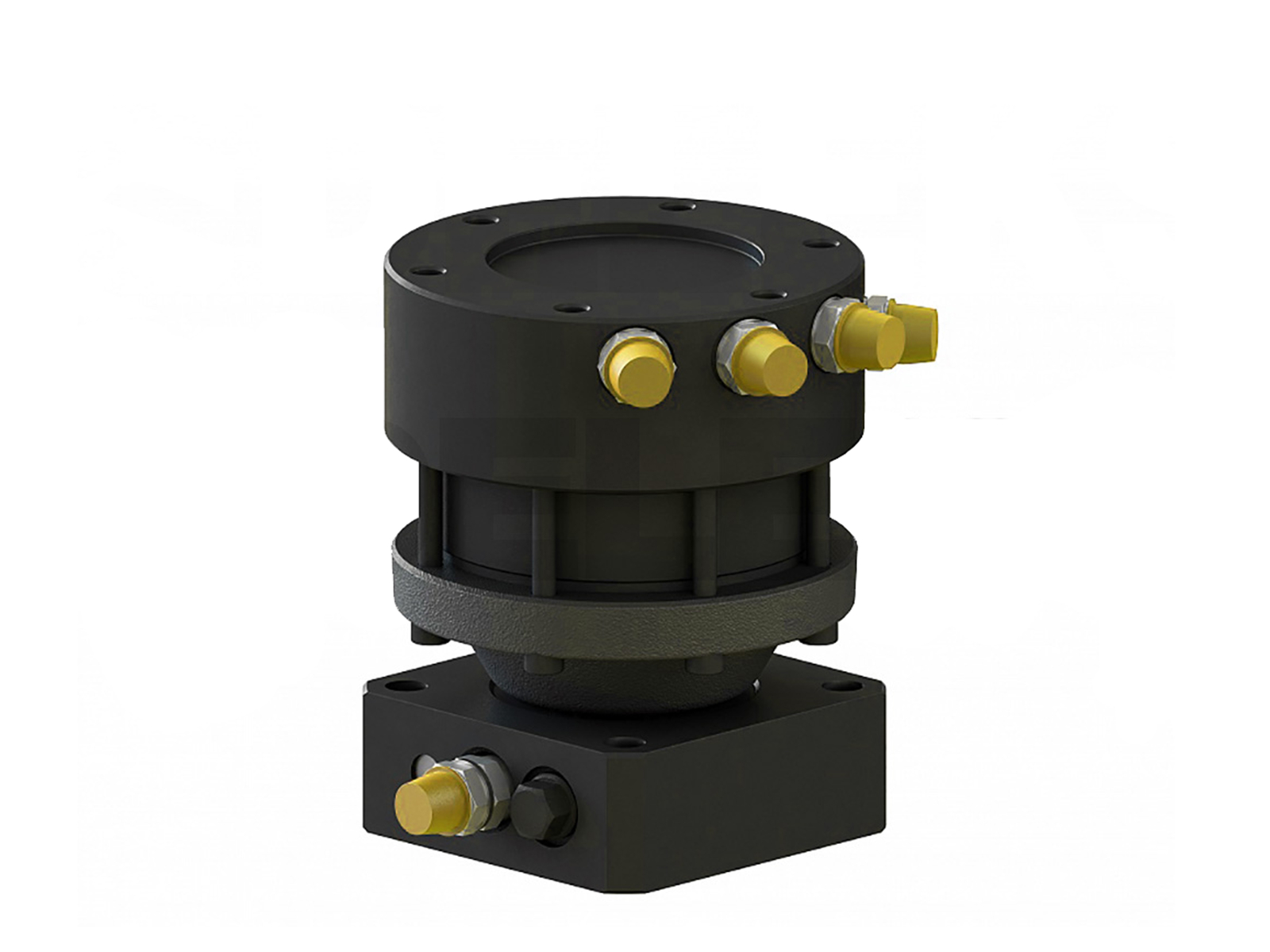

Lombarda Ingranaggi® GR-30FF Hydraulic Rotator 3Ton.
Suitable for agricultural and forestry Vehicles.
It allows to work vertically with the log-grapple.
Upper connection - Flat, for quick attachments as S40
Lower connection - Fixed directly onto the grapple with bolts.
ROTATION: 360° Unlimited
LOAD CAPACITY (STATIC): 30 kN (6745 lbf)
LOAD CAPACITY (DYNAMIC): 15 kN (3372 lbf)
TORQUE @-MPA: 1000 Nm (738 lb ft)
REC. OILFLOW: 20 l/min
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 24 kg |
DETAILS
CLOSELombarda Ingranaggi® GR-30FF Hydraulic Rotator 3Ton.
Suitable for agricultural and forestry Vehicles.
It allows to work vertically with the log-grapple.
Upper connection - Flat, for quick attachments as S40
Lower connection - Fixed directly onto the grapple with bolts.
ROTATION: 360° Unlimited
LOAD CAPACITY (STATIC): 30 kN (6745 lbf)
LOAD CAPACITY (DYNAMIC): 15 kN (3372 lbf)
TORQUE @-MPA: 1000 Nm (738 lb ft)
REC. OILFLOW: 20 l/min
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 24 kg |
