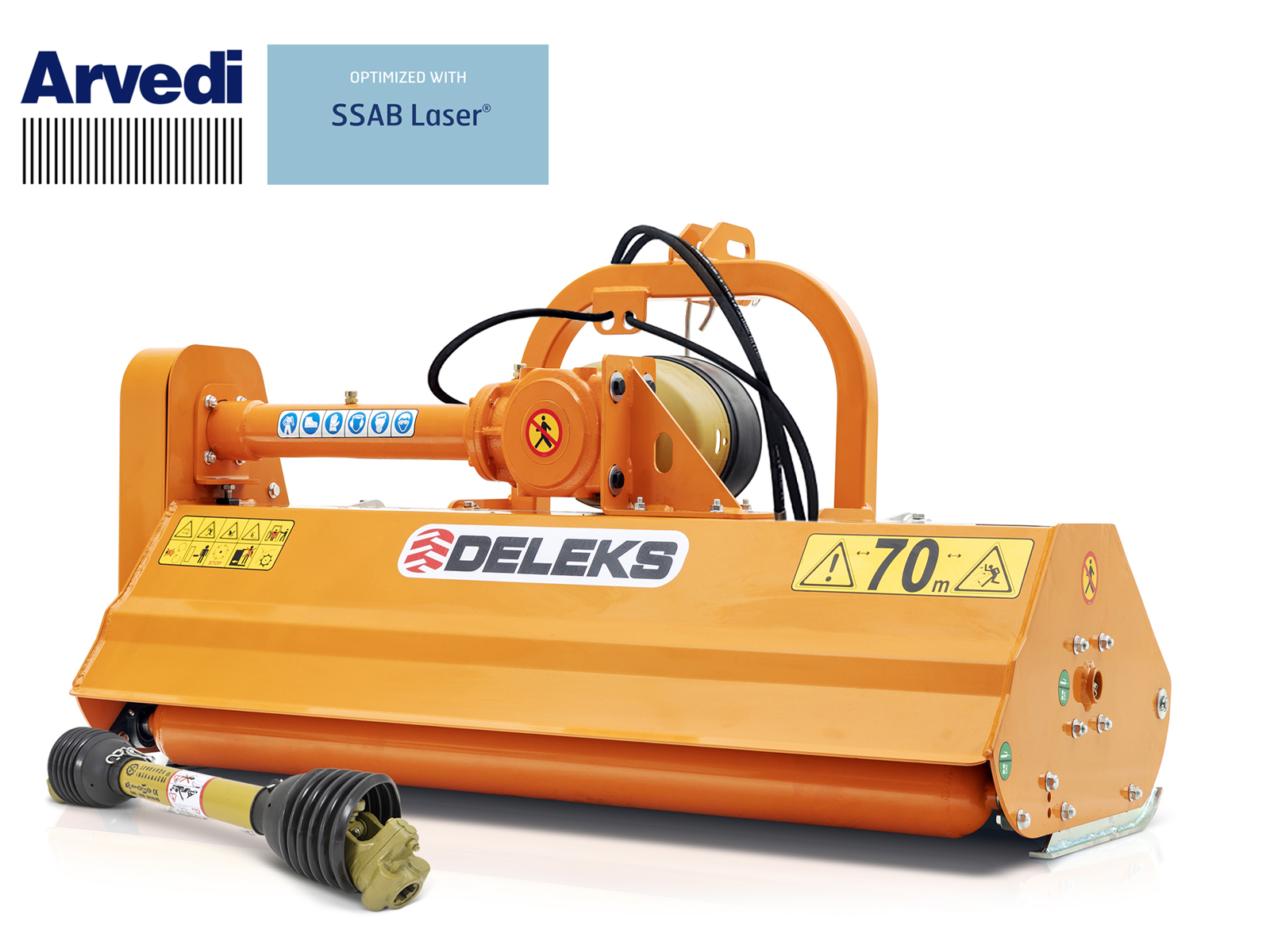

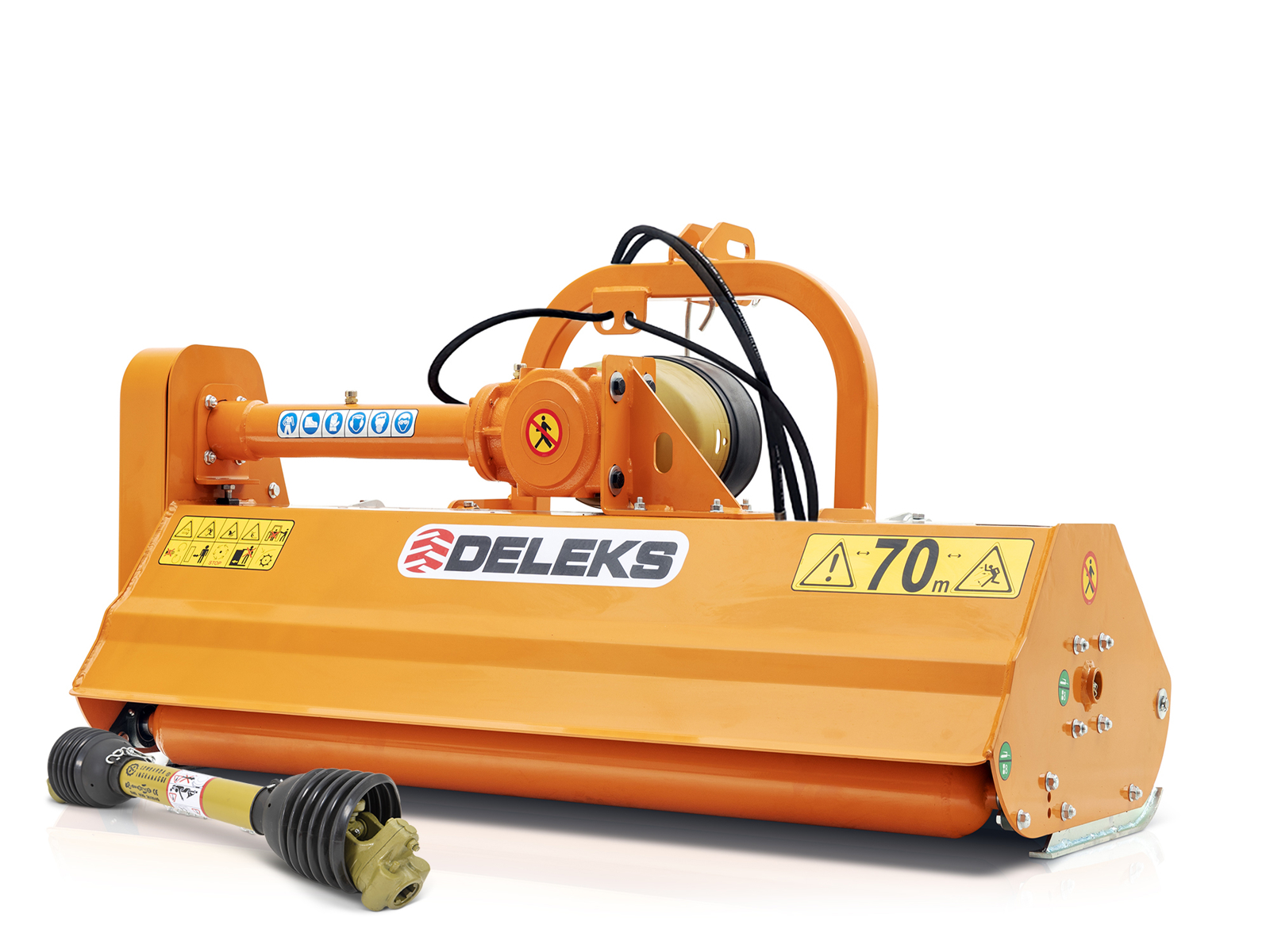

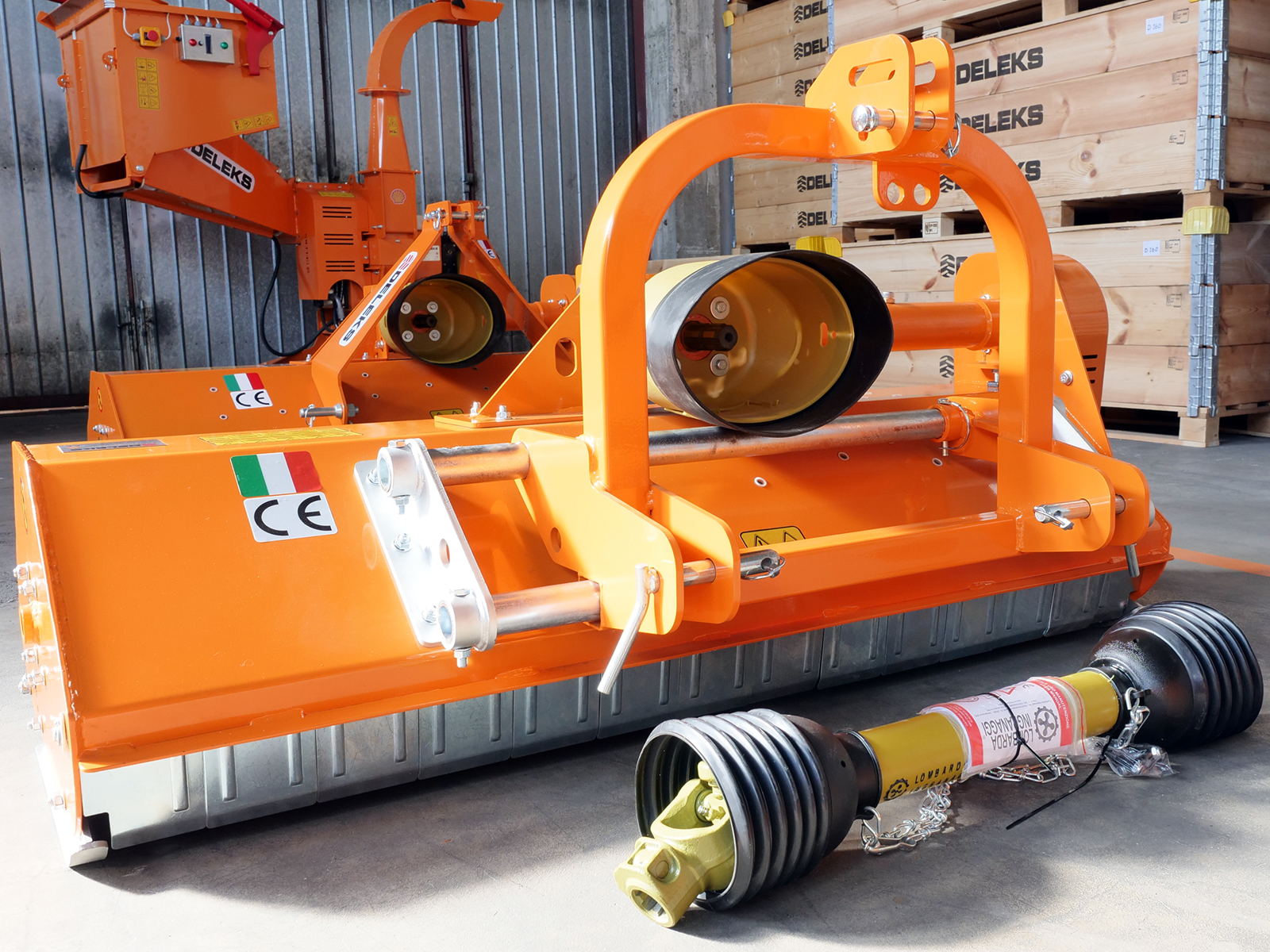

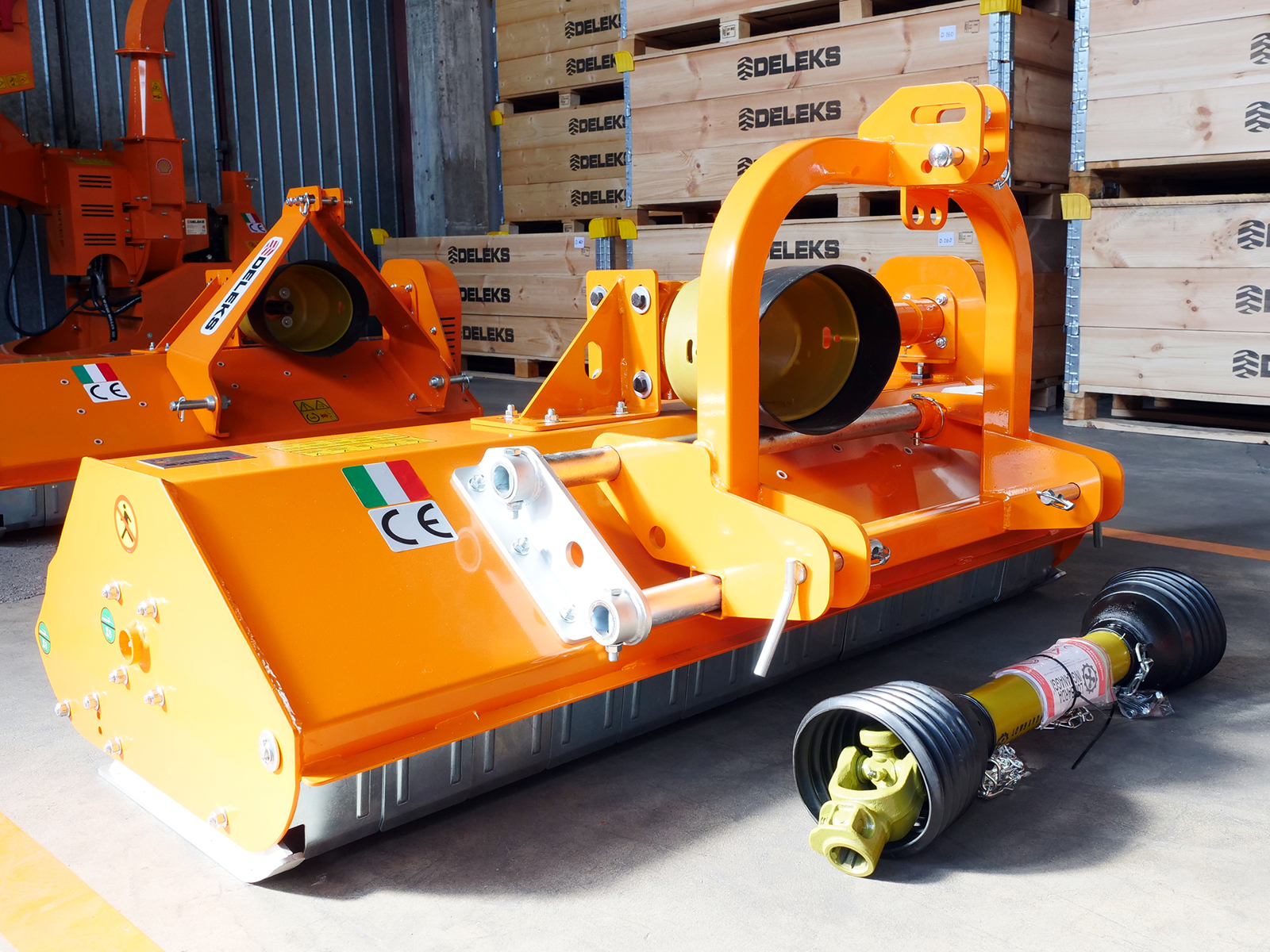

Flail Mower for Tractor with Hydraulic Side Shift

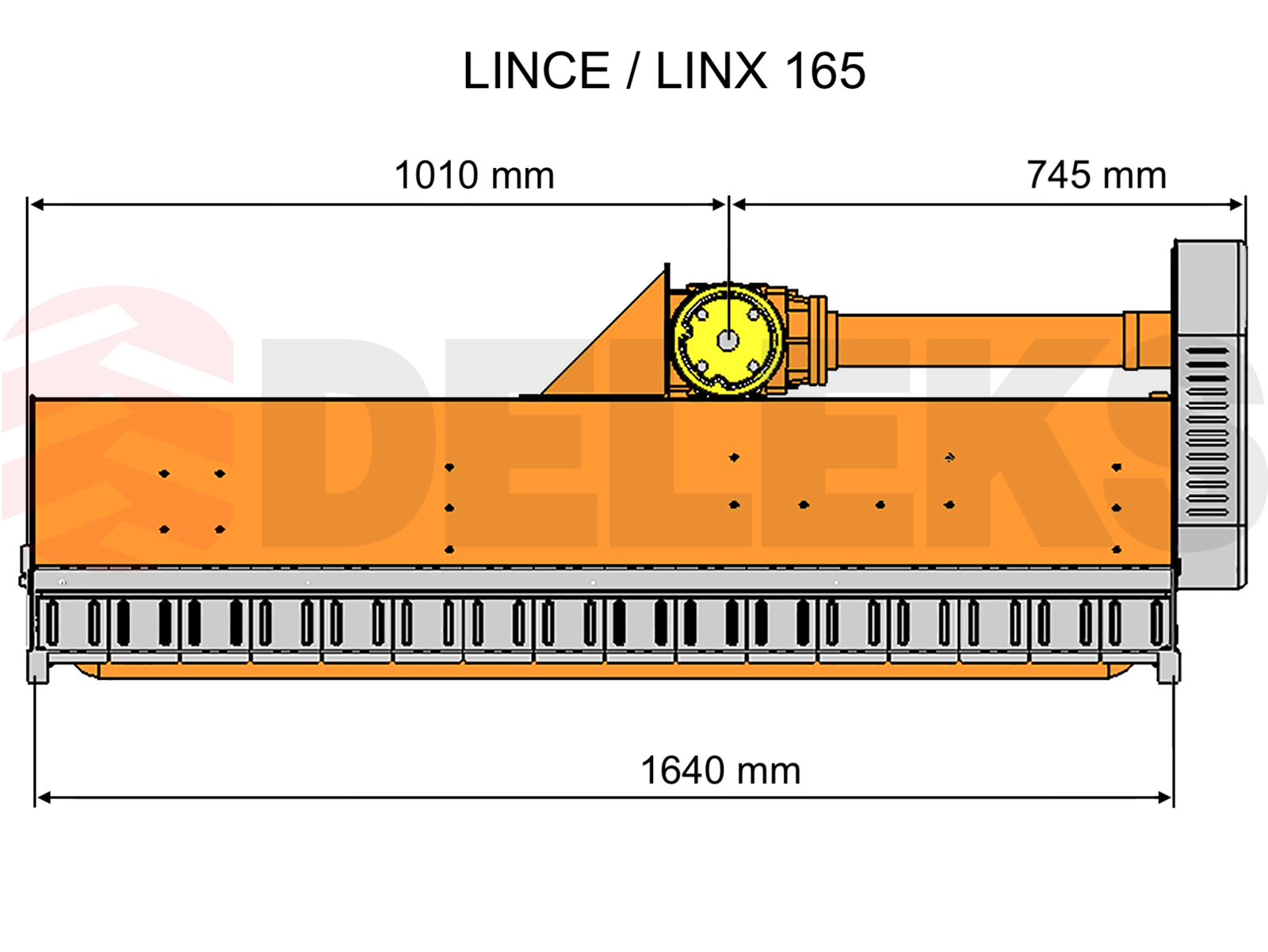

Tractor Flail Mower with Hydraulic Side Shift and 165 cm Cutting Width DELEKS®, complete with rear roller, side skids and CE PTO shaft.

APPLICATION

Light-duty flail mower (Y-blades available on request) with standard hydraulic side shift.

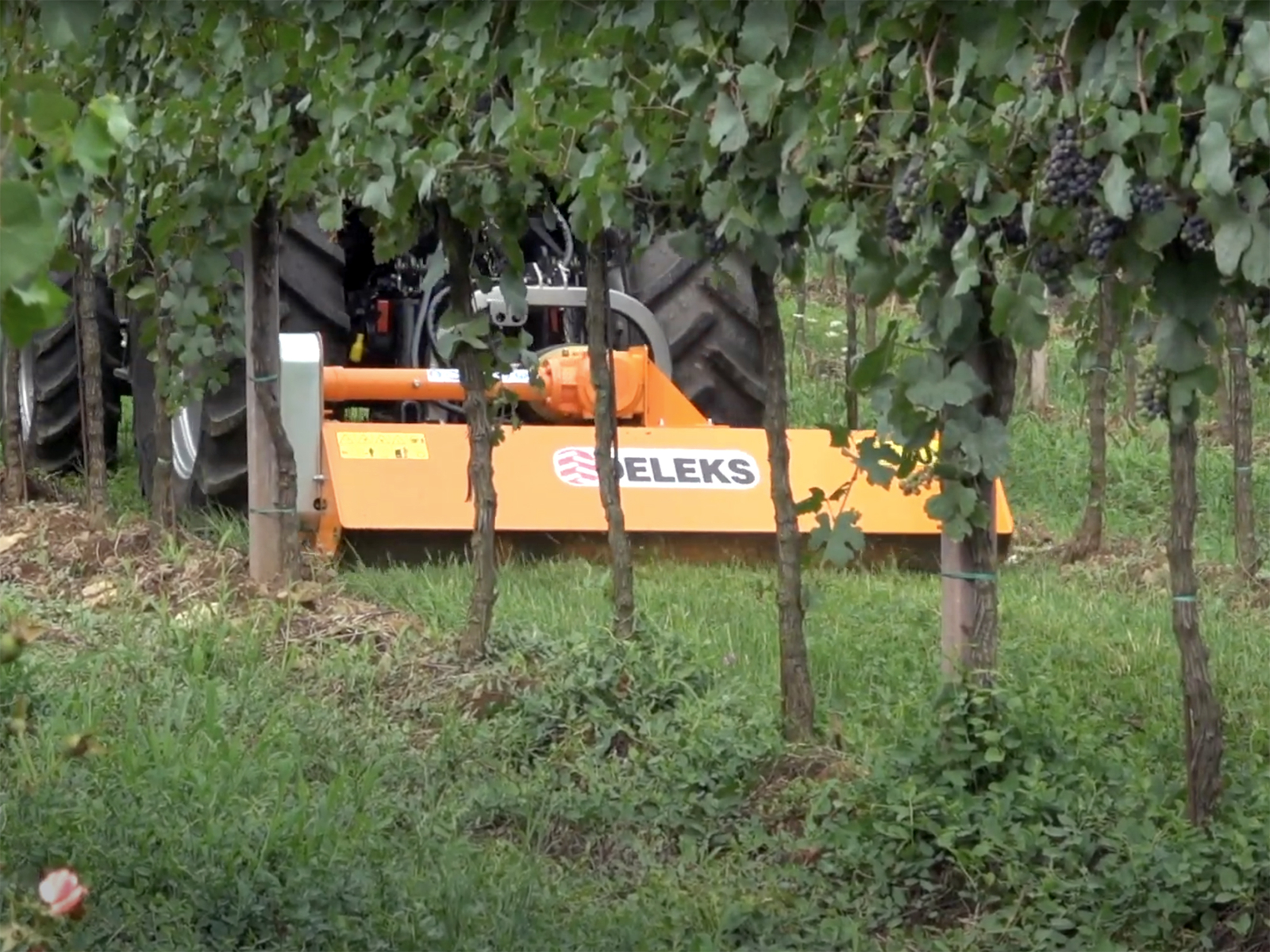

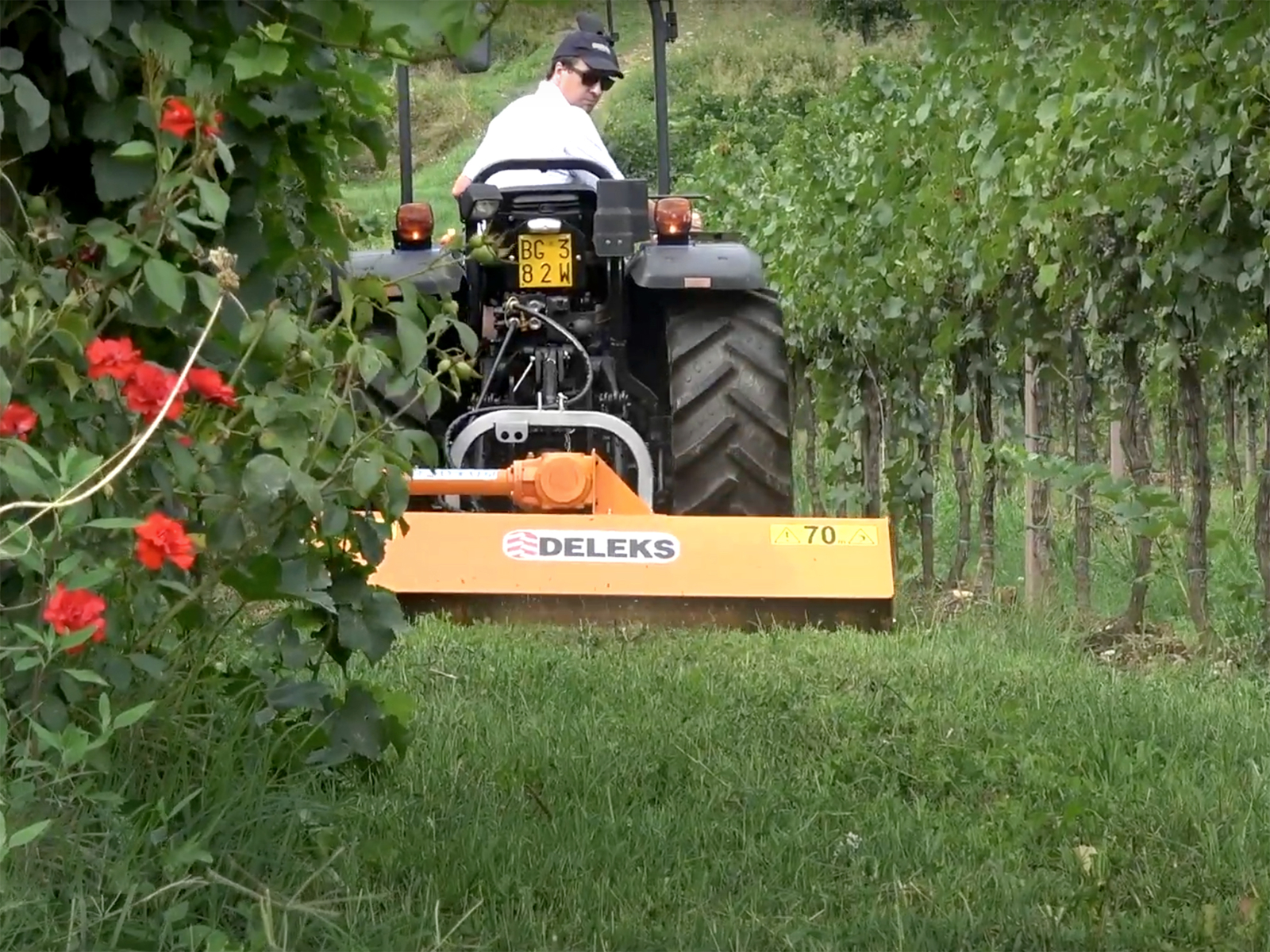

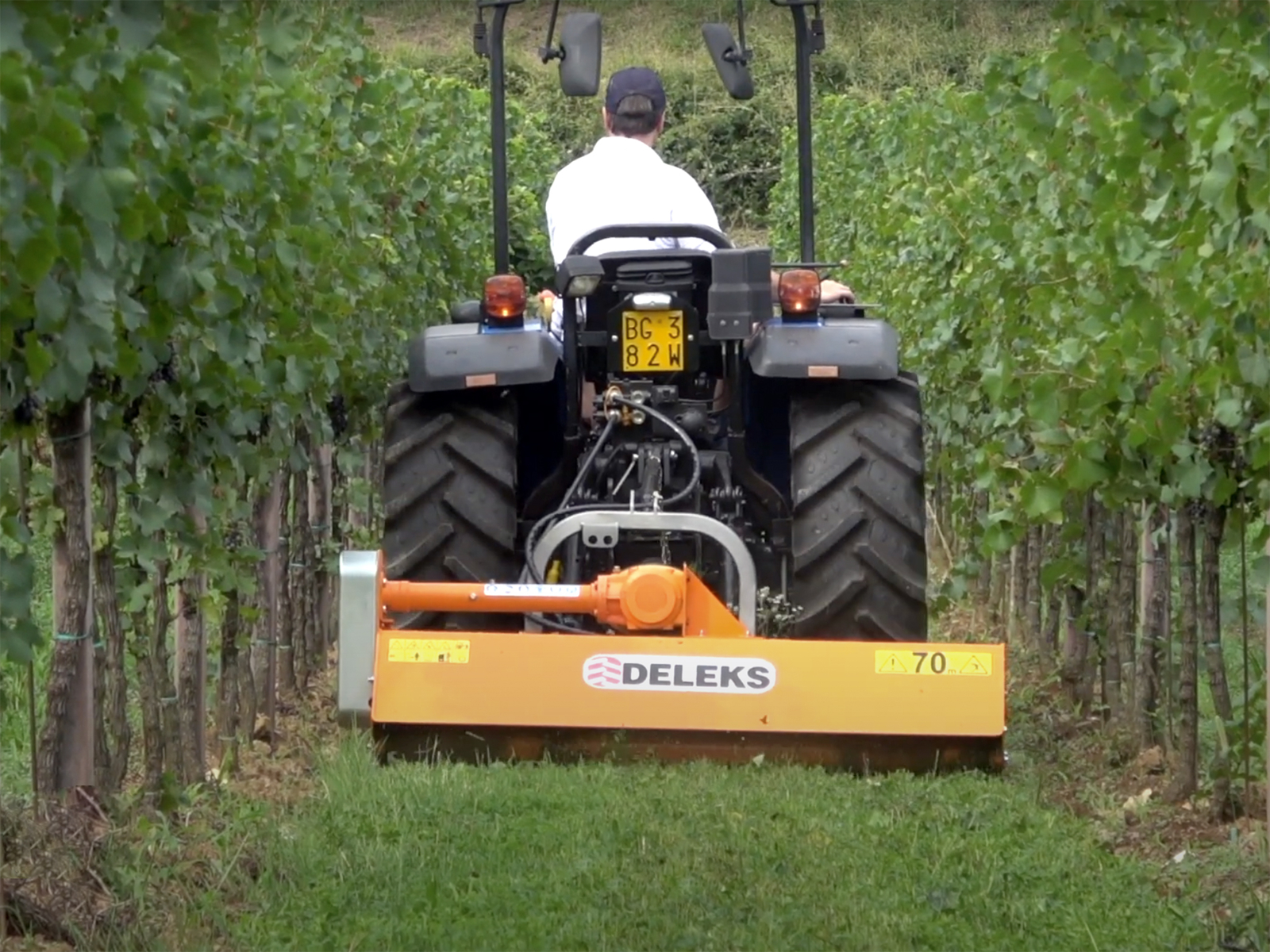

Designed for mowing grass, leaves, vineyard prunings and olive grove prunings.

Compatible with all tractor brands equipped with Category 1 three-point linkage, including New Holland Boomer 30-35, Lamborghini Ego, Same Delfino, Landini Mistral, John Deere Series 2-3, Carraro Tigre, Goldoni and Japanese tractors such as Kubota B-L Series, etc., for use on both flat and sloping terrain.

Complies with the EC Machinery Directive.
2-year warranty.

ADVANTAGES

• Frame entirely manufactured from Swedish SSAB steel.

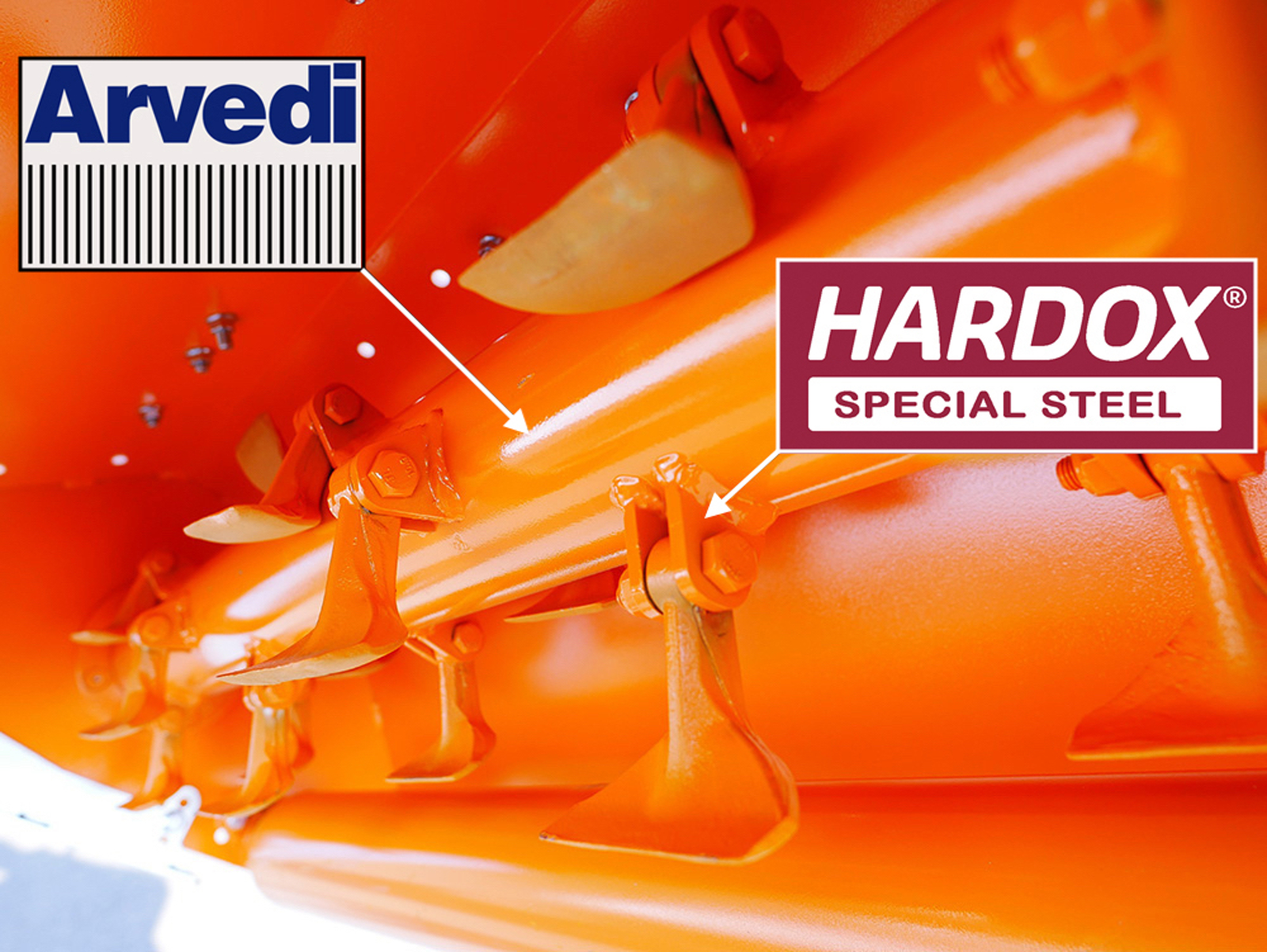

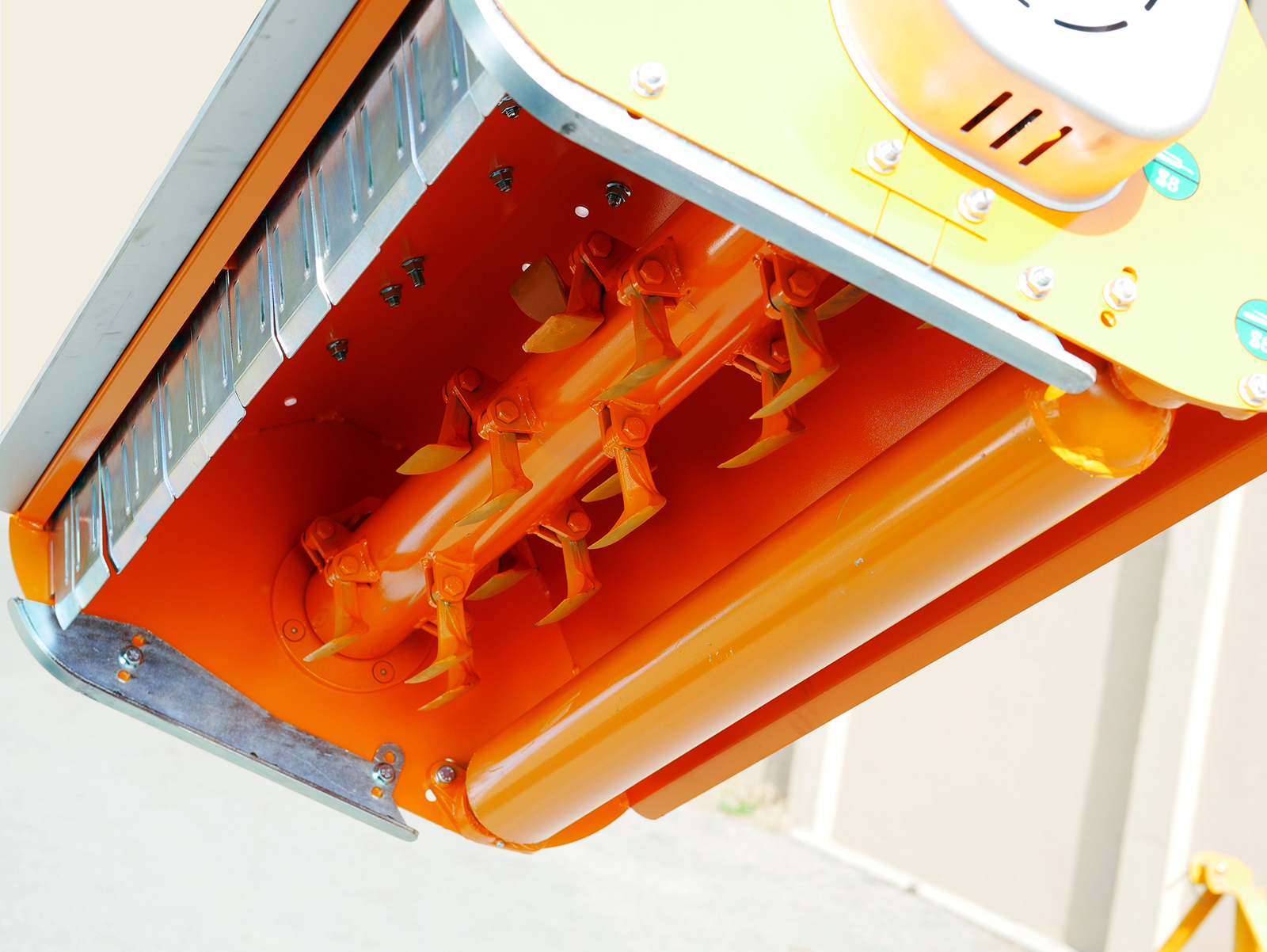

• Rotor manufactured from ARVEDI (Cremona, Italy) steel tube, electronically balanced, made of 8 mm thick S355 steel, with flails mounted on 6 rows instead of 4.

• HARDOX flail supports.

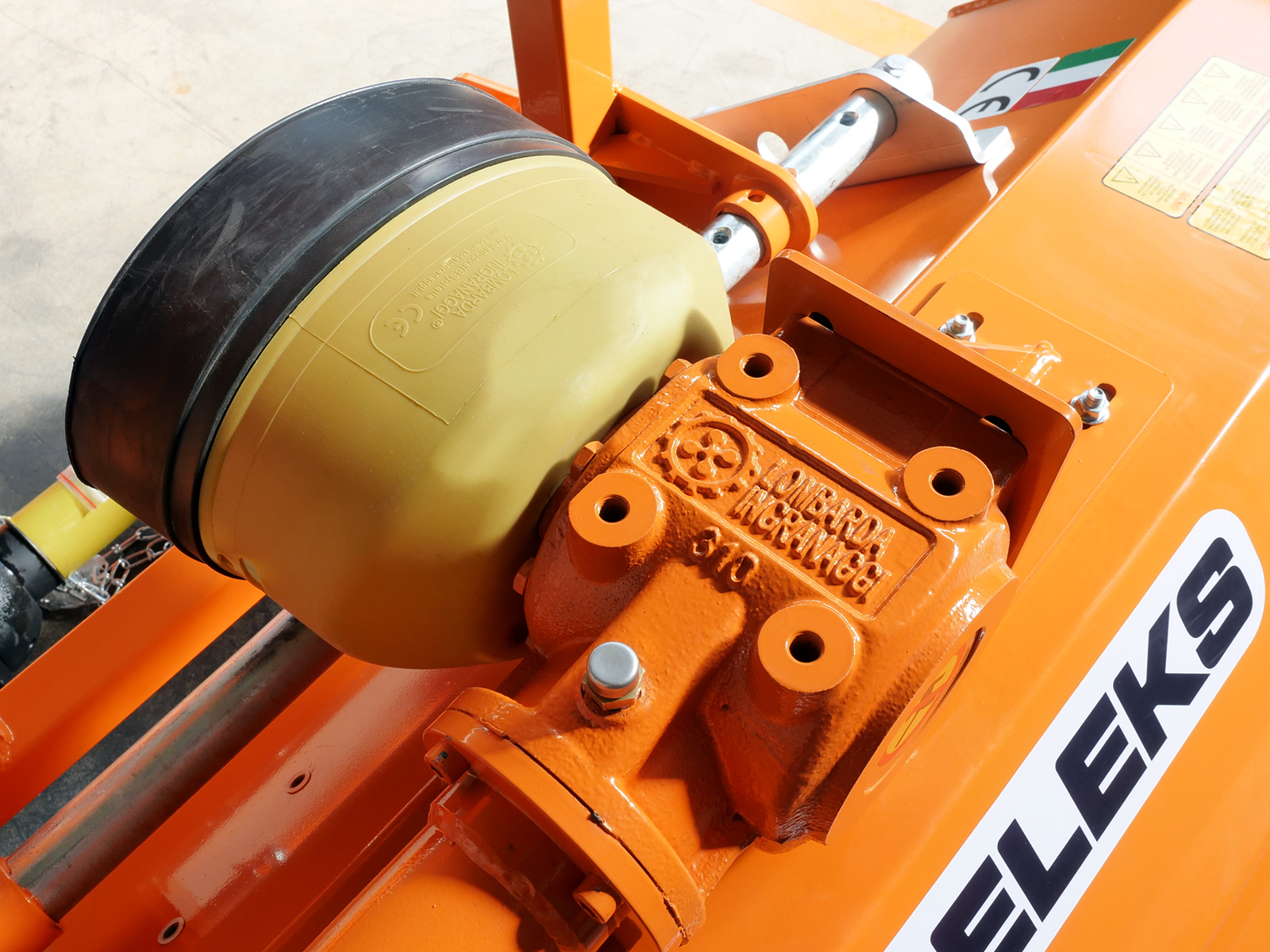

• Lombarda Ingranaggi Srl gearbox with integrated freewheel and 3-year warranty.

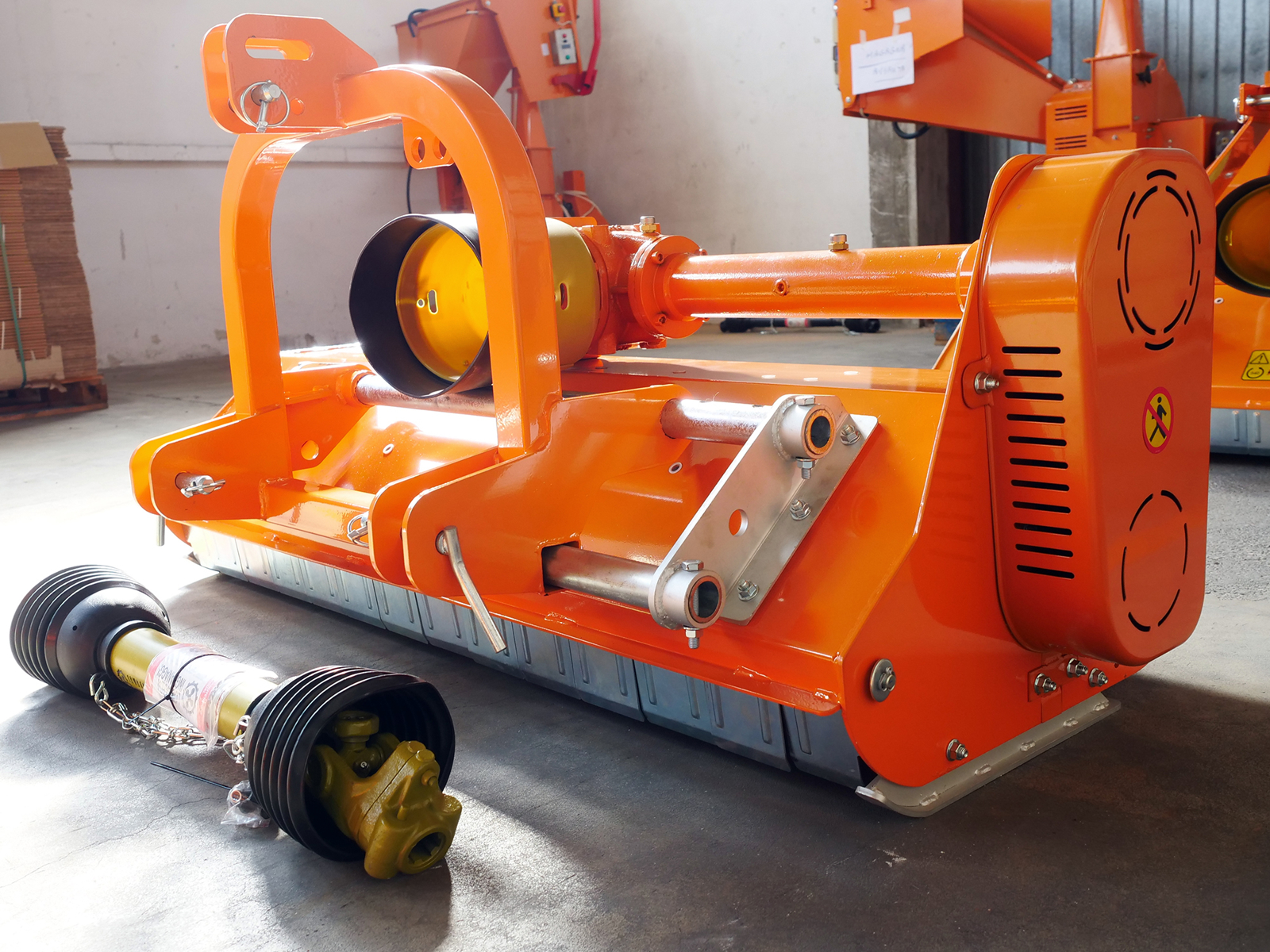

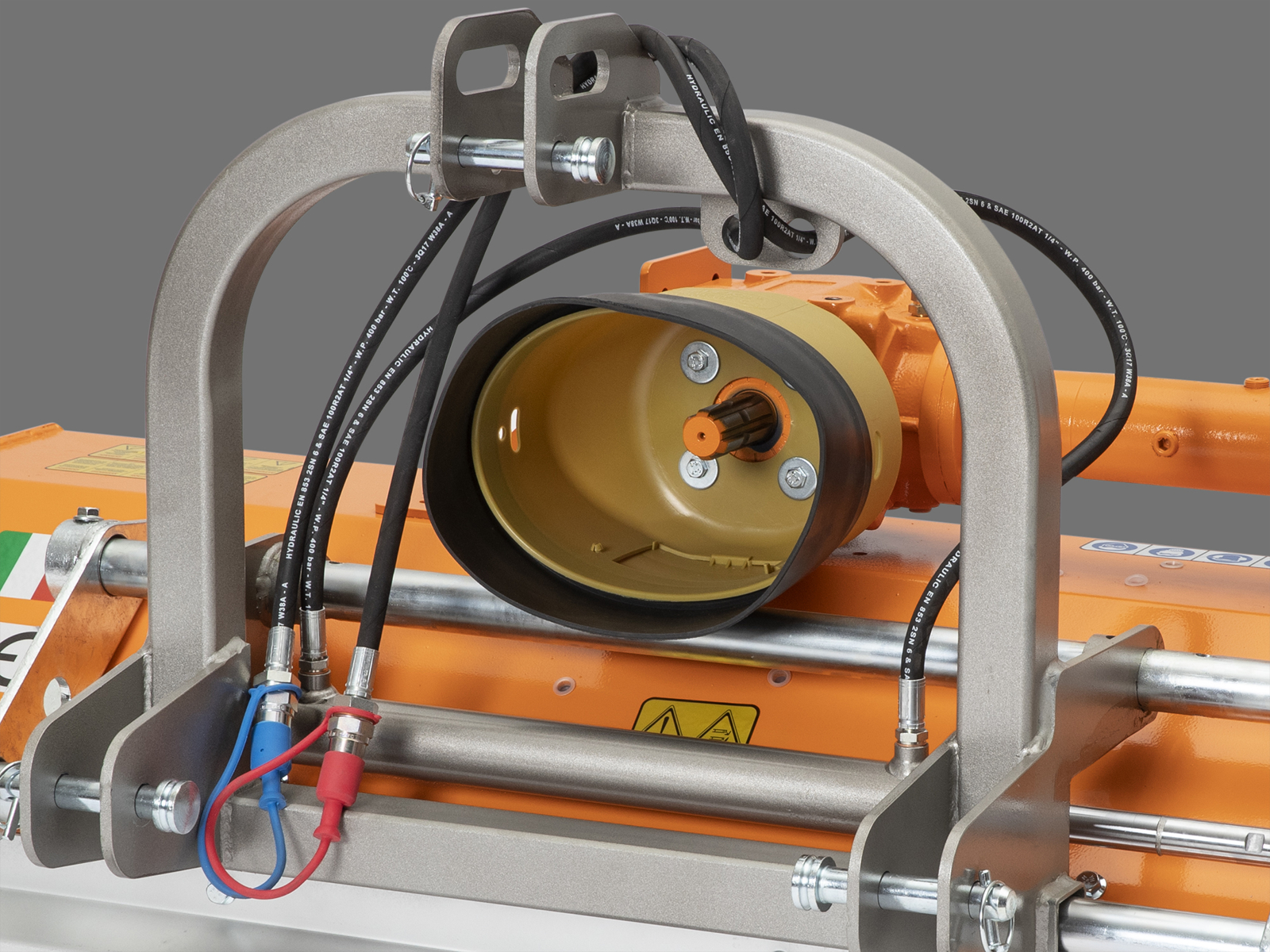

• Standard DELEKS® Made in Italy hydraulic side shift with 25 cm travel, complete with hydraulic cylinder, 150 cm hydraulic hose set and ½" AGRI standard quick couplings, allowing easy operation along vineyards, fences, ditches and field edges.

• The housing incorporates an internal deflector that directs the airflow towards the rotor, improving the mulching effect.

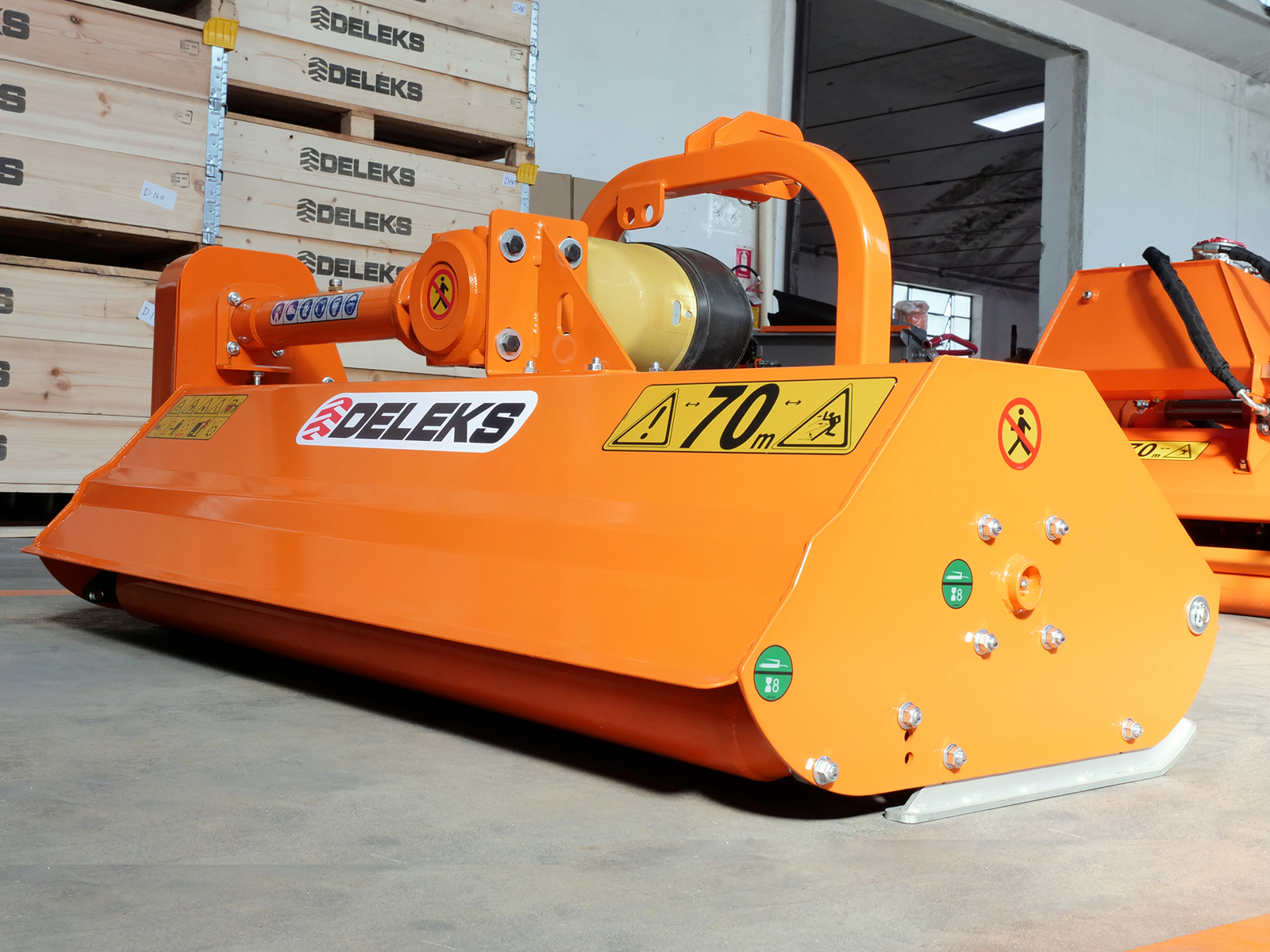

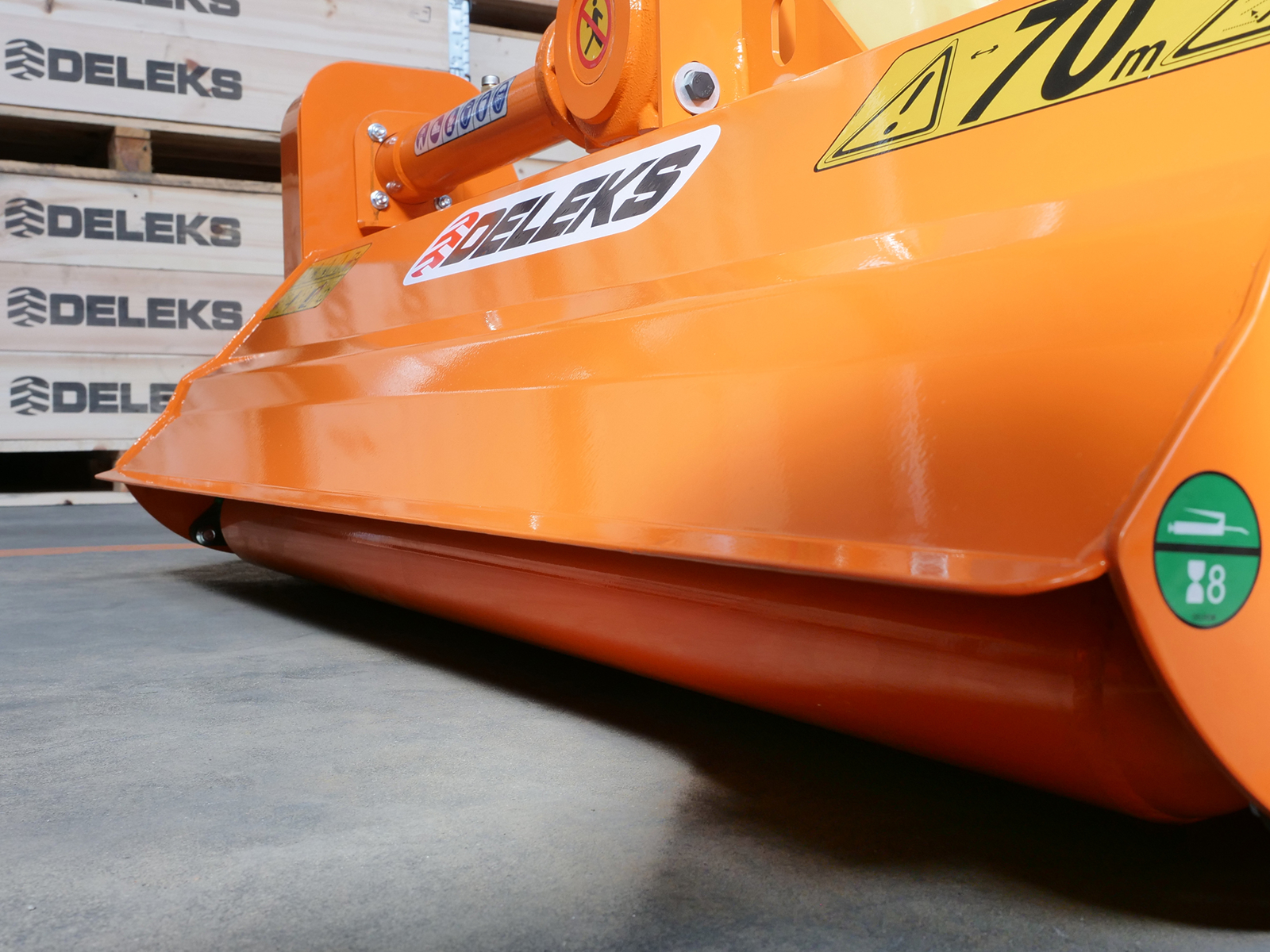

• The internal position of the rear roller increases working efficiency: the cut material passes over the roller without being compressed, allowing faster decomposition.

• The specially designed flails finely shred grass, vineyard prunings, brambles and other plant residues up to 3 cm in diameter.

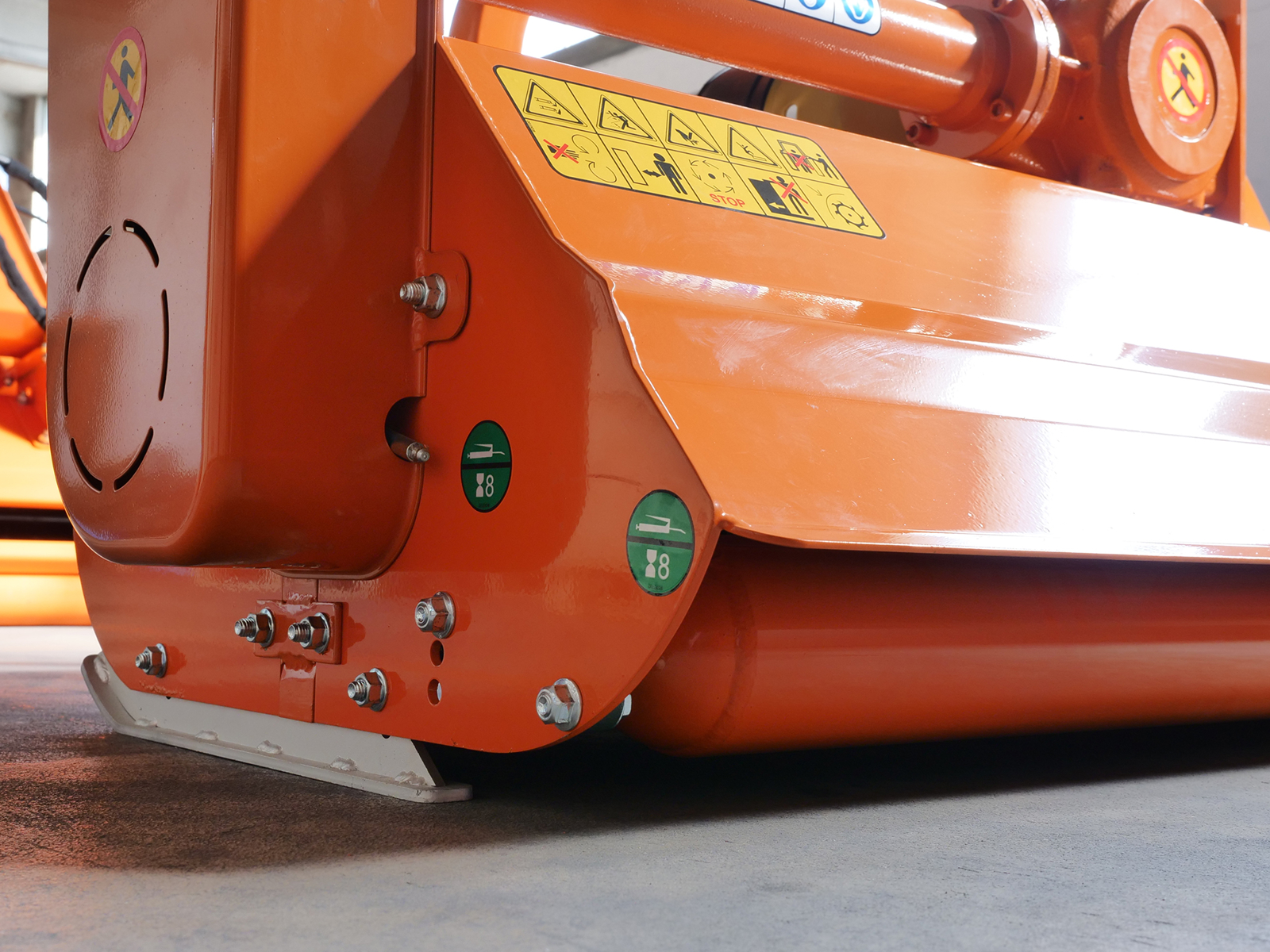

• Rear roller and side skids allow easy cutting height adjustment.

• External adjustment of the 4 drive belts with adjustable belt tensioner.

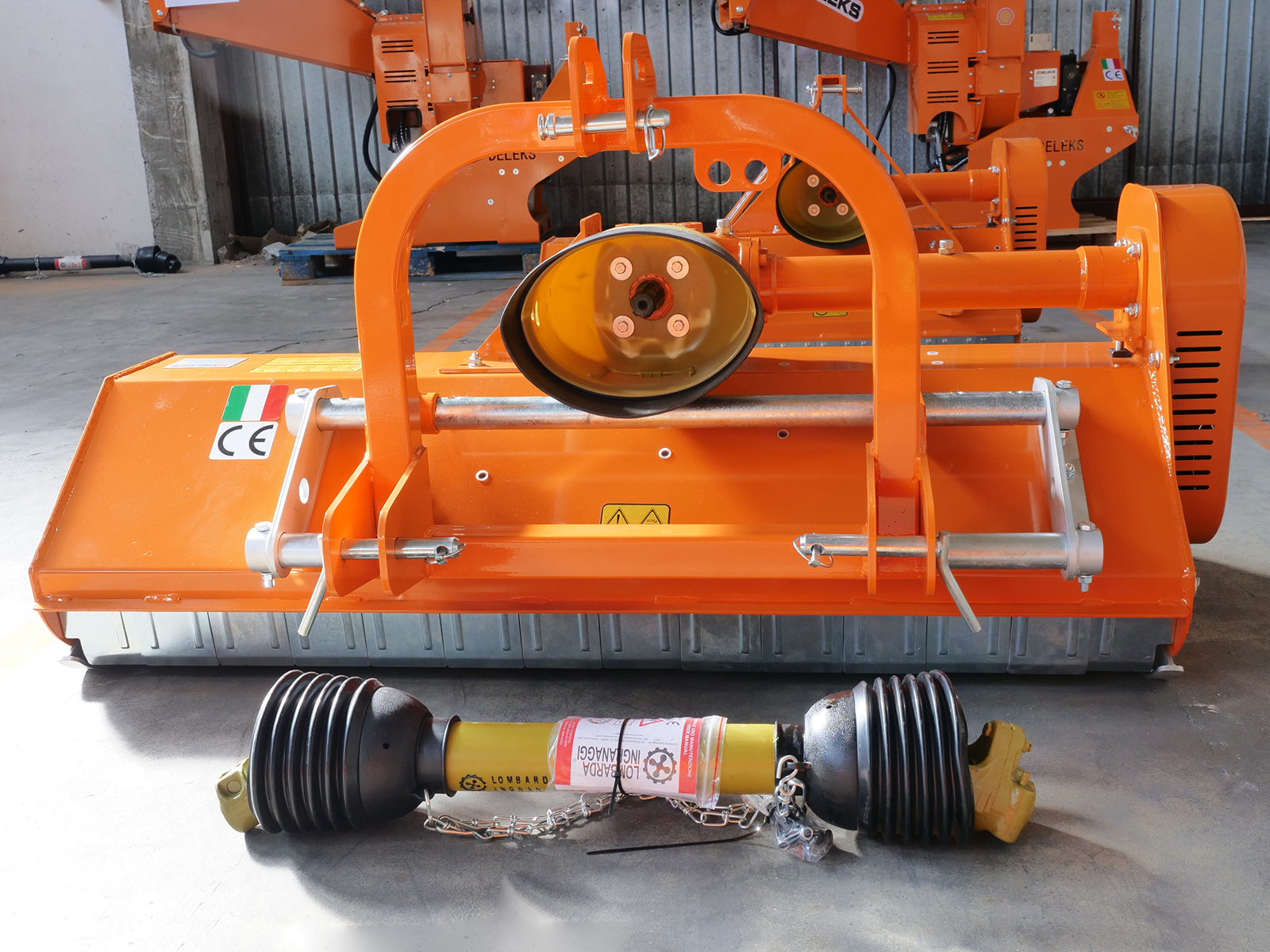

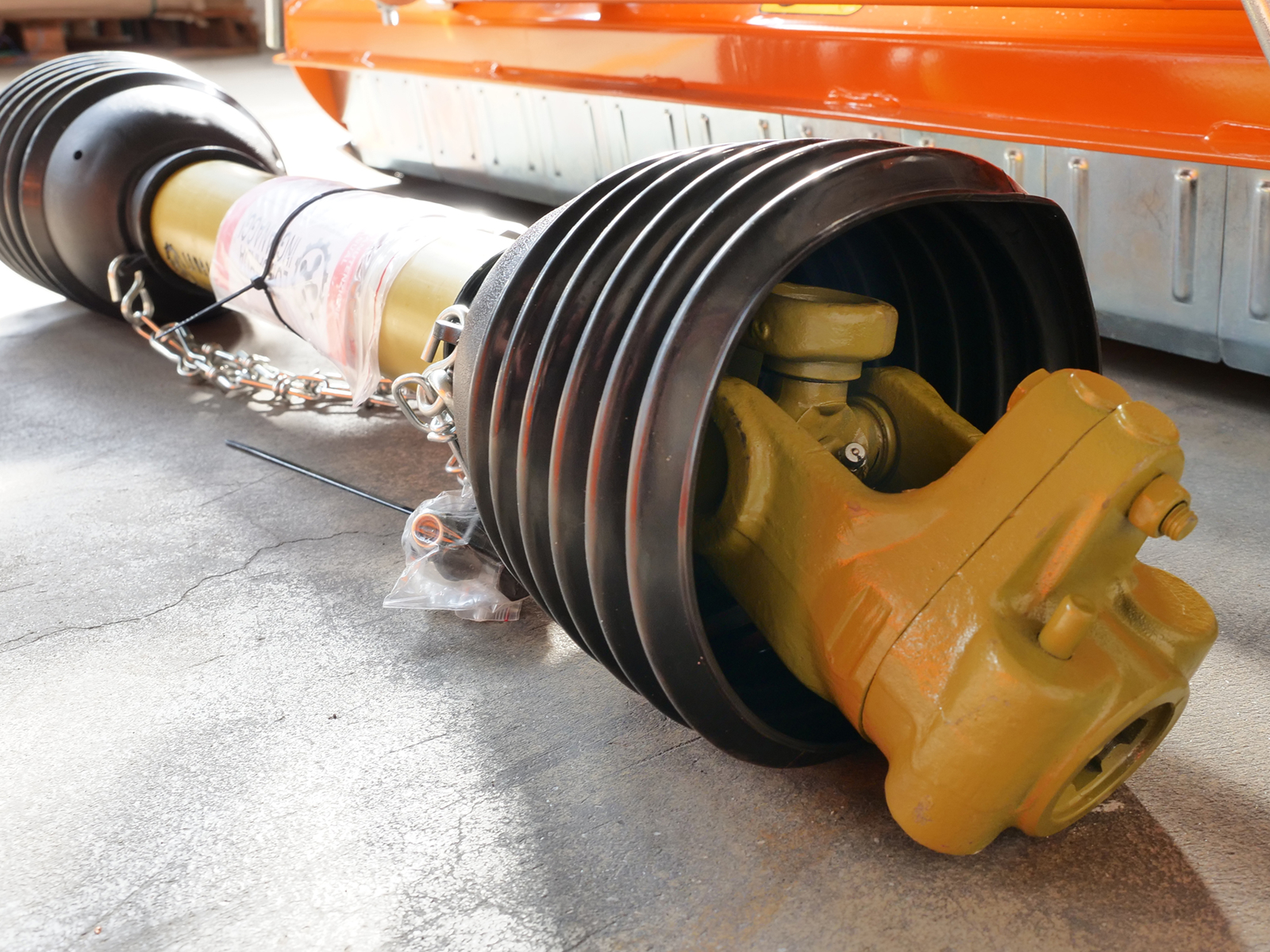

• CE PTO shaft included.

For this product, the steel sheets are sourced in Italy and processed at a manufacturing facility located within the European Union.

Documentation supplied with the machine:

• EC Declaration of Conformity

• Operation and Maintenance Manual

• Invoice
