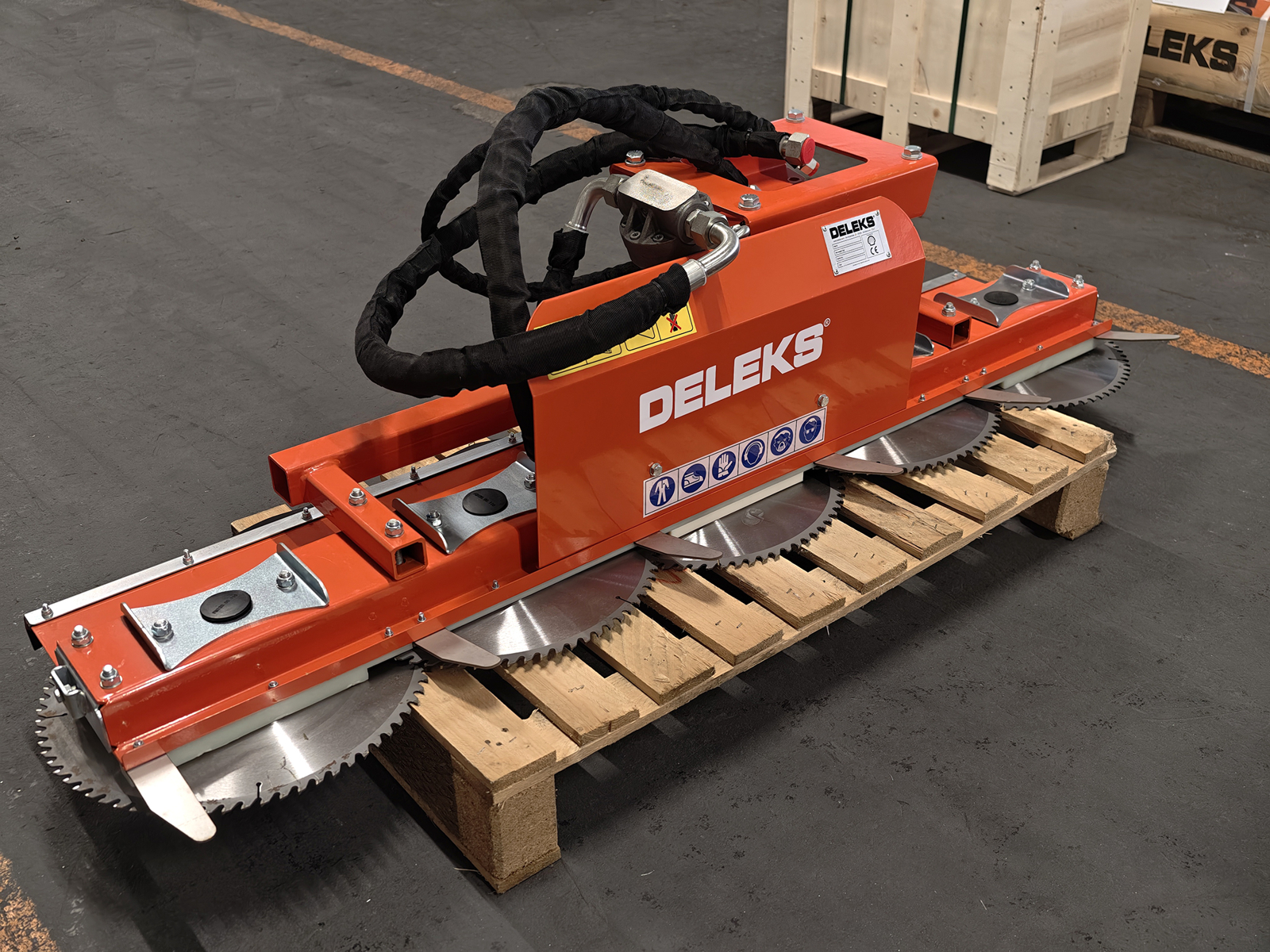

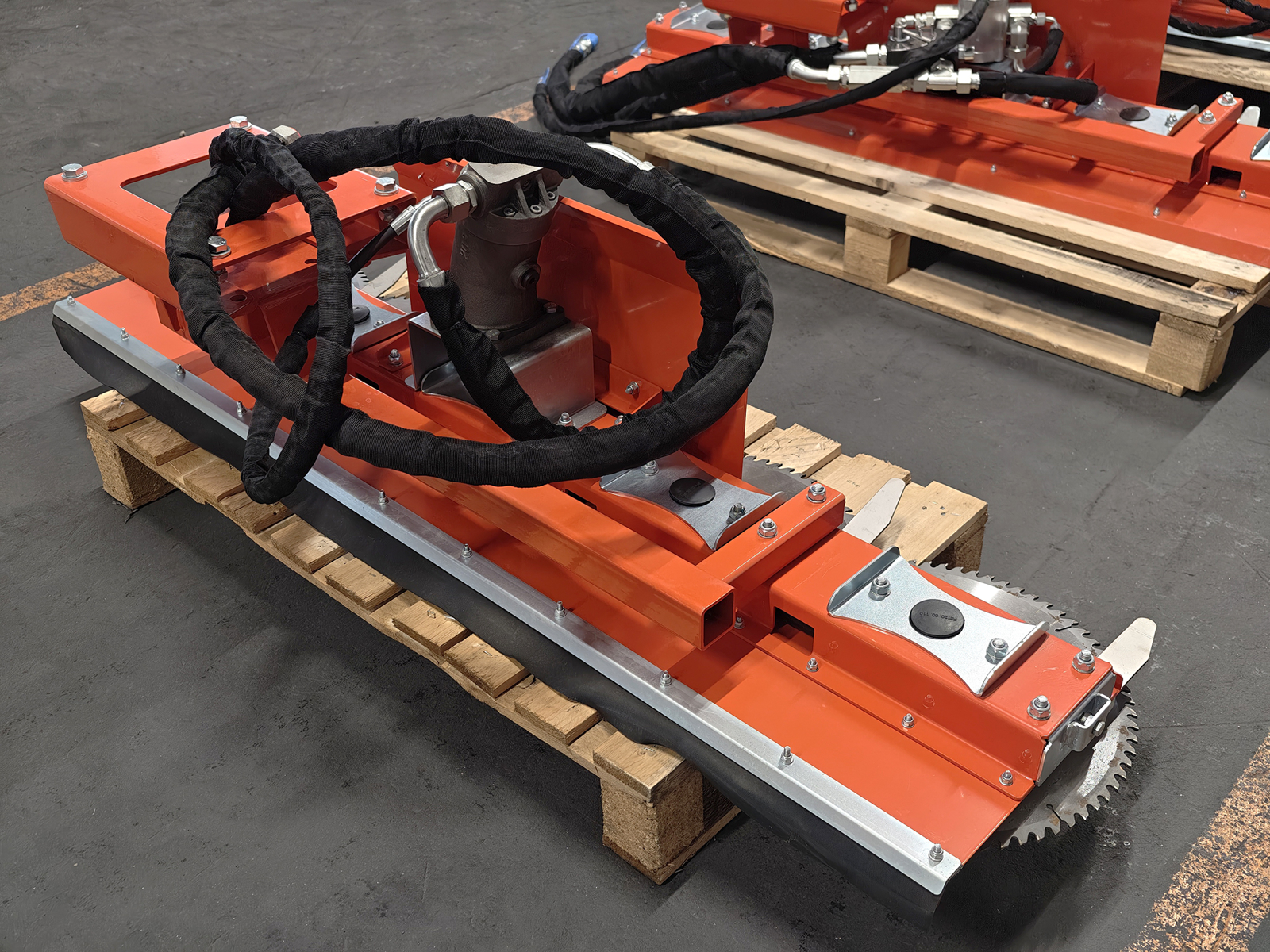

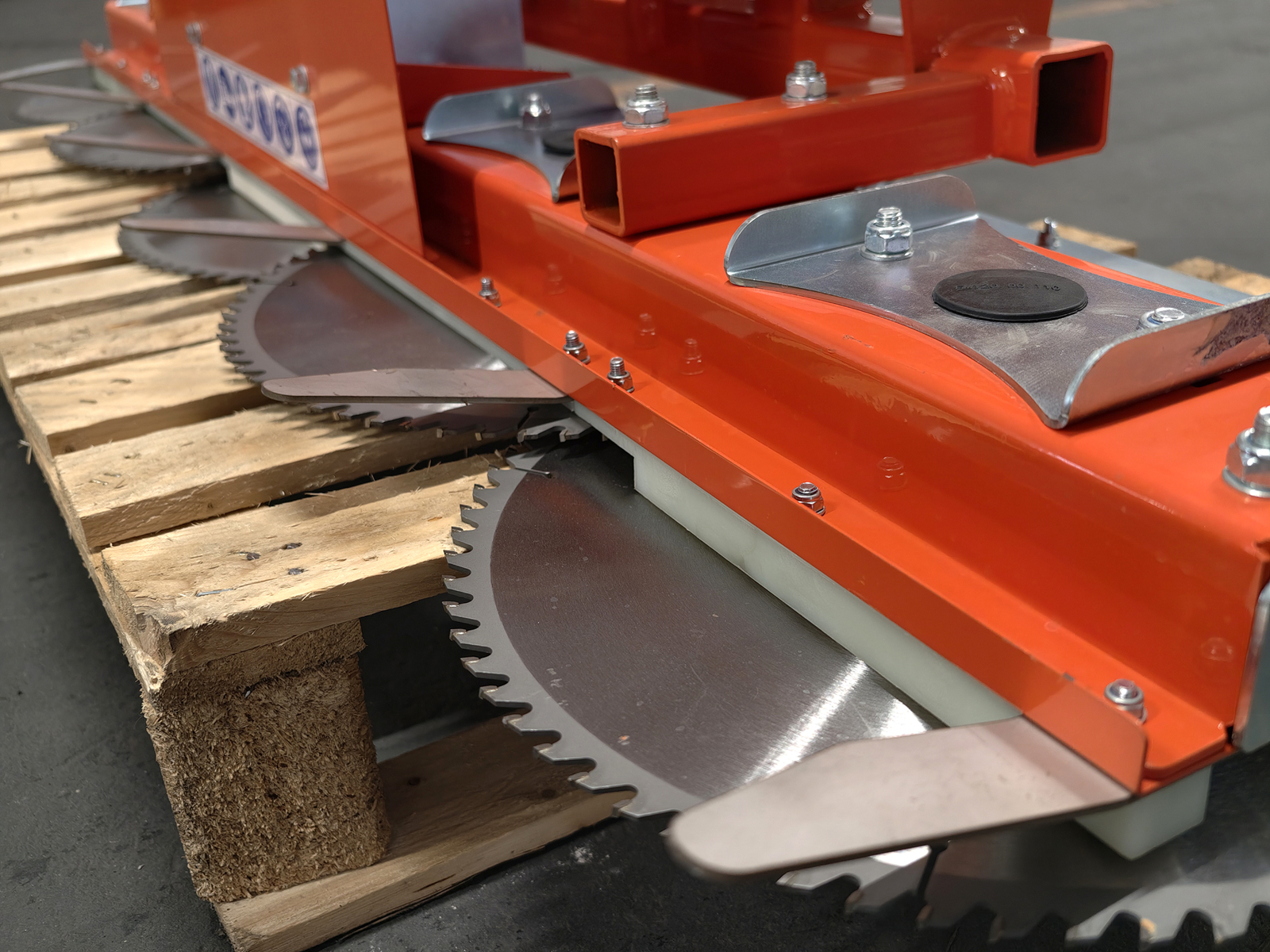

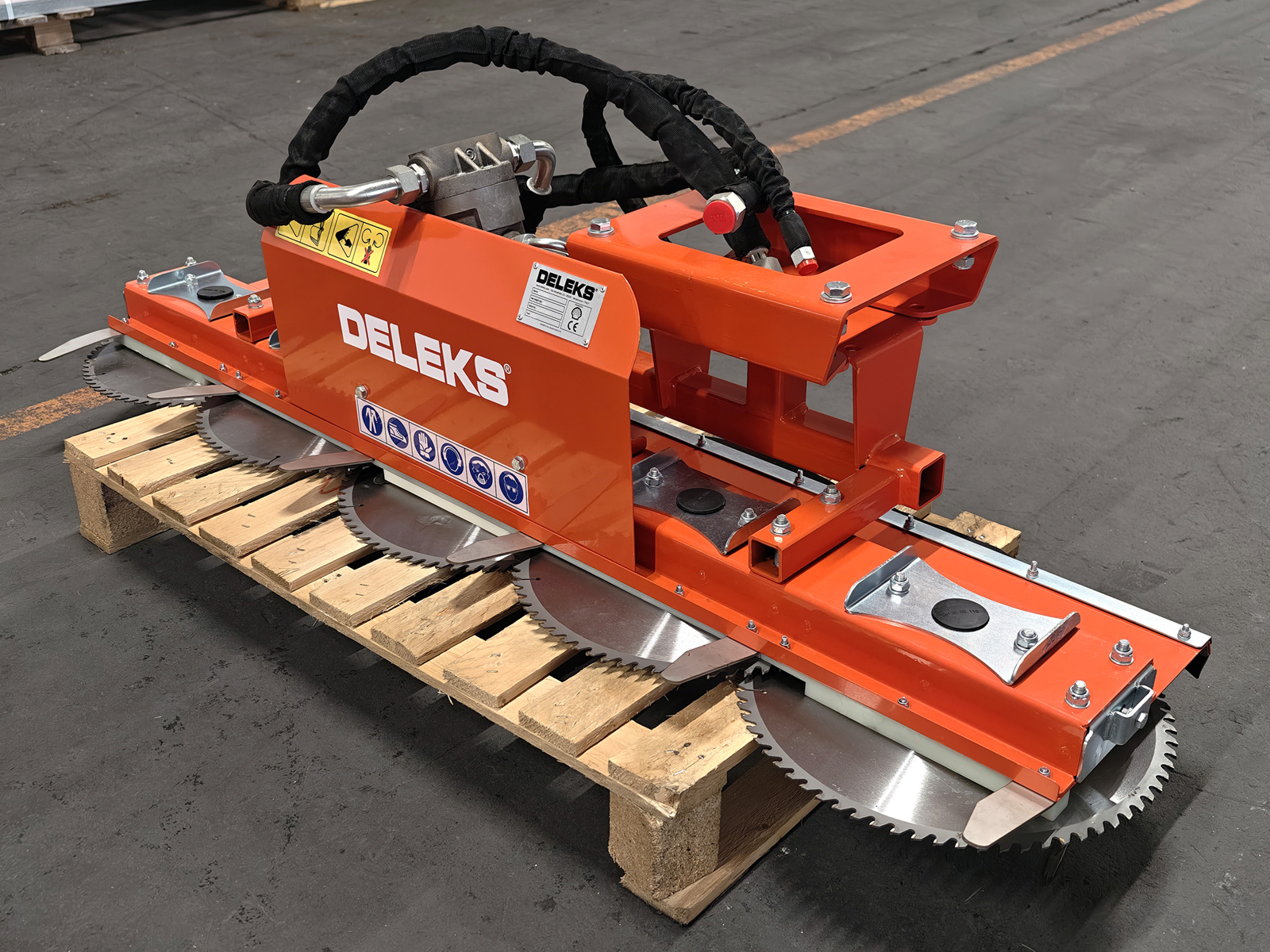

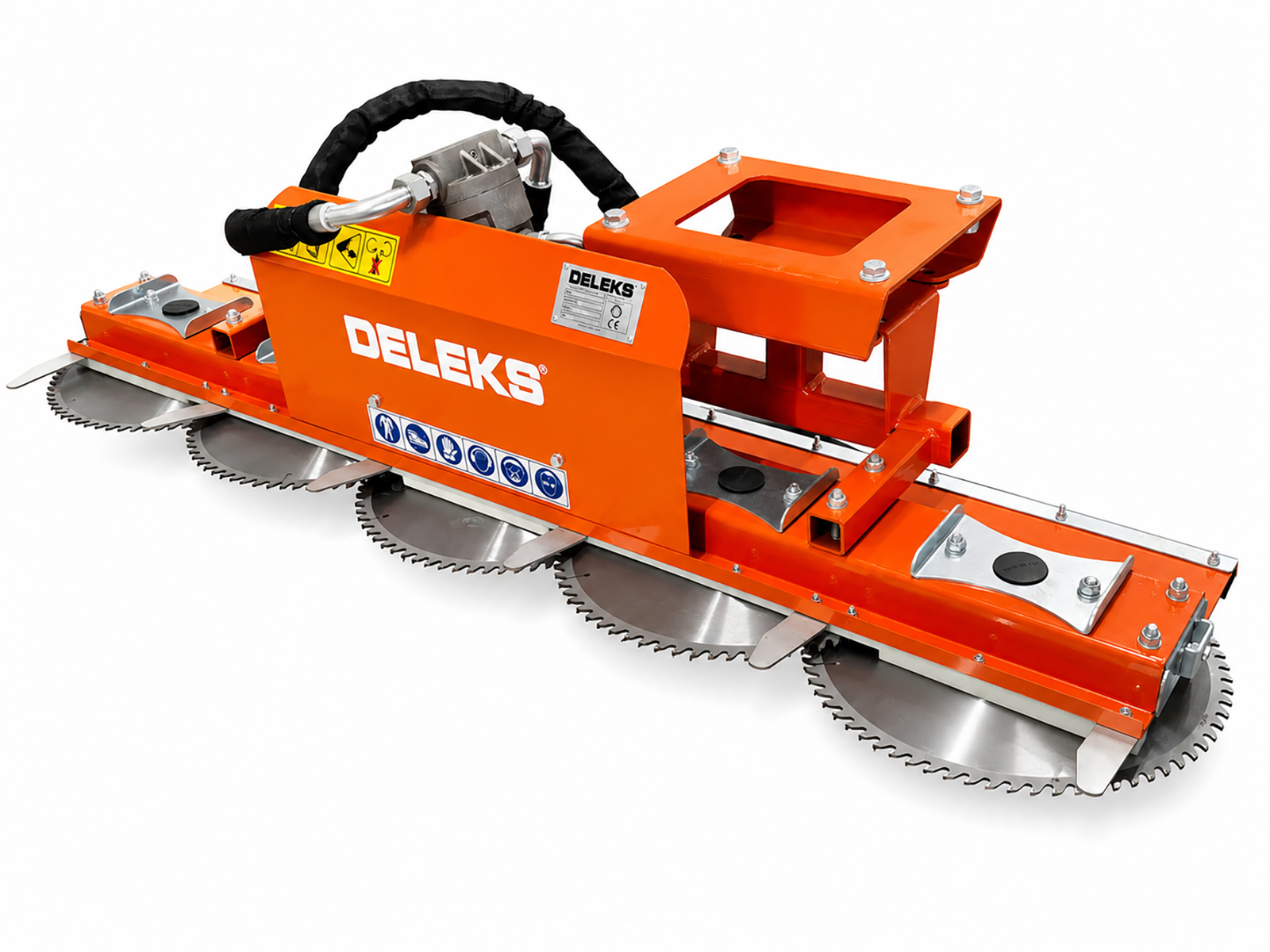

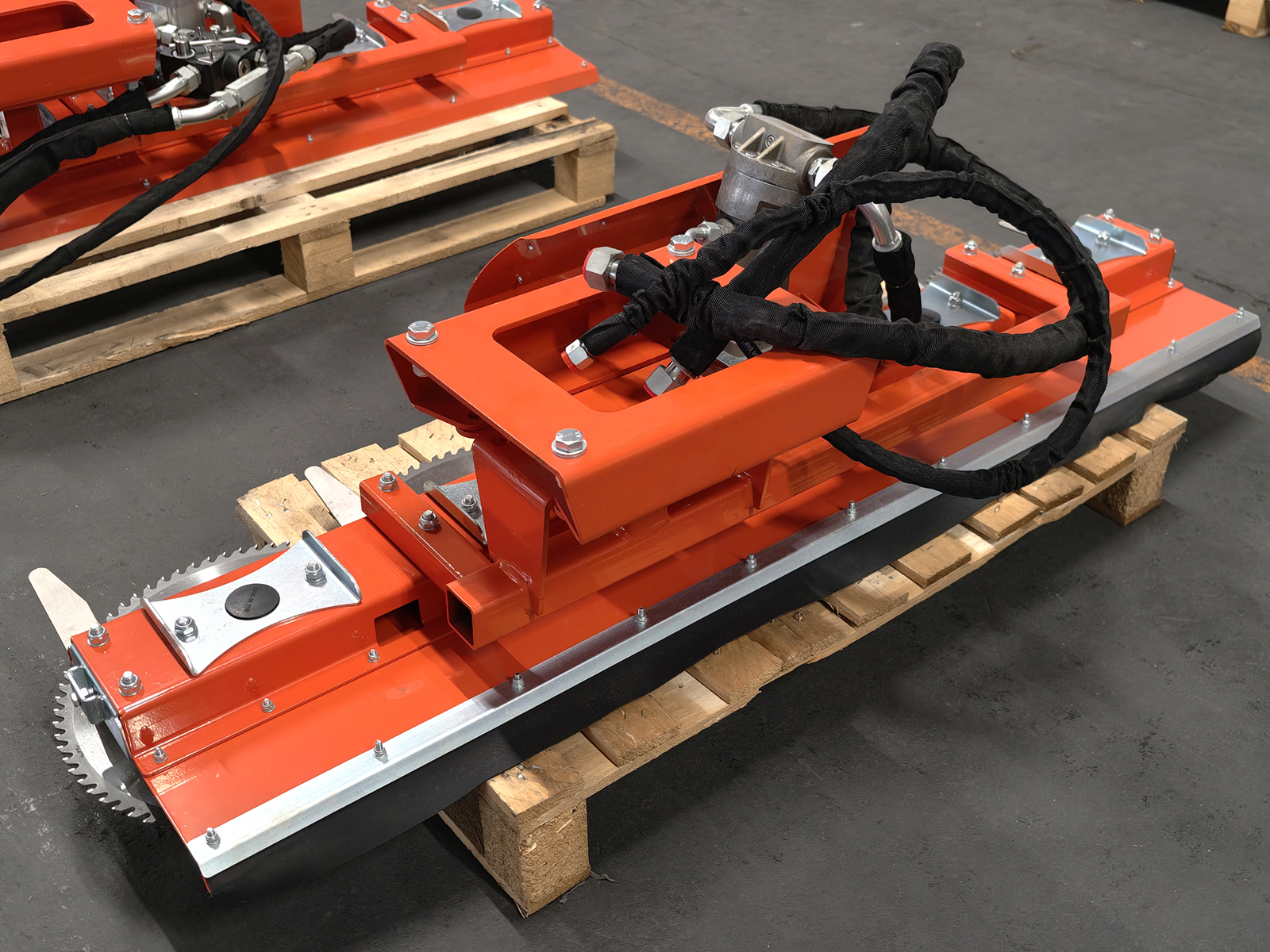

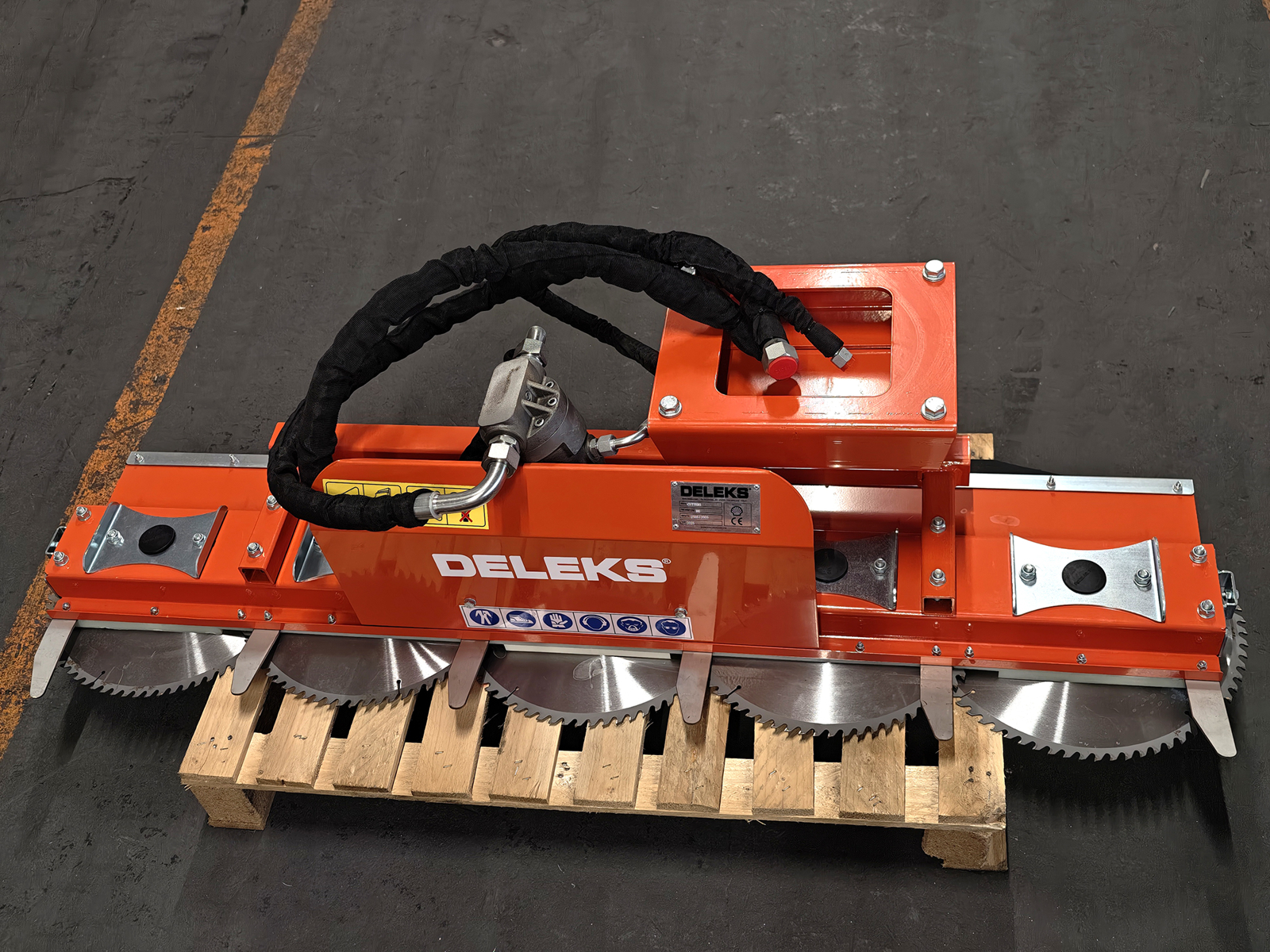

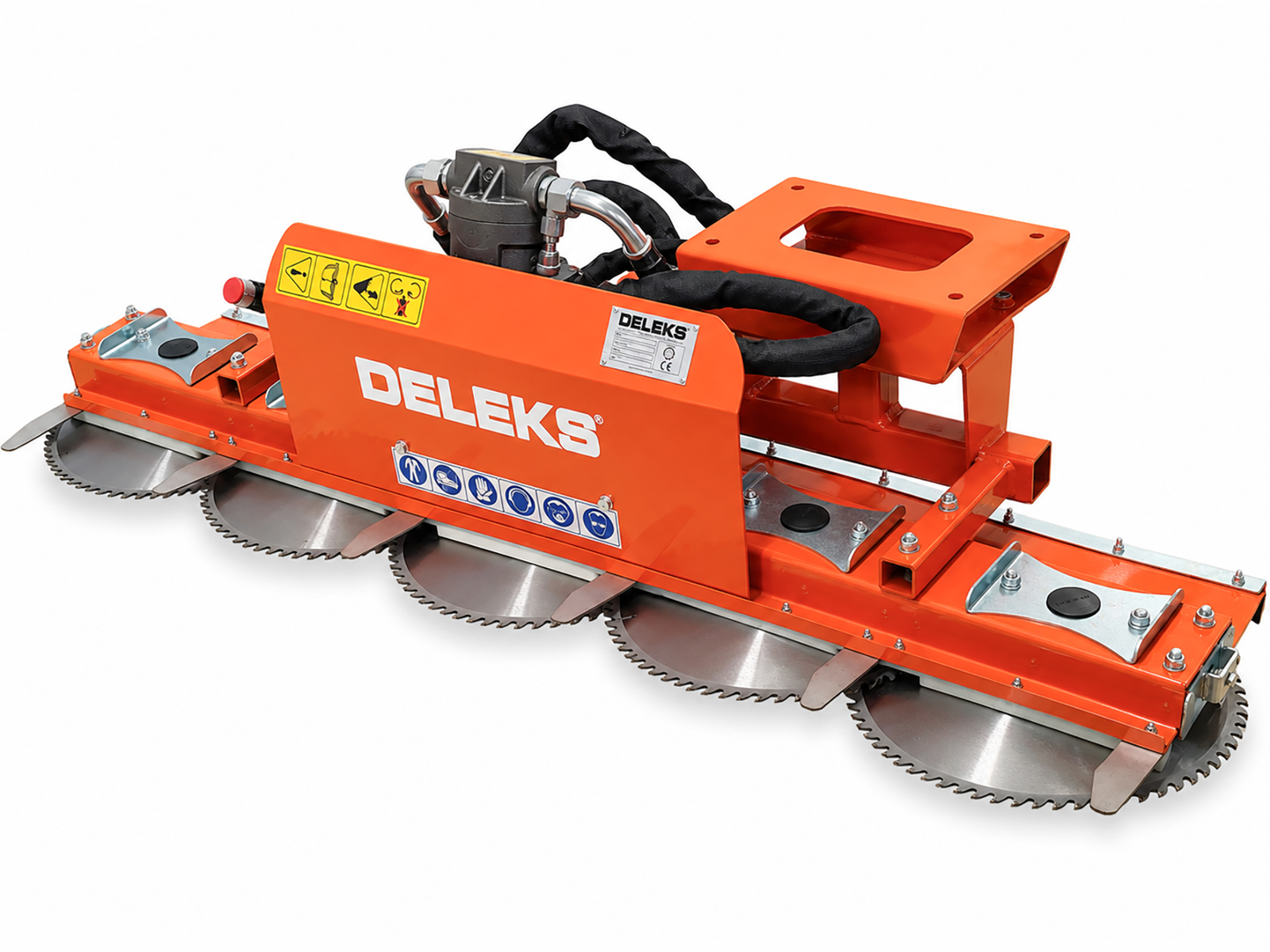

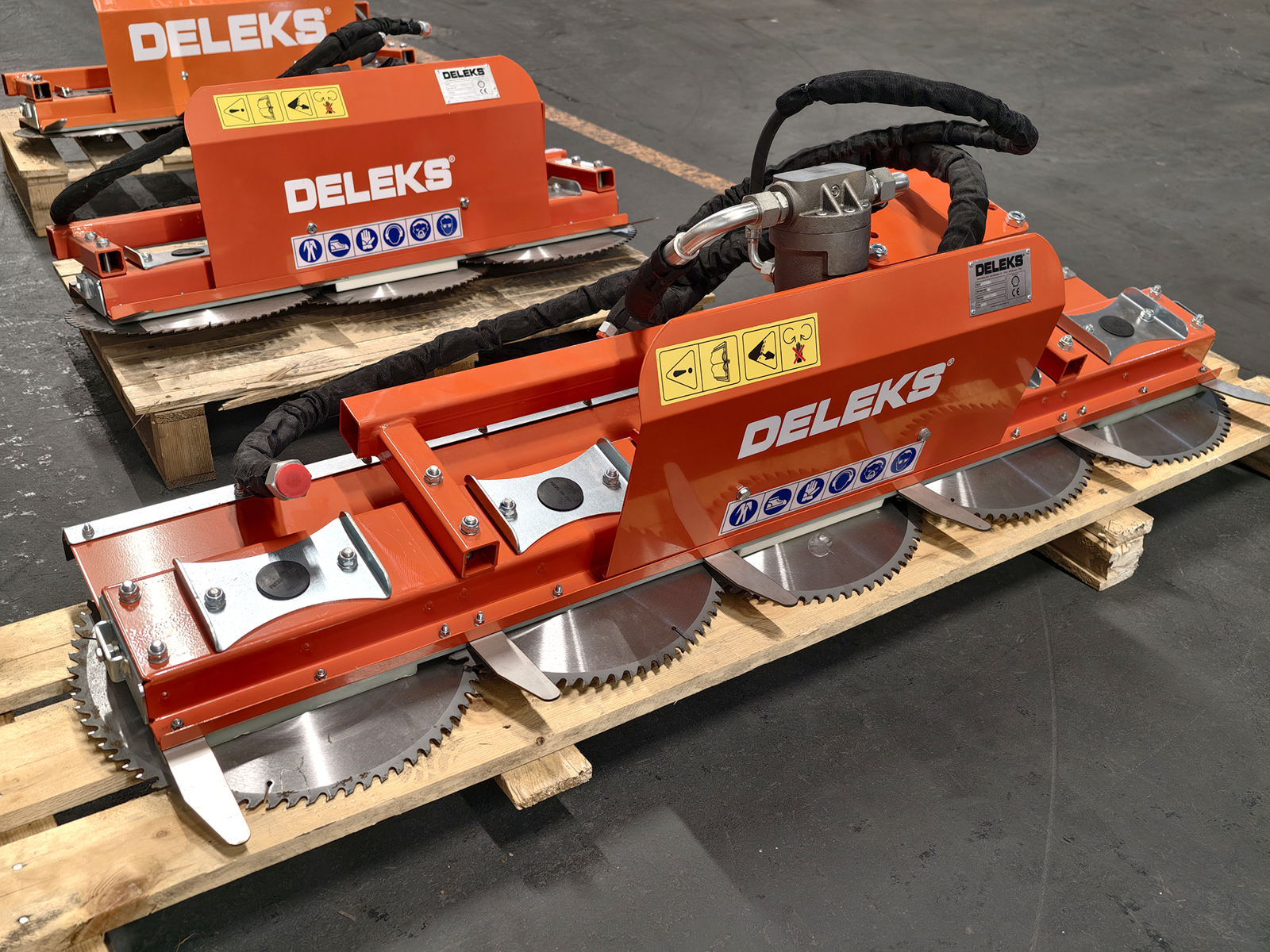

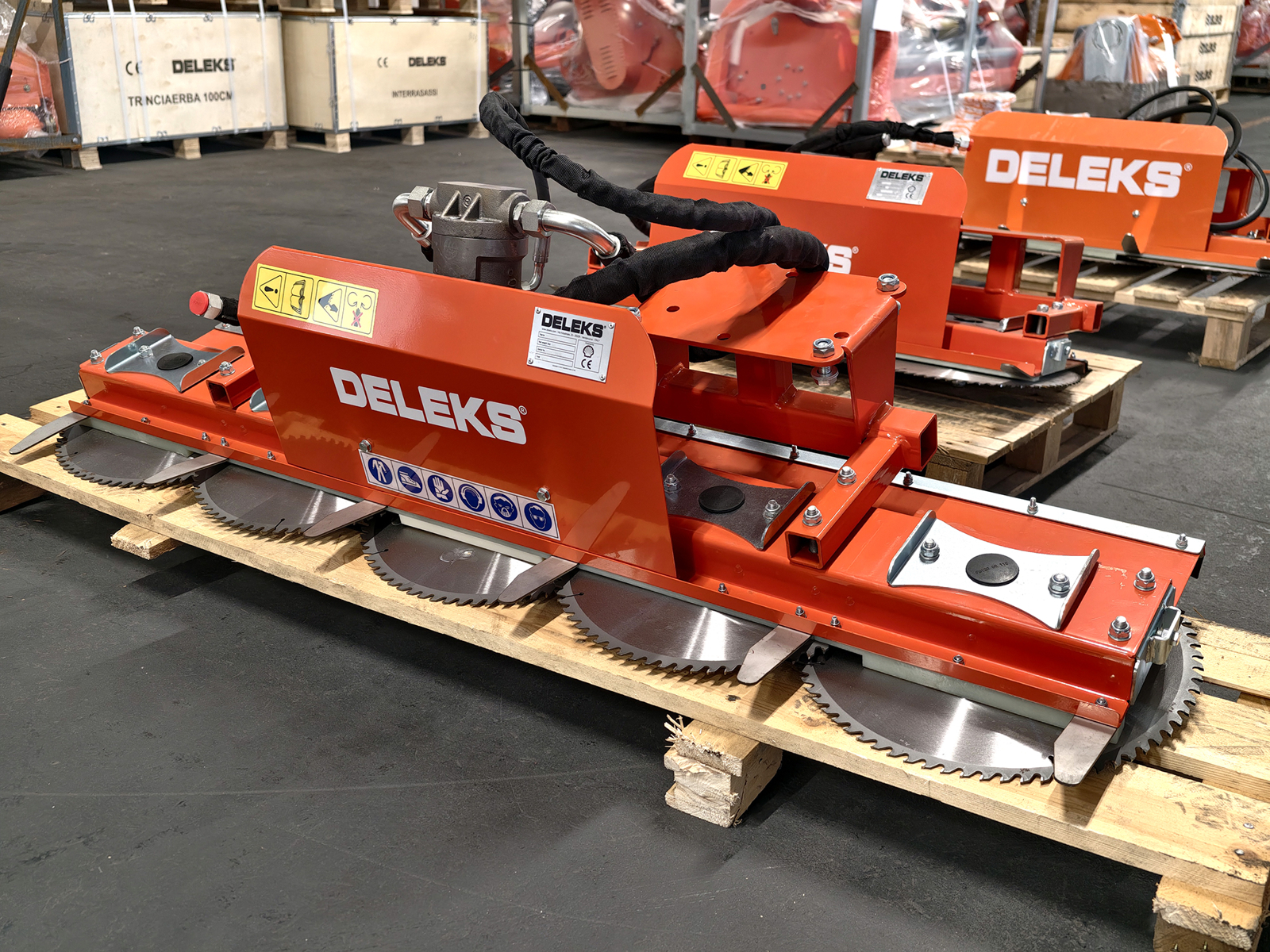

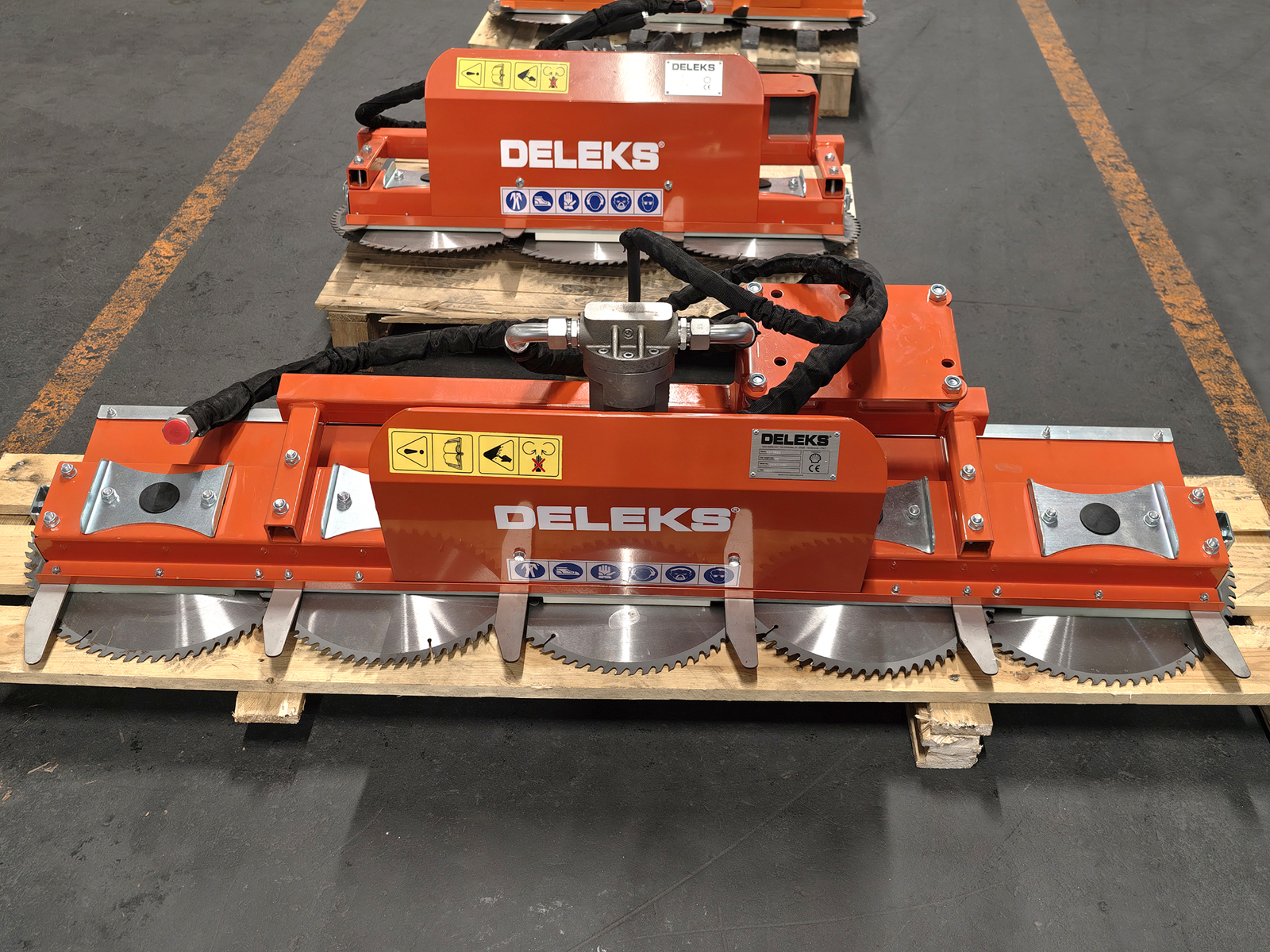

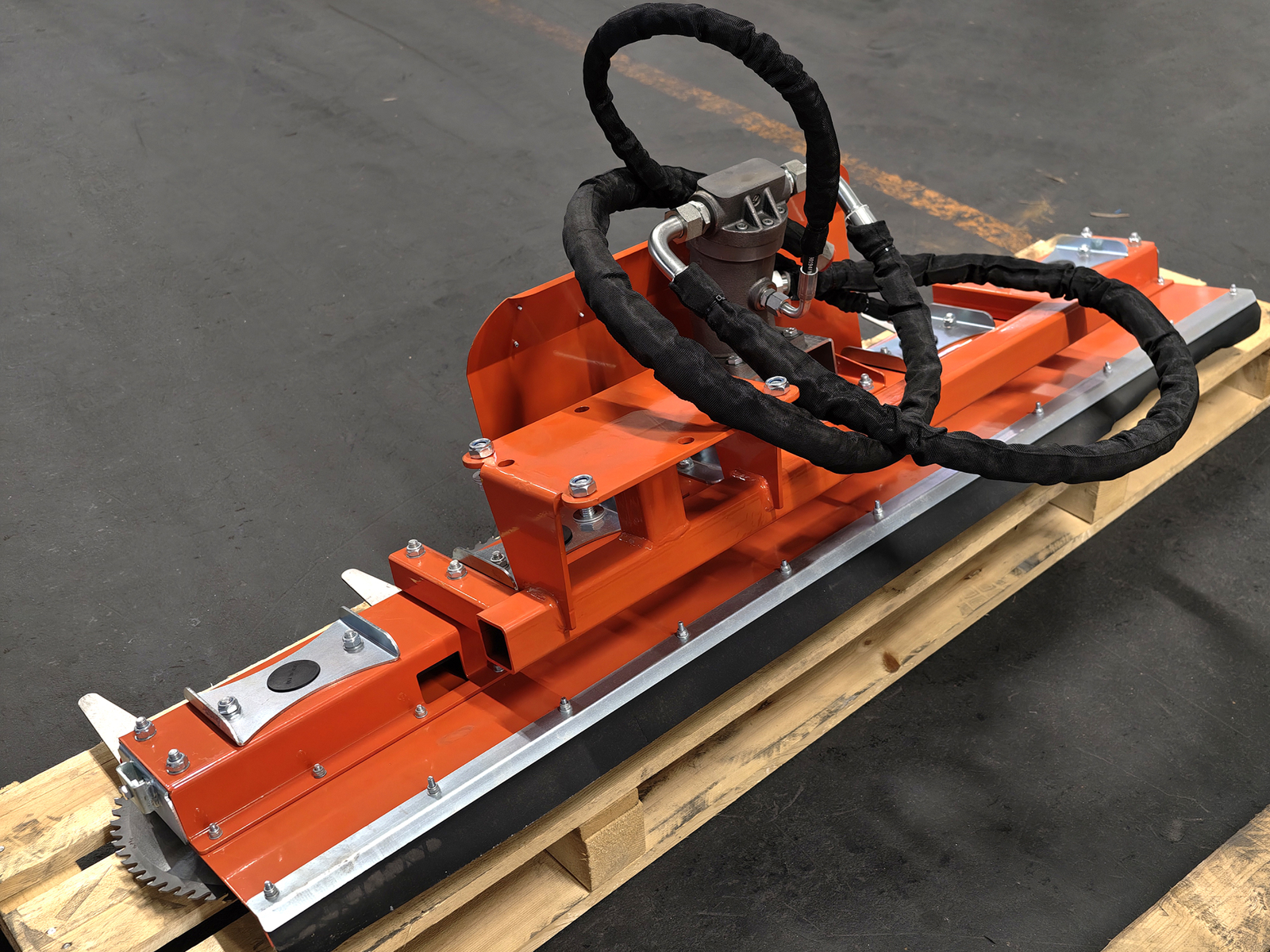

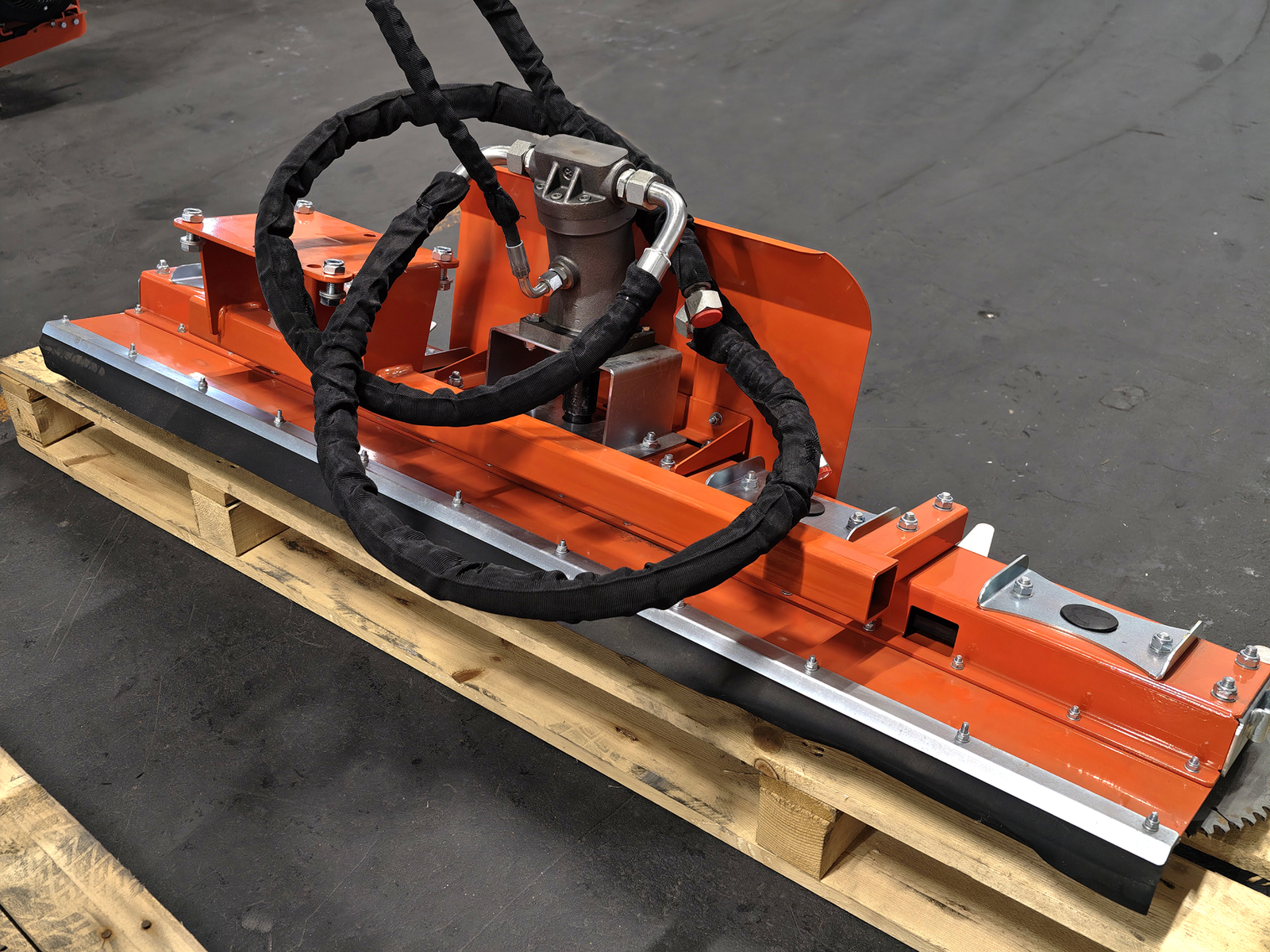

5-Disc Circular Saw Blade Attachment for Excavators and Hedge Cutters, Piston Motor

Professional hydraulic 5-disc cutting bar with a high-performance piston hydraulic motor and 1.6-meter cutting width, designed for intensive pruning of hedges, branches, vegetation and professional green maintenance on excavators, hydraulic brush cutters and professional hedge cutters.

The reinforced structure and high-strength steel discs ensure excellent cutting performance, long service life and reduced maintenance even in heavy-duty applications.

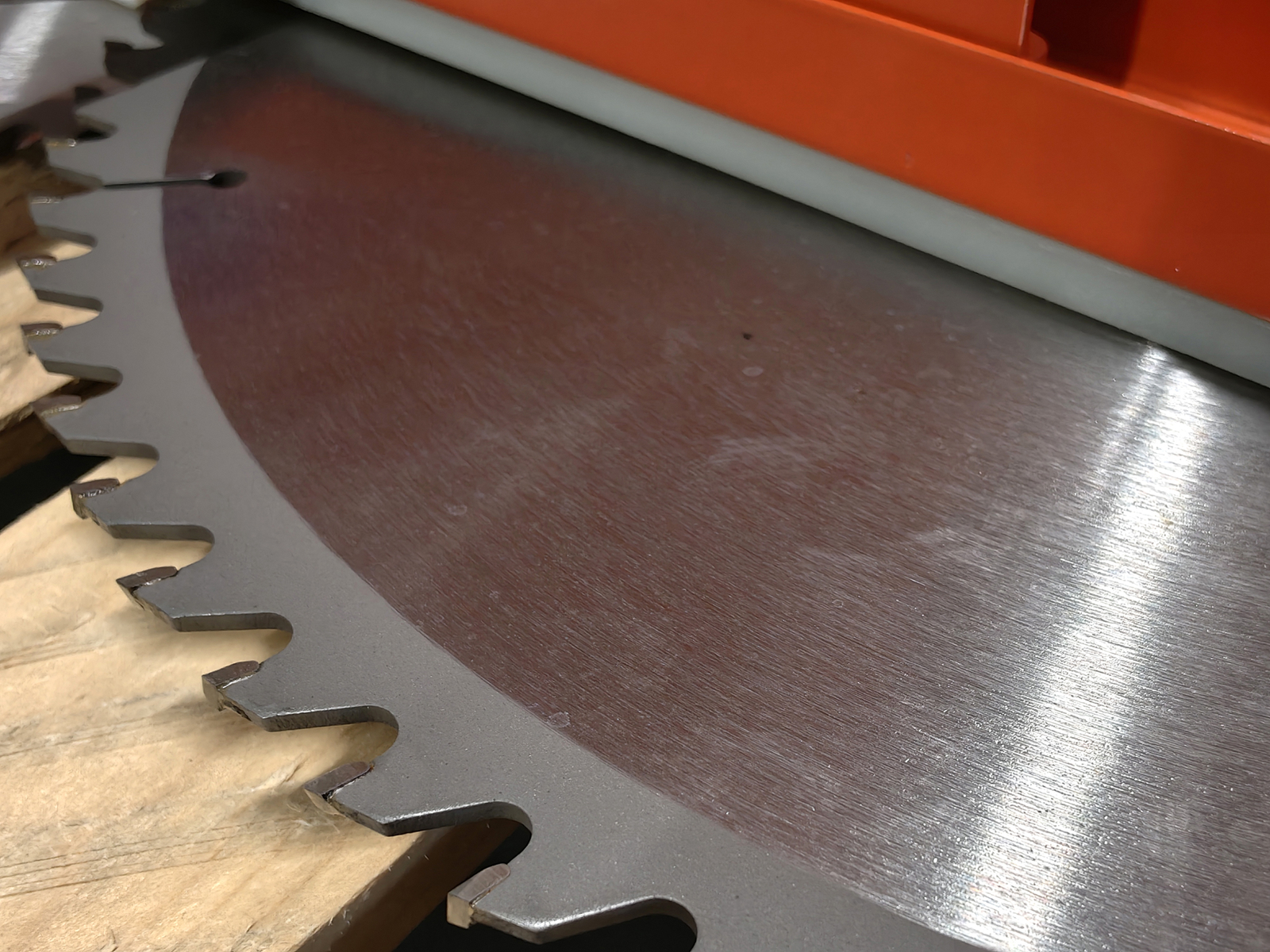

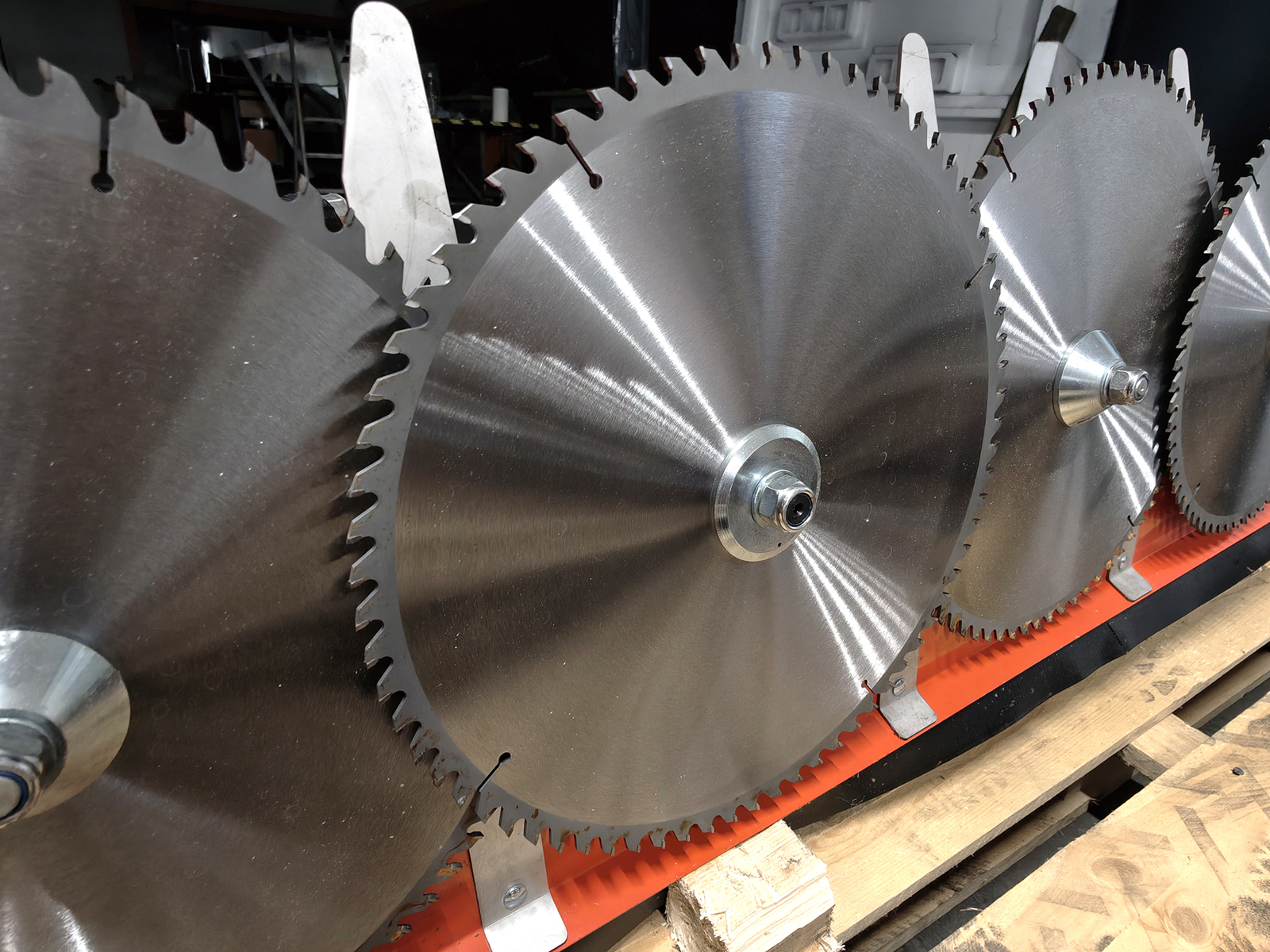

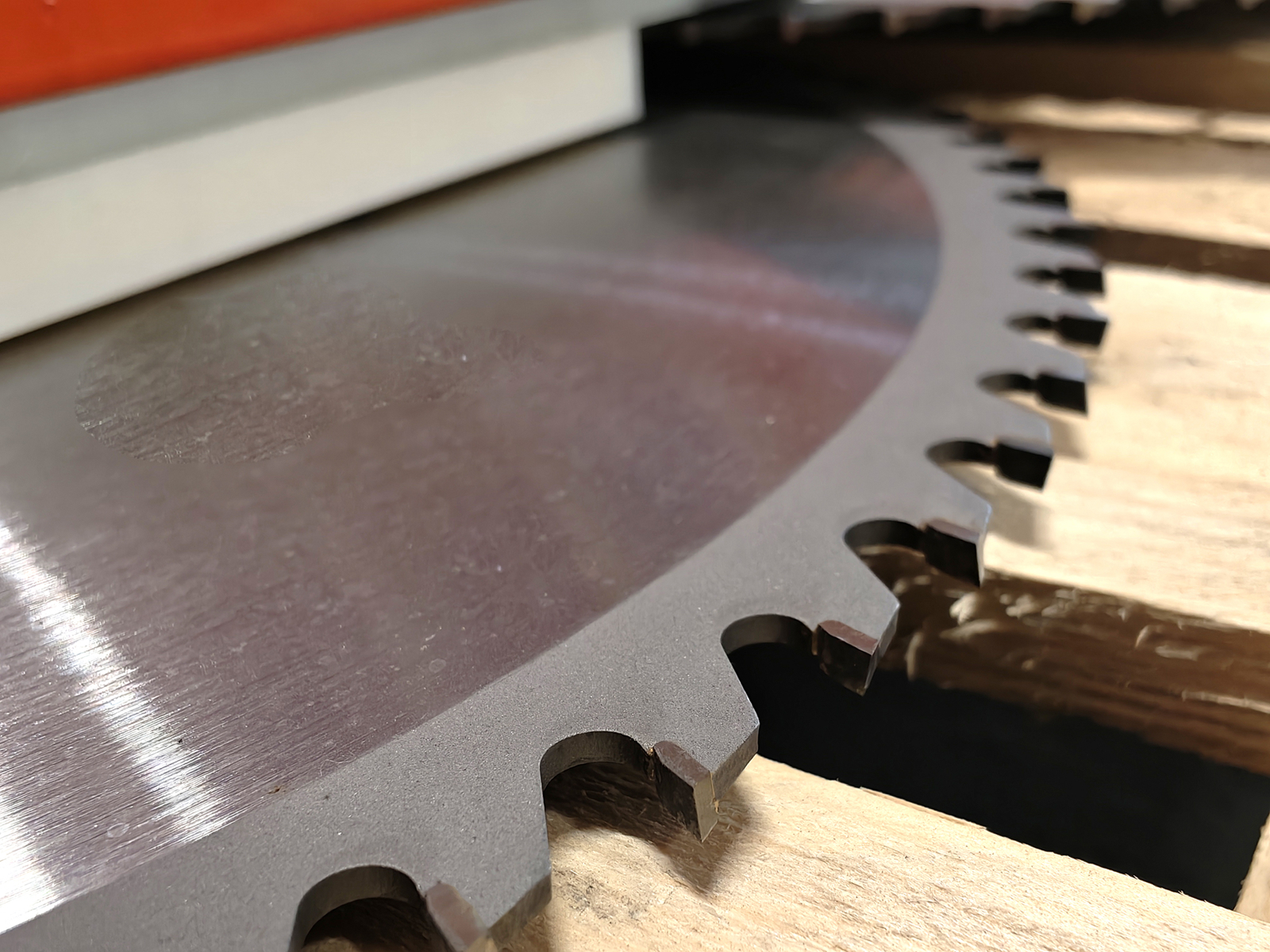

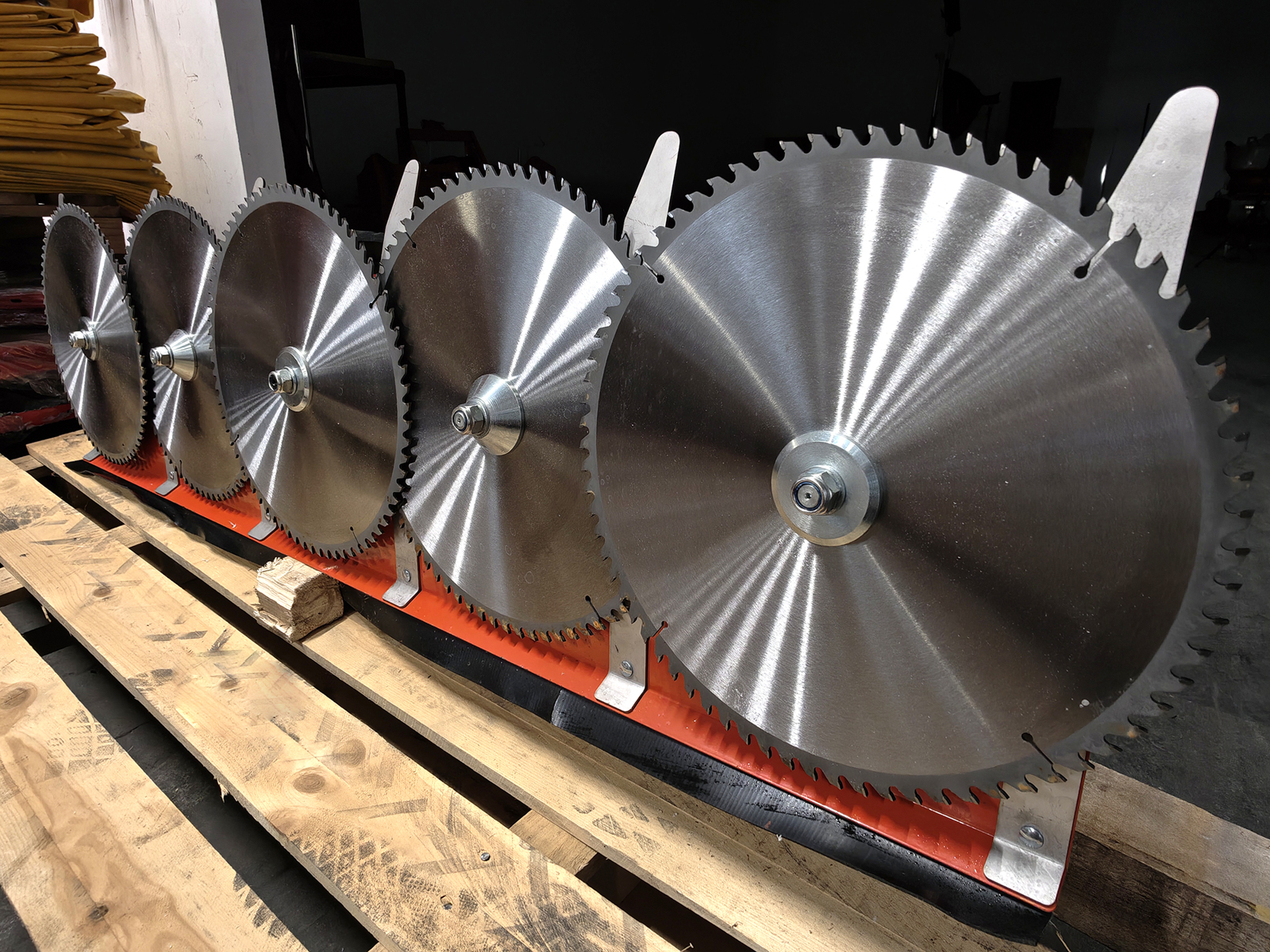

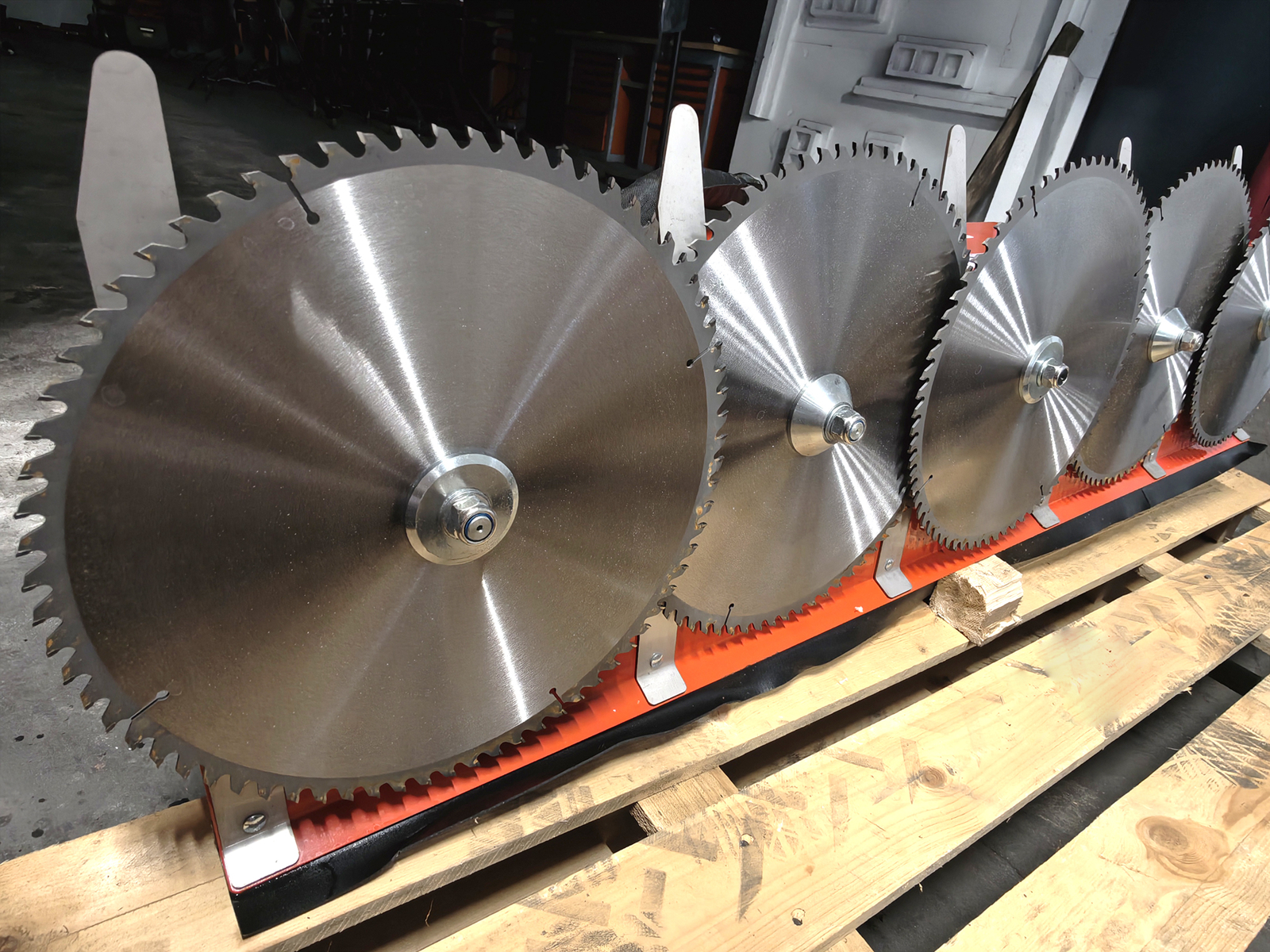

The 5 discs Ø 400 mm are equipped with 72 teeth each featuring tungsten carbide tips (TCT), ideal for fast, clean and precise cutting on woody vegetation and branches up to approximately 90 mm in diameter.

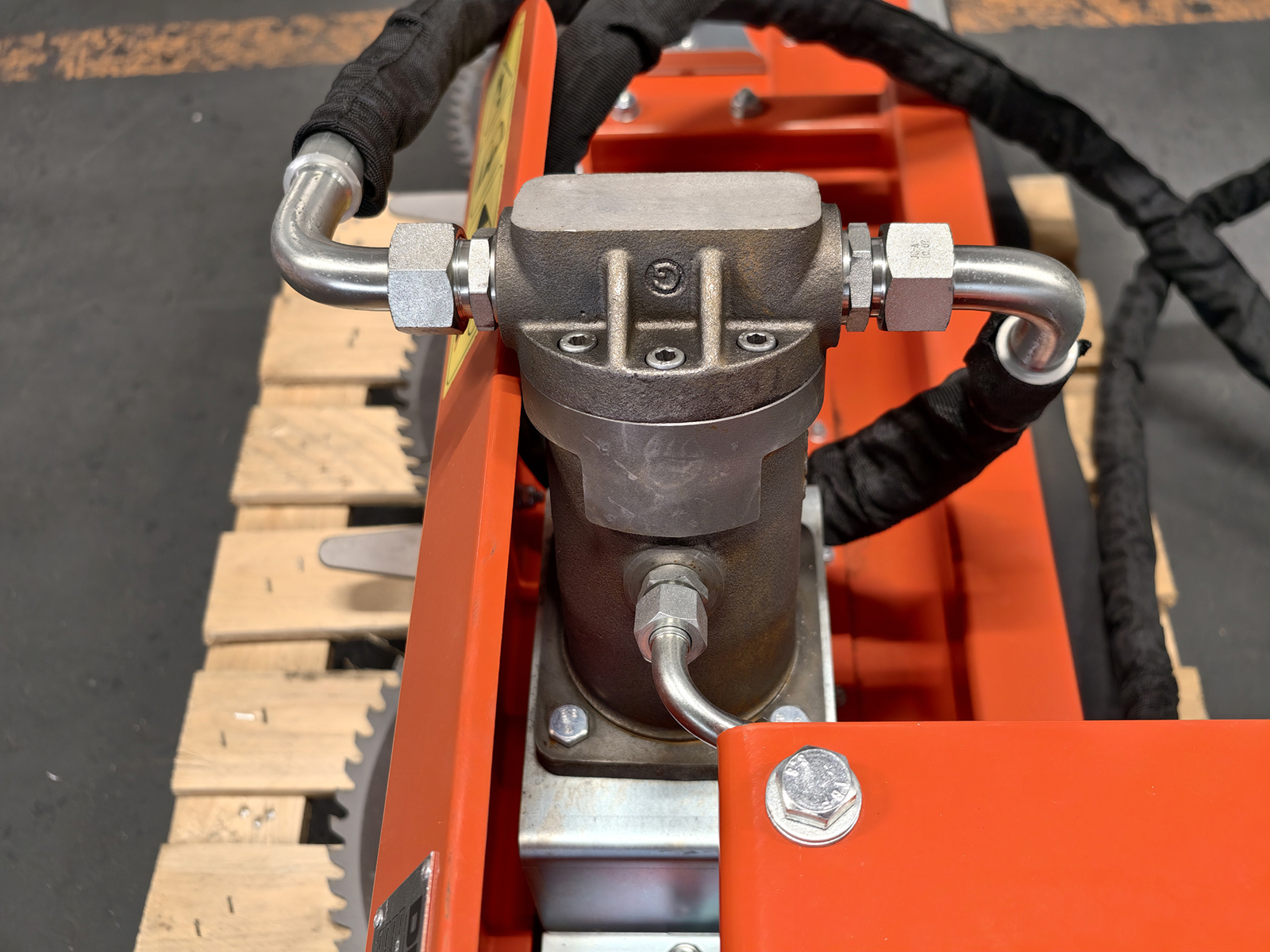

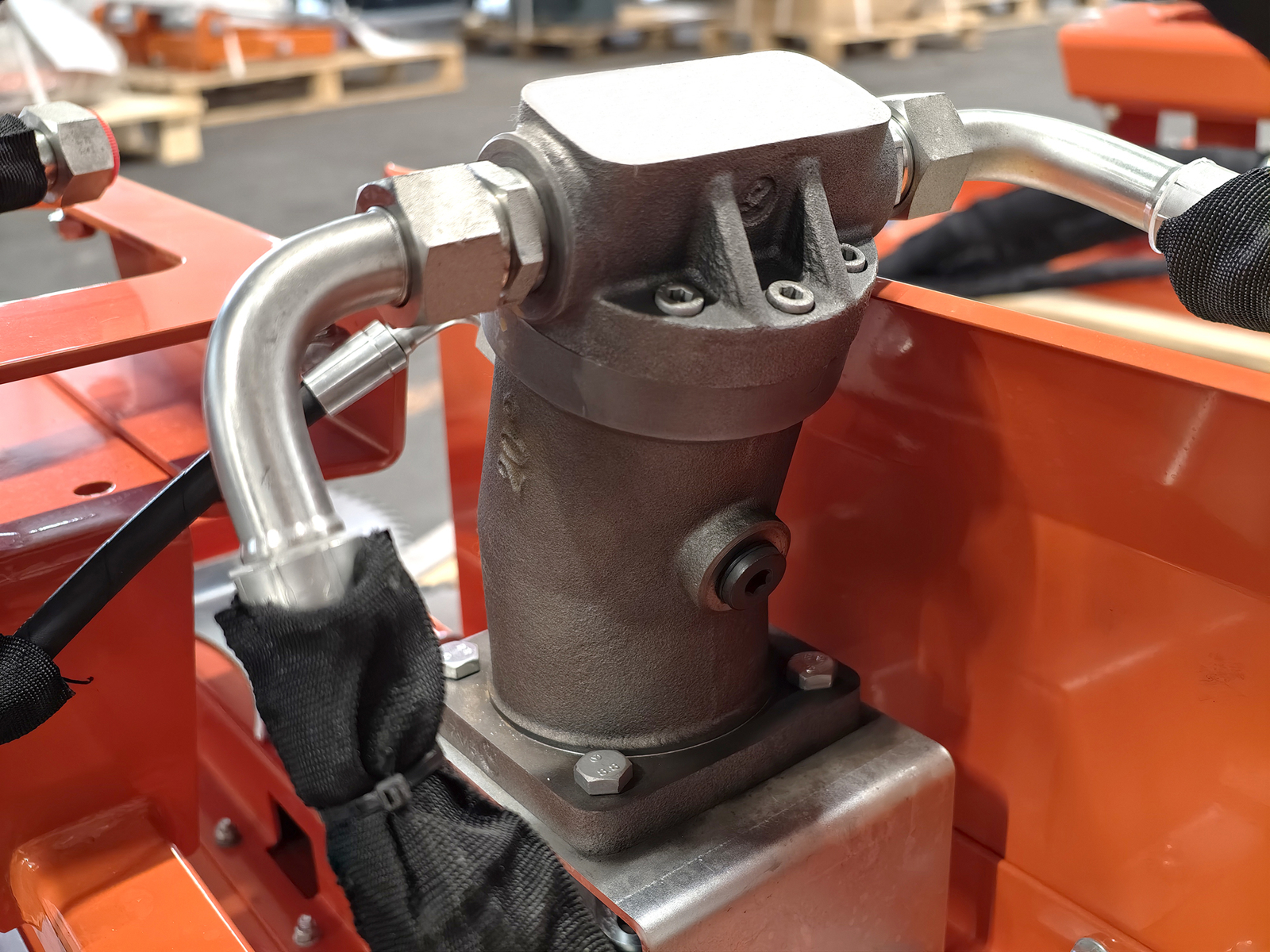

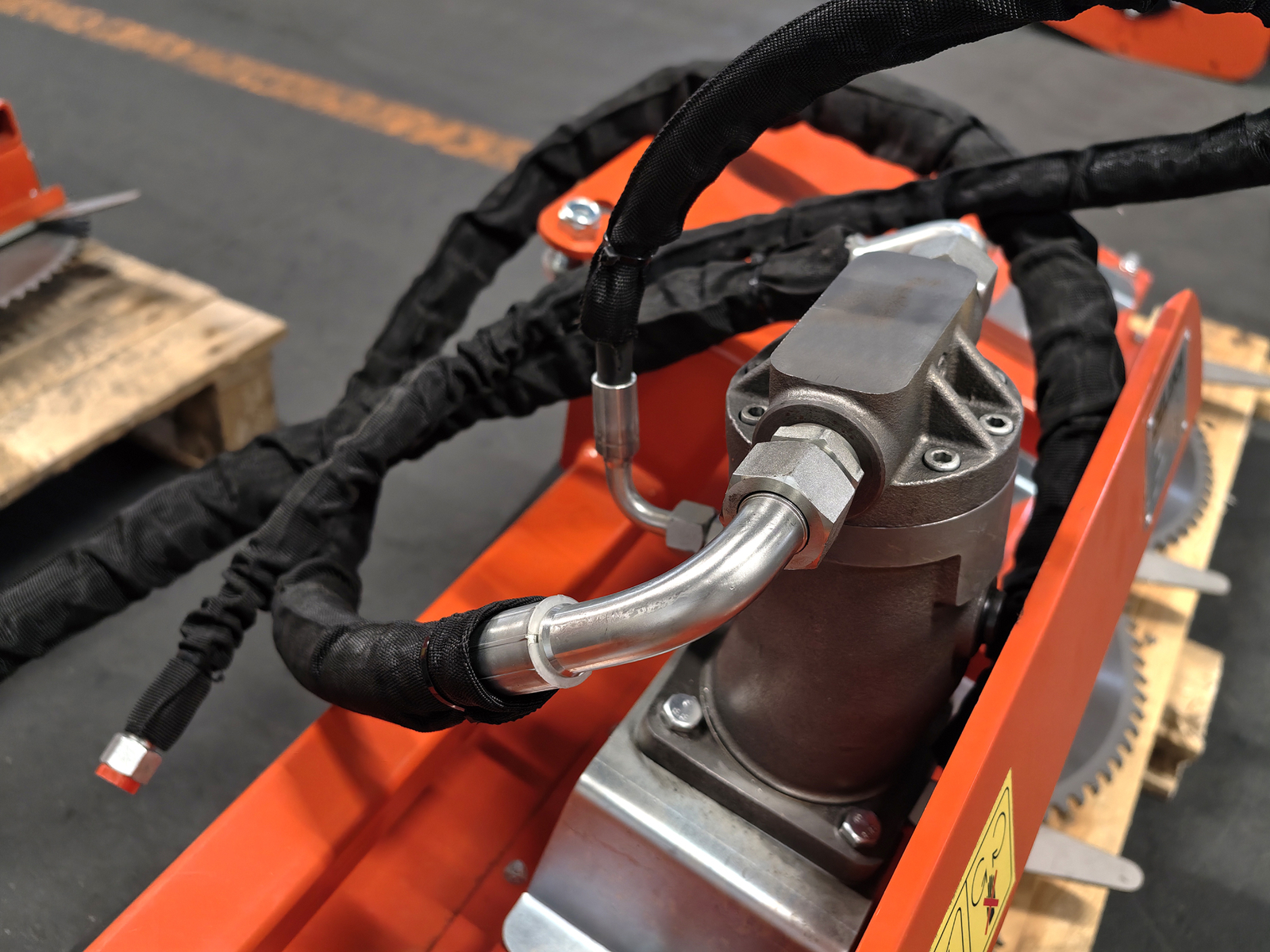

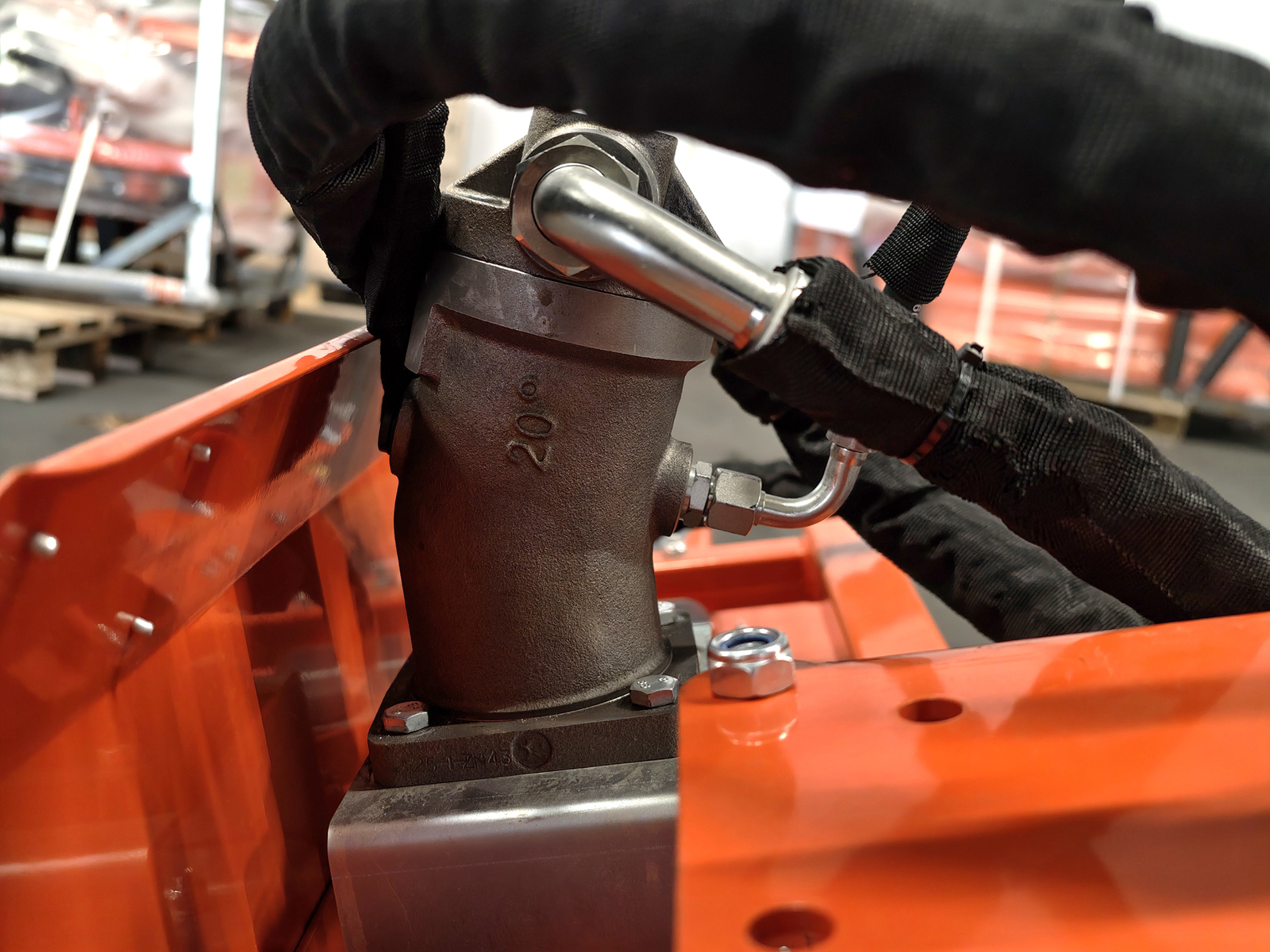

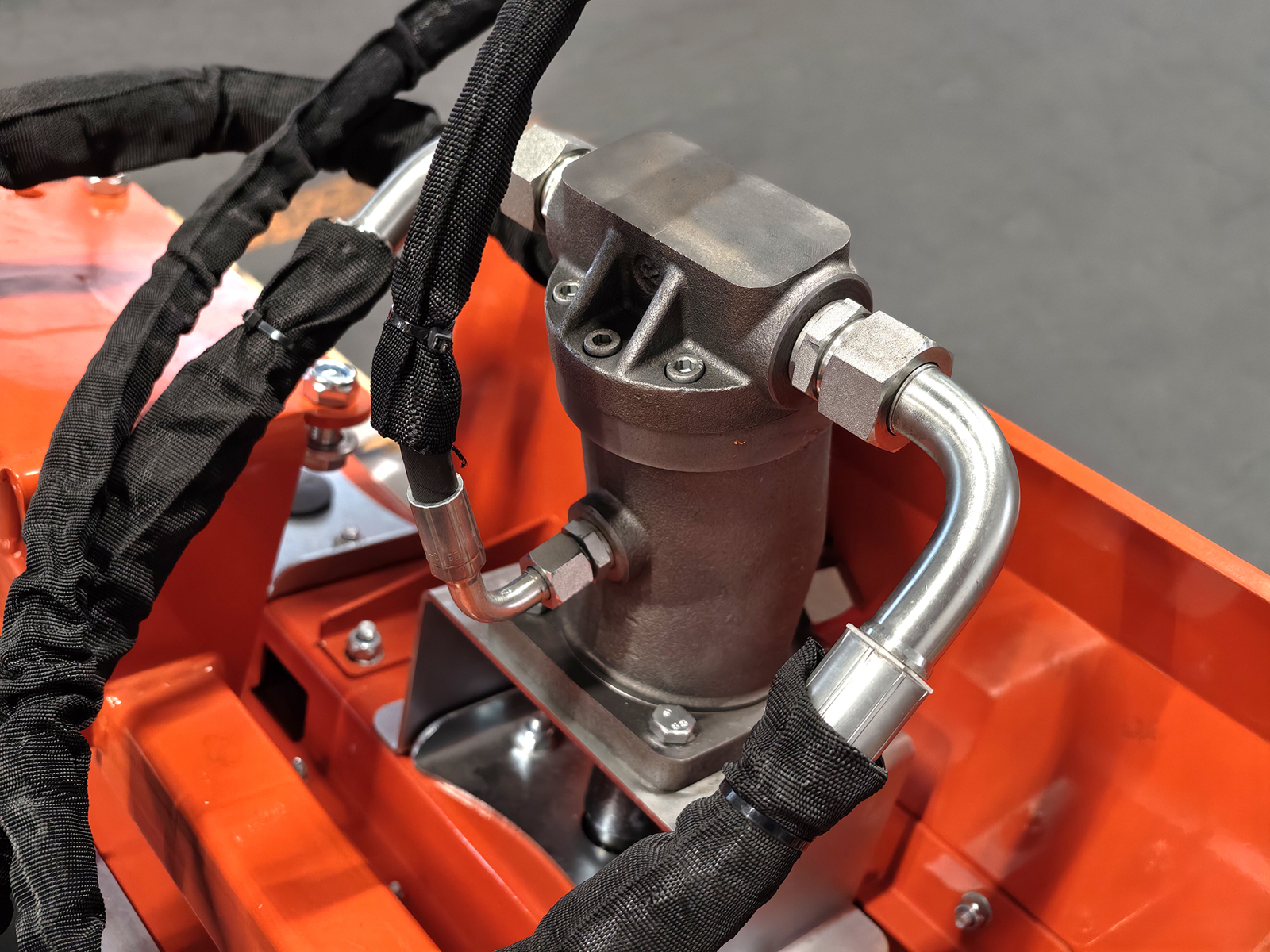

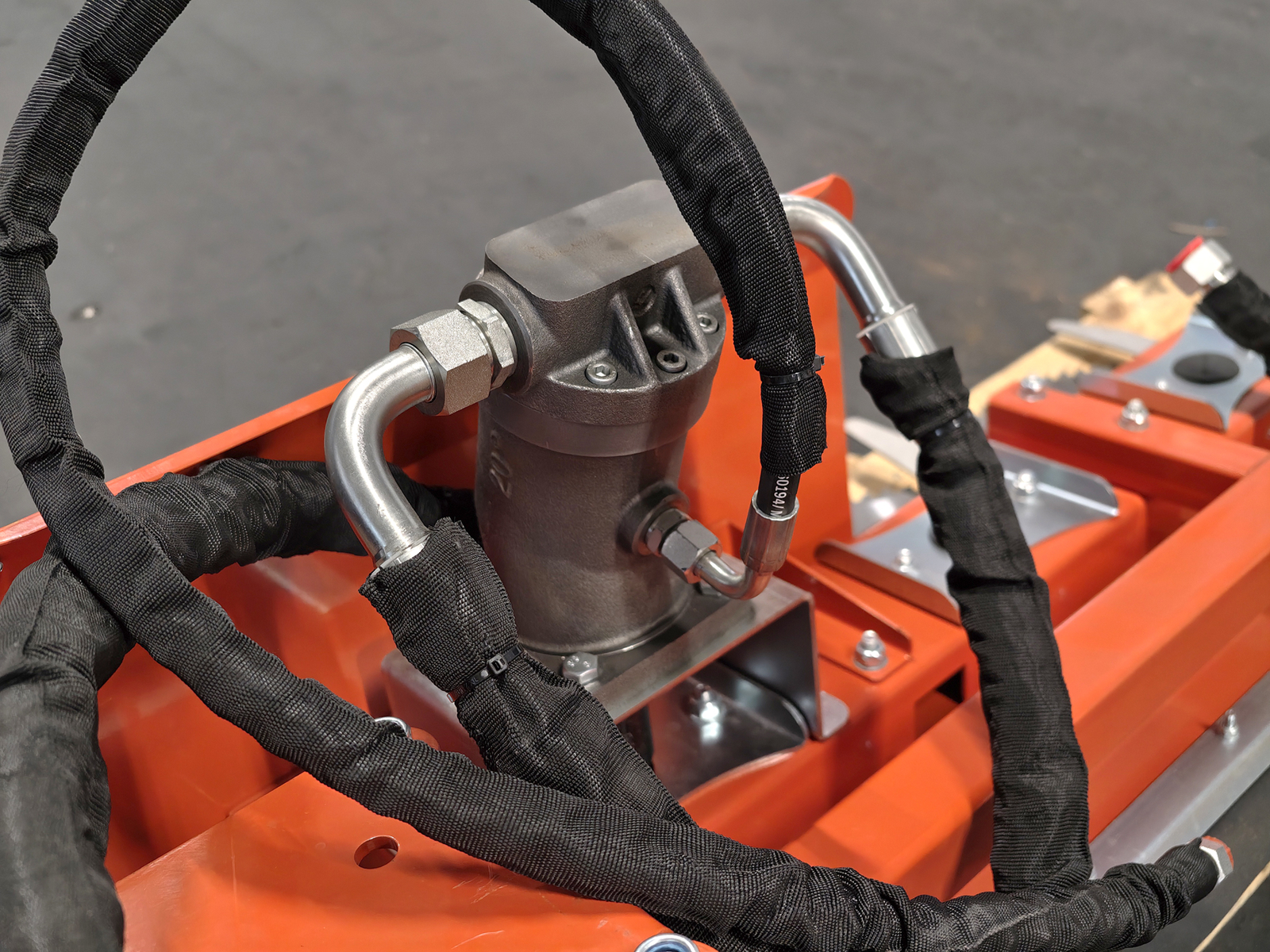

Power is transmitted through a bidirectional piston hydraulic motor with case drain and a displacement of 23 cc/rev, a professional solution designed to deliver high efficiency, increased torque and consistent performance even during intensive and continuous operation.

Compared with traditional orbital hydraulic motors, the piston motor offers higher mechanical efficiency, lower energy losses and a greater ability to maintain cutting performance under heavy loads and in dense vegetation.

The transmission system incorporates 4 V-belts, helping absorb mechanical shock loads and reduce vibrations while improving reliability, operator comfort and component longevity.

Technical features:

• Professional hydraulic 5-disc cutting bar
• Cutting width: 1600 mm
• Ø 400 mm cutting discs
• 72 teeth per disc with tungsten carbide tips (TCT)
• High-strength carbon steel discs
• Hardened alloy cutting heads
• Centre bore Ø 30 mm
• Disc thickness: 2.5 mm
• Tooth thickness: 3.2 mm
• Bidirectional piston hydraulic motor with case drain

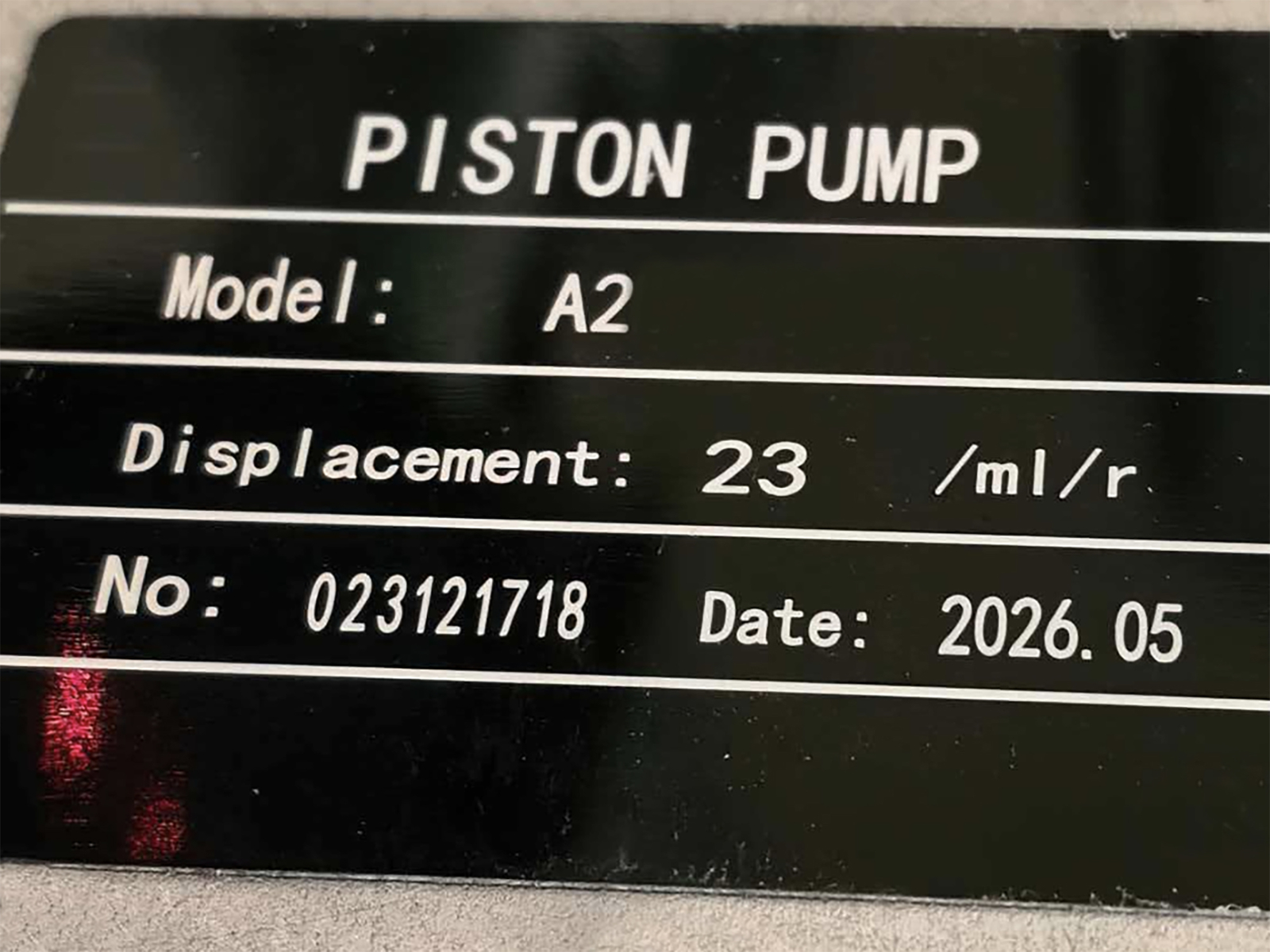

• Motor displacement: 23 cc/rev
• Oil flow requirement: 23 L/min
• Operating pressure: 80–120 bar
• Rotation speed: 500–2800 rpm
• Transmission with 4 V-belts

Advantages:

• High-efficiency piston hydraulic motor
• High torque and consistent performance under load
• Wide 160 cm working width
• Reinforced 4-belt transmission
• Fast and precise cutting
• High wear resistance
• Tungsten carbide teeth for extended service life
• Reduced vibrations and smooth operation
• Ideal for professional vegetation maintenance
• High productivity on long hedges and roadside vegetation
• Suitable for intensive use on dense and branched vegetation

Technical notes:

The carrier machine must be equipped with a hydraulic system featuring a free oil return line. In the event of excessive flow, the oil must be able to return directly to the tank return line, preventing overpressure and ensuring proper operation of the hydraulic motor.

It is also essential to verify that the hydraulic flow and pressure of the carrier machine are compatible with the cutting bar specifications.

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual
