Circular Saw Blade Attachment for Excavators and Hedge Cutters
4.6
1466 reviews
DETAILS

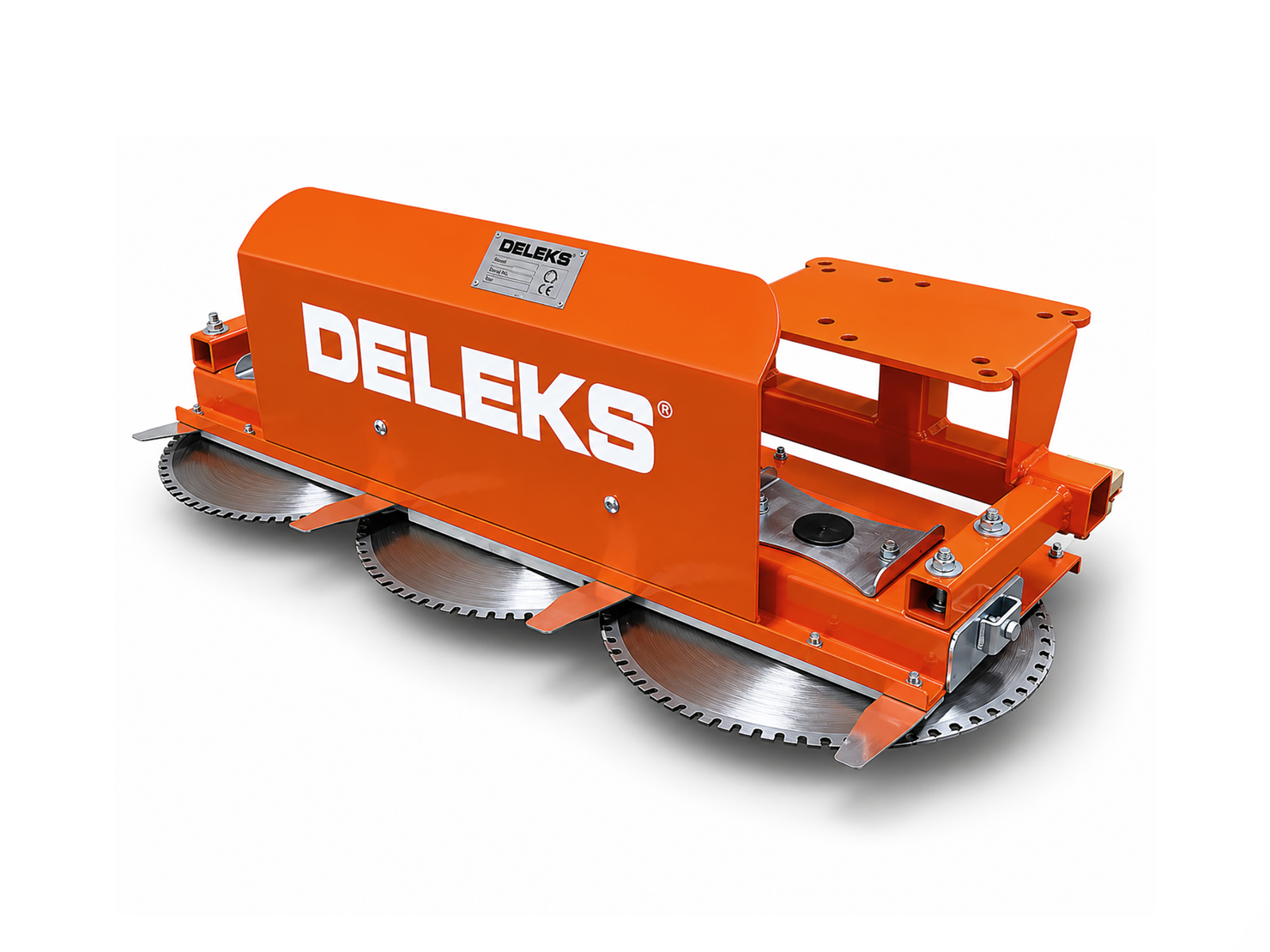

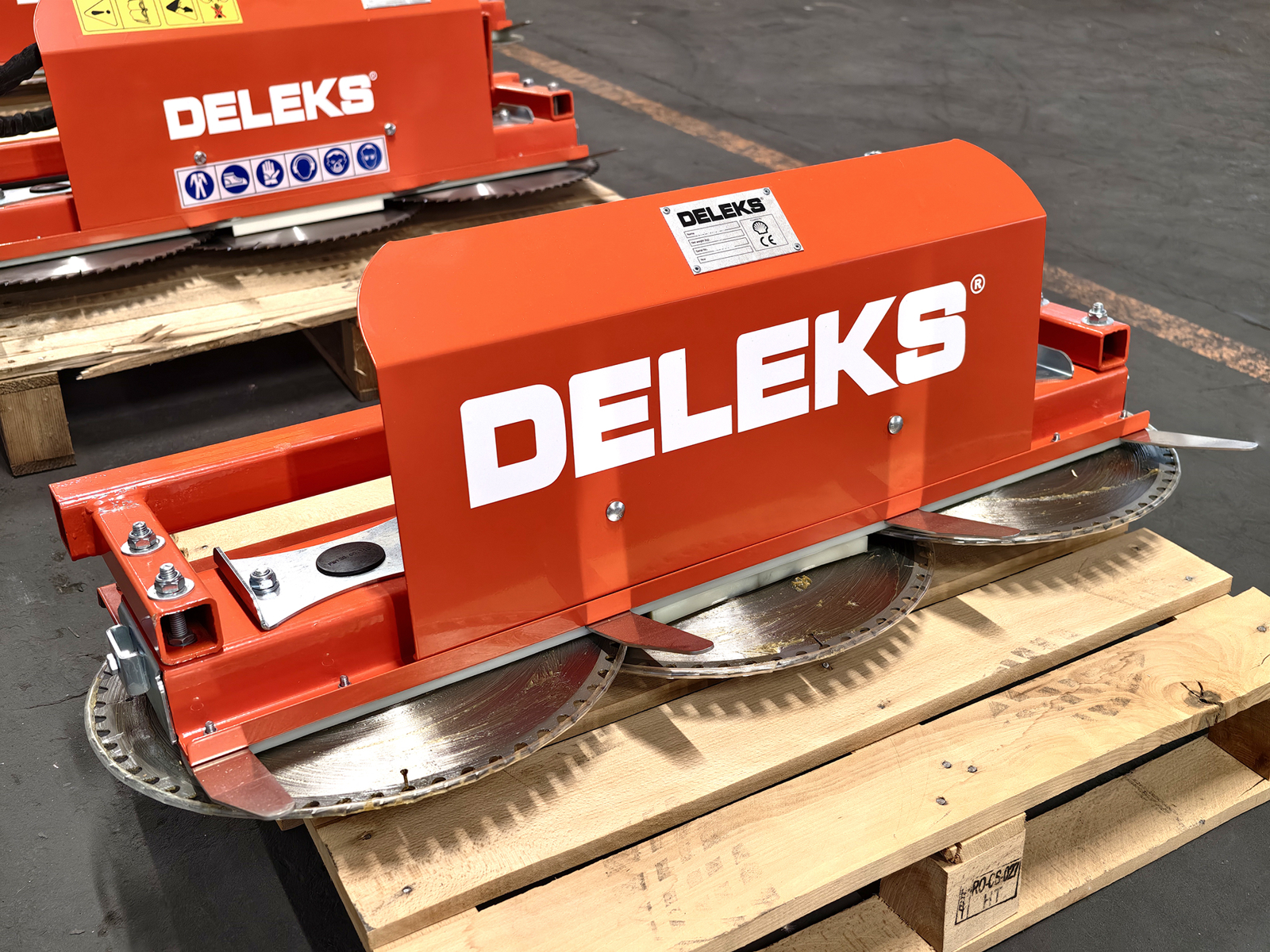

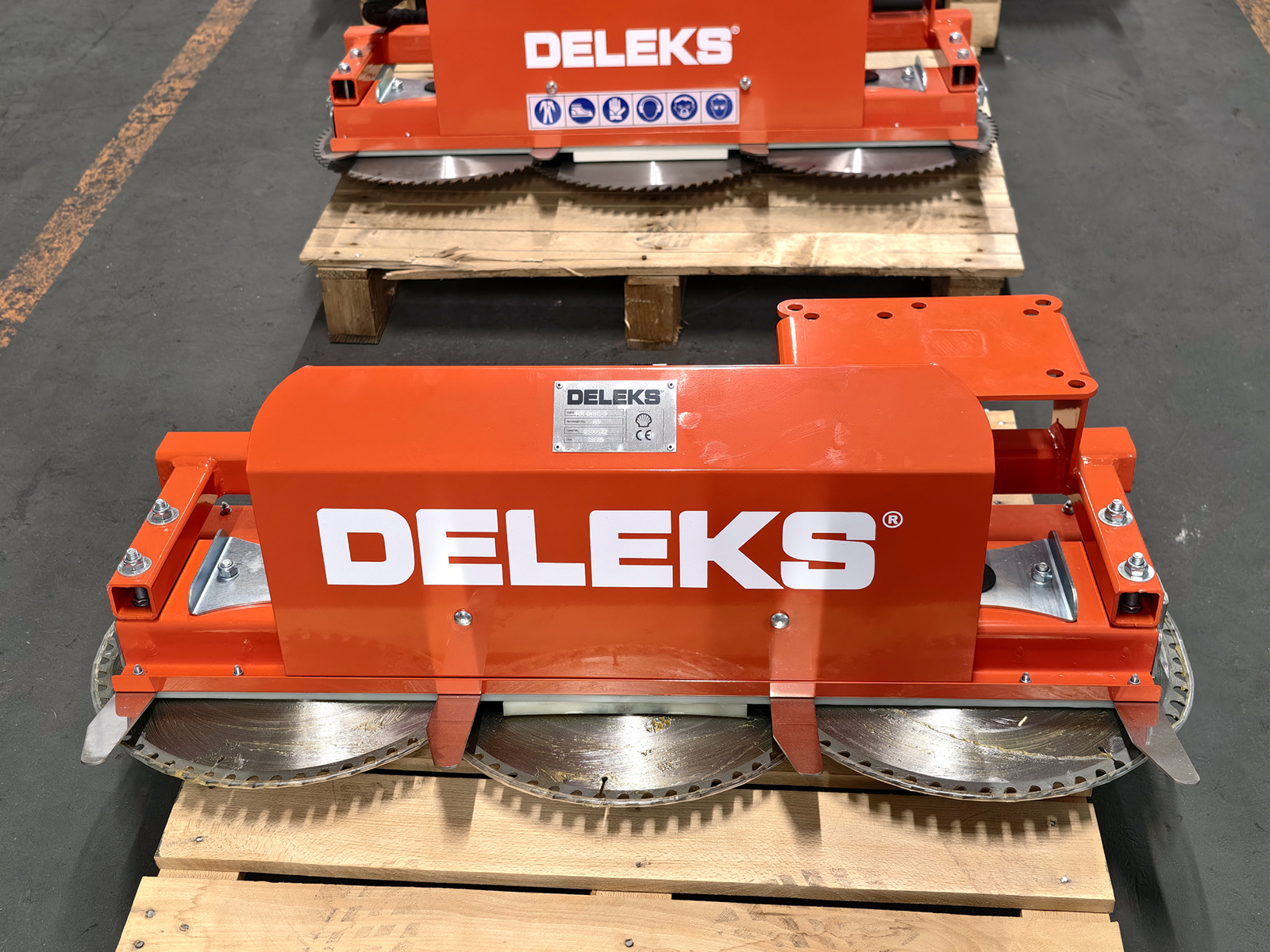

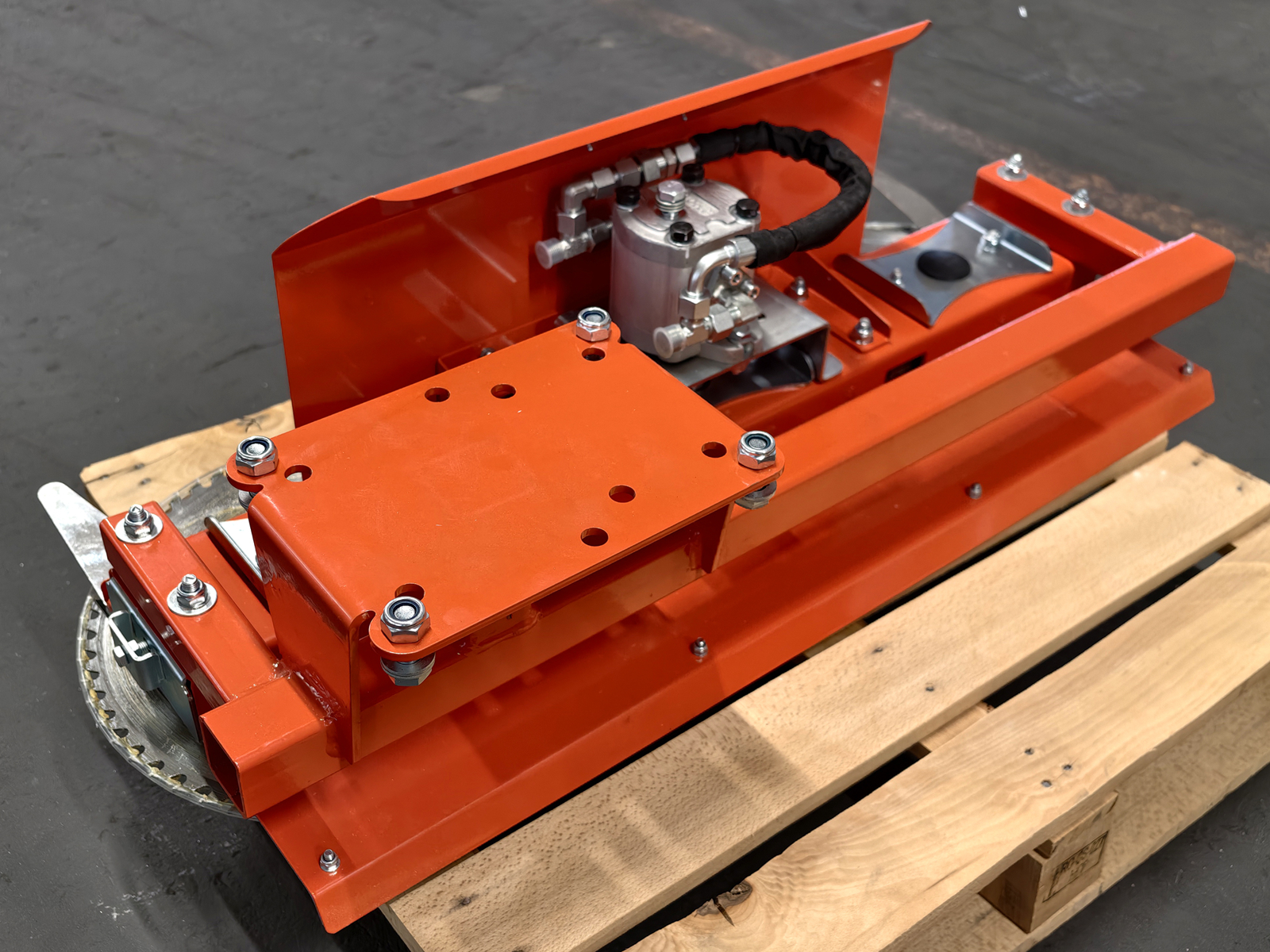

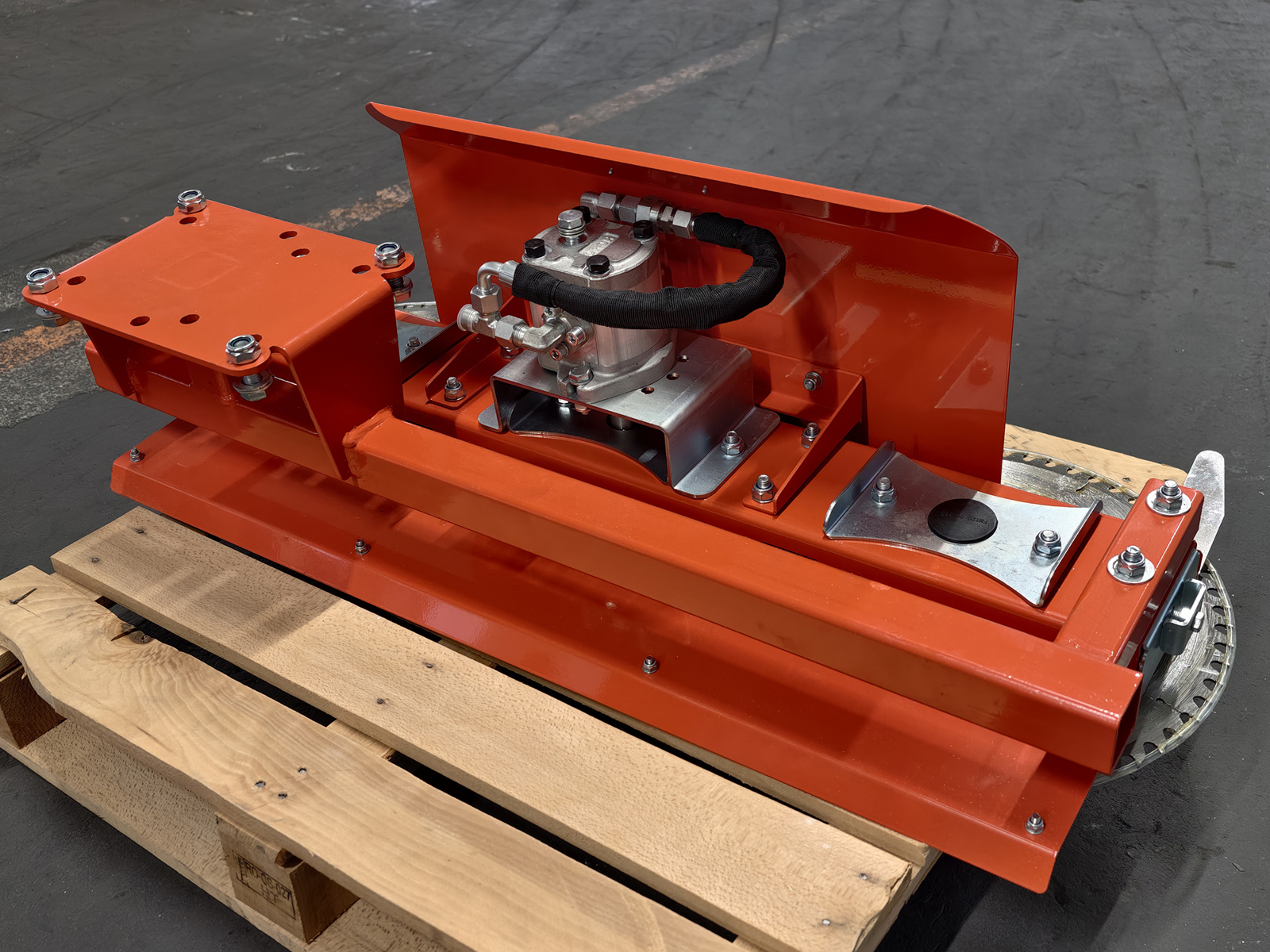

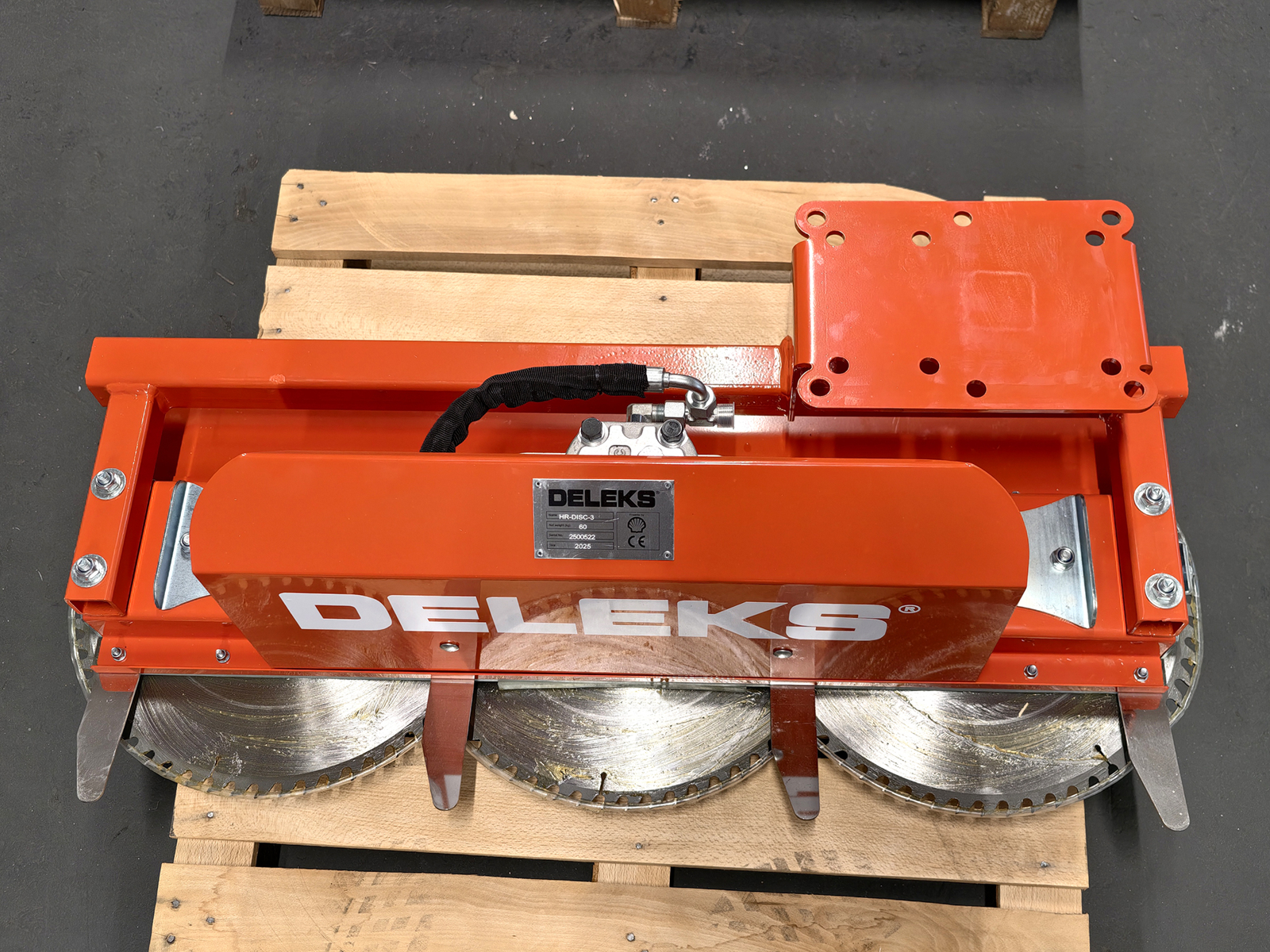

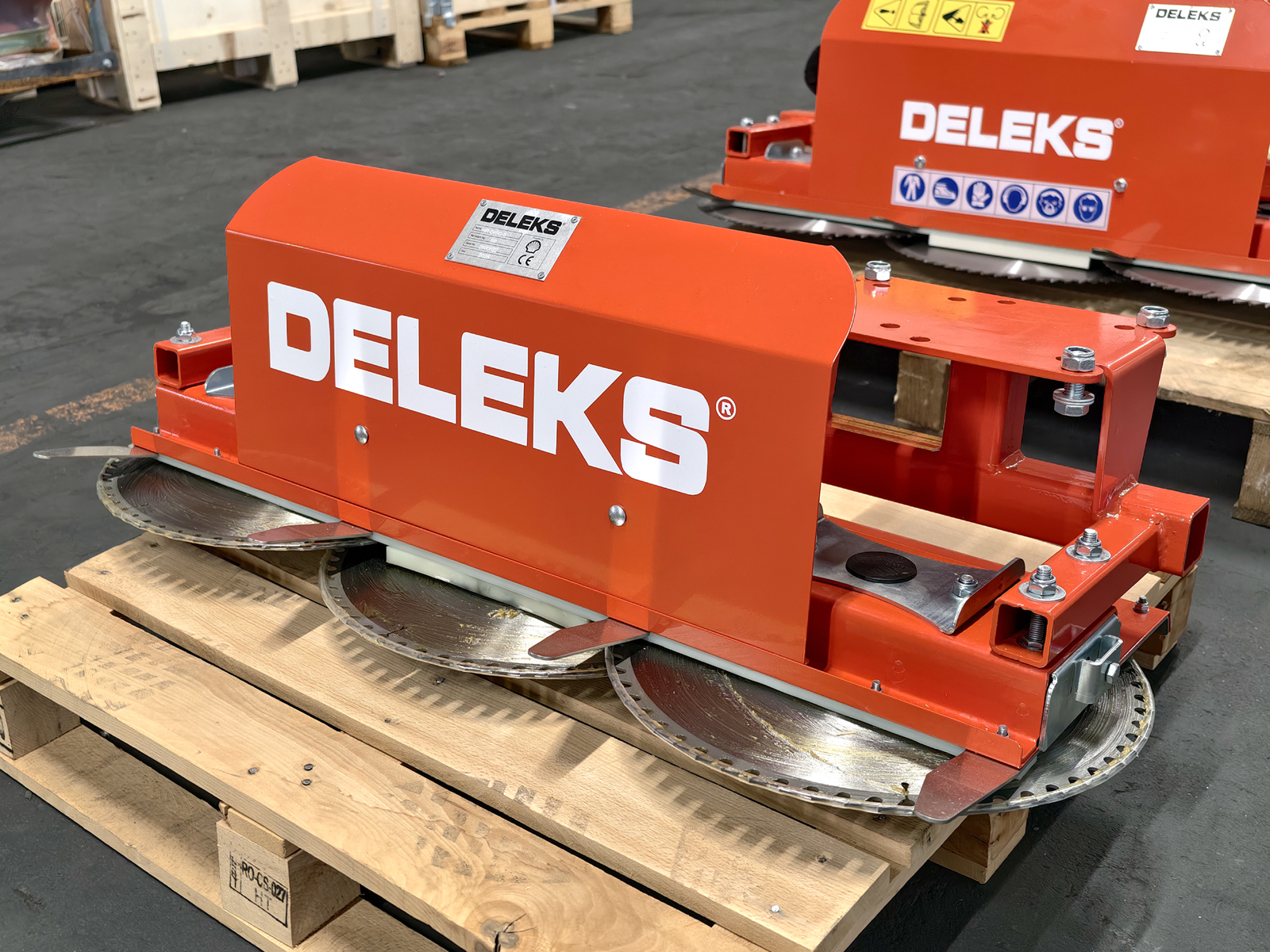

Professional hydraulic 3-disc cutting bar with 1-meter cutting width, designed for intensive pruning of hedges, branches, vegetation and professional green maintenance on excavators, hydraulic brush cutters and professional hedge cutters.
The reinforced structure and high-strength steel discs ensure excellent cutting performance, long service life and reduced maintenance even in heavy-duty applications.

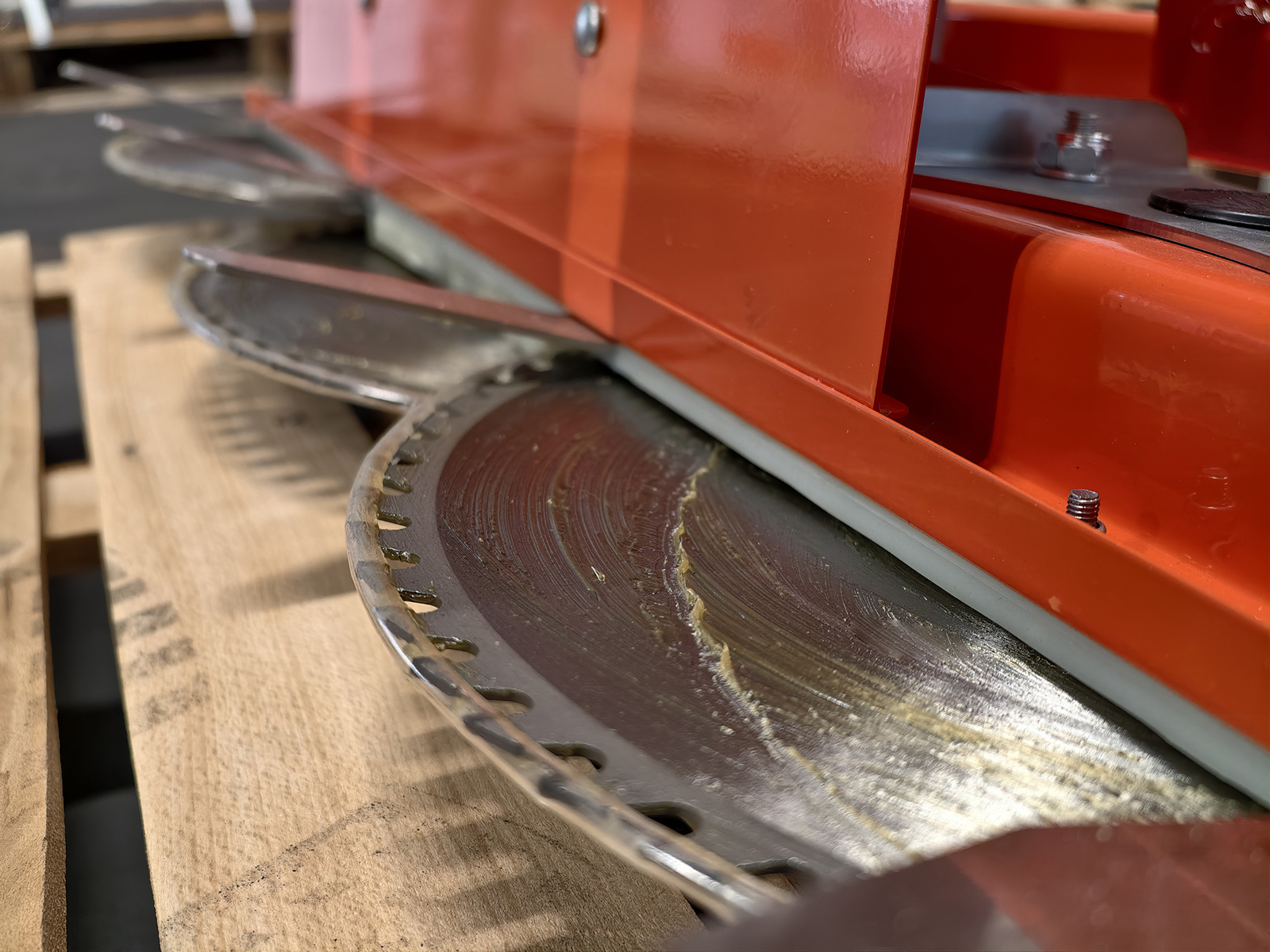

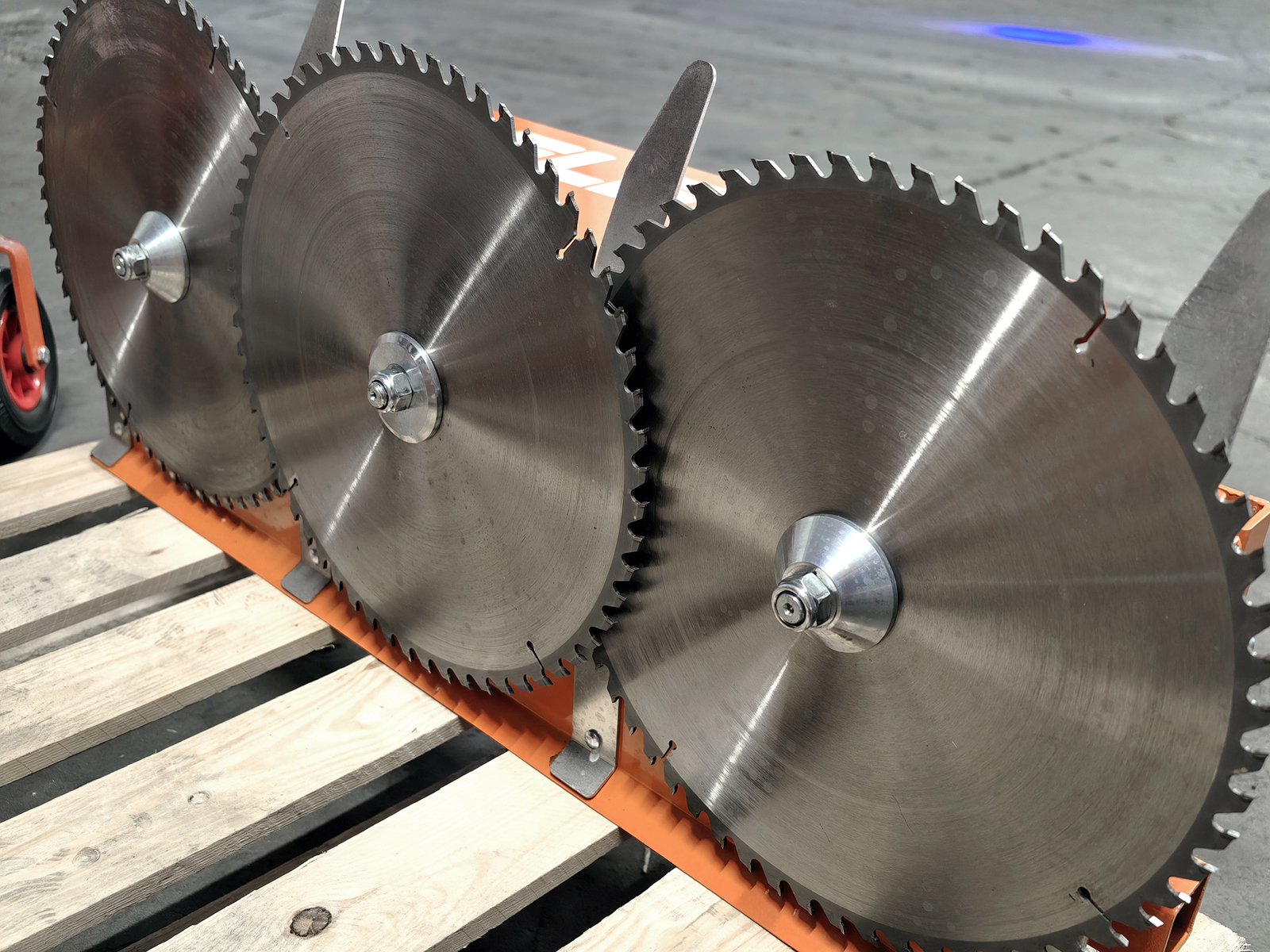

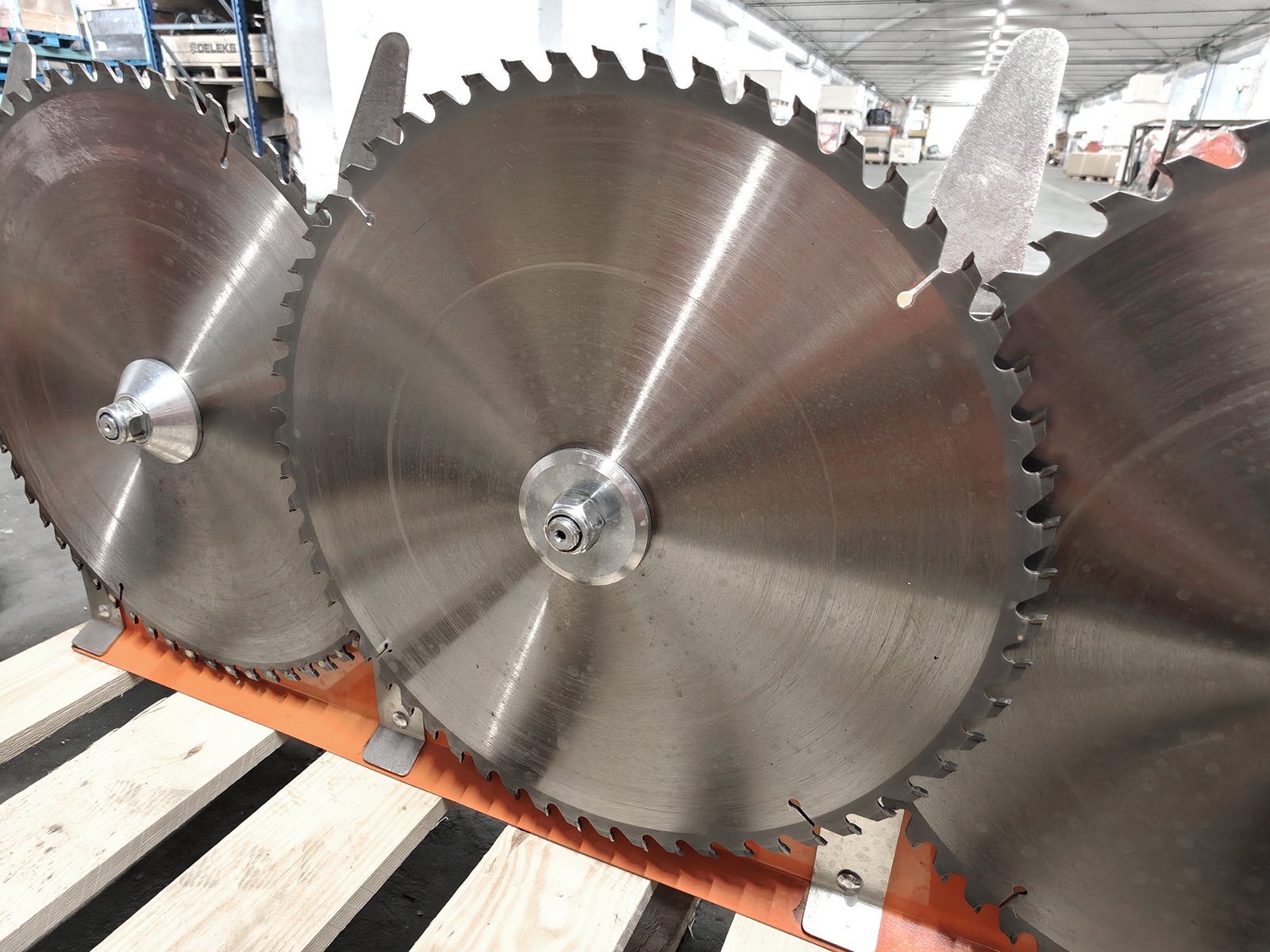

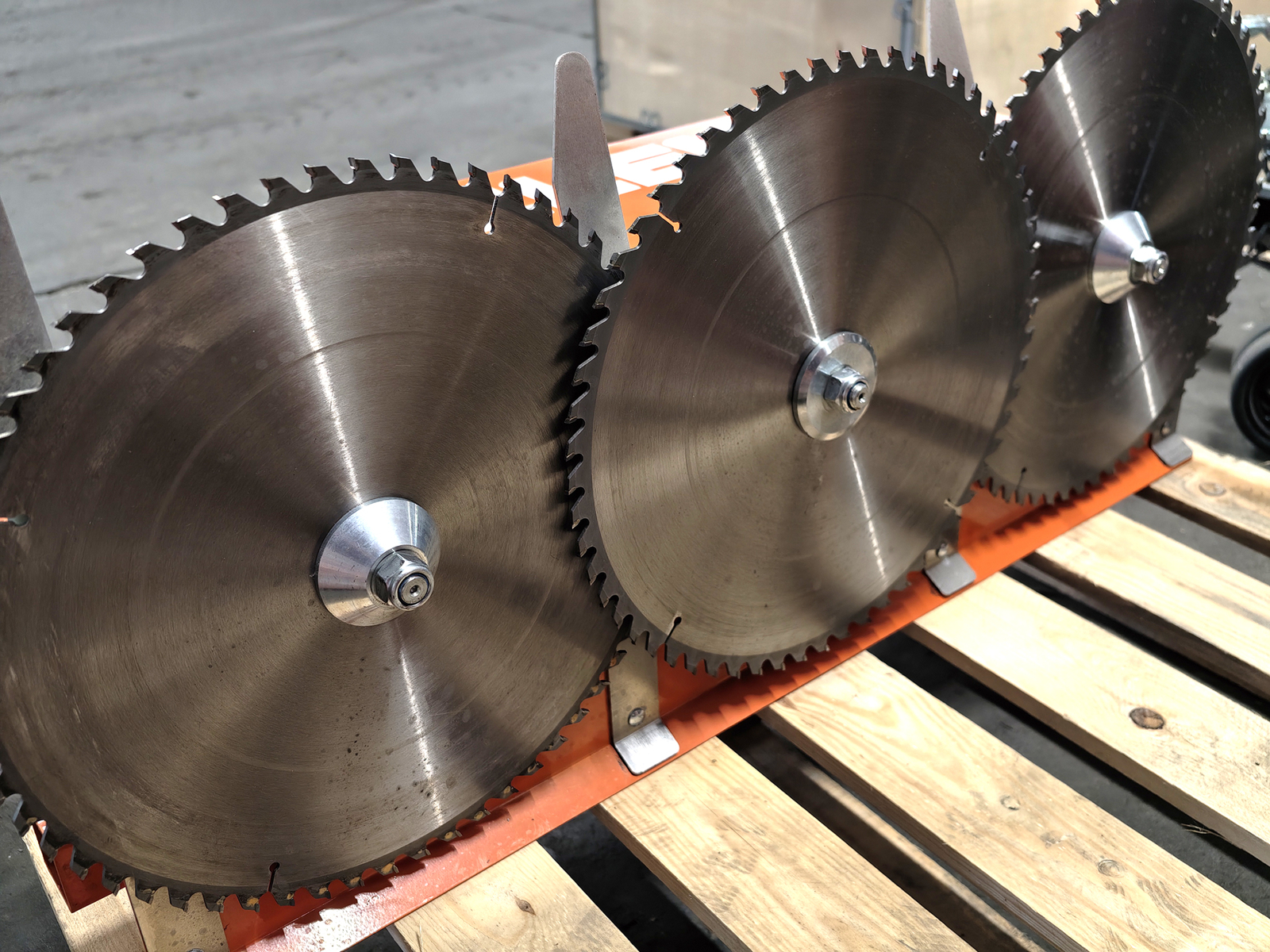

The 3 discs Ø 400 mm are equipped with 60 teeth each with tungsten carbide tips (TCT), ideal for fast, clean and precise cutting on woody vegetation and branches up to approximately 90 mm diameter.

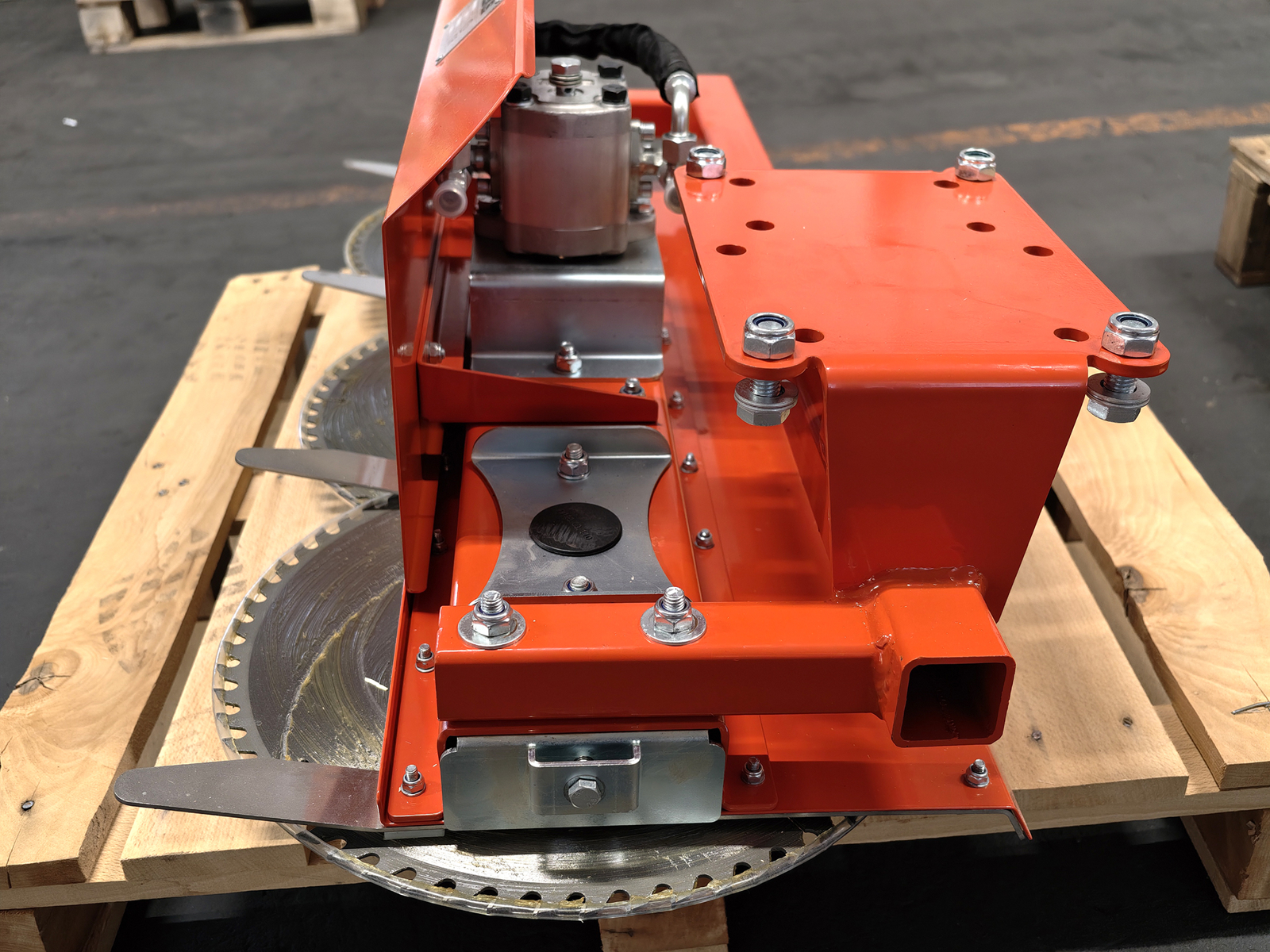

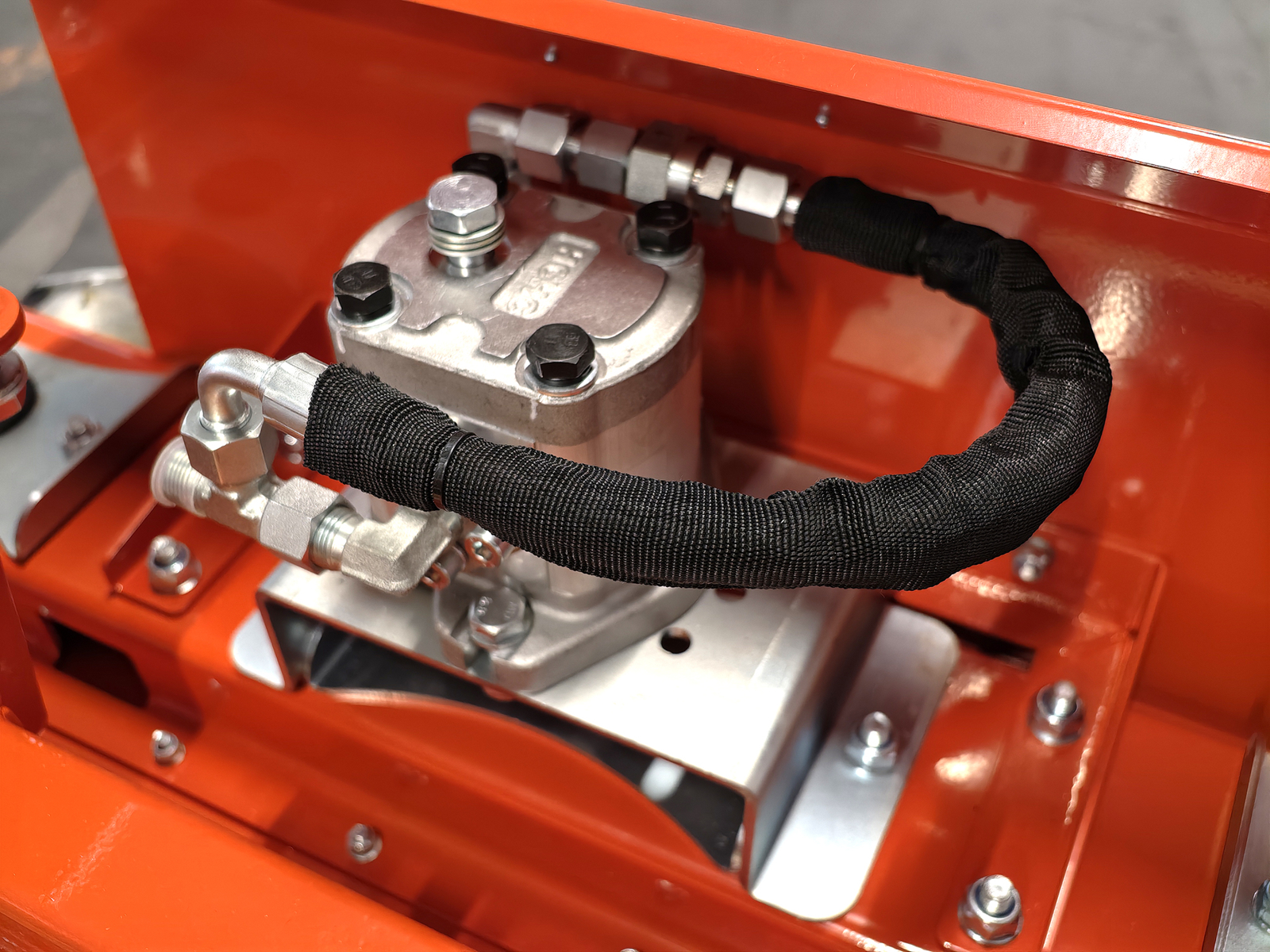

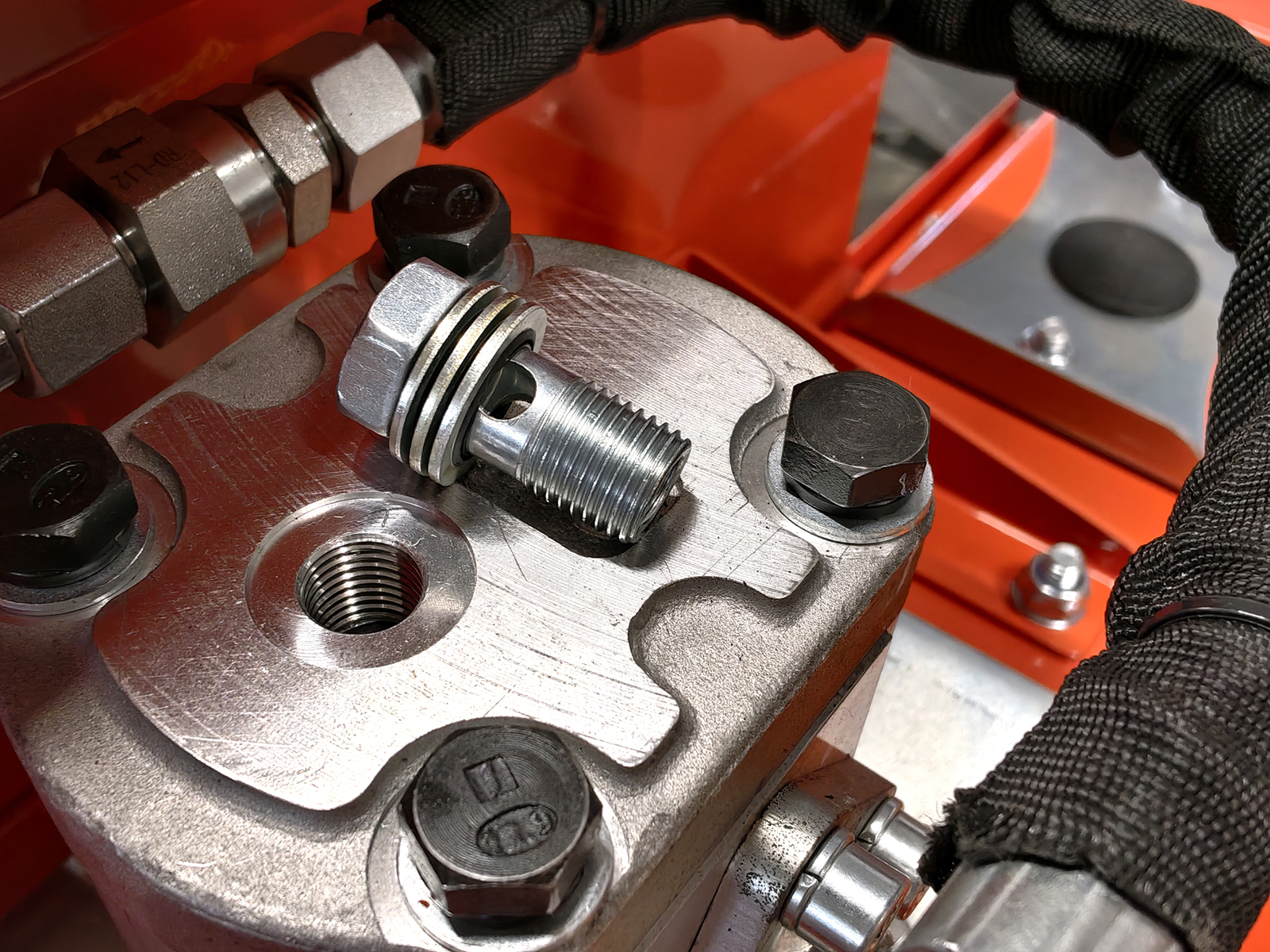

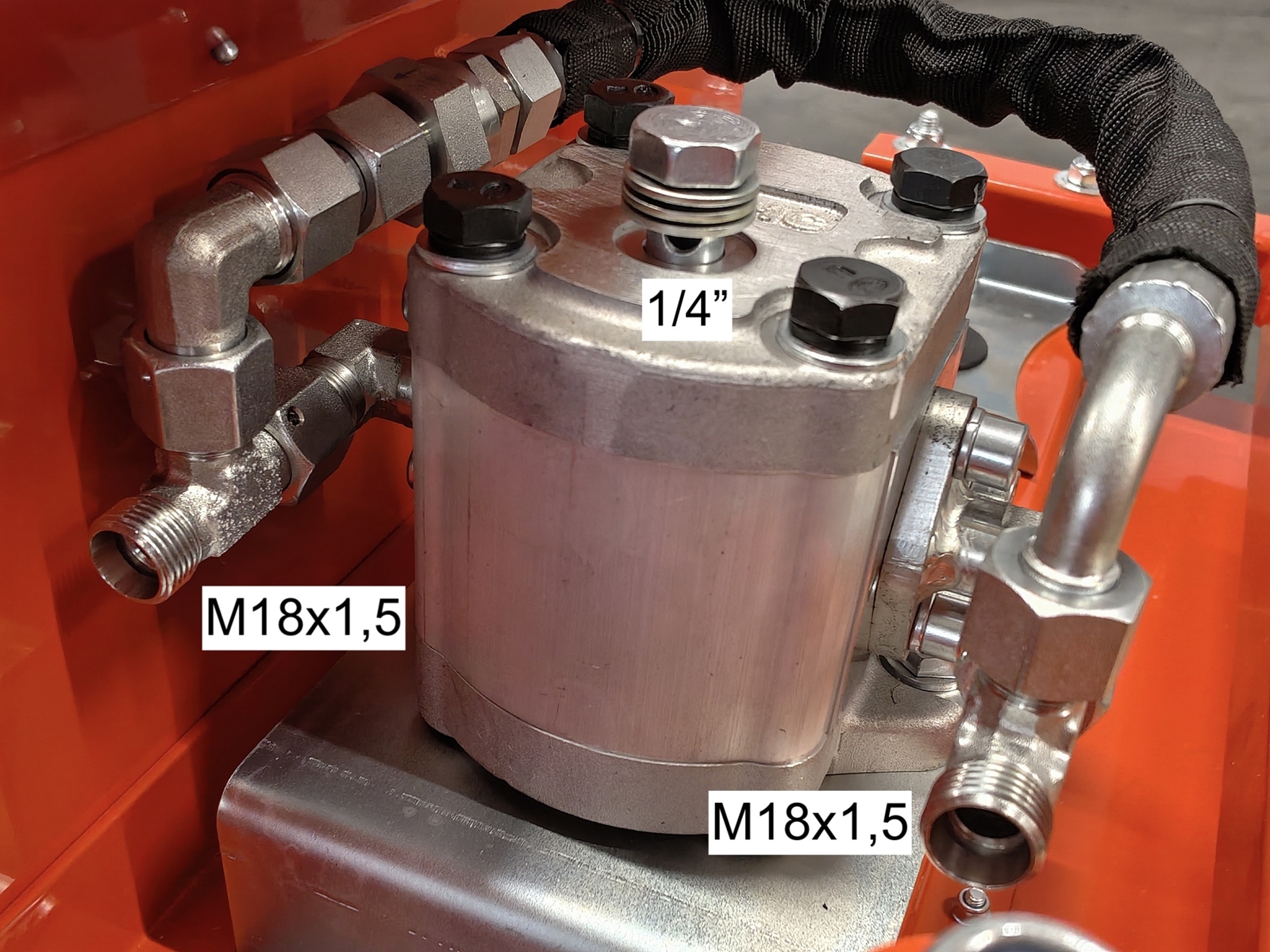

Power transmission is provided by a bidirectional orbital hydraulic motor with drain line, designed to ensure high rotation speed, smooth operation and constant torque during work.
The belt transmission system helps reduce vibrations and mechanical stress, improving reliability and durability even in intensive professional use.
Technical features:
- Professional hydraulic 3-disc cutting bar
- Cutting width 1000 mm
- Ø 400 mm discs

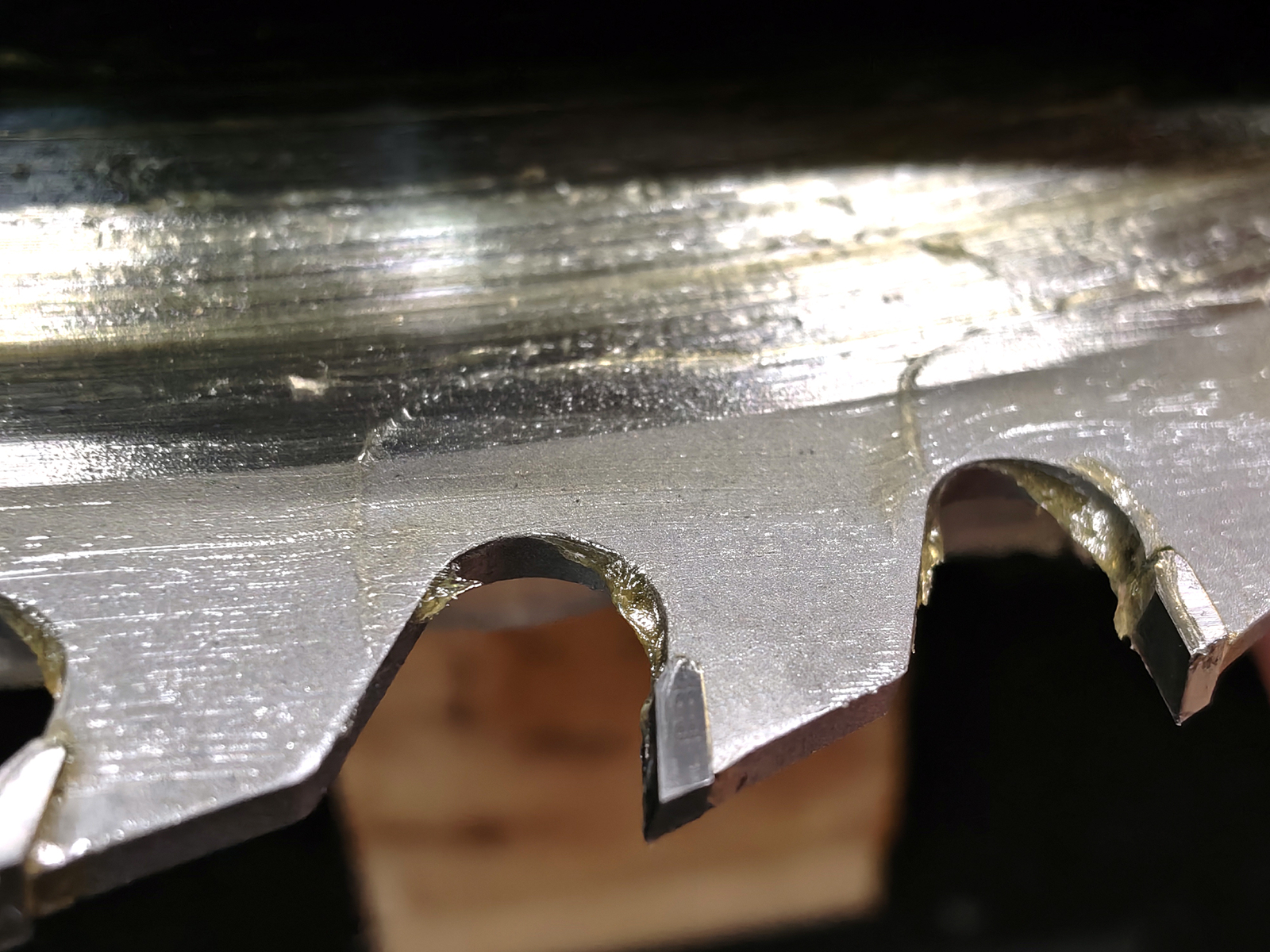

- 60 teeth per disc with tungsten carbide tips (TCT)
- High-strength carbon steel discs
- Hardened alloy cutting heads
- Central bore Ø 30 mm
- Disc thickness 2.5 mm
- Teeth thickness 3.2 mm

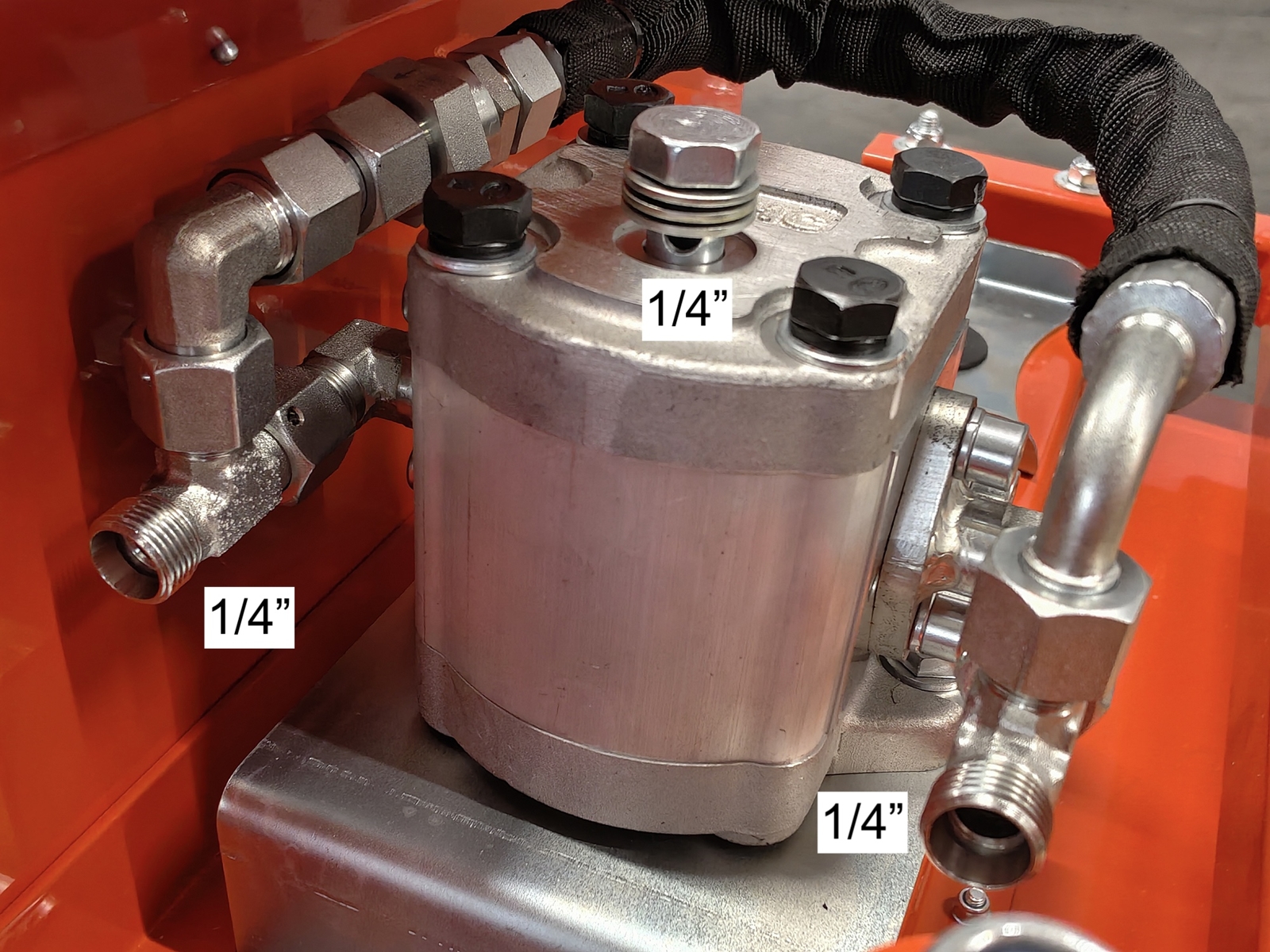

- Bidirectional orbital hydraulic motor with drain line
- Motor displacement: 12 cc/rev
- Oil flow rate: 12 L/min
- Operating pressure: 80–120 bar
- Rotation speed: 500–2800 rpm
- Transmission with 2 XPA907 belts
Advantages:
- Fast and precise cutting
- High wear resistance
- Ideal for professional green maintenance
- Reduced vibrations and smooth operation
- Suitable for intensive use on dense and woody vegetation
Technical notes:
The operating machine must be equipped with a hydraulic circuit featuring a free oil return line. In case of excessive flow rate, the oil must be able to return directly to the tank return line, preventing overpressure and ensuring correct operation of the hydraulic motor.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1000.0 mm |
| Overall width | 1000.0 mm |
| Weight | 60.0 kg |
| Maximum cutting diameter | 90.0 mm |
| Min./Max. Relief Pressure | 80 - 120 bar |
| Min./Max. Flow | 12 l/min |
| Packing sizes | 1080*540*460 mm |
