DETAILS

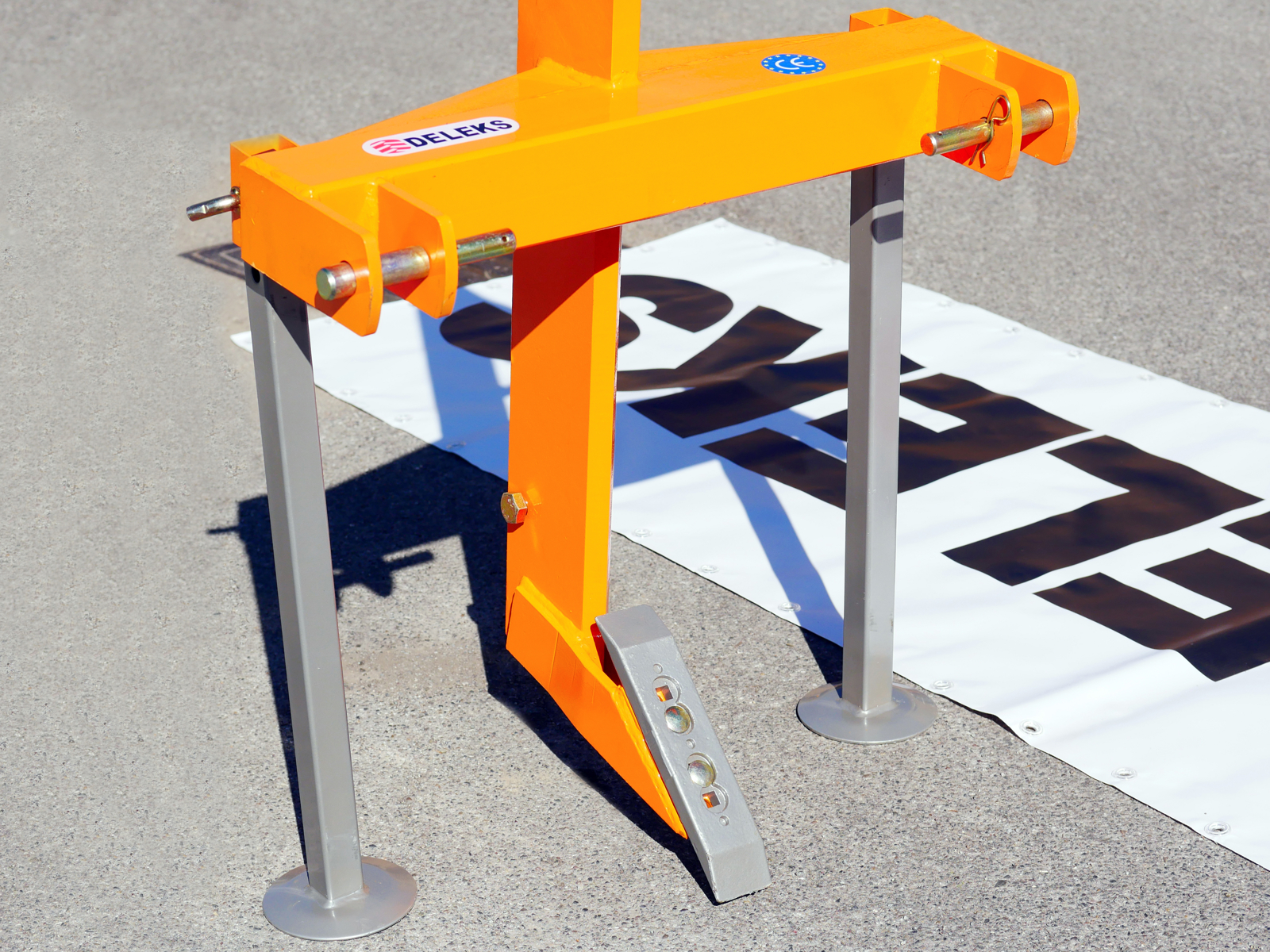

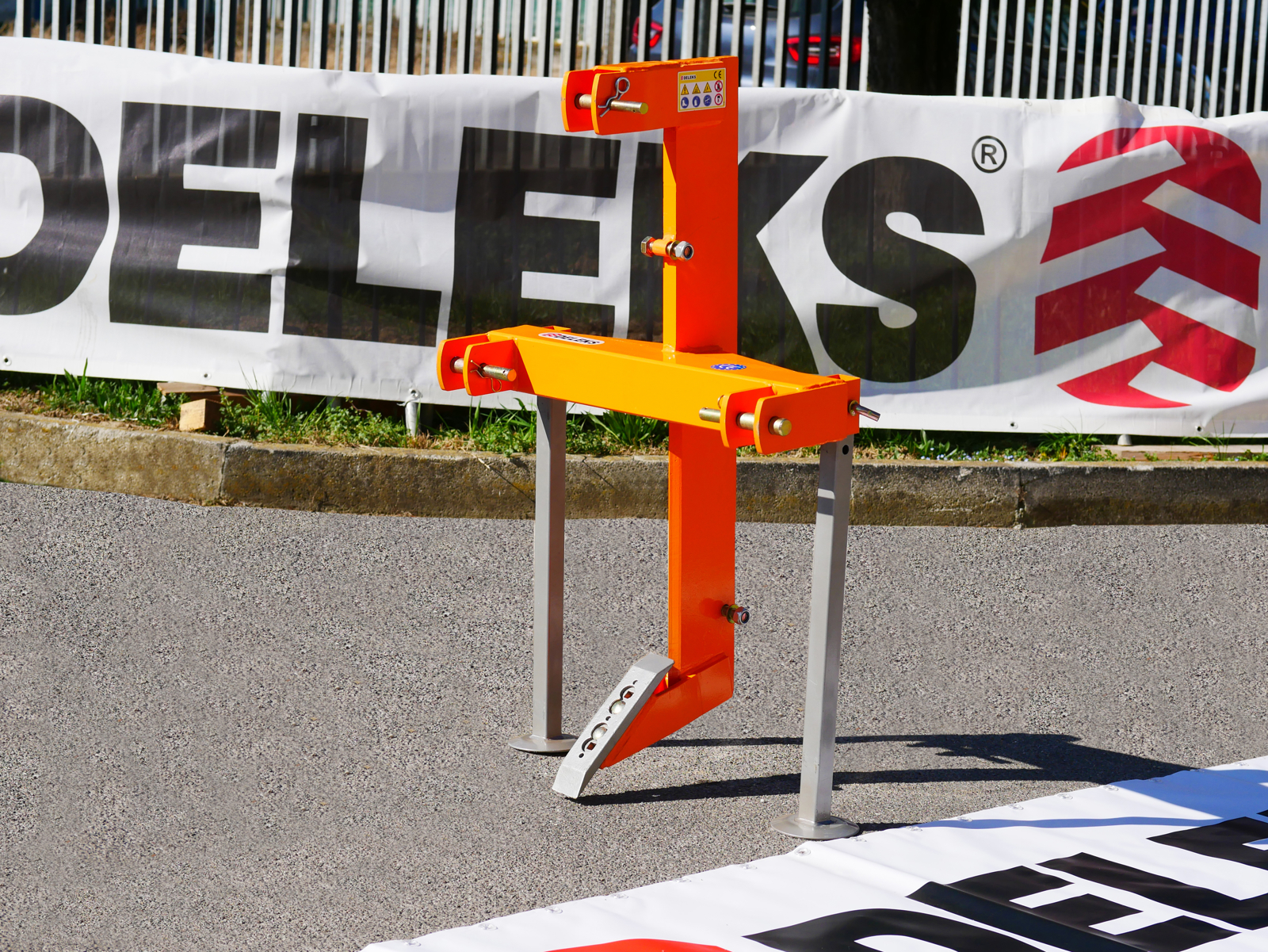

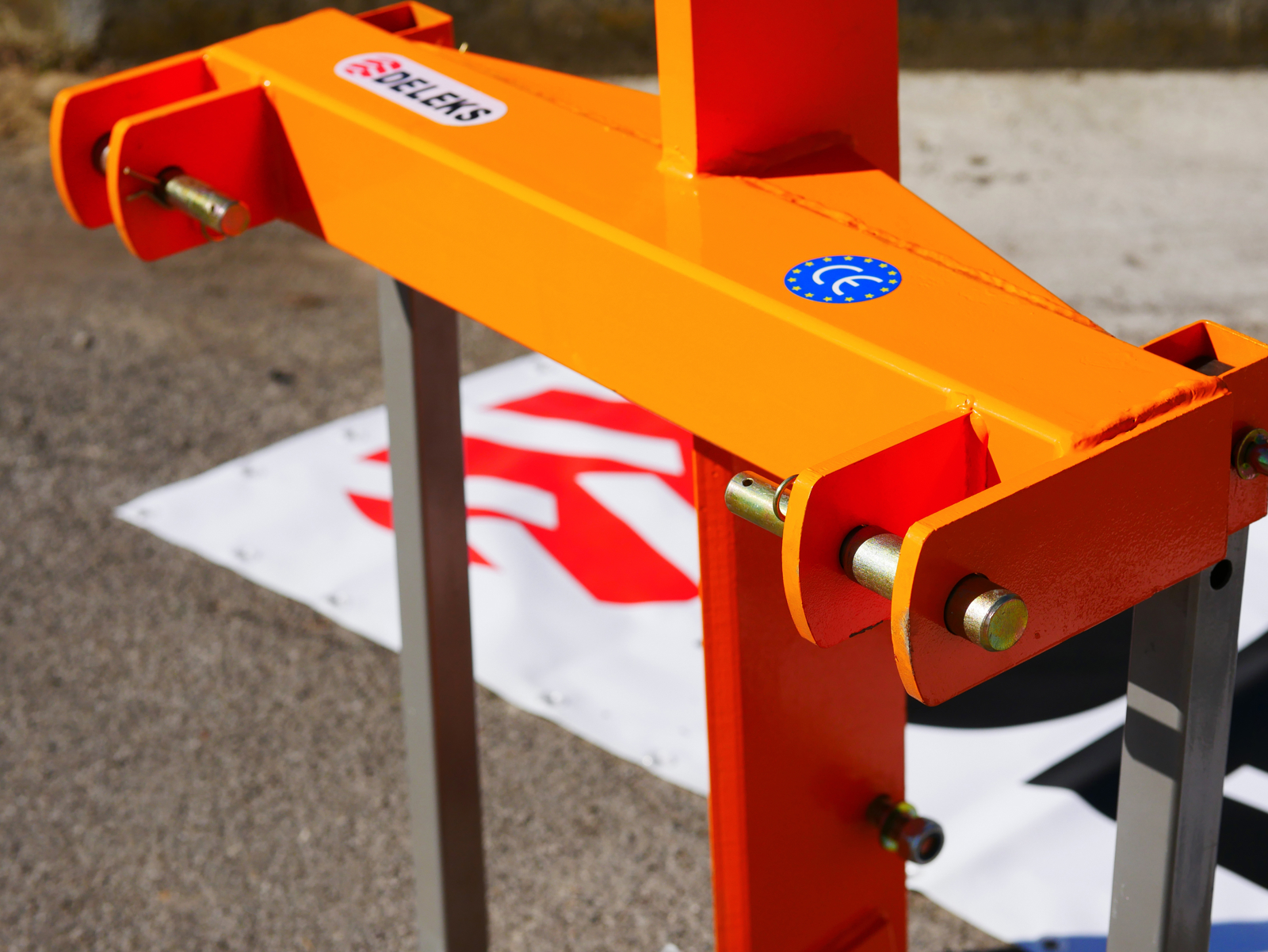

Single tine ripper for tractors like New Holland, John Deere - DELEKS® - Reversible cutting tooth that is easily replaced.
OVERVIEW

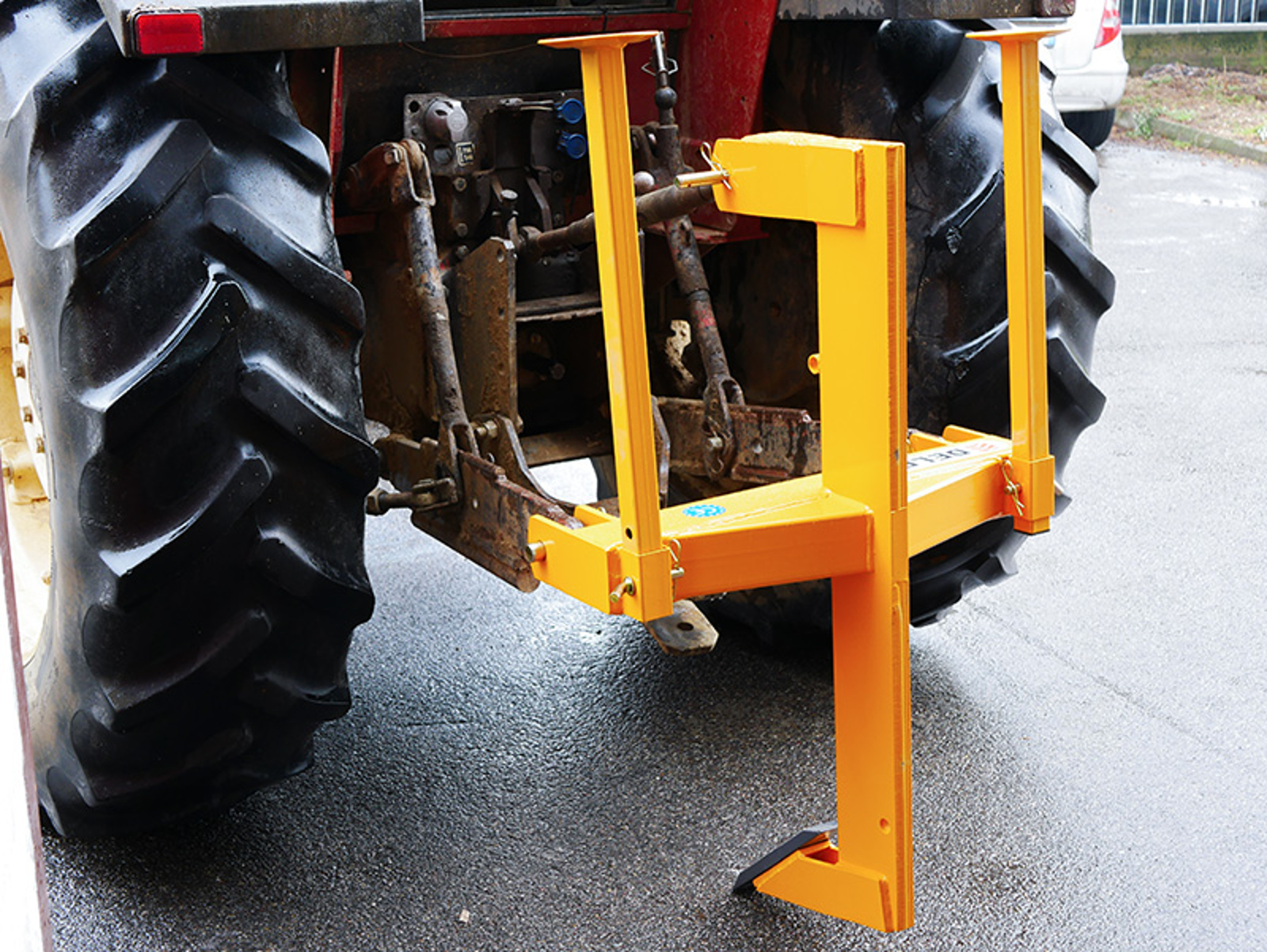

DR-60 single tine ripper can be used for preparing soil for crops and lawns or even for removing tree stumps. Recommended for tractors up to 30-60 hp e.g. New Holland T3000, John Deere 3-4, McCormick, Lamborghini R, Same Solaris, Kubota L, McCormick, FIAT, Ford, etc.

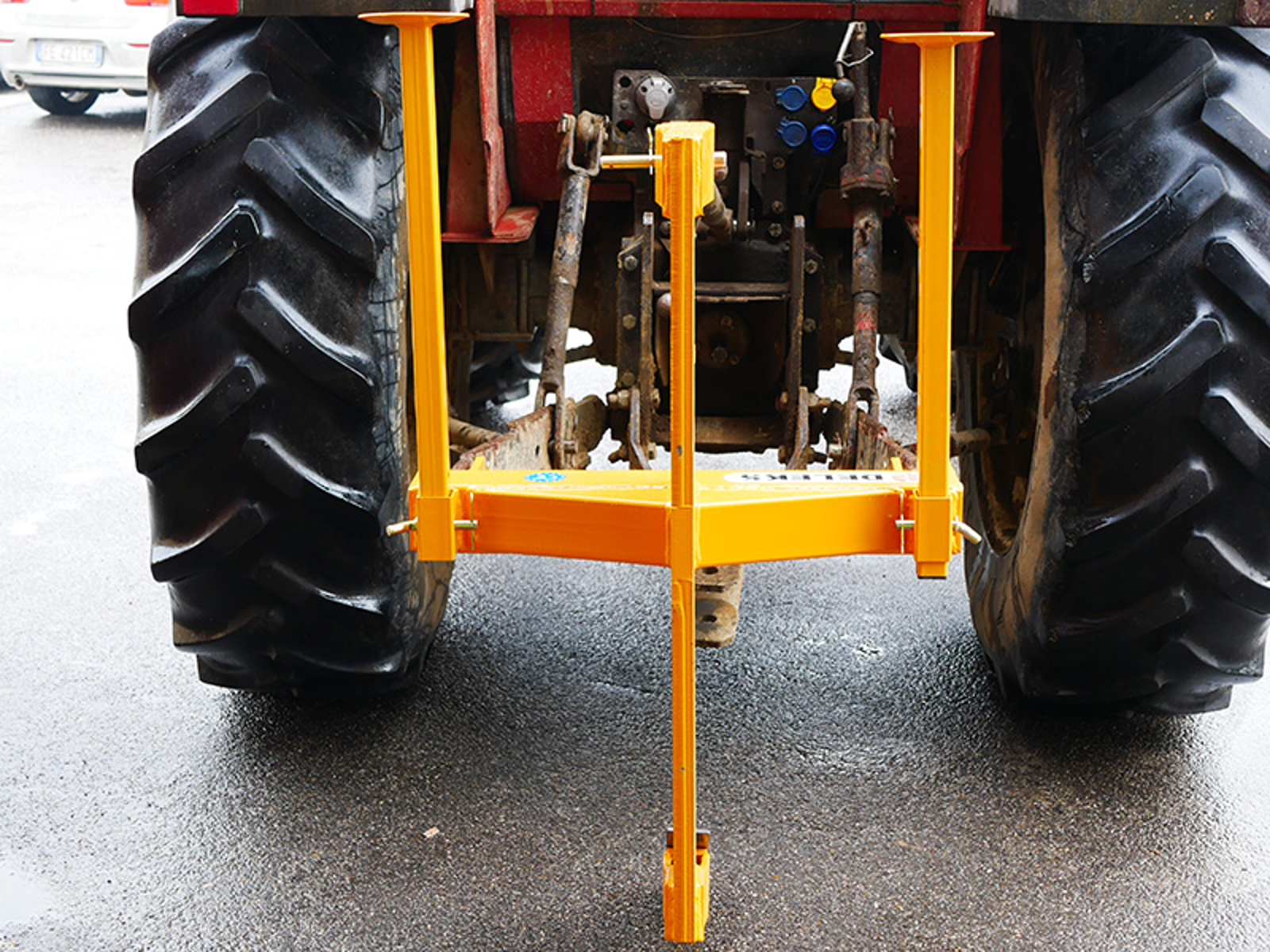

Universal 3 point linkage Cat.1-2. EC Declaration of Conformity.
Not suitable for crawler tractors.
BENEFITS & FEATURES

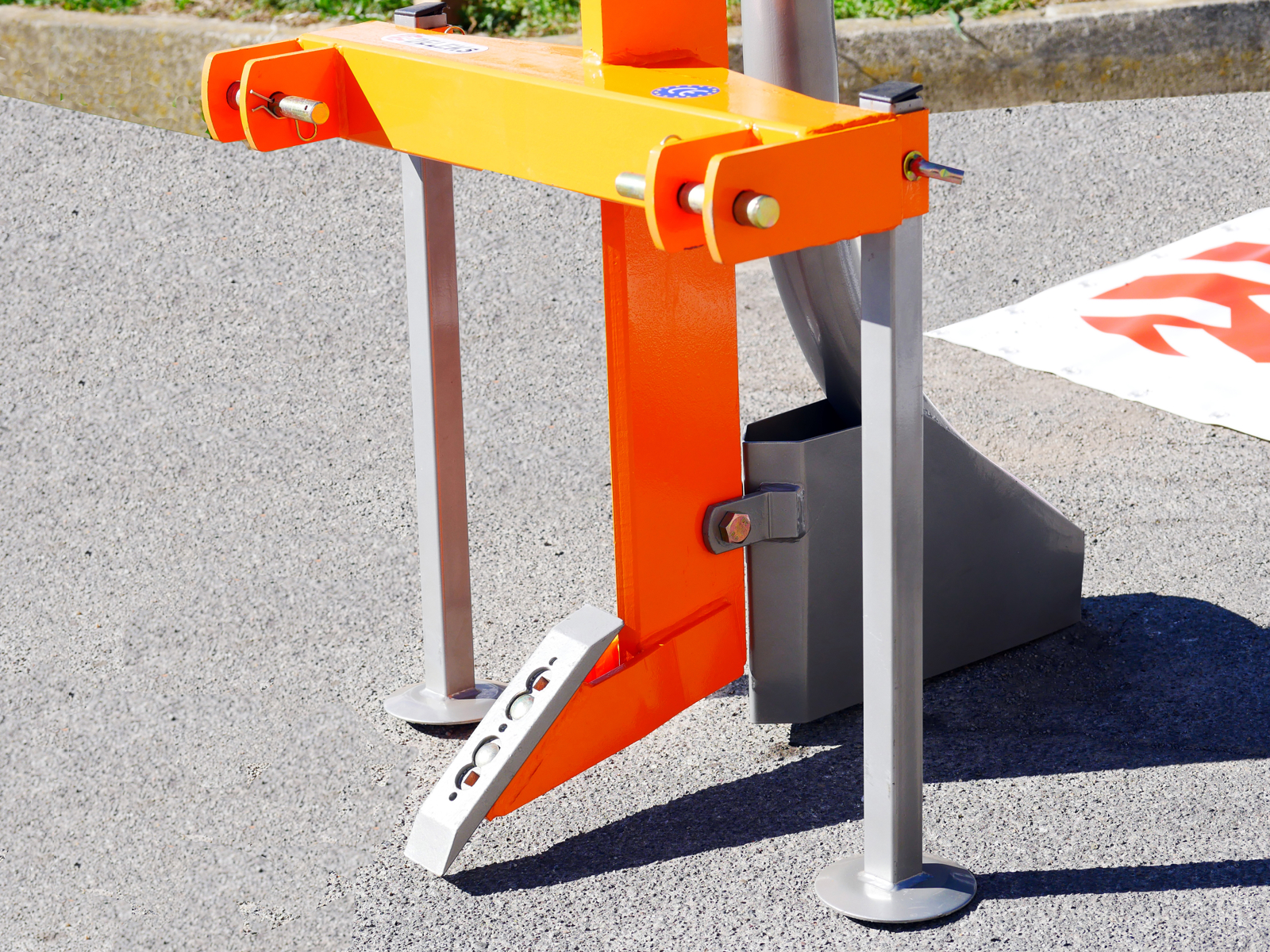

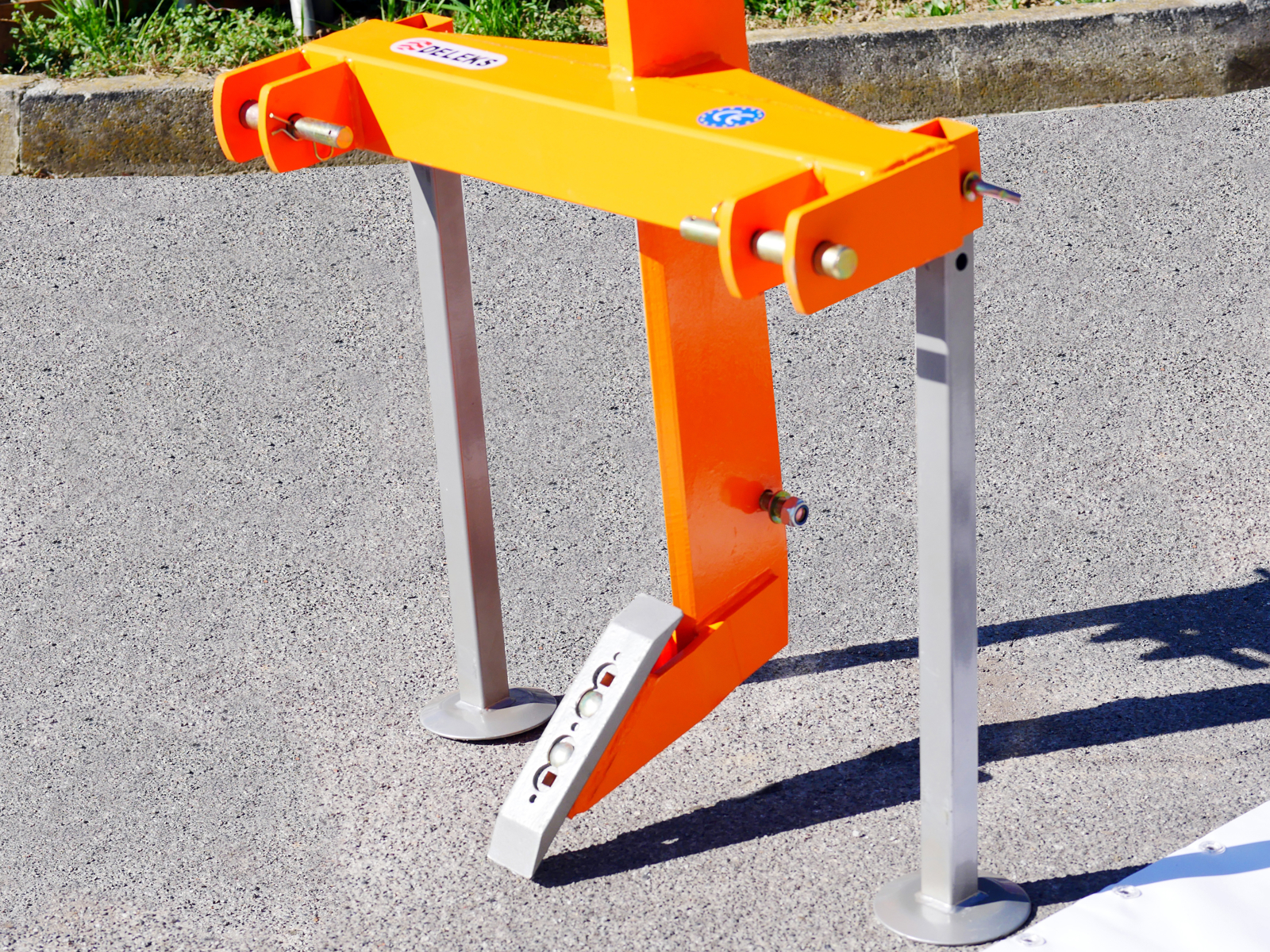

Reversible cutting tooth that is easily replaced.
Extremely strong and height adjustable tines.

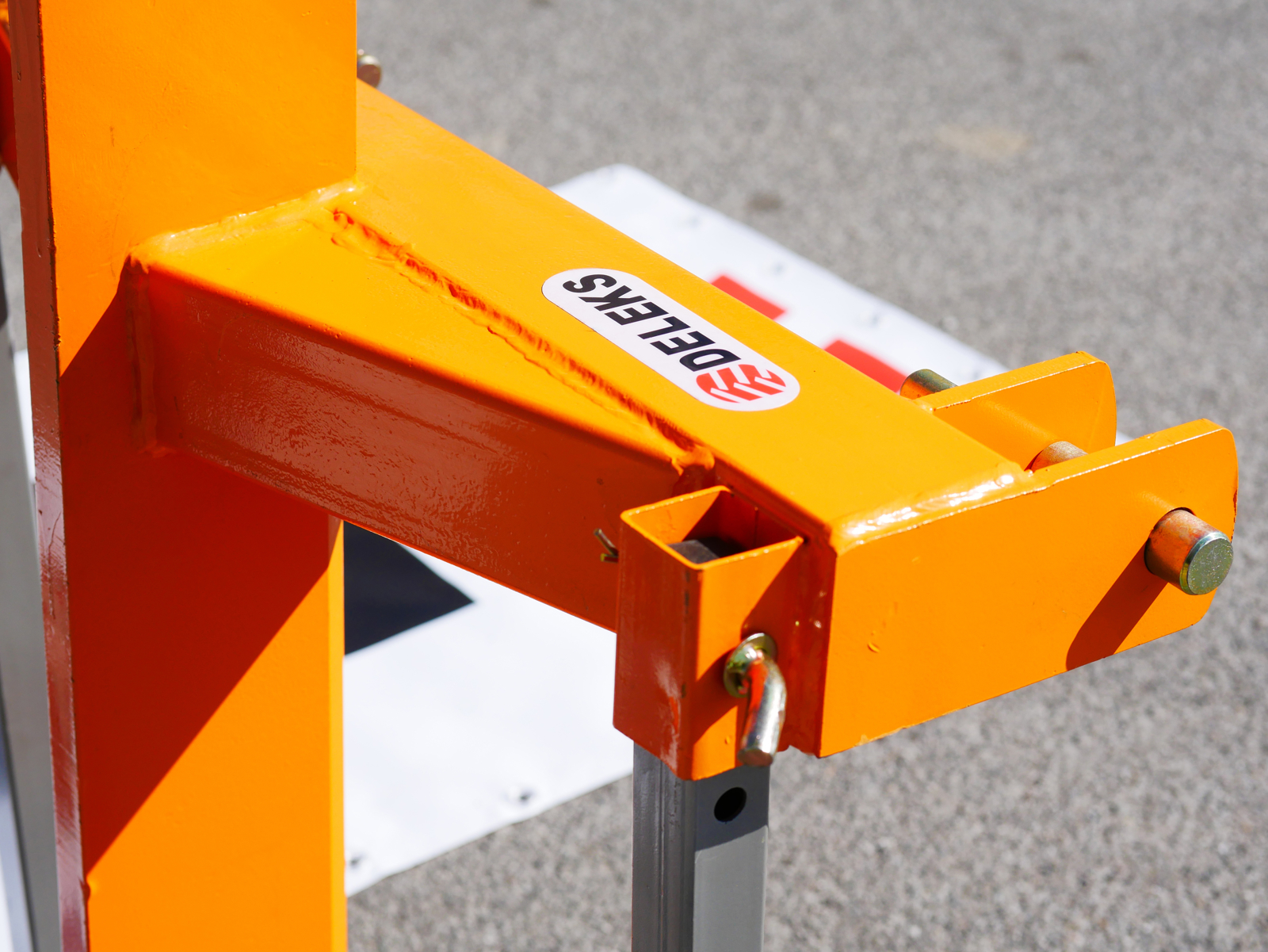

Reinforced steel framing for longer life.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 800.0 mm |
| Weight | 90.0 kg |
| Overall height | 1200.0 mm |
| Tractor Power Range | 30 - 60 Hp |

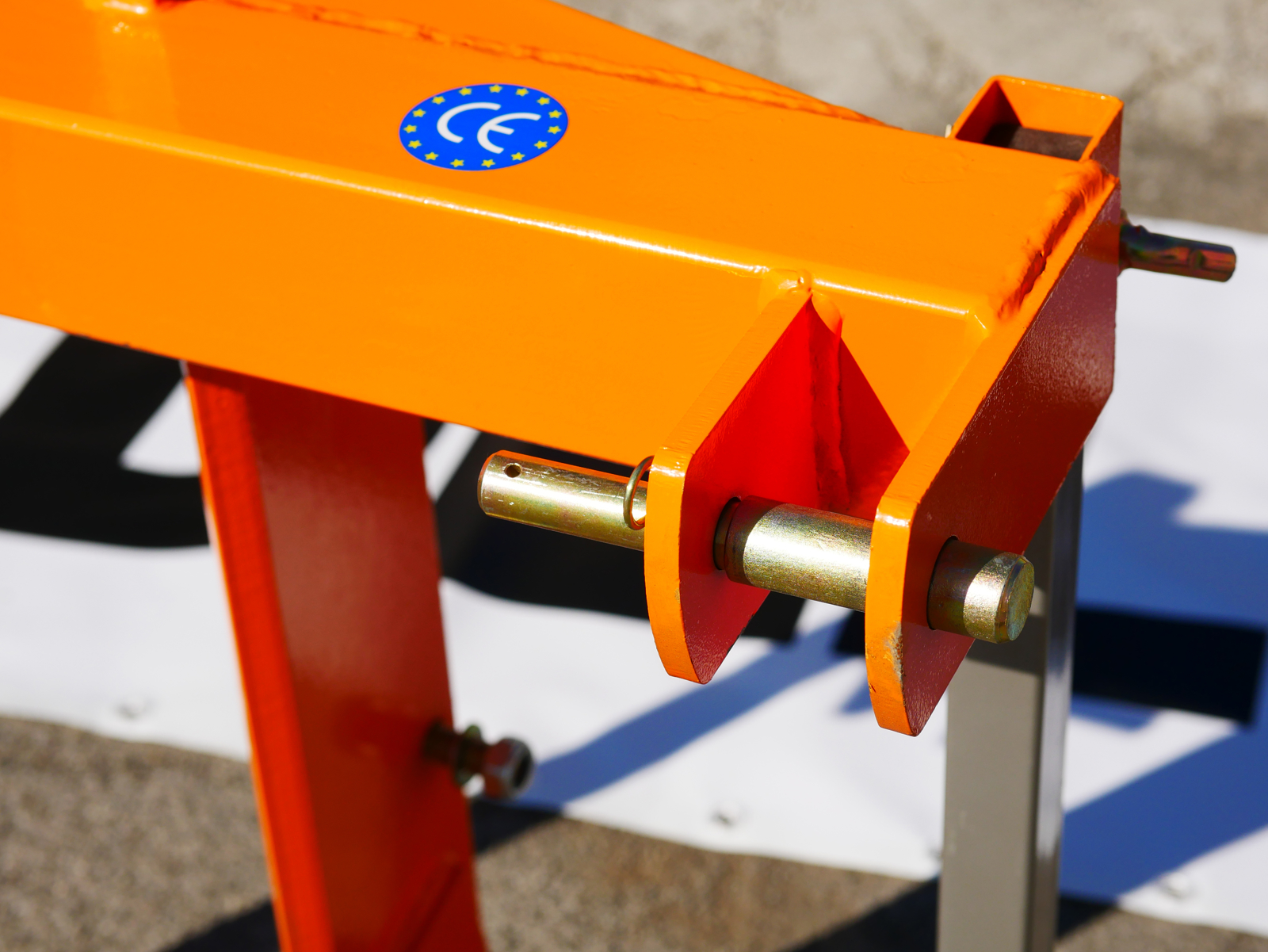

| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 645.0 - 760.0 mm |

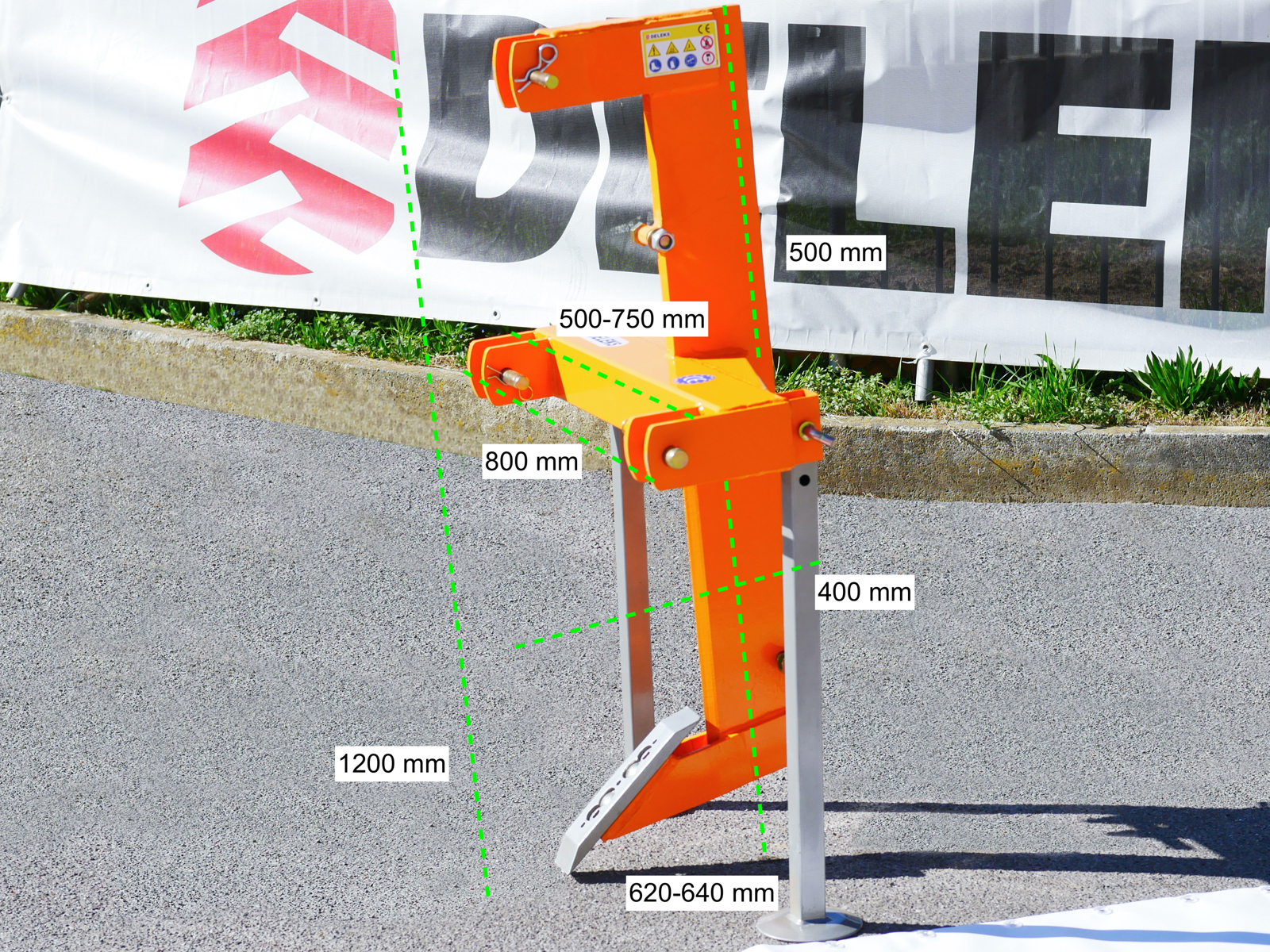

| Other sizes | See pictures |

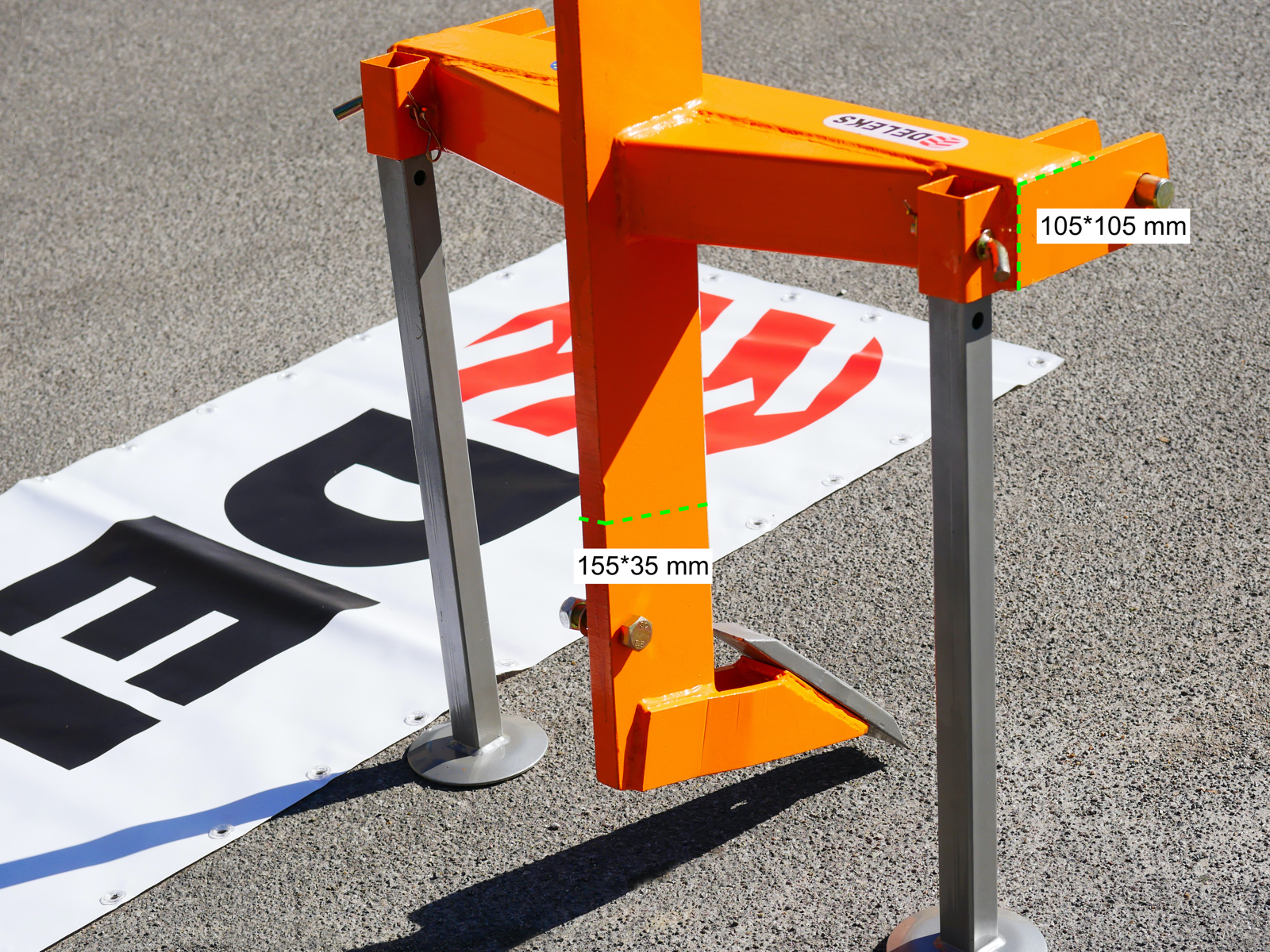

| Thickness of the arm | 30.0*150.0 mm |
| Shank width | 150.0 mm |

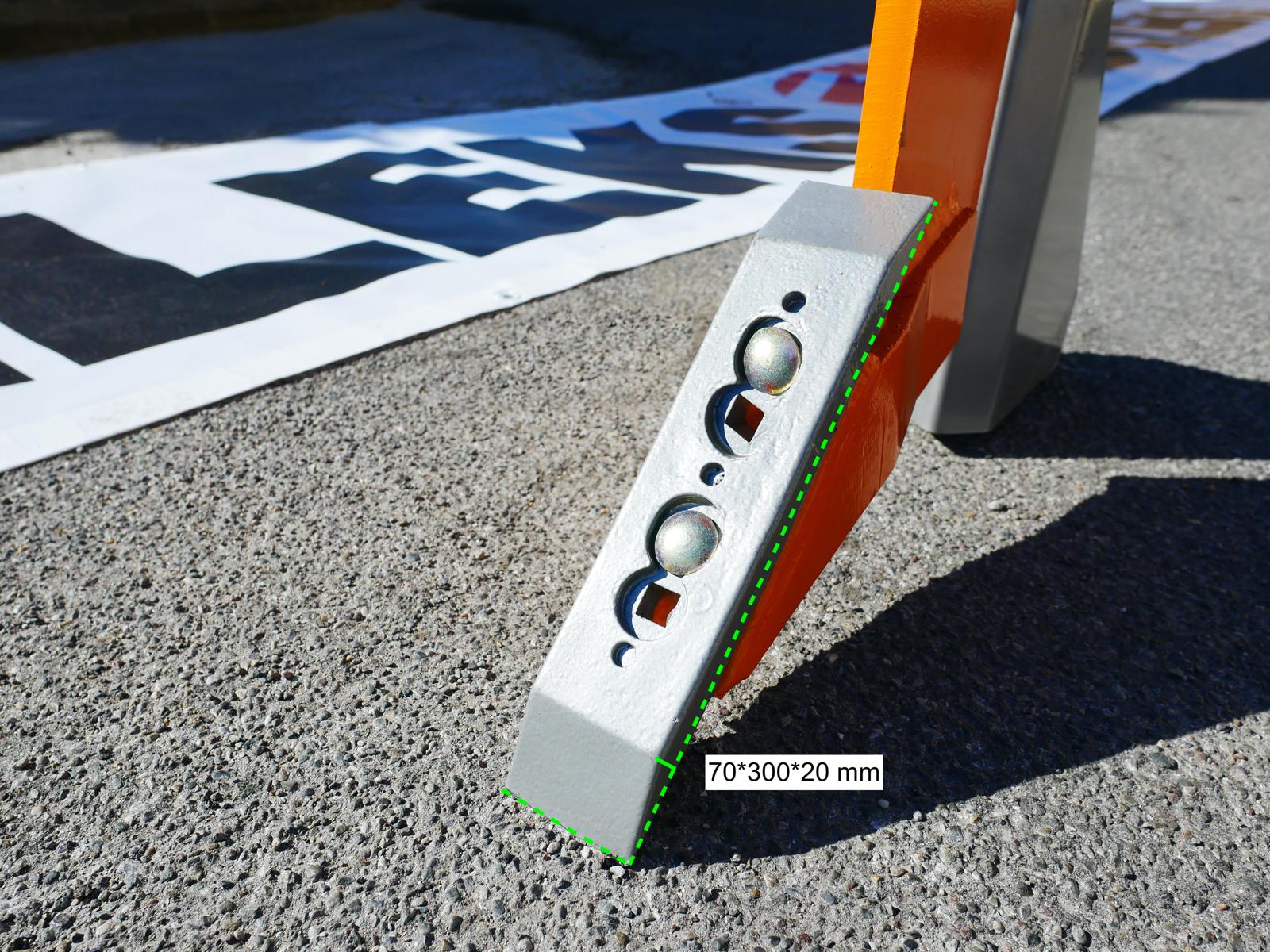

| Removable blade Thickness | 20.0 mm |
| Removable blade Width | 70.0 mm |
| Removable blade Length | 300.0 mm |

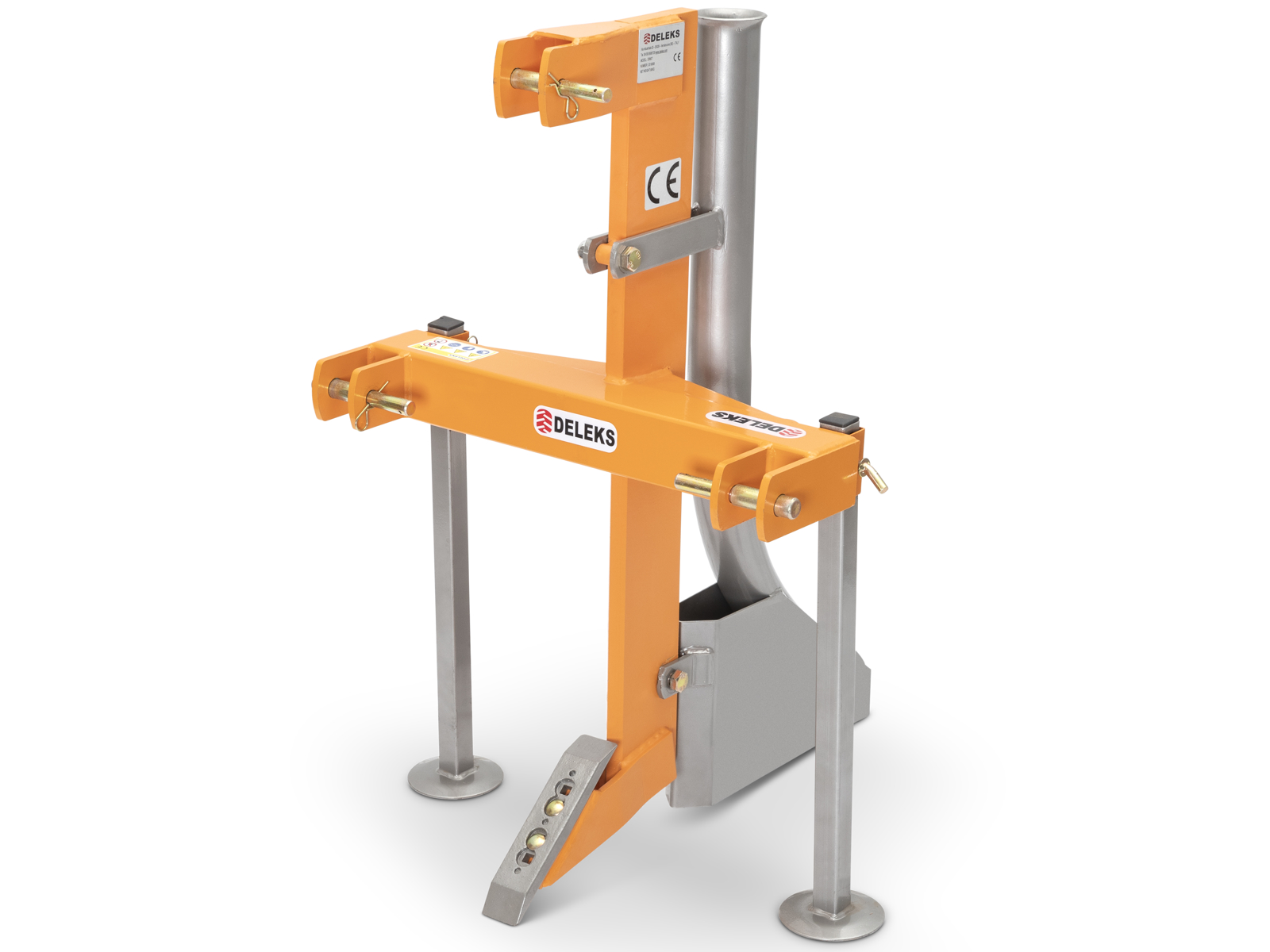

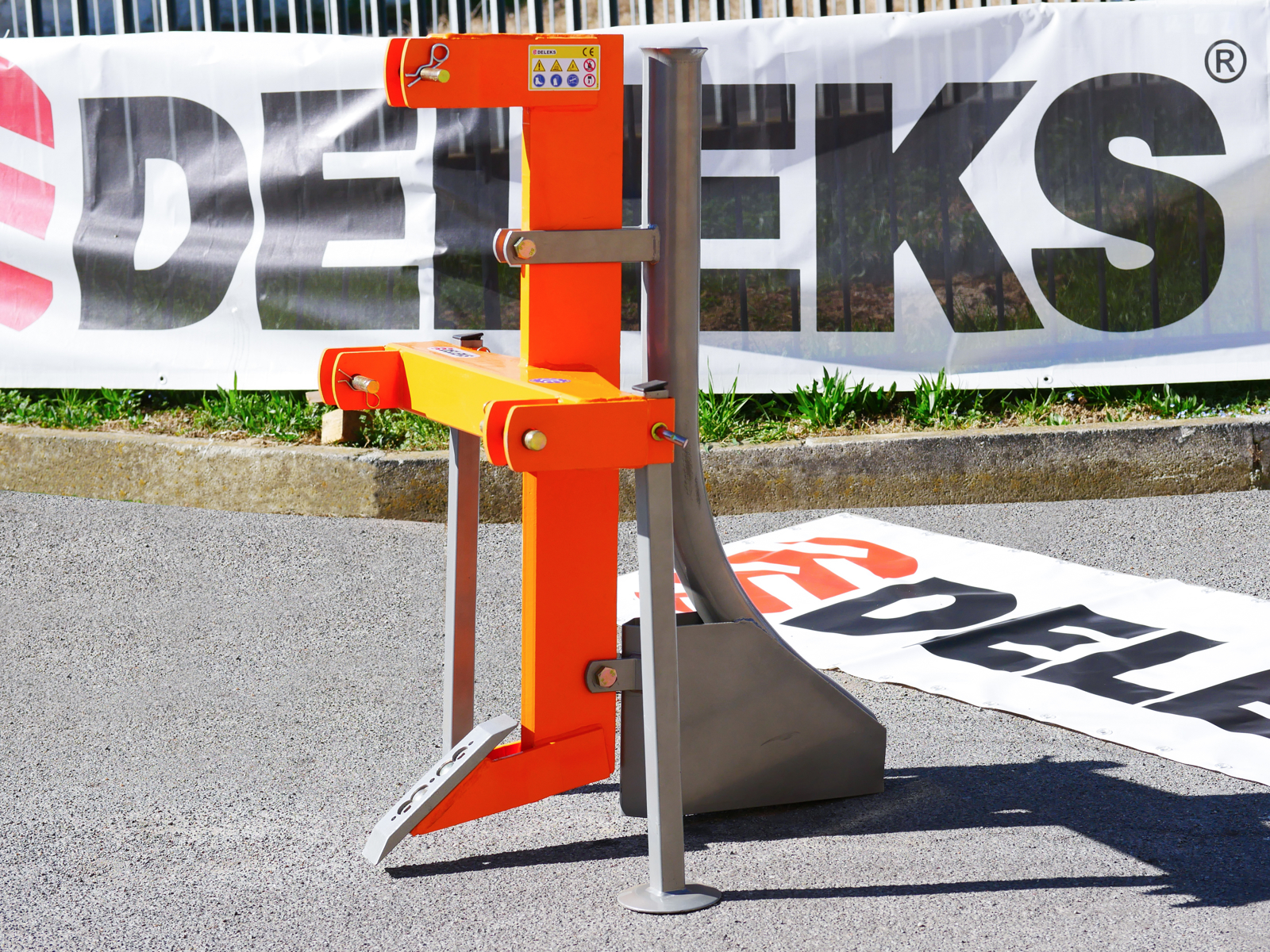

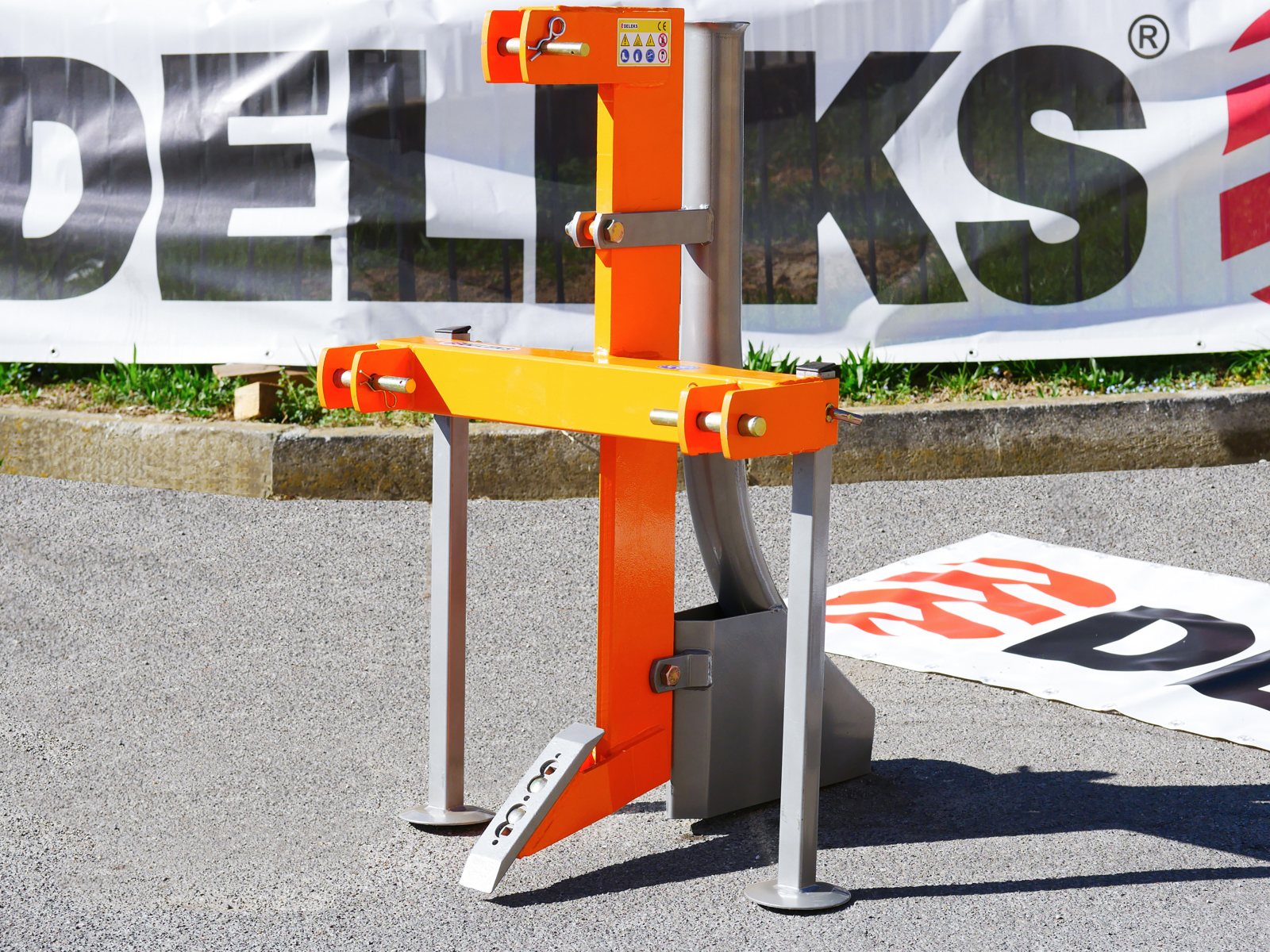

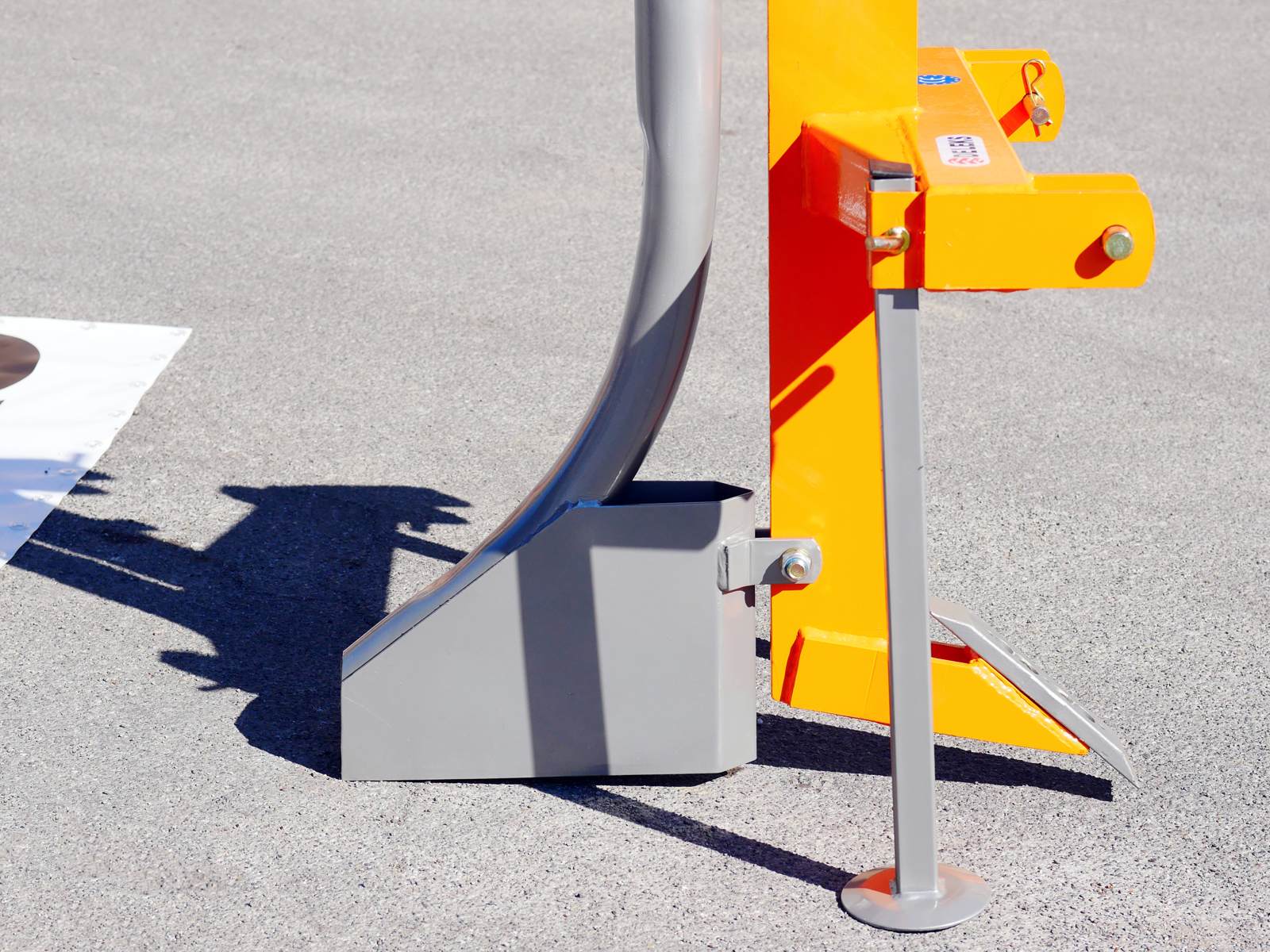

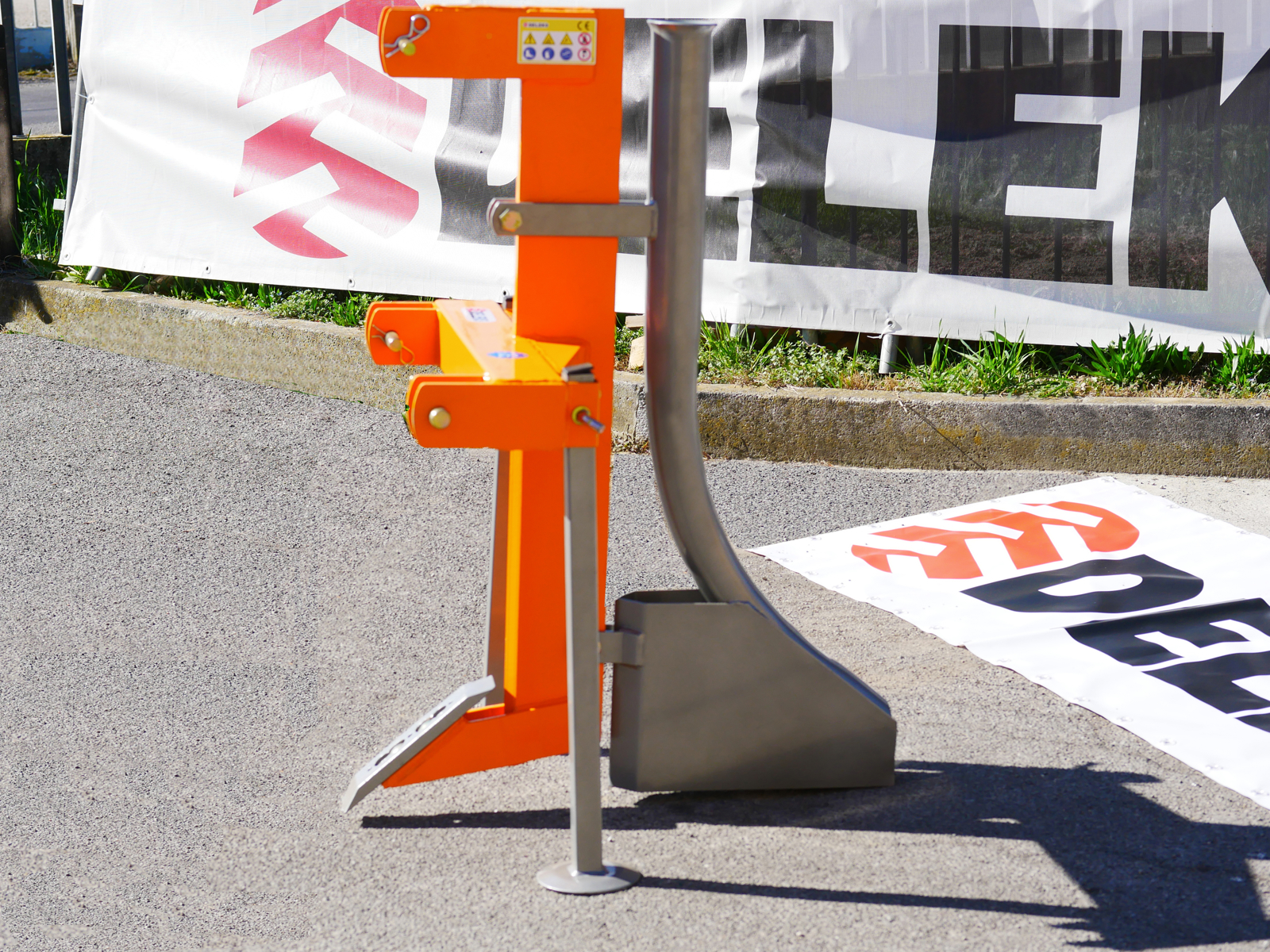

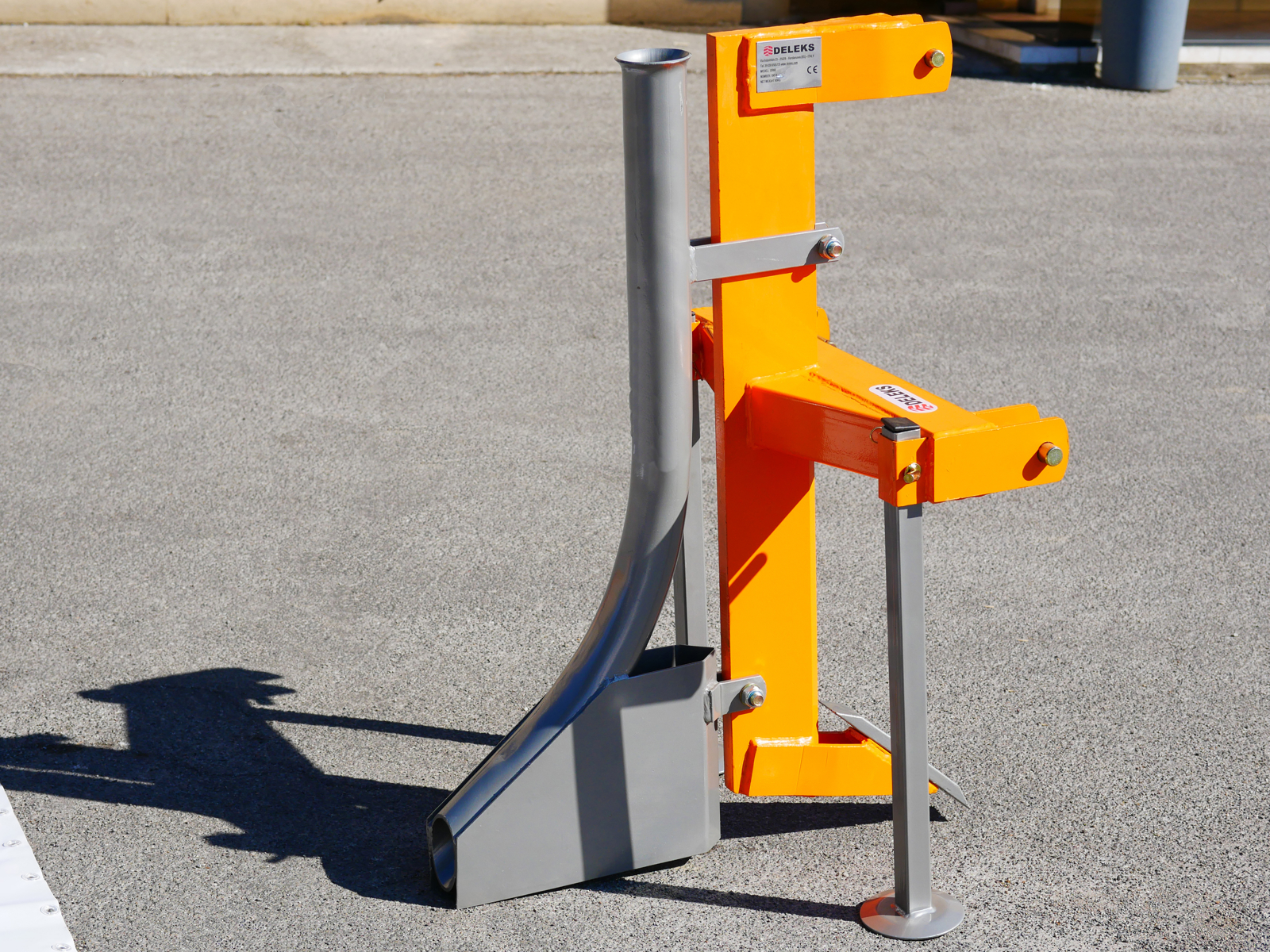

| Pipe Layer: weight | 15.0 kg |

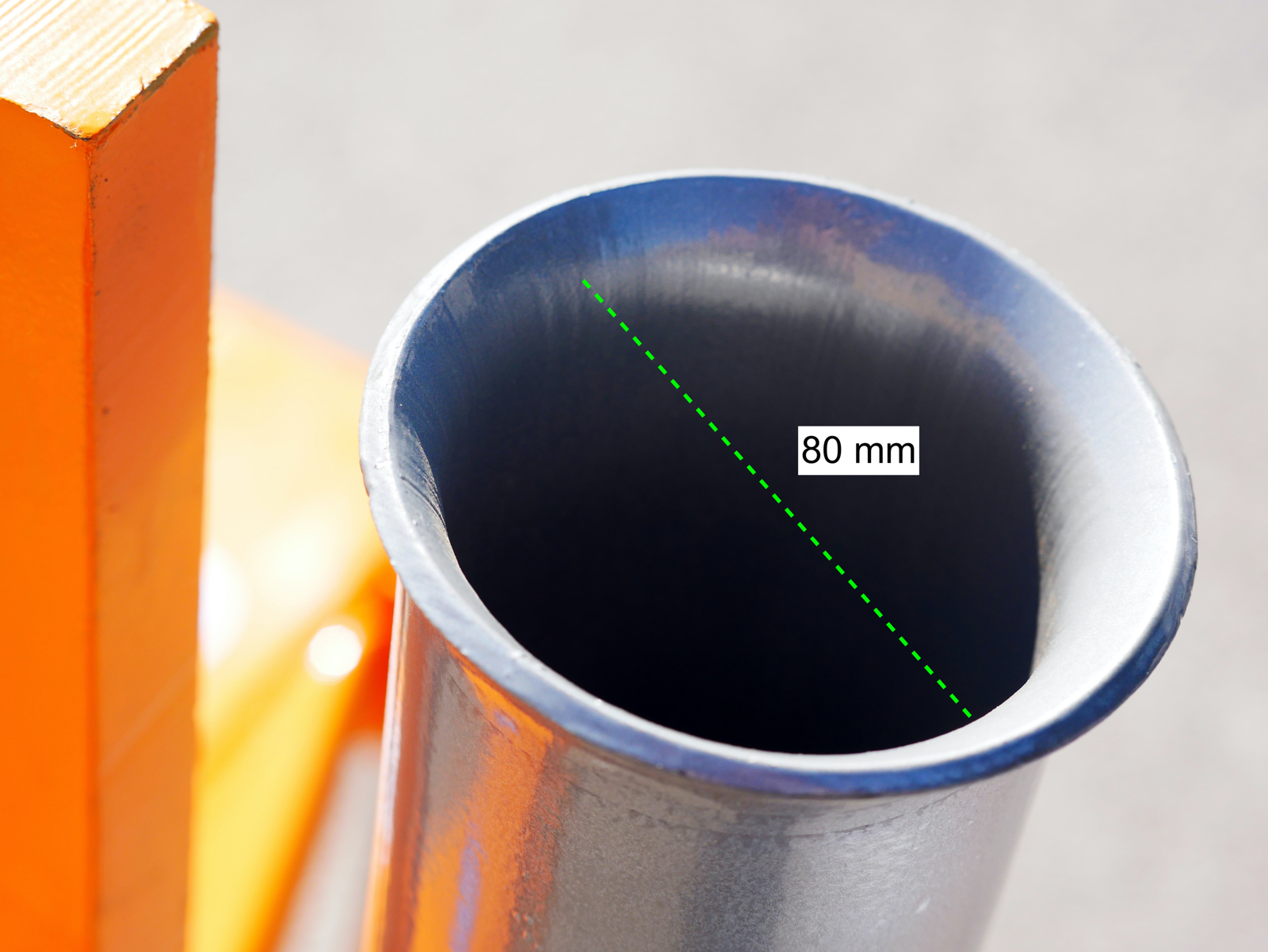

| Pipe Layer: ø | 80.0 mm |
| Working Depth | 600.0 mm |
| Packing sizes | 1200.0*850.0*500.0 mm |
