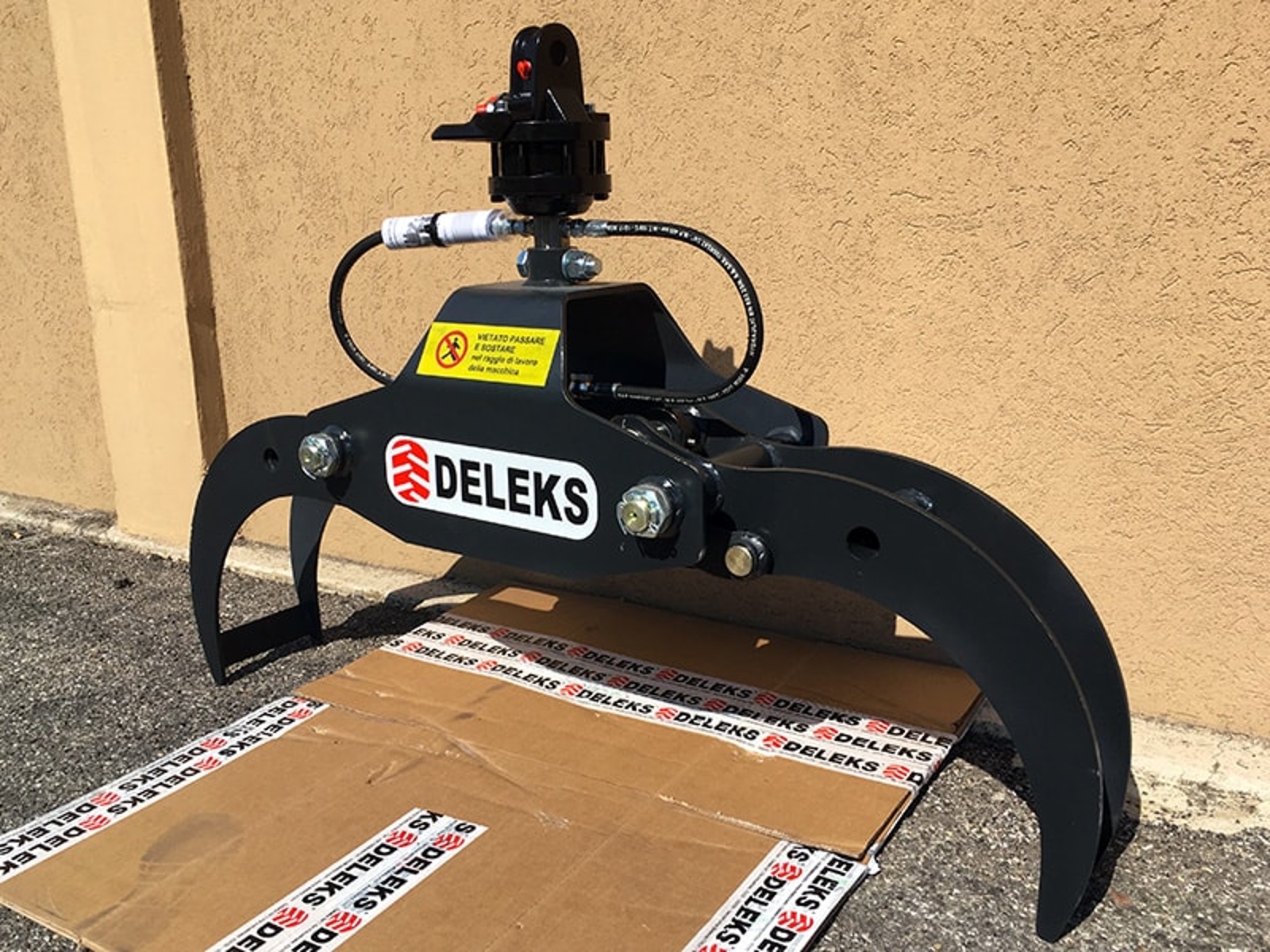

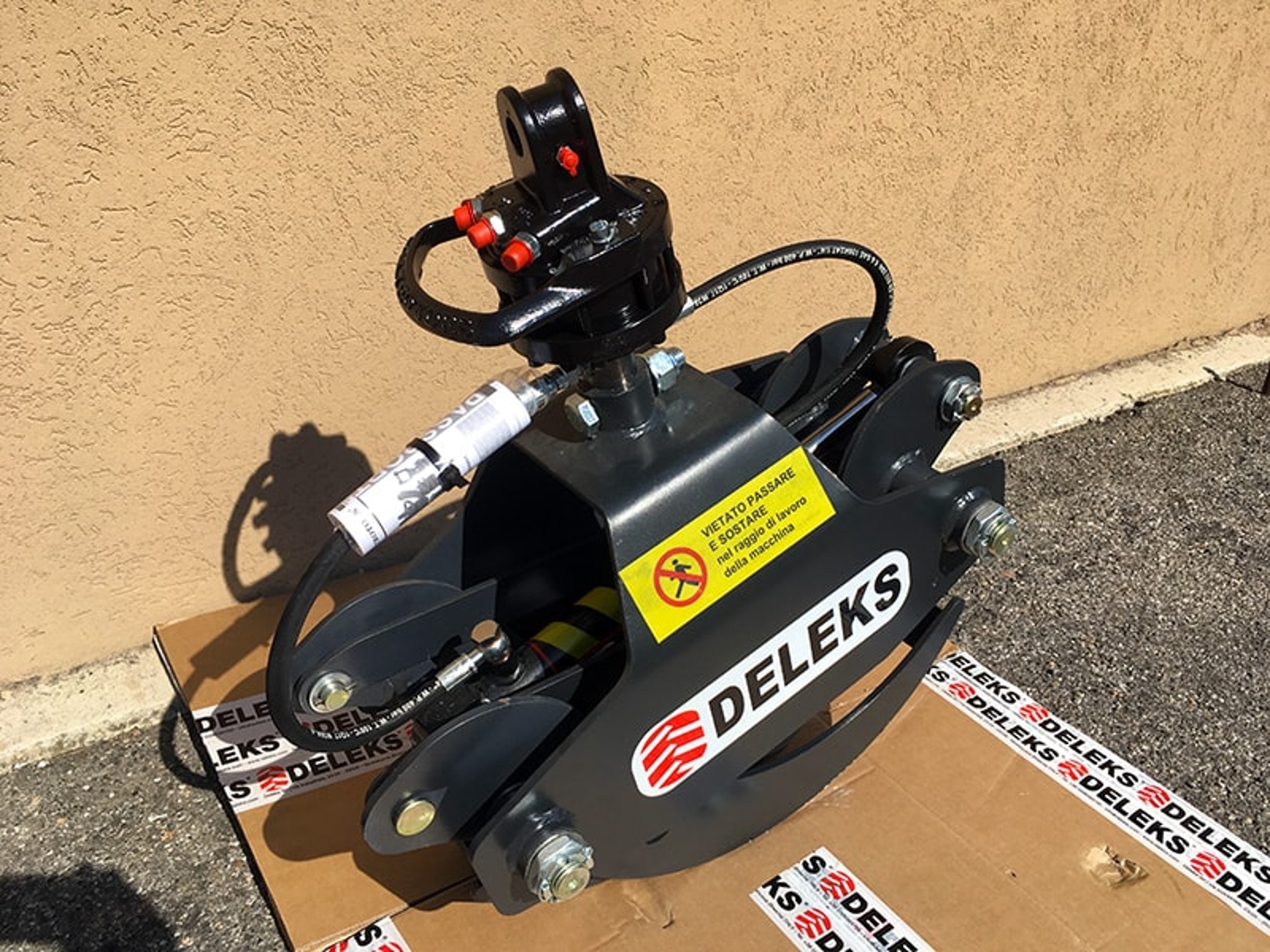

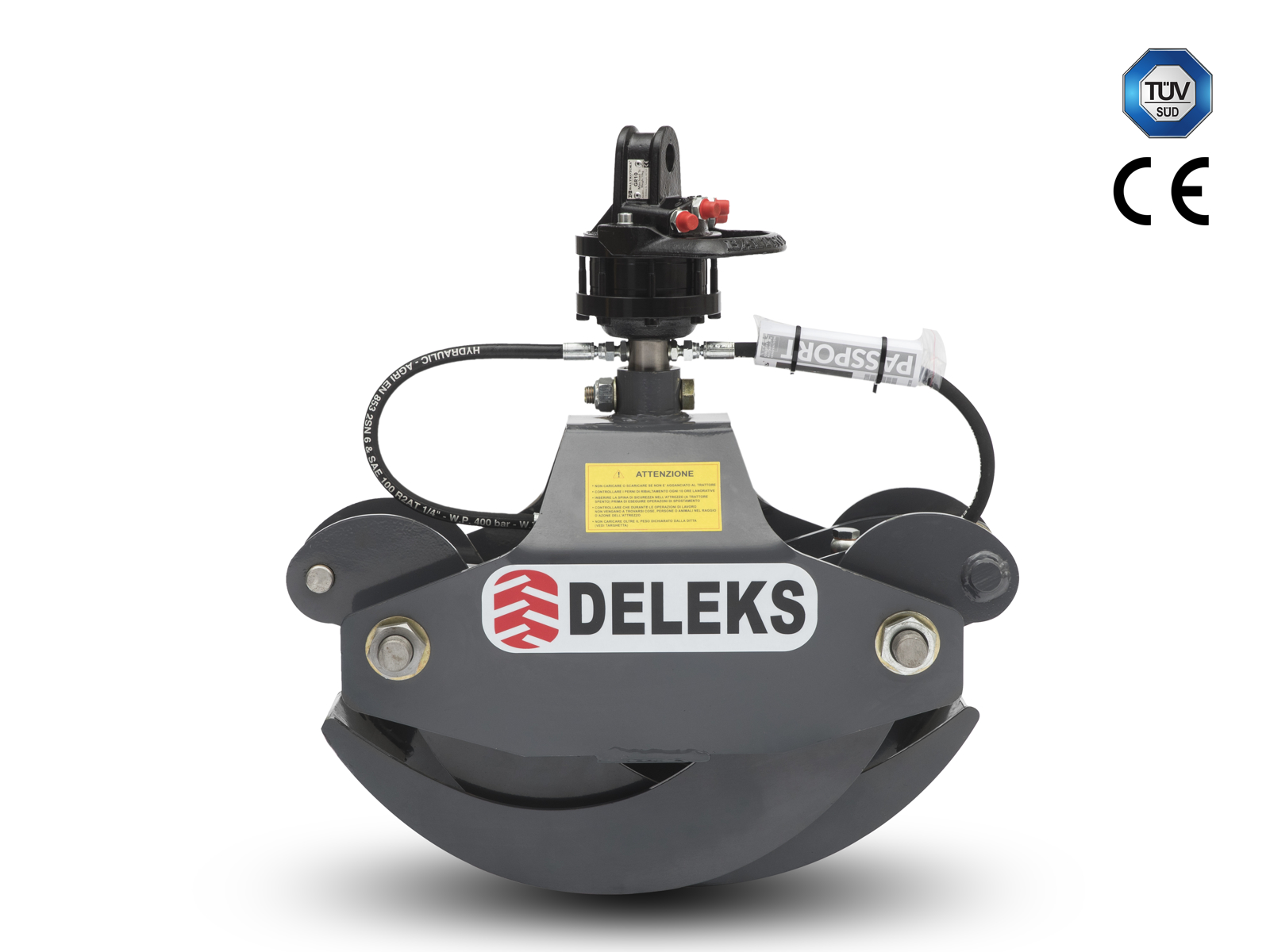

Log grapple with rotator for mini excavators and forest cranes DK-10 + GR-10

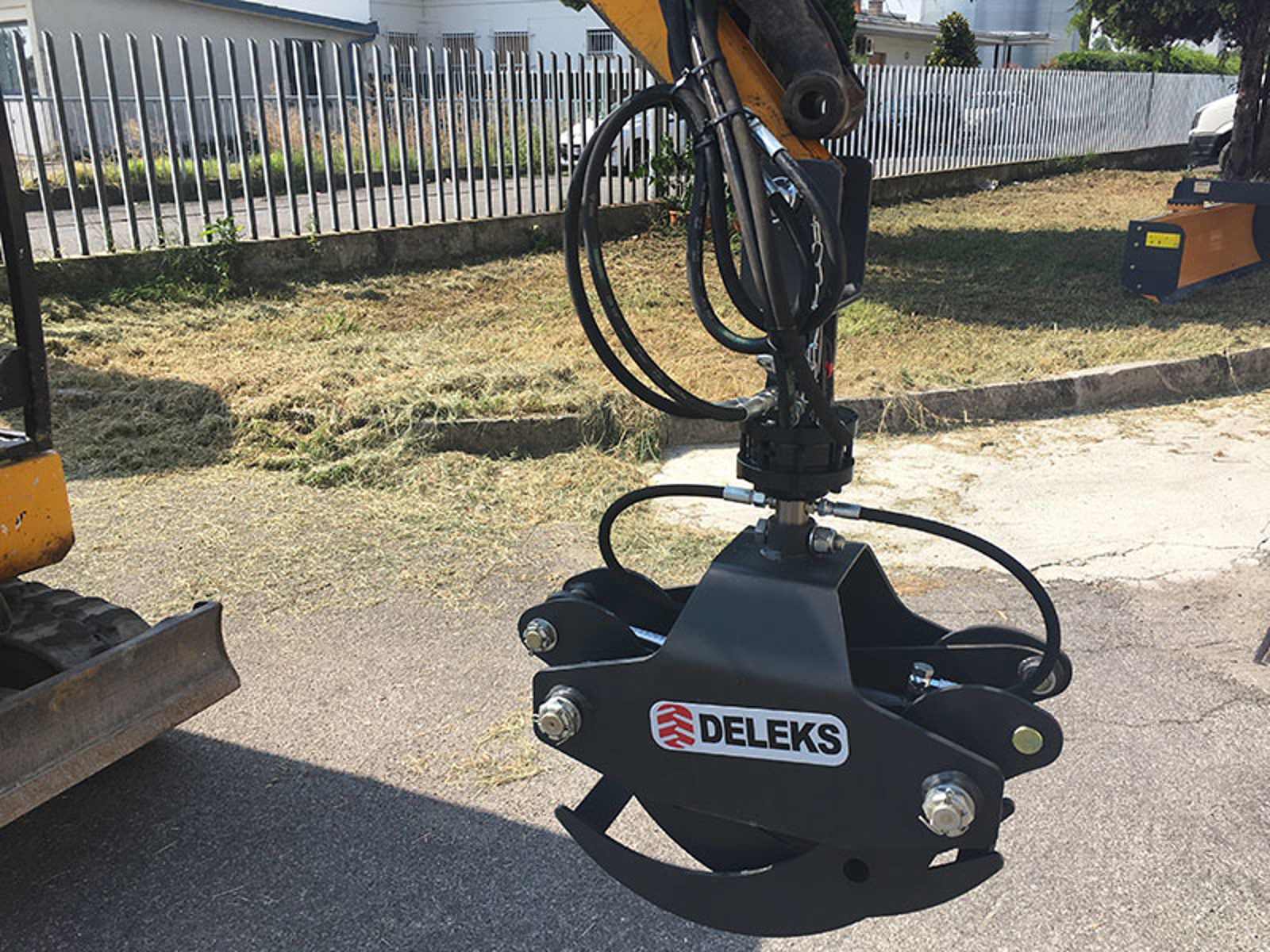

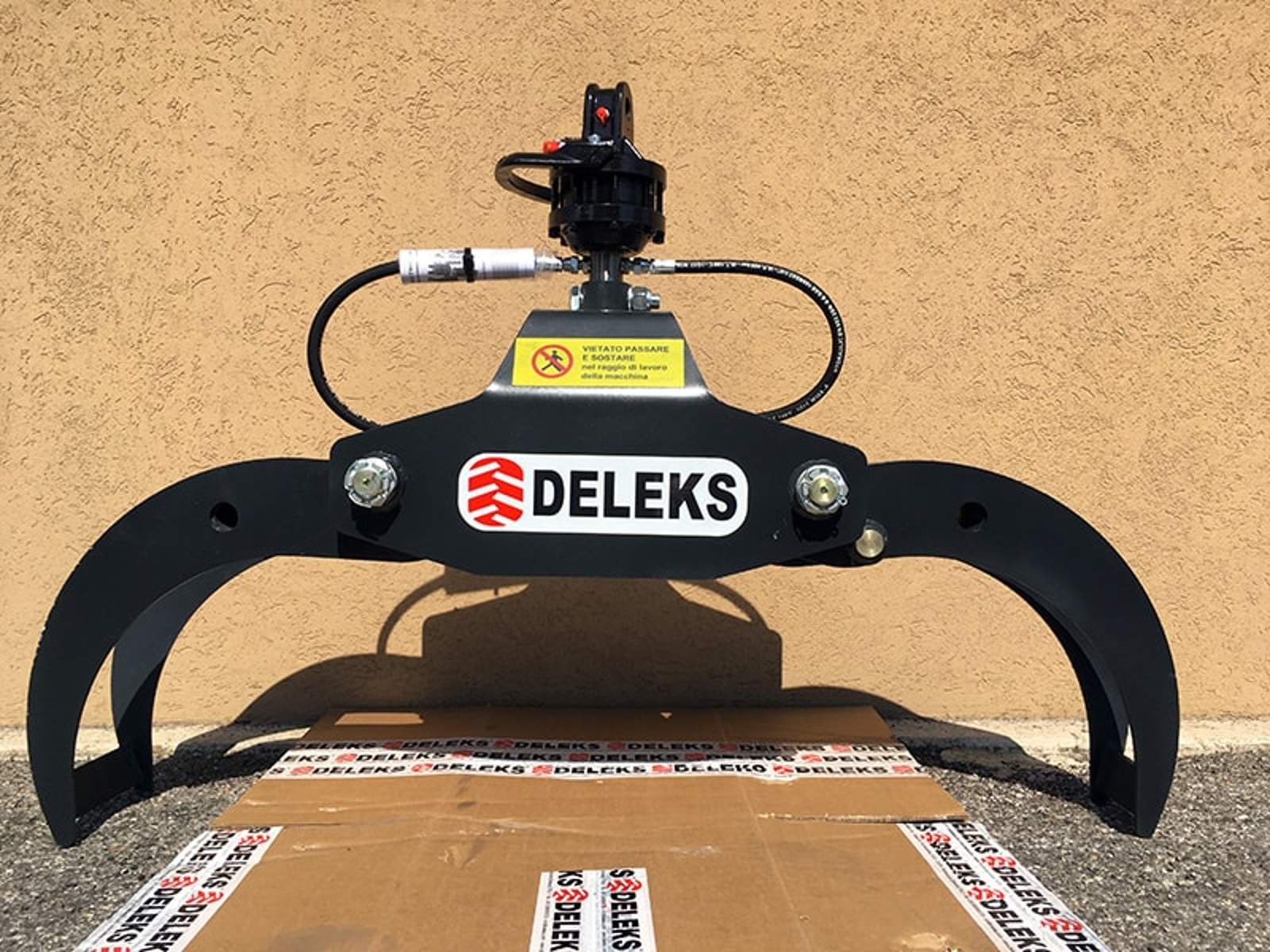

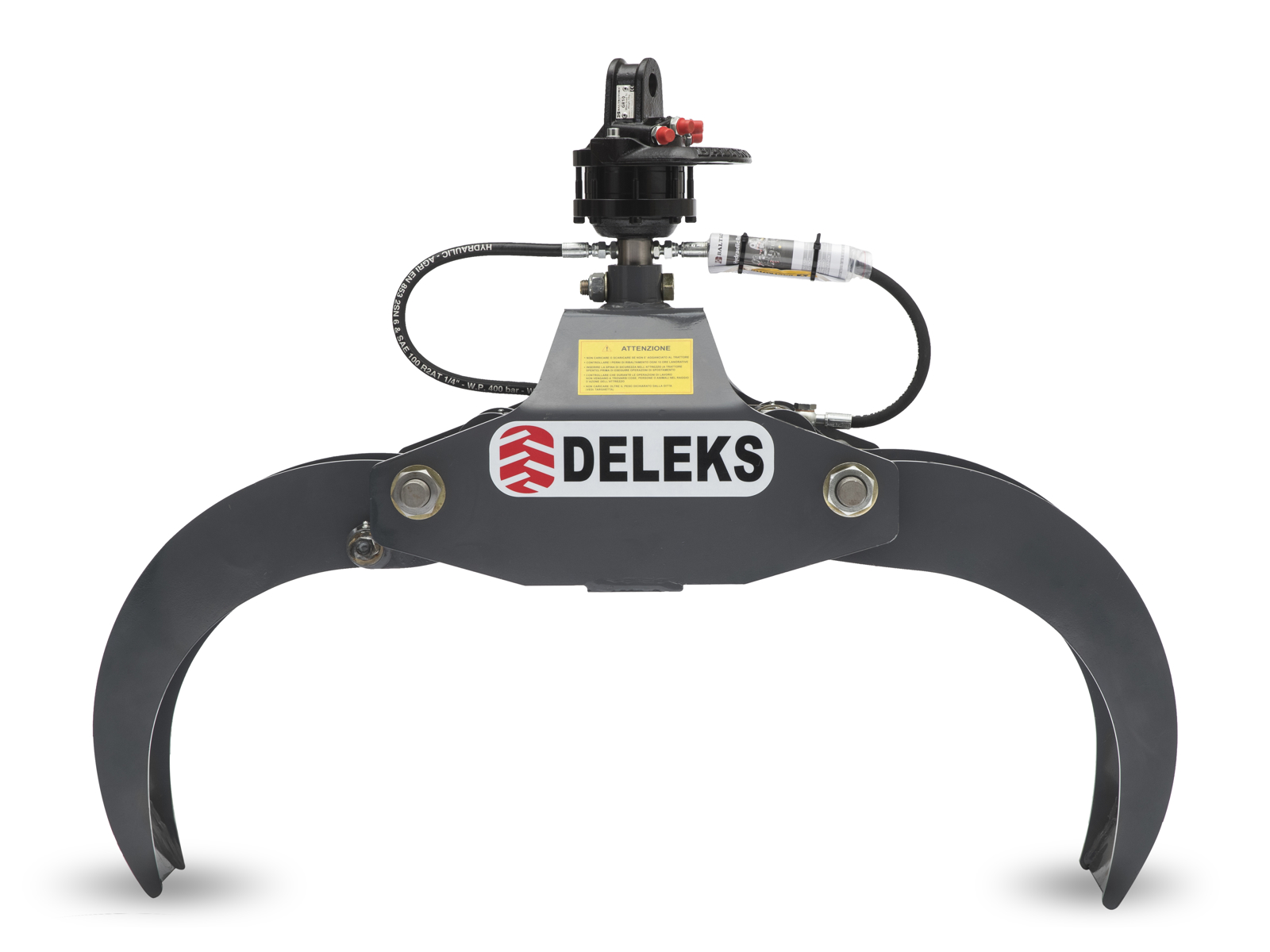

Log Grapple for Mini Diggers and Forest Cranes 1.5 – 2.5 Ton DELEKS^® DK-10 + Lombarda Ingranaggi Rotator.

OVERVIEW

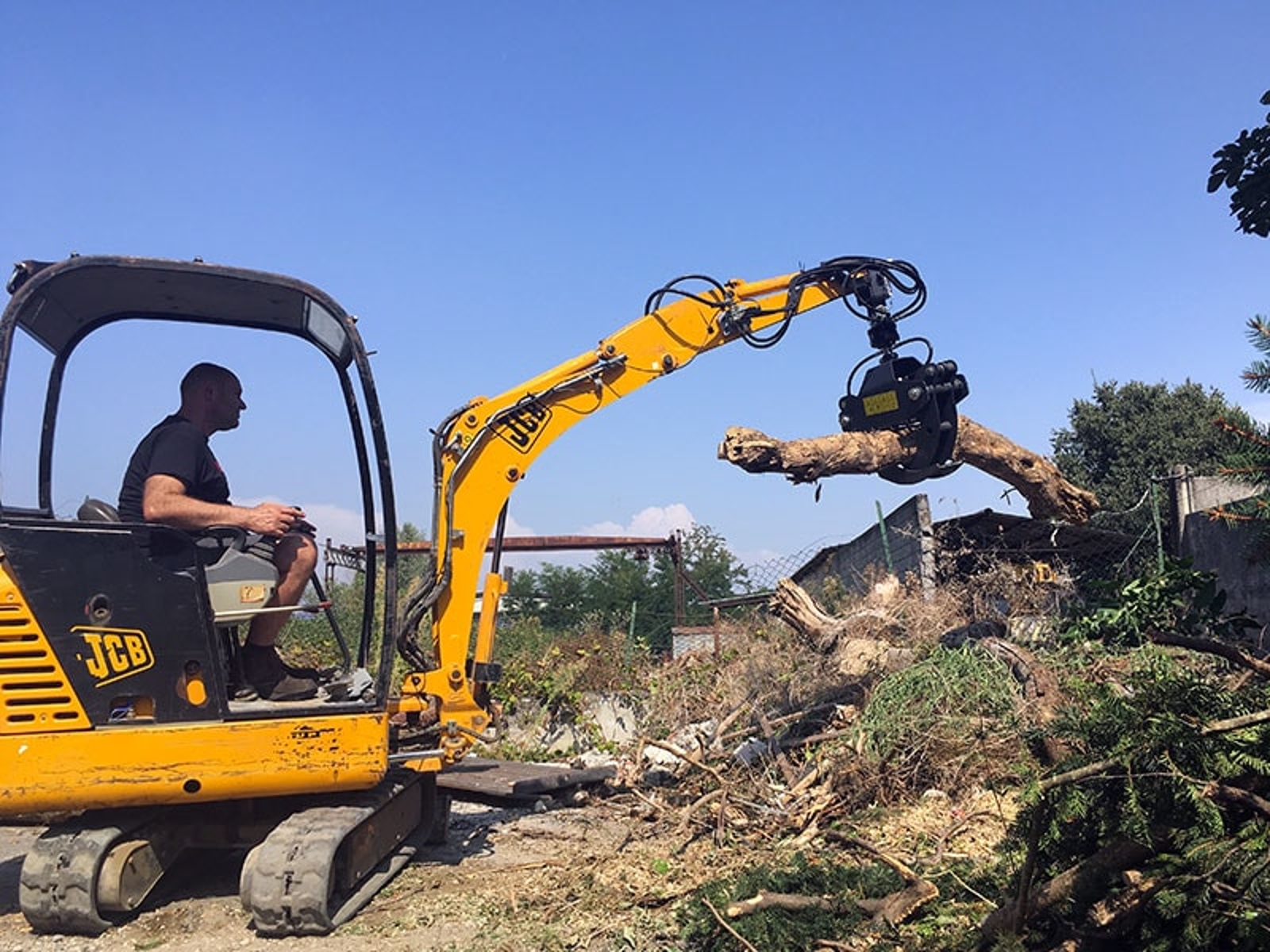

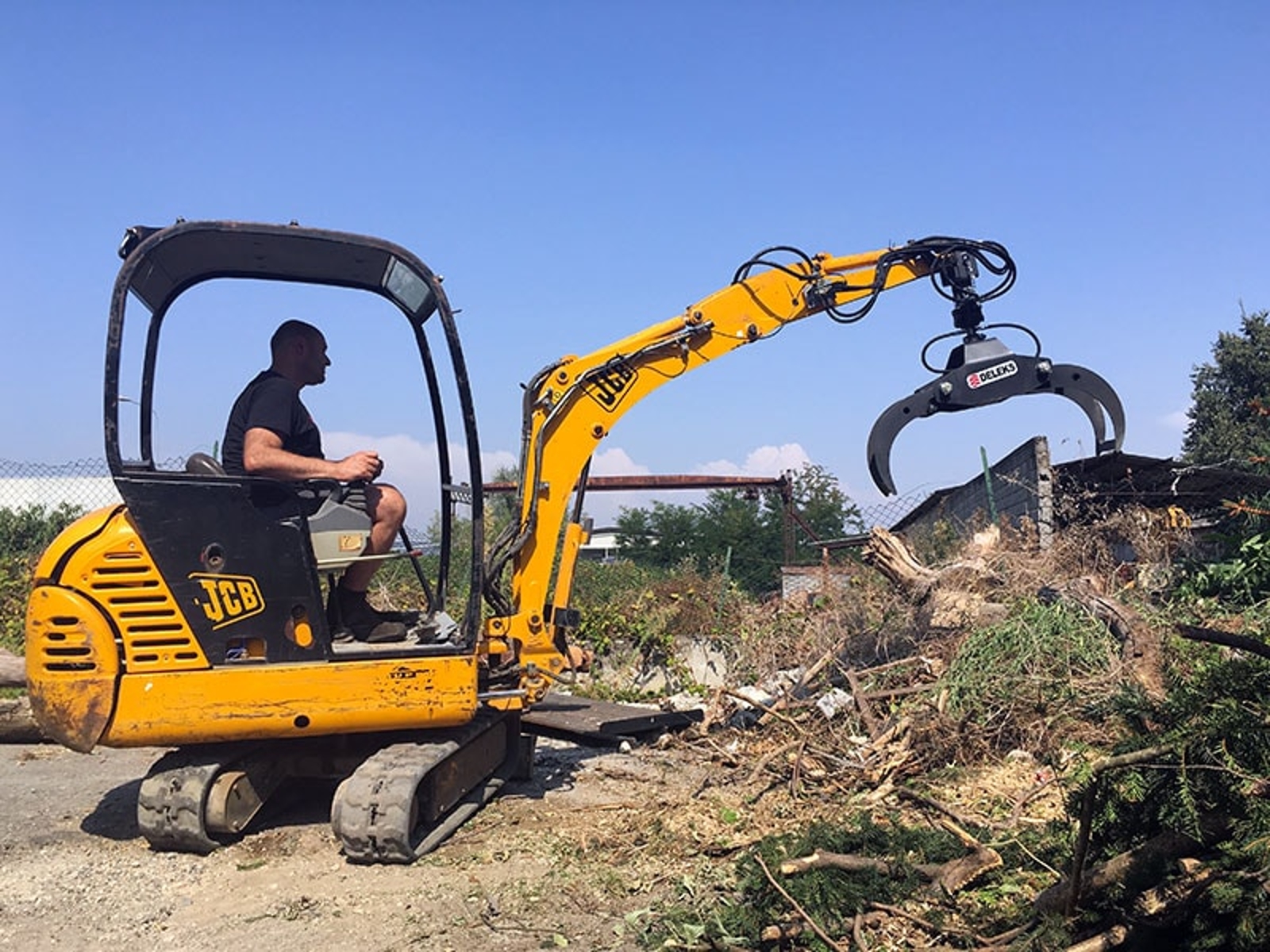

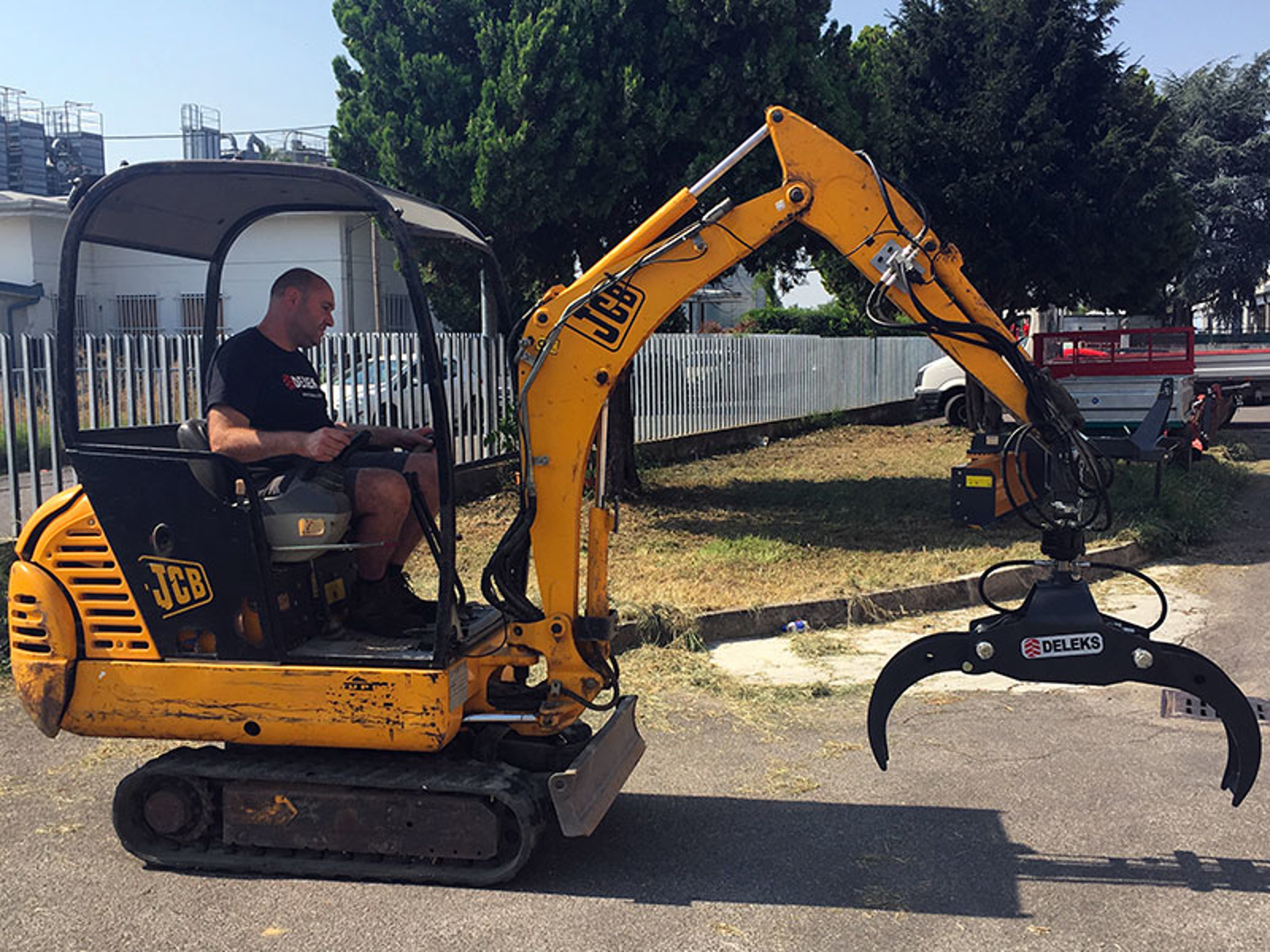

Perfect for carrying logs and timber around your farm or park. Maximum load 400.0 kg. Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

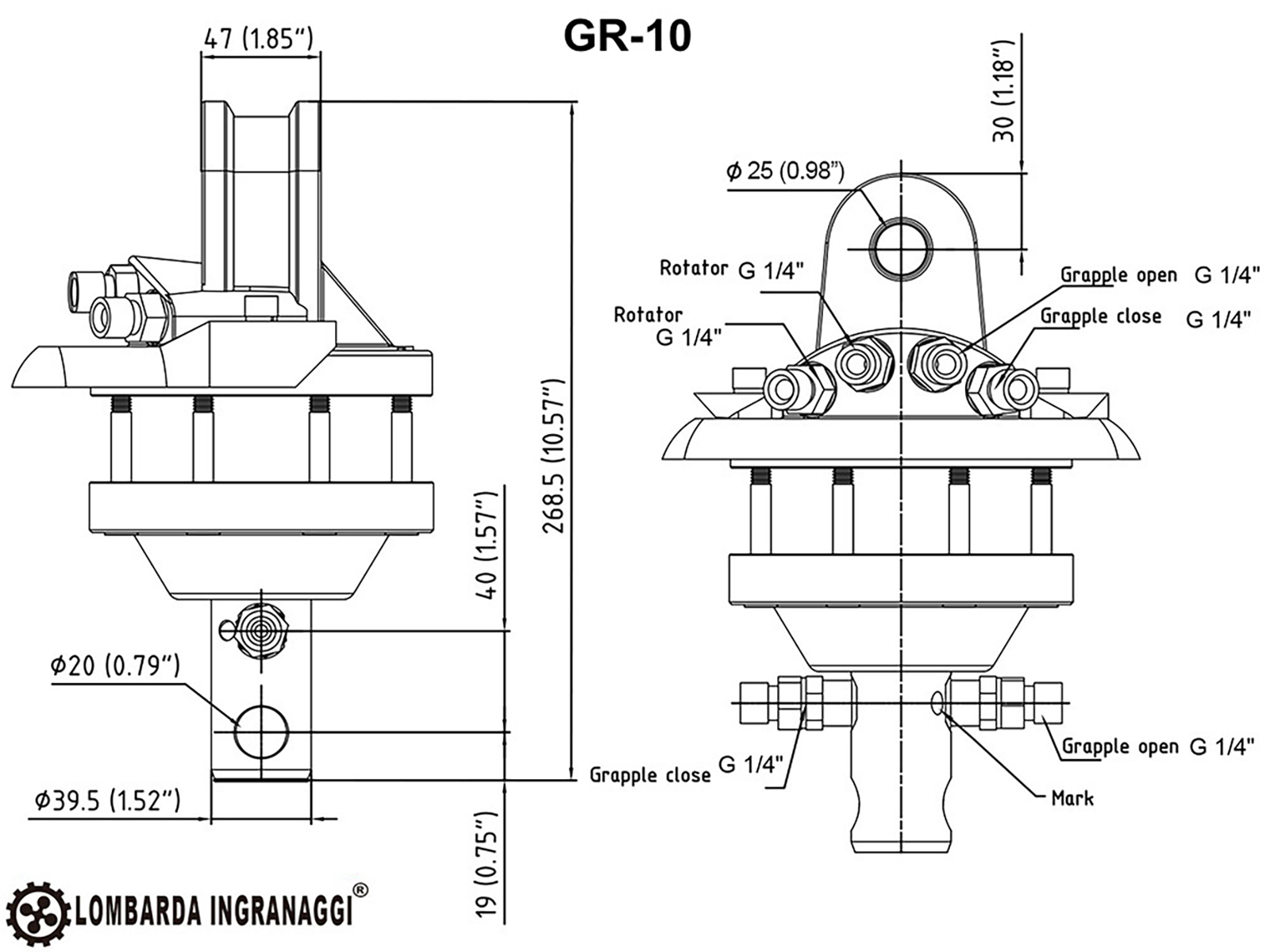

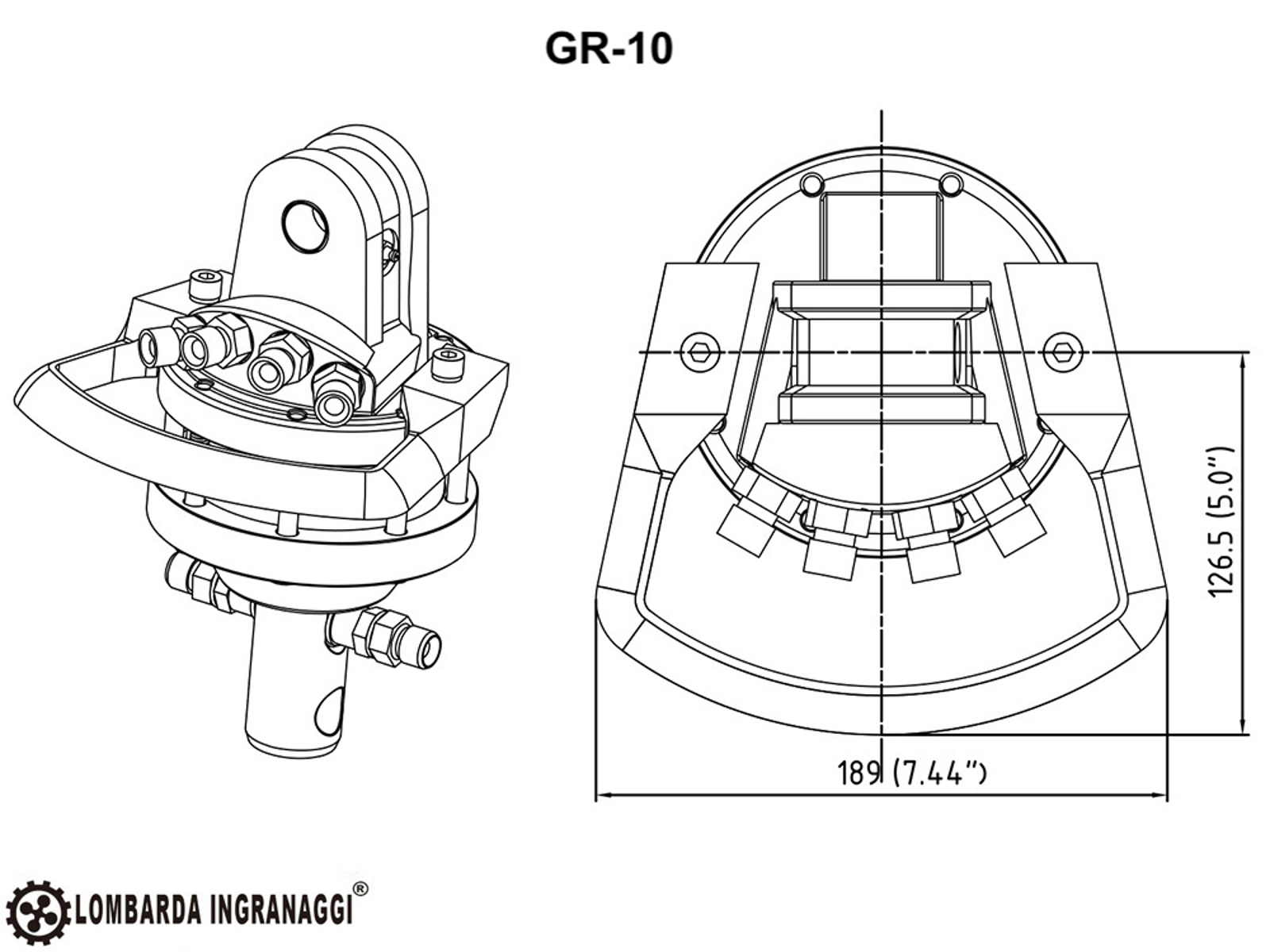

Rotator: Lombarda Ingranaggi's GR10 rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 1000kg. Grapple needs 4 hydraulic outlets to function or additionally, Deleks reduction valve can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.

BENEFITS & FEATURES

360º continuous rotation.

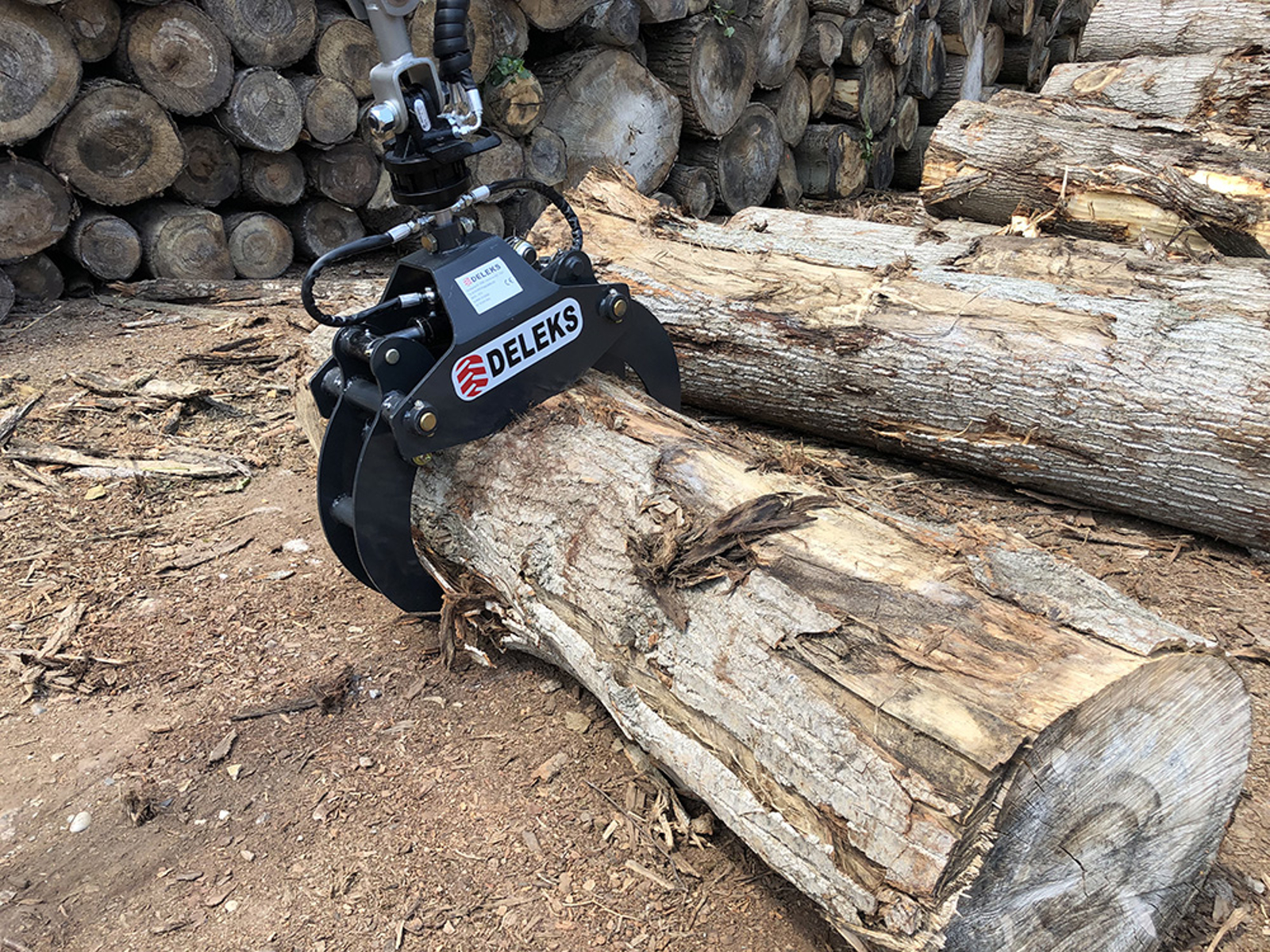

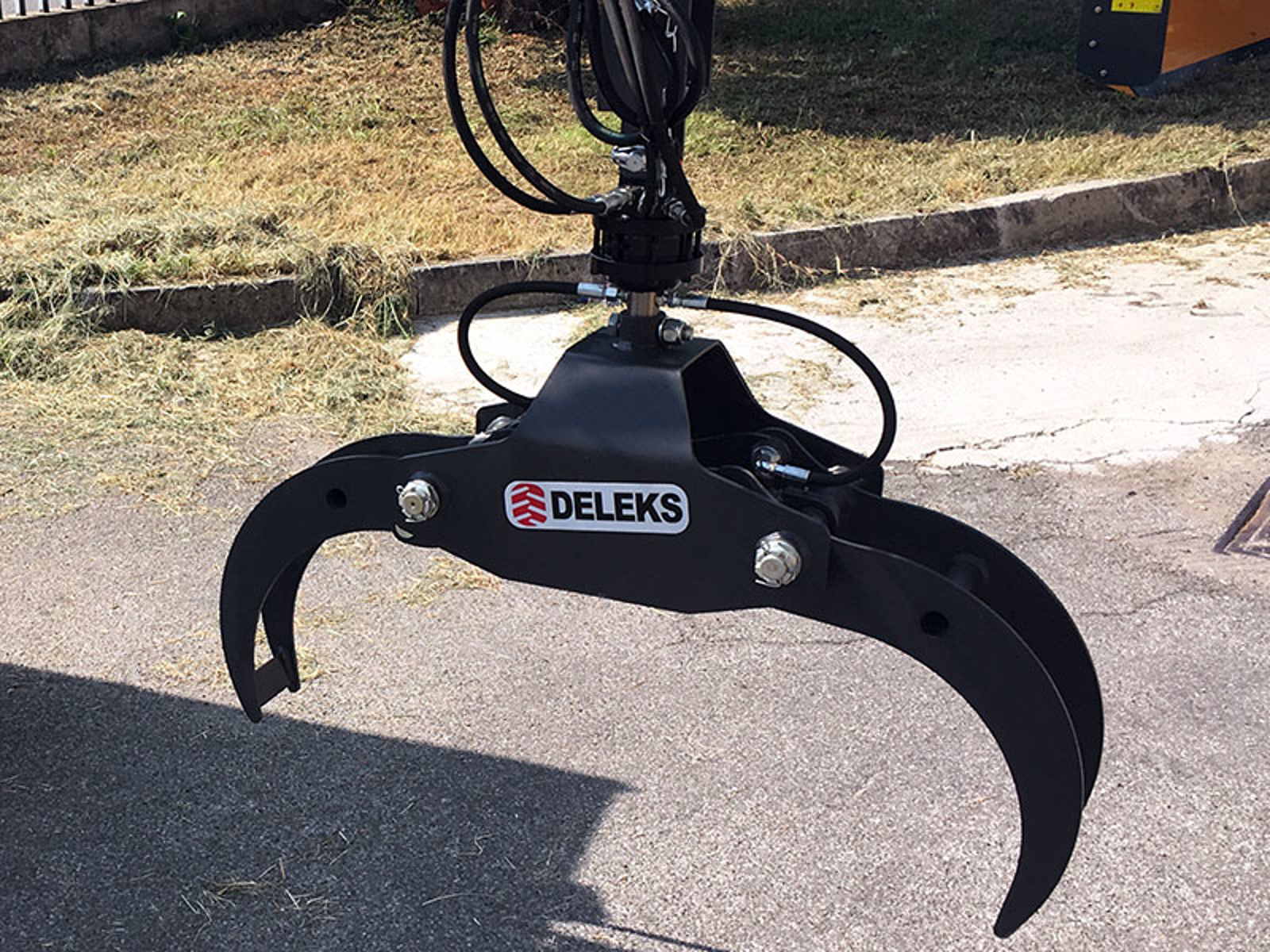

Thanks to the DK10's unique design it grips timber, boulders or debris tightly.

High tensile strength, reinforced grapple tines.

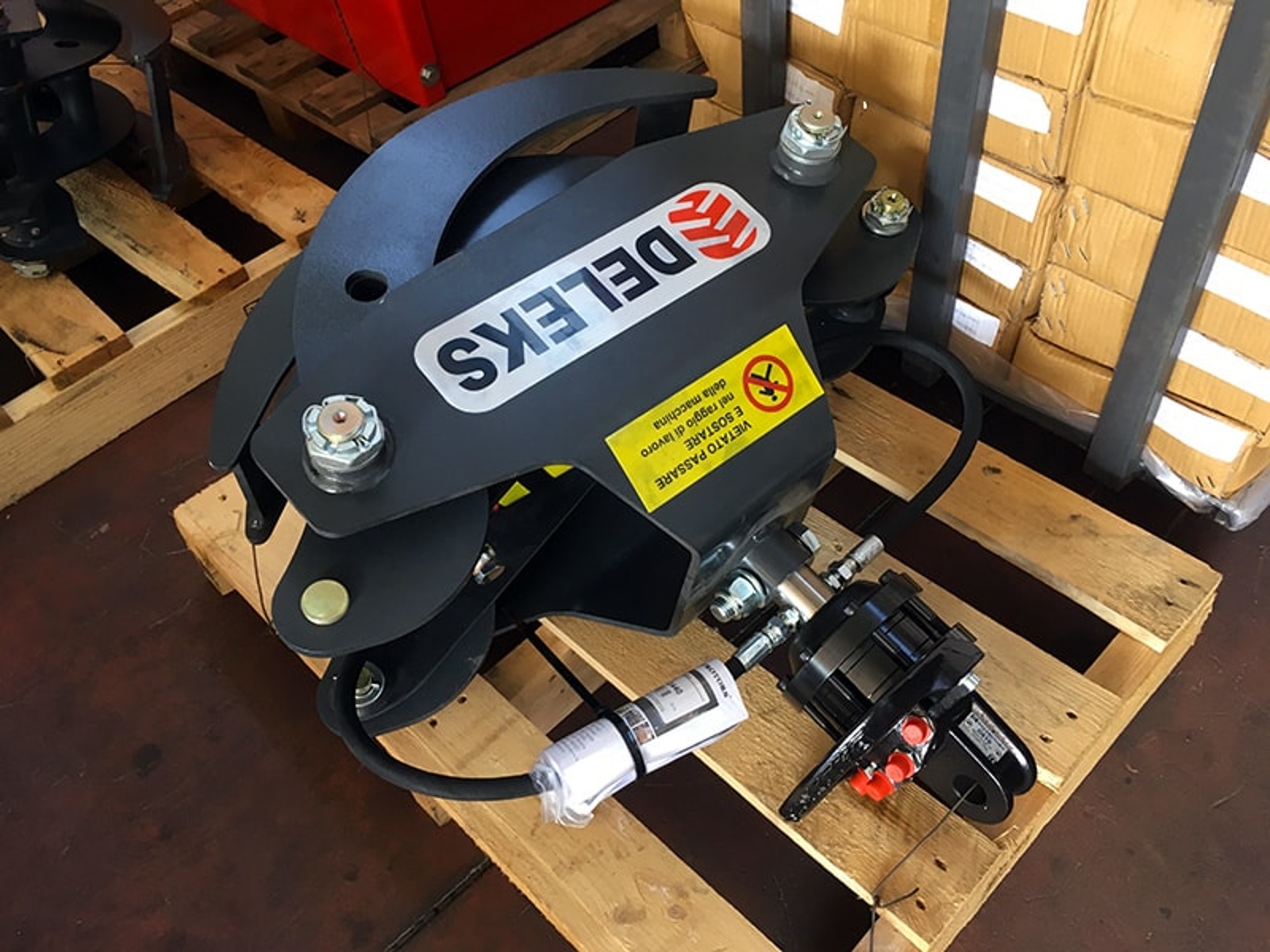

Optional: Kit Solenoid "4 pipes into 2" for mini excavators:

With this kit you can use the two pipes connected to the bucket cylinder to power four-way required by the clamp rotor (rotating - opening and closing).

In order to function the valve must be connected i with a simple wire to a power source 12 volts, it is possible for example to connect to the horn and then use the key on the lever to select rotation or opening.

The kit includes 6-way diverter Rexroth made in Italy.
