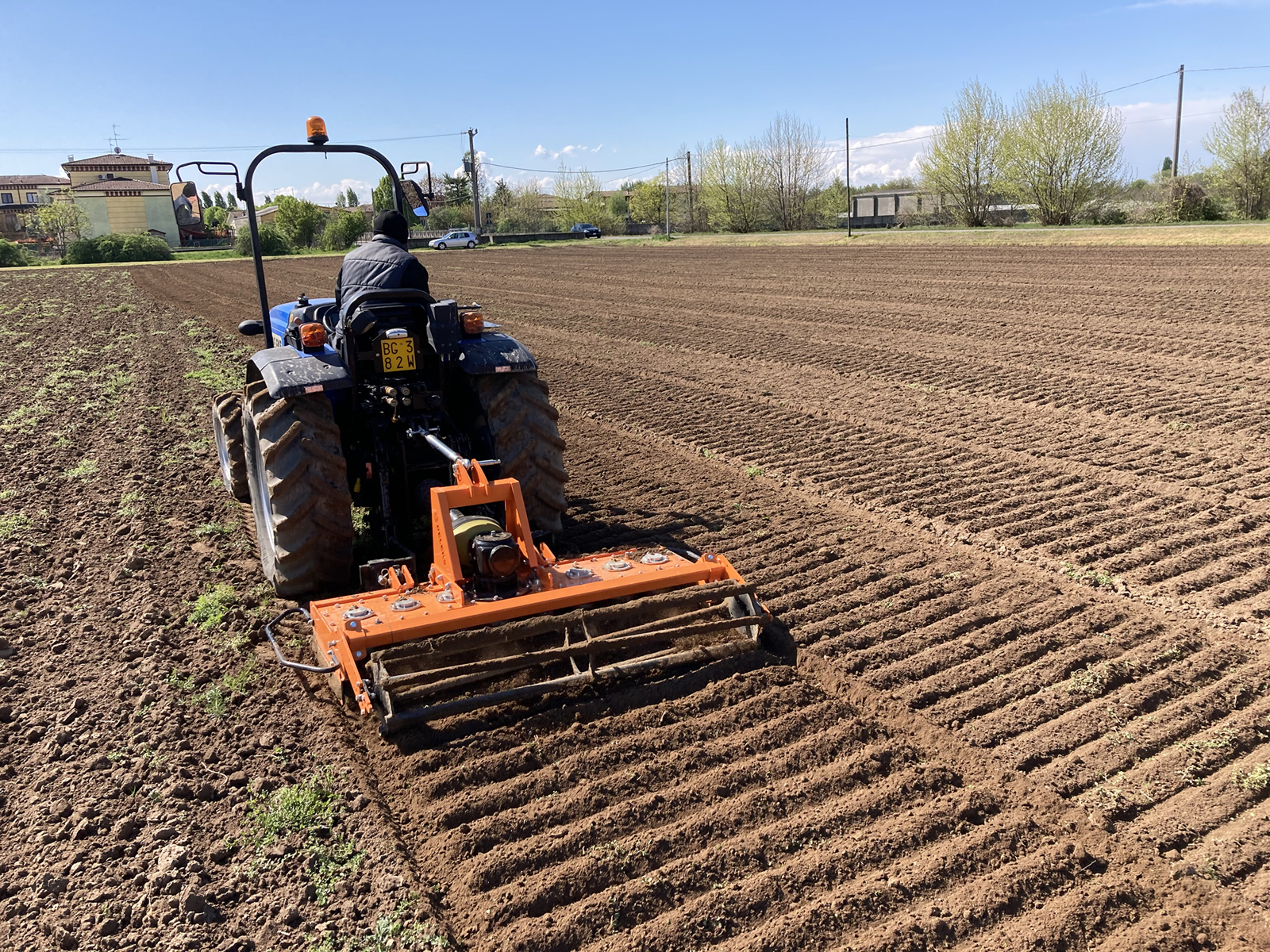

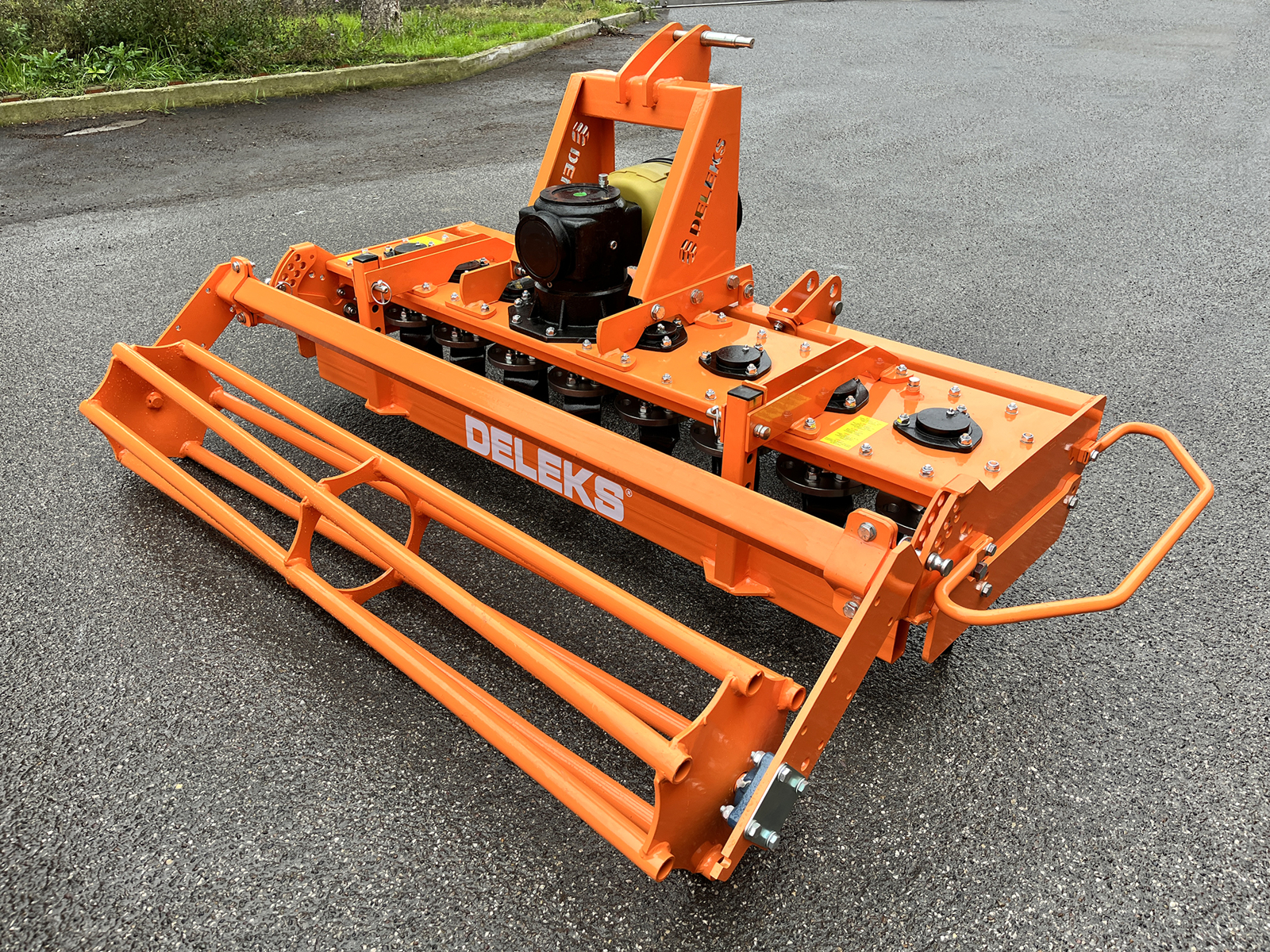

Rotary Harrow with Pipe roller for 55 - 80 HP tractors
DETAILS

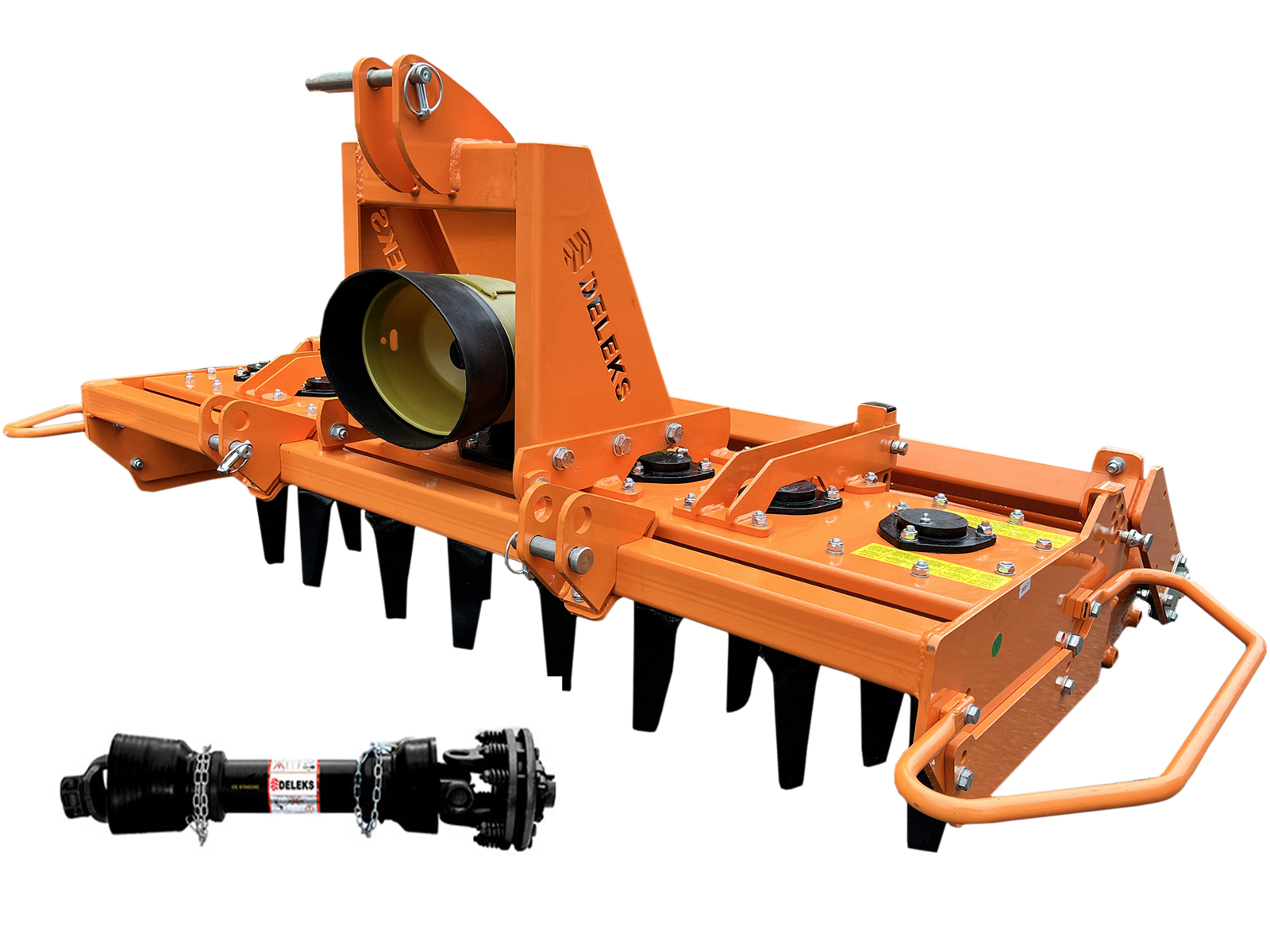

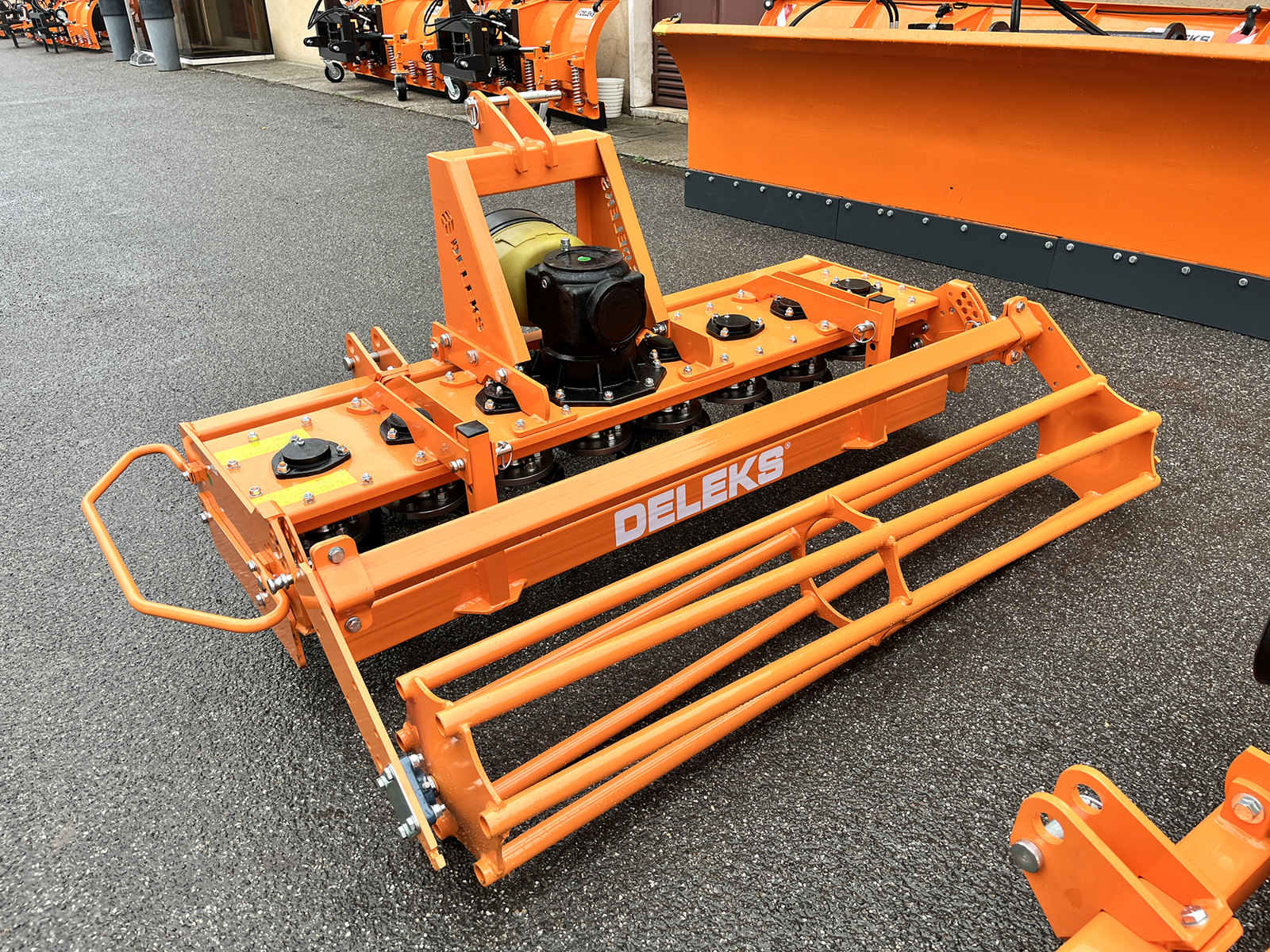

DELEKS® Power Harrow 206cm for tractors from 55 - 80 HP, equipped with standard rear cage roller (grit roller available as an optional) and single speed gearbox for P.T.O. 540 r.p.m.
OVERVIEW

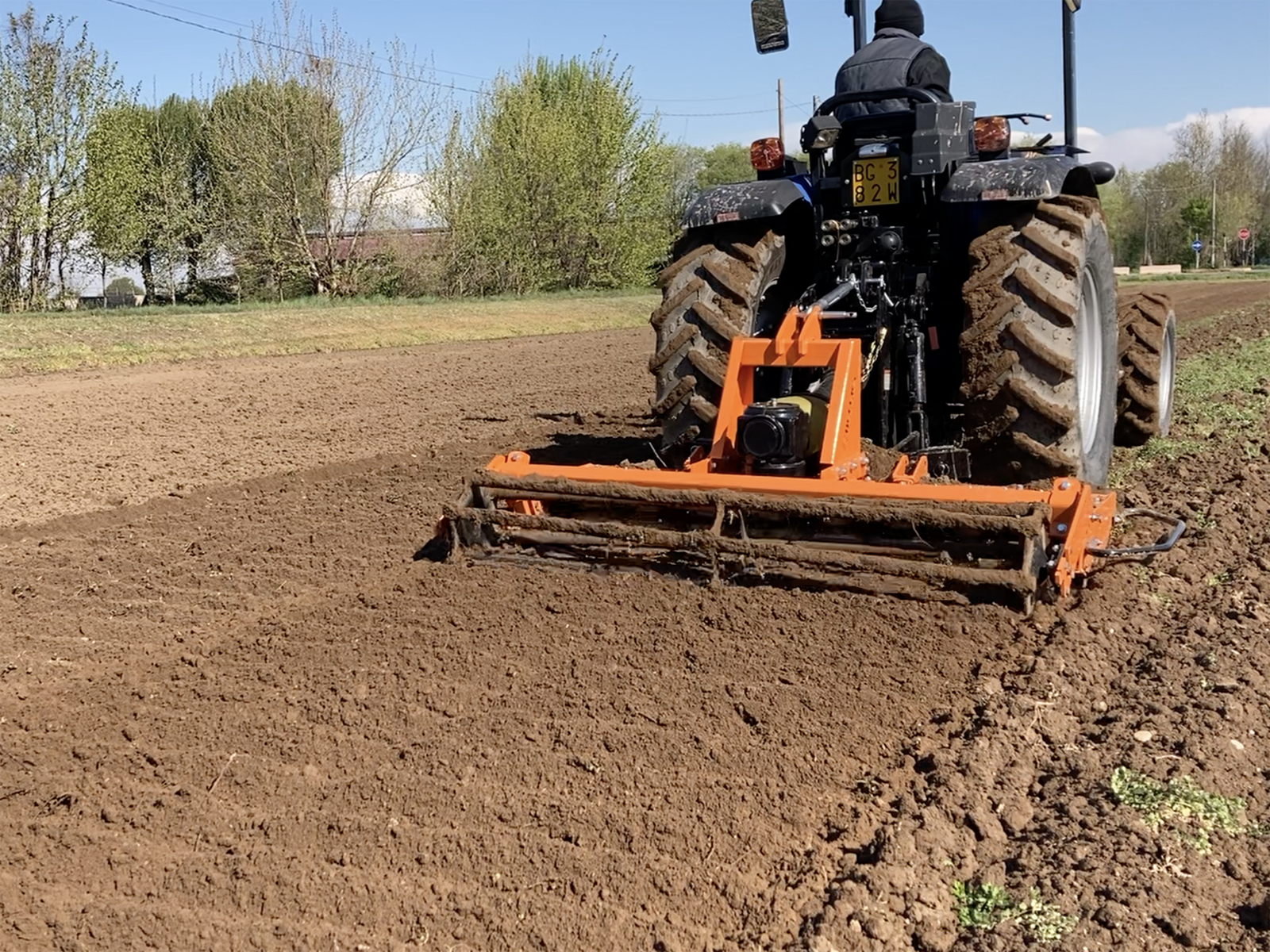

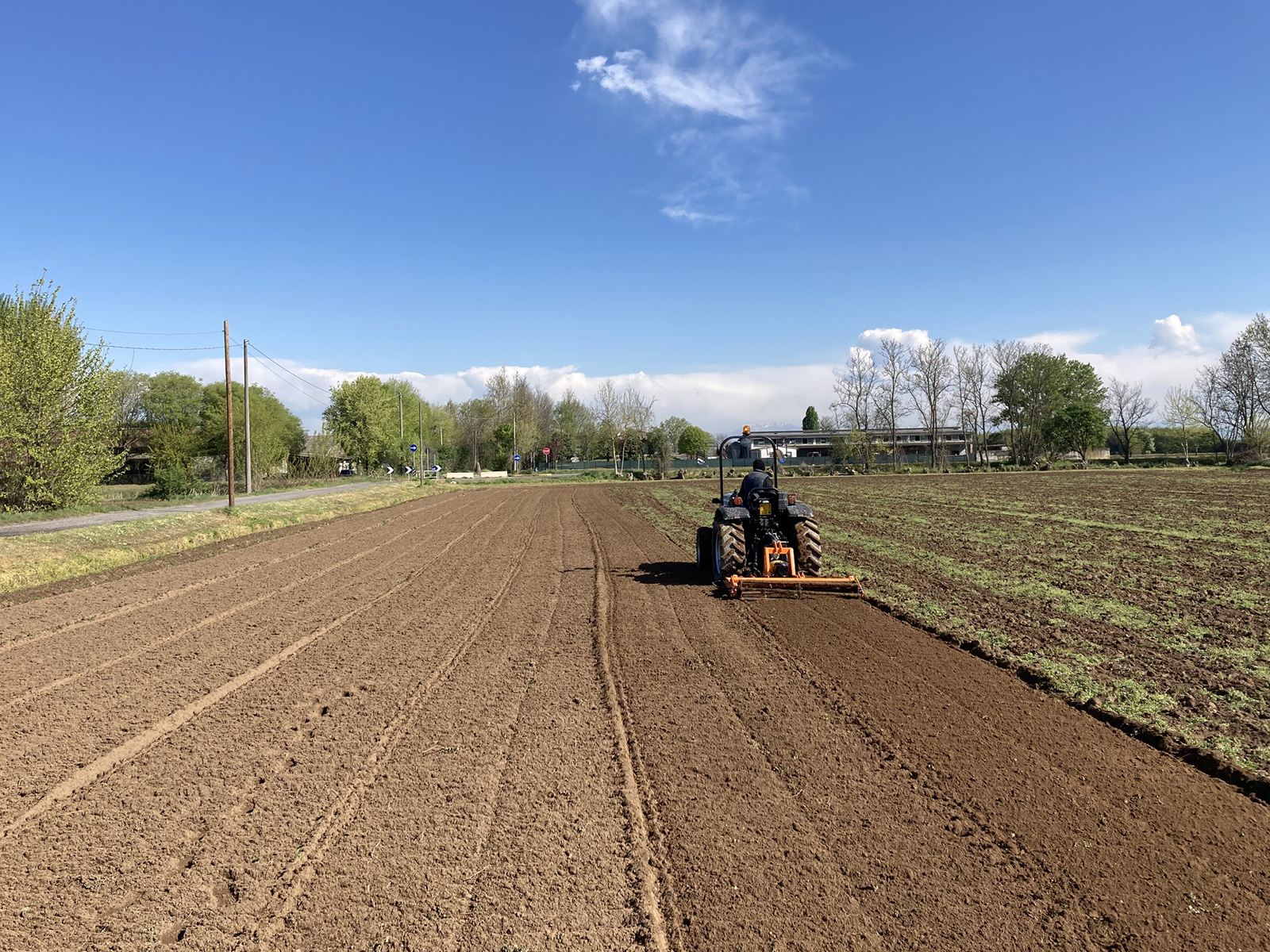

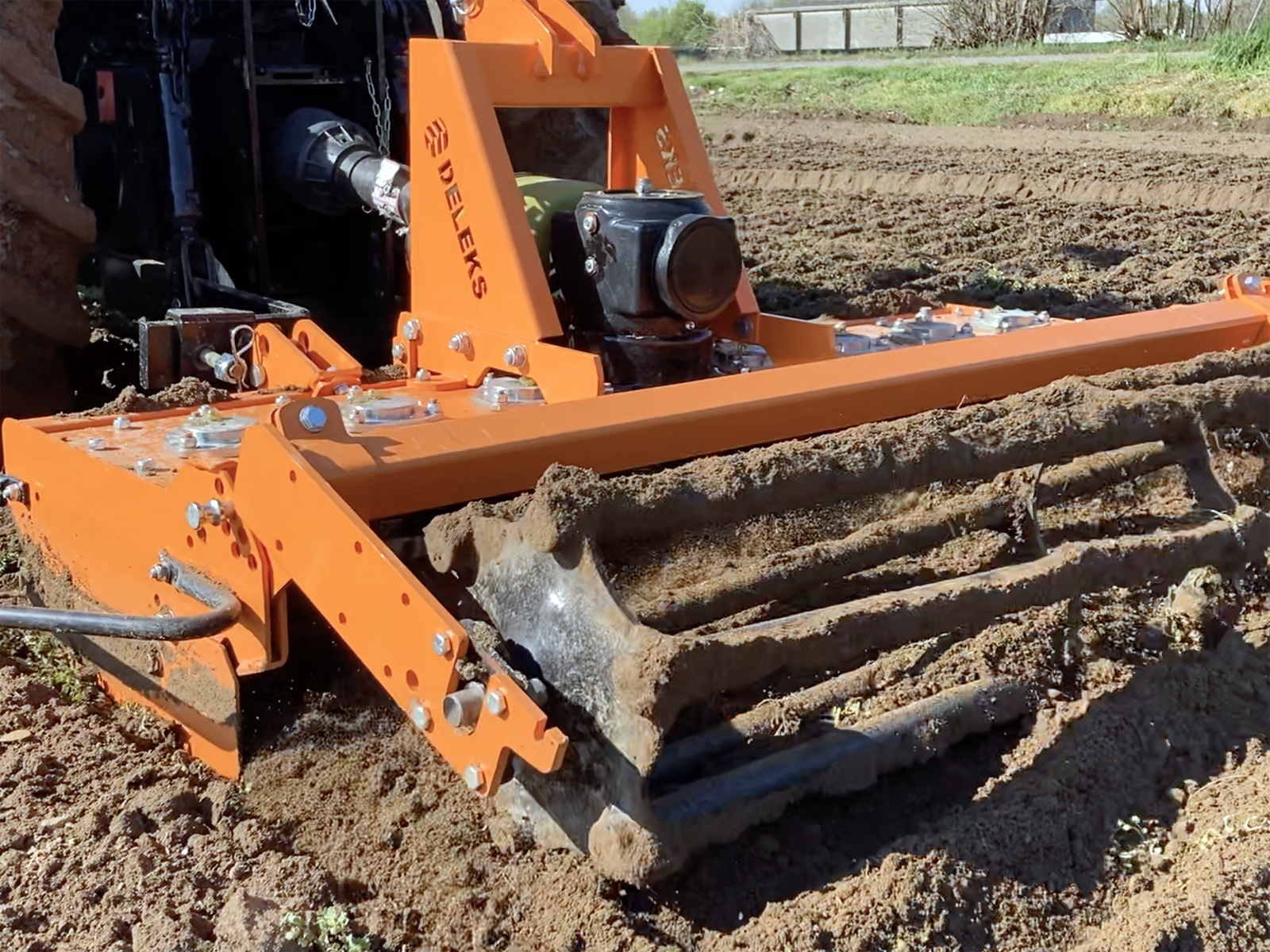

The KR model harrow has been designed for small farms and for tilling soil in specialized cultivations such as market gardening and viticulture. The special attention given to its overall dimensions and lightness makes it an ideal implement for low HP tractors. The special design of the blades allows the soil to be broken up with considerable economy in tractor power use.
ACCESSORIES AND EQUIPMENT

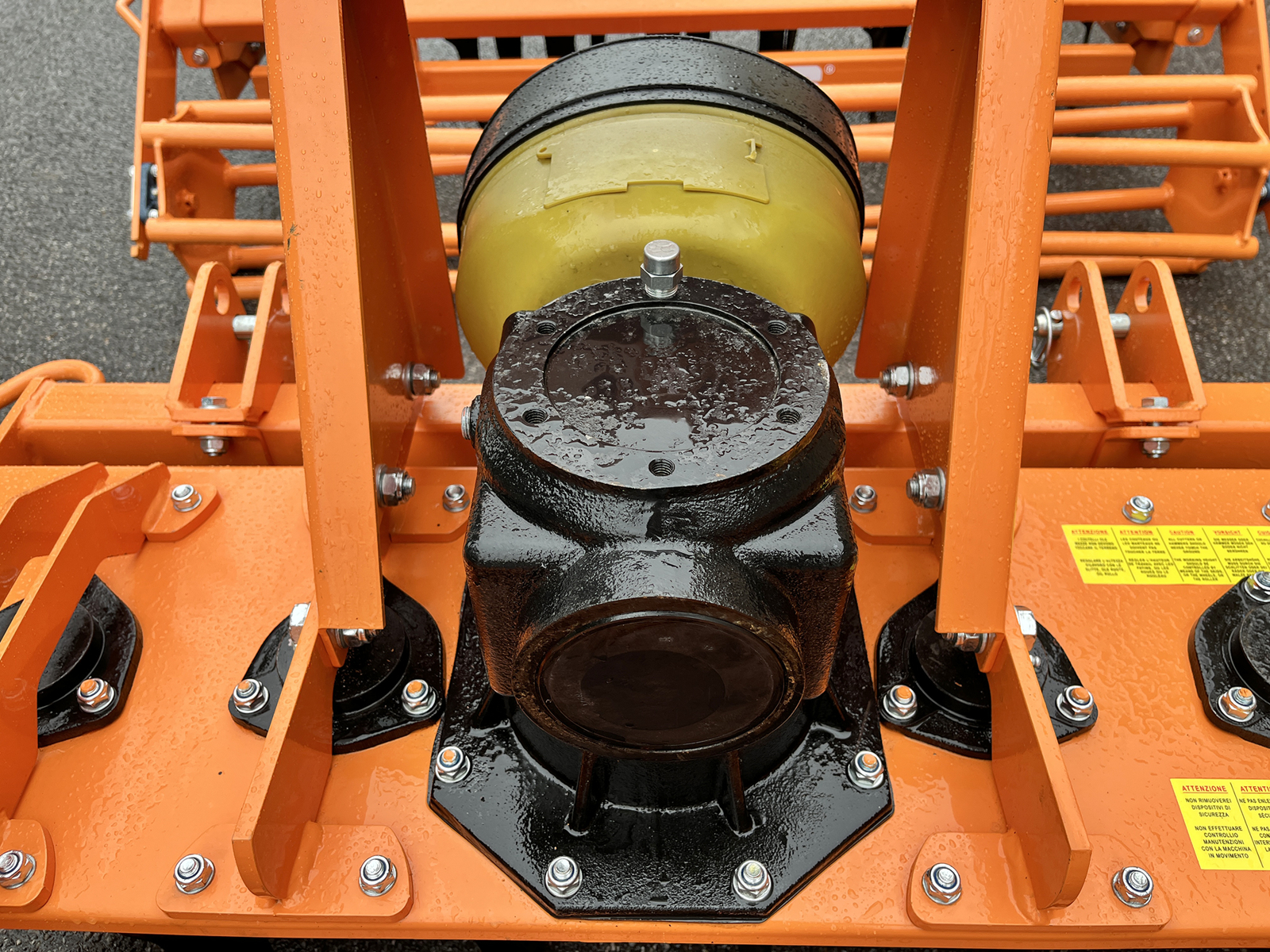

Single speed gearbox 540 r.p.m

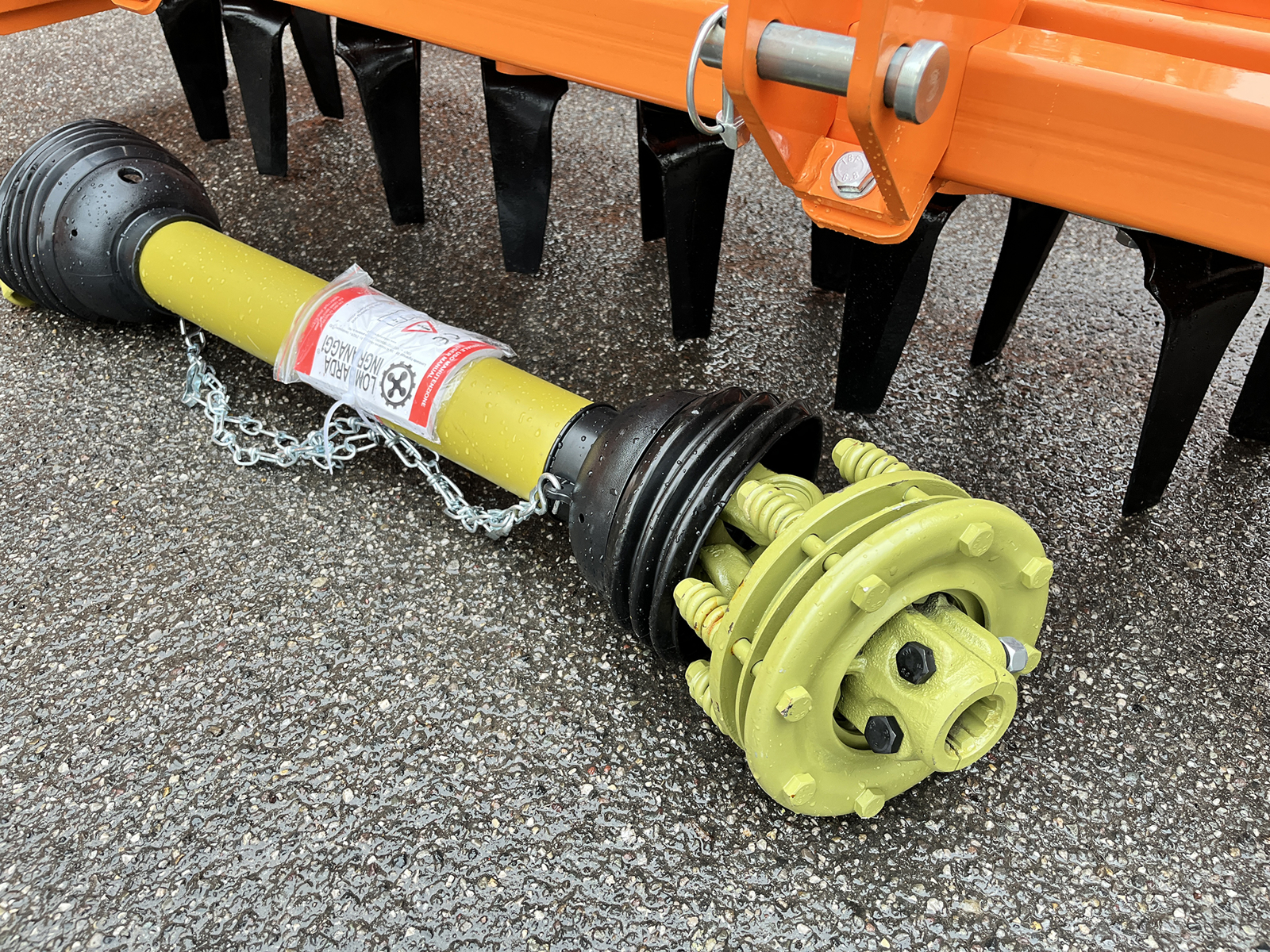

P.T.O. shaft with clutch

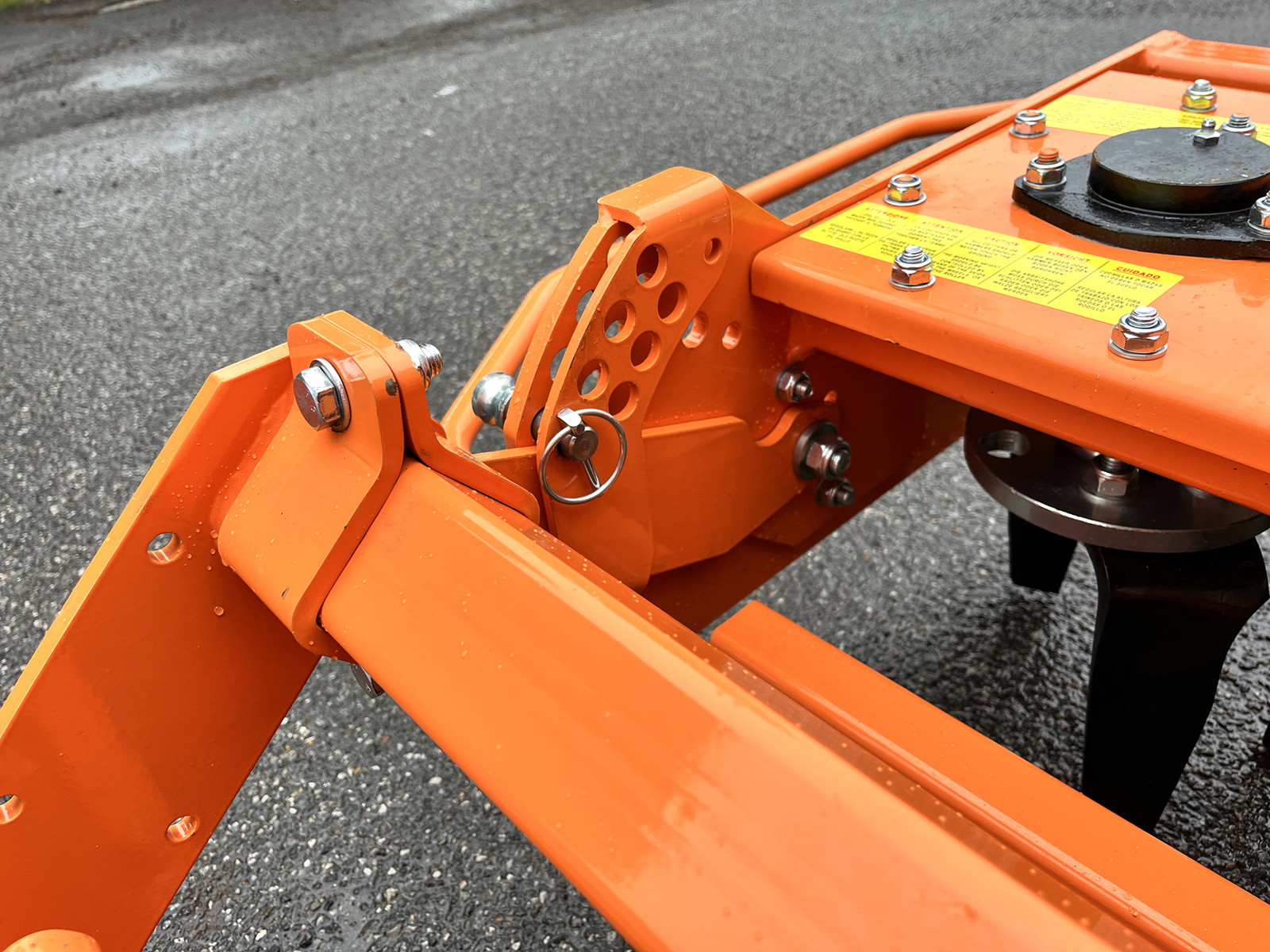

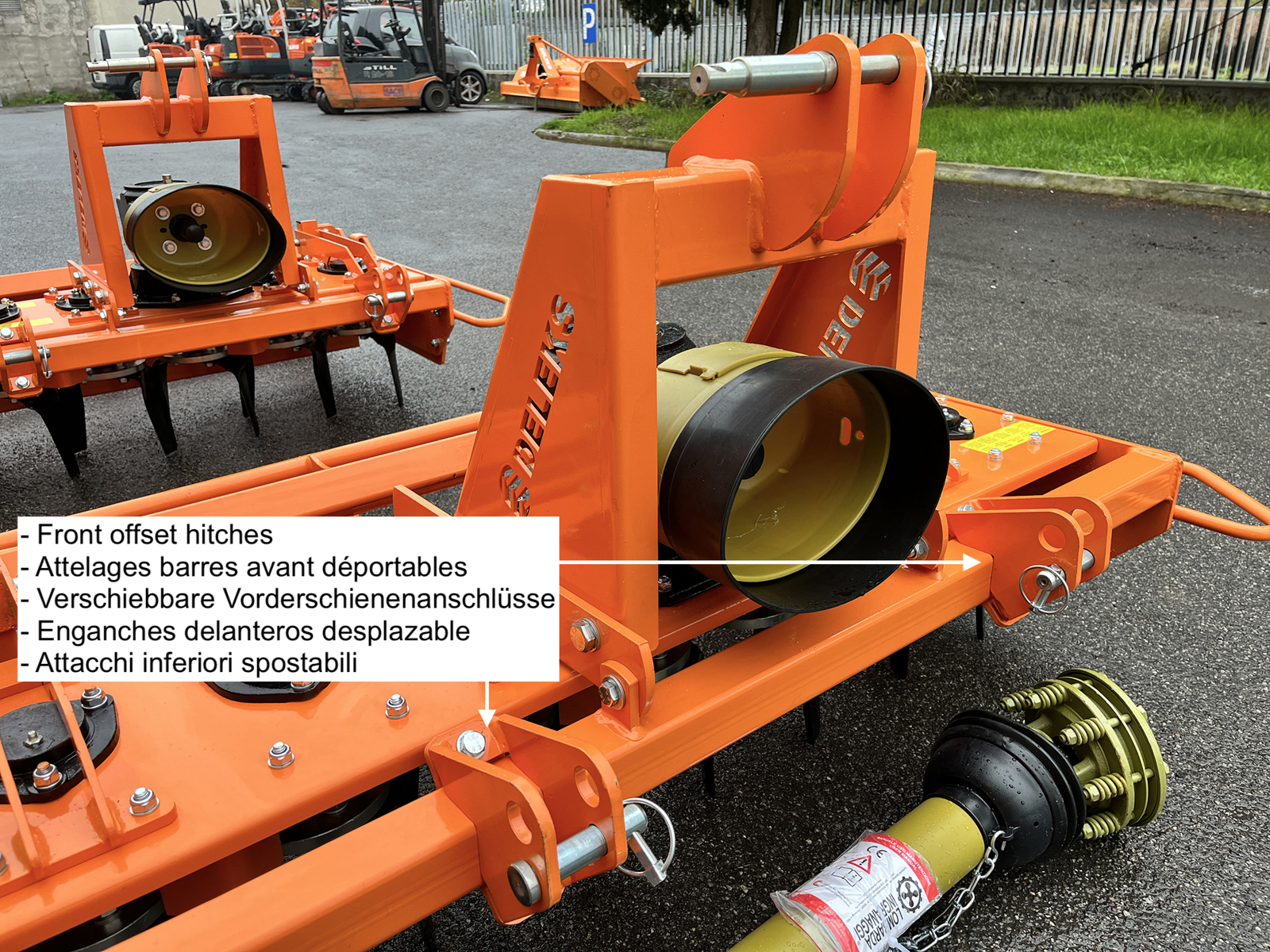

Universal 3 point hitch, cat. 1 and 2

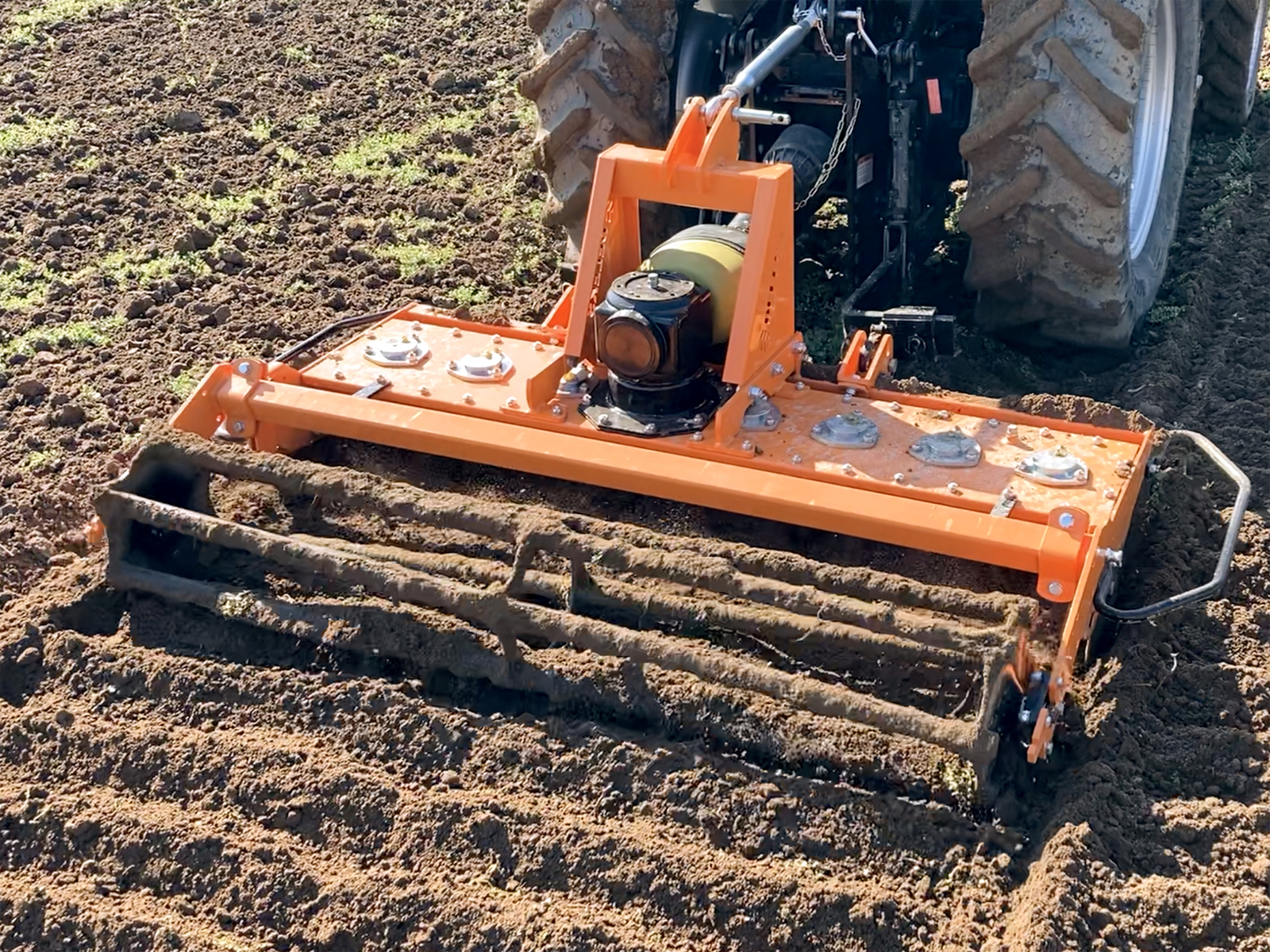

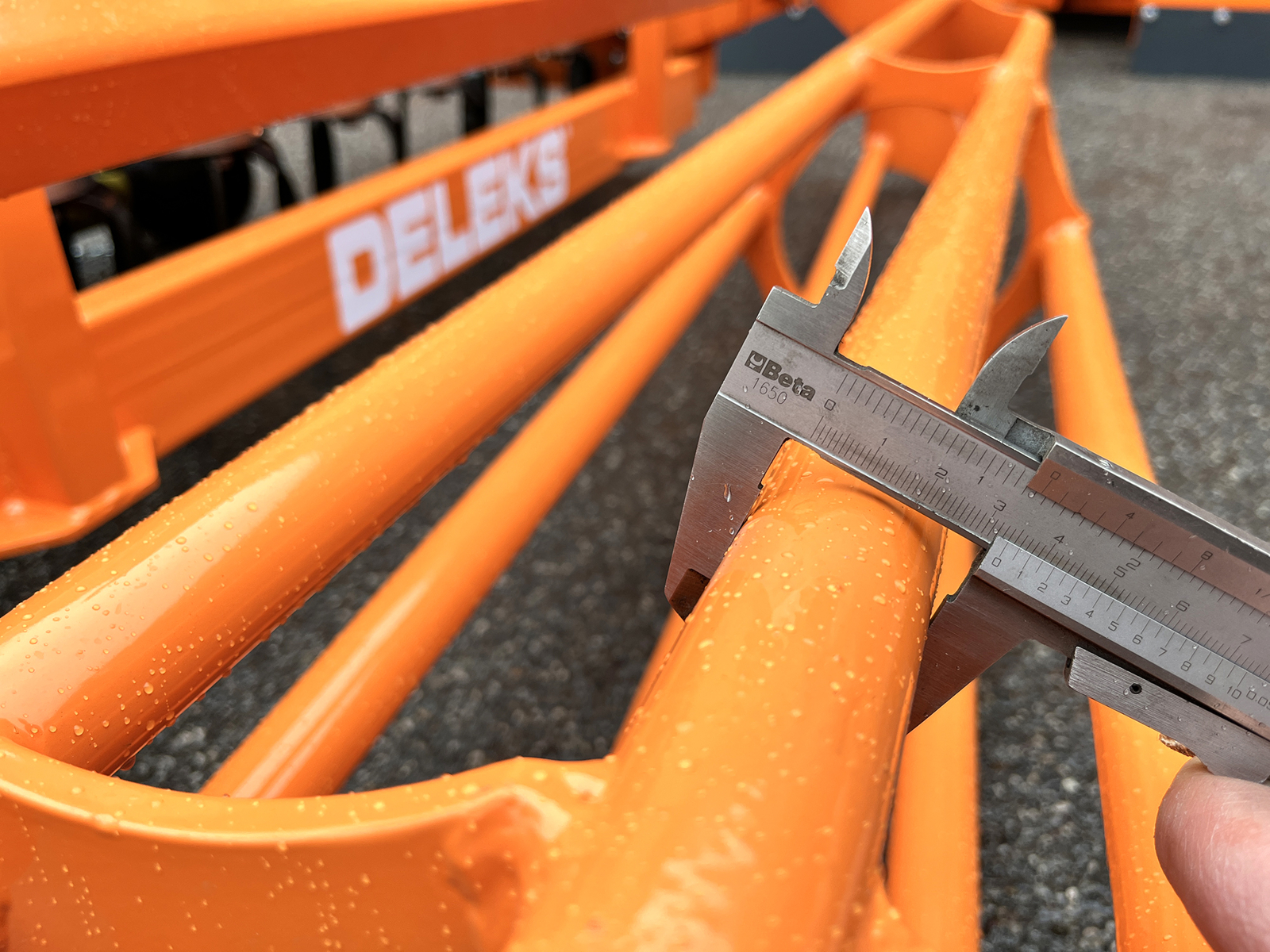

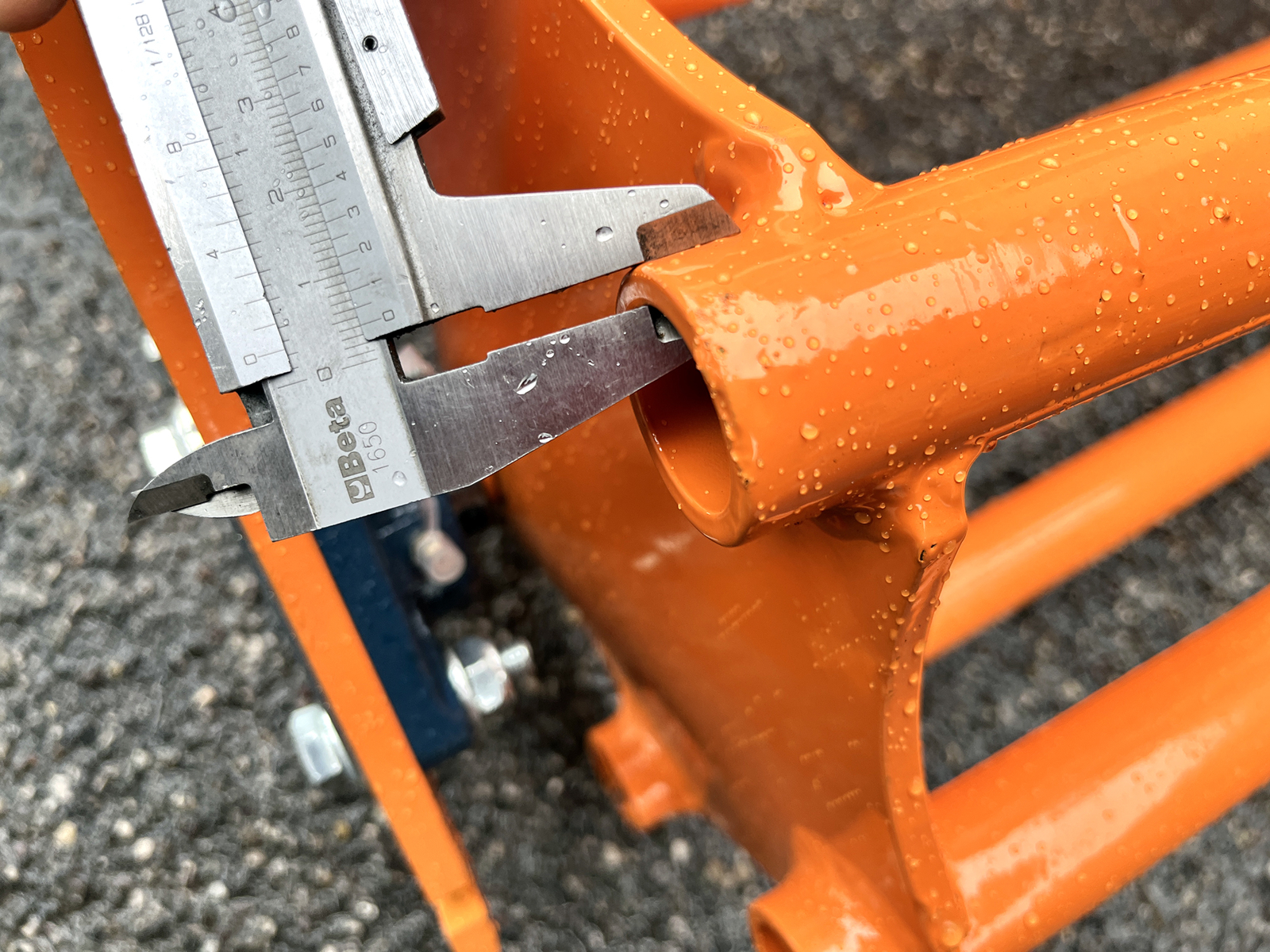

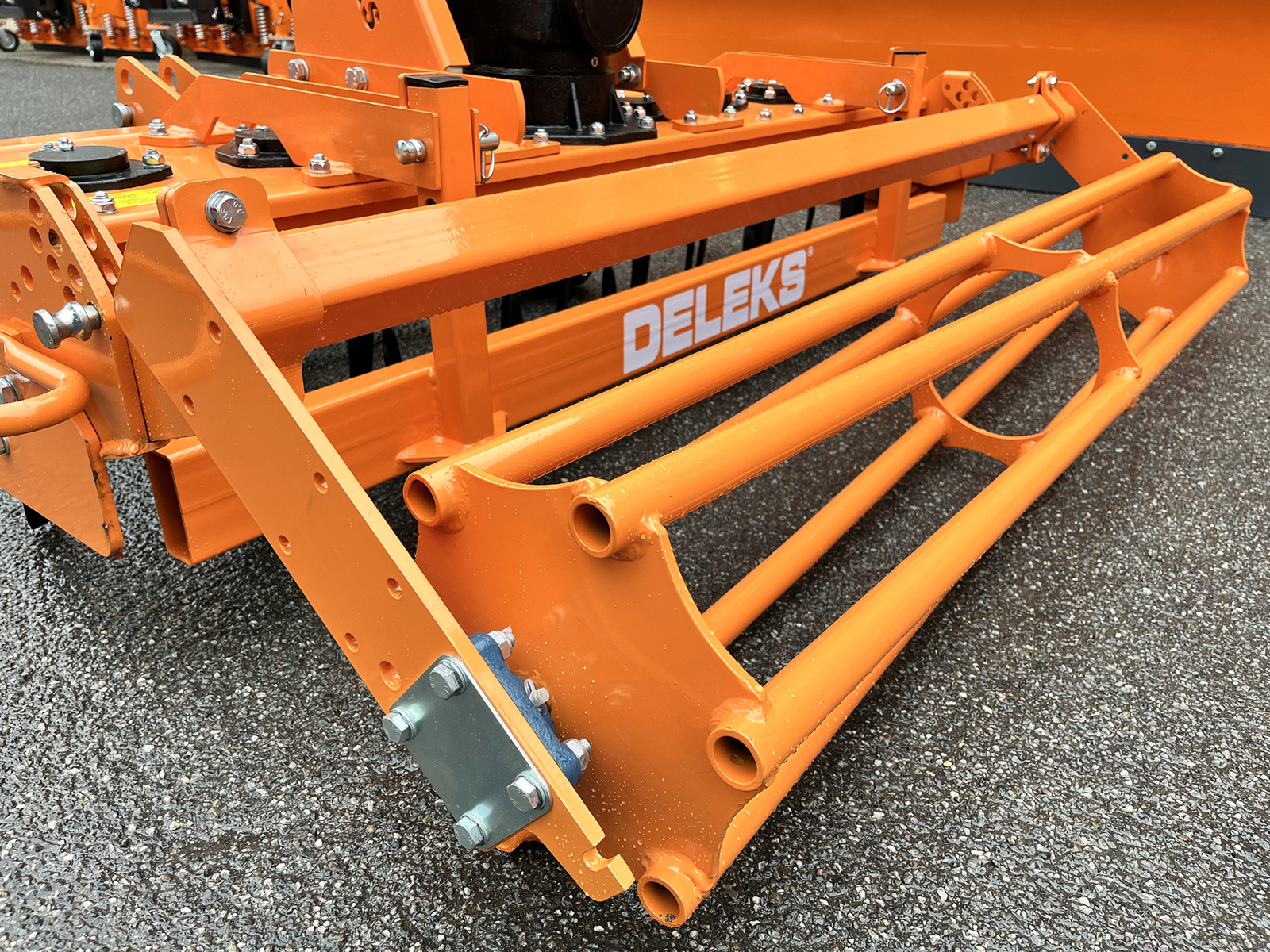

Rear pipe roller
2 blades per rotor

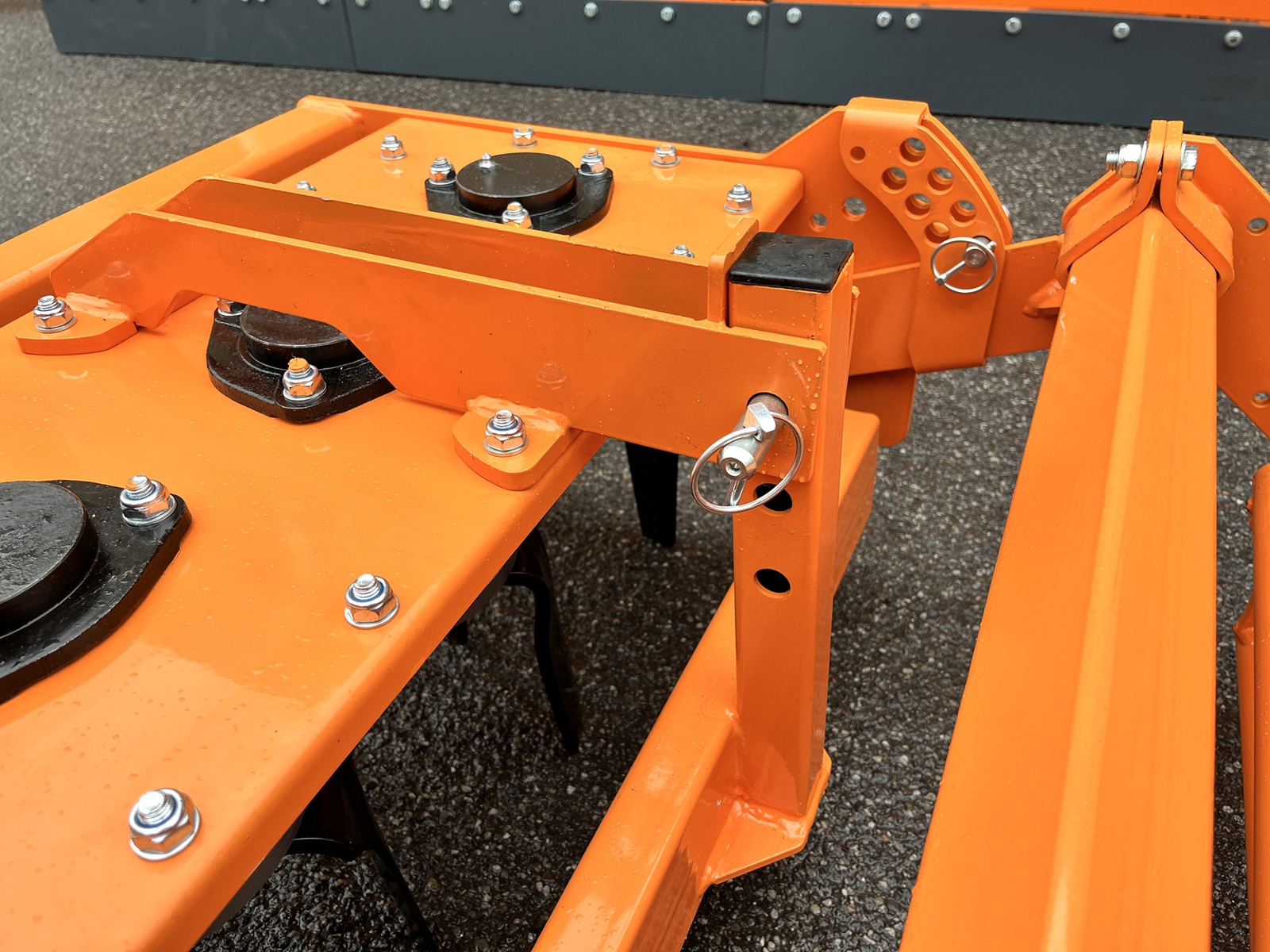

Rear levelling bar
EC safety guards

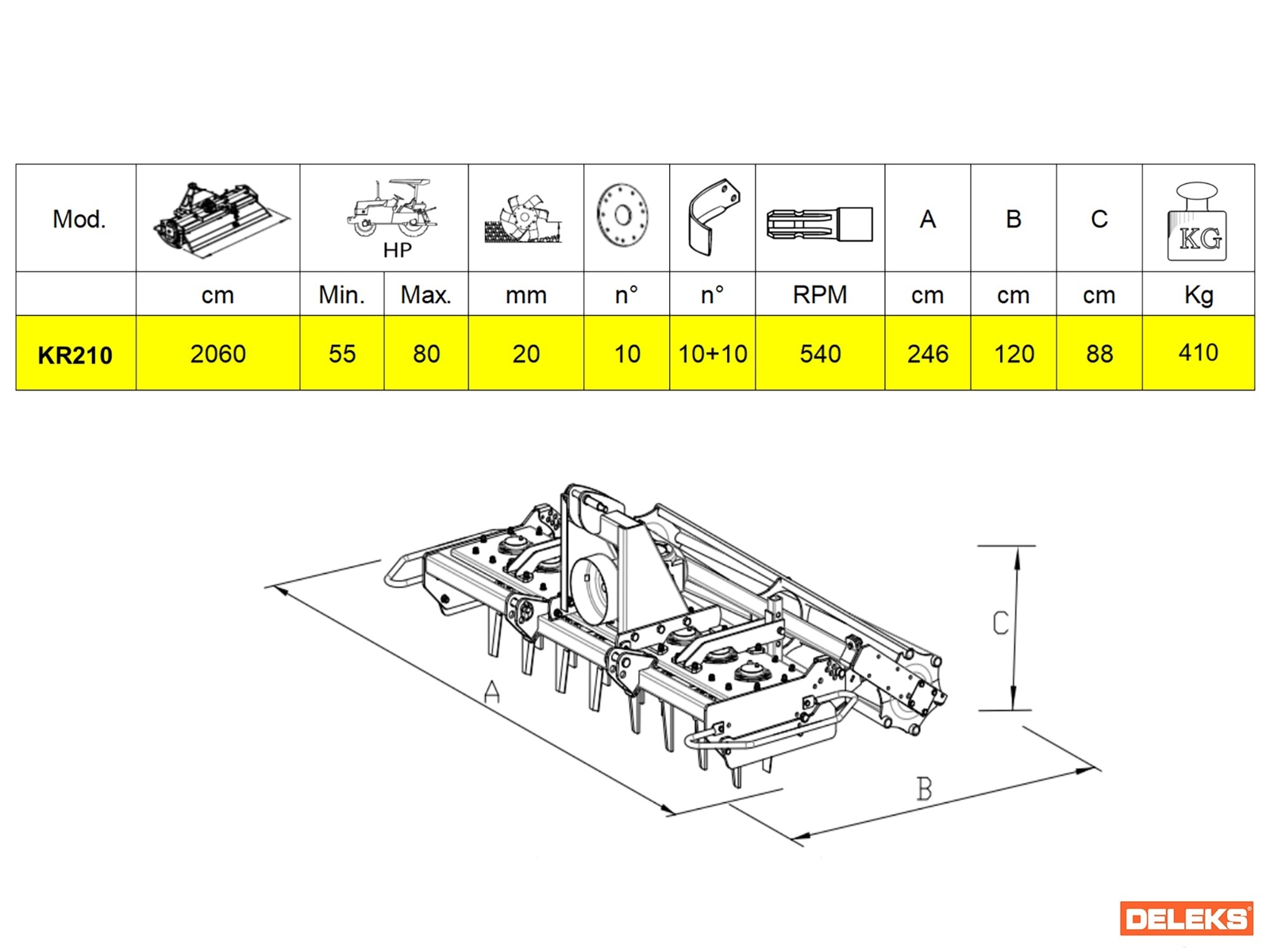

CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 2060.0 mm |
| Weight | 410.0 kg |
| Overall height | 880.0 mm |
| Tractor Power Range | 55 - 80 Hp |

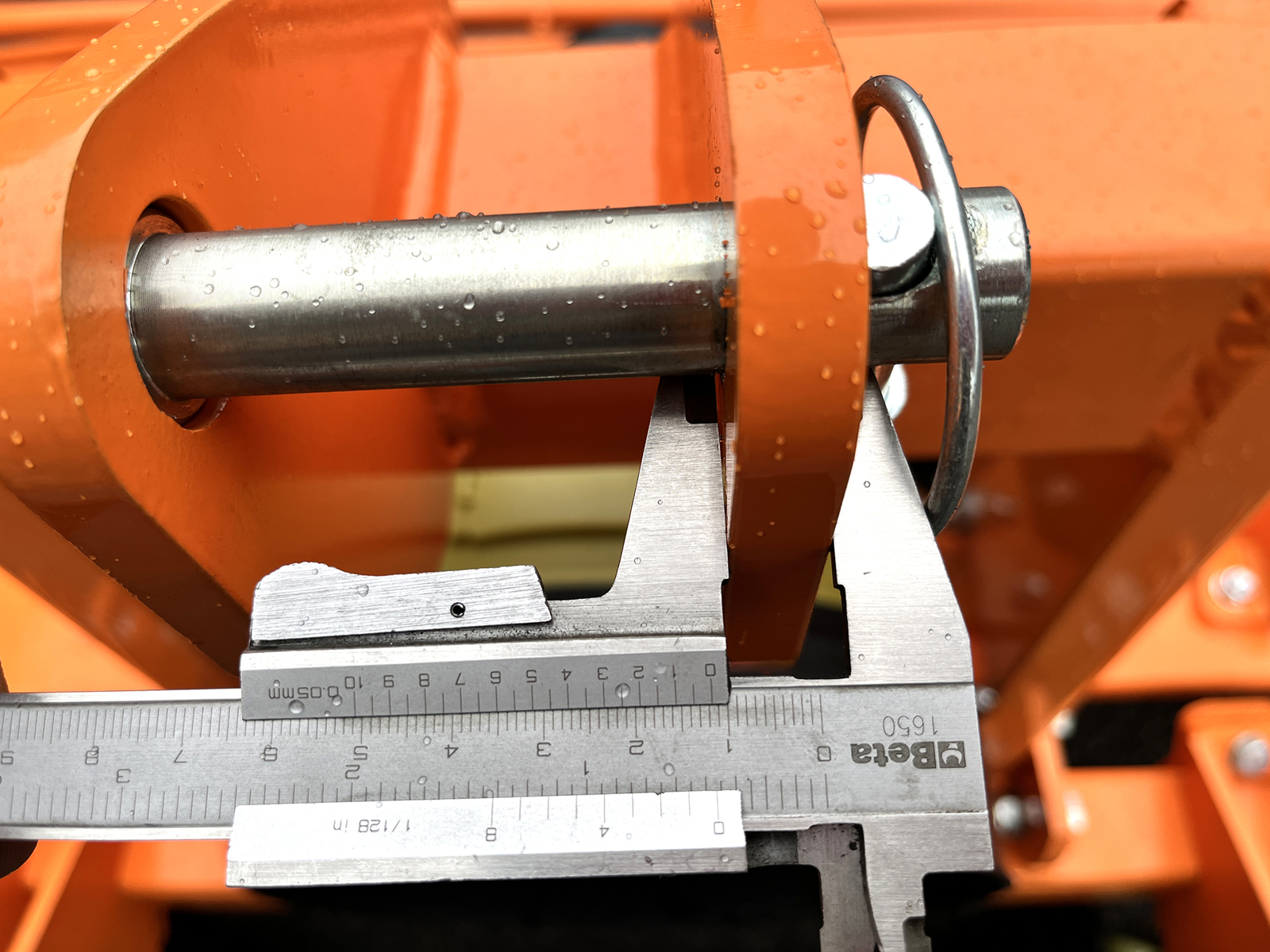

| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | < 1030.0 mm - 1030.0 mm > |
| Overall length | 1200.0 mm |
| Effective Working width | 2060.0 mm |
| Working Depth Range | 160.0-200.0 mm |
| Distance between pto attachment and base | 520.0 mm |
| Pto shaft | CE 6x1000 mm + clutch |
| Gearbox | 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| RPM Rotor speed | 300 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Packing sizes | 21000.0*900.0*900.0 mm |
